USER MANUAL RolloDrive 65 Premium Schellenberg

Safety and notices 15

Technical data 17

Product explanation 19

Keys and display explanation 20

A Dimensions 217
Required tools 218
Scope of delivery 218
B Installation 219
C Setting the end positions 231
D Changing / correcting the end positions 235
E Manual operation 236
F Automatic operation: Setting the opening and closing times 238
G Obstacle detection 241
H Stuck shutter detection 244
Run-time limiting 247
J Optional accessories: Sun and twilight sensor 248
K Setting the brightness value - Sun function 253
L On/off switching of the Sun function 253
M Function chart of the sun function 259
N Setting the Twilight value - Twilight function 265
On/off switching of the Twilight function 265
P Function chart of the twilight function 271
Q Manual and automatic switching 277
R Optional accessories: Hand-held wireless remote control / timer 281
S Pairing of the hand-held wireless remote control with Rolllodrive 65 premium .. 282
T Pairing of further hand-held wireless remote controllers 287
U Factory default reset 289

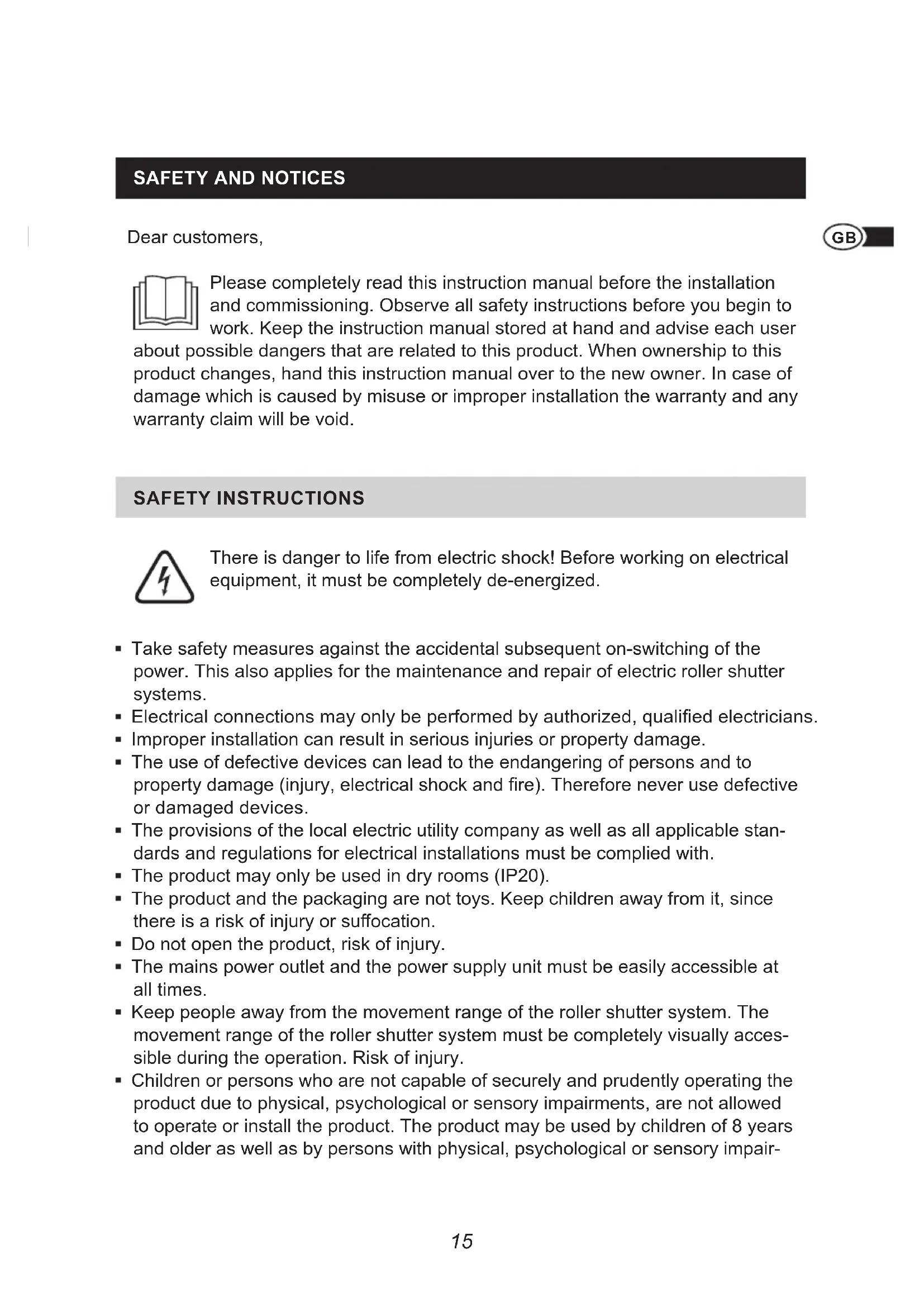

SAFETY AND NOTICES

Dear customers,

Please completely read this instruction manual before the installation and commissioning. Observe all safety instructions before you begin to work. Keep the instruction manual stored at hand and advise each user possible dangers that are related to this product. When ownership to this changes, hand this instruction manual over to the new owner. In case of which is caused by misuse or improper installation the warranty and any claim will be void.

SAFETY INSTRUCTIONS

There is danger to life from electric shock! Before working on electrical equipment, it must be completely de-energized.

• Take safety measures against the accidental subsequent on-switching of the power. This also applies for the maintenance and repair of electric roller shutter systems.
• Electrical connections may only be performed by authorized, qualified electricians.
• Improper installation can result in serious injuries or property damage.
• The use of defective devices can lead to the endangering of persons and to property damage (injury, electrical shock and fire). Therefore never use defective or damaged devices.
• The provisions of the local electric utility company as well as all applicable standards and regulations for electrical installations must be complied with.
• The product may only be used in dry rooms (IP20).
• The product and the packaging are not toys. Keep children away from it, since there is a risk of injury or suffocation.
• Do not open the product, risk of injury.
• The mains power outlet and the power supply unit must be easily accessible at all times.
• Keep people away from the movement range of the roller shutter system. The movement range of the roller shutter system must be completely visually accessible during the operation. Risk of injury.
• Children or persons who are not capable of securely and prudently operating the product due to physical, psychological or sensory impairments, are not allowed to operate or install the product. The product may be used by children of 8 years and older as well as by persons with physical, psychological or sensory impair

SCHellenBERG

ments or lack of experience and knowledge, provided that they are supervised or have been instructed in safe use of the device and know the risks involved. Cleaning and maintenance must not be carried out by children unless they are supervised.

• Children must not be allowed to play with the roller shutter drive.

CE DECLARATION AND CONFORMITY

The belt winder (Item no DE 22767, 22728) meets the applicable requirements of European and national regulations. Conformity has been demonstrated. The full EU Declaration of Conformity document can be found at: http://www.schellenberg.de (under 'Download-Center', in the 'Service' tab).

Machinery Directive 2006/42/EC Radio Equipment Directive (RED) 2014/53/EU RoHS Directive 2011/65/EU EMC Directive 2014/42/EU

Do not dispose of together with household waste. The product is recyclable and can be deposited at a recycling center or a collection station for electrical household garbage.

INTENDED USE

• This product (Item no. 22767 / 22728) is intended exclusively for the operation of belt-driven roller shutter systems. For this, the roller shutter system must comply with the technical requirements of the product.
• Any other or further utilization beyond the explicitly specified shall be regarded as not intended use.
• Alfred Schellenberg GmbH shall not be liable for any consequential damage, property damage and personal injury due to improper use.
• According to EN 13659, it must be ensured that the displacement requirements as per EN 12045 are met for the hanging material. When unrolled, the displacement at the lower edge must be at least 40mm at an upward-directed force of 150N . It must be ensured that the travel speed of the hanging must be less than 0.2m/s in the last 0.4m .

• The roller shutter system and its parts must be in a perfect condition. Defects in the system or its parts must be repaired before installing the product.

• An easily accessible 230 V AC / 50 Hz mains socket outlet must be available at the place of installation (see page 229).

• The installation surface where the product is to be installed must be level and suitable.
• Only use original spare parts to avoid product malfunction or defects.
• Improper running of the belt (belt guiding) may destroy the shutter belt and cause unnecessary strain on the product. Install the product such that the belt enters the shutter belt drive as vertically as possible. This will avoid unnecessary friction and wear.

TECHNICAL DATA
Power supply unit operating voltage	230 V AC / 50 Hz
Rated power 70 W
Standby power 0,5 W
Torque 10 Nm
Short-time operation 4 minutes
Max. speed 30 rpm
Enclosure rating IP 20 (for dry rooms only)
Protection class II
Number of switching times 2 (UP and DOWN)
Permissible ambient temperature	0-40 °C
Automatic solar control setting range	2.000 through 20.000 Lux
Setting range automatic twilight function	2 through 50 Lux
Dimensions	see page 217
Permissible belt widths	23 mm (Maxi-belt)
Belt length	7,6 m with belt thickness of 1,0 mm 6,2 m with belt thickness of 1,3 mm 5,2 m with belt thickness of 1,5 mm
Max. shutter surface area	6,0 m² plastic 3,0 m² aluminium/wood
Max. roller shutter weight	4,5 kg/m² plastic 10 kg/m² aluminium/wood
Power cord 2x0,75qmm H03VVH2-F
Number operating buttons	5

TECHNICAL DATA

Number of LED 3

Sound pressure level LpA

≤ 70 dB (A)

Radio frequency 868,4 MHz Schellenberg radio system

Signal strength max. 10 dBm

Range in a building / outdoor ca. 20 m / 100 m

Notes:

After a power failure, the settings will be permanently retained.

The specifications provided are recommended values and apply to ideal installation situations. Due to existing site conditions, the values may be different.

Only use the product with roller shutter belts with the dimensions indicated in the "Technical data" table. Wrong shutter belt lengths and widths will result in damage. Replace the old shutter belt when the requirements are not met.

Caution: regularly check the paneling as well as the belt for their flawless condition. In case of risk, decommission the system and have repairs executed by a specialist.

Note: since the belt pulley in the roller shutter box loses its rigidity due to aging, we recommend checking and if necessary replacing it after a prolonged usage time.

If the maximum motor run time is exceeded by 4 minutes the motor will stop.

After approx. 60 minutes, the motor will have its full operational readiness again.

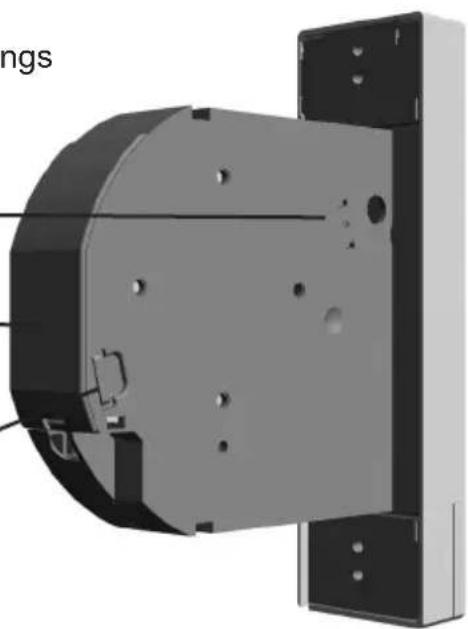

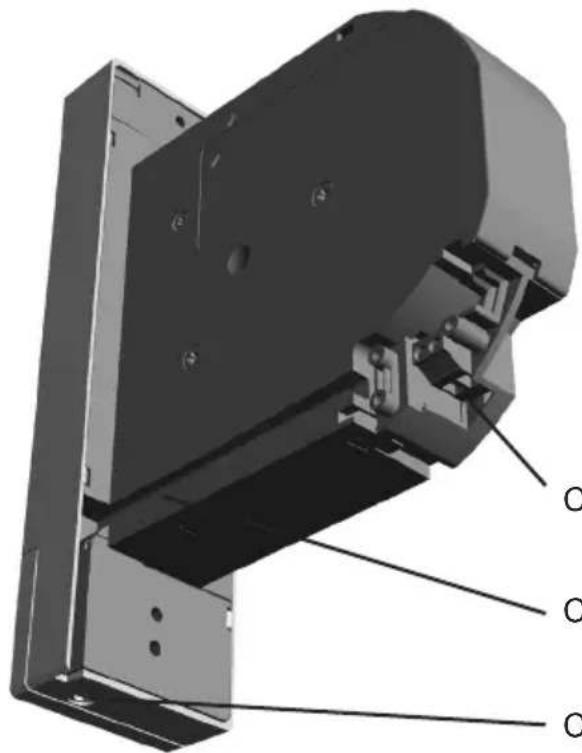

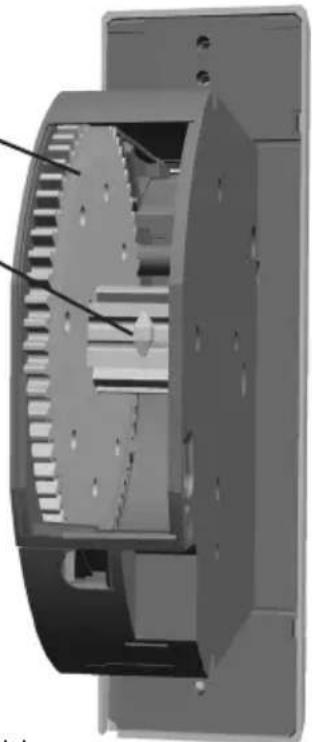

PRODUCT EXPLANATION

Mounting holes

Key lock for the menu settings

Belt inlet

Drive dear release

Roll-up compartment cover

Unlocking clip

Winding wheel

Hook for the belt

Connection for mains cable

Cable channel

Connector for the sun sensor

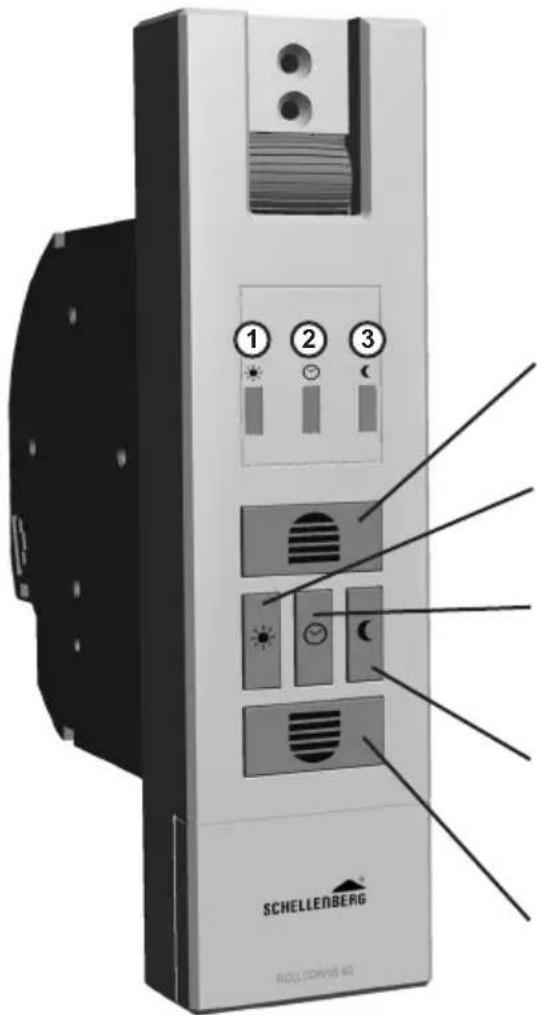

KEYS AND DISPLAY EXPLANATION

① LED sun
② LED clock
③ LED moon
④ Open button

Roller shutter moves upwards or stop

⑤ Sun button
Activates the automatic sun function.
⑥ Clock button

For setting the time for the automatic operation.

⑦ Twilight button

Switches the Twilight function on or off

⑧ Close button

Roller shutter moves downwards or stop.

Detailed description of all LEDs: ①-③

LED off

LED on LED blinks LED flashes quickly

Should one or more LEDs be illuminated when the function is switched on, these will be switched off after 5 minutes. Any button can be pressed briefly at any time for control purposes, and the LEDs will light up again for 5 minutes.
