21241 - Smart Home Schellenberg - Free user manual and instructions

Product type	Radio tubular motor for roller shutters
Brand	Schellenberg
Model	21241
Power supply	230 V / 50 Hz
Maximum mounting length	550 mm
Octagonal shaft diameter	40 mm (Mini) or 60 mm (Maxi) depending on version
Torque	6 Nm to 40 Nm depending on version
Maximum pull force	15 kg to 60 kg depending on version
Maximum shutter area (plastic)	4 m² to 15 m² depending on version
Nominal power	98 W to 218 W depending on version
Maximum operating time	4 minutes
Cooling time	15 minutes minimum
Protection rating	IP44 (indoor use only)
Limit point adjustment	By radio (wireless)
Functions	Up, down, stop, programming
Compatible radio transmitter	1 channel or 5 channels (accessory)
Number of motors per channel	Up to 5
Maintenance	No specific maintenance required; check operation regularly
Safety	Disconnect power before servicing; installation by qualified electrician; overheat protection
Warranty	5 years (depending on reference)

Frequently Asked Questions - 21241 Schellenberg

How to install the Schellenberg 21241 tubular motor?

Installation must be carried out by a qualified electrician. Before any intervention, cut off the power supply. Block the roller shutter to prevent it from falling. Mount the motor in the octagonal shaft respecting the dimensions (max. length 550 mm). Connect the cable: brown wire (phase), blue (neutral), green/yellow (earth). Use a sleeve if necessary to compensate for tolerances.

How to adjust the limit points (upper and lower positions)?

Put the motor into programming mode using the remote control (Programming button in the battery compartment). Then use the Up/Down buttons to bring the shutter to the desired upper position, then confirm. Repeat for the lower position. Exit programming mode. See the detailed steps in sections H and I of the manual.

What to do if the motor no longer responds?

First check the power supply and fuses. Make sure the remote control has working batteries. If the motor is overheated (operating time >4 min), wait at least 15 minutes for cooling. If the problem persists, contact Schellenberg customer service.

How to program the remote control?

Programming is done in programming mode. Activate the mode by pressing the Programming button on the back of the transmitter (in the battery compartment). Then pair the transmitter with the motor following section E of the manual. Up to 5 motors can be assigned per channel.

What is the maximum operating time?

The maximum operating time is 4 minutes continuously. After this period, the motor stops automatically to prevent overheating. A cooling time of at least 15 minutes is necessary before reusing the motor.

Does the motor heat up normally?

Yes, during normal operation, the motor can become very hot. This is normal. Warning: risk of injury! Do not touch the motor during or immediately after use. If the motor stops due to overheating, wait 15 minutes before reusing it.

How to clean the tubular motor?

The motor requires no specific cleaning. For the outside, wipe with a dry cloth. Never use water or cleaning products. Ensure the roller shutter is clean and operates freely. Check regularly that it does not freeze in winter.

What accessories are needed for mounting?

You will need a portable radio transmitter (e.g., item no. 20015/20021 for 1 channel or 20016/20023 for 5 channels), a roller shutter suspension (item no. 19200/19400) to attach the curtain to the shaft, and possibly an adaptation sleeve for the octagonal shaft (item no. 80100 or 80200).

What to do in case of a frozen roller shutter?

In winter, check that the roller shutter is not frozen before operating it. If the shutter is frozen, do not use the motor to force it, as this could damage it. Wait for thawing or manually remove the ice. Regular maintenance prevents this problem.

Where to find spare parts?

For spare parts or technical questions, contact Schellenberg customer service at email: [e-mail]. Keep the proof of purchase for warranty claims. The motor has a 5-year warranty for the indicated references.

USER MANUAL 21241 Schellenberg

Technical line drawing of a mechanical component with a long rod and cable, no text or symbols present

DE GB FR NL PL IT ES PT CZ SK HU HR SI RO BG

GR TR RU UA LT LV EE SE DK NO FI AL BA XS IS

Deutsch 4

English 10

Français 16

Nederlands 22

Polski 28

Italiano 34

Español 40

Português 46

Český 52

Slovenčina 58

Magyar 64

Hrvatski 70

Slovenski jezik 76

Roman 82

Български 88

Ελληνικά 94

Türk 100

Русский 106

Український 112

Lietuvos 118

Latvijas 124

Eesti 130

Svenska 136

Dansk 142

Norsk 148

Suomi 154

Shqiptar 160

Bosanski 166

Српски 172

Icelandic 178

INHALTSVERZEICHNIS

Safety and notices 11

Technical data 12

Cable connector 13

Accessory shutter suspension 13

Accessory wireless remote control 14

Key explanation 14

Required tools 184

Scope of delivery 184

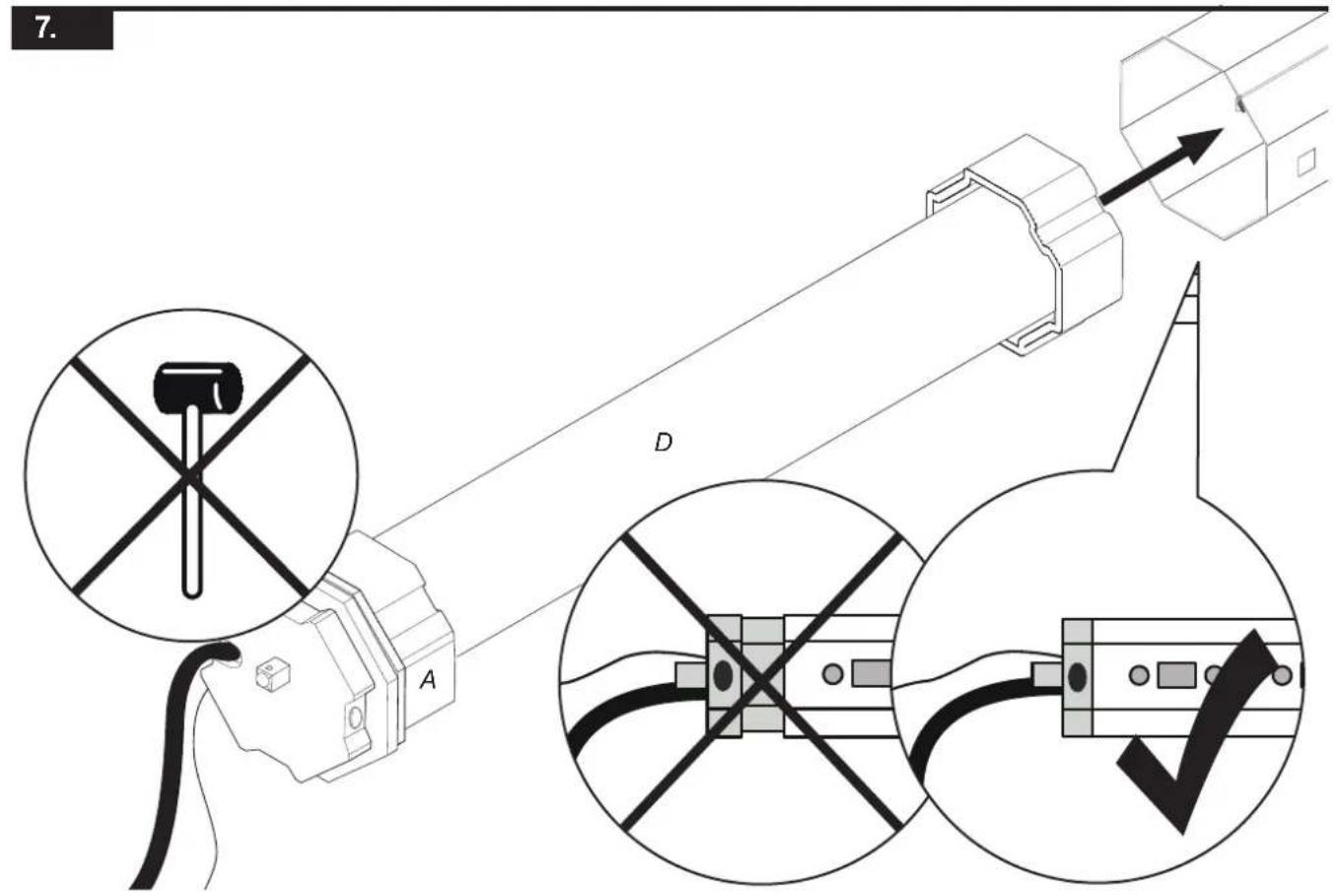

A Installation 185

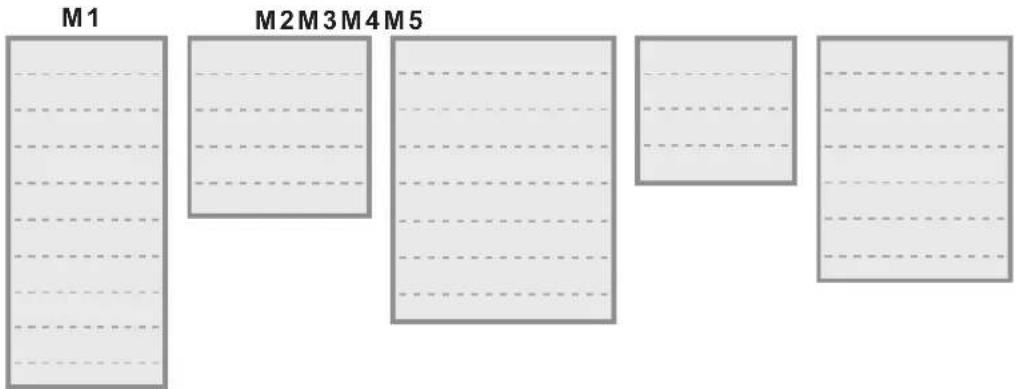

B Tubular motor address assignment 197
C Programming of tubular motors using a hand-held wireless remote control 200

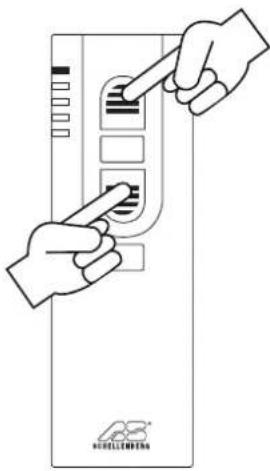

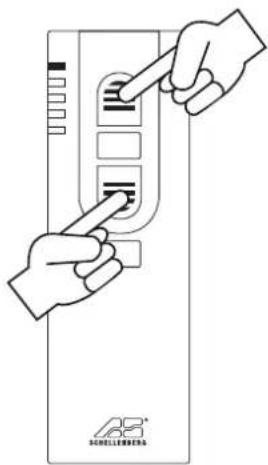

D Programming mode start 201

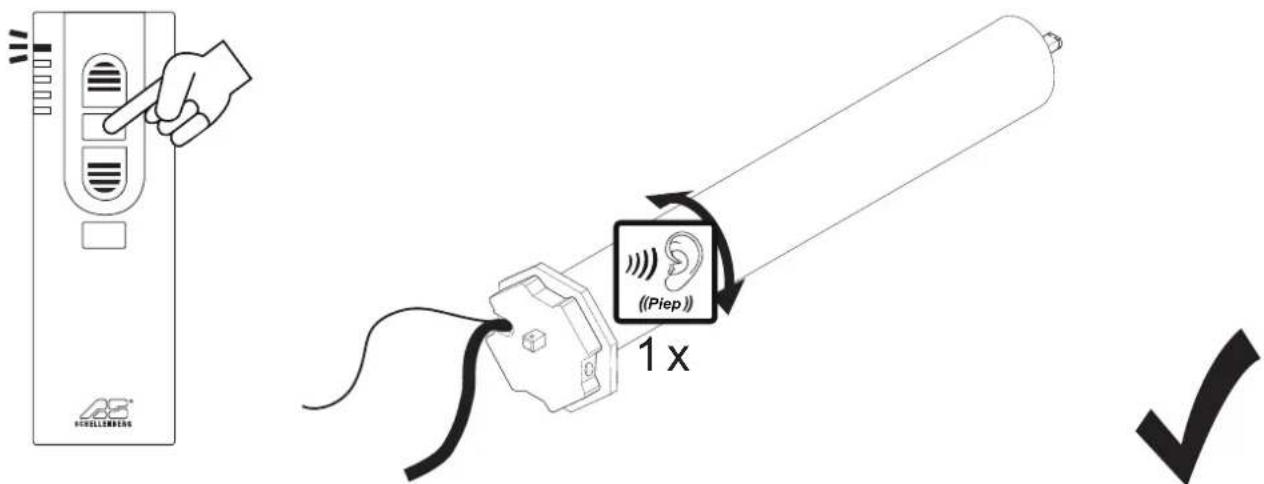

E Pairing the hand-held wireless remote control with the tubular motor 201

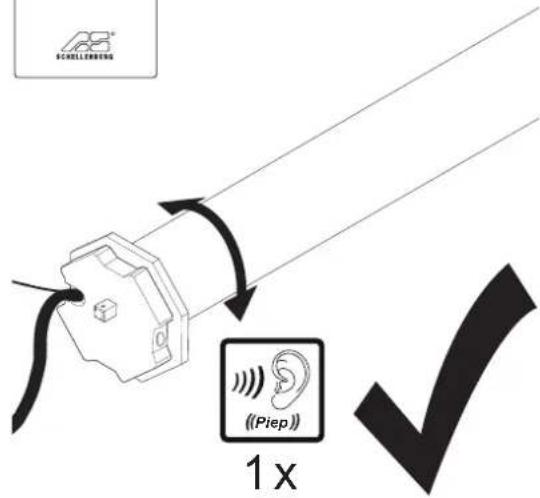

F Tubular motor rotation check 203
G Tubular motor direction change 204
H Setting the upper end position 205
I Setting the lower end position 206
J Concluding the programming mode 207
K Test movement 207

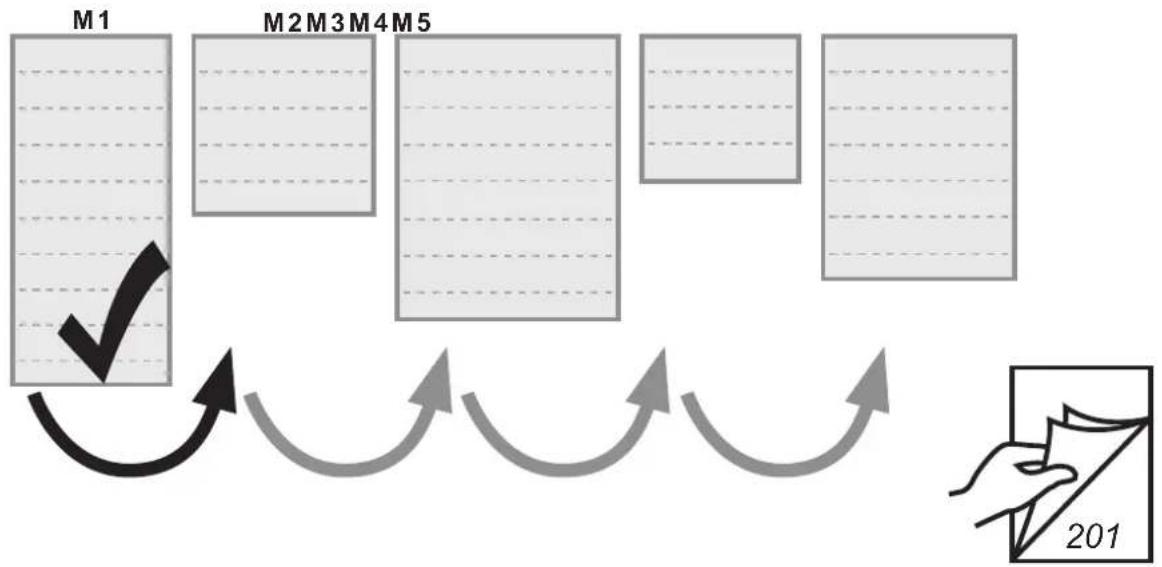

L Pairing further tubular motors 208

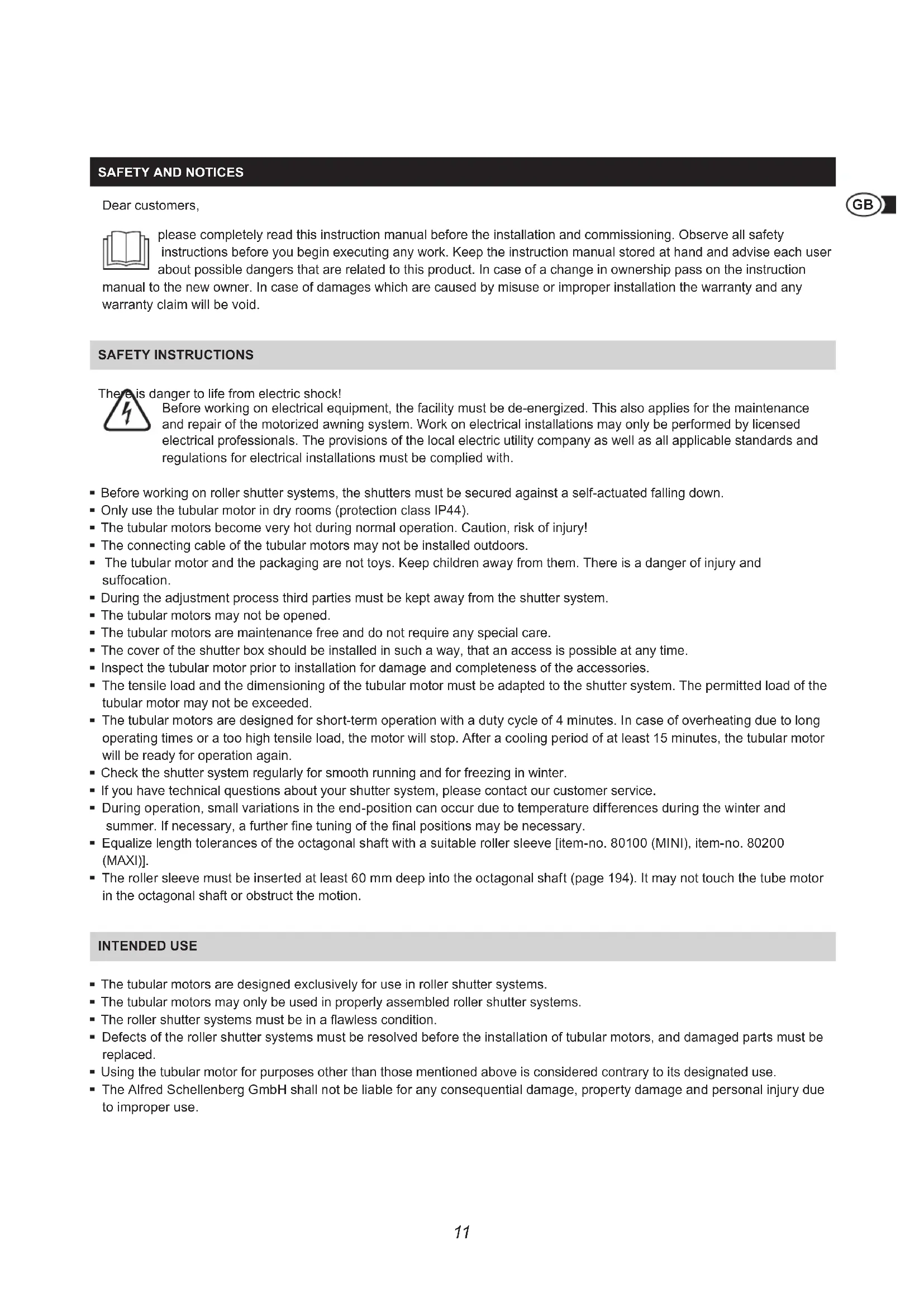

SAFETY AND NOTICES

Dear customers,

please completely read this instruction manual before the installation and commissioning. Observe all safety instructions before you begin executing any work. Keep the instruction manual stored at hand and advise each user about possible dangers that are related to this product. In case of a change in ownership pass on the instruction

manual to the new owner. In case of damages which are caused by misuse or improper installation the warranty and any warranty claim will be void.

SAFETY INSTRUCTIONS

There is danger to life from electric shock!

Before working on electrical equipment, the facility must be de-energized. This also applies for the maintenance and repair of the motorized awning system. Work on electrical installations may only be performed by licensed electrical professionals. The provisions of the local electric utility company as well as all applicable standards and regulations for electrical installations must be complied with.

• Before working on roller shutter systems, the shutters must be secured against a self-actuated falling down.
• Only use the tubular motor in dry rooms (protection class IP44).
• The tubular motors become very hot during normal operation. Caution, risk of injury!
• The connecting cable of the tubular motors may not be installed outdoors.

- The tubular motor and the packaging are not toys. Keep children away from them. There is a danger of injury and suffocation.

- During the adjustment process third parties must be kept away from the shutter system.

- The tubular motors may not be opened.

- The tubular motors are maintenance free and do not require any special care.

- The cover of the shutter box should be installed in such a way, that an access is possible at any time.

- Inspect the tubular motor prior to installation for damage and completeness of the accessories.

- The tensile load and the dimensioning of the tubular motor must be adapted to the shutter system. The permitted load of the tubular motor may not be exceeded.

- The tubular motors are designed for short-term operation with a duty cycle of 4 minutes. In case of overheating due to long operating times or a too high tensile load, the motor will stop. After a cooling period of at least 15 minutes, the tubular motor will be ready for operation again.

- Check the shutter system regularly for smooth running and for freezing in winter.

- If you have technical questions about your shutter system, please contact our customer service.

- During operation, small variations in the end-position can occur due to temperature differences during the winter and summer. If necessary, a further fine tuning of the final positions may be necessary.

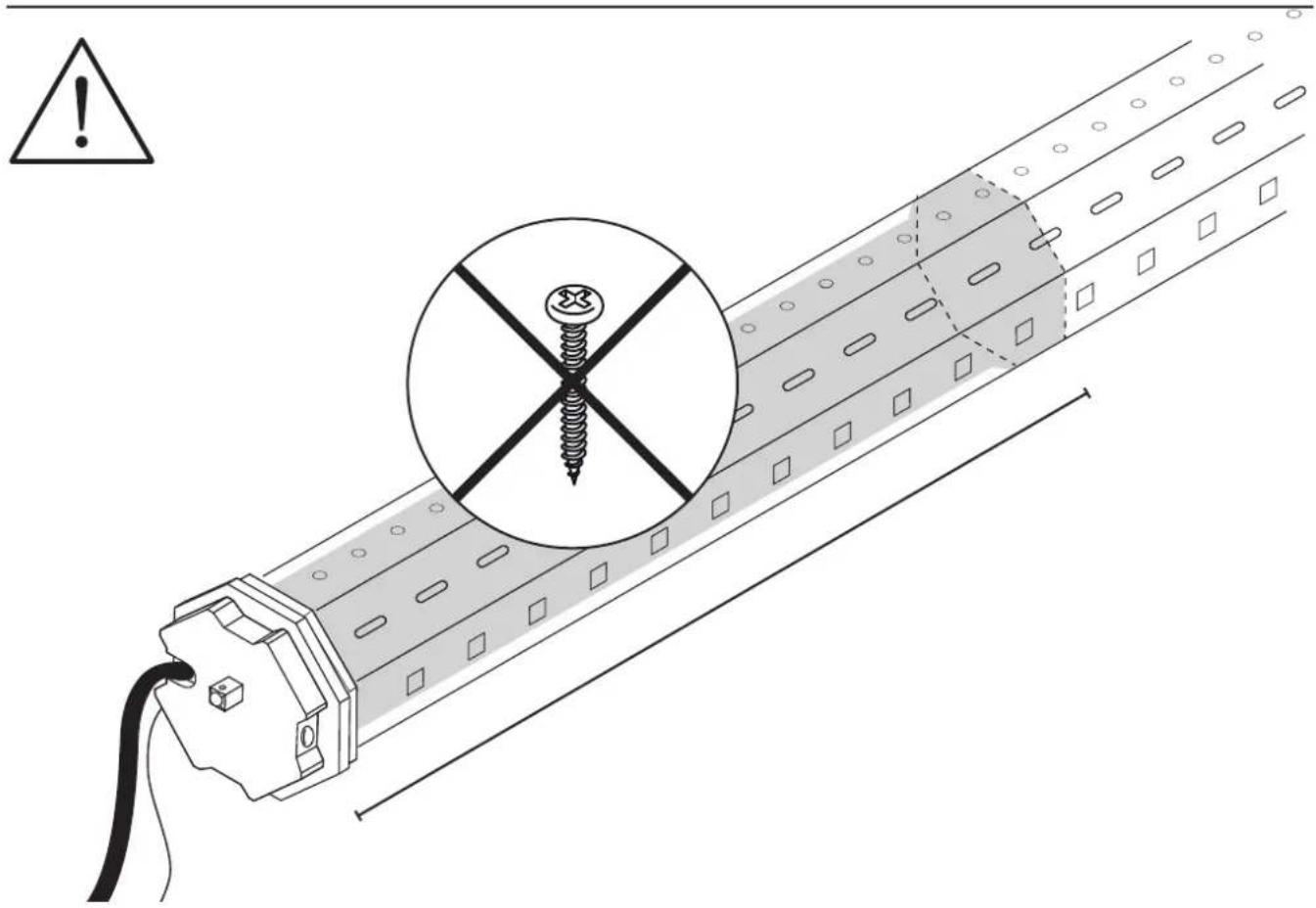

- Equalize length tolerances of the octagonal shaft with a suitable roller sleeve [item-no. 80100 (MINI), item-no. 80200 (MAXI)].

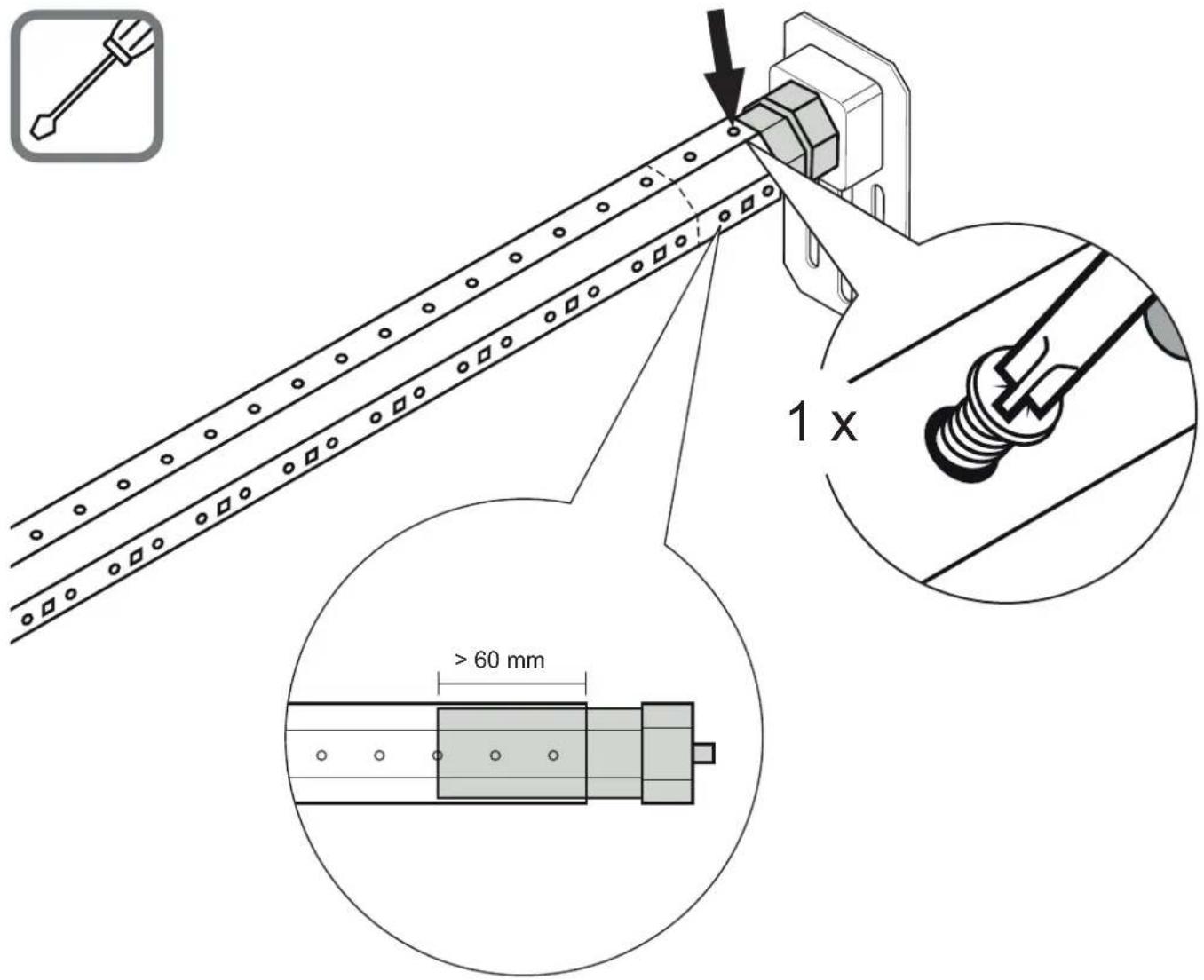

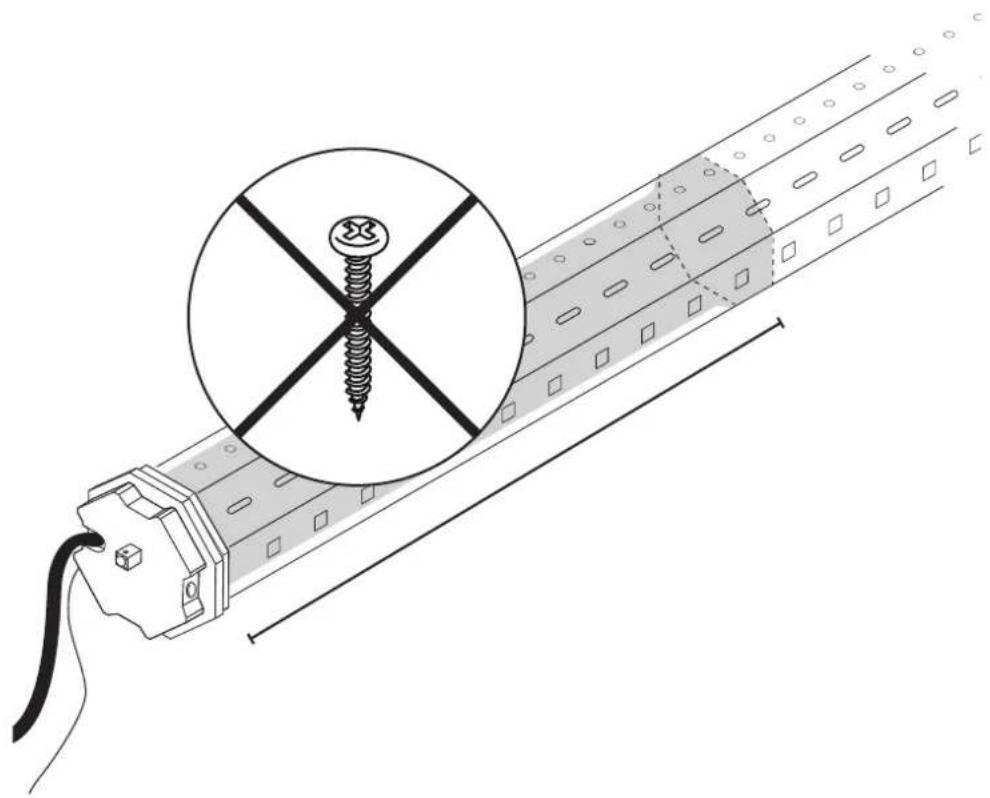

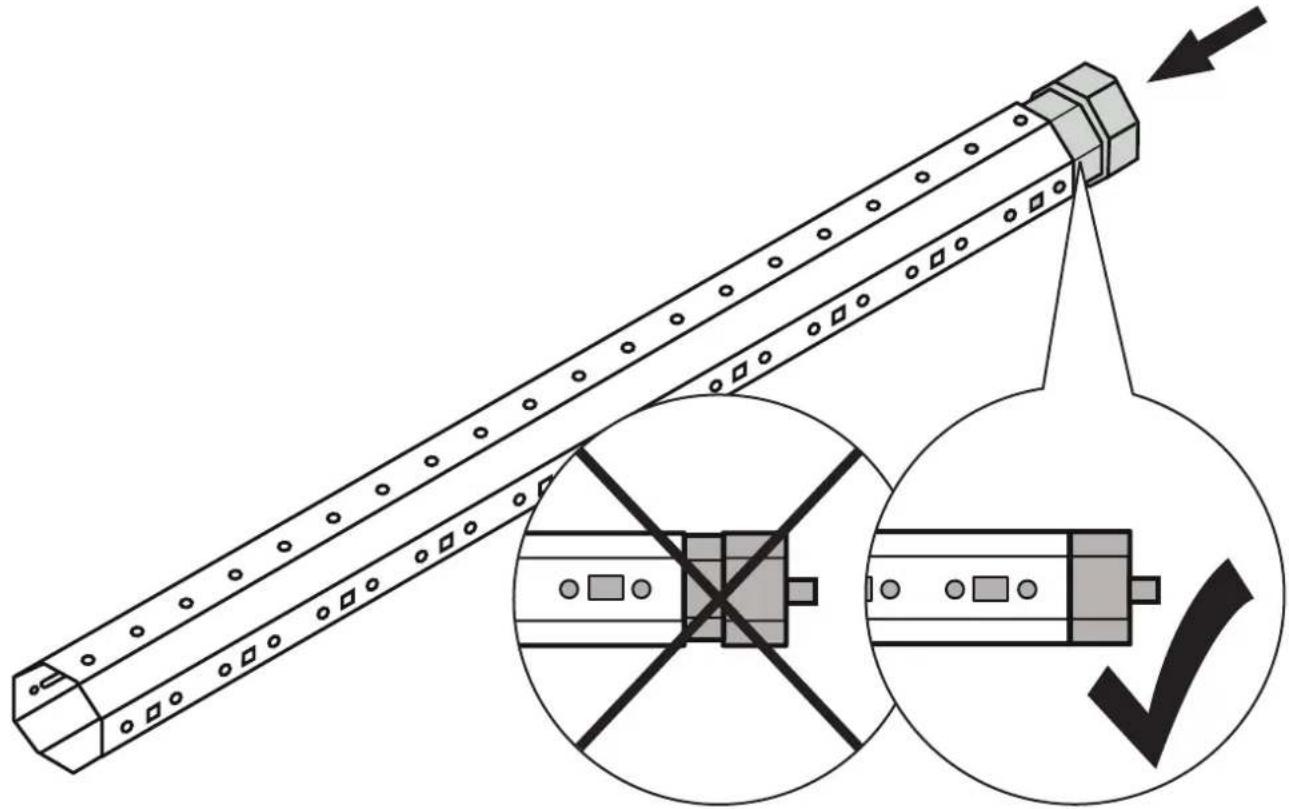

- The roller sleeve must be inserted at least 60 mm deep into the octagonal shaft (page 194). It may not touch the tube motor in the octagonal shaft or obstruct the motion.

INTENDED USE

• The tubular motors are designed exclusively for use in roller shutter systems.
• The tubular motors may only be used in properly assembled roller shutter systems.
• The roller shutter systems must be in a flawless condition.
• Defects of the roller shutter systems must be resolved before the installation of tubular motors, and damaged parts must be replaced.
• Using the tubular motor for purposes other than those mentioned above is considered contrary to its designated use.
• The Alfred Schellenberg GmbH shall not be liable for any consequential damage, property damage and personal injury due to improper use.

The tubular motor meets (item no. 20506/20510/20810/20820/20840/20507/20511/20811) the applicable requirements of the European and national guidelines. The conformity was evidenced and the relevant documents have been filed with the manufacturer.

Do not dispose of together with household waste! The tubular motors are recyclable and can be deposited at a recycling center or a collection station for electrical household garbage.

WARRANTY CONDITIONS

We guarantee that our products are free from material and manufacturing defects. Excluded from the warranty are damages that are caused by:

■ use-related, normal wear and tear
- improper installation, connection, operation or treatment
■ acts of God or other external influences
- improper maintenance and repairs by third parties
■ technical modifications by third parties

In case of a warranty case at our discretion we will repair the product, or exchange it for an equivalent SCHELLENBERG product. Replacement or repair of the unit will not extend the warranty period! A condition for a warranty claim processing is the presentation of the original sales receipt. When shipping the units please include a copy of the original sales receipt and a description of the defect.

We grant a warranty for the quality of our tubular motors from the date of purchase, for a period of: 5 years, item no. 20506/20510/20810/20820/20840/20507/20511/20811.

TECHNICAL DATA

Item no.	20506/20507	20510/20511	20810/20811	20820	20840
Shutter system Mini Mini Maxi Maxi Maxi
∅ octagonal shaft	40 mm	40 mm	60 mm	60 mm	60 mm
Torque	6 Nm	10 Nm	10 Nm	20 Nm	40 Nm
max. duty cycle	4 minutes	4 minutes	4 minutes	4 minutes	4 minutes
max. Flat plastic roller shutters	4,0 m^2	6,0 m^2	4,2 m^2	8,5 m^2	15 m^2
Tensile force	15 kg	25 kg	20 kg	34 kg	60 kg
Rated power	98 watts	121 watts	113 watts	161 watts	218 watts
End-position adjustment	Radio Radio Radio Radio		Radio
incl. wall bearing	1 Comfort-Set	1 Comfort-Set	1 Comfort-Set	1 Comfort-Set	1 Comfort-Set
Warranty	5 years	5 years	5 years	5 years	5 years
max. Installation length	550 mm	550 mm	550 mm	550 mm	550 mm

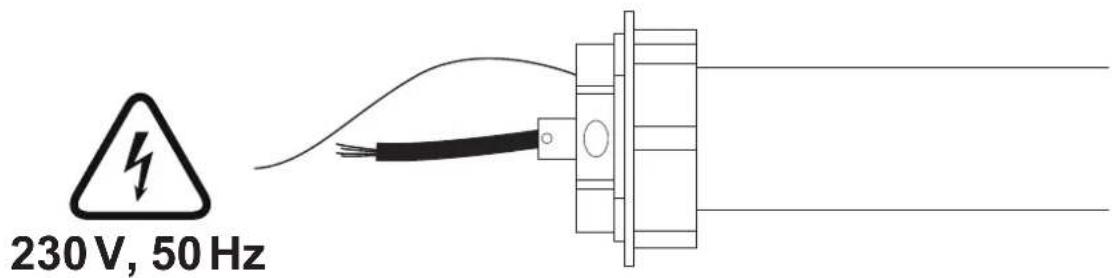

CABLE CONNECTION

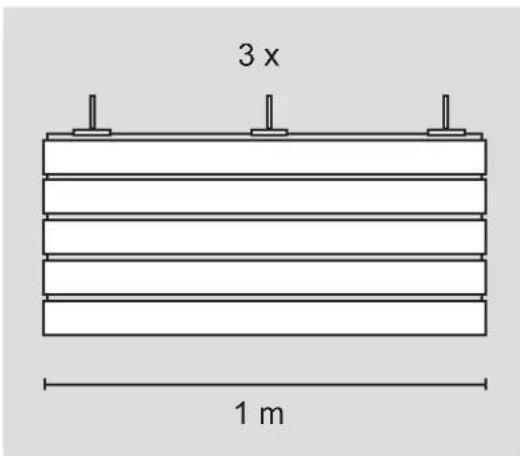

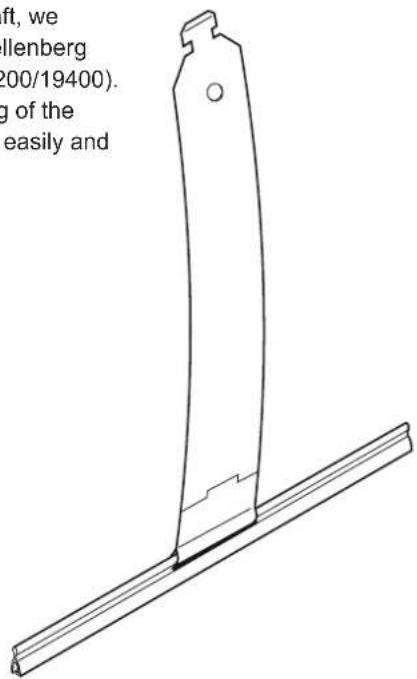

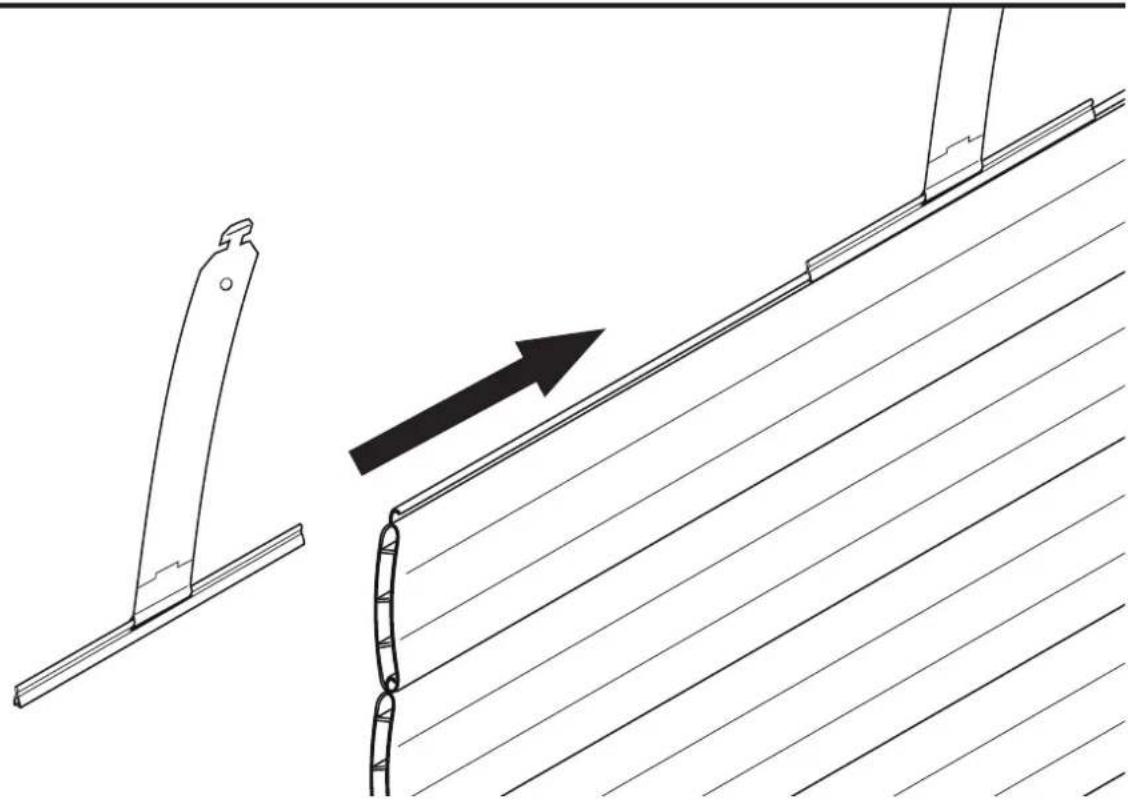

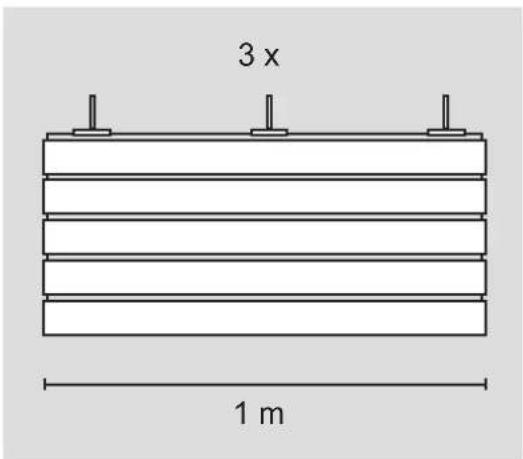

ACCESSORIES: SHUTTER SUSPENSION

To mount the paneling to the shaft, we recommend the use of the Schellenberg shutter suspension (item no. 19200/19400). This allows for a secure mounting of the shutter panel into the shaft. Very easily and without screw connections.

19200

19400

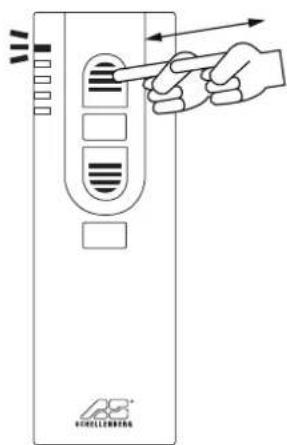

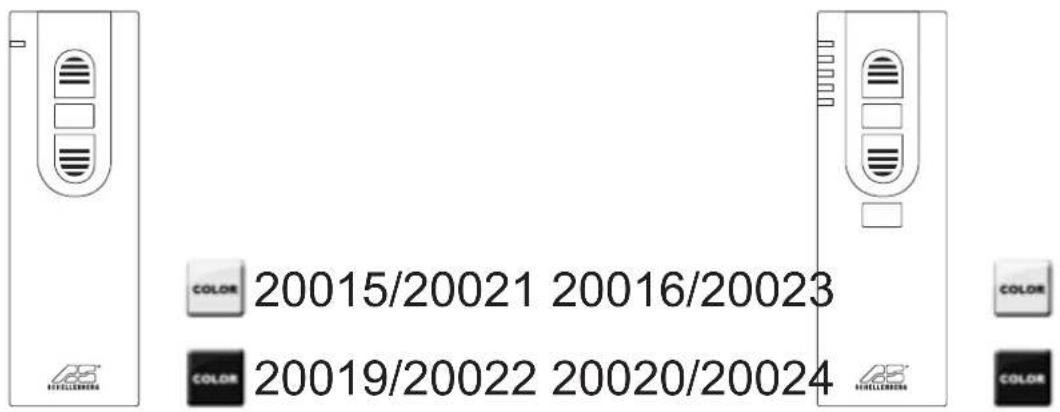

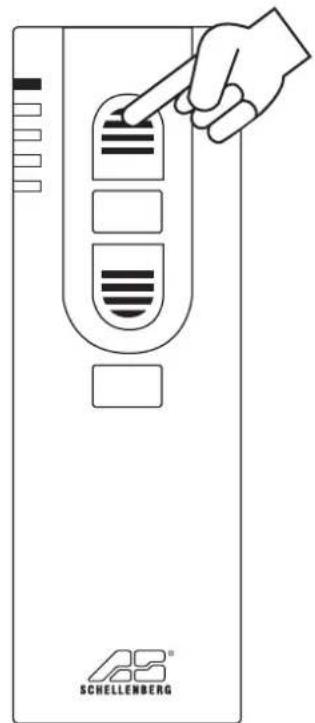

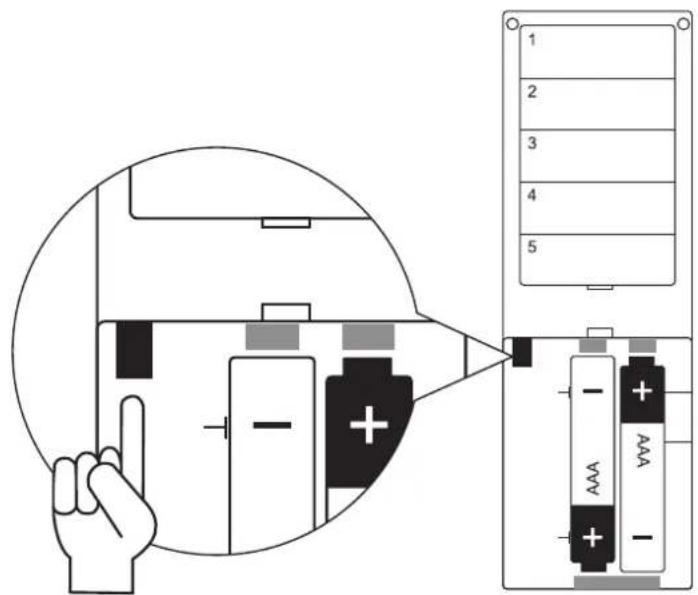

ACCESSORIES: HAND-HELD WIRELESS REMOTE CONTROL

The programming of the tubular motor is performed with the hand-held wireless remote control (accessory). Suitable hand-held wireless remote controllers: 1-channel: 20015/20019/20021/20022 or 5-channel: 20016/20020/20023/20024.

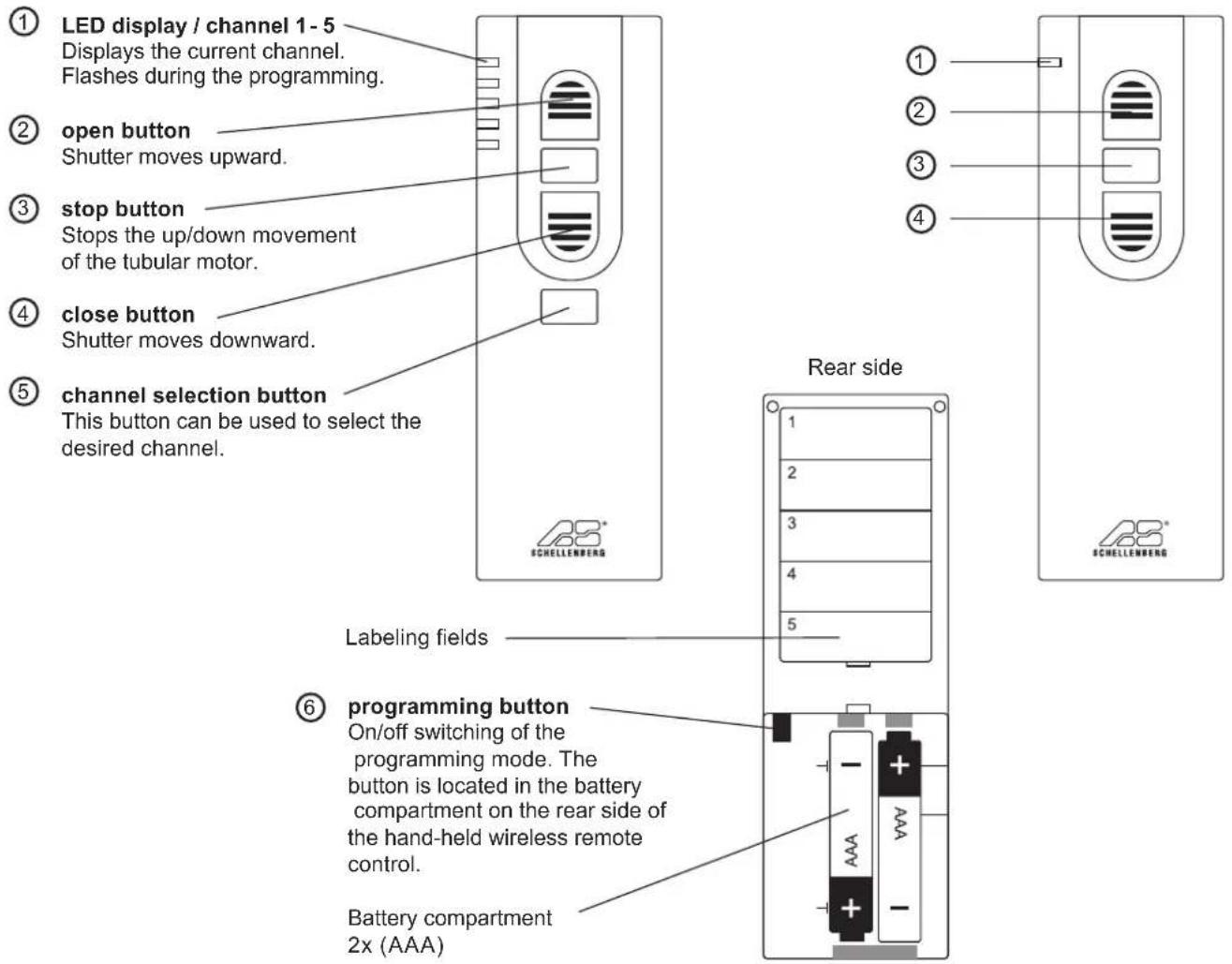

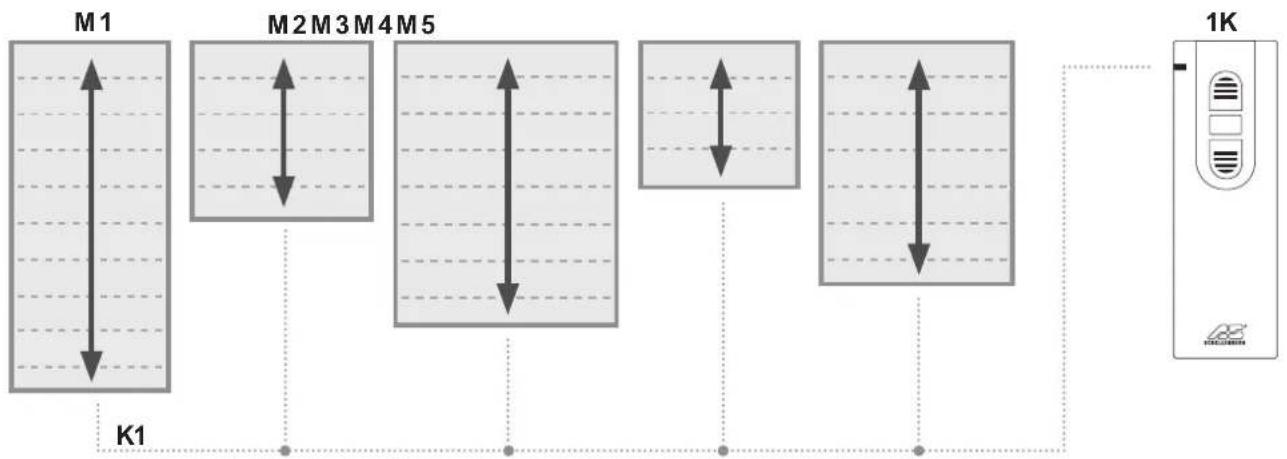

KEY EXPLANATION

5-channel 1-channel

Front side Front side

1-channel

• Depending on the channel, up to five tubular motors can be controlled simultaneously
• by pressing the up-function button all tubular motors will perform an upward movement at the same time
• by pressing the down-function button all tubular motors will perform a downward movement at the same time
• die Endlagen bei den Rollläden können individuell eingestellt werden

M = roller shutter motor

K = channel

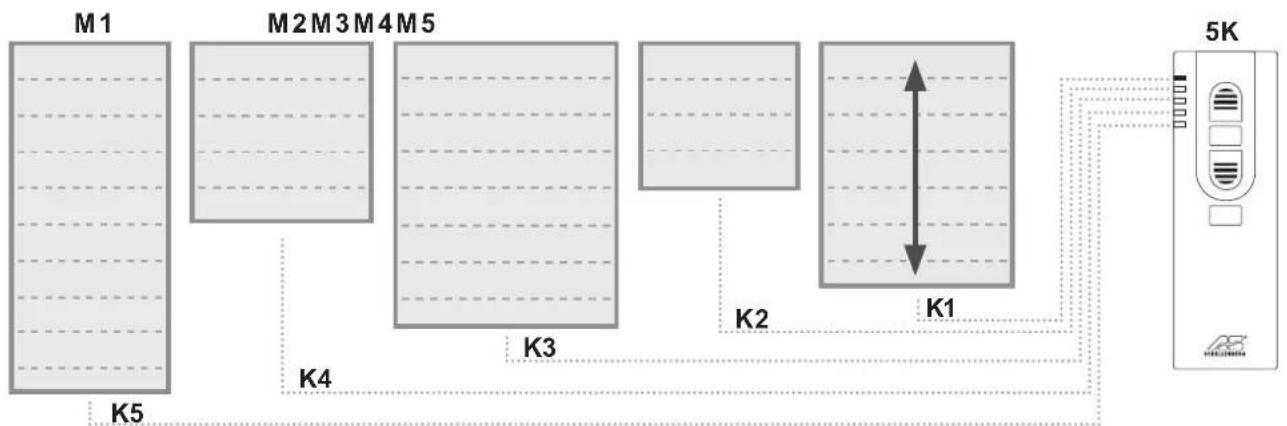

5-channel

■ Depending on the channel, up to five tubular motors can be controlled simultaneously
- pressing the channel selection button allows a switching between the tubular motors
- by pressing the up-function button the respective tubular motor will perform an upward movement
- by pressing the down-function button the respective tubular motor will perform a downward movement

M = roller shutter motor

K = channel

TABLE DES MATIÈRES

Chers clients, chères clientes,

DÉCLARATION CE ET CONFORMITÉ

CONDITIONS DE GARANTIE

ODGOVARAJUĆA UPORABA

GARANTIJAS NOSACĪJUMI

INNEHÅLLSFÖRTECKNING

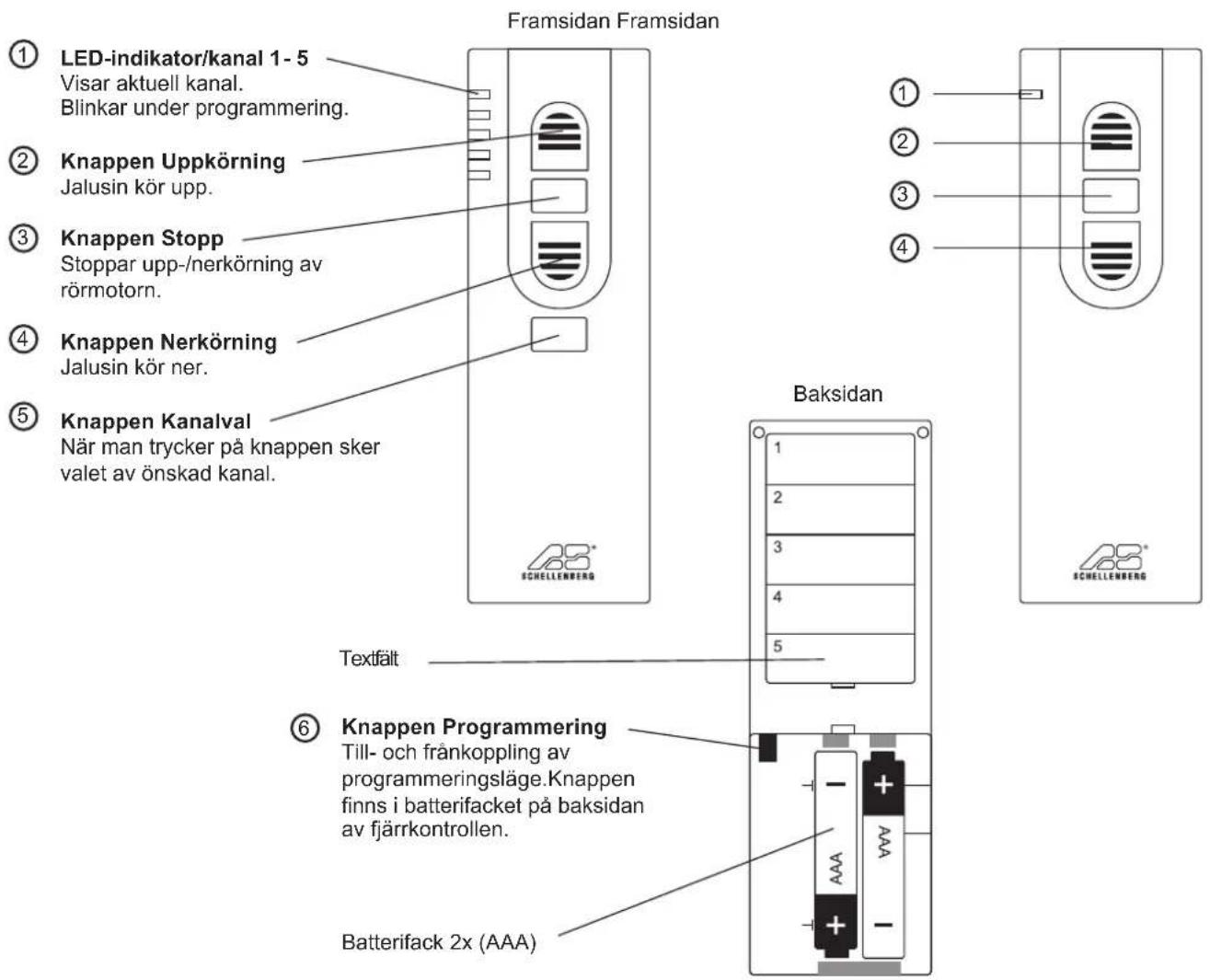

BESKRIVNING AV KNAPPARNA

5 kanal 1 kanal

SIGURNOST I INFORMACIJE

Poštovani kupče,

molimo Vas da prije montaže i puštanja u rad u potpunosti pročitate ove upute. Obratite pažnju na sve sigurnosne napomene, prije nego započnete s radom. Sačuvajte ove upute i svakog korisnika upozorite na eventualne opasnosti koje su povezane s ovim proizvodom. Upute u slučaju promjene vlasnika predajte novom vlasniku. Štete uzrokovane nepravilnim korištenjem ili nepravilnom instalacijom poništit će jamstvo i bilo kakve jamstvene zahtjeve.

SIGURNOSNE NAPOMENE

Technical line drawing of a mechanical component with a vertical shaft and flange (no text or symbols)

АРТИКЛ ПРИБОРА: РУЧНИ ОДАШИЛЬАЧ

Technical line drawing of a hexagonal bolt head (no text or symbols)

1 x

Technical line drawing of a hexagonal mechanical part with labeled section 'B' and dimension marker '1 x' (no text or symbols beyond labels)

1 x

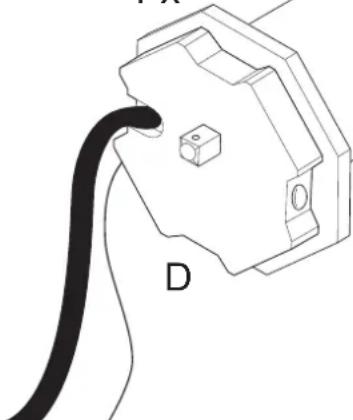

Pure electrical circuit lines without any symbols

1 x

1 x

Line drawing of a device with a gear symbol and label 'E' (no text or symbols on the diagram itself)

1 x

Simple line drawing of a three-pin electronic component with a sun symbol on top (no text or labels)

A

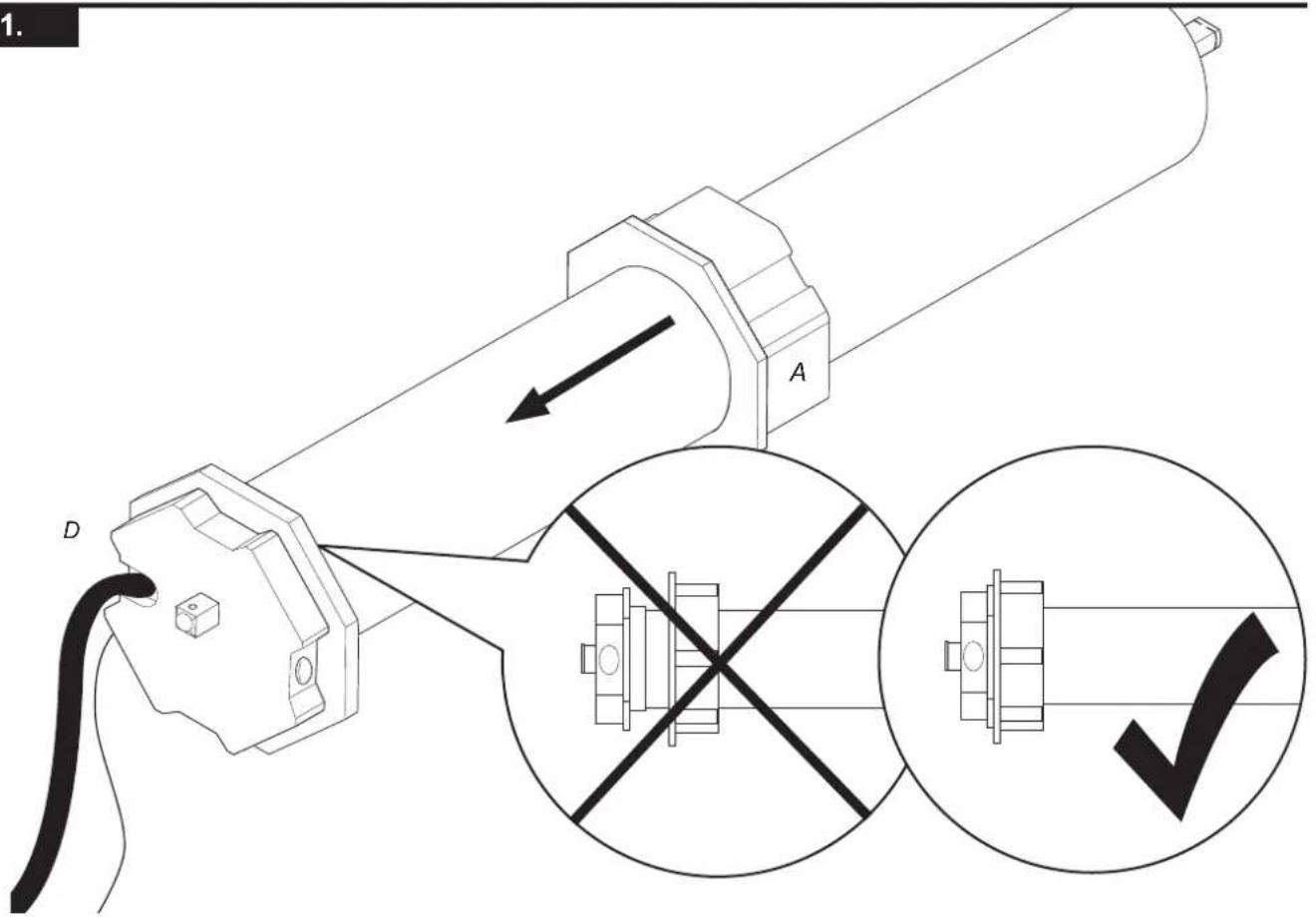

1.

2.

3.

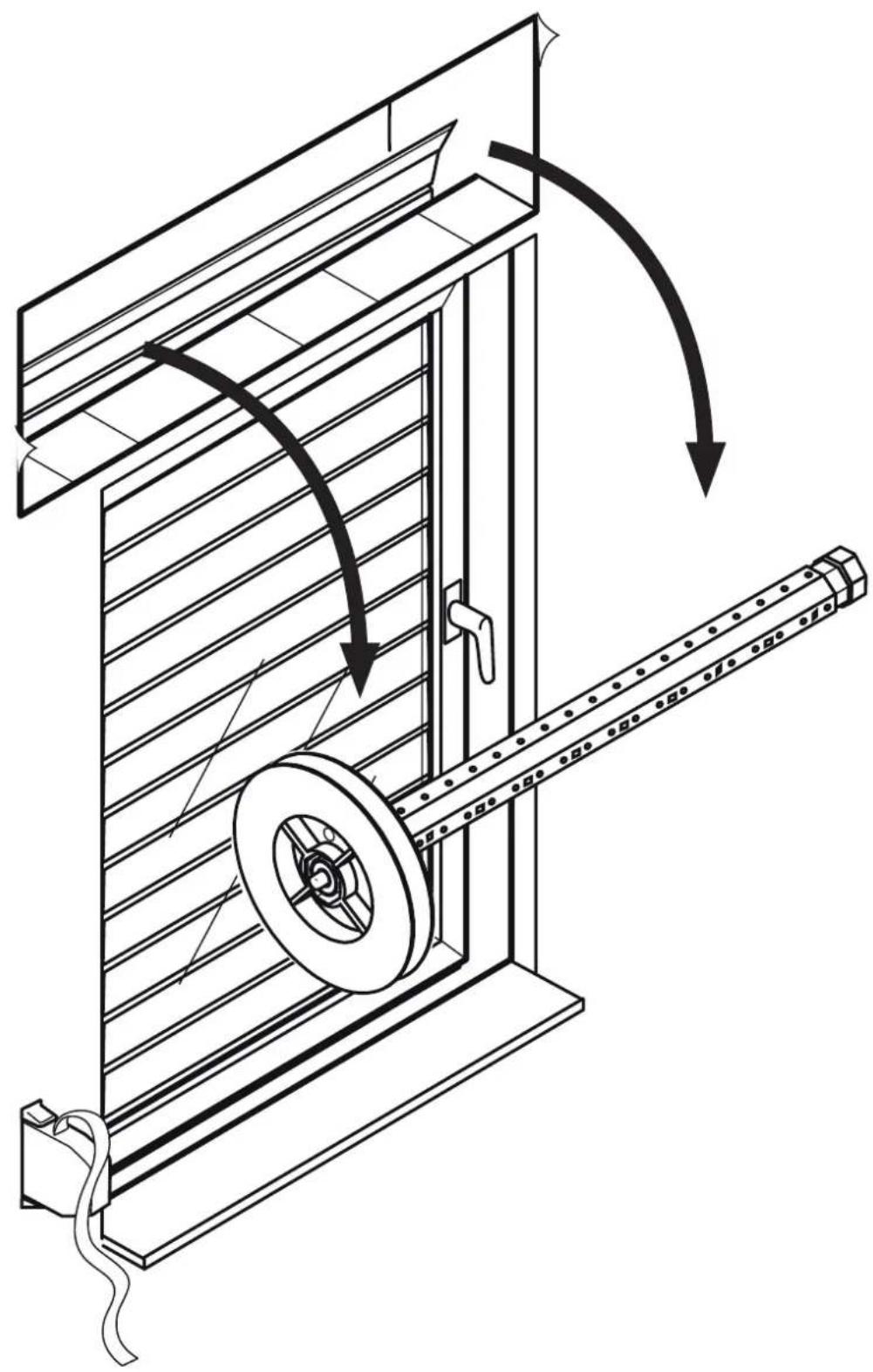

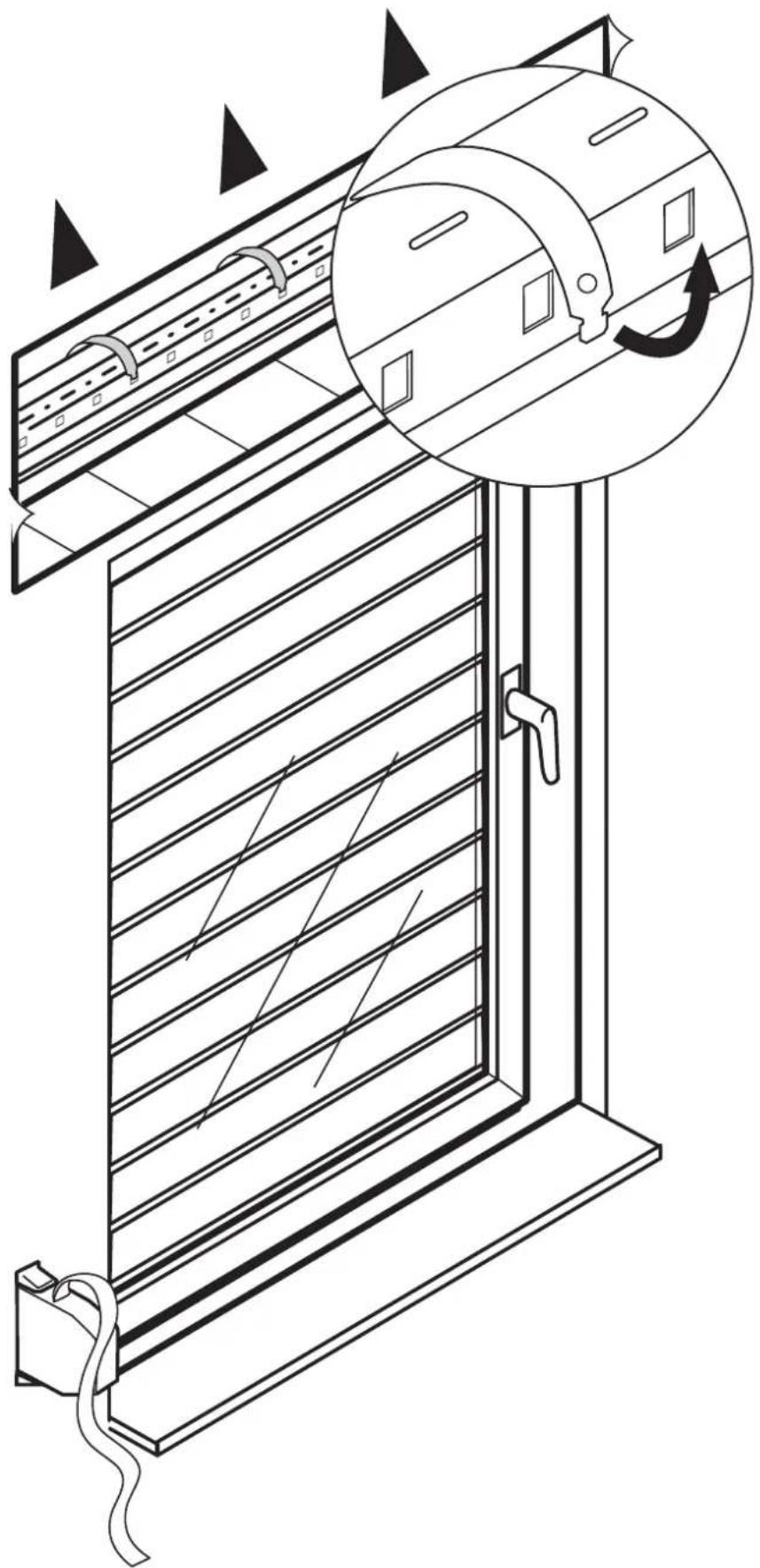

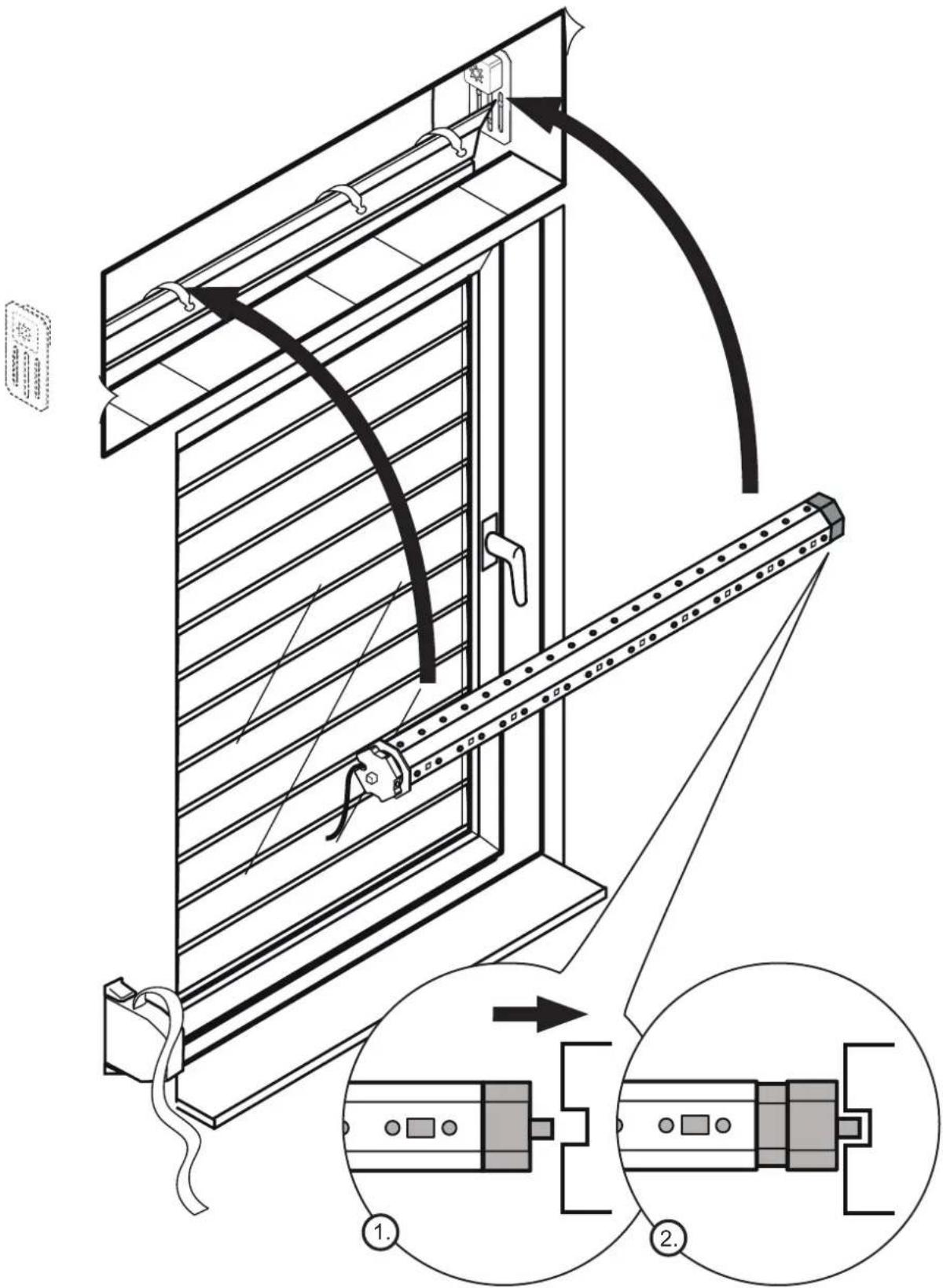

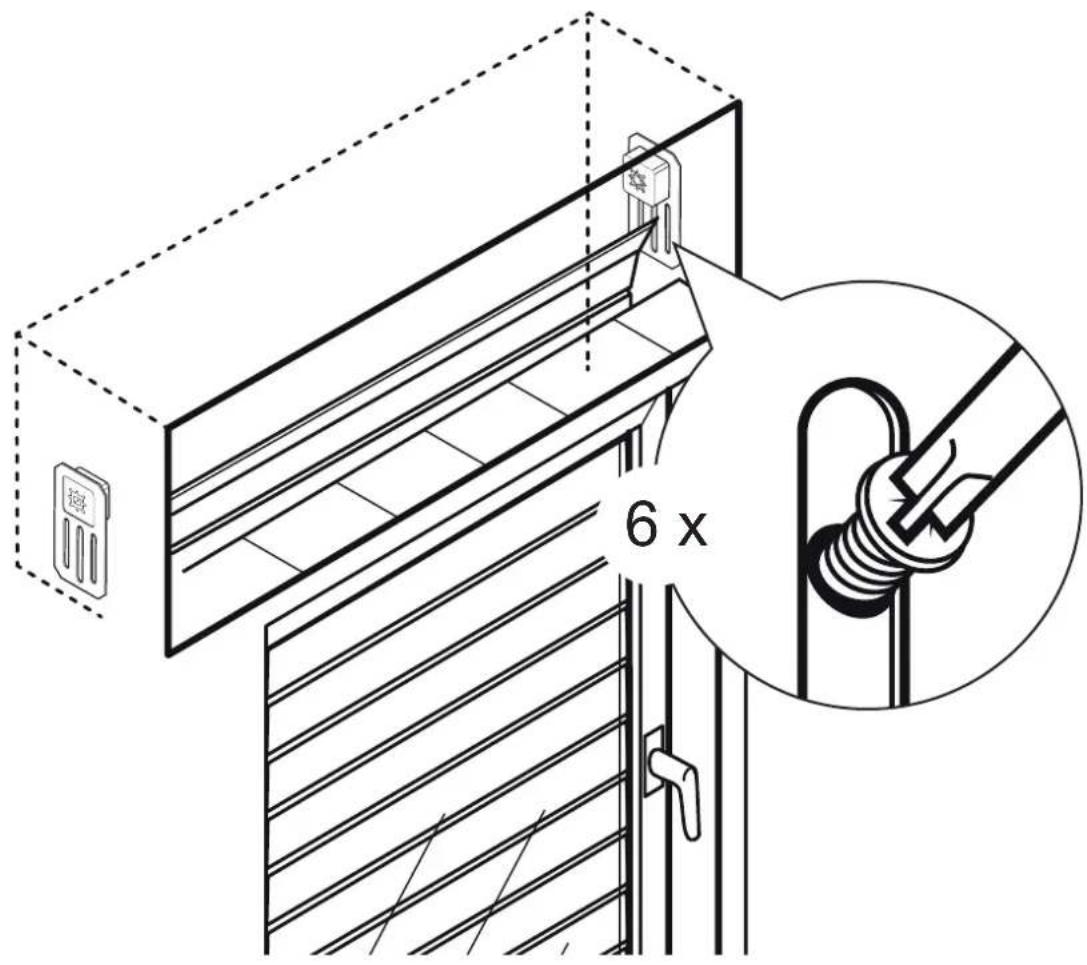

Diagram of a window with horizontal slats and a circular inset showing a mechanical component (no text or symbols)

4.

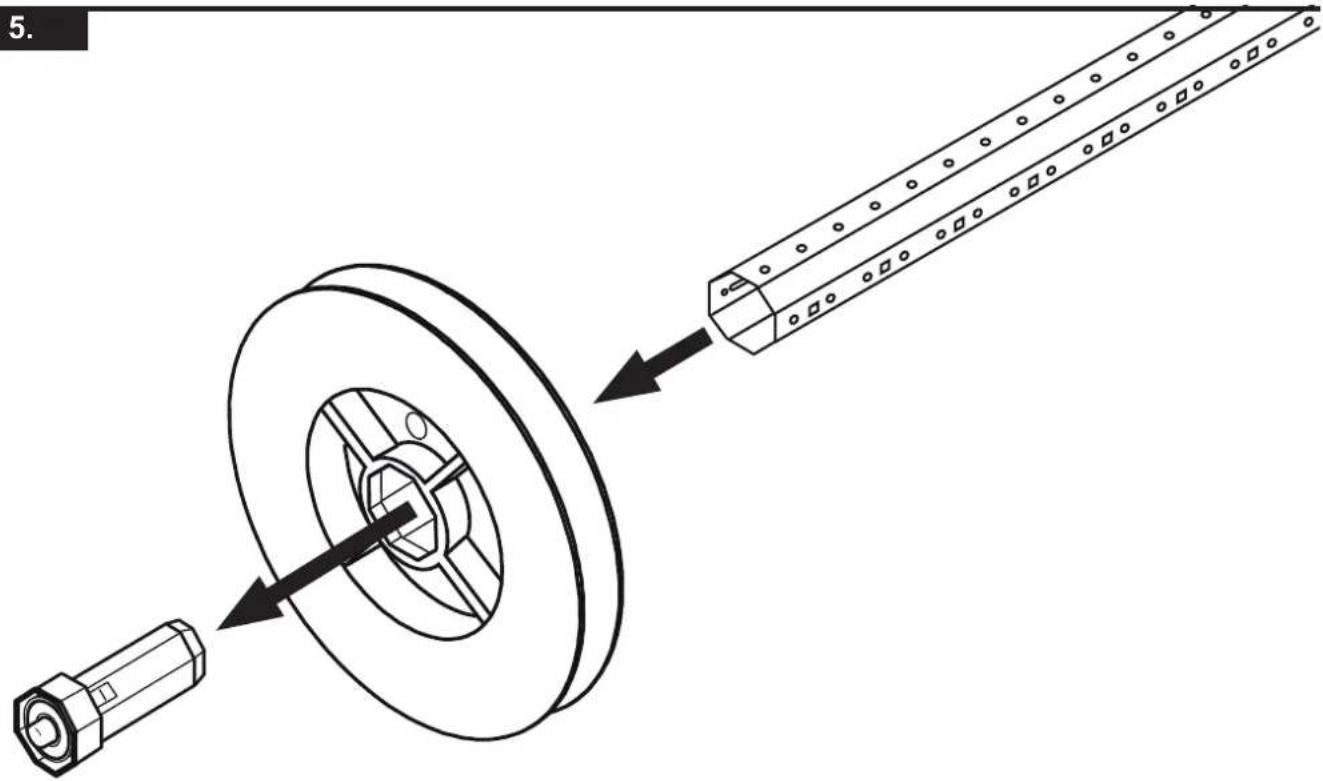

Technical line drawing of a mechanical device with a pulley and rotating shaft, showing motion arrows (no text or symbols)

Technical illustration of a mechanical assembly showing a pulley and shaft with directional arrows (no text or symbols)

1.

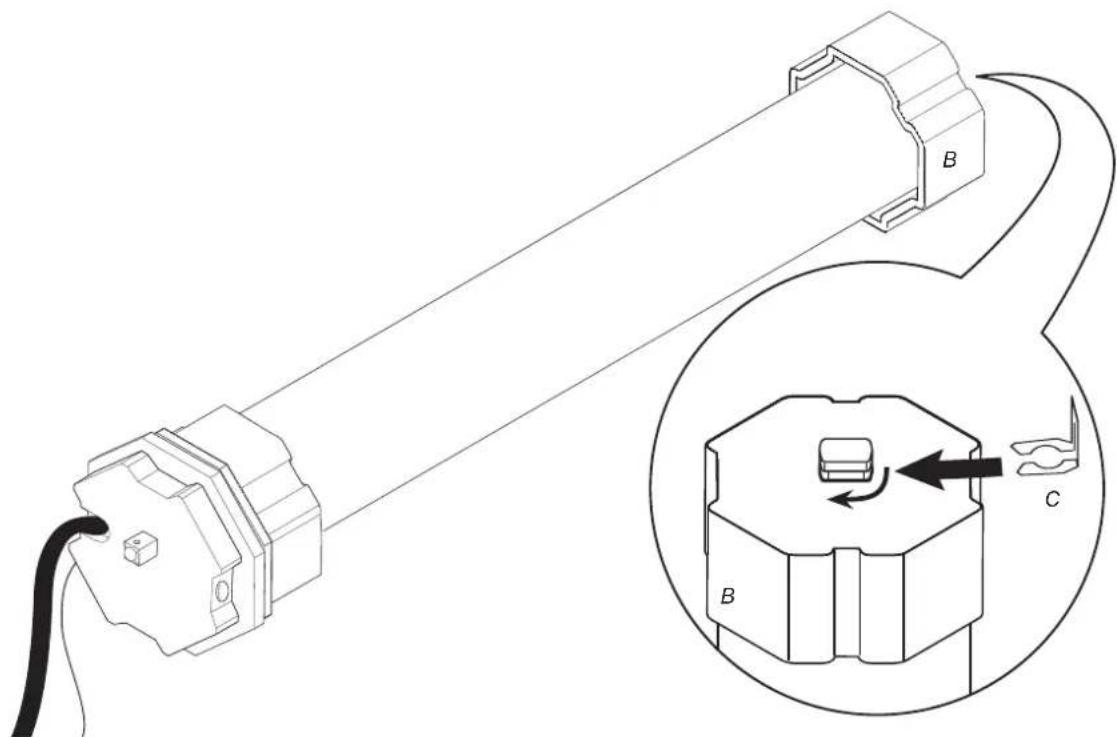

Technical illustration of a mechanical component with cross-sectional view and checkmark symbol (no text or labels)

1.

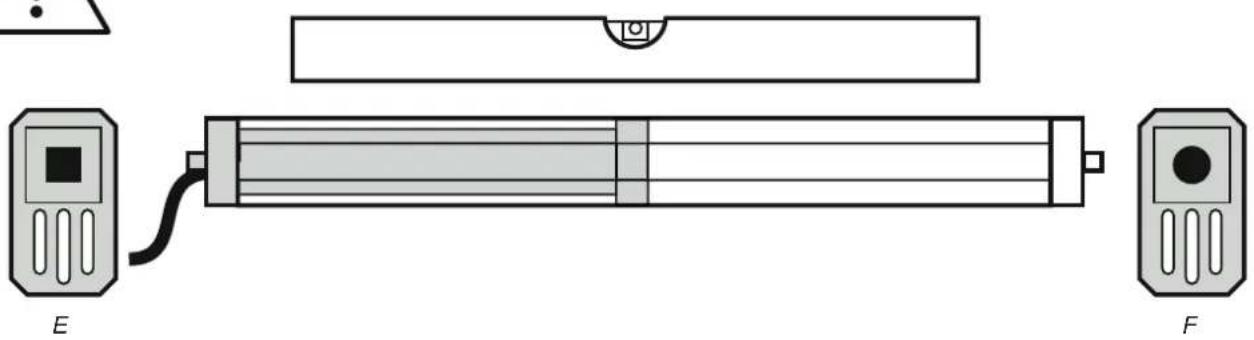

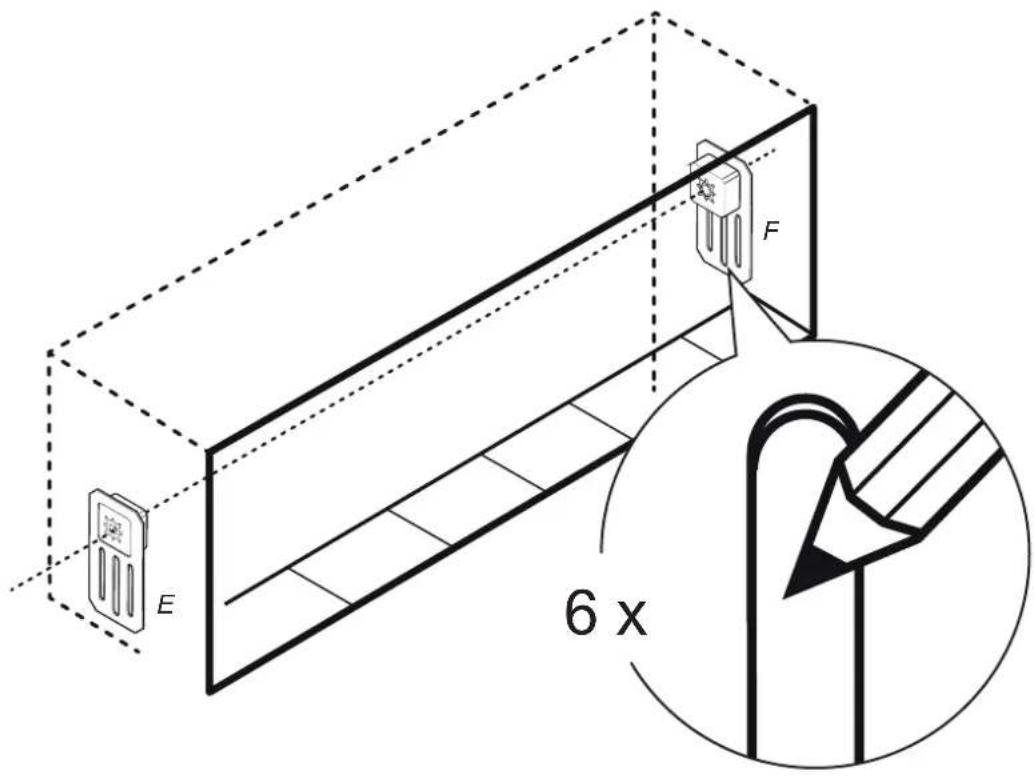

Diagram of a device with labeled components E and F, showing internal components and wiring (no text or symbols beyond labels)

1.

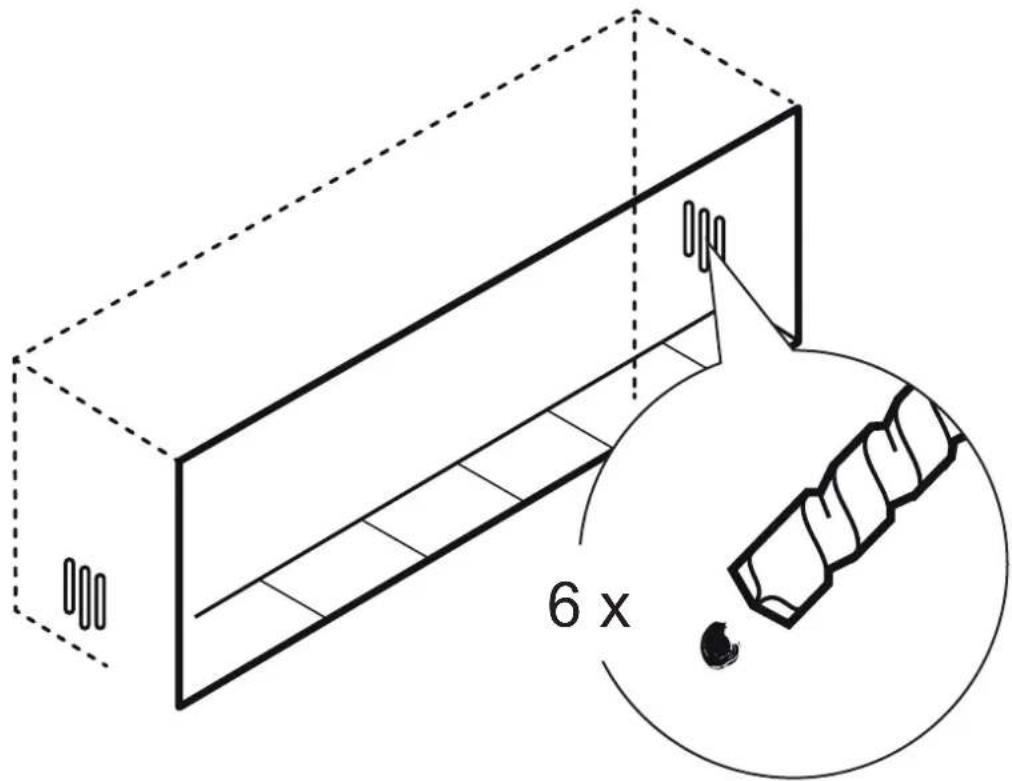

Pure diagram of three vertical bars with dots, no text or symbols present

1.

1.

Technical line drawing showing a bracket assembly with an arrow indicating direction (no text or symbols present)

12.

1.

14.

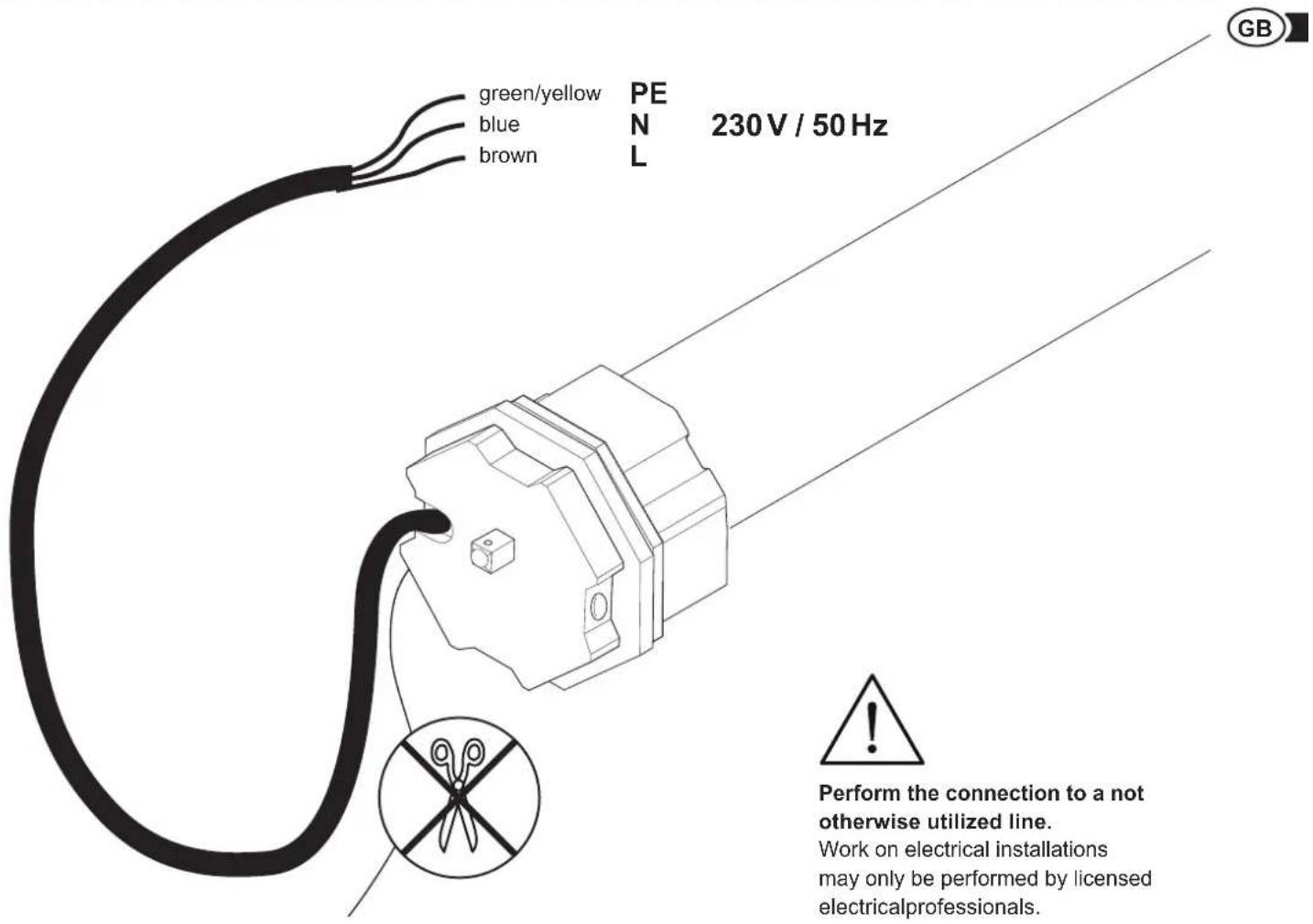

CP Perform the connection to a not otherwise utilized line.

Work on electrical installations may only be performed by licensed electrical professionals.

Technical line drawing of a mechanical assembly with a magnified inset showing internal components (no text or symbols)

Technical illustration of a screwdriver with a magnified inset showing the screw and shaft (no text or symbols)

B

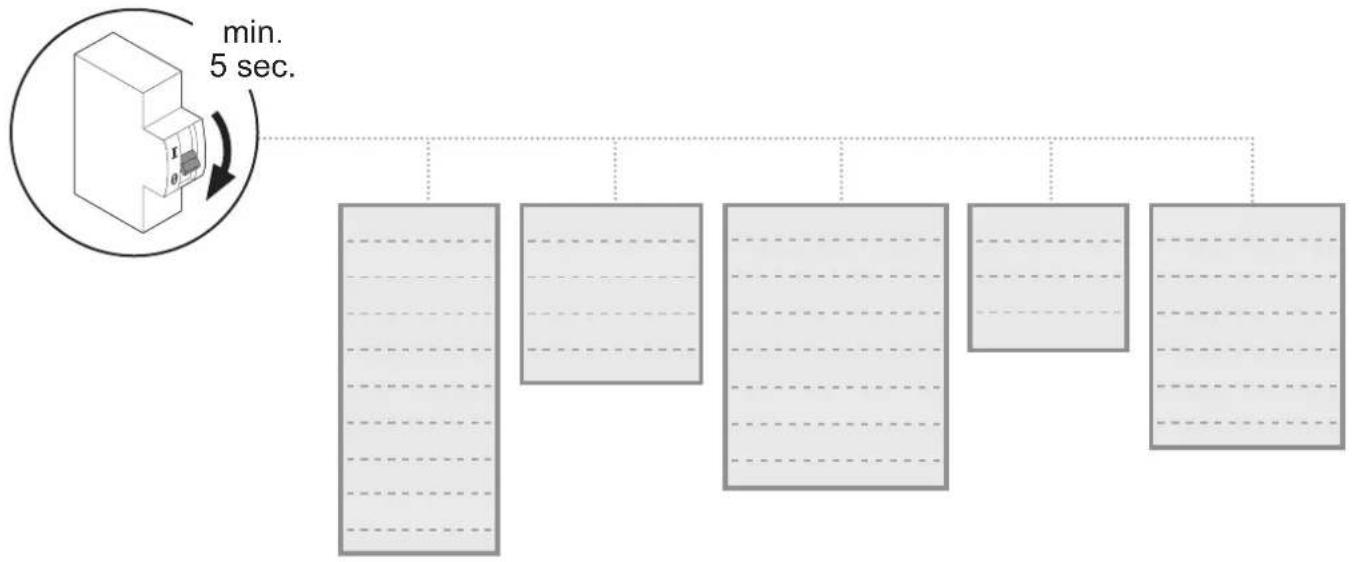

16.


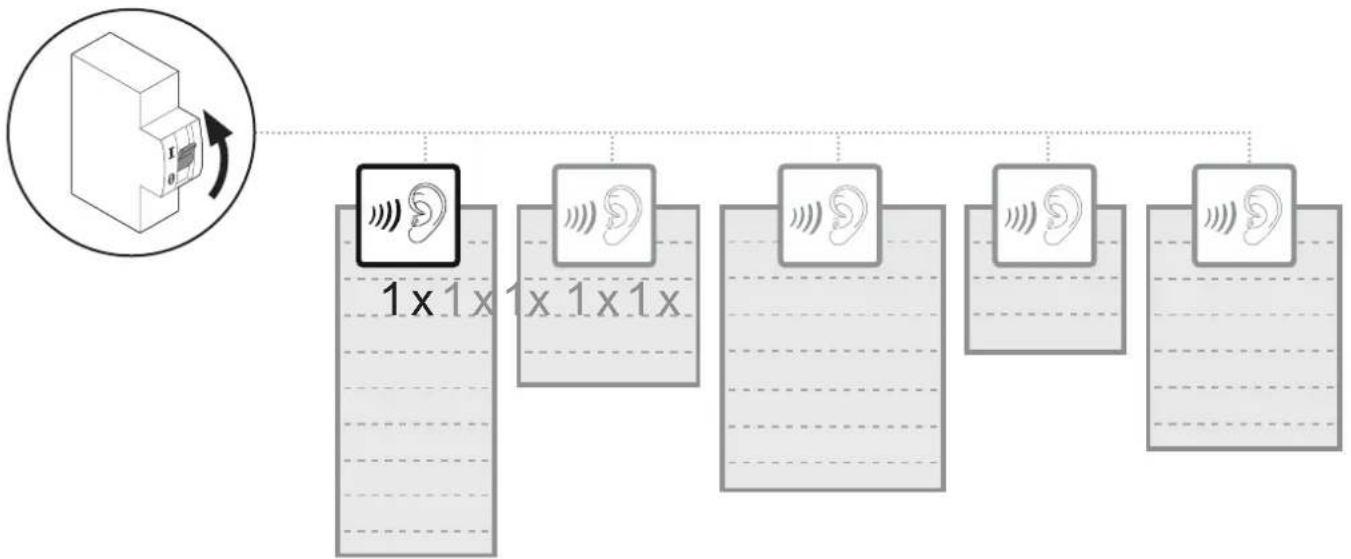

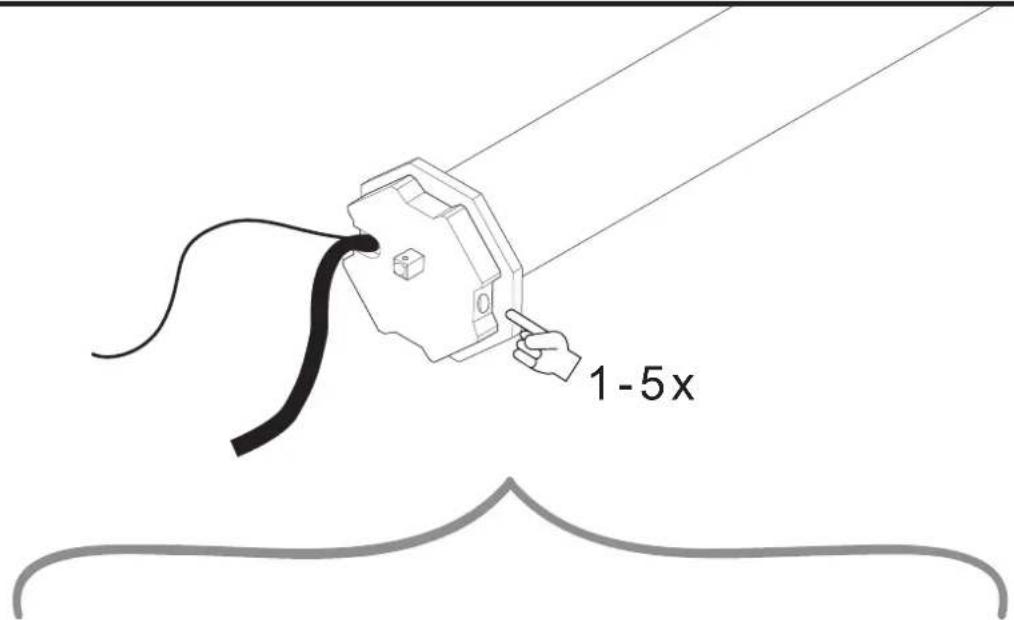

17.


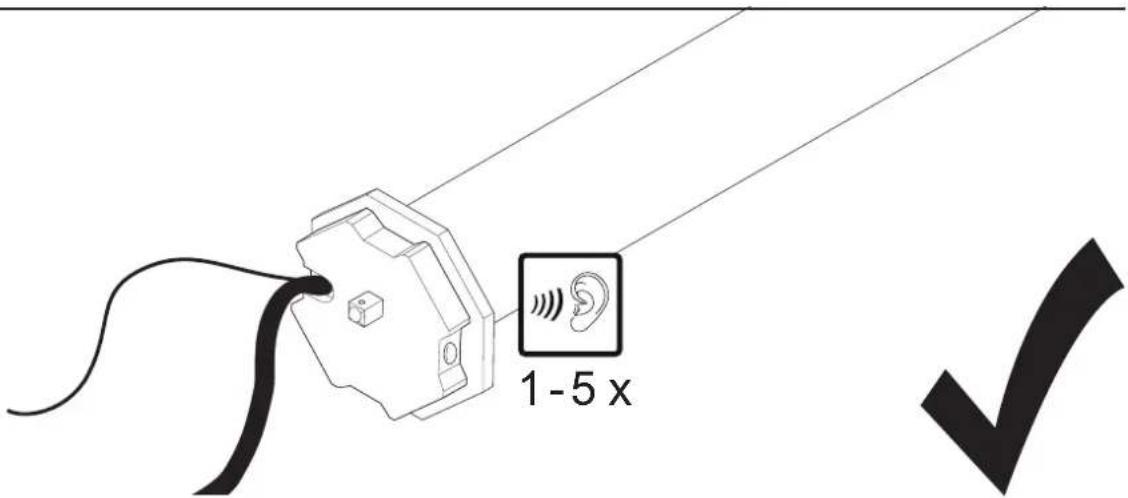

1.

1 × 2 × 3 × 4 × 5 ×

Hinweis:

GB Note: We recommend to first assign the respective addresses to the tubular motors before proceeding with the next steps.

E

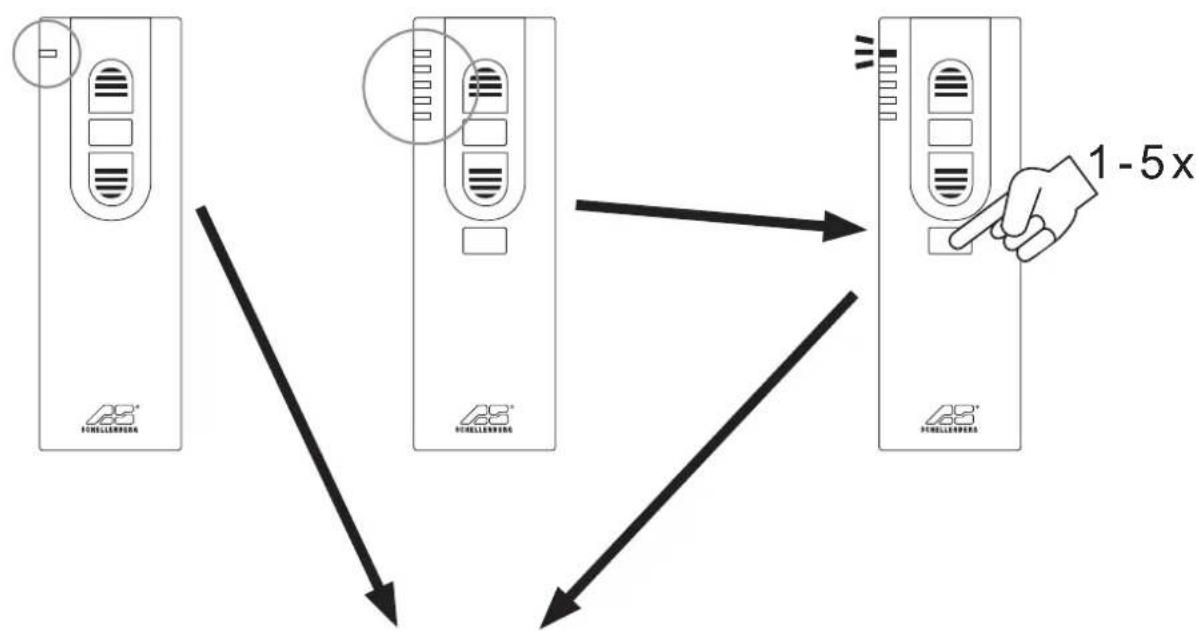

22.

23.

1.

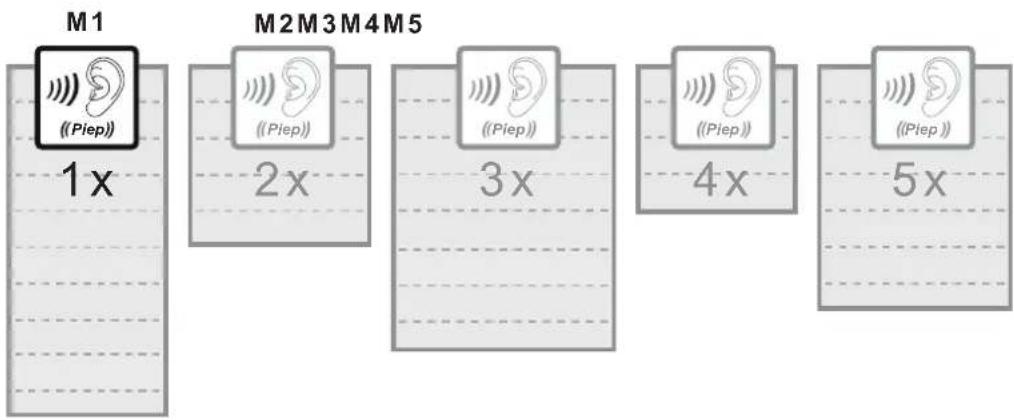

1 x = M1
2 x = M2
3 x = M3
4 x = M4
5 x = M5

1.

1x

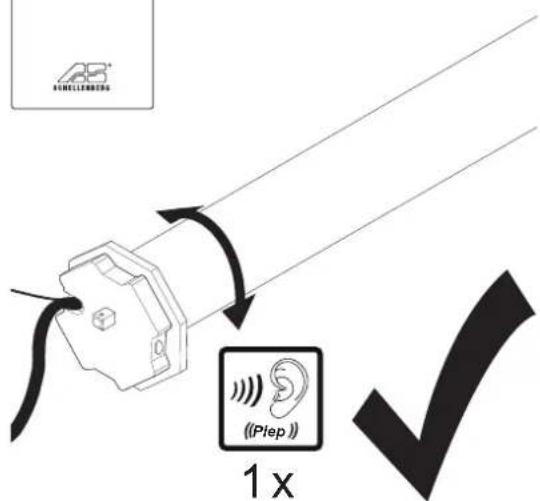

F

26.

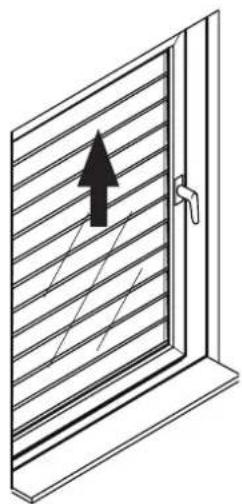

Diagram of a window with diagonal striped pattern and an upward arrow, no text or symbols present

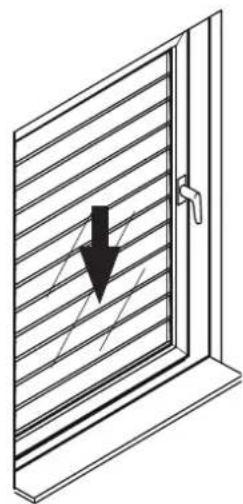

Diagram of a window with diagonal striped pattern and a black downward arrow indicating compression or damage (no text or symbols)

G

27.

28.

H

29.

90%

100%

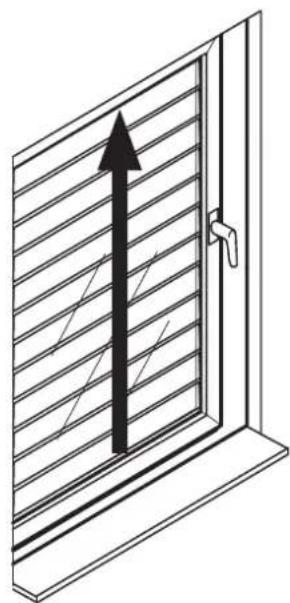

Simple line drawing of a door with an arrow pointing upward (no text or symbols)

30.

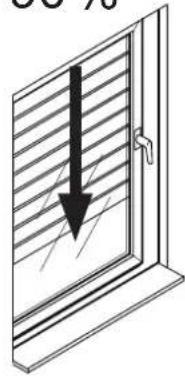

I

1.

90%

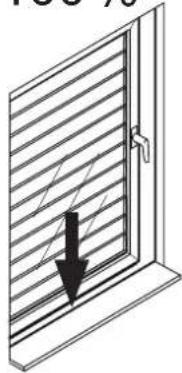

Diagram of a door with horizontal stripes and a black arrow pointing downward (no text or symbols)

100%

Diagram of a window with horizontal slats and a black arrow pointing to the left pan (no text or symbols)

1.

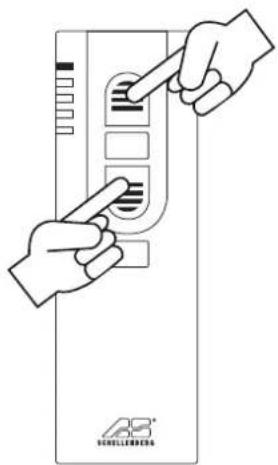

J

35.

Black checkmark symbol on white background (no text or additional symbols)

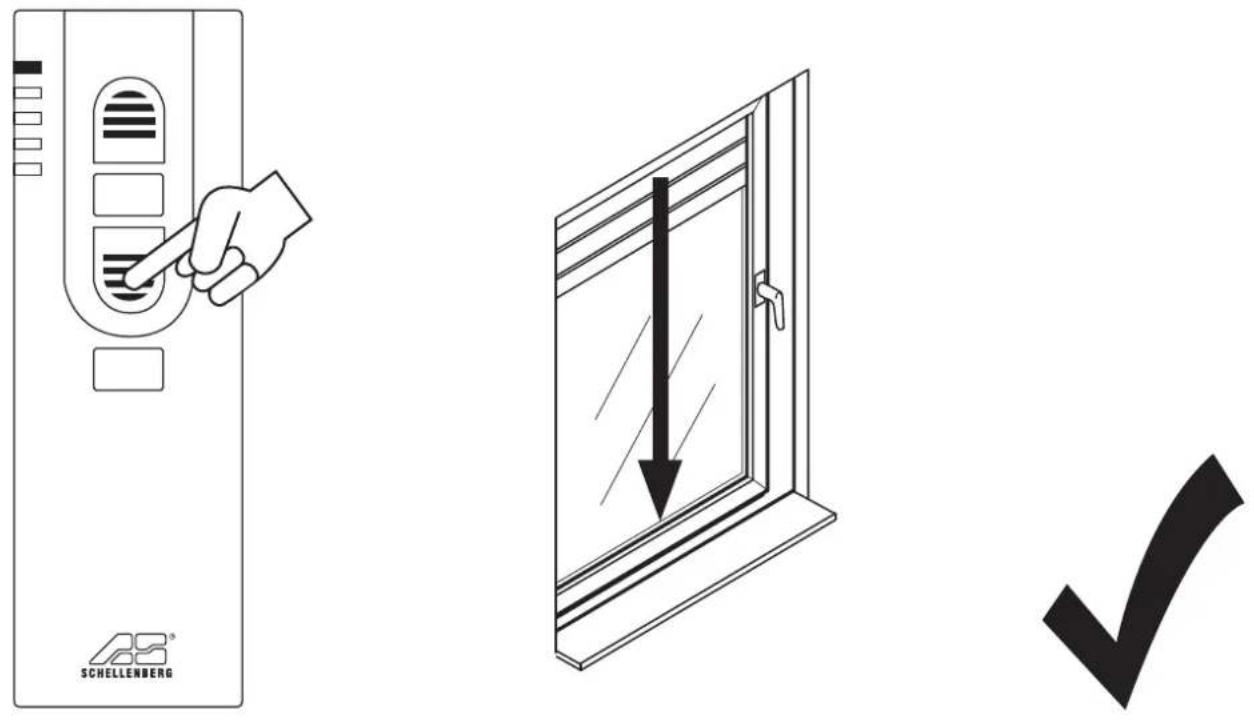

K

36.

Diagram of a window with diagonal blinds and an upward arrow, no text or symbols present

Black checkmark symbol on white background (no text or additional symbols)

1.

L

1.

GB For warranty claims, spare parts requests or questions regarding the proper installation of your product, please contact our Consumer Service Department. [e-mail]
