USER MANUAL DCW180Z MAKITA

MANUAL CU INSTRUCȚIUNI

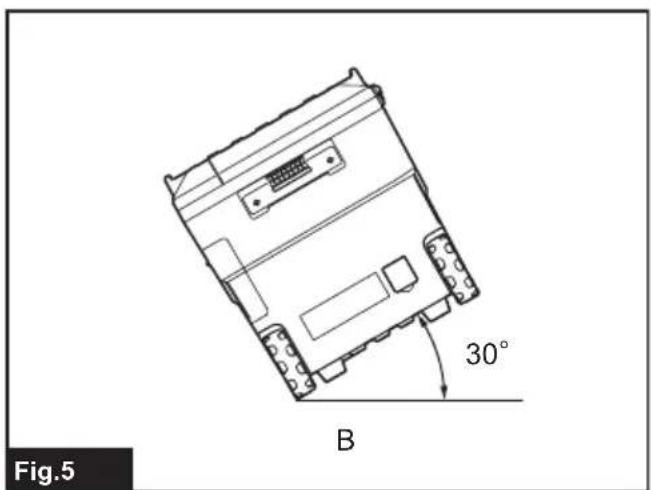

Fig.6 Fig.8 Fig.74 Fig.9 Fig.105 ENGLISH ENGLISH (Original instructions) WARNING This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capa- bilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision. SPECIFICATIONS Model: DCW180Capacity 20LInput Battery cartridge D.C. 18VAC adaptor Refer the indication on the AC adaptor.(Input voltage varies depending on the country.)Cigarette lighter adaptor D.C. 12V / 24VAnti-shock protection class IIIClimate type SN/N/ST/TInsulation material / Foaming material Polyurethane foam / Cyclopentane (C

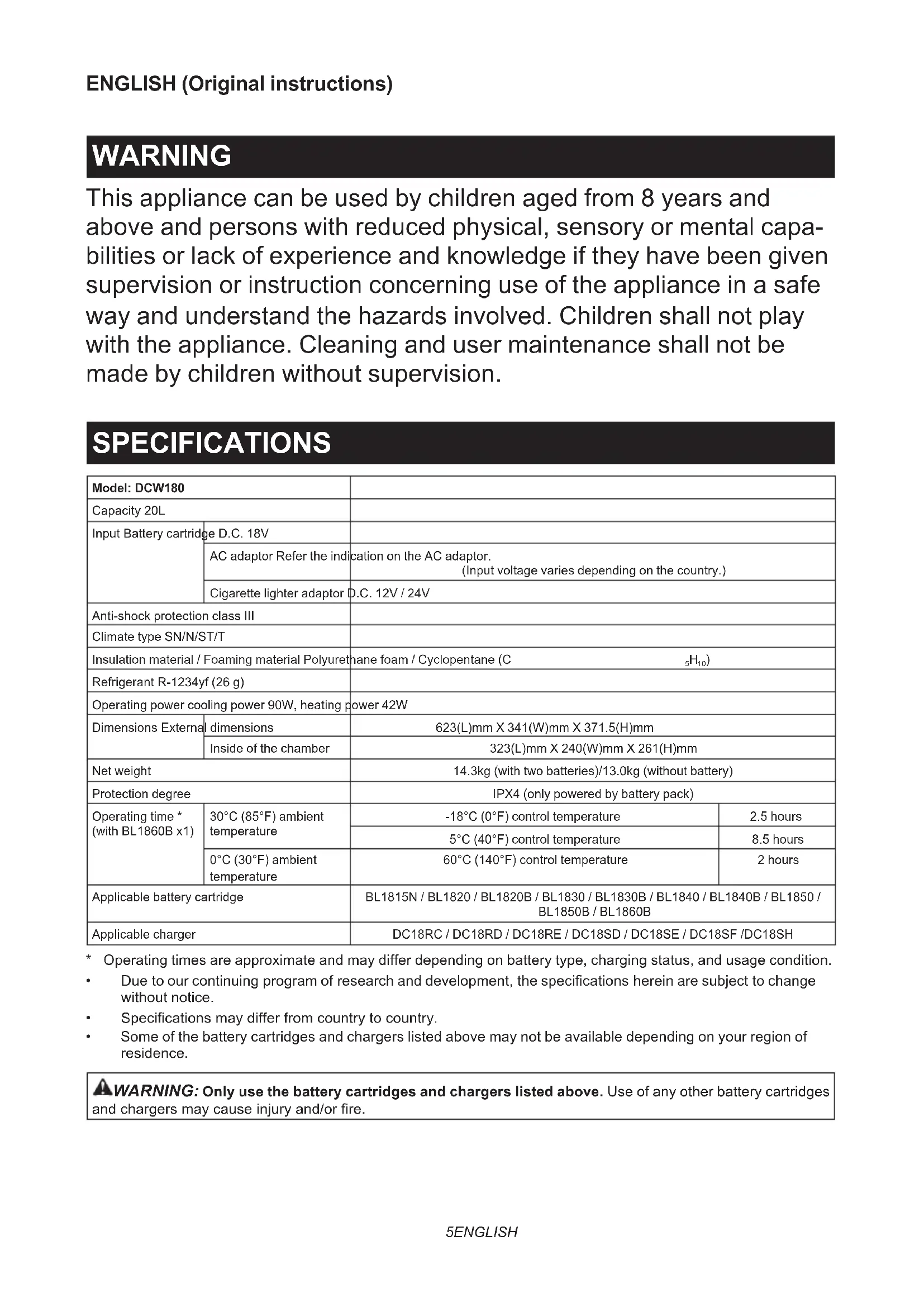

Refrigerant R-1234yf (26 g)Operating power cooling power 90W, heating power 42WDimensions External dimensions 623(L)mm X 341(W)mm X 371.5(H)mmInside of the chamber 323(L)mm X 240(W)mm X 261(H)mmNet weight 14.3kg (with two batteries)/13.0kg (without battery)Protection degree IPX4 (only powered by battery pack)Operating time *(with BL1860B x1)30°C (85°F) ambient temperature-18°C (0°F) control temperature 2.5 hours5°C (40°F) control temperature 8.5 hours0°C (30°F) ambient temperature60°C (140°F) control temperature 2 hours Applicable battery cartridge BL1815N / BL1820 / BL1820B / BL1830 / BL1830B / BL1840 / BL1840B / BL1850 / BL1850B / BL1860BApplicable charger DC18RC / DC18RD / DC18RE / DC18SD / DC18SE / DC18SF /DC18SH

• Operating times are approximate and may differ depending on battery type, charging status, and usage condition.

• Duetoourcontinuingprogramofresearchanddevelopment,thespecicationshereinaresubjecttochange without notice.

• Specicationsmaydifferfromcountrytocountry.

• Some of the battery cartridges and chargers listed above may not be available depending on your region of residence.

WARNING: Only use the battery cartridges and chargers listed above. Use of any other battery cartridges

andchargersmaycauseinjuryand/orre.6 Symbols The followings show the symbols which may be used for the appliance. Be sure that you understand their meaning before use. Read instruction manual. Ni-MH Li-ion Only for EU countries Due to the presence of hazardous com- ponents in the equipment, waste electrical and electronic equipment, accumulators and batteries may have a negative impact on the environment and human health. Do not dispose of electrical and electronic appliances or batteries with household waste! In accordance with the European Directive on waste electrical and electronic equip- ment and on accumulators and batteries and waste accumulators and batteries, as well as their adaptation to national law, waste electrical equipment, batteries and accumulators should be stored separately and delivered to a separate collection point for municipal waste, operating in accor- dance with the regulations on environmen- tal protection. This is indicated by the symbol of the crossed-out wheeled bin placed on the equipment. Caution:riskofre. SAFETY WARNINGS

This appliance is suitable for camping use only when the appliance powered by battery pack.

2. Keep ventilation openings in the appliance

clear of obstruction.

3. Do not use mechanical devices or other means

to accelerate the defrosting process, other than those recommended by the manufacturer.

4. Do not use electrical appliances inside the

food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.

5. Do not store explosive substances such as

aerosol cans with a ammable propellant in this appliance.

If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualied persons in order to avoid a hazard.

7. When positioning the appliance, ensure the

power cord is not tapped or damaged.

8. Do not locate multiple portable socket-outlets

or portable power supplies at the rear of the appliance.

9. Do not damage the refrigerant circuit.

10. This appliance is intended to be used in

household and similar applications such as - staffkitchenareasinshops,ofcesandother working environments; - farm houses and by clients in hotels, motels and other residential type environments; - bed and breakfast type environments; - catering and similar non-retail applications. IMPORTANT NOTICES

Read the instruction manual carefully before use.

2. Check if the voltage range used is the same

as that marked on the nameplate, whether the power cord plug is match the socket, and ensure that the socket is well grounded.

3. When the power cord or socket is damaged, or

any other electrical components are faulty, do not continue to use this product. Send it to the dealer or local special maintenance network for replacement or repair.

4. Even if the appliance is not in use, do not place

the appliance upside down, or tilt it above 15°. Otherwise malfunction may occur.

5. When carrying the appliance, keep the

appliance with the upper cover facing up. Do not carry the appliance with upside down. Otherwise malfunction may occur.

6. Do not immerse the appliance in water or other

liquid to prevent electric shock. Do not expose to rain.

7. When not in use or clean, remove the battery

and unplug the power plug.

8. When operating the appliance, the inlet of the

power cord and outlet should be kept a certain distance (about 15cm) from other items, so as not to affect the heat dissipation effect of the machine.

9. Any accessories not recommended by the

manufacturer may not be used.

10. Do not allow children or the persons with

physical disability to operate without any guidance or supervision.

11. Do not place the appliance next to a high-tem-

perature gas or electric stove to avoid accidents.

12. Do not start the power button frequently (at

least 5 minutes each time) to avoid damage to the compressor.

13. Do not insert metal foil or other conductive

materials into the appliance to prevent re or short circuit.

14. Do not use chemical washing liquids and hard

tools to clean the product.

15. Insert the plug completely into the “DC IN”

inlet. Failure to do so may deform the plug or causeare.

16. Clean the cigarette lighter socket before

inserting the plug. Failure to do so may deform theplugorcauseare.

17. Do not operate the appliance while driving.

Doing so may cause an accident.

18. When the remaining automobile battery

capacity gets small, use the appliance with the engine running. After using the appliance, unplug the cigarette lighter socket to prevent the loading on the automobile battery. ENGLISH7 ENGLISH

Do not abuse the AC adaptor and cigarette lighter adaptor.

20. Clean the plug of the AC adaptor and cigarette

lighter adaptor. Dirt such as water or salt adher- ing to the plug may cause rust and result poor conductivity,deformationorre.

Do not touch the plug of the AC adaptor and ciga- rette lighter adaptor immediately after operation. They may be extremely hot and could burn your skin.

22. Do not disassemble the appliance.

23. Do not charge the car battery while using the

appliance. Unacceptable voltage may be applied totheproduct,resultinginfailureorre.

24. Do not use ammable sprayer near the appli-

During operation, do not touch the contents, especially those made of metal, inside the appli- ance with wet hands. Doing so may cause frostbite

26. Do not handle the plug with wet or greasy

hand. Doing so may cause electric shock.

27. Do not put such as medicines or academic

materials in the appliance. This appliance can- not storage the materials that require strict tem- perature control.

28. Do not use this product as a stepstool or chair.

Do not leave this appliance in hot places, such as in a car under the sun.Doingsomaycausere

30. Do not allow small children and pets to play

with this appliance. Keep the appliance out of reach of children when storing.

31. Do not overll food and drink in the appliance.

Cooling performance may be reduced, causing food and drink to rot.

Be careful not to run out of battery power while keeping food and drink cool or warm. Do not store opened foods for a long time. Food and drink may rot

33. Do not use near heating materials or gas appli-

ances. Cooling performance may be reduced, or a gasleakmaycauseare.

34. Do not use a knife or a screwdriver to remove

ice or frost from the appliance. Doing so may damage the inside of the appliance and cause a malfunction, or the enclosed gas or oil may squirt.

35. Do not use the DC output (DC) of the engine

generator as the power supply. Doing so may cause a failure.

36. Do not put water etc. directly in the appliance.

Water may get inside the appliance and cause a malfunction. If water has accumulated in the chamber, wipe it off with a soft cloth.

37. Be careful not to pinch your nger when clos-

ing and opening the upper cover.

Do not put things that are easily perishable when operating heating mode. Food and drink may rot.

39. When operating heating mode, do not touch

the inside of the appliance with your hand for a long time. Risk of low-temperature burns.

40. Do not use this appliance in the refrigerator

vehicle or refrigerator chamber. Dew conden- sation easily occurs in the refrigerator vehicle and refrigerator chamber, causing water droplets to fall on the appliance and result in malfunctions.

41. Do not put creatures such as pets in the appli-

ance. This appliance cannot save creatures.

42. Do not put a cold agent in a broken bag. If the

cold agent leak in the appliance, the metal part of the appliance may be corroded. If the cold agent leaks, wipe it off with a damp soft cloth and then wipe dry with a soft cloth.

43. Attach the shoulder band securely so that

it does not drop off due to the weight of the appliance. Otherwise the appliance may fall and causeinjury.

44. When putting food and drink in the appliance,

put a cold or hot thing in advance. This appli- ance cannot cool or heat in a short time.

45. When using the appliance in a car, be sure to

install the appliance in a stable place such as the luggage space or the feet of the rear seats, and x it. Do not place the appliance on the seat in an unstable state. If the car suddenly starts or stops during driving, the appliance may falloverandmove,causinginjury.

46. Hold the appliance rmly when carrying.

Otherwise the appliance may fall and cause a mal- function,orfallingonyourfeetmaycauseinjury.

47. Disposal of the appliance.

This marking indicates that this prod- uct should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resource. Theinsulationblowinggasareamma- ble. When disposing of the appliance, do so only at an authorized waste disposal centre.Donotexposetoame. Safety warnings for battery-operated appliance Battery-operated appliance use and care

1. Prevent unintentional starting. Ensure the

switch is in the off-position before connecting to battery pack, picking up or carrying the appliance.Carryingtheappliancewithyournger on the switch or energizing appliance that have the switch on invites accidents.

2. Disconnect the battery pack from the appli-

ance before making any adjustments, chang- ing accessories, or storing appliance. Such preventive safety measures reduce the risk of starting the appliance accidentally.

3. Recharge only with the charger specied by

the manufacturer. A charger that is suitable for onetypeofbatterypackmaycreateariskofre when used with another battery pack.8 ENGLISH

4. Use appliances only with specically desig-

nated battery packs. Use of any other battery packsmaycreateariskofinjuryandre.

5. When battery pack is not in use, keep it away

from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. Shorting the battery termi- nalstogethermaycauseburnsorare.

6. Under abusive conditions, liquid may be

ejected from the battery; avoid contact. If con- tact accidentally occurs, ush with water. If liquid contacts eyes, additionally seek medical help.Liquidejectedfromthebatterymaycause irritation or burns.

7. Do not use a battery pack or appliance that

is damaged or modied.Damagedormodied batteries may exhibit unpredictable behaviour resultinginre,explosionorriskofinjury.

8. Do not expose a battery pack or appliance

to re or excessive temperature. Exposure toreortemperatureabove130°Cmaycause explosion.

9. Follow all charging instructions and do not

charge the battery pack or appliance outside the temperature range specied in the instruc- tions. Charging improperly or at temperatures outsidethespeciedrangemaydamagethe batteryandincreasetheriskofre.

10. Have servicing performed by a qualied repair

person using only identical replacement parts. This will ensure that the safety of the product is maintained.

11. Do not modify or attempt to repair the appli-

ance or the battery pack except as indicated in the instructions for use and care. Important safety instructions for battery cartridge

1. Before using battery cartridge, read all instruc-

tions and cautionary markings on (1) battery charger, (2) battery, and (3) product using battery.

2. Do not disassemble battery cartridge.

3. If operating time has become excessively

shorter, stop operating immediately. It may result in a risk of overheating, possible burns and even an explosion.

4. If electrolyte gets into your eyes, rinse them

out with clear water and seek medical atten- tion right away. It may result in loss of your eyesight.

5. Do not short the battery cartridge:

(1) Do not touch the terminals with any con- ductive material. (2) Avoid storing battery cartridge in a con- tainer with other metal objects such as nails, coins, etc. (3) Do not expose battery cartridge to water or rain. A battery short can cause a large current ow, overheating, possible burns and even a breakdown.

6. Do not store and use the appliance and battery

cartridge in locations where the temperature may reach or exceed 50 °C (122 °F).

7. Do not incinerate the battery cartridge even if

it is severely damaged or is completely worn out. The battery cartridge can explode in a re.

8. Be careful not to drop or strike battery.

9. Do not use a damaged battery.

10. The contained lithium-ion batteries are sub-

ject to the Dangerous Goods Legislation requirements. For commercial transports e.g. by third parties, forwarding agents, special requirement on pack- aging and labeling must be observed. For preparation of the item being shipped, consult- ing an expert for hazardous material is required. Please also observe possibly more detailed national regulations. Tape or mask off open contacts and pack up the battery in such a manner that it cannot move around in the packaging.

11. When disposing the battery cartridge, remove

it from the appliance and dispose of it in a safe place. Follow your local regulations relating to disposal of battery.

12. Use the batteries only with the products

specied by Makita. Installing the batteries to non-compliantproductsmayresultinare,exces- sive heat, explosion, or leak of electrolyte.

13. If the appliance is not used for a long period

of time, the battery must be removed from the appliance. SAVE THESE INSTRUCTIONS. CAUTION: Only use genuine Makita batteries. Use of non-genuine Makita batteries, or batteries that have been altered, may result in the battery bursting causingres,personalinjuryanddamage.Itwillalso void the Makita warranty for the Makita appliance and charger. Tips for maintaining maximum battery life

1. Charge the battery cartridge before completely

discharged. Always stop appliance operation and charge the battery cartridge when you notice less appliance power.

2. Never recharge a fully charged battery car-

tridge. Overcharging shortens the battery service life.

3. Charge the battery cartridge with room tem-

perature at 10 °C - 40 °C (50 °F - 104 °F). Let a hot battery cartridge cool down before charging it.

4. Charge the battery cartridge if you do not use

it for a long period (more than six months).9 ENGLISH PARTS DESCRIPTION ►Fig.1 1 Control panel 2 Battery cover 3 Upper cover hook 4 Upper cover 5 Handle 6 Carrying Handle 7 Opener 8 Filter cover 9 Wheel 10 “DC IN” socket 11 Temperature plus button 12 Power button 13 Cool / heat switch button 14 Temperature display 15 Battery indicator 16 Temperature reduction button - - - - OPERATION CAUTION: Do not put things that are easily perishable in the chamber. The food or drink may rot. NOTE: When operating the appliance in high humid environment, dew condensation may occur on the appliance. This is not malfunction of the appliance. Use a dry cloth to wipe the dew condensation off the appliance.

1. Connecting the power supply

A) Battery CAUTION: Always switch off the tool before installing or removing of the battery cartridge. CAUTION: Hold the tool and the battery car- tridge rmly when installing or removing battery cartridge. Failure to hold the tool and the battery cartridgermlymaycausethemtoslipoffyourhands and result in damage to the tool and battery cartridge andapersonalinjury. To install the battery cartridge, open the battery cover. Align the tongue on the battery cartridge with the groove in the housing and slip it into place. Insert it all the way until it locks in place with a little click. Then close the battery cover. To remove the battery cartridge, slide it from the appliance while sliding the button on the front of the cartridge. ►Fig.2 ►1. Red indicator 2. Button 3. Battery cartridge CAUTION: Always install the battery cartridge fully until the red indicator cannot be seen. If not itmayaccidentallyfalloutofthetoolcausinginjuryto you or someone around you. CAUTION: Do not install the battery cartridge forcibly. If the cartridge does not slide in easily, it is not being inserted correctly. NOTE: Up to two battery cartridges can be installed, although the appliance uses one battery cartridge for operation. B) AC adaptor When using the appliance with AC power, use the AC adaptor supplied with the appliance. Insert the plug to “DC IN” inlet of the appliance and then insert the other end to an outlet. C) Cigarette lighter adaptor When using the appliance with the cigarette lighter socket, use the cigarette lighter adaptor supplied with the appli- ance. Insert the plug to “DC IN” inlet of the appliance and then insert the other end to the cigarette lighter socket. CAUTION: Insert the plug completely into the “DC IN” inlet. Failure to do so may deform the plug orcauseare. CAUTION: Always close the “DC IN” socket cover rmly when the power cord is not plugged. NOTICE: When the appliance has been oper- ated for about 24 hours with the battery cartridge installed, battery cartridge may shut down its own power to protect the battery cartridge. In this case, the appliance can not operate with the battery power supply and the battery indicator also goes off. To resume the battery power supply, remove and re-install the battery cartridge. NOTE: When the appliance shifts power supply, the compressor will stop for about 3 minutes to protect the compressor. NOTE: After turning off the appliance, it takes about 3 minutes to restart the compressor because of the pro- tection of the compressor.

2. Turning on the appliance

Press the power button to turn on the appliance. Press the power button again to turn off the appliance.

3. Switching cooling / heating mode

Press the cool / heat switch button to switch the oper- ating mode. Thetemperaturedisplayashesthecontroltemperature.

• When the appliance operates in cooling mode, the control temperature is -18°C, -10°C, 0°C, 5°C or 10°C (0°F, 15°F, 30°F, 40°F or 50°F).

When the appliance operates in heating mode, the control temperature is 55°C or 60°C (130°F or 140°F).10 ENGLISH

4. Selecting the control temperature

Press the temperature plus button or the temperature reduction button to select the control temperature. The appliance starts cooling / heating 5 seconds after without any operation, then the control temperature stop ashingandthetemperaturedisplayshowsthecurrent temperature. The appliance stops cooling / heating when the current temperature reaches the control temperature. Tips for efcient cooling Opening the upper cover for long periods can cause signicantincreaseofthetemperatureinthechamber.

• Clean regularly surfaces that can come in contact with food and accessible drainage systems.

• Storerawmeatandshinsuitablecontainersin the chamber, so that it is not in contact with or drip onto other food.

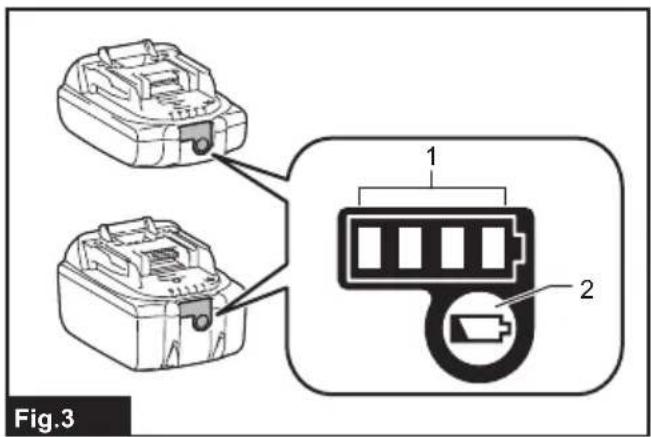

• If the chamber is left empty for long periods: - Switch off the appliance. - Defrost the chamber. - Clean and dry the chamber. - Leave the upper cover open to prevent mould developing within the chamber. FUNCTION Indicating the remaining battery capacity The battery indicator shows the remaining battery capacity. The remaining battery capacity is shown as the follow- ing table. Battery indicator status Remaining battery capacity On Off 50% to 100% 20% to 50% 0% to 20% (Blinking) Charge the battery (Only for battery cartridges with the indicator) Press the check button on the battery cartridge to indi- cate the remaining battery capacity. The indicator lamps light up for a few seconds. ►Fig.3 ►1. Indicator lamps 2. Check button Indicator lamps Remaining capacity Lighted Off Blinking 75% to 100% 50% to 75% 25% to 50% 0% to 25% Charge the battery. The battery may have malfunctioned. NOTE: Depending on the conditions of use and the ambient temperature, the indication may differ slightly from the actual capacity. Appliance / battery protection system The appliance is equipped with the protection system. This system automatically cuts off power to extend appliance and battery life. The appliance will automati- cally stop during operation if the appliance or battery is placed under one of the following conditions.

Battery overdischarge protection When the battery capacity becomes low, the appliance stops automatically. The battery indi- cator prompts that the battery should be charged. Remove the batteries from the appliance and charge the batteries.

2. Overcurrent protection

When the appliance is operated in a manner that causes it to draw an abnormally high current, the appliance automatically stops. In this situation, stop the application that caused the appliance to become overloaded. Then turn the appliance on to restart.

3. Car input protection

When the car input voltage is lower than the rated voltage, this protection system turns off the appli- ance and the temperature display shows “F3” with beep sound.11 ENGLISH

4. Overvoltage protection

When the input voltage is higher than the rated voltage, this protection system turns off the appli- ance and the temperature display shows “F4” with beep sound.

5. Short circuit protection

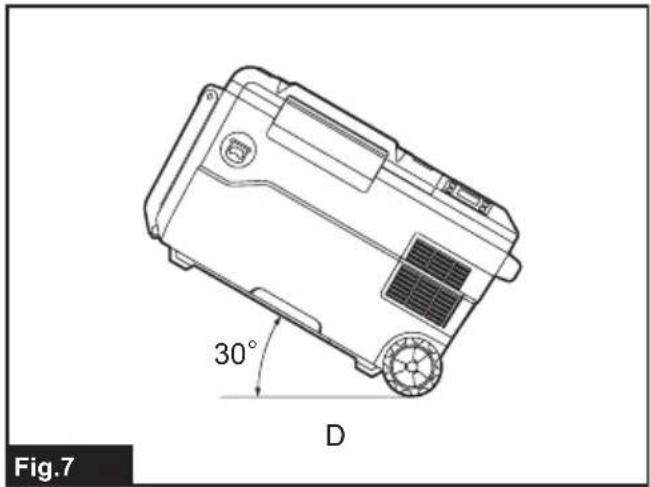

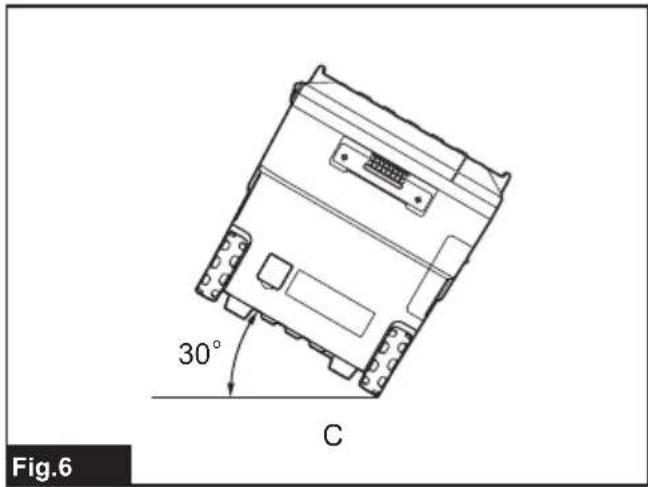

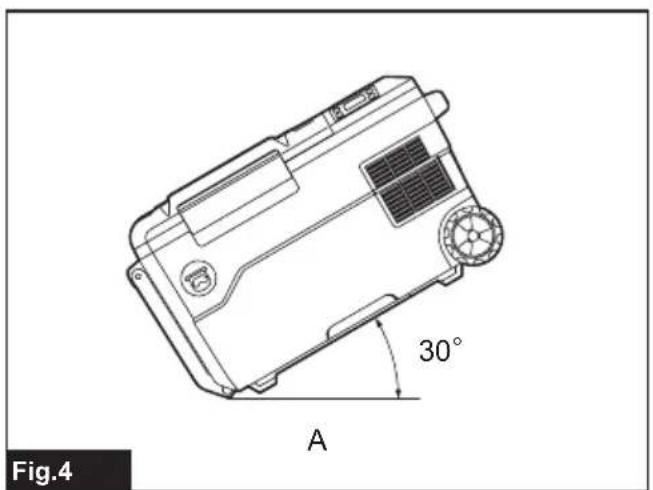

The circuit has short circuit protection function in case of short circuit. In this situation, take the appliance to Makita Authorized or Factory Service Centers. Tilt protection function The appliance is equipped with the tilt protection func- tion. When operating the appliance in cooling mode, the appliance will automatically shuts down if the appliance is placed under one of the following angles. A) When the appliance get greater than 30° from levelangleasshownAinthegure,theappliance shuts down and the temperature display shows “F1” for a while. It takes 3 minutes to restart after the appliance back in level position. ►Fig.4 B) When the appliance get greater than 30° from levelangleasshownBinthegure,theappliance shuts down and the temperature display shows “F1” for a while. It takes 3 minutes to restart after the appliance back in level position. ►Fig.5 C) When the appliance get greater than 30° from levelangleasshownCinthegure,theappliance shuts down and the temperature display shows “F1” for a while. It takes 3 minutes to restart after the appliance back in level position. ►Fig.6 D) When the appliance get greater than 30° from levelangleasshownDinthegure,theappliance shuts down and the temperature display shows “F1” for a while. It takes 3 minutes to restart after the appliance back in level position. ►Fig.7 USB charging There is the USB port in the battery compartment. The USB port continuously outputs 5V voltage in operation state. Memory function After setting the control temperature, if the user does not operate within 5 seconds, the current setting will be memorized. Next time, the appliance starts in the same setting. Switching the unit of temperature You can switch the unit of temperature °C (degree Celsius) or °F (degree Fahrenheit) by following procedure.

1. Turn on the appliance.

ture reduction button to select unit.

4. Press the cool / heat switch button, or leave the

appliance 5 seconds without any operation. The unit selection is completed. Shoulder belt

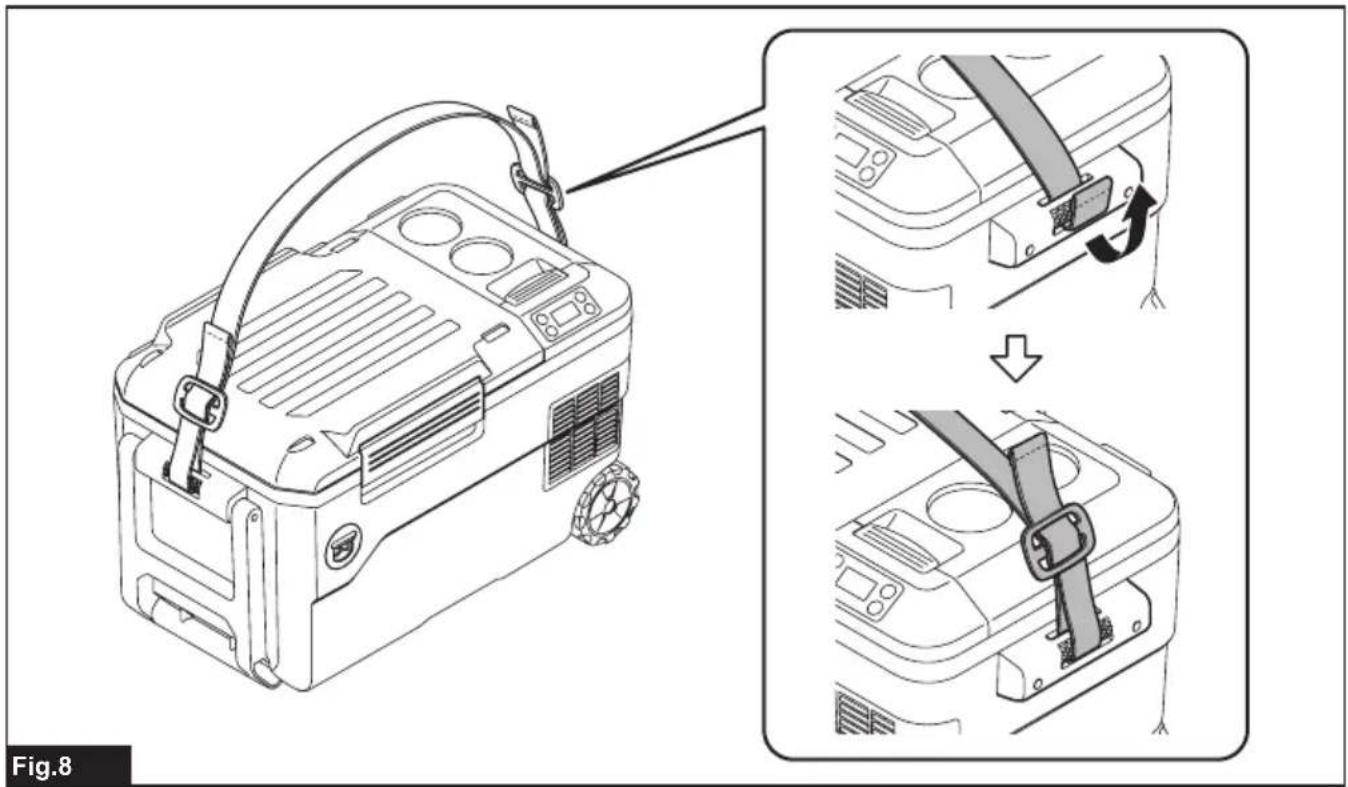

1. Put the belt through left and right handles.

►Fig.8 Error code Forthespecicerrors,thetemperaturedisplayshows following code. Error code Matter F1 Tilt protection is active. Refer the section for the tilt protection function. F2 Running out of battery. F3 Input voltage is low. Refer the paragraph for the car input protection. F4 Input voltage is high. Refer the paragraph for the overvoltage protection. F5 Something is wrong with the sensor in the appliance. Take the appliance to Makita Authorized or Factory Service Centers.12 MAINTENANCE CAUTION: Always be sure that the appliance is switched off, unplugged, and the battery car- tridge is removed before attempting to perform inspection or maintenance. NOTICE: Never use gasoline, benzine, thinner, alcohol or the like. Discoloration, deformation or cracks may result. To maintain product SAFETY and RELIABILITY, repairs,anyothermaintenanceoradjustmentshould be performed by Makita Authorized or Factory Service Centers, always using Makita replacement parts. Cleaning

• Clean the oil stain in the chamber regularly.

• Clean around the interior of the chamber to pre- vent odor.

• Cleanthedustonthelterregularlytoimprovethe refrigerationefciency.

• The sealing strip of the upper cover is easy to get dirty, clean it in time. Defrosting To defrost, turn off the power and wait until the frost has melted. Then wipe off the water. Cleaning the lter

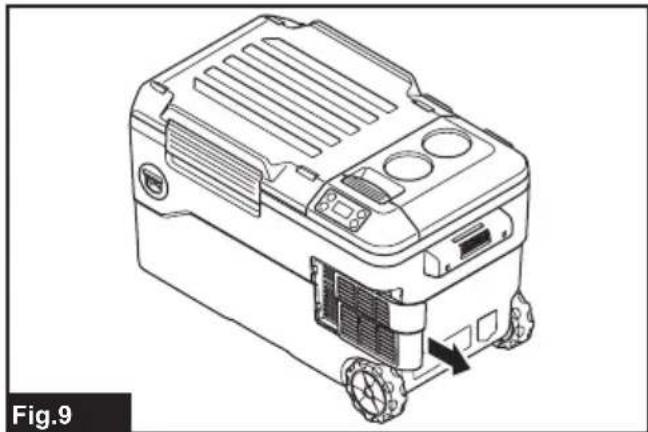

1. Push the slide cover in the direction of the arrow

showninthegure,andthentaketheltercover off. ►Fig.9

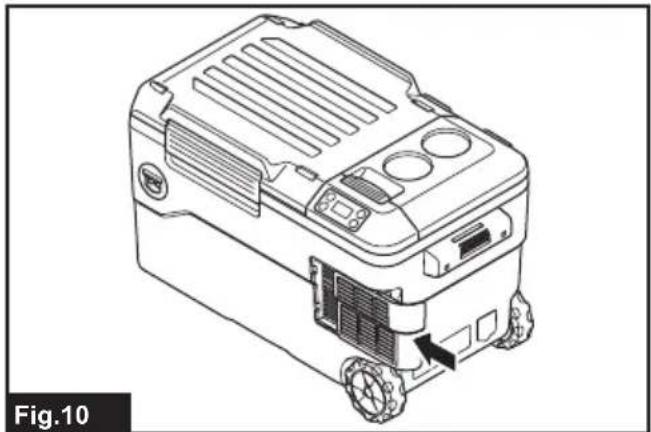

2. Takeoffthelter,cleanthelter,andtheninstall

►Fig.10 OPTIONAL ACCESSORIES CAUTION: These accessories or attachments are recommended for use with your Makita tool specied in this manual. The use of any other accessories or attachments might present a risk of injurytopersons.Onlyuseaccessoryorattachment for its stated purpose. If you need any assistance for more details regard- ing these accessories, ask your local Makita Service Center.

• Makita genuine battery and charger NOTE: Some items in the list may be included in the tool package as standard accessories. They may differ from country to country.
