Product Type	Grass Trimmer Attachment for Cordless Screwdriver
Brand	Bosch
Model	IXO Grass Shear
Cutting Width	73 mm
Weight (according to EPTA 01:2014)	0.27 kg
Compatibility	Bosch IXO Cordless Screwdriver (ref. 3 603 J81 0.., 3 603 JA8 0..)
Number of Fixing Positions	8 positions
Direction of Rotation	Right and left
Blade Guard	Yes, removable with audible click
Protection Shield	Integrated, to prevent accidental contact with blade
Sound Pressure Level	< 70 dB(A) (uncertainty K=3 dB)
Vibrations (total value ah)	4.0 m/s² (uncertainty K=1.5 m/s²) according to EN 50636-2-94
Use	Cutting grass, lawn edges and light bushes
Maintenance	Clean with soft brush, lubricate blade with Bosch maintenance spray
Blade Replacement	Not possible (replacement of attachment recommended)
Safety Instructions	Do not use in rain, wear goggles/closed shoes, keep distance
After-Sales Service France	0811360122, www.bosch-pt.fr
Repairability	Spare parts available via Bosch service

Frequently Asked Questions - IXO Grass Shear BOSCH

How to attach the grass trimmer attachment to the IXO screwdriver?

Remove the rubber cap from the screwdriver. Push the locking switch down, set the direction selector to the middle position, then snap the attachment onto the screwdriver until you hear a click. The blade guard must be in place during assembly.

How to remove the grass trimmer attachment?

Place the blade guard over the blade (audible click). Push the locking switch down, set the selector to the middle position, turn the unlocking ring and remove the attachment. Then put the rubber cap back on.

Can I replace the cutting blade?

No, blade replacement is not possible. If the blade is worn or damaged, it is recommended to replace the entire attachment.

What types of plants can I cut with this accessory?

The attachment is designed for cutting grass, lawn edges and light bushes. Do not use for cutting wood, stone, concrete or cables.

How to clean and maintain the attachment?

Wear gloves. Remove the attachment from the screwdriver. Clean with a soft brush. Lubricate the blade with Bosch maintenance spray (ref. 1 609 200 399). Do not use solvents.

What to do if the blade gets blocked?

Release the On/Off switch and wait for the blade to stop completely (a few seconds). Do not touch the blade until it has stopped. Then carefully remove any debris.

Can I use the attachment in the rain?

No, do not use the screwdriver and attachment in rain or humid conditions. Also protect them from heat and direct sunlight.

Does the attachment work with all Bosch screwdrivers?

No, it is exclusively compatible with the Bosch IXO cordless screwdriver (ref. 3 603 J81 0.. and 3 603 JA8 0..).

How to contact Bosch after-sales service in France?

You can call 0811360122 (local rate) or visit www.bosch-pt.fr. For spare parts, order online on this website.

What are the essential safety precautions?

Read all instructions. Wear safety goggles, closed shoes and long trousers. Do not run. Keep a safe distance. Wait for the blade to stop completely before touching it. Remove the attachment after use.

USER MANUAL IXO Grass Shear BOSCH

OBI_DOKU-52084-001.fm Page 1 Monday, December 12, 2016 9:21 AM

Illustration of a Bosch tool with a flat blade and handle (no text or symbols)

Robert Bosch Power Tools GmbH

70538 Stuttgart

GERMANY

www.bosch-pt.com

1 609 92A 28R (2016.12) O / 248

IXO Grass Shear

BOSCH

English ...... Page 14

Français Page 22

OBJ_BUCH-2787-001.book Page 4 Monday, December 12, 2016 9:22 AM

4

A1

BOSCH 9

A2 1 BOSCH click!

1 609 92A 28R | (12.12.16) Bosch Power Tools

OBJ_BUCH-2787-001.book Page 5 Monday, December 12, 2016 9:22 AM

|5

B1 ① ② ③ ⑤ ② ③ BOSCH BOSCH

B2 9 BOSCH

Bosch Power Tools 1 609 92A 28R | (12.12.16)

6 | Deutsch

Deutsch

Sicherheitshinweise

Explanation of symbols

Read all safety warnings and instructions enclosed with the grass shear adapter and the power tool you are using. Failure to follow the safety warnings and instructions may result in electric shock, fire and/or serious injury.

Save all safety warnings and instructions for future reference.

Do not use the screwdriver with grass shear adapter in rain and do not expose it to rain.

Warning: The blade of the grass shear adapter runs on after being switched off!

Pay attention that bystanders are not injured through foreign objects thrown from the machine.

Warning: Always keep a safe distance from the screwdriver with grass shear adapter when working with it.

Safety Warnings for Screwdriver with Grass Shear Adapter

This screwdriver with grass shear adapter is not intended for use by children and persons with physical, sensory or mental limitations or a lack of experience or knowledge.

1 609 92A 28R | (12.12.16) Bosch Power Tools

English | 15

▶ Do not use the grass shear adapter or the screwdriver with mounted grass shear adapter during people or pets are nearby.
▶ Supervise children that they do not play with the grass shear adapter or the screw-driver with mounted grass shear adapter.
▶ Remove the grass shear adapter from the screwdriver when not using it.
▶ Ensure that the blade is covered by the blade guard when not in use.
▶ Check whether the shield belonging to the grass shear adapter is undamaged. The shield is intended to protect the user against accidental contact with the blade.
▶ Keep the blade sharp and clean. A properly maintained blade with sharp cutting edges is less likely to bind and is easier to control.
▶ Do not cut wood, stone, concrete or cables. The blade will be blunted and can bind.
▶ Always wear protective glasses, sturdy shoes and long trousers when working with the screwdriver with grass shear adapter.
- Avoid taking up an abnormal posture and ensure that you have a firm footing. Always retain your balance, especially on hills or slopes. Having a firm footing and a suitable posture will enable you to control the screwdriver with grass shear adapter better in unexpected situations.
▶ Do not run while using or carrying the grass shear adapter. There is a risk of injury if you slip or fall.
▶ Switch off the On/Off switch, set the rotational direction switch to the middle position and press the locking switch downward:

• before any work on the screwdriver with grass shear adapter (e. g. changing the adapter etc.) as well as during transport and storage,
• whenever you move away from the screwdriver with grass shear adapter,
  – before removing blockages,
• when examining, cleaning or working on the screwdriver with grass shear adapter,
• after a collision with a foreign object. Examine the screwdriver with grass shear adapter for damage and if necessary have it repaired,

16 | English

- when the screwdriver with grass shear adapter begins to vibrate unusually. Immediately examine the screwdriver with grass shear adapter.

▶ Do not switch on the screwdriver with grass shear adapter until your hands and feet are sufficiently far away from the blade.

- Maintain the screwdriver with grass shear adapter with care. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the screwdriver with grass shear adapter's operation. If damaged, have the screwdriver with grass shear adapter repaired before use. Many accidents are caused by poorly maintained power tools and adapters.

▶ Warning! The blade continues to move for a few seconds after the screwdriver with grass shear adapter has been switched off. Caution! Do not touch the moving blade.

Do not expose the screwdriver with grass shear adapter to rain or wet conditions, and protect the power tool against heat, e. g. against continuous intense sunlight.

▶ Never operate the screwdriver with grass shear adapter while persons, especially children or pets, are in the immediate vicinity.
In the event of an accident, get medical help immediately and give first aid.

Product Description and Specifications

Intended Use

In conjunction with the IXO cordless screwdriver, the grass shear adapter is intended for light-duty cutting of grass, lawn edges and bushes.

The grass shear adapter must only be used in conjunction with the following power tools:

- Bosch IXO (3 603 J81 0., 3 603 JA8 0..)

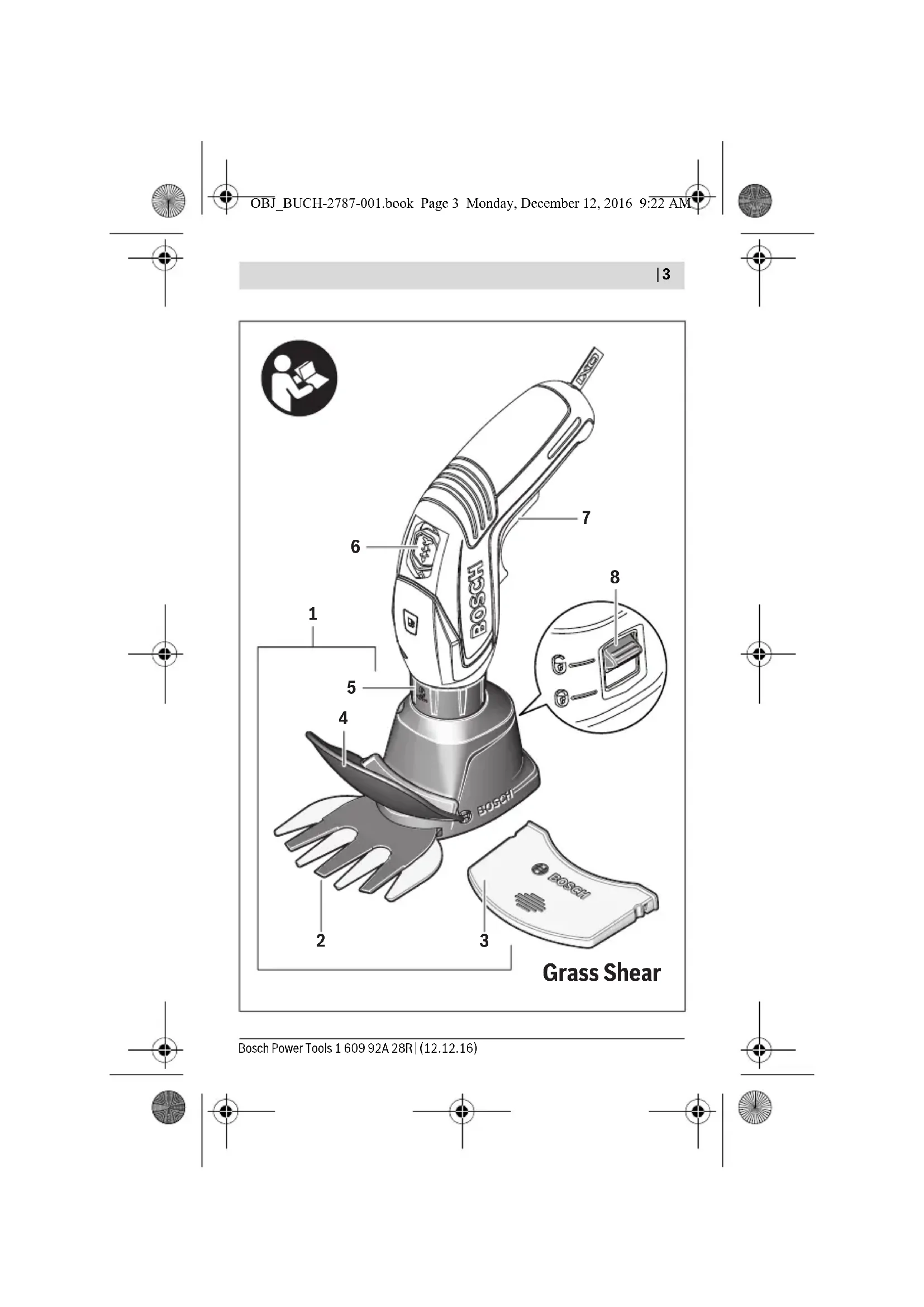

Product Features

The numbering of the product features refers to the illustration of the machine on the graphics page.

1 Grass shear adapter
2 Blade
3 Blade guard

1 609 92A 28R | (12.12.16) Bosch Power Tools

English | 17

4 Shield
5 Release ring
6 Rotational direction switch
7 On/Off switch
8 Locking switch
9 Rubber cap

*Accessories shown or described are not part of the standard delivery scope of the product. A complete overview of accessories can be found in our accessories program.

Technical Data

Grass shear adapter Grass Shear
Article number	1 600 A00 9V8
Cutting width	mm 73
Weight according to EPTA-Procedure 01:2014	kg 0.27

Noise/Vibration Information

Typically the A-weighted sound pressure level of the product is less than 70 dB(A). Uncertainty K = 3 dB.

The noise level when working can exceed 80 dB(A).

Wear hearing protection!

Vibration total values a_h (triax vector sum) and uncertainty K determined according to EN 50636-2-94:

$$ a _ {h} = 4. 0 \mathrm{m} / \mathrm{s} ^ {2}, K = 1. 5 \mathrm{m} / \mathrm{s} ^ {2}. $$

Assembly

▶ The blade is not intended to be changed.

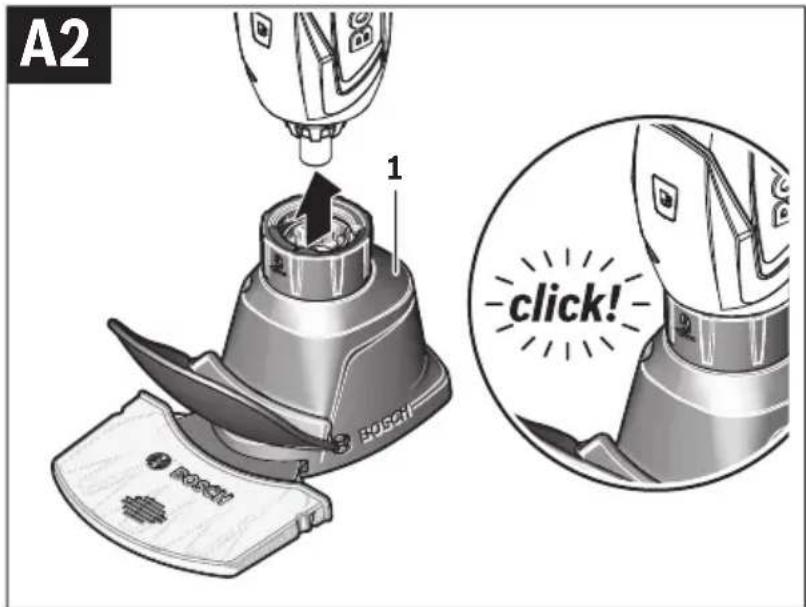

Attaching the Grass Shear Adapter (see figures A1 - A2)

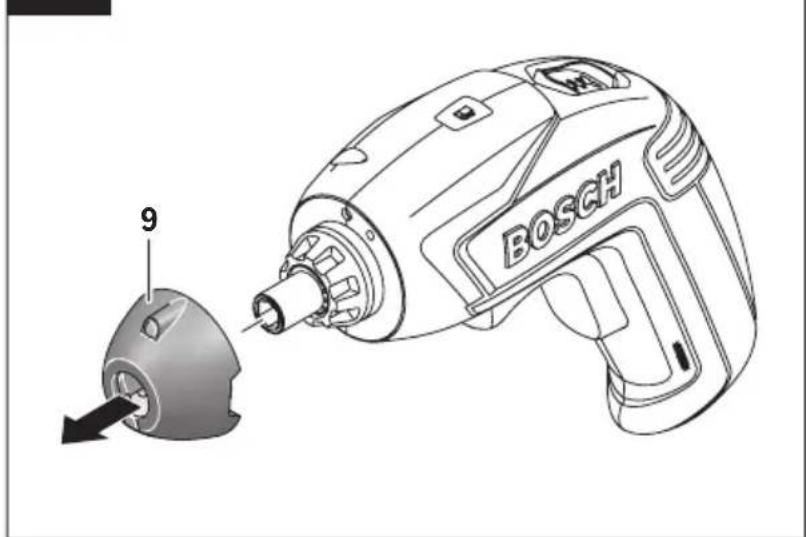

• Before mounting the grass shear adapter 1, you have to pull the rubber cap 9 of the screwdriver off toward the front.
• Press the locking switch 8 of the grass shear adapter downward.
• Set the rotational direction switch 6 to the middle position.
• Attach the grass shear adapter 1 with mounted blade guard 3 to the screwdriver. The grass shear adapter 1 must audibly engage.
• Remove the blade guard 3.

Bosch Power Tools 1 609 92A 28R | (12.12.16)

18 | English

Note: You can attach the grass shear adapter 1 in 8 different positions. This enables you to achieve the optimum working position for the job at hand, e.g. for cutting lawn edges.

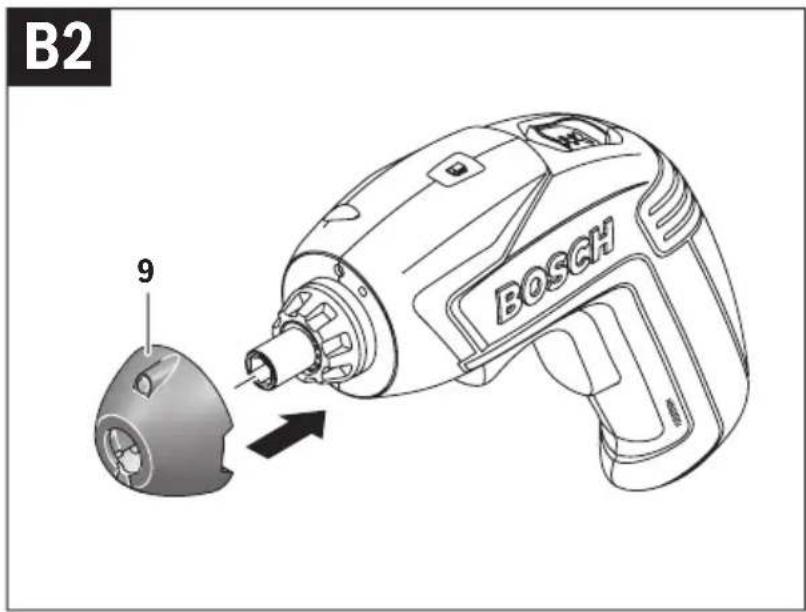

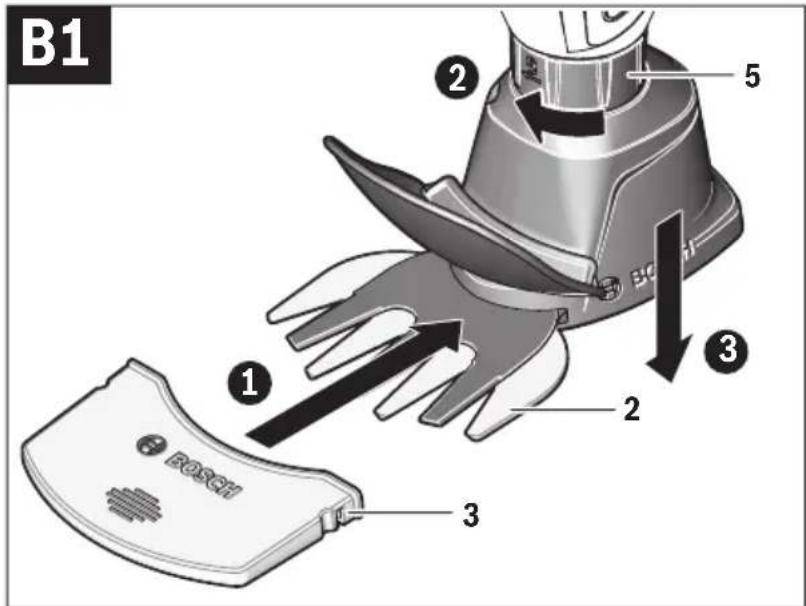

Dismounting (see figures B1-B2)

• Press the locking switch 8 of the grass shear adapter downward.
• Set the rotational direction switch 6 to the middle position.
• Slide the blade guard 3 onto the blade 2 (①). The blade guard 3 must audibly engage.
• Turn the release ring 5 in rotation direction ② and pull off the grass shear adapter 1 (③).
• Afterwards, mount the rubber cap 9 onto the screwdriver again.

Operation

Starting Operation

Place the screwdriver with grass shear adapter on the blade to put it down. This prevents moisture from penetrating into the power tool.

Switching On and Off

• Pull off the blade guard 3 of the blade 2.
• To start the screwdriver with grass shear adapter, press the locking switch 8 upward.
• Set the rotational direction using the rotational direction switch 6. The grass shear adapter can be operated in right or left rotation.
• Press switch 7 and hold depressed.
• To switch off the grass shear adapter, let go of the On/Off switch 7.
• Set the rotational direction switch 6 to the middle position.
• Press the locking switch 8 downward.
• Attach the blade guard 3 to the blade 2. The blade guard 3 must audibly engage.

Edging

Guide the screwdriver with grass shear adapter along the lawn edge. Prevent the blade from coming into contact with paved paths, stones or garden walls because this significantly reduces the lifetime of the blade. Attach the blade guard to the blade again after use.

1 609 92A 28R | (12.12.16) Bosch Power Tools

English | 19

Removing Blockages at the Blade

Never remove clippings while the blade is running and never hold the material you are cutting while the blade is running. Let go of the On/Off switch 7 and press the locking switch 8 downward.

▶ Warning! The blade continues to move for a few seconds after the screwdriver with grass shear adapter has been switched off.

Do not touch the moving blade. Wait until the blade is at standstill and then remove the blockage.

Maintenance and Service

Maintenance and Cleaning

▶ Always wear safety gloves when you are doing maintenance or service work.
▶ Set the rotational direction switch to the middle position.
▶ Before any maintenance or cleaning work, press the locking switch downward and remove the grass shear adapter from the screwdriver.
▶ Keep the blade clean to ensure good, safe operation.

• Inspect the grass shear adapter 1 regularly for visible defects such as loose fixings and worn or damaged components.
• After each work clean the grass shear adapter 1 with a paintbrush or a soft brush and lubricate the blade 2 with the Bosch maintenance spray. Do not use any solvents or polishes!

Accessories

Article number

Lubricant spray, 250 ml 1 609 200 399

After-sales Service and Application Service

Our after-sales service responds to your questions concerning maintenance and repair of your product as well as spare parts. Exploded views and information on spare parts can also be found under:

www.bosch-pt.com

Bosch's application service team will gladly answer questions concerning our products and their accessories.

Bosch Power Tools 1 609 92A 28R | (12.12.16)

20 | English

In all correspondence and spare parts orders, please always include the 10-digit article number given on the type plate of the grass shear adapter.

Great Britain

Robert Bosch Ltd. (B.S.C.)

P.O. Box 98

Broadwater Park

North Orbital Road

Denham

Uxbridge

UB 9 5HJ

At www.bosch-pt.co.uk you can order spare parts or arrange the collection of a product in need of servicing or repair.

Tel. Service: [phone]

E-Mail: [e-mail]

Ireland

Origo Ltd.

Unit 23 Magna Drive

Magna Business Park

City West

Dublin 24

Tel. Service: [phone]

Fax: [phone]

Australia, New Zealand and Pacific Islands

Robert Bosch Australia Pty. Ltd.

Power Tools

Locked Bag 66

Clayton South VIC 3169

Customer Contact Center

Inside Australia:

Phone: [phone]

Fax: [phone]

Inside New Zealand:

Phone: [phone]

Fax: [phone]

Outside AU and NZ:

Phone: [phone]

www.bosch.com.au

1 609 92A 28R | (12.12.16) Bosch Power Tools

English | 21

Republic of South Africa

Customer service

Hotline: [phone]

Gauteng - BSC Service Centre

35 Roper Street, New Centre

Johannesburg

Tel.: [phone]

Fax: [phone]

E-Mail: [e-mail]

KZN - BSC Service Centre

Unit E, Almar Centre

143 Crompton Street

Pinetown

Tel.: [phone]

Fax: [phone]

E-Mail: [e-mail]

Western Cape - BSC Service Centre

Democracy Way, Prosperity Park

Milnerton

Tel.: [phone]

Fax: [phone]

E-Mail: [e-mail]

Bosch Headquarters

Midrand, Gauteng

Tel.: [phone]

Fax: [phone]

E-Mail: [e-mail]

Disposal

The grass shear adapter, accessories and packaging should be sorted for environmentally friendly recycling.

Do not dispose of grass shear adapters into household waste!

Subject to change without notice.
