ED 12100mm F4.0 IS PRO - Lens OLYMPUS - Free user manual and instructions

Product Type	Zoom lens for Micro Four Thirds camera
Brand	Olympus
Model	ED 12-100mm F4.0 IS PRO
Mount	Micro Four Thirds
Focal Length	12-100 mm (35 mm equivalent: 24-200 mm)
Maximum Aperture	f/4.0
Minimum Aperture	f/22
Angle of View	84° – 12°
Optical Construction	11 groups, 17 elements
Minimum Focus Distance	0.15 m (at 12 mm) / 0.45 m (at 100 mm)
Image Stabilization	Yes, built-in IS (ON/OFF switch)
Focus	AF/MF switchable by ring
L-Fn Button	Yes (AF stop)
Filter Diameter	72 mm
Dimensions (Diameter × Length)	∅77.5 × 116.5 mm
Weight (without lens hood)	561 g
Lens Hood	Bayonet (included)
Material	High-quality metal and plastic
Included Accessories	Lens hood, front and rear caps
Care and Cleaning	Use a soft, dry cloth. Avoid moisture and chemicals.
Safety	Never look at the sun through the lens. Always replace the cap to prevent fire.
Repairability and Support	Olympus technical support: 00800-67108300 (Europe) or [e-mail] (North America)
General Information	Designed for Olympus OM-D and PEN cameras. Third-party software included.

Frequently Asked Questions - ED 12100mm F4.0 IS PRO OLYMPUS

How do I switch between autofocus (AF) and manual focus (MF)?

Slide the focus ring forward or backward. In AF position, the distance indicator is not visible. In MF position, the indicator appears and you can rotate the ring to focus.

What is the IS switch for?

The IS switch enables or disables image stabilization. In the ON position, stabilization works according to camera settings. In the OFF position, all stabilization is disabled.

What does the L-Fn button do?

The L-Fn button temporarily stops autofocus when pressed. Useful for locking focus.

How do I attach the lens hood?

Align the mark on the lens hood with the one on the lens, then rotate clockwise until it clicks. To remove, press the release button and rotate counterclockwise.

What is the minimum focusing distance?

It varies by focal length: 0.15 m at 12 mm and 0.45 m at 100 mm. This allows close-up shots.

Can I use multiple filters at the same time?

Stacking multiple filters is not recommended as the image edges may be cut off. Preferably use a single high-quality filter.

Is the lens compatible with all Micro Four Thirds cameras?

Yes, it is compatible with all Micro Four Thirds mount cameras, including Olympus OM-D, PEN series, and Panasonic models. For advanced features such as stabilization, use the latest firmware.

How do I clean the lens?

Use a soft, dry optical cloth. If necessary, blow off dust with a blower. Avoid contact with water or solvents.

What should I do if the lens does not focus?

Check that the AF/MF switch is in AF position. Make sure the L-Fn button is not pressed. If the problem persists, update the camera firmware or contact Olympus support.

Where to find Olympus technical support?

For Europe: 00800-67 10 83 00 (toll-free) or visit http://www.olympus-europa.com. For North America: 1-800-260-1625 or email [e-mail].

USER MANUAL ED 12100mm F4.0 IS PRO OLYMPUS

date of issue 2016.8

WD204002

Printed in China

OLYMPUS®

MICRO FOURTHINDS

M.ZUIKO DIGITAL

ED 12-100mm f4.0 IS PRO

Model No.:IM004

04 - JP 取扱説明書
07 - INSTRUCTIONS
11 - E INSTRUCCIONES
15 - FE MODE D'EMPLOU
19 - ВК ИНСТРУКЦИИ
22 - CS NÁVOD K POUŽITÍ
25.- DE: BEDIENUNGSANLEITUNG
28. IN: BET-JENINGSVE-JLEDNING
31 - FI JUHISED
34. HIL KÄYTTÖOHJEST
37 FLOAHEFIES
10. III UPDATE
40 - UPOTE
43 - FI HASZNALATI UTMUTATO
46 - ISTRUZIONI
49 - INSTRUKCIJA
52 - IN NORADIJUMI
55. AANWLIZINGEN
58 - INSTRUKSJONER

61 - PL INSTRUKCJA
64 - PT INSTRUCÕES
67 - RO INSTRUCTIUNI
70 - SF UPUTSTVO ZA UPOTREBU
73 - ☑ ИНСТРУКЦИЯ
76 - SW BRUKSANVISNING
79 - SI NAVODILA
82 - ISNÁVOD NA POLIŽITIE
85 - TR TALIMATLAB
88 - ШИНСТРУКЦИЯ
03
04. Hill square
94 - 10
97-Ki사용설명서
100 - 使用說明書

Technical diagram of a camera lens with numbered parts and labeled internal components

IP 取扱説明書

The following investor description applies to products exported into the EU directly by OLYMPUS EUROPA SE & Co. KG only, OLYMPUS EUROPA SE & Co. KG Amsterdam: 14-18 2007 Hamburg Centre

撮影時の注意

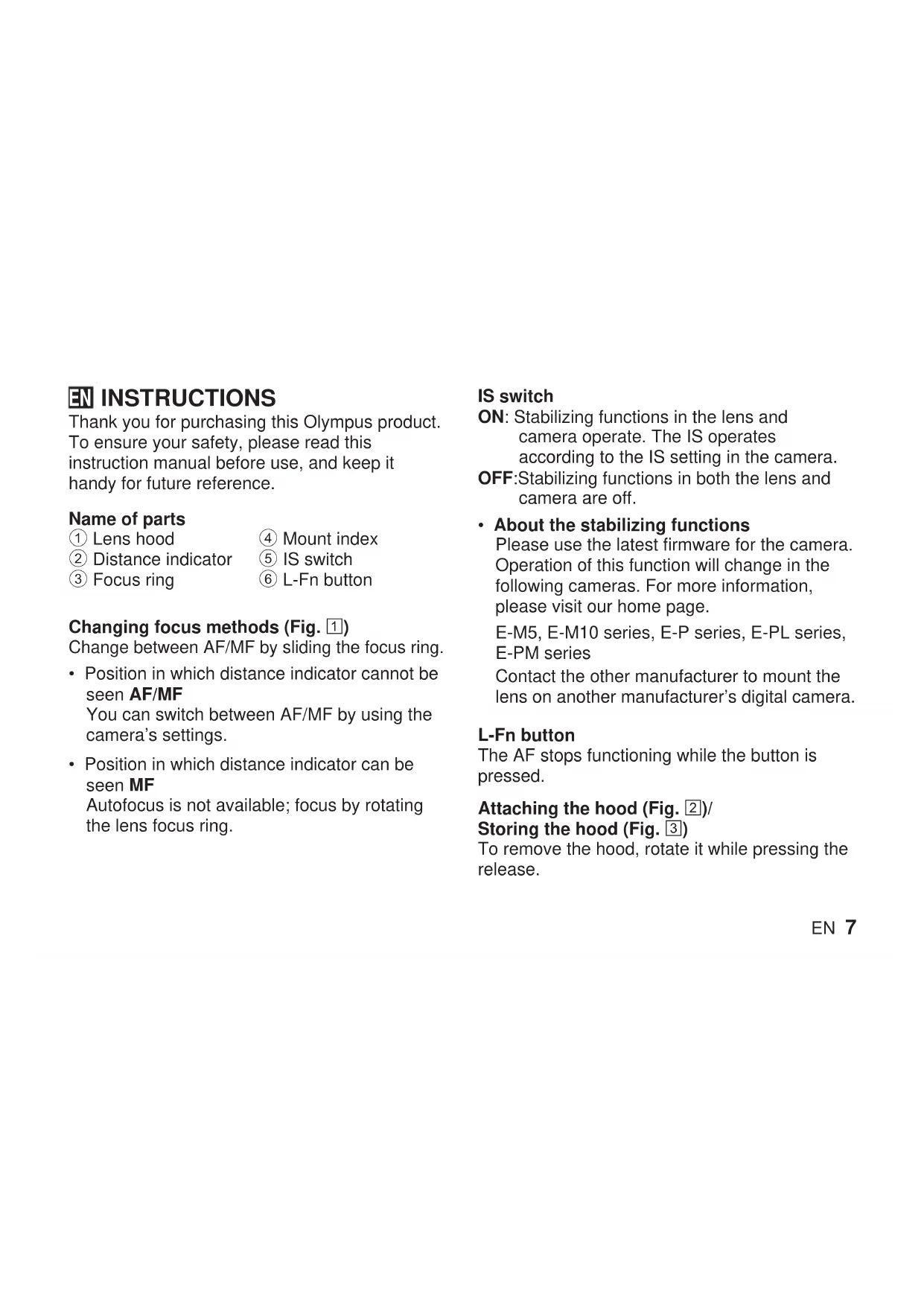

Thank you for purchasing this Olympus product. To ensure your safety, please read this instruction manual before use, and keep it handy for future reference.

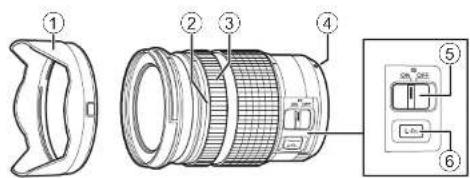

Name of parts

① Lens hood
④ Mount index
② Distance indicator
⑤ IS switch
③ Focus ring
⑥ L-Fn button

Changing focus methods (Fig. 1)

Change between AF/MF by sliding the focus ring.

• Position in which distance indicator cannot be seen AF/MF
  You can switch between AF/MF by using the camera's settings.
• Position in which distance indicator can be seen MF
  Autofocus is not available; focus by rotating the lens focus ring.

IS switch

ON: Stabilizing functions in the lens and camera operate. The IS operates according to the IS setting in the camera.

OFF: Stabilizing functions in both the lens and camera are off.

- About the stabilizing functions

Please use the latest firmware for the camera. Operation of this function will change in the following cameras. For more information, please visit our home page.

E-M5, E-M10 series, E-P series, E-PL series, E-PM series

Contact the other manufacturer to mount the lens on another manufacturer's digital camera.

L-Fn button

The AF stops functioning while the button is pressed.

Attaching the hood (Fig. 2)/

Storing the hood (Fig. 3)

To remove the hood, rotate it while pressing the release.

Notes on Shooting

• Edges of pictures may be cut off if more than one filter is used or if a thick filter is used.
• When using a flash, flash light may be blocked by the lens body, lens hood, etc.
• The focus distance may change when the focusing method is switched from MF to AF/MF and then back to MF. Readjust the focus distance.
• The distance indicator is intended as a guide only.
• Usage conditions may lower the number of images that can be captured.

Main Specifications

Mount : Micro Four Thirds mount

Focal distance : 12 – 100 mm

(equivalent to 24 to 200 mm on a 35 mm camera)

Max. aperture : f4.0

Image angle : 84^ - 12^

Lens configuration : 11 groups, 17 lenses

Iris control : f4.0 to f22

Shooting range : 0.15 m (5.9 in.) to ∞ (infinite)

Focal distance 12 mm

0.45 m (17.7 in.) to ∞ (infinite)

Focal distance 100 mm

Focus adjustment : AF/MF switching

8 EN

Weight : 561 g (19.8 oz.) (excluding hood and cap)

Dimensions : Max. dia. ∅ 77.5 (length 116.5 mm (4.6 in.)

Lens hood mount : Bayonet

Filter mount thread

diameter : ∅ 72 mm

* Specifications are subject to change without any notice or obligation on the part of the manufacturer.

Precautions: Be Sure to Read the Following

Warnings: Safety Precautions

• Do not view the sun through the lens. It may cause blindness or vision impairment.
• Do not leave the lens without the cap. If solar light is converged through the lens, a fire may result.
• Do not point the camera lens at the sun. Sunlight will converge in the lens and focus inside the camera, possibly causing a malfunction or fire.

Micro Four Thirds and the Micro Four Thirds logo are trademarks or registered trademarks of OLYMPUS CORPORATION.

For customers in North America, Central America, South America and the Caribbean FCC Notice

This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Any unauthorized changes or modifications to this equipment would void the user's authority to operate.

CAN ICES-3(B)/NMB-3(B)

• Technical Support (U.S.A. / Canada)

24/7 online automated help : http://www.olympusamerica.com/support Phone customer support :

Tel.[phone] (Toll-free)

Our phone customer support is available from 9 am to 9 pm (Monday to Friday) ET

E-Mail : [e-mail]

For customers in Europe

This symbol [crossed-out wheeled bin WEEE Annex IV] indicates separate collection of waste electrical and electronic equipment in the EU countries.

Please do not throw the equipment into the domestic refuse.

Please use the return and collection systems available in your country for the disposal of this product.

• European Technical Customer Support

Please visit our homepage

http://www.olympus-europa.com

or call: Tel. 00800 - 67 10 83 00 (Toll-free)

+49 40 - 237 73 899 (Charged)

The software in this lens may include third party software. Any third party software is subject to the terms and conditions, imposed by the owners or licensors of that software, under which software is provided to you.

Those terms and other third party software notices, if any, may be found in the software notice PDF file stored at

http://www.olympus.co.jp/en/support/img/digicamera/download/notice/notice.cfm
