M.Zuiko Digital ED 30mm F3.5 Macro - Lens OLYMPUS - Free user manual and instructions

Product Type	Macro lens for Micro Four Thirds cameras
Brand	Olympus
Model	M.Zuiko Digital ED 30mm F3.5 Macro
Focal Length	30 mm (60 mm equivalent in 35 mm format)
Maximum Aperture	f/3.5
Minimum Aperture	f/22
Angle of View	40°
Optical Construction	10 elements in 6 groups (1 ED, 1 HR, 1 aspherical)
Minimum Focusing Distance	0.095 m (9.5 cm)
Maximum Reproduction Ratio	1.25x (life-size)
Filter Diameter	46 mm
Dimensions (Diameter × Length)	57 mm × 60 mm
Weight (without caps and hood)	128 g
Mount	Micro Four Thirds
Lens Hood	Bayonet, supplied (LH-61B)
Focusing	Autofocus / Manual (ring switching)
L-Fn Button	Locks AF or assigns a custom function
Indicators	Depth of field and distance (approximate)
Maintenance	Blow off dust, wipe with cloth or optical paper
Safety	Do not look at the sun through the lens; store with cap
Supplied Accessories	Lens hood, front and rear caps
Warranty	Consult the manual or Olympus website

Frequently Asked Questions - M.Zuiko Digital ED 30mm F3.5 Macro OLYMPUS

What is the maximum magnification ratio of this lens?

The maximum reproduction ratio is 1.25x, allowing life-size macro photography.

Can I use this lens with an adapter on a body of another brand?

This lens is designed for the Micro Four Thirds mount (Olympus/Panasonic). Using it on other mounts requires an adapter, but some functions (AF, aperture) may be limited.

How to clean the lens elements?

Use a blower to remove dust, then optical paper or a microfiber cloth. Avoid solvents.

What is the minimum focusing distance?

The minimum distance is 0.095 m (9.5 cm) from the sensor, allowing extreme close-ups.

How to switch to manual focus?

Pull or push the focus ring to switch between AF and MF. In MF position, the distance indicator is visible.

Is the lens hood supplied?

Yes, a bayonet lens hood (model LH-61B) is included in the box.

What is the function of the L-Fn button?

The L-Fn button (Lens Function) allows locking autofocus or assigning a custom function depending on the camera body (e.g., AE lock).

Can I use filters with this lens?

Yes, the filter diameter is 46 mm. Be careful: using thick or multiple filters may cause vignetting.

Is this lens compatible with the built-in image stabilizers of Olympus bodies?

Yes, it is compatible with the 5-axis stabilization of Olympus bodies (e.g., OM-D, PEN).

What to do if autofocus does not work?

Check the position of the focus ring: it must be in AF position (distance indicator hidden). Also ensure the camera body is set to AF mode.

USER MANUAL M.Zuiko Digital ED 30mm F3.5 Macro OLYMPUS

date of issue 2017.8

WD242101

Printed in Japan

OLYMPUS®

MICRO FOURTHIRDS

M.ZUIKO DIGITAL

ED 45mm f1.2 PRO

Model No.: IM009

04 - JP 取扱説明書
07 - EN INSTRUCTIONS
11 - ES INSTRUCCIONES
15 - FR MODE D'EMPLOI
19 - ВСИНСТРУКЦИИ
22 - CS NÁVOD K POUŽITÍ
25 - DA BETJENINGSVEJLEDNING
28 - DE BEDIENUNGSANLEITUNG
31 - ΕλΟΔΗΓΙΕΣ
34 - ET JUHISED
37 - F KÄYTTÖOHJEET
40 - HR UPUTE
43 - HU HASZNÁLATI ÚTMUTATÓ
46 - ISTRUZIONI
49 - INSTRUKCIJA
52 - NV NORĀDĪJUMI
55 - NL AANWIJZINGEN
58 - NO INSTRUKSJONER

61 - PL INSTRUKCJA
64 - PT INSTRUÇÕES
67 - RO INSTRUCTIUNI
70 - RU ИНСТРУКЦИЯ
73 - SK NÁVOD NA POUŽITIE
76 - SL NAVODILA
79 - SR UPUTSTVO ZA UPOTREBU
82 - SV BRUKSANVISNING
85 - IR TALIMATLAR
88 - UK ІНСТРУКЦІЯ
93 - AR الإرشادات
94-KR사용설명서
97 - 3HT 使用說明書
100 - ต่ําแนะนําการใช้งาน
103 - VI CAC HƯƠNG DẢN

JP 取扱説明書

The following important description applies to proceeds, imported into the EU directly by OLYMPUS EUROPA SE & Co. KG or p., OLYMPUS EUROPA SE & Co. KG Kinderstrasse 14-10, 20087 Hamburg, Germany Manufactured by OLYMPUS CORPORATION 2591 Monarche- undel: Hach op-tie. Tokyo 122-8507, Japan

主な仕様

Thank you for purchasing this Olympus product.

To ensure your safety, please read this instruction manual before use, and keep it handy for future reference.

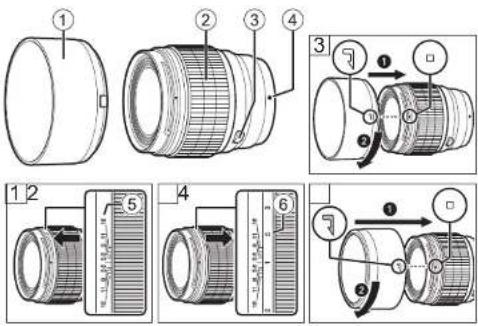

Name of parts

① Lens hood

④ Mount index

② Focus ring

⑤ Depth-of-field indicator

③ L-Fn button

⑥ Distance indicator

Focus ring

Slide to change the focus method (Fig. 1 and 2) (manual focus clutch mechanism).

- Position in which distance indicator cannot be seen (Fig. 1)

The lens will operate in the focus mode set by the camera.

- Position in which distance indicator can be seen (Fig. 2)

The lens will operate in the MF mode, regardless of the focus mode set by the camera.

Focus by rotating the lens focus ring.

Depth of field varies with the aperture selected with the camera, and is shown by the depth-of-field indicator on the lens.

L-Fn button

The AF stops functioning while the button is pressed.

You may be able to assign other functions depending on your camera. For details, see the instruction manual that came with your camera.

Attaching the hood (Fig. 3)/

Storing the hood (Fig. 4)

To remove the hood, rotate it while pressing the release.

Notes on Shooting

• If autofocus (AF) is unavailable, check the sliding position of the focus ring.
• Edges of pictures may be cut off if more than one filter is used or if a thick filter is used.
• When using a flash, flash light may be blocked by the lens body, lens hood, etc.
• The focus distance may change when you slide the focus ring.
• The distance and depth-of-field indicators are intended as guides only.

Main Specifications

Mount : Micro Four Thirds mount

Focal distance : 45 mm

(equivalent to 90 mm on a 35 mm camera)

Shooting range : 0.5 m (19.7 in.) to ∞ (infinite)

Focus adjustment : AF/MF switching

Weight : 410 g (14.5 oz.)

(excluding hood and cap)

Dimensions :

Max. dia. ∅ 70

length 84.9 mm (3.3 in.)

Lens hood mount : Bayonet

Filter mount thread

diameter : ∅ 62 mm

* Specifications are subject to change without any notice or obligation on the part of the manufacturer.

Maintenance

Blow dust off the lens with a commercially available blower. For the lens, wipe gently with a lens cleaning paper.

Precautions: Be Sure to Read the Following

Warnings: Safety Precautions

• Do not view the sun through the lens. It may cause blindness or vision impairment.
• Do not leave the lens without the cap. If solar light is converged through the lens, a fire may result.
• Do not point the camera lens at the sun.
  2.8 Sunlight will converge in the lens and focus inside the camera, possibly causing a malfunction or fire.

Micro Four Thirds and the Micro Four Thirds logo are trademarks or registered trademarks of OLYMPUS CORPORATION.

For customers in North America, Central America, South America and the Caribbean FCC Notice

This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Any unauthorized changes or modifications to this equipment would void the user's authority to operate.

CAN ICES-3(B)/NMB-3(B)

• Technical Support (U.S.A. / Canada)

24/7 online automated help : http://www.olympusamerica.com/support Phone customer support :

Tel.[phone] (Toll-free) Our phone customer support is available from 9 am to 9 pm (Monday to Friday) ET E-Mail : [e-mail]

For customers in Europe

This symbol [crossed-out wheeled bin WEEE Annex IV] indicates separate collection of waste electrical and electronic equipment in the EU countries.

Please do not throw the equipment into the domestic refuse.

Please use the return and collection systems available in your country for the disposal of this product.

• European Technical Customer Support

Please visit our homepage http://www.olympus-europa.com or call: Tel. 00800 - 67 10 83 00 (Toll-free) +49 40 - 237 73 899 (Charged)

The software in this lens may include third party software. Any third party software is subject to the terms and conditions, imposed by the owners or licensors of that software, under which software is provided to you.

Those terms and other third party software notices, if any, may be found in the software notice PDF file stored at

http://www.olympus.co.jp/en/support/img/digicamera/download/notice/notice.cfm

This product uses T-Kernel source code under the terms of the T-Engine Forum (www.tron.org) T-License.
