Cordless Worklight INSTRUCTION MANUAL 3

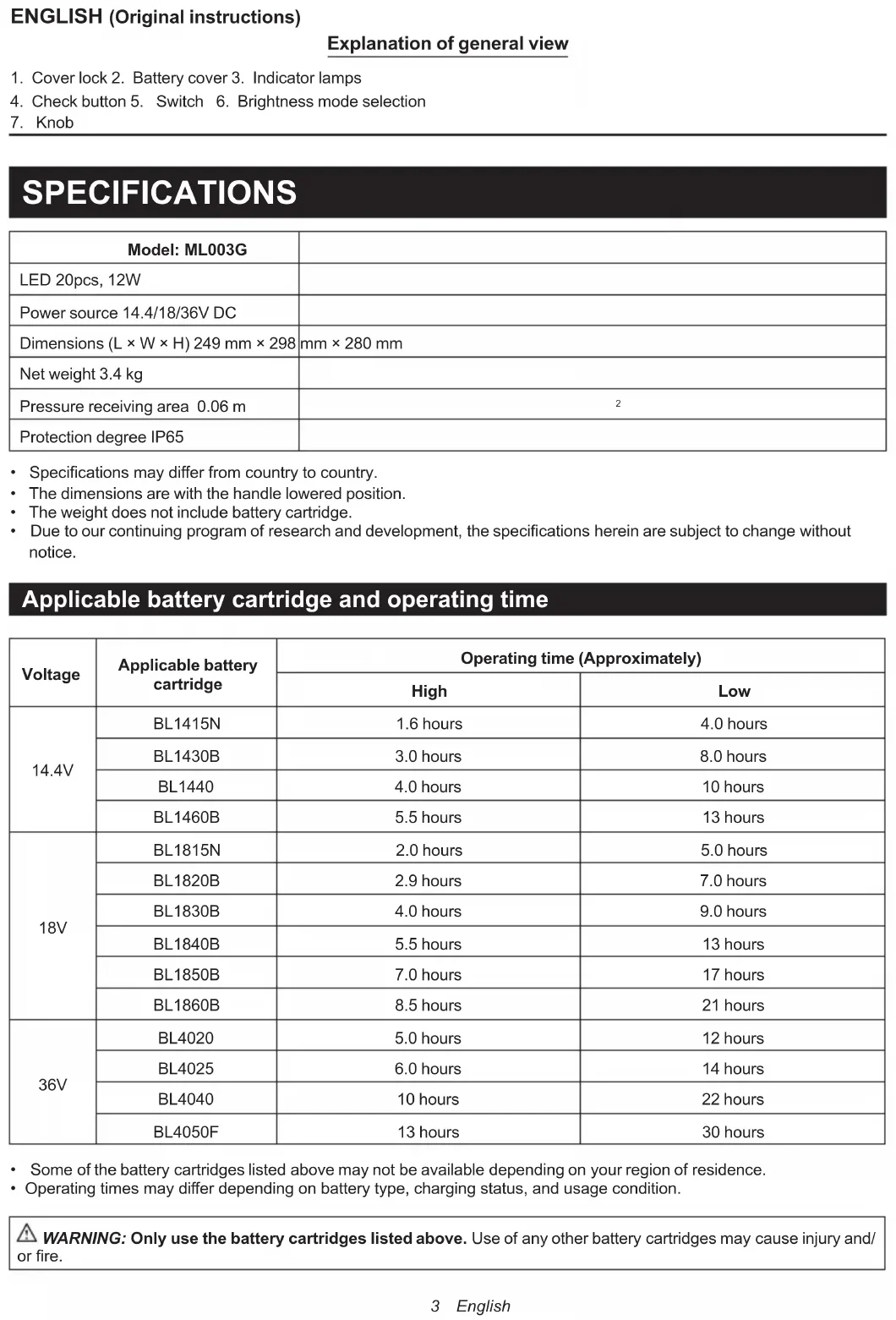

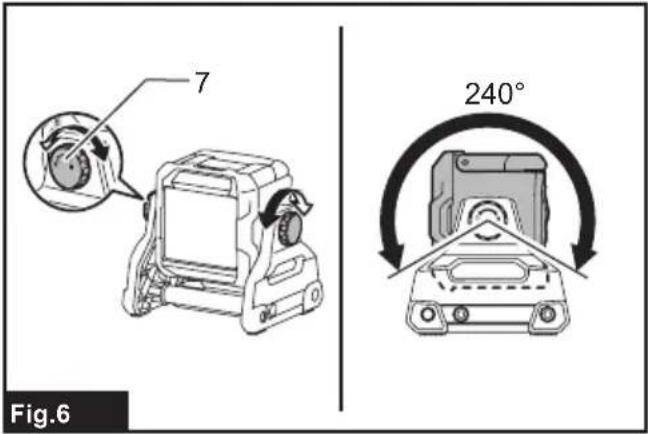

Fig.1 Fig.3 Fig.5 Fig.7 Fig.2 Fig.4 Fig.63 ENGLISH (Original instructions) Explanation of general view

1. Cover lock 2. Battery cover 3. Indicator lamps

Protection degree IP65

• Specicationsmaydi󰀨erfromcountrytocountry.

• The dimensions are with the handle lowered position.

• The weight does not include battery cartridge.

• Duetoourcontinuingprogramofresearchanddevelopment,thespecicationshereinaresubjecttochangewithout notice. Applicable battery cartridge and operating time Voltage Applicable battery cartridge Operating time (Approximately) High Low 14.4V BL1415N 1.6 hours 4.0 hours BL1430B 3.0 hours 8.0 hours BL1440 4.0 hours 10 hours BL1460B 5.5 hours 13 hours 18V BL1815N 2.0 hours 5.0 hours BL1820B 2.9 hours 7.0 hours BL1830B 4.0 hours 9.0 hours BL1840B 5.5 hours 13 hours BL1850B 7.0 hours 17 hours BL1860B 8.5 hours 21 hours 36V BL4020 5.0 hours 12 hours BL4025 6.0 hours 14 hours BL4040 10 hours 22 hours BL4050F 13 hours 30 hours

• OnlyforEUcountriesDuetothepresence ofhazardouscomponentsintheequipment, wasteelectricalandelectronicequipment, accumulators and batteries may have a negative impact on the environment and humanhealth.Donotdisposeofelectrical and electronic appliances or batteries with household waste! In accordance with the European Directive on waste electrical and electronicequipmentandonaccumulators and batteries and waste accumulators and batteries, as well as their adaptation to nationallaw,wasteelectricalequipment, batteries and accumulators should be stored separately and delivered to a separate collectionpointformunicipalwaste,oper- ating in accordance with the regulations on environmental protection. This is indicated bythesymbolofthecrossed-outwheeled binplacedontheequipment. Ni-MH Li-ion

• OpticalRadiation(UVandIR).Minimize exposure to eyes or skin.

• Do not stare at operating lamp.

• Use appropriate shielding or eyes protection.

• Take particular care and attention! IMPORTANT SAFETY INSTRUCTIONS

1. Do not look into the light, or do not expose the light to

eyes. Eyes may be damaged.

2. Do not cover the lamp with cloth or carton, etc.

Otherwiseitmaycauseaame.

3. Do not expose it to rain or snow. Do not wash it in water.

removethebatterycartridgefromtheappliance.

6. Do not give the appliance a shock by dropping, striking,

• Battery disposal should be in compliance with your localregulationsthataddressthedisposalofhazardous materials.

• Do not incinerate the battery.

9. Battery tool use and care.

• WARNING:Readallsafetywarningsandinstructions. Failuretofollowthewarningsandinstructionsmayresult inelectricshock,reand/orseriousinjury.

• Prevent unintentional starting. Ensure the switch is in the o󰀨-positionbeforeconnectingtobatterypack,picking up or carrying the appliance. Carrying the appliance with yourngerontheswitchorenergizingappliancethat have the switch on invites accidents.

• Disconnectthebatterypackfromtheappliancebefore makinganyadjustments,changingaccessories,or storingappliance.Suchpreventivesafetymeasures reducetheriskofstartingtheapplianceaccidentally.

• Rechargeonlywiththechargerspeciedbythe manufacturer.Achargerthatissuitableforonetypeof batterypackmaycreateariskofrewhenusedwith another battery pack.

• Useappliancesonlywithspecicallydesignatedbattery packs.Useofanyotherbatterypacksmaycreatearisk ofinjuryandre.

• Whenbatterypackisnotinuse,keepitawayfromother metalobjects,likepaperclips,coins,keys,nails,screws orothersmallmetalobjects,thatcanmakeaconnection fromoneterminaltoanother.Shortingthebattery terminalstogethermaycauseburnsorare.

• Underabusiveconditions,liquidmaybeejectedfrom thebattery;avoidcontact.Ifcontactaccidentallyoccurs, ushwithwater.Ifliquidcontactseyes,additionallyseek medicalhelp.Liquidejectedfromthebatterymaycause irritation or burns.

• Do not use a battery pack or appliance that is damaged ormodied.Damagedormodiedbatteriesmayexhibit unpredictablebehaviorresultinginre,explosionorrisk ofinjury.

• Haveservicingperformedbyaqualiedrepairperson using only identical replacement parts. This will ensure thatthesafetyoftheproductismaintained.

• Beforeusingbatterycartridge,readallinstructionsand cautionary markings on (1) battery charger, (2) battery, and (3) product using battery.

• Do not disassemble or tamper the battery cartridge. It mayresultinare,excessiveheat,orexplosion.

• Ifoperatingtimehasbecomeexcessivelyshorter, stopoperatingimmediately.Itmayresultinariskof overheating, possible burns and even an explosion.

• Ifelectrolytegetsintoyoureyes,rinsethemoutwith clear water and seek medical attention right away. It may resultinlossofyoureyesight.

• Do not short the battery cartridge.

• Do not store and use the tool and battery cartridge in locations where the temperature may reach or exceed 50 °C (122 °F).

• Do not nail, cut, crush, throw, drop the battery cartridge, orhitagainstahardobjecttothebatterycartridge. Suchconductmayresultinare,excessiveheat,or explosion.

• Do not use a damaged battery.

• Thecontainedlithium-ionbatteriesaresubjecttothe DangerousGoodsLegislationrequirements. For commercial transports e.g. by third parties, forwardingagents,specialrequirementonpackaging andlabelingmustbeobserved.Forpreparationofthe itembeingshipped,consultinganexpertforhazardous materialisrequired.Pleasealsoobservepossiblymore detailednationalregulations.Tapeormasko󰀨open contacts and pack up the battery in such a manner that it cannot move around in the packaging.

• Duringandafteruse,thebatterycartridgemaytakeon heat which can cause burns or low temperature burns. Payattentiontothehandlingofhotbatterycartridges.

• Donottouchtheterminalofthetoolimmediatelyafter use as it may get hot enough to cause burns.

• Do not allow chips, dust, or soil stuck into the terminals, holes,andgroovesofthebatterycartridge.Itmayresult inpoorperformanceorbreakdownofthetoolorbattery cartridge.

• Unless the tool supports the use near high-voltage electrical power lines, do not use the battery cartridge near high-voltage electrical power lines. It may result in a malfunctionorbreakdownofthetoolorbatterycartridge.

• Keepthebatteryawayfromchildren.

11. Tipsformaintainingmaximumbatterylife.

• Chargethebatterycartridgebeforecompletely discharged. Always stop tool operation and charge the battery cartridge when you notice less tool power.

• Neverrechargeafullychargedbatterycartridge. Overchargingshortensthebatteryservicelife.

• Charge the battery cartridge with room temperature at 10 °C - 40 °C (50 °F - 104 °F). Let a hot battery cartridge cooldownbeforechargingit.

• Whennotusingthebatterycartridge,removeitfromthe tool or the charger.

• Chargethebatterycartridgeifyoudonotuseitforalong period (more than six months). CAUTION:OnlyusegenuineMakitabatteries.Useof non-genuine Makita batteries, or batteries that have been altered,mayresultinthebatteryburstingcausingres personalinjuryanddamage.ItwillalsovoidtheMakita warrantyfortheMakitatoolandcharger. Save all warnings and instructions for future reference. FUNCTIONAL DESCRIPTION CAUTION:

• Alwaysbesurethattheapplianceisswitchedo󰀨,and thebatterycartridgeisremovedbeforeadjustingor checkingfunctionontheappliance. Installing or removing battery cartridge CAUTION:

• Hold the appliance and the battery cartridge rmly when installing or removing battery cartridge. Failure to hold the appliance and the battery cartridge rmlymaycausethemtoslipo󰀨yourhandsandresult in damage to the appliance and battery cartridge and a personalinjury.

• Becarefulnottotrapnger(s)betweentheappliance and battery cartridge when loading battery cartridge as well as between the appliance and the battery cover when closing the battery cover. To install the battery cartridge, release the cover lock, and open the battery cover. (Fig. 1) Insert the battery cartridge. Align the tongue on the battery cartridge with the groove in the housing and slip it into place. Insert it all the way until it locks in place with a little click.Ifyoucanseetheredindicatorontheupperside ofthebutton,itisnotlockedcompletely.Thenclosethe battery cover. Toremovethebatterycartridge,slideitfromthetoolwhile slidingthebuttononthefrontofthecartridge.(Fig. 2) CAUTION:

• Alwaysinstallthebatterycartridgefullyinplace.Ifnot,it mayaccidentallyfalloutoftheappliance,causinginjury to you or someone around you.

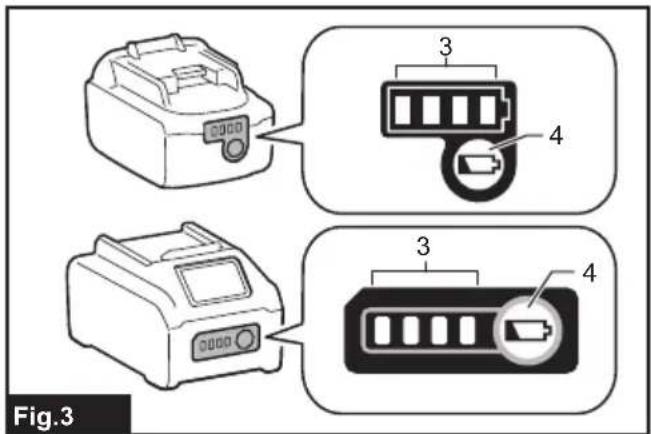

• Donotinstallthebatterycartridgeforcibly.Ifthecartridge does not slide in easily, it is not being inserted correctly. English6 Indicating the remaining battery capacity (Fig. 3) (Onlyforbatterycartridgeswiththeindicator) Press the check button on the battery cartridge to indicate the remaining battery capacity. The indicator lamps light up forfewseconds. Indicator lamps Remaining capacity Lighted O󰀨 Blinking 75% to 100% 50% to 75% 25% to 50% 0% to 25% Charge the battery. The battery may havemalfunctioned. NOTE:

• Dependingontheconditionsofuseandtheambient temperature,theindicationmaydi󰀨erslightlyfromthe actual capacity.

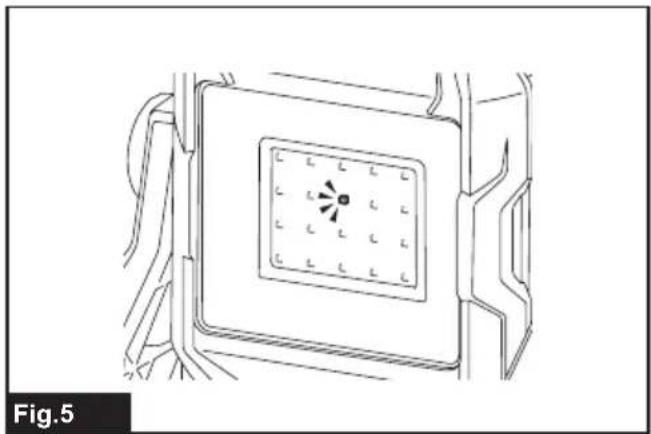

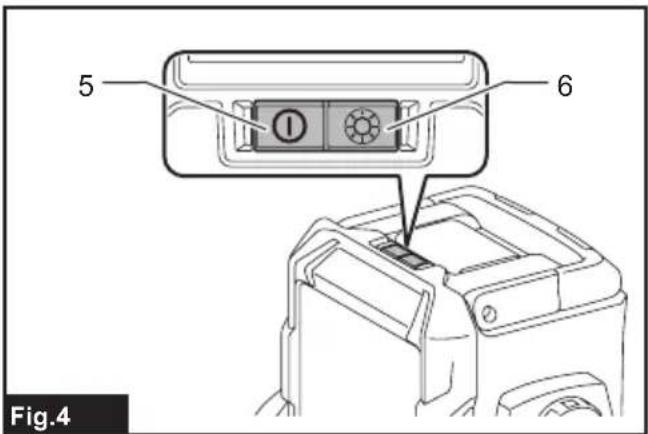

• Therst(farleft)indicatorlampwillbrinkwhenthe battery protection system works. Useofnon-genuineMakitabatteries,orbatteriesthathave beenaltered,willvoidtheMakitawarrantyfortheMakita appliance and charger. Turning on the light and brightness mode selection (Fig. 4) 1.Switch:Presstheswitchonce,thelightturnson(Atthe same brightness mode as the last setting). Press the switchagain,thelightturnso󰀨. 2.Brightnessmodeselection:Brightnesssequenceis: Highmode/Lowmode/Highmodeforeachpresswhen the light is on. Battery protection system (Fig. 5) Theapplianceisequippedwithabatteryprotection systemtoextendbatterylife.Whenthebatterybecomes low, the LED lights go out except one LED as illustrated. Thenapproximatelyvetotenminuteslater,thesystem automaticallycutso󰀨power. OPERATION CAUTION:

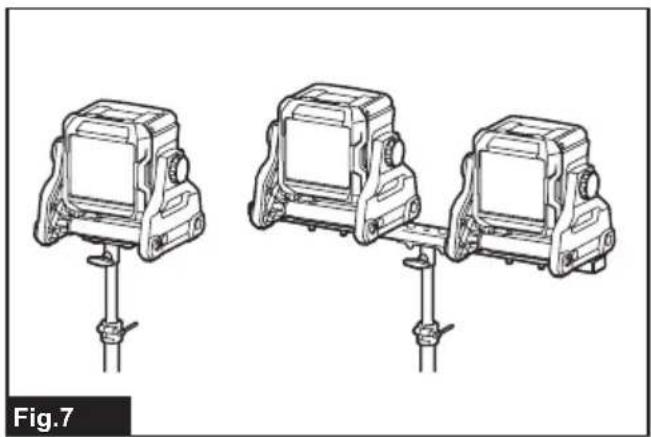

• Becarefulnottodroptheappliancewhenattachingthe appliance on the tripod.

• Make sure that the appliance is attached securely on the tripod.

• Remove the appliance when carrying the tripod or when foldingthelegsofthetripod.

• Becarefulnottogetyourhandcaughtinthelegsofthe tripod when closing the tripod. MAINTENANCE CAUTION:

• Alwaysbesurethattheapplianceisswitchedo󰀨,andthe batterycartridgeisremovedbeforeattemptingtoperform inspection or maintenance.

• Neverusegasoline,benzine,thinner,alcoholorthelike. Discoloration,deformationorcracksmayresult. Only maintenance work described in this instruction manual maybeperformedbytheuser.Anyotherworkmustbe carriedoutbyMakitaauthorizedservicecenters. Cleaning CAUTION:

• Never wash the appliance in water. Fromtimetotimewipeo󰀨theoutside(appliancebody)of the appliance using a cloth dampened in soapy water. OPTIONAL ACCESSORIES CAUTION:

• Theseaccessoriesorattachmentsarerecommendedfor usewithyourMakitaappliancespeciedinthismanual. Theuseofanyotheraccessoriesorattachmentsmight presentariskofinjurytopersons.Onlyuseaccessoryor attachmentforitsstatedpurpose. Ifyouneedanyassistanceformoredetailsregardingthese accessories, ask your local Makita service center.

• Makita genuine battery and charger

• Tripod[PartNo:GM00002073] NOTE:

• Some items in the list may be included in the appliance packageasstandardaccessories.Theymaydi󰀨erfrom country to country. English7 FRANÇAIS (Instructions originales) Explication de l'idée générale
