Product Type	LED Work Light (Flash)
Brand	Makita
Model	DLX3077TX1
Voltage	14.4 V / 18 V (compatible with Li-ion batteries)
Light Source	12 LEDs of 0.51 W each
Number of Lighting Modes	3 modes: 12 LEDs on, 6 LEDs on, off
Battery Life (with BL1830 18V 3.0Ah battery)	Approx. 9 hours (12 LEDs) / 22 hours (6 LEDs)
Dimensions (unfolded with BL1830 battery)	380 x 79 x 116 mm
Dimensions (folded with BL1830 battery)	246 x 79 x 116 mm
Net Weight (with BL1830 battery)	Approx. 0.95 kg
Head Angle	Rotation 90° right, 180° left, tilt 0° to 180° in 30° increments
Metal Hook	Rotates 360°
Shoulder Strap	Included
Battery Protection	Over-discharge protection system
Compatible Batteries	Makita 14.4 V and 18 V series (BL1415, BL1430, BL1815, BL1830, etc.)
Maintenance	Clean with a dry cloth. Do not use solvents.
Repairability	Repairs exclusively by an authorized Makita service center
Included Accessories	Light, battery (depending on kit), charger, shoulder strap, hook

Frequently Asked Questions - DLX3077TX1 MAKITA

How to charge the battery of the Makita DLX3077TX1 light?

Only use a Makita designated charger. Connect the charger to a power outlet, insert the battery into the charger, and wait for the charge indicator to turn green. The ambient temperature should be between 10°C and 40°C.

Which batteries can be used with this light?

The light is compatible with Makita Li-ion 14.4 V and 18 V batteries, for example BL1415, BL1430, BL1815, BL1830, BL1840, BL1850, BL1860B, etc.

How to install the battery on the light?

Turn off the light. Align the battery tab with the slot inside the housing, then slide the battery until it locks with a click. Ensure the red indicator on the top of the button is no longer visible.

How to turn on and change the lighting mode?

Press the switch: first press turns on all 12 LEDs, second press turns on 6 LEDs, third press turns off the light. Do not look directly at the light.

How to adjust the head of the light?

The head can pivot in 7 positions every 45°: 90° to the right and 180° to the left. It can also tilt from 0° to 180° in 30° increments.

How to use the metal hook?

Rotate the hook vertically before use. It can rotate 360° to hang the light on various supports.

What is the battery life of the light with a BL1830 battery?

With a BL1830 battery (18 V, 3.0 Ah), the battery life is approximately 9 hours with all 12 LEDs on and approximately 22 hours with 6 LEDs on.

What to do if the light suddenly turns off during use?

This is due to the battery protection system activating when the battery is nearly discharged. Remove the battery and recharge it.

Can I use the light in the rain or in a humid environment?

No, the battery holder is not waterproof. Do not use the light in humid or wet places, and do not expose it to rain or snow.

How to clean the Makita DLX3077TX1 light?

Use a dry cloth to clean the exterior. Never use gasoline, benzine, thinner, or alcohol, as they may damage the light.

USER MANUAL DLX3077TX1 MAKITA

GB Rechargeable Flash light Instruction manual

The following show the symbols used for the equipment. Be sure that you understand their meaning before use.

Symboles

• Only for EU countries

Do not dispose of electric equipment or battery pack together with household waste material!

In observance of the European Directives, on Waste Electric and Electronic Equipment and Batteries and

Accumulators and Waste Batteries and Accumulators and their implementation in accordance with national laws,

electric equipment and batteries and battery pack(s) that have reached the end of their life must be collected separately and returned to an environmentally compatible recycling facility.

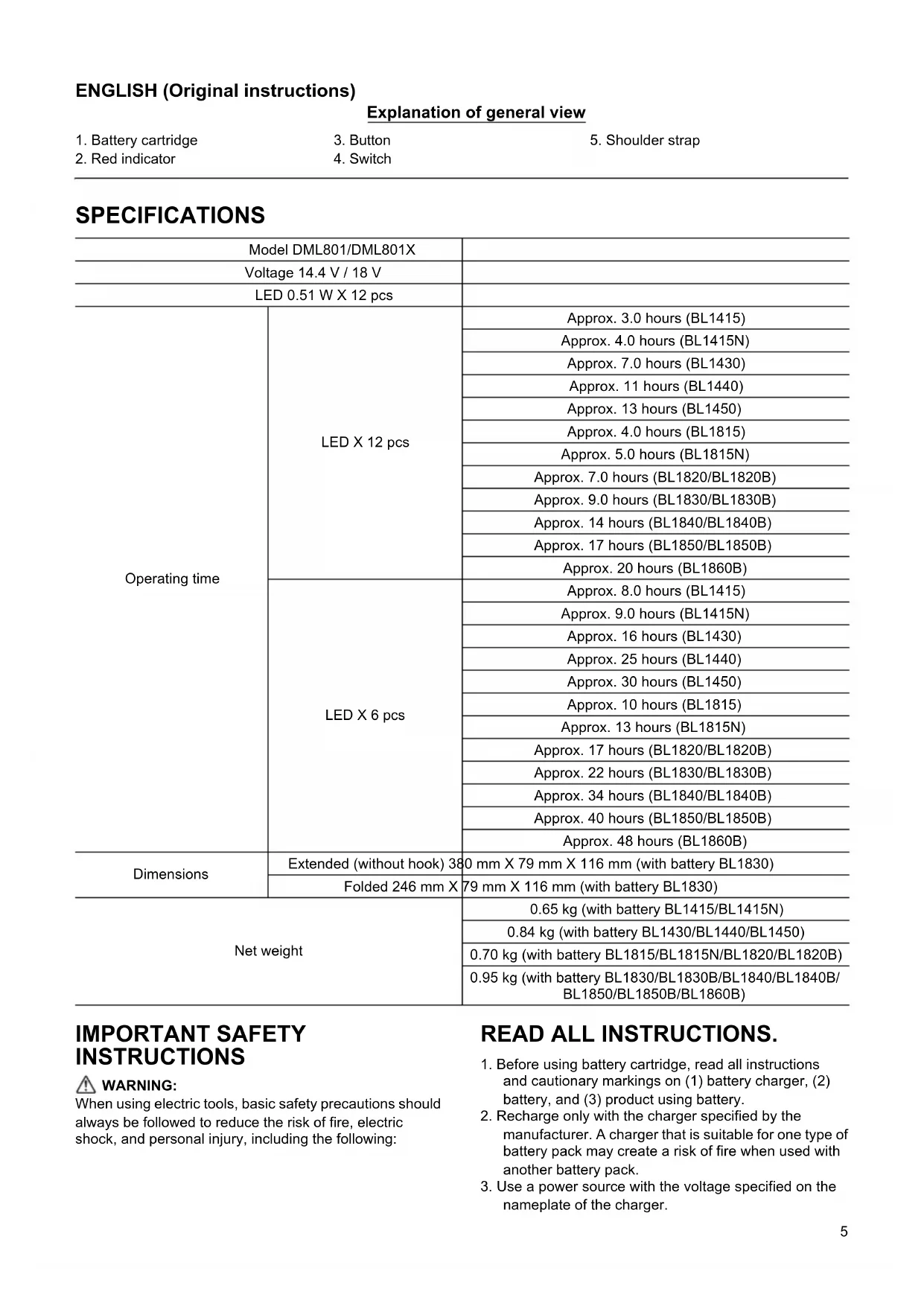

ENGLISH (Original instructions)

Explanation of general view

1. Battery cartridge

2. Button

3. Shoulder strap

4. Red indicator

5. Switch

SPECIFICATIONS

Model DML801/DML801X
Voltage 14.4 V / 18 V
LED 0.51 W X 12 pcs
Operating time	LED X 12 pcs	Approx. 3.0 hours (BL1415)
		Approx. 4.0 hours (BL1415N)
		Approx. 7.0 hours (BL1430)
		Approx. 11 hours (BL1440)
		Approx. 13 hours (BL1450)
		Approx. 4.0 hours (BL1815)
		Approx. 5.0 hours (BL1815N)
		Approx. 7.0 hours (BL1820/BL1820B)
		Approx. 9.0 hours (BL1830/BL1830B)
		Approx. 14 hours (BL1840/BL1840B)
		Approx. 17 hours (BL1850/BL1850B)
		Approx. 20 hours (BL1860B)
	LED X 6 pcs	Approx. 8.0 hours (BL1415)
		Approx. 9.0 hours (BL1415N)
		Approx. 16 hours (BL1430)
		Approx. 25 hours (BL1440)
		Approx. 30 hours (BL1450)
		Approx. 10 hours (BL1815)
		Approx. 13 hours (BL1815N)
		Approx. 17 hours (BL1820/BL1820B)
		Approx. 22 hours (BL1830/BL1830B)
		Approx. 34 hours (BL1840/BL1840B)
		Approx. 40 hours (BL1850/BL1850B)
		Approx. 48 hours (BL1860B)
Dimensions	Extended (without hook) 38	0 mm X 79 mm X 116 mm (with battery BL1830)
	Folded 246 mm X	79 mm X 116 mm (with battery BL1830)
Net weight		0.65 kg (with battery BL1415/BL1415N)
		0.84 kg (with battery BL1430/BL1440/BL1450)
		0.70 kg (with battery BL1815/BL1815N/BL1820/BL1820B)
		0.95 kg (with battery BL1830/BL1830B/BL1840/BL1840B/BL1850/BL1850B/BL1860B)

IMPORTANT SAFETY INSTRUCTIONS

WARNING:

When using electric tools, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and personal injury, including the following:

READ ALL INSTRUCTIONS.

1. Before using battery cartridge, read all instructions and cautionary markings on (1) battery charger, (2) battery, and (3) product using battery.
2. Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack.

3. Use a power source with the voltage specified on the nameplate of the charger.

4. Do not attempt to use a step-up transformer, an engine generator or DC power receptacle.

5. Charge the battery cartridge with room temperature at 10^ - 40^ (50^ - 104^) . Let a hot battery cartridge cool down before charging it.
6. When battery pack is not in use, keep it away from other metal objects like paper clips, coins, keys, nails, screws, or other small metal objects that can make a connection from one terminal to another. Shorting the battery terminals together may cause sparks, burns, or a fire.
7. After charging or before attempting any maintenance or cleaning, unplug the charger from the power source.
8. This battery holder part is not waterproof. Do not use it in damp or wet locations. Do not expose it to rain or snow. Do not wash it in water.
9. Do not touch the inside of the flashlight head with tweezers, metal tools, etc.
10. Under abusive conditions, liquid may be ejected from the battery, avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns.
11. Do not short the battery cartridge:

(1) Do not touch the terminals with any conductive material.
(2) Avoid storing battery cartridge in a container with other metal objects such as nails, coins, etc.
(3) Do not expose battery cartridge to water or rain. A battery short can cause a large current flow, overheating, possible burns and even a breakdown.

1. If electrolyte gets into your eyes, rinse them out with clear water and seek medical attention right away. It may result in loss of your eyesight.
2. Be careful not to drop or strike battery.
3. Do not incinerate the battery cartridge even if it is severely damaged or is completely worn out. The battery cartridge can explode in a fire.

CAUTION:

1. When the tool is not in use, always switch off and remove the battery cartridge from the tool.
2. Do not store the tool and battery cartridge in locations where the temperature may reach or exceed 50^ (122^) .
3. Do not give the tool a shock by dropping, striking, etc.
4. Do not expose the light to eyes continuously. It may hurt them.
5. Do not cover or clog the lit tool with cloth or carton, etc. Covering or clogging it may cause a flame.
6. Do not disassemble the charger or battery cartridge; take it to a qualified serviceman when service or repair is required. Incorrect reassembly may result in a risk of electric shock or fire.
7. Use the tools only with specifically designated battery packs. Use of any other battery packs may create a risk of injury and fire.
8. If operating time has become excessively shorter, stop operating immediately. It may result in a risk of overheating, possible burns and even an explosion.

9. Do not use a damaged battery.

10. Charge the battery cartridge before completely discharged. Always stop tool operation and charge the battery cartridge when you notice less tool power.

11. Never recharge a fully charged battery cartridge. Overcharging shortens the battery service life.
12. If any problem develops, consult your nearest Makita Service Center or dealer. To maintain product safety and reliability, repairs, maintenance or adjustment should be carried out by Makita Authorized Service Center.
13. Charge the battery cartridge once in every six months if you do not use it for a long period of time.

SAVE THESE INSTRUCTIONS.

FUNCTIONAL DESCRIPTION

Charging

Charge the battery cartridge with the Makita charger before use.

Installing or removing battery cartridge (Fig. 1)

• Always switch off the tool before installing or removing of the battery cartridge.
• To remove the battery cartridge, slide it from the tool while sliding the button on the front of the cartridge.
• To install the battery cartridge, align the tongue on the battery cartridge with the groove in the housing and slip it into place. Always insert it all the way until it locks in place with a little click. If you can see the red indicator on the upper side of the button, it is not locked completely. Install it fully until the red indicator cannot be seen. If not, it may accidentally fall out of the tool, causing injury to you or someone around you.
• Do not use force when installing the battery cartridge. If the cartridge does not slide in easily, it is not being inserted correctly.

Battery protection system

The protection system is equipped, which automatically cuts off the output power for its long service life. The light goes off during operation when the remaining battery capacity gets low. This is caused by the activation of protection system and does not show the light trouble. Remove the battery cartridge from the light and charge it.

Switch action (Fig. 2)

CAUTION:

• Do not look in the LED light or see the source of light directly.

The LED light has a cycle of the three-ways status as follows.

Switch action Light status

1st press All LED lights are on.

2nd press Only 6 LED lights are on.

3rd press All LED lights are off.

Head angle

The head can be turned in seven stages for every 45^ - (90^ to the right and 180^ to the left) (Fig. 3)

And the head angle can be folded between 0 and 180^ for every 30^ . (Fig. 4)

Strap

Install the strap on the tool. (Fig. 5)

Metal hook

Pivot the metal hook upright before using it. (Fig. 6)

The hook can be turned at 360^ (Fig. 7)

MAINTENANCE

CAUTION:

• Never use gasoline, benzine, thinner, alcohol or the like. Discoloration, deformation or cracks may result.

To maintain product SAFETY and RELIABILITY, repairs, any other maintenance or adjustment should be performed by Makita Authorized Service Centers, always using Makita replacement parts.

OPTIONAL ACCESSORIES

CAUTION:

These accessories or attachments are recommended for use with your Makita tool specified in this manual. The use of any other accessories or attachments might present a risk of injury to persons. The accessories or attachments should be used only in the proper and intended manner.

• Makita genuine battery and charger

NOTE:

• Some items in the list may be included in the tool package as standard accessories. They may differ from country to country.
