USER MANUAL FT 12 Weller
GB Translation of the original instructions
www.weller-tools.com
MANUAL FAQ
VIDEO
1
WFE
F7
T005 36 421 99
FT 12
F7
T005 36 421 99
2
WFE
FT 12
5
max. 0 bar
WFE
max. 0 bar
FT 12
6
max. 0 bar
WFE
FT 12
| DE Deutsch | Sicherheitshinweise | Bestimmungsgemäße Verwendung | Benutzergruppen | Pflege und Wartung | Garantie | Technische Daten | Symbole | Original Konformitätserklärung | 14 |
| EN English | Safety information | Specified Conditions Of Use | User groups | Care and maintenance | Warranty | Technical Data | Symbols | Original declaration of conformity | 17 |
| ES Español | Advertencias de seguridad | Aplicación De Acuerdo A La Finalidad | Grupo de usuarios | Cuidado y mantenimiento | Garantía | Datos Técnicos | Símbolos | Declaración de conformidad original | 20 |
| FR Français | Consignes de sécurité | Utilisation Conforme Aux Prescriptions | Groupes d'utilisateurs | Entretien et maintenance | Garantie | Caractéristiques Techniques | Symboles | Déclaration de conformité d'origine | 23 |
| IT Italiano | Avvertenze per la sicurezza | Utilizzo Conforme | Gruppi utenti | Cura e manutenzione | Garanzia | Dati Tecnici | Simboli | Dichiarazione di Conformità originale | 26 |
| PT Portugues | Indicações de segurança | Utilização Autorizada | Grupos de utilizadores | Conservação e manutenção | Garantia | Características Técnicas | Símbolos | Original da declaração de conformidade | 29 |
| NL Nederlands | Veiligheidsinstructies | Voorgeschreven Gebruik Van Het Systeem | Gebruikersgroepen | onderhouden | Garantie | Technische Gegevens | Symbolen | Origineel conformiteitsverklaring | 32 |
| SV Svenska | Säkerhetsanvisningar | Använd Maskinen Enligt Anvisningarna | Användarkategorier | skötsel och underhåll | Garanti | Tekniska Data | Symboler | Ursprunglig försäkran om överensstämmelse | 35 |
| DK Dansk | Sikkerhedsanvisninger | Tiltænkt Formål | Brugergrupper | Pleje og vedligeholdelse | Garanti | Tekniske Data | Symboler | Original overensstemmelseserklæring | 38 |
| FI Suomi | Turvallisuusohjeet | Tarkoituksenmukainen Käyttö | Käyttäjäryhmät | aseman hoito ja huolto | Takuu | Tekniset Arvot | Symbolit | Alkuperäinen vaatimustenmukaisuusvakuutus | 41 |
| GR Ελληνικα | Υποδείξεις ασφαλείας | Xρήση σύμφωνα με το σκοτό προορισμού | Ομάδες χρηστών | Φροντίδα και συντήρηση της συσκευής | Εγγύηση | Τεχνικά στοιχεία | Σύμβολα | Γνήσια Δήλωση πιστότητας | 44 |
| TR Türkçe | Güvenlik uyarıları | Kullanim | Kullanıcı grupları | temizliği ve bakımı | Garanti | Teknik Veriler | Semboller | Orijinal uygunluk beyani | 47 |
| CZ Český | Bezpečnostní pokyny | Použití v souladu s určením | Uživatelské skupiny | Údržba a servisní práce ohledně | Záruka | Technické údaje | Symboly | Originální prohlásení o shodě | 50 |
| PL Polski | Bezpieczeństwo | Użytkowanie | Grupy użytkowników | Pielęgnacja i konserwacja urządzenia | Gwarancja | Dane Techniczne | Symbole | Oryginalna deklaracja zgodności | 53 |
| HU Magyar | Biztonsági utasítások | Rendeltetésszerű használat | Felhasználói csoportok | Ápolás és karbantar-tás | Garancia | Müszaki Adatok | Szimbólumok | Eredeti megfelelöségi nyilatkozat | 56 |
| SK Slovensky | Bezpečnostné pokyny | Používanie v súlade s určeným účelom použitia | Skupiny použivateľov | Ošetrovanie a údržba | Záruka | Technické údaje | Symboly | Originálne vyhlásenie o zhode | 59 |
| SL Slovenščina | Varnostna navodila | Uporaba v skladu s predpisi | Skupine uporabnikov | Nega in vzdrževanje | Garancija | Tehnični Podatki | Simboli | Originalna Izjava o skladnosti | 62 |
| EE Eesti | Ohutusjuhised | Kasutusotstarbele vastav käïtamine | Kasutajarühmad | Hooldamine ja teeninda-mine | Garantii | Tehnilised Andmed | Sümbol | Originaal-vastavusdeklaratsioon | 65 |
| LV Lietuviškai | Saugos taisyklês | Naudojimas pagal paskirti | Naudotojų grupės | |prastinė ir techninė priežiūra | Garantija | Techniniai duomenys | Simboliai | Atitikties deklaracijos originalas | 68 |
| LT Latviski | Drošības norādes | Atbilstoša lietošana | Lietotāju grupas | Apkope un kopšana | Garantija | Tehniskie dati | Simboli | Originālā atbilstības deklarācija | 71 |
| BG Български | Инструкции за безопасна работа | Използване по предназначение | Потребителски групи | Обслужване и поддържане | Гаранция | Технически данни | Символи | Оригинална Декларация за съответствие | 74 |
| RO Român | Indicatii de securitate | Utilizarea conformă cu destinația | Grupe de utilizatori | Іngrijirea și întreținerea curentă | Garantia pentru produs | Date tehnice | Simboluri | Declarație de conformitate originală | 77 |
| HR Hrvatski | Sigurnosna upozorenja | Namjenska uporaba | Skupine korisnika | Njega i servisiranje | Jamstvo | Tehnički podaci | Simboli | Originalna izjava o sukladnosti | 80 |
| RU Русский | Указания по технике безопасности | Использование по назначению | Группы пользователей | Уход и техническое обслуживание | Гарантия | Технические характеристики | Символы | Оригинальная декларация о соответствии | 83 |
| CN 中文 | 安全信息 | 规定的使用条件 | 用户群体 | 小心维护 | 保修 | 技术资料 | 符号/标志 | 符合标准说明原件 | 86 |
| KO 한국어 | 안전정보 | 규정된 사용조건 | 사용자 그룹 | 관리 및 유지보수 | 보증 | 기술자료 | 표지 | 표준설명 부품에 부합되어야 한다. | 89 |
| JP 日本語 | 安全に関する情報 | 指定の使用条件 | ユーザーグループ | 保守及びメンテナンス | 保証規定証 | 仕様諸元 | シンボル | オリジナルの適合宣言書 | 92 |

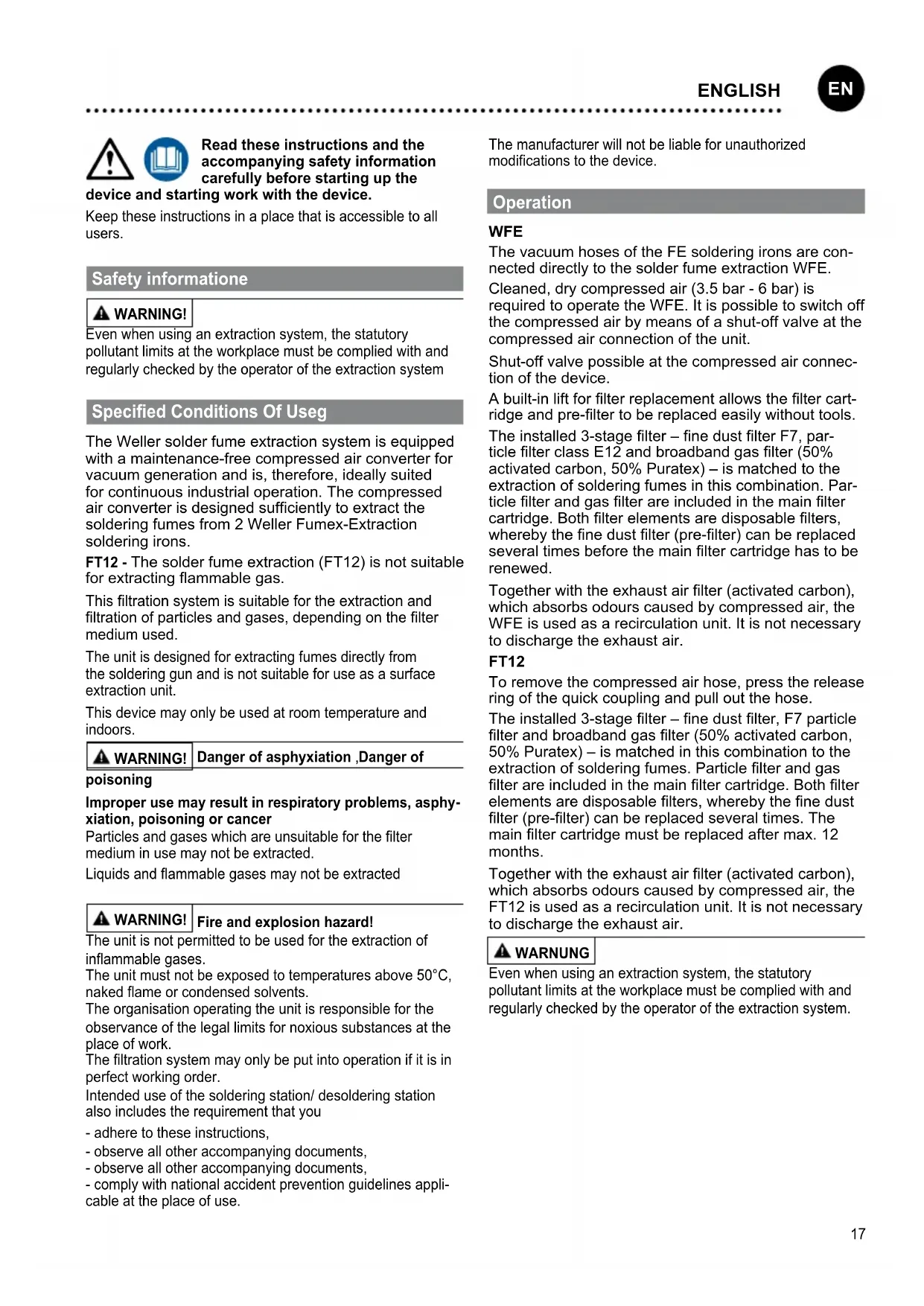

Read these instructions and the accompanying safety information carefully before starting up the
device and starting work with the device.
Keep these instructions in a place that is accessible to all users.
Safety informatione
WARNING!
Even when using an extraction system, the statutory pollutant limits at the workplace must be complied with and regularly checked by the operator of the extraction system
Specified Conditions Of Useg
The Weller solder fume extraction system is equipped with a maintenance-free compressed air converter for vacuum generation and is, therefore, ideally suited for continuous industrial operation. The compressed air converter is designed sufficiently to extract the soldering fumes from 2 Weller Fumex-Extraction soldering irons.
FT12 - The solder fume extraction (FT12) is not suitable for extracting flammable gas.
This filtration system is suitable for the extraction and filtration of particles and gases, depending on the filter medium used.
The unit is designed for extracting fumes directly from the soldering gun and is not suitable for use as a surface extraction unit.
This device may only be used at room temperature and indoors.
WARNING! | Danger of asphyxiation ,Danger of
poisoning
Improper use may result in respiratory problems, asphyxiation, poisoning or cancer
Particles and gases which are unsuitable for the filter medium in use may not be extracted.
Liquids and flammable gases may not be extracted
WARNING! Fire and explosion hazard!
The unit is not permitted to be used for the extraction of inflammable gases.
The unit must not be exposed to temperatures above 50^ C, naked flame or condensed solvents.
The organisation operating the unit is responsible for the observance of the legal limits for noxious substances at the place of work.
The filtration system may only be put into operation if it is in perfect working order.
Intended use of the soldering station/ desoldering station also includes the requirement that you
- adhere to these instructions,
- observe all other accompanying documents,
- observe all other accompanying documents,
- comply with national accident prevention guidelines applicable at the place of use.
The manufacturer will not be liable for unauthorized modifications to the device.
Operation
WFE

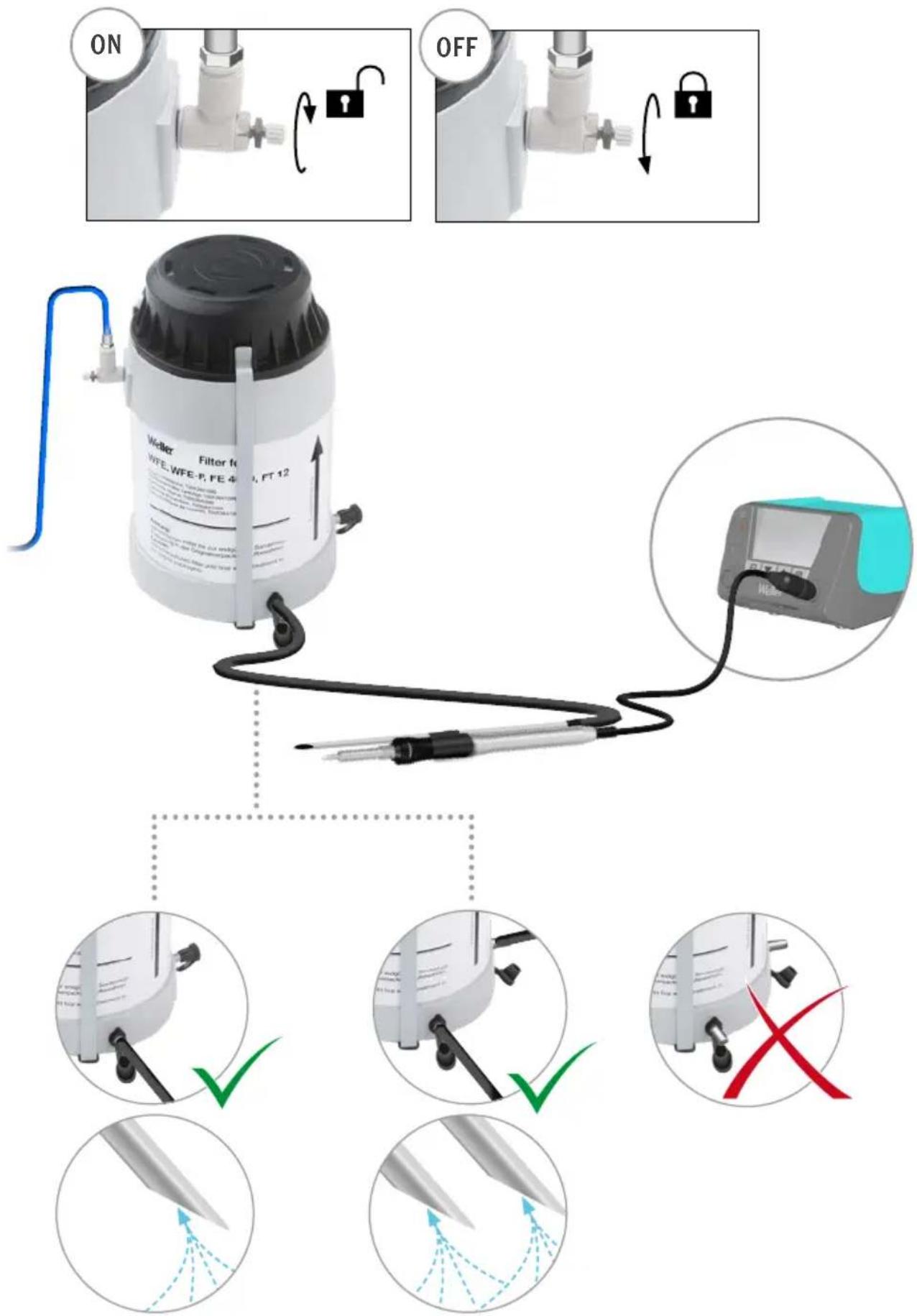

The vacuum hoses of the FE soldering irons are connected directly to the solder fume extraction WFE.
Cleaned, dry compressed air (3.5 bar - 6 bar) is required to operate the WFE. It is possible to switch off the compressed air by means of a shut-off valve at the compressed air connection of the unit.
Shut-off valve possible at the compressed air connection of the device.

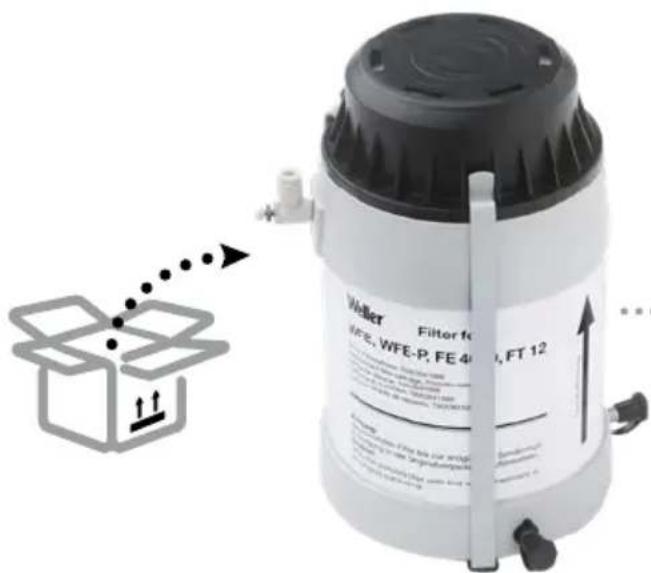

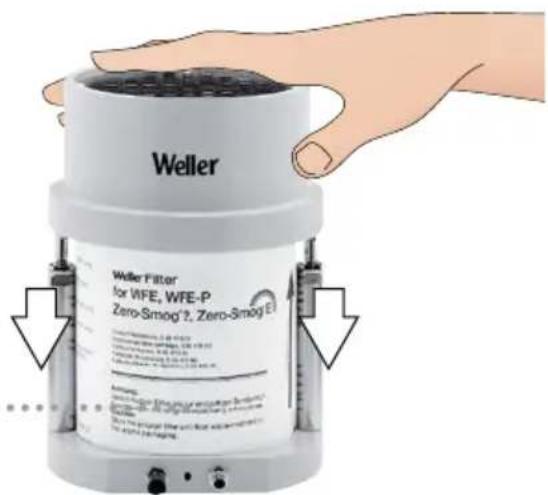

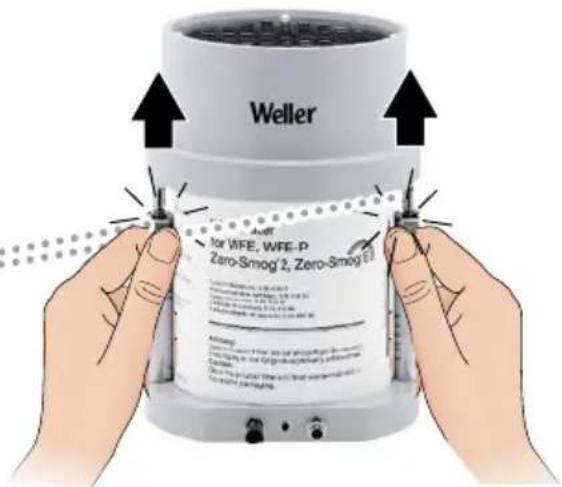

A built-in lift for filter replacement allows the filter cartridge and pre-filter to be replaced easily without tools.
The installed 3-stage filter – fine dust filter F7, particle filter class E12 and broadband gas filter (50% activated carbon, 50% Puratex) – is matched to the extraction of soldering fumes in this combination. Particle filter and gas filter are included in the main filter cartridge. Both filter elements are disposable filters, whereby the fine dust filter (pre-filter) can be replaced several times before the main filter cartridge has to be renewed.
Together with the exhaust air filter (activated carbon), which absorbs odours caused by compressed air, the WFE is used as a recirculation unit. It is not necessary to discharge the exhaust air.
FT12
To remove the compressed air hose, press the release ring of the quick coupling and pull out the hose.
The installed 3-stage filter – fine dust filter, F7 particle filter and broadband gas filter (50% activated carbon, 50% Puratex) – is matched in this combination to the extraction of soldering fumes. Particle filter and gas filter are included in the main filter cartridge. Both filter elements are disposable filters, whereby the fine dust filter (pre-filter) can be replaced several times. The main filter cartridge must be replaced after max. 12 months.
Together with the exhaust air filter (activated carbon), which absorbs odours caused by compressed air, the FT12 is used as a recirculation unit. It is not necessary to discharge the exhaust air.
WARNING
Even when using an extraction system, the statutory pollutant limits at the workplace must be complied with and regularly checked by the operator of the extraction system.
Care and maintenance
WARNING!

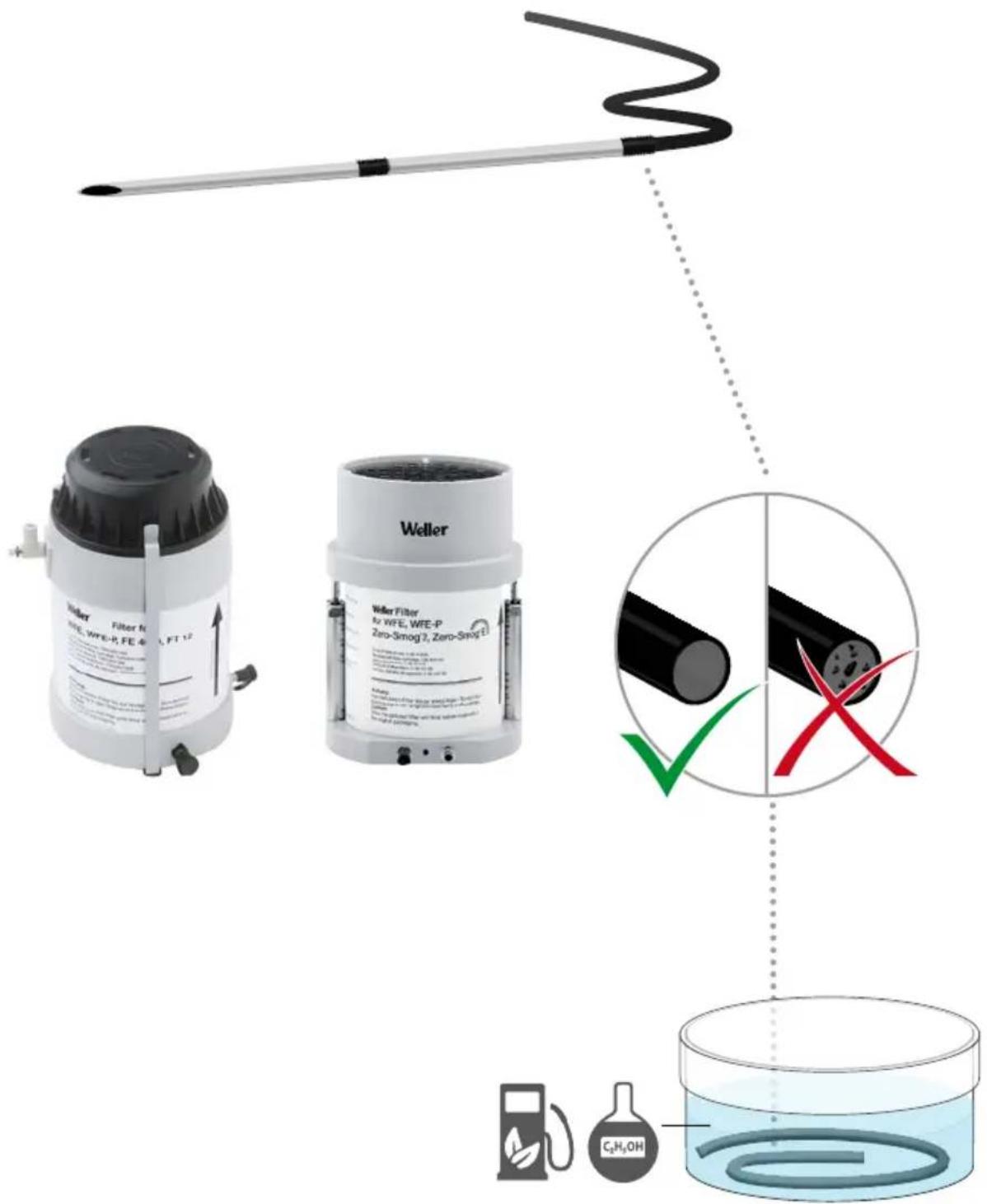

Before maintenance work, the unit must be depressurised. To ensure that the device works as correctly, the vacuum tube and the extraction hose of the FE soldering iron must be cleaned on a regular basis. If heavily soiled, the extraction tube can be placed in a sealed, gastight container and soaked in cleaning alcohol (ethanol) until the flux residues have dissolved.
WARNING!
Legal safety regulations on the handling of cleaning products must be observed when using such products. The cleaning product should be treated as hazardous waste.
If the extraction capacity is no longer sufficient with cleaned FE soldering irons, the filters must be checked.
The pre-filter can be replaced several times before the main filter has to be renewed.
If original Weller filters are used properly, the service life of the particle filter and broadband gas filter are matched to each other.

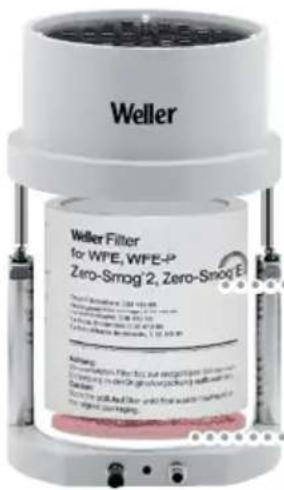

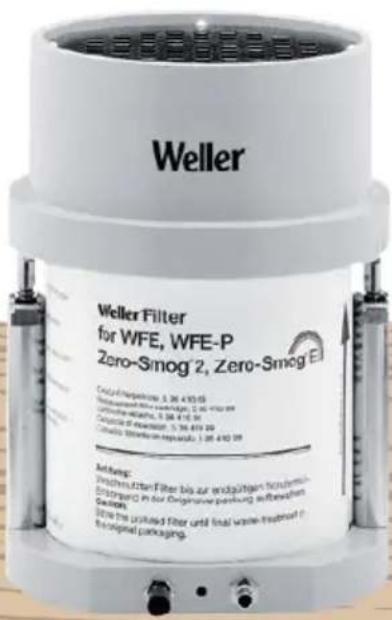

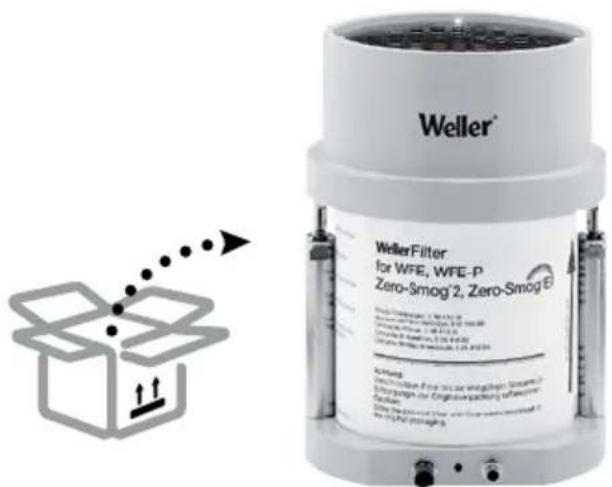

Before fitting the new main filter cartridge, it should be marked with the installation date. The assembly of the unit is done in reverse order.

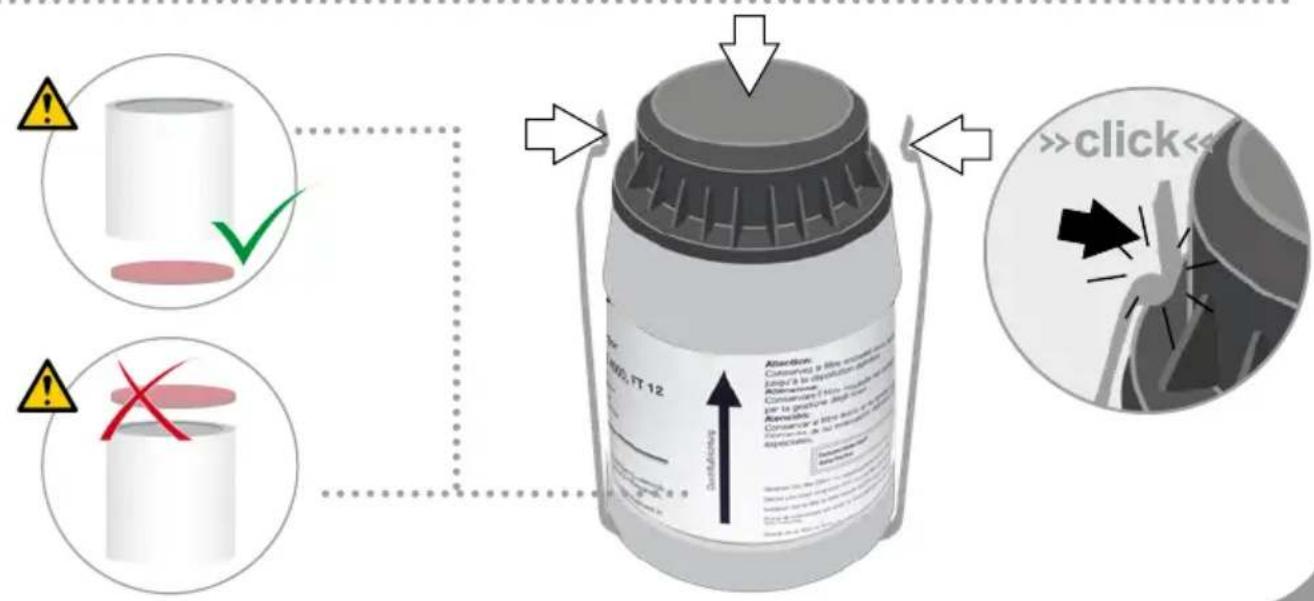

Warning: When inserting the filters, pay attention to the correct order and the installation position. The dirty filters must be treated as hazardous waste.
Repairs must always be referred to a Weller-trained specialist.
Use original replacement parts only.

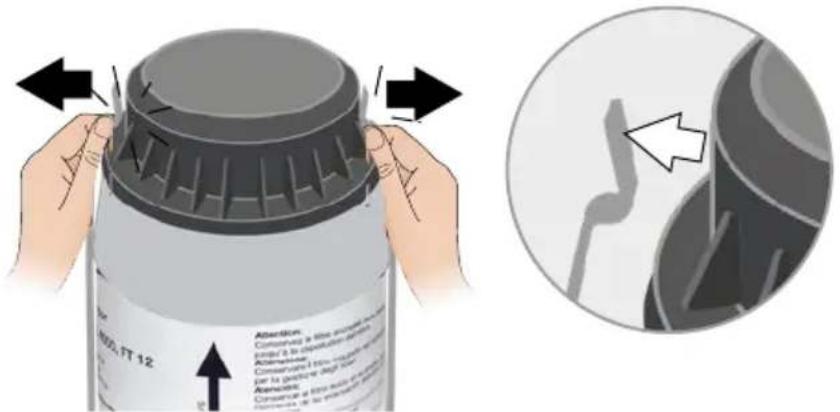

Filter change
MIN 1x
The suspended matter filter and the broadband gas filter are complementary to one another and can be replaced together as a compact filter. The fine dust filter (filter mat) is the preliminary stage of the compact filter and therefore must be replaced more frequently. It is strongly recommended that the compact filter be replaced after no more
than 10 fine dust filter changes.
To ensure that the filtration system functions properly, the filter must be replaced as follows:
• at least once a year or
- if the maximum allowable workplace concentration is exceeded or
• as per maintenance schedule
Contaminated filters must be treated as special waste. Wear suitable protective gear.
Notice
Different fluxes and flux constituents and the amount of and size of dust particles in the extracted air will signifi cantly effect the filters working life. Submicron particles in the extracted air increase when soldering or welding to varnish insulated wire.
Warranty
Claims by the buyer for physical defects are time-barred after a period of one year from delivery to the buyer. This does not apply to claims by the buyer for indemnification in accordance with §§ 478, 479 BGB (German Federal Law Gazette).
We shall only be liable for claims arising from a warranty furnished by us if the quality or durability warranty has been furnished by use in writing and using the term „Warranty“.
The warranty shall be void if damage is due to improper use and if the device has been tampered with by unauthorized persons.
Subject to technical alterations and amendments.
For more information please visit
www.weller-tools.com
Technical Data
| Solder fume extraction WFE FT12 | |||
| Operating pressure (oil-free, dry com-pressed air) | bar | 3,5 - 6 | 3,5 - 7 |
| psi | 50 - 87 | 50 - 100 | |
| Compressed air connection (Compressed air hose outer diameter) | mm | 6 | 6 |
| Inch | 0,24 | 0,24 | |
| Diameter mm | Inch | 140 | 120 |
| 5,51 | 4,78 | ||
| Height mm | Inch | 200 | 200 |
| 7,9 | 7,9 | ||
| Weight kg | lb | 2,7 | 1,5 |
| 5,9 | 3,3 | ||
| Maximum quantity supplied / 1 Soldering iron | I / min SCFH | 30 13 | 27 |
| Operating sound level from 1 m distance | dB(A) 39 37 | ||
| Max. capacity 1–2 workstations | |||
| Combined filter:Particle filter Class E12 (previously H13)Wide band gas filter ((50 % activated carbon, 50 % Puratex)) | |||
| Pre filter:pre filter mat class F7 | |||
Symbols
Caution!
Read the operating instructions!
ESD-compatible design and ESD-compatible workstation
Danger of crushing injuries!
Disposal
Waste light sources have to be removed from equipment. Check with your local authority or retailer for recycling advice and collection point. According to local regulations retailers may have an obligation to take back waste electrical and electronic equipment free of charge. Your contribution to re-use and recycling of waste electrical and electronic equipment helps to reduce the demand of raw materials. Waste electrical and electronic equipment contain valuable, recyclable materials, which can adversely impact the environment and the human health, if not disposed of in an environmentally compatible manner. Delete personal data from waste equipment, if any. Dispose of replaced equipment parts, filters or old devices in accordance with the rules and regulations applicable in your country.
Contaminated filters must be treated as special waste.
CE mark of conformity
British Conformity Mark
EN C declaration of conformity
We hereby declare that the products described herein comply with the following guidelines:
Authorised to compile technical documentation.
UK declaration of conformity
We hereby declare that the products described herein comply with the following guidelines:
SI 2008 No.1597, SI 2012 No.3032, SI 2016 No.1091
Besigheim, 2023-09-06
Philippe Buidin
Managing director
Authorised to compile technical documentation.
