USER MANUAL LR 6 Professional BOSCH

www.bosch-pt.com/serviceaddresses

Entsorgung

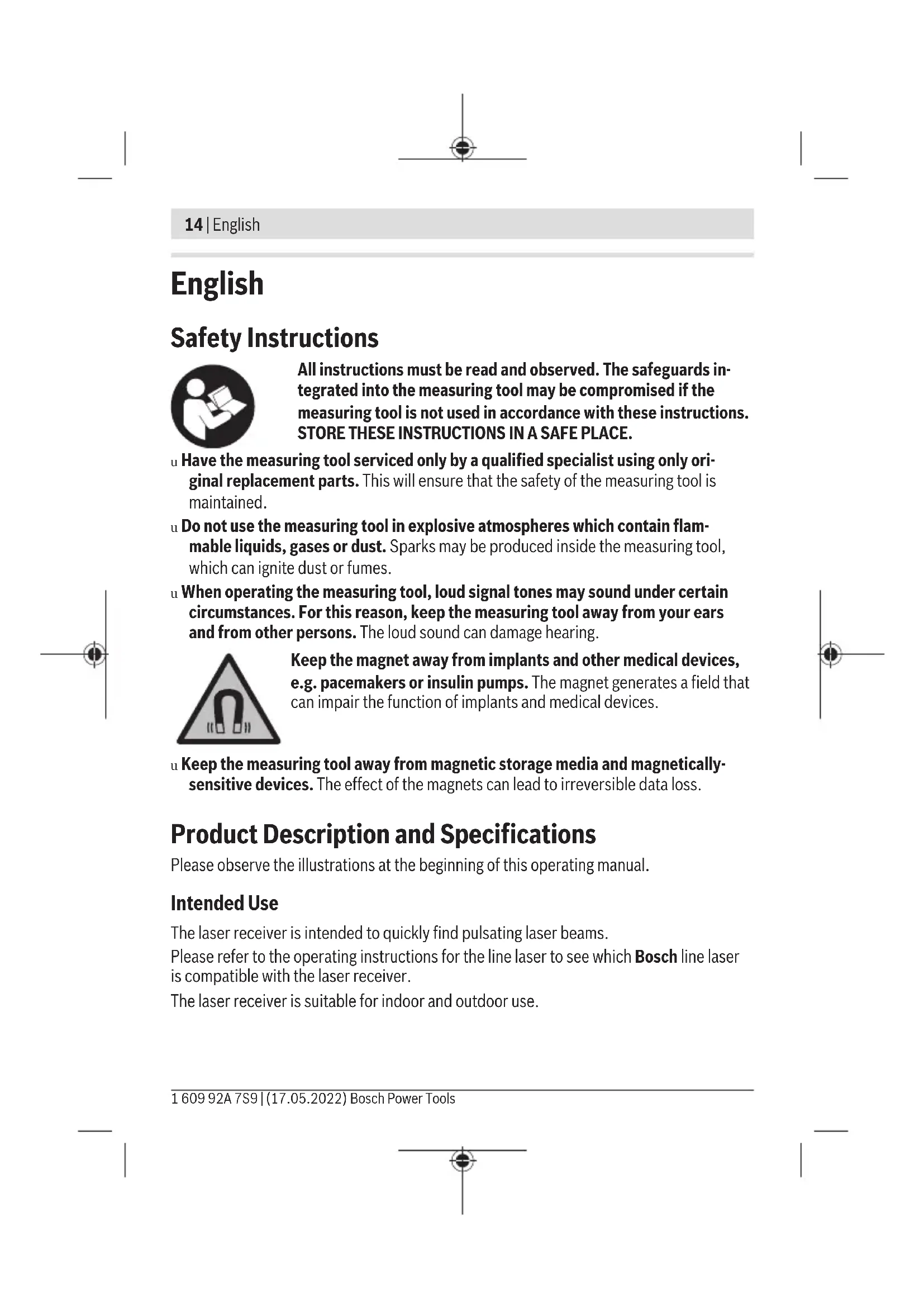

All instructions must be read and observed. The safeguards integrated into the measuring tool may be compromised if the measuring tool is not used in accordance with these instructions. STORE THESE INSTRUCTIONS IN A SAFE PLACE.

u Have the measuring tool serviced only by a qualified specialist using only original replacement parts. This will ensure that the safety of the measuring tool is maintained.
u Do not use the measuring tool in explosive atmospheres which contain flammable liquids, gases or dust. Sparks may be produced inside the measuring tool, which can ignite dust or fumes.
u When operating the measuring tool, loud signal tones may sound under certain circumstances. For this reason, keep the measuring tool away from your ears and from other persons. The loud sound can damage hearing.

Keep the magnet away from implants and other medical devices, e.g. pacemakers or insulin pumps. The magnet generates a field that can impair the function of implants and medical devices.

u Keep the measuring tool away from magnetic storage media and magnetically-sensitive devices. The effect of the magnets can lead to irreversible data loss.

Product Description and Specifications

Please observe the illustrations at the beginning of this operating manual.

Intended Use

The laser receiver is intended to quickly find pulsating laser beams.

Please refer to the operating instructions for the line laser to see which Bosch line laser is compatible with the laser receiver.

The laser receiver is suitable for indoor and outdoor use.

Product Features

The numbering of the product features refers to the illustration of the laser receiver on the graphics page.

(1) Button for adjusting the reception accuracy
(2) On/off button
(3) Status indicator
(4) Audio signal button
(5) Speaker
(6) "Laser beam above centre line" LED direction indicator
(7)LED for centre line
(8) "Laser beam below centre line" LED direction indicator
(9) Laser beam reception area

(10) Magnets
(11) Guide groove for holder
(12) Centre mark
(13) Serial number
(14) Battery compartment cover
(15) Battery compartment cover locking mechanism
(16) Holder^a (1608 M00 C1L)
(17) Holder rotary knob
(18) Guide rail
(19) Holder locking mechanism^a)
(20) Pushbutton to release the locking mechanisma)
(21) Centre line reference on the holder^a)

a) Accessories shown or described are not included with the product as standard. You can find the complete selection of accessories in our accessories range.

Technical Data

Laser receiver LR 6
Article number	3601K69H..
Working rangeA)	5-XmB)

Bosch Power Tools 1609 92A 7S9| (17.05.2022)

16 | English

Laser receiver LR 6

Reception angle 90°
Reception accuracyc)
- "Fine" ±1 mm
- "Coarse" ±3 mm
Operating temperature -10 °C to +50 °C
Storage temperature -20 °C to +70 °C
Max. altitude 2000 m
Relative air humidity max. 90%
Pollution degree according to IEC 61010-1 2	D)
Batteries 2 × 1.5 V LR3 (AAA)
Operating time, approx. 30 h
Weight according to EPTA-Procedure 01:2014	0.12 kg
Dimensions (length × width × height) 69 × 28 × 123 mm
Protection rating IP 54 (dust and splash-proof)

A) The working range may be reduced by unfavourable environmental conditions (e.g. direct sunlight).
B) X: Maximum working range for operation with laser receiver according to the operating instructions for the Bosch line laser that is used
C) Dependent on the distance between the laser receiver and the line laser
D) Only non-conductive deposits occur, whereby occasional temporary conductivity caused by condensation is expected.

For clear identification of your laser receiver, see the serial number (13) on the type plate.

Noise Information

Typically the A-weighted sound pressure level of the audio signal is 80 dB(A) at 1 m away.

Do not hold the laser receiver close to your ear.

Assembly

Inserting/Changing the Batteries

Alkali-manganese batteries are recommended for the laser receiver.

160992A7S9|(17.05.2022)

Bosch Power Tools

Pull the locking mechanism (15) of the battery compartment cover outwards and fold open the battery compartment cover (14). Insert the batteries.

When doing so, ensure that the polarity is correct and corresponds to the diagram on the battery compartment cover.

When the batteries are weak, the status indicator (3) will begin to flash. It is still possible to work for about two hours with the laser receiver.

Always replace all the batteries at the same time. Only use batteries from the same manufacturer and which have the same capacity.

Take the batteries out of the laser receiver when you are not using it for a prolonged period of time. The batteries can corrode and self-discharge during prolonged storage in the laser receiver.

Operation

Starting operation

Protect the laser receiver against moisture and direct sunlight.
- Do not subject the laser receiver to extreme temperatures or variations in temperature. As an example, do not leave it in vehicles for longer periods. In case of large variations in temperature, allow the laser receiver to adjust to the ambient temperature before putting it into operation. In case of extreme temperatures or variations in temperature, the accuracy of the laser receiver can be impaired.

Setting up the Laser Receiver (see figure A)

Place the laser receiver at least 5m away from the line laser. Ensure that receiver mode is active on the line laser. Select an operating mode in which either only a horizontal or only a vertical laser plane is generated.

Note: Do not select an operating mode which generates both horizontal and vertical laser planes at the same time (cross-line operation) because this might impair the height readings of the laser beam.

Position the laser receiver so that the laser beam can reach the reception area (9). Align it so that the laser beam runs straight through the reception area (as shown in the figure).

Switching On/Off

A loud audio signal sounds when switching on the laser receiver. Therefore, keep the laser receiver away from your ear or other persons when switching it on. The loud sound can damage hearing.

18 | English

To switch on the laser receiver, press the on/off button (2). All LEDs light up briefly and an audio signal sounds.

After the laser receiver is switched on, the volume is always set to low and the reception accuracy set to "fine".

To switch off the laser receiver, press the on/off button (2) again. Before switching off, all LEDs light up briefly and three audio signals sound. The status indicator (3) goes out.

If no button on the laser receiver is pressed for approx. 20 min and no laser beam reaches the reception area (9) for 20 min, then the laser receiver will automatically switch itself off to preserve battery life.

Selecting the setting of the centre line indicator

You can use the button for adjusting the reception accuracy (1) to specify the accuracy with which the position of the laser beam is indicated as "centred" on the reception area:

• Reception accuracy "fine" (the centre line LED (7) flashes),
• Reception accuracy "coarse" (the LED direction indicators "Laser beam over centre line" (6) and "Laser beam under centre line" (8) flash).

Direction Indicators

The position of the laser beam in the reception area (9) is indicated as follows:

• By the direction LEDs "Laser beam above centre line" (6), "Laser beam below centre line" (8) or centre line indicator (7) on the front and back of the laser receiver,
• optionally by the audio signal.

Laser receiver too low: If the laser beam hits the upper half of the reception area (9), then the "Laser beam above centre line" LED direction indicators (6) light up. If the audio signal is switched on, a signal sounds at a high frequency.

Move the laser receiver upwards in the direction of the arrow.

Laser receiver too high: If the laser beam hits the lower half of the reception area (9), then the "Laser beam below centre line" LED direction indicators (8) light up.

If the audio signal is switched on, a signal sounds at a low frequency.

Move the laser receiver downwards in the arrow direction.

Laser receiver centred: If the laser beam hits the reception area (9) at the height of the centre mark (12), then the centre line LEDs (7) light up.

If the audio signal is switched on, a continuous tone sounds.

Laser Beam Indicator Audio Signal

The position of the laser beam on the reception area (9) can also be indicated by an audio signal.

The volume level can be changed or the audio signal switched off.

To change or switch off the audio signal, press the audio signal button (4). When the volume is low, a brief audio signal will sound and the centre line indicator LED (7) will light up. When the volume is high, a brief audio signal will sound and the LED direction indicators (6), (7) and (8) will light up. When the audio signal is switched off, the LED indicators go out.

Independent of the audio signal setting, a short beep sounds at low volume level each time a button is pressed on the laser receiver.

Working Advice

Marking

You can mark the position of the laser beam at the centre mark (12) on the left and right of the laser receiver when the beam hits the centre of the reception area (9).

When marking, take care to align the laser receiver so that it is exactly vertical (with a horizontal laser beam) or horizontal (with a vertical laser beam), as otherwise the marks are offset with respect to the laser beam.

Attaching using a magnet (see figure B)

If an attachment is not required to be especially secure, the laser receiver can be attached to steel parts using the magnets (10).

Maintenance and Service

Maintenance and Cleaning

Always keep the laser receiver clean.

Do not immerse the laser receiver in water or other liquids.

Wipe off any dirt using a damp, soft cloth. Do not use any detergents or solvents.

After-Sales Service and Application Service

Our after-sales service responds to your questions concerning maintenance and repair of your product as well as spare parts. You can find explosion drawings and information on spare parts at: www.bosch-pt.com

The Bosch product use advice team will be happy to help you with any questions about our products and their accessories.

In all correspondence and spare parts orders, please always include the 10-digit article number given on the nameplate of the product.

20 | English

Malaysia

Robert Bosch Sdn. Bhd.(220975-V) PT/SMY

No.8A,Jalan 13/6

46200 Petaling Jaya

Selangor

Tel.: [phone]

Toll-Free: 1800 880188

Fax: [phone]

E-Mail: [e-mail]

www.bosch-pt.com.my

Great Britain

Robert Bosch Ltd. (B.S.C.)

P.O.Box 98

Broadwater Park

North Orbital Road

Denham Uxbridge

UB95HJ

At www.bosch-pt.co.uk you can order spare parts or arrange the collection of a product in need of servicing or repair.

Tel. Service: [phone]

E-Mail: [e-mail]

You can find further service addresses at:

www.bosch-pt.com/serviceaddresses

Disposal

The laser receiver, accessories and packaging should be recycled in an environmentally friendly manner.

Do not dispose of laser receivers or batteries with household waste.

Only for EU countries:

According to the Directive 2012/19/EU on waste electrical and electronic equipment and its transposition into national law, laser receivers that are no longer usable, and, according to the Directive 2006/66/EC, defective or drained batteries must be collected separately and disposed of in an environmentally correct manner.

If disposed incorrectly, waste electrical and electronic equipment may have harmful effects on the environment and human health, due to the potential presence of hazardous substances.

Only for United Kingdom:

According to Waste Electrical and Electronic Equipment Regulations 2013 (2013/3113) and the Waste Batteries and Accumulators Regulations 2009 (2009/890), electrical and electronic equipment that is no longer usable must be collected separately and disposed of in an environmentally friendly manner.
