Product type	Laser receiver cell
Brand	Bosch
Model	LR 1G Professional
Dimensions (L × l × H)	148 × 73 × 30 mm
Weight	0.25 kg
Power supply	1 9V block battery 6LR61
Battery life	Approx. 50 h
Protection rating	IP 65 (dust-tight and protected against water jets)
Detectable wavelengths	532–535 nm (green lasers)
Reception angle	120°
Reception accuracy (fine)	±1 mm
Reception accuracy (medium)	±3 mm
Operating temperature	-10 °C … +50 °C
Storage temperature	-20 °C … +70 °C
Displays	Front and back screens with direction indicators and centerline
Audible signal	Yes, with volume adjustment (medium or high)
Mounting	Integrated magnets and mounting bracket (optional)
Bubble level	Yes, for vertical alignment
Auto-off	After 10 min without activity or detection
Compatibility	Bosch GRL 300 HVG rotary lasers and other green models
Maintenance and cleaning	Clean with a soft, damp cloth; do not use solvents
Safety instructions	Do not use in explosive atmospheres; keep away from medical implants
After-sales service	Repair only by a Bosch authorized professional

Frequently Asked Questions - LR 1G Professional BOSCH

How to change the battery of the LR 1G receiver?

Pull the battery compartment lock, open the cover, insert a new 9V 6LR61 battery observing polarity. The low battery warning appears approx. 3 hours before shutdown.

What is the function of the precision setting?

The setting button allows you to choose between two precisions: fine (±1 mm) and medium (±3 mm). The selection affects the detection sensitivity of the centerline.

What do the audible signals mean?

The audible signal indicates the beam position: low tone for beam too high, fast tone for too low, and continuous when the centerline is reached. The volume is adjustable (medium or high).

Can I use the receiver outdoors?

Yes, the device is IP65 protected (dust-tight and protected against water jets). However, avoid direct sun exposure which may reduce range.

How to attach the receiver to a grade rod?

Use the mounting bracket (optional): screw it onto the back, slide it onto the grade rod, and tighten the rotary knob. The bracket's centerline is aligned with that of the receiver.

Which rotary lasers are compatible?

This model (LR 1G) is designed for green lasers (532-535 nm), especially the Bosch GRL 300 HVG. It detects rotary beams at more than 200 rpm.

What to do if the screen shows nothing?

Check the battery: insert a new 9V battery respecting polarity. If the problem persists, contact Bosch after-sales service.

How to clean the receiver?

Use a soft, damp cloth. Never immerse the device and do not use detergents or solvents.

Can the receiver be used with red lasers?

No, the LR 1G only detects green wavelengths (532-535 nm). For red lasers, use the LR 1 model.

How to mark the beam position?

Use the center marking located 45 mm from the top edge. Ensure the receiver is perfectly vertical (using the bubble level) for accurate marking.

USER MANUAL LR 1G Professional BOSCH

Exterior view of a Bosch electronic device (no visible text or symbols on body)

5

1 609 92A 7LK | (05.05.2022) Bosch Power Tools

Deutsch

Sicherheitshinweise

www.bosch-pt.com/serviceaddresses

Entsorgung

All instructions must be read and observed. The safeguards integrated into the measuring tool may be compromised if the measuring tool is not used in accordance with these instructions. STORE THESE INSTRUCTIONS IN A SAFE PLACE.

▶ Have the measuring tool serviced only by a qualified specialist using only original replacement parts. This will ensure that the safety of the measuring tool is maintained.
▶ Do not use the measuring tool in explosive atmospheres which contain flammable liquids, gases or dust. Sparks may be produced inside the measuring tool, which can ignite dust or fumes.
When operating the measuring tool, loud signal tones may sound under certain circumstances. For this reason, keep the measuring tool away from your ears and from other persons. The loud sound can damage hearing.

Keep the magnet away from implants and other medical devices, e.g. pacemakers or insulin pumps. The magnet generates a field that can impair the function of implants and medical devices.

▶ Keep the measuring tool away from magnetic storage media and magnetically-sensitive devices. The effect of the magnets can lead to irreversible data loss.

Product Description and Specifications

Please observe the illustrations at the beginning of this operating manual.

Intended Use

The laser receiver is intended to quickly find rotating laser beams of the wavelength specified in the technical data.

The laser receiver is suitable for indoor and outdoor use.

16 | English

Product Features

The numbering of the product features refers to the illustration of the laser receiver on the graphics page.

(1) On/off button
(2) Button for adjusting the reception accuracy
(3) Audio signal button
(4) Magnets
(5) Centre mark
(6) Laser beam reception area
(7) Display (front and back)
(8) Spirit level
(9) Speaker
(10) Battery compartment cover locking mechanism
(11) Serial number
(12) Battery compartment cover
(13) Mount for holder
(14) Rotary knob of holder ^a)
(15) Measuring rod ^a)
(16) Fastening screw of the holder ^a)
(17) Holder ^a)
(18) Centre line reference on the holder ^a)

a) Accessories shown or described are not included with the product as standard. You can find the complete selection of accessories in our accessories range.

Display Elements

(a) "Laser beam over centre line" direction indicator
(b) Indicator for reception accuracy "medium"
(c) Battery warning
(d) "Laser beam below centre line" direction indicator
(e) Audio signal indicator
(f) Centre line indicator
(g) Indicator for reception accuracy "fine"

Technical Data

Laser receiver LR 1 LR 1 G
Article number	3 601 K15 40. 3 601 K69 70.
Receivable wavelength 635-650 nm 532-535 nm
Suitable for rotary lasers GRL 250 HV	GRL 300 HV	GRL 300 HVG
	GRL 400 H
Working range (radius) ^A) with rotary laser
- GRL 250 HV 0.5-125 m -
- GRL 300 HV 0.5-150 m -
- GRL 300 HVG - 0.5-150 m
- GRL 400 H 0.5-200 m -
Reception angle 120° 120°
Receivable rotation speed >200 min	^-1	>200 min ^-1
Reception accuracy ^B)C)
- "Fine" ±1 mm	±1 mm
- "Medium" ±3 mm	±3 mm
Operating temperature	-10°C to +50°C	-10°C to +50°C
Storage temperature	-20°C to +70°C	-20°C to +70°C
Max. altitude 2000 m	2000 m
Relative air humidity max.	90%	90%
Pollution degree according to IEC 61010-1	2^D)	2^D)
Battery	1 × 9 V 6LR61	1 × 9 V 6LR61
Approx. operating time	50 h	50 h
Weight according to EPTA-Procedure 01:2014	0.25 kg	0.25 kg
Dimensions (length × width × height)	148 × 73 × 30 mm	148 × 73 × 30 mm

18 | English

Laser receiver LR 1 LR 1 G

Protection rating IP 65 (dust-proof and protected against powerful water jets)

IP 65 (dust-proof and protected against powerful water jets)

A) The working range may be reduced by unfavourable environmental conditions (e.g. direct sunlight).
B) Dependent on the distance between the laser receiver and the rotary laser and on the laser class and laser type of the rotary laser
C) The reception accuracy may be reduced by unfavourable environmental conditions (e.g. direct sunlight).
D) Only non-conductive deposits occur, whereby occasional temporary conductivity caused by condensation is expected.

For clear identification of your laser receiver, see the serial number (11) on the type plate.

Noise Information

The A-weighted sound pressure level of the audio signal is up to 95 dB(A) at 0.2 m away.

Do not hold the laser receiver close to your ear!

Assembly

Inserting/changing the battery

Alkali-manganese batteries are recommended for the laser receiver.

Pull the locking mechanism (10) of the battery compartment cover outwards and lift up the battery compartment cover (12). Insert the battery.

When inserting the batteries, ensure that the polarity is correct according to the illustration on the inside of the battery compartment.

When the battery warning (c) first appears on the display (7), the laser receiver can still be operated for approx. 3 hours.

▶ Take the battery out of the laser receiver when you are not using it for a prolonged period of time. When it is stored in the laser receiver for longer periods, the battery can corrode and discharge itself.

Operation

Starting operation

▶ Protect the laser receiver against moisture and direct sunlight.

▶ Do not subject the laser receiver to extreme temperatures or variations in temperature. As an example, do not leave it in vehicles for longer periods. In case of large variations in temperature, allow the laser receiver to adjust to the ambient temperature before putting it into operation. In case of extreme temperatures or variations in temperature, the accuracy of the laser receiver can be impaired.
- Keep the work area free from obstacles that could reflect or obstruct the laser beam. For example, cover any reflective or shiny surfaces. Do not measure through panes of glass or similar materials. The measurements may be distorted by a reflected or obstructed laser beam.

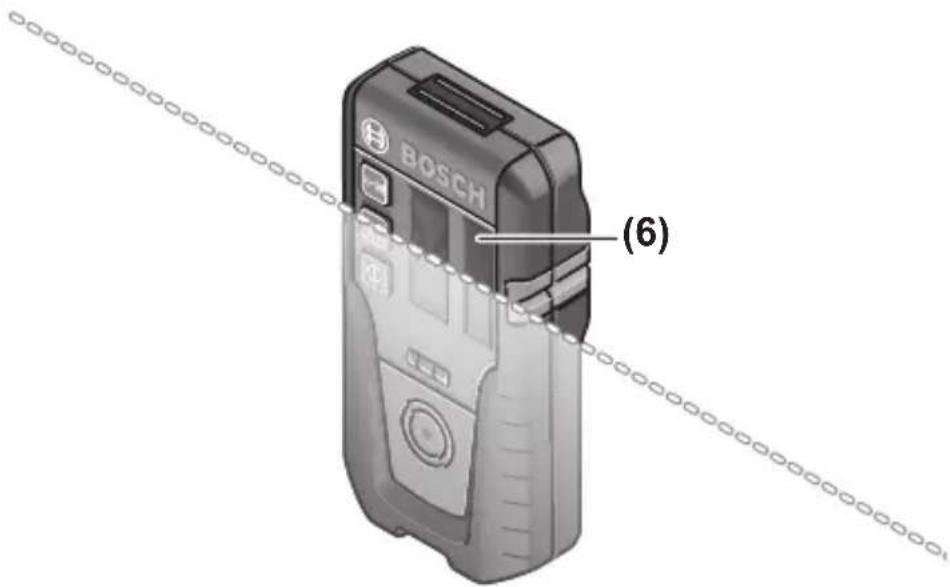

Setting up the laser receiver (see figure A)

Place the laser receiver at least 0.5 m away from the rotary laser. For rotary lasers with multiple operating modes, select the horizontal or vertical operation with the highest rotational speed.

Position the laser receiver so that the laser beam can reach the reception area (6). Align it so that the laser beam runs straight through the reception area (as shown in the figure).

Switching On/Off

▶ A loud audio signal sounds when switching on the laser receiver. Therefore, keep the laser receiver away from your ear or other persons when switching it on. The loud sound can damage hearing.

To switch on the laser receiver, press the on/off button (1). All display indicators light up briefly and two audio signals sound.

After the laser receiver is switched on, the measuring accuracy is always set to "medium" and the audio signal is always switched off.

To switch off the laser receiver, press the on/off button (1) again.

If no button on the laser receiver is pressed for approx. 10 min and no laser beam reaches the reception area (6) for 10 min, the laser receiver will automatically switch itself off to preserve battery life. An audio signal indicates when the laser receiver is switching off.

Selecting the setting of the centre line indicator

You can use the button adjusting the reception accuracy (2) to specify the accuracy with which the position of the laser beam is indicated as "centred" on the reception area:

• Measuring accuracy "fine" (indicator (g) on the display),
• Measuring accuracy "medium" (indicator (b) on the display).

An audio signal sounds every time the accuracy setting is changed.

20 | English

Direction indicators

The position of the laser beam in the reception area (6) is indicated as follows:

- On the display (7) on the front and rear of the laser receiver by means of the "laser beam below centre line" direction indicator (d), the "laser beam above centre line" direction indicator (a) and the centre line indicator (f),

- By an audio signal (optional) (see "Laser Beam Indicator Audio Signal", page 20).

Laser receiver too low: If the laser beam hits the upper half of the reception area (6), then the "laser beam above centre line" direction indicator (a) appears in the display. If the audio signal is switched on, a slow-beat signal sounds.

Move the laser receiver upwards in the direction of the arrow. When the laser beam is close to the centre line, only the tip of the "laser beam above centre line" direction indicator (a) is shown.

Laser receiver too high: If the laser beam hits the lower half of the reception area (6), then the "laser beam below centre line" direction indicator (d) appears in the display. If the audio signal is switched on, a fast-beat signal sounds.

Move the laser receiver downwards in the direction of the arrow. When the laser beam is close to the centre line, only the tip of the "laser beam below centre line" direction indicator (d) is shown.

Laser receiver centred: If the laser beam hits the reception area (6) at the height of the centre mark (5), then the centre line indicator (f) appears in the display. If the audio signal is switched on, a continuous signal sounds.

Laser Beam Indicator Audio Signal

The position of the laser beam on the reception area (6) can also be indicated by an audio signal.

You can select two different volumes for the audio signal.

To switch on the audio signal or change the volume level, push the audio signal button (3) until the required volume level is indicated on the display. At medium volume, the audio signal indicator (e) flashes on the display; at high volume, the indicator is continuously lit. When the audio signal is switched off, the indicator goes out.

Working Advice

Aligning with the spirit level

The laser receiver can be aligned vertically (plumb line) with the spirit level (8). If a laser receiver is mounted at an angle, it will give incorrect measurements.

Marking

You can mark the position of the laser beam at the centre mark (5) on the left and right of the laser receiver when the beam hits the centre of the reception area (6).

The centre mark is located 45 mm away from the top edge of the measuring tool.

When marking, take care to align the laser receiver so that it is exactly vertical (with a horizontal laser beam) or horizontal (with a vertical laser beam), as otherwise the marks are offset with respect to the laser beam.

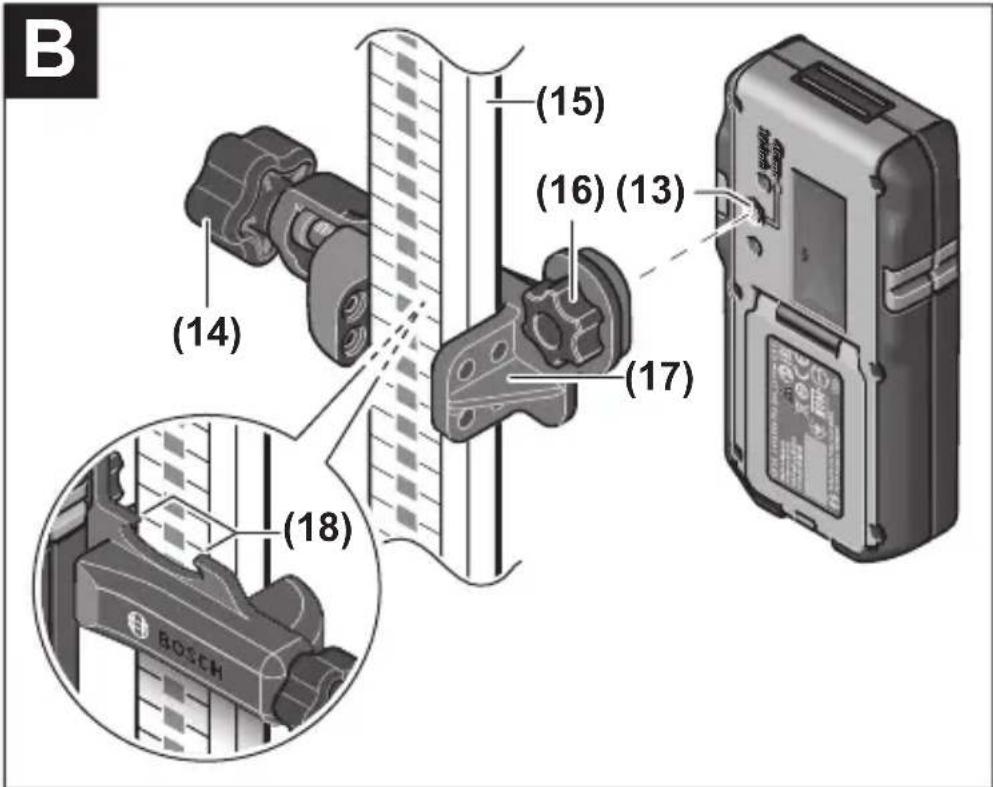

Attaching using the holder (see figure B)

You can use the holder (17) to attach the laser receiver to a measuring rod (15) (accessory) as well as to other auxiliary tools with a width of up to 65 mm.

Screw the holder (17) to the mount (13) on the rear side of the laser receiver with the fastening screw (16).

Loosen the rotary knob (14) on the holder, slide the holder onto the measuring rod (15) and retighten the rotary knob (14).

The centre line reference (18) on the holder is situated at the same height as the centre marking (5) and can be used for marking the laser beam.

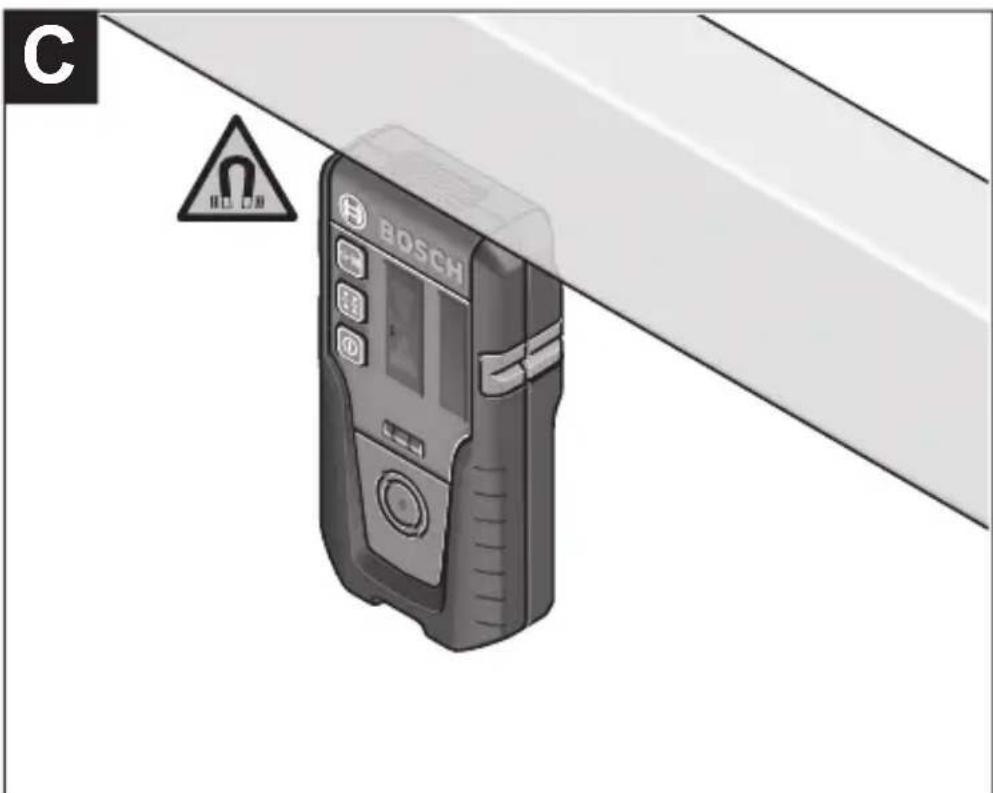

Attaching using a magnet (see figure C)

If an attachment is not required to be especially secure, the laser receiver can be attached to steel parts using the magnets (4).

Maintenance and Service

Maintenance and Cleaning

Always keep the laser receiver clean.

Do not immerse the laser receiver in water or other liquids.

Wipe off any dirt using a damp, soft cloth. Do not use any detergents or solvents.

After-Sales Service and Application Service

Our after-sales service responds to your questions concerning maintenance and repair of your product as well as spare parts. You can find explosion drawings and information on spare parts at: www.bosch-pt.com

The Bosch product use advice team will be happy to help you with any questions about our products and their accessories.

In all correspondence and spare parts orders, please always include the 10-digit article number given on the nameplate of the product.

22 | English

Malaysia

Robert Bosch Sdn. Bhd.(220975-V) PT/SMY

No. 8A, Jalan 13/6

46200 Petaling Jaya

Selangor

Tel.: [phone]

Toll-Free: 1800 880188

Fax: [phone]

E-Mail: [e-mail]

www.bosch-pt.com.my

Great Britain

Robert Bosch Ltd. (B.S.C.)

P.O. Box 98

Broadwater Park

North Orbital Road

Denham Uxbridge

UB 9 5HJ

At www.bosch-pt.co.uk you can order spare parts or arrange the collection of a product in need of servicing or repair.

Tel. Service: [phone]

E-Mail: [e-mail]

You can find further service addresses at:

www.bosch-pt.com/serviceaddresses

Disposal

The laser receiver, accessories and packaging should be recycled in an environmentally friendly manner.

Do not dispose of laser receivers or batteries with household waste.

Only for EU countries:

According to the Directive 2012/19/EU on waste electrical and electronic equipment and its transposition into national law, laser receivers that are no longer usable, and, according to the Directive 2006/66/EC, defective or drained batteries must be collected separately and disposed of in an environmentally correct manner.

If disposed incorrectly, waste electrical and electronic equipment may have harmful effects on the environment and human health, due to the potential presence of hazardous substances.

Only for United Kingdom:

According to Waste Electrical and Electronic Equipment Regulations 2013 (2013/3113) and the Waste Batteries and Accumulators Regulations 2009 (2009/890), electrical and electronic equipment that is no longer usable must be collected separately and disposed of in an environmentally friendly manner.

Français

Robert Bosch Morocco SARL

53, Rue Lieutenant Mahroud Mohamed

20300 Casablanca

Tel.: [phone]

E-Mail : [e-mail]

France

Robert Bosch (France) S.A.S.

www.bosch-pt.com/serviceaddresses

Symbolic icon of a person moving with arrows, enclosed in a circle (no text or symbols)

FR

Calle Robert Bosch No. 405

www.bosch-pt.com/serviceaddresses

40 | Português

Eliminación

www.bosch-pt.com/serviceaddresses

Eliminação

www.bosch-pt.com/serviceaddresses

Smaltimento

www.bosch-pt.com/serviceaddresses

Afvalverwijdering

Bosch Service Center

Telegrafvej 3

2750 Ballerup

På www.bosch-pt.dk kan der online bestilles reservedele eller oprettes en reparations ordre.

Tlf. Service Center: 44898855

Fax: [phone]

E-Mail: [e-mail]

www.bosch-pt.com/serviceaddresses

Bortskaffelse

Bosch Service Center

Telegrafvej 3

2750 Ballerup

Danmark

Tel.: [phone] (inom Sverige)

Fax: [phone]

www.bosch-pt.com/serviceaddresses

Avfallshantering

www.bosch-pt.com/serviceaddresses

1 609 92A 7LK | (05.05.2022) Bosch Power Tools

Kassering

www.bosch-pt.com/serviceaddresses

Hävitys

www.bosch-pt.com/serviceaddresses

Απόσυρση

www.bosch-pt.com/serviceaddresses

Tasfiye

Robert Bosch Sp. z o.o.

www.bosch-pt.com/serviceaddresses

Utylizacja odpadów

Bosch Service Center PT

K Vápence 1621/16

692 01 Mikulov

www.bosch-pt.com/serviceaddresses

Likvidace

www.bosch-pt.com/serviceaddresses

Likvidácia

www.bosch-pt.com/serviceaddresses

Hulladékkezelés

www.bosch-pt.com/serviceaddresses

Утилизация

www.bosch-pt.com/serviceaddresses

164 | Казак

Утилізація

www.bosch-pt.com/serviceaddresses

174 | Română

Кәдеге жарату

Service scule electrice

182 | Български

Strada Horia Măcelariu Nr. 30–34, sector 1

013937 Bucureşti

www.bosch-pt.com/serviceaddresses

Eliminarea

Service scule electrice

Strada Horia Măcelariu Nr. 30–34, sector 1

013937 Bucureşti, România

www.bosch-pt.com/bg/bg/

www.bosch-pt.com/serviceaddresses

Бракуване

www.bosch-pt.com/serviceaddresses

Отстранување

www.bosch-pt.com/serviceaddresses

Uklanjanje dubreta

Laserske prijemnike, pribor i ambalažu treba reciklirati na ekološki prihvatljiv način.

Laserske prijemnike i baterije nemojte bacati u kućni otpad!

Samo za EU-zemlje:

Prema evropskoj direktivi 2012/19/EU o starim električnim i elektronskim uređajima i njenoj primeni u nacionalnom pravu, laserski prijemnici koji se više ne mogu koristiti, a prema evropskoj direktivi 2006/66/EC akumulatori/baterije koje su u kvaru ili istrošene moraju se odvojeno sakupljati i uključiti u reciklažu koja ispunjava ekološke uslove.

www.bosch-pt.com/serviceaddresses

Odlaganje

www.bosch-pt.com/serviceaddresses

Zbrinjavanje

Laserske prijamnike, pribor i ambalažu treba dovesti na ekološki prihvatljivo recikliranje.

Laserske prijamnike i baterije ne bacajte u kućni otpad!

Samo za zemlje EU:

U skladu s europskom Direktivom 2012/19/EU o električnim i elektroničkim starim uređajima i njihovom provedbom u nacionalno pravo neupotrebljivi laserski prijamnici i u skladu s europskom Direktivom 2006/66/EZ neispravne ili istrošene aku-baterije/baterije moraju se odvojeno sakupljati i dovesti na ekološki prihvatljivo recikliranje.

www.bosch-pt.com/serviceaddresses

Bosch Power Tools 1 609 92A 7LK | (05.05.2022)

230 | Latviešu

Jäätmekäitlus

www.bosch-pt.com/serviceaddresses

www.bosch-pt.com/serviceaddresses

Šalinimas

www.bosch-pt.com/serviceaddresses

廃棄

www.bosch-pt.com/serviceaddresses

废弃处理

www.bosch-pt.com/serviceaddresses

처리

Robert Bosch Morocco SARL

www.bosch-pt.com/serviceaddresses
