Cutting length mm 350 450 Tooth opening mm 15 15 Weight according to EPTA-Procedure 01:2014 kg 1.9 2.0 Serial number See serial number (type plate) on the machine Battery Li-Ion Li-Ion Article number 1 607 A35 05E 1 607 A35 05E Rated voltage V1212 Capacity Ah 1.5 1.5 Number of battery cells

(triax vector sum) and uncertainty K determined according to EN 60745-2-15:

The vibration level given in this information sheet has been measured in accordance with a standardised test given in EN 60745 and may be used to compare one tool with anoth- er. It may be used for a preliminary assessment of exposure. Battery Li-Ion Li-Ion Article number 1 607 A35 07N 1 607 A35 07N Rated voltage V1212 Capacity Ah 2.0 2.0 Number of battery cells

Charging current mA 3000 3000 Allowable charging temperature range °C 0 – 45 0–45 Charging time for battery capacity, approx. –1.5 –2.0 –2.5 min min min

Charging current mA 1500 1500 Allowable charging temperature range °C 0–45 0–45 Charging time for battery capacity, approx. –1.5 –2.0 –2.5 min min min

Weight according to EPTA-Procedure 01:2014 kg 0.30 0.30 Protection class / II / II Cordless hedge trimmer EasyHedgeCut 12-35 EasyHedgeCut 12-350 EasyHedgeCut 12-351 EasyHedgeCut 12-45 EasyHedgeCut 12-450 OBJ_BUCH-1685-008.book Page 16 Tuesday, May 23, 2017 2:11 PMEnglish | 17 Bosch Power Tools F 016 L81 736 | (23.5.17) The declared vibration emission level represents the main ap- plications of the tool. However if the tool is used for different applications, with different accessories or insertion tools or is poorly maintained, the vibration emission may differ. This may significantly increase the exposure level over the total working period. An estimation of the level of exposure to vibration should also take into account the times when the tool is switched off or when it is running but not actually doing the job. This may sig- nificantly reduce the exposure level over the total working period. Identify additional safety measures to protect the operator from the effects of vibration such as: maintain the tool and the accessories, keep the hands warm, organisation of work pat- terns. Mounting and Operation Starting Battery Charging Do not use other battery chargers. The supplied battery charger is designed for the Lithium-Ion battery in your gar- den product. Observe the mains voltage! The voltage of the power supply must correspond with the data given on the name- plate of the battery charger. Battery chargers marked with 230 V can also be operated with 220 V. The battery is equipped with temperature monitoring that al- lows charging only in the temperature range between 0 °C and 45 °C. In this manner, a high battery service life is achieved. Note: The battery supplied is partially charged. To ensure full capacity of the battery, completely charge the battery in the battery charger before using your power tool for the first time. The lithium-ion battery can be charged at any time without re- ducing its service life. Interrupting the charging procedure does not damage the battery. The “Electronic Cell Protection (ECP)” protects the lithium- ion battery against deep discharging. When the battery is run down or discharged, the garden product is shut off by means of a protective circuit: The blade no longer moves. Do not continue to press the On/Off switch after the garden product has been automatically switched off. The battery can be dam- aged. Charging Procedure The charging procedure starts as soon as the mains plug is plugged into the socket and the battery is then inserted into the battery charger. Due to the intelligent charging method, the charging condi- tion of the battery is automatically detected and the battery is charged with the optimum charging current, depending on battery temperature and voltage. This gives longer life to the battery and always leaves it fully charged when kept in the charger for storage. Note: The charging procedure is only possible when the bat- tery temperature is within the allowable charging tempera- ture range, see section “Technical Data”. AL 1130 CV Flashing Green Battery Charge Indicator The rapid-charging procedure is signalled by a flashing green battery charge indica- tor. Note: The rapid-charging procedure is only possible when the battery temperature is within the allowable charging temper- ature range, see section “Technical Data”. Continuous Lighting of the Green Battery Charge Indicator Continuous lighting of the green battery charge indicator indicates that the battery is fully charged. Afterwards, the battery can be removed for immediate use. When the battery is not inserted, continuous lighting of the battery charge indicator indicates that the mains plug is in- serted in the socket and that the battery charger is ready for operation. Continuous Lighting of the Red Battery Charge Indicator Continuous lighting of the red battery charge indicator indicates that the temper- ature of the battery is not within the allowa- ble charging temperature range, see sec- tion “Technical Data”. As soon as the allowable charging temperature range is reached, the battery charger automati- cally switches to rapid charging. Flashing Red Battery Charge Indicator A flashing red battery charge indicator in- dicates a different malfunction of the charg- ing procedure, see section “Troubleshoot- ing”. Action Figure Page Delivery Scope

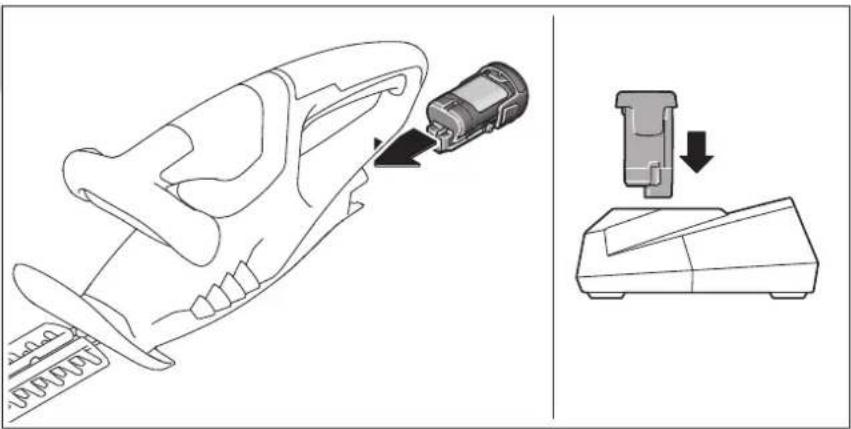

Inserting the Battery

Storage and Transport

Selecting Accessories

Central Motors & Equipment LLC 1984 :

EPTA-Procedure 01:20141,92,0

Electronic Cell Protection (ECP)

• Bosch Lawn and Garden Ltd., PT-HG/ENS-PA2, Stowmarket, Suffolk IP14 1EY, England Henk Becker Executive Vice President Engineering and Manufacturing Helmut Heinzelmann Head of Product Certification Robert Bosch Power Tools GmbH, 70538 Stuttgart, GERMANY Stuttgart, 22.05.2017 OBJ_BUCH-1685-008.book Page IV Tuesday, May 23, 2017 2:04 PM
