| Product type | Corded electric hedge trimmer |
| Brand | Bosch |
| Model | GHE 60 R |
| Nominal power | 600 W |
| Blade length | 60 cm |
| Maximum cutting capacity | 28 mm |
| Weight | 4.5 kg |
| Dimensions (L x W x H) | 115 x 22 x 18 cm |
| Power supply | 220-240 V, 50 Hz |
| Power cable | 10 m |
| Motor type | Maintenance-free induction motor |
| Sound pressure level (LpA) | 83 dB(A) |
| Sound power level (LwA) | 94 dB(A) |
| Vibration (hand/arm) | 3.2 m/s² |
| Blade protection | Integrated blade guard |
| Handle | Comfort handle with non-slip coating |
| Blade brake | Electric brake for quick stop |
| Safety lock | Two-hand switch |
| Cleaning | Clean with a damp cloth after use |
| Blade sharpening | Professional sharpening recommended every 2 years |
| Spare parts available | Yes, through Bosch after-sales service |
Frequently Asked Questions - GHE 60 R BOSCH
User questions about GHE 60 R BOSCH
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Hedge Trimmers in PDF format for free! Find your manual GHE 60 R - BOSCH and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. GHE 60 R by BOSCH.
USER MANUAL GHE 60 R BOSCH
OUJ DOKU-44288-002.fm Page 1 Thursday, February 11, 2016 9:50 AM
Power Tools Division
70764 Leinfelden-Echterdingen
GERMANY
www.bosch-professional.com
F 016 L81 090 (2016.02) O / 94 WEU
GHE Professional
60T|60R|70R
BOSCH
Henk Becker Executive Vice President Engineering Helmut Heinzelmann Head of Product Certification PT/ETM9
Robert Bosch GmbH, Power Tools Division 70764 Leinfelden-Echterdingen, GERMANY Leinfelden, 11.02.2016
Montage und Betrieb
Warning! Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in serious injury.
Please keep the instructions safe for later use! Use the machine only when you fully understand and can perform all functions without limitation, or have received appropriate instructions.
Explanation of symbols on the machine
General hazard safety alert.
Read instruction manual.
Remove battery before adjusting or cleaning, and before leaving the machine unattended for any period.
Wear eye protection.
Always wear ear protection.
Keep hands away from blade.
General Power Tool Safety Warnings
WARNING Read all safety warnings and all instructions. Failure to follow the warnings and
instructions may result in electric shock, fire and/or serious injury.
Save all warnings and instructions for future reference.
The term "power tool" in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.
Work area safety
- Keep work area clean and well lit. Cluttered or dark areas invite accidents.
▶ Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes. - Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.
Electrical safety
▶ Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.
- Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
▶ Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.
▶ Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges and moving parts. Damaged or entangled cords increase the risk of electric shock.
When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.
▶ If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.
Personal safety
Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.
▶ Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.
▶ Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.
Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.
▶ Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.
▶ Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.
Power tool use and care
▶ Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.
▶ Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.
▶ Disconnect the plug from the power source and/or the battery pack from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.
▶ Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.
- Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.
▶ Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.
▶ Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.
Battery tool use and care
▶ Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack.
▶ Use power tools only with specifically designated battery packs. Use of any other battery packs may create a risk of injury and fire.
When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire.
▶ Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns.
Service
▶ Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.
Hedge trimmer safety warnings
▶ Keep all parts of the body away from the cutter blade. Do not remove cut material or hold material to be cut when blades are moving. Make sure the switch is off when clearing jammed material. A moment of inattention while operating the hedge trimmer may result in serious personal injury.
Carry the hedge trimmer by the handle with the cutter blade stopped. When transporting or storing the hedge trimmer always fit the cutting device cover. Proper handling of the hedge trimmer will reduce possible personal injury from the cutter blades.
Hold power tool by insulated gripping surfaces only, because the cutter blade may contact hidden wiring. Cutter blades contacting a "live" wire may make exposed metal parts of the power tool "live" and could give the operator an electric shock.
Additional safety warnings
▶ Never allow children or people unfamiliar with these instructions to use the machine. Local regulations may restrict the age of the operator. When not in use store the machine out of reach of children.
This tool is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.
▶ Wait until the machine has come to a standstill before placing it down.
▶ Never hold the hedge trimmer by the blade or cutting device cover.
The operator or user is responsible for accidents or hazards occurring to other people or their property.
▶ Thoroughly inspect the area where the hedge trimmer is to be used and remove all wires and other foreign objects.
▶ Know how to stop the hedge trimmer quickly in an emergency.
- Avoid operating the machine in bad weather conditions especially when there is a risk of lightning.
▶ Do not modify this product. Unauthorized modifications may impair the safety of your product and may result in increased noise and vibration.
▶ Only use Bosch Professional Garden Tool recommended and approved accessories and replacement parts.
Maintenance
For Your Safety
▶ Warning: Switch off and remove battery from machine before adjusting or cleaning.
▶ Always wear protective gloves when handling or working near the sharp blades.
▶ To ensure long and reliable service, carry out the following maintenance regularly:
12 | English
▶ Examine the machine and replace worn or damaged parts for safety.
▶ Grease the blade cassette with a multi purpose grease containing high viscosity mineral oil every 70 hours through the correct lubrication point. See figure 7 of illustrations.
▶ Use lubrication spray directly on the blade after every use.
▶ Keep all nuts, bolts and screws tight to ensure that the hedgecutter is always in a safe working condition.
Cleaning
▶ Always clean the machine after each use. Clean exterior surfaces thoroughly using a soft brush and cloth. Do not clean with water, solvents or polishes.
Recommendations for Optimal Handling of the Battery and Charger
▶ Warning! Do not attempt to charge non rechargeable batteries with the charger.
- Inserting the battery pack into the machine with the switch on is dangerous.
▶ Ensure battery is the right way up.
▶ Insert the battery until the locking mechanism clicks. To remove the battery, operate locking lever. Take care not to drop the battery through the hole.
For care use and maintenance please use charger and battery manuals which are supplied with the products or available at www.bosch-professional.com.
Symbols
The following symbols are important for reading and understanding the operating instructions. Please take note of the symbols and their meaning. The correct interpretation of the symbols will help you to use the machine in a better and safer manner.
Symbol Meaning
Read instruction manual.
Wear protective gloves.
Wear foot protection.
Oiling required
Movement direction
Reaction direction
Switching On
Switching Off
Accessories
Weight
Intended Use
The garden product is intended for Professional use.
Cordless hedge trimmer GHE 60 R GHE 60 T GHE 70 R
| Blade type | roughing trimming roughing | ||
| Article number | 3 600 J12 000 3 600 J12 001 3 600 J12 002 | ||
| No-load stroke rate | min-1 | 3000 3000 3000 | |
| Cutting length | mm 600 600 700 | ||
| Tooth opening | mm 28 23 28 | ||
| Tooth pitch | mm 35 30 35 | ||
| Handle Rotation | ° +90/0/-90 +90/0/-90 +90/0/-90 | ||
| Sharpening Angle | ° | 4 | 5 |
| Weight (without batteries)according to EPTA-Procedure 01:2014 | kg 5.0 5.0 5.3 | ||
| Serial number | See serial number (type plate) on the machine | ||
Only LI-Ion batteries GBA 36V series (Art No. 1 607 A35 .../ ...) and battery charger AL36100 CV series (Art No. 1 600 A001...) can be used with this machine.
Please do not use non-rechargeable batteries with this appliance, only those specified by the manufacturer.
F016 L81 090 | (11.2.16) Bosch Power Tools
English | 13
Noise/Vibration Information
| Sound emission values determined according to EN 60745-2-15. | 3 600 J12 000 | 3 600 J12 001 | 3 600 J12 002 | |
| Typically the A-weighted noise levels of the product are: | ||||
| Sound pressure level | dB(A) | 83 | 82 | 84 |
| Sound power level | dB(A) | 103 | 102 | 103.7 |
| Uncertainty K | dB | =1.24 | =2 | =2.6 |
| Wear hearing protection! | ||||
| Vibration total values ah(triax vector sum) and uncertainty K determined according to EN 60745-2-15: | ||||
| Vibration emission value ah | m/s 2 | 1.9 | 2.0 | 2.2 |
| Uncertainty K | m/s 2 | =1.5 | =1.5 | =1.5 |
The vibration level given in this information sheet has been measured in accordance with a standardised test given in EN 60745 and may be used to compare one tool with another. It may be used for a preliminary assessment of exposure. The declared vibration emission level represents the main applications of the tool. However if the tool is used for different applications, with different accessories or insertion tools or is poorly maintained, the vibration emission may differ. This may significantly increase the exposure level over the total working period.
An estimation of the level of exposure to vibration should also take into account the times when the tool is switched off or when it is running but not actually doing the job. This may significantly reduce the exposure level over the total working period.
Identify additional safety measures to protect the operator from the effects of vibration such as: maintain the tool and the accessories, keep the hands warm, organisation of work patterns.
Declaration of Conformity C€
| 3 600 J12 000 | 3 600 J12 001 | 3 600 J12 002 | |
| We declare under our sole responsibility that the product described under “Technical data” is in conformity with all relevant provisions of the directives 2011/65/EU, until 19 April 2016: 2004/108/EC, from 20 April 2016 on: 2014/30/EU, 2006/42/EC, 2000/14/EC including their amendments and complies with the following standards: EN 60745-1, EN 60745-2-15, EN 50581.2000/14/EC: Guaranteed sound power level: Conformity assessment procedure according to Annex V. | dB(A) 104 104 106 | ||
Equipment category: 25
Technical file (2006/42/EC, 2000/14/EC) at:
Bosch Lawn and Garden Ltd., PT-HG/ENS-PA2,
Stowmarket, Suffolk IP14 1EY, England
Henk Becker
Executive Vice President
Engineering
Helmut Heinzelmann
Head of Product Certification
PT/ETM9
Robert Bosch GmbH, Power Tools Division
70764 Leinfelden-Echterdingen, GERMANY
Mounting and Operation
The numbering of the figures refer to the illustrations of the machine on the graphics page.
| Action Figure Page | ||
| Delivery Scope | 1 91 | |
| Inserting the Battery | 2 91 | |
| Removing the Battery | 3 91 | |
| Switching On and Off | 4 92 | |
| Working Advice | 5 92 | |
| Handle Rotation | 6 92 | |
| Lubrication | 7 93 | |
| Selecting Accessories | 8 93 | |
14 | English
Working Advice

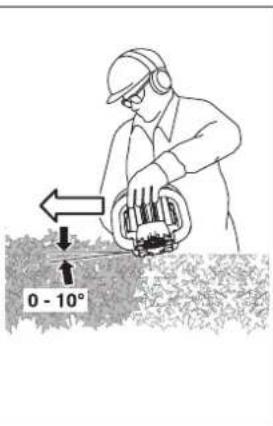

When cutting hedges always start with the sides first, working from the bottom upwards in a radial movement followed by the top. If hedge is deep ensure cutting is carried out in stages.
Never attempt to remove material from the blades while the battery is inserted and do not hold material to be cut. Switch off and remove the battery from the machine whenever clearing jammed material. Failure to do so may result in serious personal injury.
Take extra care when cutting above shoulder height.
Caution! Base plate may become hot during operation.
Wait until the blades have come to a standstill before placing down the hedge trimmer.
Your machine is fitted with an electronic device, which will minimise the risk of the blade jamming in heavy cutting conditions. This will allow easy removal of the machine from the hedge. Restart the machine by the on/off switch.
For optimum performance
| Blade Type Cutting length Application | ||
| roughing | 600 mm | The garden tool is designed for cutting hedges with thicker stems and branches up to 25 mm diameter such as the following:- Hardwood hedges: Blackthorn, Hawthorn, Berberis- Softwood hedges: Lleylandii, Cotoneaster, Buxus |
| roughing | 700 mm | |
| trimming 600 mm The garden tool is designed for shaping and trimming hedges with thinner stems up to 10 mm diameter such as the following:- Hardwood hedges: Blackthorn, Hawthorn, Berberis- Softwood hedges: Lleylandii, Cotoneaster, Buxus- Deciduous shrubs: Japanese Maple, Hydrangea, Spirea- Evergreen shrubs: Azaleas, Rhododendrons, Hollies, Laurels | ||
Troubleshooting
Problem Possible Cause Corrective Action
| Machine fails to operate Battery discharged Recharge battery | ||
| Battery too hot/cold Allow to cool/warm | ||
| Rear handle not fully located Check handle is positioned in 0° or 90° | ||
| Trigger engaged when battery fitted Release trigger and reapply. | ||
| Cutting blade obstructed | Switch off the machine, remove battery and re- move material | |
| Low battery capacity | Ensure battery is fully charged before use | |
| Battery not fully inserted | Ensure battery is inserted correctly | |
| Machine runs intermit- tently | On/Off switch defective | Have the power tool repaired by an approved dealer |
| Low battery capacity | Ensure battery is fully charged before use | |
| Battery not fully charged | Check battery display - charge battery if nec- essary | |
| Bale bar and/or trigger not fully engaged | Engage both triggers fully | |
| Poor cutting performance | Cutting blade damaged/blunt | Carry out blade resharpening by a Bosch ap- proved dealer |
Problem Possible Cause Corrective Action
| Excessive vibrations/noise | Cutting blade damaged Replace the blade through your approved dealer |
| Debris build up on blade Clean blade | |
| Blade nuts loose Tighten nut bolts |
If you are unable to resolve the problem using the troubleshooting guide then please contact your dealer in the first instance.
After use/Storage
▶ Always transport machine with safety guard fitted.
▶ Always transport machine without battery fitted.
▶ Ensure the machine is fully secure during transportation and take care not to bend the blade.
Correct storage is essential for maintaining the life of the product. If possible, avoid storage areas with high humidity which could cause rust or corrosion.
End of season storage: Remove battery and store both machine and battery in a dry safe place away from direct sunlight.
Ensure the blade cutting device cover is fitted before storing away.
Store the hedge trimmer out of reach of children or unauthorised persons.
Do not place objects on top of the machine.
When storing for extended periods, thoroughly clean the product beforehand.
Lubricate before storage.
Blade Sharpening
Blade edges can be resharpened. Always ask a recommended Bosch approved dealer to carry out the resharpening.
After-sales Service and Application Service
www.bosch-professional.com
In all correspondence and spare parts order, please always include the 10-digit article number given on the type plate of the machine.
Great Britain
Robert Bosch Ltd. (B.S.C.)
P.O. Box 98
Broadwater Park
North Orbital Road
Denham
Uxbridge
UB 9 5HJ
At www.bosch-pt.co.uk you can order spare parts or arrange the collection of a product in need of servicing or repair.
Tel. Service: (0344) 7360109
E-Mail: boschservicecentre@bosch.com
Ireland
Origo Ltd.
Unit 23 Magna Drive
Magna Business Park
City West
Dublin 24
Tel. Service: (01) 4666700
Fax: (01) 4666888
Australia, New Zealand and Pacific Islands
Robert Bosch Australia Pty. Ltd.
Power Tools
Locked Bag 66
Clayton South VIC 3169
Customer Contact Center
Inside Australia:
Phone: (01300) 307044
Fax: (01300) 307045
Inside New Zealand:
Phone: (0800) 543353
Fax: (0800) 428570
Outside AU and NZ:
Phone: +61 3 95415555
www.bosch.com.au
Republic of South Africa
Customer service
Hotline: (011) 6519600
Gauteng - BSC Service Centre
35 Roper Street, New Centre
Johannesburg
Tel.: (011) 4939375
Fax: (011) 4930126
E-Mail: bsctools@icon.co.za
KZN - BSC Service Centre
Unit E, Almar Centre
143 Crompton Street
Pinetown
Tel.: (031) 7012120
Fax: (031) 7012446
E-Mail: bsc.dur@za.bosch.com
Western Cape - BSC Service Centre
Democracy Way, Prosperity Park
Milnerton
Tel.: (021) 5512577
Fax: (021) 5513223
E-Mail: bsc@zsd.co.za
16 | Français
Bosch Headquarters
Midrand, Gauteng
Tel.: (011) 6519600
Fax: (011) 6519880
E-Mail: rbsa-hq.pts@za.bosch.com
Transport
The contained lithium-ion batteries are subject to the Dangerous Goods Legislation requirements. The user can transport the batteries by road without further requirements.
When being transported by third parties (e.g.: air transport or forwarding agency), special requirements on packaging and labelling must be observed. For preparation of the item being shipped, consulting an expert for hazardous material is required.
Dispatch batteries only when the housing is undamaged. Tape or mask off open contacts and pack up the battery in such a manner that it cannot move around in the packaging. Please also observe possibly more detailed national regulations.
Disposal
Do not dispose of garden products, battery chargers and batteries/rechargeable batteries into household waste!
Only for EC countries:
According to the European law 2012/19/EU, electrical and electronic equipments that are no longer usable, and according to the European law 2006/66/EC, defective or used battery packs/batteries, must be collected sepa-
rately and disposed of in an environmentally correct manner. Batteries no longer suitable for use can be directly returned at:
Great Britain
Robert Bosch Ltd. (B.S.C.)
P.O. Box 98
Broadwater Park
North Orbital Road
Denham
Uxbridge
UB 9 5HJ
At www.bosch-pt.co.uk you can order spare parts or arrange the collection of a product in need of servicing or repair.
Tel. Service: (0344) 7360109
E-Mail: boschservicecentre@bosch.com
Battery packs/batteries:
Li-Ion:
Please observe the instructions in section "Transport".
Subject to change without notice.
Français
Henk Becker Executive Vice President Engineering Helmut Heinzelmann Head of Product Certification PT/ETM9
Robert Bosch GmbH, Power Tools Division 70764 Leinfelden-Echterdingen, GERMANY Leinfelden, 11.02.2016
Bosch Lawn and Garden Ltd., PT-HG/ENS-PA2,
Stowmarket, Suffolk IP14 1EY, England
Henk Becker
Executive Vice President
Engineering
Helmut Heinzelmann
Head of Product Certification
PT/ETM9
Robert Bosch GmbH, Power Tools Division
70764 Leinfelden-Echterdingen, GERMANY
Bosch Lawn and Garden Ltd., PT-HG/ENS-PA2,
Stowmarket, Suffolk IP14 1EY, England
Henk Becker
Helmut Heinzelmann
Executive Vice President
Head of Product Certification
Engineering
PT/ETM9
Robert Bosch GmbH, Power Tools Division
70764 Leinfelden-Echterdingen, GERMANY
Fascicolo tecnico (2006/42/CE, 2000/14/CE) presso: Bosch Lawn and Garden Ltd., PT-HG/ENS-PA2.
Stowmarket, Suffolk IP14 1EY, England
Henk Becker
Helmut Heinzelmann
Executive Vice President
Head of Product Certification
Engineering
PT/ETM9
Robert Bosch GmbH, Power Tools Division
70764 Leinfelden-Echterdingen, GERMANY
Bosch Lawn and Garden Ltd., PT-HG/ENS-PA2,
Stowmarket, Suffolk IP14 1EY, England
Henk Becker
Helmut Heinzelmann
Executive Vice President
Head of Product Certification
Engineering
PT/ETM9
PPa
Robert Bosch GmbH, Power Tools Division
70764 Leinfelden-Echterdingen, GERMANY
Teknisk dossier (2006/42/EF, 2000/14/EF) ved: Bosch Lawn and Garden Ltd., PT-HG/ENS-PA2, Stowmarket, Suffolk IP14 1EY, England
Henk Becker Executive Vice President Engineering Helmut Heinzelmann Head of Product Certification PT/ETM9
Robert Bosch GmbH, Power Tools Division 70764 Leinfelden-Echterdingen, GERMANY Leinfelden, 11.02.2016
Montering og drift
Bosch Service Center
Telegrafvej 3
2750 Ballerup
På www.bosch-pt.dk kan der online bestilles reservedele eller oprettes en reparations ordre.
Tlf. Service Center: 44898855
Fax: 44898755
E-Mail: vaerktoej@dk.bosch.com
Transport
Bosch Lawn and Garden Ltd., PT-HG/ENS-PA2, Stowmarket, Suffolk IP14 1EY, England
Henk Becker Executive Vice President Engineering Helmut Heinzelmann Head of Product Certification PT/ETM9
Robert Bosch GmbH, Power Tools Division 70764 Leinfelden-Echterdingen, GERMANY Leinfelden, 11.02.2016
Bosch Service Center
Telegrafvej 3
2750 Ballerup
Danmark
Tel.: (08) 7501820 (inom Sverige)
Fax: (011) 187691
Transport
Tekninen tiedosto (2006/42/EY, 2000/14/EY): Bosch Lawn and Garden Ltd., PT-HG/ENS-PA2, Stowmarket, Suffolk IP14 1EY, England
Henk Becker
Executive Vice President Engineering
Helmut Heinzelmann
Head of Product Certification PT/ETM9
i.v. h=mc
Robert Bosch GmbH, Power Tools Division 70764 Leinfelden-Echterdingen, GERMANY Leinfelden, 11.02.2016
Bosch Power Tools F 016 L81 090 | (11.2.16)
74|Suomi
Asennus ja käyttö
Bosch Lawn and Garden Ltd., PT-HG/ENS-PA2, Stowmarket, Suffolk IP14 1EY, England
Henk Becker Executive Vice President Engineering Helmut Heinzelmann Head of Product Certification PT/ETM9
Robert Bosch GmbH, Power Tools Division 70764 Leinfelden-Echterdingen, GERMANY Leinfelden, 11.02.2016
Montaj ve işletim
3
4
① + ② = 1
ⓛ = O
5
6
7
8
F 016 176 751
700 mm
F 016 176 750
F 016 800 453
- GHE Professional
- BOSCH
- Montage und Betrieb
- Explanation of symbols on the machine
- General Power Tool Safety Warnings
- Work area safety
- Electrical safety
- Personal safety
- Power tool use and care
- Battery tool use and care
- Service
- Hedge trimmer safety warnings
- Additional safety warnings
- Maintenance
- For Your Safety
- | English
- Cleaning
- Recommendations for Optimal Handling of the Battery and Charger
- Symbols
- Intended Use
- | English
- Working Advice
- After use/Storage
- Blade Sharpening
- After-sales Service and Application Service
- www.bosch-professional.com
- Great Britain
- Ireland
- Australia, New Zealand and Pacific Islands
- Republic of South Africa
- Customer service
- Gauteng - BSC Service Centre
- KZN - BSC Service Centre
- Western Cape - BSC Service Centre
- | Français
- Bosch Headquarters
- Transport
- Disposal
- Only for EC countries:
- Battery packs/batteries:
- Français
- Montering og drift
- Asennus ja käyttö
Brand : BOSCH
Model : GHE 60 R
Category : Hedge Trimmers
