Product type	Beard trimmer
Brand	Moser
Model	ChroMini
Dimensions (device)	141 x 32 x 29 mm
Dimensions (charging stand with accessories)	72 x 96 x 58 mm
Weight (device)	Approx. 132 g
Weight (charging stand)	Approx. 61 g
Power supply	Power adapter model 6000, rechargeable NiMH battery
Runtime	Up to 100 minutes
Charging time	Up to 120 minutes (first charge 2 hours)
Motor	DC motor
Noise level	Max. 60 dB(A) at 25 cm
Vibrations	< 2.5 m/s²
Battery type	NiMH
Adjustable cutting length	3 mm to 6 mm (5 positions)
Cutting head	Removable, with Easy Cleaning system
Included accessories	Comb, oil, cleaning brush, charging stand, power adapter
Usage	Corded or cordless, for beard, hair, eyebrows
Cleaning	Brush, lubrication with oil, hygienic spray recommended
Safety	Double insulation, anti-interference, battery overcharge protection
Repairability	Repairs by authorized service center, original spare parts

Frequently Asked Questions - ChroMini MOSER

How to charge the ChroMini trimmer?

Before first use, charge the device for approximately 2 hours. Place the switched-off trimmer in the charging stand plugged into the mains. The charging indicator flashes regularly during charging, then flashes at a different rate (10 on/1 off) when the battery is fully charged.

What is the battery runtime?

The runtime is up to 100 minutes after a full charge. Maximum capacity is reached after 5 to 10 charging cycles. A poorly maintained cutting head can reduce runtime.

How to adjust the cutting length?

Use the provided comb. It can be set to 5 positions. Push the comb forward for a shorter cut (3 mm) or backward for a longer cut (6 mm).
Assembly: slide the comb onto the cutting head until it stops. Removal: pull in the opposite direction.

How to clean the trimmer?

Turn off and unplug the device. Remove the comb and cutting head. Use the cleaning brush to remove hairs in the housing opening and cutting head. Press the cleaning lever to facilitate residue removal. Do not use solvents. The cutting head can be cleaned with a hygienic spray.

How to lubricate the cutting head?

After each cleaning, apply a few drops of the provided oil onto the cutting head. Regular lubrication ensures efficient and long-lasting cutting. If cutting performance decreases despite regular maintenance, replace the cutting head.

Can I use the trimmer in the shower?

No. The ChroMini trimmer is not waterproof. Do not immerse it in water and avoid splashes. Only use and store the device in dry places.

What to do if the cutting head does not cut properly?

Check if the cutting head is dirty. Clean and lubricate it. If the problem persists, the cutting head may be worn and needs to be replaced (see manual). Also ensure not to press too hard on the skin and hold the device flat.

The charging indicator does not light up, what to do?

Ensure the device is switched off during charging. Clean the charging contacts on the stand and device. Make sure the power adapter is properly plugged in and the cable is not damaged.

Can I replace the battery myself?

No. Batteries should only be replaced by an authorized service center with manufacturer-approved models. Do not attempt to change the batteries yourself due to risk of explosion.

How to dispose of the trimmer at end of life?

Do not dispose of the device in household waste. Discharge the batteries before disposal. In accordance with the WEEE directive, return the device to a municipal collection center or waste treatment company. The packaging is recyclable.

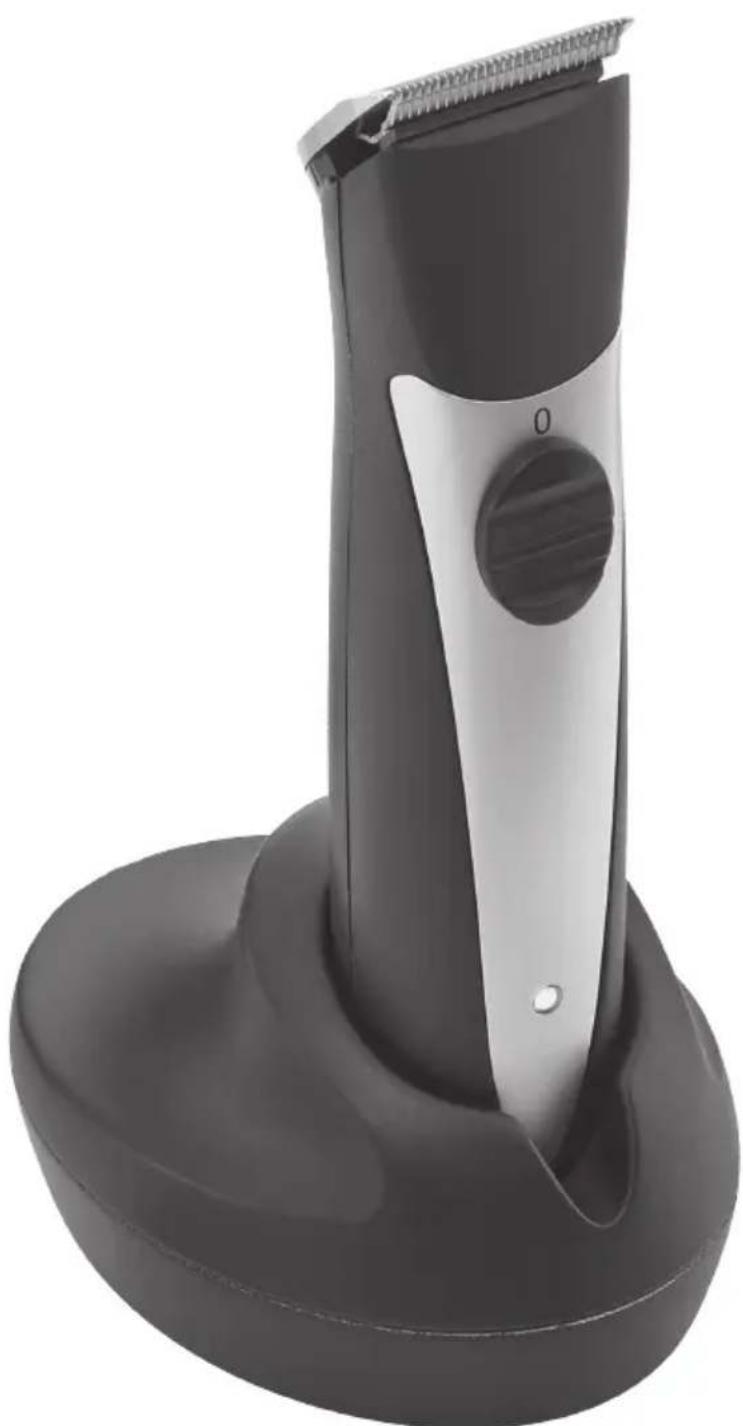

USER MANUAL ChroMini MOSER

Type 1591Q Quick Charge

Operating manual Cord/Cordless Hair Clipper

1

Originalbetriebsanleitung - Netz-/Akku-Haarschneidemaschine Typ 1591Q 5
Translation of the original operating manual - Cord/cordless hair clipper Type 1591Q 10
Traduction du mode d'emploi d'origine - Tondeuse à cheveux avec/sans fil, type 1591Q 15
Traduzione delle istruzioni per l'uso originali - Tagliacappi a rete/batteria tipo 1591Q 21
Traduccion del manual de uso original - Maquina de corte de peso con alimentacion por bateria y red modelo 1591Q ....26
Traducao do manual de instruções original - Maquina para corte de Cableo com bateria e ligation a rede tipo 1591Q ... 32
Vertaling van de originele gebruiksaanwijzing - Netstroom/snoerloze tondeuse type 1591Q 38
Overseltse af den originale betjeningsvejledning - Net-/akku-klippemaskine type 1591Q 43
Oversattning av originalbruksanvising - Nät-/batteri-hårklippningsmaskin typ 1591Q 48
Oversettelse av original bruksanvising - Nettdrevet/batteridrevet harklippemaskin type 1591Q 53
Alkuperäiskayttöohjeen kännös - Verkko-/Akkukaytöinen hiustenleikkuukone tyyppi 1591Q 58
Original kullana klavuzunun cevirisi - Elektrikli / bataryali saq kesme makinesi tip 1591Q 63
Tlumaczenie oryglalnej instrukcji obslugi - Maszynka do strzyzenia, sieciowa/akumulatorowa, model 1591Q 68
Preeklad originiho navodu k pouziti-Zastrihova vlasu s napajinem ze site/akumulatorem typ 1591Q 74
Preklad originalneho nadvu na obsluhu - Sietovy/akumulatorovy striha c vlasov typu 1591Q 79
Prijevod originalih uputa za uporabu - Sišac za kosu na struju i baterije, tip 1591Q 84
Az eredeti hasznalatiutasitas forditasa-Halozatr/ akkumulatorrol mukdtetheto 1591Q tipusu hajvago gep 89
Prevod originalnih navodil za uporabo - Aparat za strizenje las na omrežni / akumulatorski pogon tip 1591Q 94
Traducerea instruetiunilor originale deutilizare-Masina de tuns cu alimentare de la reea/acumulator de tipul 1591Q... 99
IpeboHaOpnHaHToOyNbTbAHe-Pa60TaHaTOKcakMylaTopMaunHka3aNoctpnrBaHe TIN1591Q 104
IpebeoOpunHaBHorO pyKOBODCTBa no 3Knnyataun -
AkkymyIaTOPHO-CEBaMaunHka Ia CTpnKKn BOJoc, Tn 1591Q 109
Ipeeklaad opirihalbhoi iHCTpykuii -
MaunHka dIa cTpXeHH BOnoc3 KnBHeHHM Bi eJeKtpOmepeKi Ta aKymyIaTopi, Tn1 1591Q 115
Originaalkasutusjuhendi tölge - Vörgu-/akutoitel juukselöikusmasin, tüup 1591Q 121
1591Q tipa tikla/akumulatora matu griezamas masinas originalas lietoanas instrukcijas tulkojums 126
Originalios naudojimo instrukcijos vertimas -
I\$ electros tinklo maitinama / akumulatorine plauky kirpimo masinèle 1591Q 131
Metaphpaoon tw npototunwov onnyiw λeitoupyiac - Koupetikn unxavn puaoc/maatapiaac toun 1591Q 136
1591Q 1jIyIyIyIyIyIyIyIyIyIyIyIyIyIyIyIyIyIyIyIyIyIyIyIyIyIyIyIyIy

Translation of the original operating manual - Cord/cordless hair clipper Type 1591Q

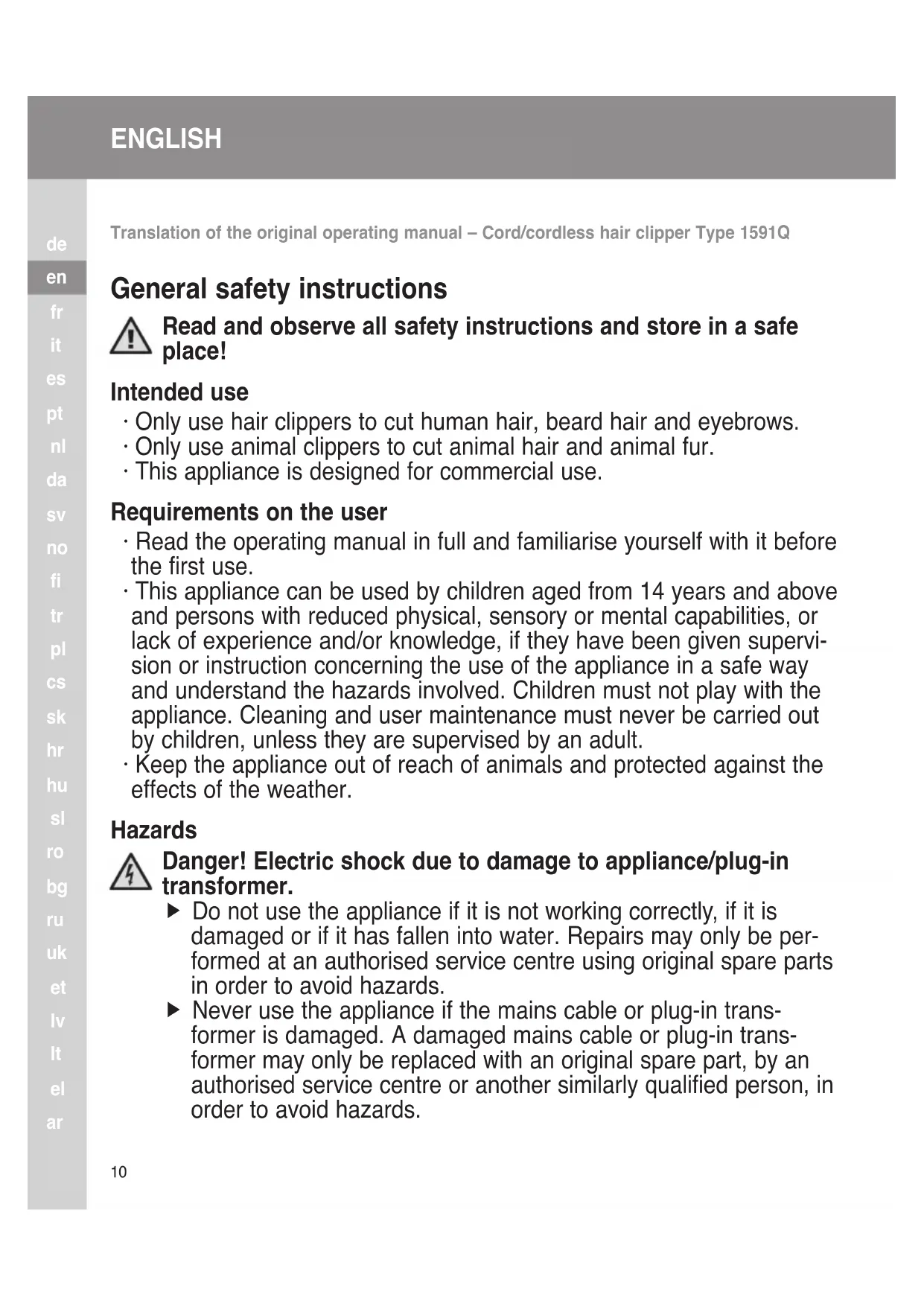

General safety instructions

Read and observe all safety instructions and store in a safe place!

Intended use

• Only use hair clippers to cut human hair, beard hair and eyebrows.
• Only use animal clippers to cut animal hair and animal fur.
• This appliance is designed for commercial use.

Requirements on the user

• Read the operating manual in full and familiarise yourself with it before the first use.
• This appliance can be used by children aged from 14 years and above and persons with reduced physical, sensory or mental capabilities, or lack of experience and/or knowledge, if they have been given supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved. Children must not play with the appliance. Cleaning and user maintenance must never be carried out by children, unless they are supervised by an adult.
• Keep the appliance out of reach of animals and protected against the effects of the weather.

Hazards

Danger! Electric shock due to damage to appliance/plug-in transformer.

• Do not use the appliance if it is not working correctly, if it is damaged or if it has fallen into water. Repairs may only be performed at an authorised service centre using original spare parts in order to avoid hazards.

• Never use the appliance if the mains cable or plug-in transformer is damaged. A damaged mains cable or plug-in transformer may only be replaced with an original spare part, by an authorised service centre or another similarly qualified person, in order to avoid hazards.

• Only specialists properly trained in the handling of electrotechnical appliances may repair electrical equipment.

Danger! Electric shock due to penetration of liquid.

Always position or store electrical equipment where it cannot fall into water (e.g. washbasin). Keep the appliance away from water and other liquids.
- Never touch electrical equipment that has fallen into water or reach into water to retrieve it. Disconnect from the mains immediately.

• Have the appliance inspected at a service centre before using it again.

Only use and store the appliance in dry rooms.

Danger of explosion!

Do not attempt to replace the battery.
Batteries may only be exchanged for types approved by the manufacturer and may only be replaced at service centres.
- Do not expose the appliance to temperatures below 0^ and above +40^ for any length of time. Avoid direct exposure to sunlight.

Warning! Injuries caused by overheating of blade sets.

The blade set can heat up if the appliance is used over a prolonged period. Take regular breaks when using the appliance so that the blade set can cool down.

Warning! Injuries due to incorrect handling.

Never use the appliance if the blade set is damaged.
Always switch the appliance off before storage, as the appliance can fall down due to the vibrations.

Handle with care! Injuries due to incorrect handling.

• Only operate the appliance with the voltage stated on the nameplate.
  Only use accessories recommended by the manufacturer.

• Only use the plug-in transformer that is included in the scope of supply for charging the appliance. Only replace defective plug-in transformers with original spare parts which you can order via our service centres.

• Never insert or allow objects to fall into the openings of the appliance.
• Do not carry the appliance by the mains cable and, when disconnecting the appliance from the mains, always pull the plug rather than the cable or the appliance.
• Keep the mains cable and appliance away from hot surfaces.
  Make sure that the mains cable is not twisted or kinked when charging or storing.

General user information

Information about using the operating manual

Before using the appliance for the first time, you must read and understand the operating manual completely.
Consider the operating manual as part of the product and store it in a safe and accessible place.
This operating manual is also available in PDF format from our service centre. The EC declaration of conformity can also be requested in other official EU languages from our service centre.
- Include this operating manual if passing the appliance on to a third party.
In the event of conflicts with national safety specifications or instructions, the national requirements must be followed.

Explanation of symbols and notes

DANGER

Danger of electric shock which may result in serious physical injury or death.

DANGER

Danger of explosion which may result in serious physical injury or death.

WARNING

Warning of possible physical injury or a health risk.

CAUTION

Information about danger of material damage.

Note with useful information and tips.

Action to be taken by owner.

2. 3.

Product description

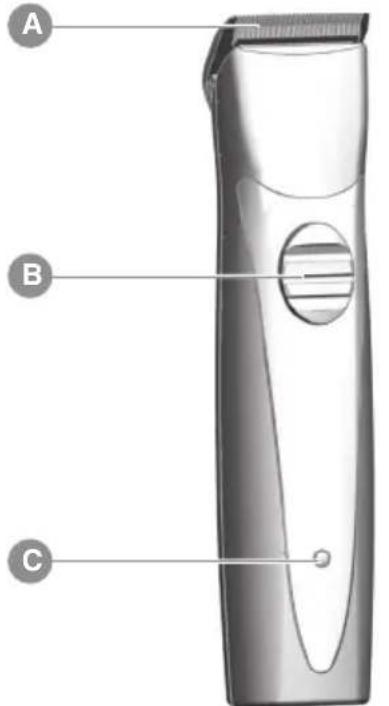

Description of parts (Fig. 1)

A Blade set
B On/off switch
C Charging indicator
D Charging stand
E Charging stand socket
F Oil for blade set
G Cleaning brush
H Attachment comb

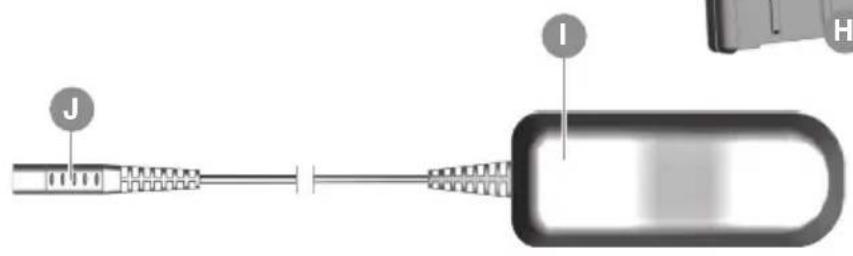

I Plug-in transformer
J Appliance plug

Technical data

Hand-held appliance

Drive: DC motor

Battery: NiMH battery

Battery operating time: up to 100 min.

Dimensions (LxWxH): 141 x 32 x 29 mm

Weight: approx. 132 g

Emission sound pressure level: max. 60 dB(A) @ 25 cm

Vibration: < 2.5m / s

Charging stand

Dimensions

with accessories (LxWxH): 72 × 96 × 58 ~mm

Weight: approx. 61 g

Plug-in transformer

Type Adapter 6000

Power consumption: max. 12 W

Operating voltage: 100 - 240V / 50 / 60Hz

The appliance is safety insulated and radio screened. It meets the requirements of EU Electromagnetic Compatibility Directive 2004/108/EC and Machinery Directive 2006/42/EC.

Operation

Preparation

Keep the packaging material for safe storage or transport later.

Check that the contents are complete.
Check all the parts for possible transport damage.

Safety

Caution! Damage due to incorrect power supply.

• Only operate the appliance with the voltage stated on the nameplate.

Charging the battery

Before the appliance is used for the first time, it should be charged for approx. 2 hours!

1. Connect the appliance plug (J) on the plug-in transformer to the charging stand socket (E) (Fig. 2@).

Battery overcharging is prevented thanks to intelligent charge management.

1. Connect the plug-in transformer to the mains socket (Fig. 2b).

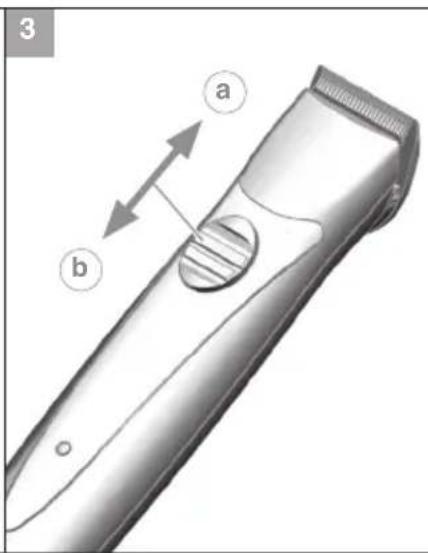

2. Switch off the appliance using the on/off switch (Fig. 3⑥).

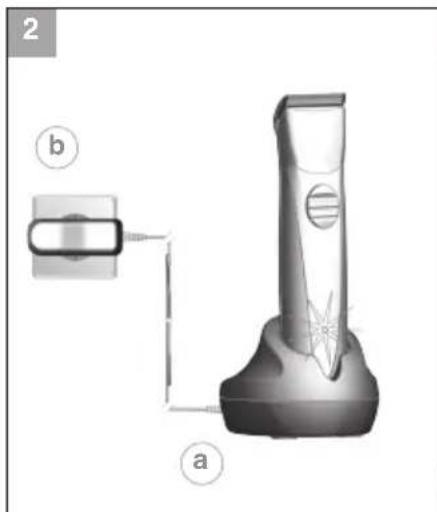

3. Place the appliance on the charging station (Fig. 2)

During charging, the charging indicator (C) flashes at evenly spaced intervals. When the battery is fully charged, the charging indicator flashes at a different rate (10 on / 1 off).
After the appliance has been removed from the charging stand, the display goes out (power saving mode).
It will take no more than 120 minutes for the appliance to charge to full capacity.

Battery operation

1. Switch on the appliance using the on/off switch and switch off after use (Fig. 3@/⑤).

With the battery fully charged, the appliance can be operated for up to 100 minutes. This capacity is attained after approx. 5 - 10 charging cycles.
In case of insufficient maintenance of the blade set, the operating time can be reduced considerably.

Operation

Cutting with the attachment comb

The appliance can also be operated with an attachment comb.

The attachment comb has 5 detent positions for adjusting the cutting length.
The further the attachment comb is pushed in (retracted), the shorter the cutting length.

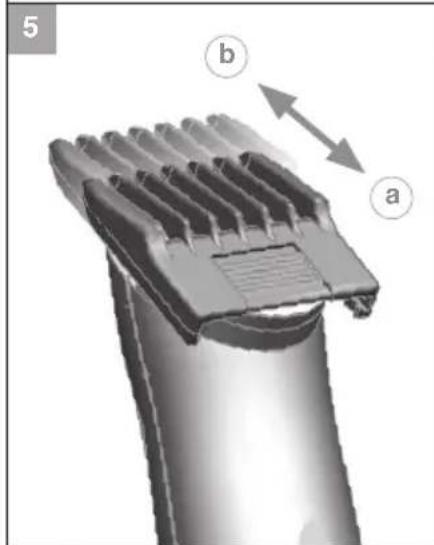

The cutting length can be adjusted from 3mm (Fig. 5@) to 6mm (Fig. 5B).

Attaching/removing the attachment comb

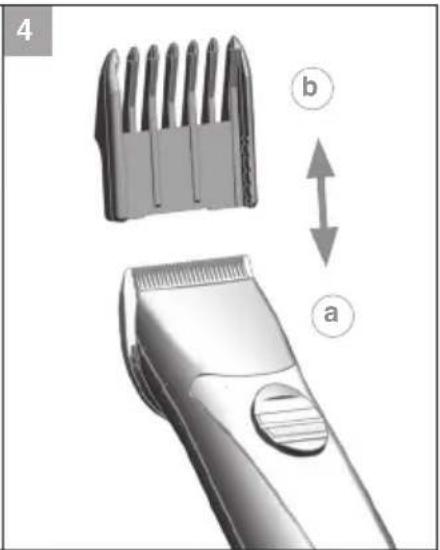

1. Slide the attachment comb on to the blade set in the direction of the arrow until it reaches the limit stop (Fig. 4@).
2. The attachment comb can be removed by pushing it in the direction of the arrow (Fig. 4b).

Maintenance

Warning! Injuries and material damage due to incorrect handling.

• Switch off the appliance before cleaning it or performing any maintenance and disconnect it from the mains.

Cleaning and care

Danger! Electric shock due to penetration of liquid.

Do not immerse the appliance in water!
Do not allow any liquid to get inside the appliance.
Only reconnect the appliance to the power supply if it is completely dry.

Caution! Danger from aggressive chemicals.

Aggressive chemicals could damage the appliance and accessories.

Never use solvents or scouring agents.
Only use cleaning agents and blade set oil recommended by the manufacturer.

Accessories and spare parts are available from your dealer or our service centre.

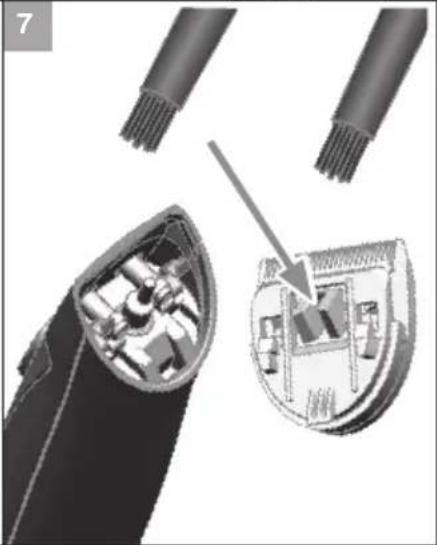

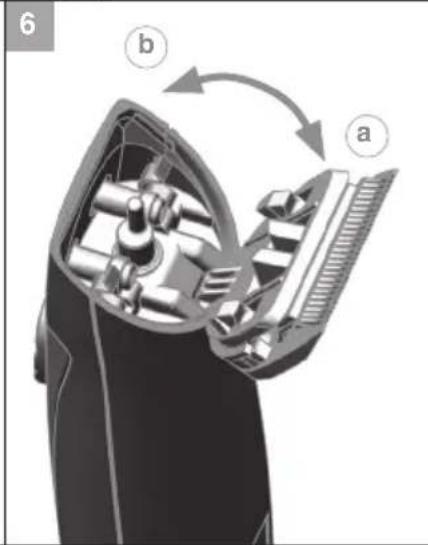

• Remove the attachment comb (Fig. 6a) after every use and lift the blade set out of the housing (Fig. 6a). Use the cleaning brush to remove any cut hairs from the housing opening and from the blade set (Fig. 7). The cleaning lever can also be pressed. This allows the cut hairs that accumulate between the bottom blade and the top blade to be easily removed using the cleaning brush (EASY CLEANING).

The charging contacts on the appliance and on the charging stand should always be kept clean.
Only wipe the appliance with a soft, slightly damp cloth.
The blade set using the hygienic spray.

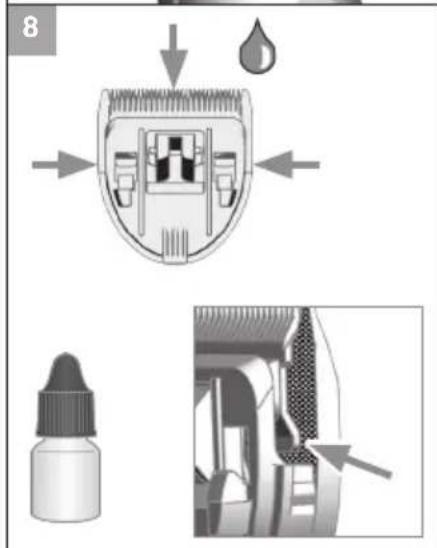

Oil the blade set with the blade set oil (Fig. 8).

For a good and long-lasting cutting performance, it is important to oil the blade set frequently.
If the cutting performance deteriorates after long use despite regular cleaning and oiling, the blade set should be replaced.

Changing the blade set

Warning! Injuries and material damage due to incorrect handling.

• Switch off the appliance before changing the blade set.

• Switch off the appliance using the on/off switch (Fig. 3⑥).

• Slide the blade set off the housing in the direction of the arrow (Fig. 6⑧). Remove the blade set.
• Replace the blade set by hooking it into the housing and pressing it down until it clicks into position (Fig. 6b).

Problem elimination

Blade set is cutting badly.

Blade set is pulling hair out.

Battery operating time is too short.

Cause: Blade set is dirty.

Clean and oil the blade set (Fig. 7/8).

Cause: Blade set is worn out.

Replace the blade set (Fig. 6).

Skin injury

Cause: Too much pressure on the skin.

Less pressure on the skin.

Cause: Cutting angle is too steep.

Hold appliance flatter to the skin.

Charging indicator light does not light up.

Cause: The appliance must be switched off for charging.

Check whether the appliance is switched off. (Fig5).

Cause: Charging contacts are dirty.

Clean the charging contacts on the appliance and on the charging stand.

Cause: Defective power supply.

Ensure that the plug-in transformer is plugged into the mains socket.
Check the mains cable for possible damage.

Disposal

Handle with care! Environmental damage in the event of incorrect disposal.

Discharge batteries prior to disposal!
- Correct disposal will ensure environmental protection and prevent any potentially harmful impact on people and the environment.

Adhere to the relevant legal requirements when disposing of the appliance.

Information on the disposal of electrical and electronic appliances in the European Community:

Within the European Community, national regulations are specified for the disposal of electrical appliances, based on EU Waste Electrical and Electronic Equipment Directive 2012/19/EC (WEEE). In accordance with this, the appliance can no longer be disposed of with the local or domestic waste.

The appliance will be accepted free of charge by local collection points or recycling centres.

The packaging for this product is made from recyclable materials. Dispose of this in an environmentally friendly manner by recycling it.

Puisance absorbee: max. 12 W

Tension de service : 100 - 240 V, 50/60 Hz

Batarya: NiMH batarya

Akumulator: Akumulator NiMH

Czas pracy na z

Akumulator: Akumulator NiMH

Provozni doba akumulatoru: max. 100 min.

Akumulator: NiMH akumulator

Dobra prevadzky akumulatorom: až 100 min

Rozmery (d x s x v): 141 x 32 x 29 mm

Hmotnost: cca 132 g

Akkumulator: NiMH akkumulator

Mukodesi ido akkumulatorial: max. 100 perc

Méretek (H×Sz×M): 141 × 32 × 29 mm

Suly: kb. 132 g

Akumulator: NiMH-akumulator

Kapaciteta akumulatorja: do 100 min

Mere (DxSxV): 141 x 32 x 29 mm

Teza: pribl. 132 g

Raven oddanega

Accumulator: Accumulator NIMH

Durata de

functionare accumulator: panla 100 min

Dimensiuni (L× I× ) : 141× 32× 29mm

Greutate: circa 132 g

Nivelul de

presiune acustica: max. 60 dB(A) @ 25 cm

Vibrare: < 2.5m / s

Suport incarcator

Māsuri

OcToPoxHo! POBpeKdEHne BCJeIcTBnE HeBepHOro NcNoJIb3OBAHnY.

• Подклочаite npnbop Tolyko K ceTn C HanpjaXeHneM, yka3aHbIM Ha Ta6nUke npnbopa.
  IcnoIb3yIte TOnbKO npHaJLeXHOCrN, peKOMeHIOBaHHbIe IpON3BOJNTeJIeM.
  ДлгзардкпprибopaИсполь3уITETOЛБКОсETeBOI6LOKПИТАнЯ，BXODA申B KOMNJIeKT NOCTaВКИ.ДлгЗamHeHHeNc-правHorO шTeNCeJIbHOrO IMNPyJbCHOrO 6LOKa ПИТАнЯ ИСПОЛБ3уITE TOЛБКООPIRINHaJIbHbIe 3aIчAcTи，KOTOpbie MOxHObPnOBpeCTN B Hauem CepBnCHOM ueHTpe.
  He BCTaBJIaITe n He IOnyckaITe nonaDaHnKaKnx-ll6o PpeDMeTOB B OTBepCTn np6opa.
  He depxnte np6op 3a ceTeBoi Ka6elb npn nepeHocke; BbIHMaI N3 p03eTKN, DepxNTecb 3a BNkY, a He TAHnte 3a Ka6elb nII np6op.
  He donyckaite coopkochoBene npnbopa n cTeBoro kaebna C ropaHMI NOBepxHOCTaMn.
  He xpaHnte Hne noJb3yITeCb np6Opom C nepeKpyeHHbIM IIN HaIOMJIeHHbIM CeTeBbIM Ka6eJem.

06upepekomeHdaunnoNoIb3oBaHHO

HOpMaunno noJb3OBAHHo pyKOBOCTBOM no 3Kcnnyataun

Pepen 3kcnnyataaue ne npmbopa Heo6xOumo non-Hoctbio npouectb N NOHArb DaHHoe pyKOBOCTBO nO ekcnnyataaun!
PykoBOCTBO NO 3KcNlIyataunn ABJIaTcH HeOTbEmJeMoYacTBIO pOdykUnn, TuaTeNbHO COxpaHnTe eru n depXnTE B JERKOODTyHOM MecTe.
BbTaKxMe MoKeTe NOnyUHTb DaHHeO pyKOBOcTBO NO 3Kc- Pnyataun BΦopMaTe PDF B Hauem cepBnCHOM cHTpe No 3anpocy. JeKlapaun O COOTBeTcBn CTaHapTaM EC Ha Dpyrnx OpuuaJbHbix Ra3bIkax CtpaH EC MoXeT 6bTb NOnyuHeHa No 3anpocy B ODHOM n3 HauNX cepBnCHbx UeHTPOB.
Pnpepaepn60paTpebMnucampepaabaTe TaKke npyKOBOCTBO NO 3KcNyaTaun.
B cnyae npotnbopeuM meKdy pykoBDCTBOM no 3kcnny-ataunn HauoHaBbHMn PpaBnAmn TexHKn 6e30anCHOCTN IIN texHNueckmN Tpe6oBaHnMn NO 6e30nacHOCTN pnpOpNT IMeOt HaOnHaBbHbIe HOpMbI.

06bAChENr CmBONOB yKa3AHn

ONACHOCTb

Onachoctb npaxeHn 3Jektpuyeckm TOKOM, KOtOpoe MoKet NOBHeb 3a CO6oT RAKKNe TeIeCHbIe NOBpeXdHn IIN CMeptb.

ONACHOCTb

OnachocbB3pbIBa,KOTOpbMOKET NOBNey3a c06oT TAKKNE TEeChhIE NOBpeXdHnN mCepTb.

PENDyNPEKDEHNE

IpeDynpexKeHne 6 onaCHOCTeNEChbIX NOBpeK-DeHn nn pnckax dIg 3OpOBb.

OCTOPOKHO

IpeDynpexkdeHne 6b OaCHOCTHaHeceHH MaTePnAJIbHorO yuepe6a.

Pone3HaHnΦopMaζuN COBtbl.

Yka3aHHe BbINONHHTc COOTBeTCTBtOoee DeIeCTBne.

1
2
3.

BbIOnHnTe yKa3aHHbIe DeIcTBnB DaHHOM

IopRKe.

Oncanhe np6opa

HaHMeHOBaHne DeTaJIeN (pnc.1)

A BLOK HOKei
B BbiklouaTeIb
C INHdkaTOp 3apRKn
D 3apAHaHa NOcTaBka
E「He3do 3apAHOH NOCTaBKN
F MacNo nIa 6Joka Hoxkei
G UTeOuKa dIa YnCTKn
H Hacaikka
IIMnybChbIb6JOKnTaHIN
J UTekep npmbopa

TexHueckx xapaKtepncnK

PruHnI np6Op

PnBOD: DBNAtEnb NOCTOHHORTO KA

AkkymyIaTOPHa 6aTape: HnKeIb-MeTaIaIrNpIaHbI

aKKyMylTOp

INTEbHOCTpa6Obl

OTAKKMyIaTopa:do100MnH.

T6apntbI（D/山/B):141x32x29MM

Bec: npn6n. 132 r

yPOBHeb 3ByKOBOrO

Давлия: Мкс.60дБ(A) @ 25сM

Bn6paun: < 2,5m / c

3apnHaHIOCTaBka

Pa3MepbIC

PnHaJNeJXHOCTMn（L/Γ/B):72x96x58MM

Bec: npu6n. 61 r

MmnybChb6JOKNTAHNA

Tun: aanrep 6000

Iotppe6JIraMaM MOUHOCTb: MaKc. 12 BT

Pa6oyee Hanp8xKeHne: 100-240B50/60Tc

Pnp60mpMeTHaJekHyIO 3eKtpOn3OJaIIO He Co3daET paAnonomex.Pnp60coBTBeCTbByET Tpe6oBaHm DnpeKTNBbECno3eKtpOMaHHTHO CoBMecTUMocTn 2004/108/EC nDnpeKtNBbEC no MaunHocTpoEHIO 2006/42/EC.

3Kcnpnyataun

NoTroBka

CoxpaHnTe ynaKOBky npnbopa dIa noceJeUoJero 6e3onachoro xpaHEnHn IIN TpaHCnpOpTupOBKn.

PIOBEBpTE KOMNJIeKTHOCTb NOCTaKN.
PpOBepbTe BCE KOMNHOENTbHa BO3MOXHbI IOBpeKdEHHa Pn TpaHCnOpTnPOBKe.

Be30nacchoctb

Octopoxho! Onachoctb BCnECDTBne HecootBetCTByIOUero NITaIOUero HapPaxhen.

PoiKIOUaTe np60p TOnbKO K cETn C hAnpKaHeHem, yka3aHHbIM Ha Ta6NIuKe np60pa.

3apnka akkymyIaTOPHO6aTapeN

ДинтьнocьзардпперпрвимИсноь30а-немcoctabnETOK.2acob!

1. BCTaBbTe wTKepe np60pa (J) Ha 6IIOke nITaHnB rHe3do 3apnHO IOcTaBKn (E) (pnc.2②).

CneuNbHaN CnCTema KOHTpOJI He DonyckaET 4pe3MePHoN 3apdKn. AkkymyIATopa.

1. YctaHOBNTe cTeBOH 6IOK Bpo3eTKy (pnc. 2 ⑥).
2. BbIKIIOHTe np6op c nOmoBbIKIOHTeTnA (pnc. 3 D).
3. YctaHOBITE npn6op B 3apHnyo nOCTaBky (pnc.2).

BoBpMa npuecca 3apAKn KOHTpoIbHbIn HnDnKaTOp 3apAKn (C) MnaeT paBHomepHo. O NOHOM 3apAKe aKKyMylrTopa CBnTeJIbCTByET HnDnKaTOp, MraHOuN B dpyrom pntme (10 Bk./1 BvIK).
- INHnKAtOp noracHet nocne BbIHMaHnry yCTpoiCTBa n3 3apAHOI NOcTAbKN (peXIM 3KOHOMNn3Heprn).
-ⅡNITeNbHOCTb NOHON 3apAKN COCTABnEET npi6NINTEbHO 120 MNHyT.

Pexm pa60tbi OaKymyIITopa

1. BkJIOHTe np6Op c NOMOuHb BbIKJIOHTeJIa (pnc. 3@/⑤), nocne icnoJIb3OBaHHB BbIKJIOHTe np6Op.

C noJIHOCTbIO 3apJXeHHbIM aKKyMЛrTOpOM npIb6p pa6oTaET npIbI.100 MNHyT. TaKaI EMKOCTb DOCTnraeTcR 3a 5 - 10 UNKJOB 3apJKn.
-Пин HeNaIeKaIeM yXoIe 3a 6IokOM HOKeIДIITeIbHocTb paObI npIbopa MoKeT cyueCTBeHHO CHINITbCra.

3KcnIyataun

CtpnKcncnoIb3ObaHem HacaDOK

Pn6op TaKke MoKet IcNoJIb3OBAtbcra C HacaIkoJ.

Дянсговки Длины Стпжки UMeetc8 5урвенфкcaцин Hacdkn.
- Yem rny6Ke BCTaBHeHa HacaIka, TeM MeHbWe dIINHa CTPNKn.

IINHHYCTPnKKMOKHOOTpeyIpOBAtBOT3MM (pnc.5@)do6MM(pnc.5@).

YcTaHOBKa NOTcoEduHHeHHe HacaOk

1. HAdBnHbTe HacaKy B HappaBHeHm CtpeIKn Do ynopa B 6NOK HOKei (pnc. 4③).
2. HacaKMy MoXHO CHrTb, nepeBnHyB ee B HaPpaBHeHIn CTpeJIKN (pnc. 4⑥).

Texnueckoe 06cnyxuBaHne

PpeynpexdHne!OnachocbTpaBM matePnabHoro yuepe6a npn HeHaJnxJaemNCNoB3OBAHn.

Ipeed Haayanom OunchTKn Nm TExHueeCKOrO 0cbnyKunBaHN npmbopa CneJyET OTcoeINHTb eOOT3NeKTpuieckOn CETN.

OuNCTKa uYxoD

OnacHo! OnacHocb ydapa 3neKtpnueckm TOKOM B cnyae npOHKnHOBeHH JNKoCTN.

He onyckaTepnp60pBbOdy!
He donyckaIte npOHnKHOBeHna KnKocTe BNYtpb np6opa.
ToIbKO nOcNE noIHorO BbICbIXaHnI npIbOp MOxHO ONrTb NOkJIIOuHTb K 3JKeKTPnuYeCKoI CETN.

OcToPOxHNo! NObpeKdEHHBcJIeCTBnE arpeC CNBbIX XMMKaTob.

ArpeccnBhie XmMkKaTb MoYr NOBpeNtB np6Op n npHaJNeXHocTn.

He nCnoB3yIte paCTbOpTeINn a6pa3uBhble uNCTAUNe CpeDCTBA.
PIMMEHJTE TOJIbKO UcTcIuNE CpeIcTBA MACIO IJI6Ioka HOKei, peKOMeHDoBaHHbIe N3ROTOBtTeJIeM.

PnHaJLeXHOCTHN 3aNaChbIe YacTn MOxHO 3aKa3aTB B CneUaIN3uPoBaHOM Mara3HHe NIN B HaWeM CepBvCHOM CEHTpe.

Pocne KaKdoRo UcNoIb3OBAHn CHNIMTe HacaKy (pnc.4) u OTKnHbTe 6oK HOKe OTO KOpnyCa (pnc.6 a). LTockoJdN YnCTKn ydaNte OCTaTKu BOOC n3 OTBepCTNa B KopnyCe u N3 6oKa HOKe (pnc.7).DOnoHNTeNbHO HaxMTe PbHaR YnCTKn. 3To NO3BOJNT ydaNtB OCTaTKu BOON MEXy CTpRaJIbHO rpe6eHKo N cTpnraJIbHbIM HOXOM C NOMOUsbIO YeOTKn dN YAeCTKN (EASY CLEANING).

CneIe 3a YCTOTO3apnHbIX KOHTaKTOB Ha yCTpoi-CTBE HHa 3apnHOH NOCTaBKe.
- IpoTnpaTe np6op TOnbKO MmKo, npn HeoXoUmocTo n CnerKa BnaXHO TpNko.
OuHuaTe 6nok HOKei C nOMoUbHO rHnueHnueckoro cnpe.
Cma3bIaIe 6nok HOKei CneuaHbHIM MacnOm (pnc.8).

ДЯ obecneueHnДNITeBHOH n 6cepeboHn pa6Otbl np6oBa BaxHo Yacto Cma3bBaTb 6nOK HOKeMaJOM.
Ecnn nocne dIInTeBHoro nCIOJIb3OBAHn, HecmToPra Ha peryIaepHyu YNCTKy u CMa3Ky, npOn3BOJNTeBbHOCTb CTpnKKn CHnxKaETcA, 6IOK HOKei Heo6xOJIMO 3aMeHHTb.

3aMeHa 6Ioka HOKei

PpeynpexdHne!Onachocb TpaBM m MATEpnaIbHorO yuepe6a pni HeHaJIeXaUeMNCNoIb3OBAHn.

Bcerda BbiknoaTe np6op, npexde yem npntyntb K 3amehe bloka HOkei.

1. BbIKIIOHTe npn6op c nOmoBbIKIOHaTeTg (pnc.3 ⑥).
2. 5nOK HOKeM MoXHo OTcoeMHHTb, HxKab Ha Hero nO HapBaJIeHmIO CTpeKNB C TOpOHy, npOTuBOIOnoXHyIO KoprNcy (pnc.6②). ChIMnTE 6nOK HOKei.
3. YTo6bI CHOBA 3aKpeNtB 6LOK HOKeH, HADBnHbTe erO KpOcKOM Ha 3aXm HA Kopnyce HnHaDaBnTe B HAnpaBnEHN KOpnyCa Do ueNka (Pnc. 6 ⑥).

Ponck u yctpaHene HenoJaO

Bnok Hoxkien ploxopexket.

Bnok Hoxeepraet BonoCbl.

AkkymyIaTOp cIIuKOM 6bIcTpO pa3pKaetc.

Пишина: 6лOK HOж�а загразн.

OuNTTe n CmKbTe 6LOK HOKei (pnc.7/8).

Пичига: 6лOK HOжey n3Hошен.

3aMeHHTe 6nOK HOKei (pnc.6).

Tobpeckdene Koxn

PnunHa:CNIWKOM CINbHOe DaBHeHne HaKOxy.

YMeHbUInTe DaBHeHn Ha Koxy.

PpunHa: yroI pe3aHnC nIiKoM 6nI3Kn K BepTnKaI.

IcnoIb3yIte npI6op noM MeHbIIM yrIOM.

HdkaTop 3apda He roput.

Прична:ВО Врем Зардкп риборdoлжен 6ытБьКЛIOЧЕн.

PpOBepe, BbIKNoeH nn npn6op (pcG8).

06epeKHO!IooKOxKeHHypeep3BnKOpncTAnHHeBIDNOIBHorO ctpmy.

Pnncpi npn3naeHnn BnKOpncTahn TlkbN BiD Jxepena 3mHHoro CTpyMy 3 Hanyro, 0BkazhaHa hOpmauiHi Tabniu.

3apnKAnHa akyMnyaTopa

1. BCTaBTe wTeKepe TcEnceIbHoro imNyIbChoro 6NOKy JKNBJIeHHra (H) y rHi3do 3apAHOi niCTabKn (E) (MaI.4 (忍)

TakokДЯЗAPДЖАнHA NpIcTpI MOxHа3'EDHaTN 3I WTeNCEbHM IMnyIbCHM 6JOKOM KINBJIENHH HAnpAMy (MaI.2@/6).

CneuiabHa KOHTpObnBa CnCTema yHemoxNIBIIOE HaIMIPHe 3apJxKaHHa AkyMylATopa.

2.ПИКИHOTIbTENCEBHNIMNYLCHN6LOKJKNBJIeHHAdo eNEKTPUHOIpo3EKN（MaN.4⑥）
3. BmKnHtB npnctpii 3a donomoroB mNkkaa (MaI.3).
4.BCTaHOIBtB npicptiHa 3apAHH niDCTaBu (MaI.4) a60 3'EDHaHTe Ioro 6e3nocepHbO 3i wTeNCelbHM imNpyIbC HMM 6IOKOM KINBHeHHa (MaI.2@/6).PiOnHeTcNpoec 3apAAKaHH.

ПлдyncангкHTpoNBHn iHnKaTOp Bmkaa (B) 6JIIMAC 3eHnM.
- IHДИКATOP 3apAу nOrache NiCЯ BnIMaHЯ npIcTpoI oI 3apAHOi NiDCTaBKN (peKIM eKOHOMII eHepri).
TpBAnictb NOBHOrO 3apJxKaHHcKlaJaC6JN3bKO 45 XBnNH.

1. Ipo NOBHy 3apRky akymyIaTopa CbiuHTb KOHTpOJIbHn IHINKaTOp 3apRny, AKN CBIITbc 3eJeHM.

BukopncTaHHBpeKmI XnBJIeHHN Bi dakymyIaTopa

1. 3a DOnOMOrO BmMkaa yBIMKHiTb npCtpi, a nicra BnKOpNCTaHH BmMKHiTb Noro (MaJ. 3).

3 NOBHCIO 3APJADKeHIM akMyIaTOpOM npiCTpiM oMe npauObaTn Do 75 XBUNH 6e3 niKJIIOUeHHA Do MepeXi.
- 阿卡斯卡比克纳卡（B）61Ma 3eHnM. NpTpiHa 3apAka kMyIaTopa.

ToHicTb noka3aHb iHnkaTopA 3apKn (B) MoKe 6ytuPiDbuShaHa WJHXOM nepioNHy Horo NOBHoro p03pJxKaHHa kUMyJIrTOpa Ta NOro NoJaIbWoRo 6e3nepePBHO rTa NobHoro 3apJxKaHHa.
Y pa3i HehaleXHoro DOrIy 3a HOKOBIM 6NOKOM TpBAnicb po60TH MOKe CYTTEBO 3MeHUnTnCra.

BukopncTahnBpeKmI KMBneHHB iD MepeXi

1. BCTaBTe WTeKepe npCtpoH (H) Ha WTeNceIbHOMy imnybc-HOMy 6NoCi KINBHeHHa rHi3Do npCtpoH (C) (MaI.2⑧).
   2.ПИКЛIOUITb WTeNCEbHm IMnyIbCHn 6nOK JxNBHeHHa Do eNEKTPuHoi po3eTKn (MaJ.2⑥).
2. 3a donomoroo Bmukkaya yBIMKHiTb npncptpi, a nicra BnKOpNCtAHH BIMKHiTb Noro (MaJ. 3).

Ekcnnyataui

CtpnKehn3 BnkOpncTahnHm rpe6iHKOBnx HacaDOK

Pnpctpi MoXHa BnKOpncTOByBaTn pa30m i3 rpe6iHKOBoi HacaIKOIO.

HnacTpoKn DOBXKNH nCTpnXeHNn nepe6aueHo 5 pIB Hb qikcaii rpe6iHKOBoi hacaKn.
CHM rIIN6e BCTaBNeHa HacaKa B 6IOK HOXiB, TMMeHwa DOBXnHa CTpNXeHHA.

Moxha peryIHOBATn DOBXHHy CTpIXeHHy y diaNA30Hi BiD 3 MM (MaI.6@) Do 6 MM (MaI.6@).

BcTaHOBJIeHHI 3HIMAHHr rpe6iHKoBoI hacaKn

1.HacyhBe rpe6iHKOBy HacaKy Ha HOKOBn 6nok y HAnpMky CTpiKN (MaI.5@) Do fikcaii.
2. Ⅲo63HrTn rpe6iHKOBy HacaKcy, nocyhte II B Hanpamky cTpikn (MaI.5⑥).

Texhihe 06cyrobyBaHHa

PonepeJxehn! TpaBMyBaHH nOwKOxHnMaHa B pa3i HnPaBnIbHoro NOBOxHn.

Ipeed noaTkom uHSeHHa a6o TexHiHoro 0cbnyroByBaHH BID'EdHaHTe npncptpiB iD eNekTpHuOi MepeKi.

HnueHH Ta DORnA

He6e3neKa!YpaxKeHHcTpyMOMuepe3noTpapanHnPiHN.

He 3aHypoTe npncTpiy Body!
NnIbHynte, 06 ycepeHny npncptpo He noTpapnnla pINHa.
103BOLIeTbCnPiKJIIOuATNu Do MEpeXi TiIbKn a6coIIOTHO cyxN pncTpiN.

06epeXHo! NpOkoJKeHHa rpeCnBHMn ximikatam.

ArpecuBxiimikatmMOKyTbnozkOHTn npncptpi npuna.

He BUKOPNCOTByIe po3uHHNK Ta a6pa3NBHi 3ac06n DJIYuHcEHHa.
BukopncToByTe TijbKn peKOMHeObaHi Bnpo6HnKOM MIOHi 3acO6n I MaCTNIO DnI HOKOBORo 6noka.

Ppui6aTu npiHaT Ta 3aNaChi YacTHH M0XHa B CteuaIzOBAHOmy Mara3nHi a6o B HauOMy cepBicHOMy ceHTpi.

Iicna Koxhoro BnKopncTahH3HimaTe rpe6iHKOBy HacaKy (Ma1.5b) Ta BiKnDaTe HOKOBn 6nok BiD Kopnyca (Ma1.78).Uitouko DnA YnueHHBnDaJIITb 3aIIuKN BOnoc3 OTbOpBy B Kopnyci Ta 3 HOKOBOro 6noka (Ma1.8).
IpoTpaIte npicTpim M'koIO, 3a Heo6xIDHocTi 3nerKa 3BOJoxKeHO raHupKOIO.
YnCTntb HOXOBni 6nOK 3a DonomoroHO ririHCHORo cnpea.
3MaayyTe HOXOBn 6Jok CneJIaIbHIM MaCTNIOM (MaI.9).

106doaTn Bucokoi Ta TpuBanoi kOcTi cTpuXeHHa, CIIu qAto 3MaUyBaTu HOKOBn 6NOK.

Kikpo kictb CTpNKeHH, He3BaXaHOn Ha peryIaRpe YnueHH i 3MaUyBaHH, nCra TpuBanoTePepiHy ekCnnyataui NoripWyeTbCra, To HOxOBm6nok cnid 3amHHTn.

3amHa HOXOBoro 6noka

1. BiДиЖмITb HOXOBи 6nOK BiД KОрnyca y HANpЯMky CTpɪKN (MaJI. 7@). 3HIMITb HOXOBи 6nOK.
2. Ⅲo6 BCTaHOBUN HOKOBH 6nOK, BCTaBTe rauKn y Kpi- nHe Ha Kopnyci HATNCHTb 6nOK Do KOpnyca, NOKn BIn He 3aΦiKcYcTBcR (MaN.7⑥).

YcyHeHHH HeCnpaBHOCTe

BLOK HOKIB NORAHO CTPNKe a6o CMNKac BOIOCCA.

PpunHa:5nKHOxiv3a6pydHeHn a6o 3HoCnBCa.

• Nocntb Ta 3MaTb HOXOBn 6NOK (MaI. 8/9), NKIO npo6Jema 3aIIuINacb, 3aMInHb HOXOBn 6NOK (MaI.7).

AkymyIATop wBnKO po3paTbcra.

PpunHa: 3a6pydHHeHHHOxOBoro 6nOky Ta OTbOpy B Kopnyci npnaNy.

• NocTb 3MaCTNb HOKOBn 6nK (MaI.8/9).

Прична: HeToChI noka3aHHH iHdkaTopy 3apRyD

PobHicTIO po3pAITb npuIaT a 3a6e3neTu Ioro nobHe Ta 6e3nepeBHe 3apJxKaHH.

Причина: АкумларТОЗнOCИВСА.

ДяЗamHnakymyIaTopa3BepHiTbcadocepbichoro ueHTpy.

TowkoJKeHHaWKipn

PnunHa:Bn HAnTo CnIbHo TnCHeT He uKipy.

3MeHHTe TnCK npn CTpnKHeHHI 6mN3bKO do ukpip.

PnUHa: PnJaH He npabInbHO BCTaHOBHeHn Ha 3apAHI niOCTaBci.

BneBHTbcra, 10 npicpti BcTaHOBHeHn Ha 3apAnHnPiCTabci BiHo.

Прична: Порушенихиьпehн.

BneBHITbcra, 6nK XnBHeHH 3'EnHaHn 3 po3eTkoIO.
IpebeipTe eJektpnHn Ka6JIb Ha HABHicTb noKoDxKeHb.

KaHIO He BdaIOc yCyHyTN npOJIeMy 3a DOIOMOrO uX NK Ba3iBOK, 3BepHIbCn DO HaWOrO cepBICHOro CEHTpy. Hi BAKOMy pa3i He HAMarAITecP pEMONTyBaTn pIncTpiI camOCTiHO.

Ytni3aiai

06epeKHO! HenpabnIbHa ytni3aui 3aBae WkoDn HABKOINHbOmy cepedOBuNy.

Pepd ytni3aieIO akymyIaTOpn Heo6xIDHO pO3pndTu!
Halekha ytniiaqin cnpnre 3axncty npnpoyn i donomarae 3anobirn MOXINBOMy WkiDINBOMy BnBy Ha IIOHNy Ta HABKONWHC cepeOBOIue.

IotpmyteCBBnORIOIOHOOHOaCTBa npyYTNl3aui II pncTPOIO.

Inφopmaui yo do ytni3aui ekeTpnuHoro Ta ekeKtpnoHHoro 6nlaHaHHy kpaHax EC:

IITaHnY yTnIi3aui eNeKtpuHnx npuaib Ha Tepntopii CbponecBko Ro CoO3y peryIIOUbca HauOHaJIbHMn HopMaMn, kI oChobai Ha NpeKtBcI EC 2012/19/EC uOdo yTnIi3aui eNeKtpuHnx np6oPiBaTa O6laJHaHH. 3rIHO 3uio DnpeKtBOIO He MOxHA BnKnDaTn pncptpi pa3OM i3 DomaunHIM YKOMyHaJIbHM CMITAM. Bu MoKeTe 6e3KoUToBHO 3dTu NiO To KO MyHaJIbHINx NyHKTIB 360py Ta BtopHHoi nepeo6Kn. YnakOBKa Bnpo6y BuroTOBHeA 3 MaTePIaIIIB, 10 niJaOTbcra BtopHHm nepeo6ci. Ytnlizye Te ix EKONorIHoo 6e3neuHm cNooc6om i BiDpaBIAe Ha BtopHHy nepeo6Ky.

Uldised ohutusjuhised

Akumulators: NiMH akumulators

Akumulatora

PoCva xpnaionoiHOe autc tic oyiec aeitoupyiac

a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a

y 150

15 15 15

S OBC = S COD + S_ BOC

jglg jglg jglg

.

jbi

a 1

Jg g Jg Jg Jg Jg Jg Jg Jg Jg Jg

ylll lclly y alioa jbi i jil. clll g

i 1

a

1111 15 12 jie 10

1

a

a

J 1

.

A

Jilgulllbssn 1aJIaIyIyIyS cIoo! bds

J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1

A

Ciiil

(1)gjgssll

A

B

jai jia C

D

aaiieiae E

aill aial janae Cj F

G

H

1

a 1

A

s4

jai jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia

j 1

100 1

1

29x32x141:(（xJxJ）

132

25 25 aee 6 (A) 60

eaii i

2.5 > 2.5 >

:

58x96x72

( x,y) = ( ab,52ax) ( a,b)

61

：

4.2018, y≤1 2.2017, x≤1 3.2016

6000 1

12

S ADB = S COD + S_ BDO

60/50/240-100

1

ailln a 1

aalaae aae

.2006/42/EG a aiaaiil a i j 2004/108/EG

aliiuuiiaicci

Jauusui 1 Jala aasily kalein cloglae

aJgJgJgJgJgJg

A

4 a.s.lj

PDF 123.45678.pdf

y

J 1

jglg jglg jglg jglg jglg jglg jglg jglg jglg jglg jglg jglg jglg jglg jglg jglg jglg jglg jglg jglg jglg jglg jglg jglg jglg jglg jglg jglg jglg

A

4

C

山

m = 311

a 1

m = 311

aaii iiai jaiiaaiie aaiiaai

a.

ai + 1 = 12 · ai · b_i

4

#

#

#

y

Aolalaiai jiey

y

jlll lllll 1y

1.

2.

3.

(2018) 3 1924

(5⑥ a 6 (5② a

jglb jalal all jll /

paaal aaii jaii jai jai jai iai aiai 1

(4@ 4yss sss) aks

2.

(4b)

jglzjjl jiaaiui

jai jia jia jia jia jia jia jia jia jia

aaii i jiee i jie e 100

。

jaiy

Jilguljui jie aaglai ayjgs cna Jbs

J 1

a 2

y

jlll jlll l l l l l l l l l l l

A

aill jla jla jla jla jla jla jla (46)

all jy 10000000000000000000000000000000000000000000000000

jglal jll alal alal alal 2

1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1

al jaiie aaiiiaaie

a 1

:

y jy yj yj yj yj yj yj yj yj yj yj yj yj yj yj yj yj yj yj yj yj yj yj yj yj yj yj yj yj yj yj yj yj yj yj yj yj yj yj yj yj yj yj yj yj yj yj yj yj yj yj y

Jslalil

aill aill pib

123 5 4 2 1

8/7 aasall aal) aaii baiy jay

Jitai 1

6a yssllyall) aalpab llyu

5

i 1

.

jaiy jaiy jaiy jaiy jaiy jaiy jaiy jaiy jaiy jaiy jaiy jaiy jaiy jaiy jaiy jaiy jaiy jaiy jaiy jaiy jaiy jaiy jaiy jaiy jaiy jaiy jaiy jaiy jaiy

jss jss s
