EASYHEDGECUT 45-16 - AHS 45-16 | 50-16 | 55-16 | 60-16 450-16 | 480-16 | 500-16 | 550-16 - Electric hedge trimmer BOSCH - Free user manual and instructions

USER MANUAL EASYHEDGECUT 45-16 - AHS 45-16 | 50-16 | 55-16 | 60-16 450-16 | 480-16 | 500-16 | 550-16 BOSCH

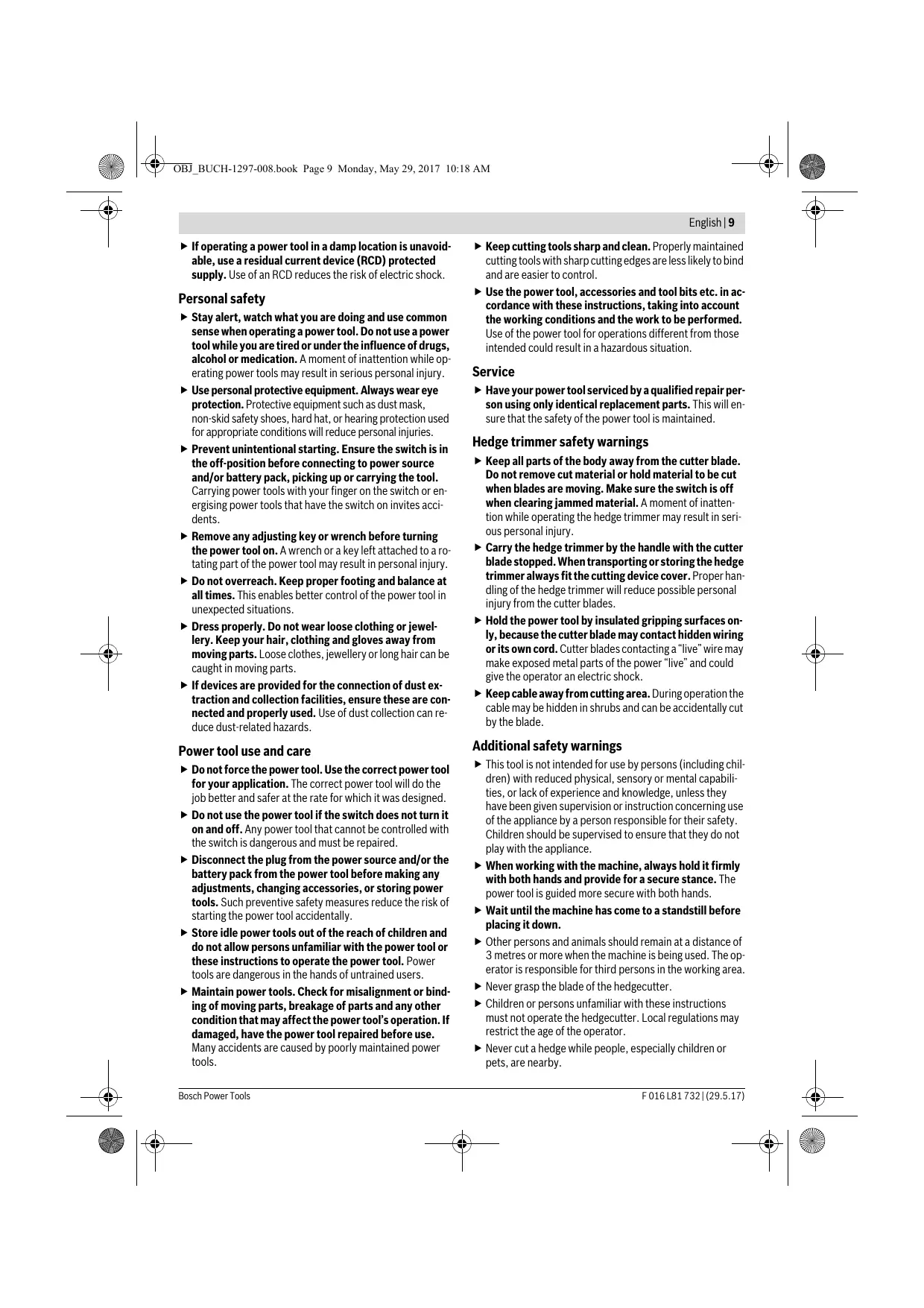

> operating a power tool in a damp location is unavoid- able, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock Personal safety > Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. À moment of inattention while op- erating power tools may result in serious personal injury. > Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries. > Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or en ergising power tools that have the switch on invites acci dents. > Remove any adjusting key or wrench before turning the power tool on. À wrench or a key left attached to a ro- tating part of the power tool may result in personal injury. > Do not overreach. Keep proper footing and balance at alltimes. This enables better control of the power tool in unexpected situations. > Dress properly. Do not wear loose clothing or jewel- lery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts. > If devices are provided for the connection of dust ex- traction and collection facilities, ensure these are con- nected and properly used. Use of dust collection can re- duce dust-related hazards. Power tool use and care > Donotforcethe power tool. Use the correct power tool for your application. The correct power tool wil do the job better and safer at the rate for which it was designed. > Do notuse the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired. > Disconnect the plug from the power source and/or the battery pack from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally. > Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users. > Maintain power tools. Check for misalignment or bind- ing of moving parts, breakage of parts and any other condition that may affectthe power tools operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools. OBi_BUCH-1297-008.book Page 9 Monday, May 29, 2017 10:18 AM English] 9 > Keep cuttingtools sharp and clean. Properly maintained cuttingtools with sharp cuttingedges are less likelyto bind and are easier to control. > Use the power tool, accessories and tool bits etc. in ac- cordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation. Service > Have your power tool serviced by a qualified repair per- son using only identical replacement parts. This will en sure that the safety ofthe power tool is maintained. Hedge trimmer safety warnings > Keep all parts ofthe body away from the cutter blade. Do not remove cut material or hold material to be cut when blades are moving. Make sure the switch is off when clearing janmed material. A moment of inatten tion while operating the hedge trimmer may result in seri- ous personal injury. > Carry the hedge trimmer by the handle with the cutter blade stopped. When transporting or storingthe hedge trimmer always fitthe cutting device cover. Proper han- diing of the hedge trimmer will reduce possible personal injury from the cutter blades. > Hold the power tool by insulated gripping surface: ly, because the cutter blade may contact hidden wi orits own cord. Cutter blades contacting a “live” wire may make exposed metal parts of the power “live” and could give the operator an electric shock. > Keep cable awayfrom cutting area. During operationthe cable may be hidden in shrubs and can be accidentally cut by the blade. Additional safety warnings > This tool is not intended for use by persons (including chil dren) with reduced physical, sensory or mental capabili- ties, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use ofthe appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance. > When working with the machine, always hold it firmly with both hands and provide for a secure stance. The power tool is guided more secure with both hands. > Wait until the machine has come to a standstill before placing it down. > Other persons and animals should remain at a distance of 3 metres or more when the machine is being used. The op erator is responsible for third persons in the working area. > Never grasp the blade of the hedgecutter. > Children or persons unfamiliar with these instructions must not operate the hedgecutter. Local regulations may restrict the age of the operator. > Never cut a hedge while people, especially children or pets, are nearby. Bosch Power Tools

Ÿ/-OBi_BUCH-1297-008.book Page 10 Monday, May 29, 2017 10:18 AM

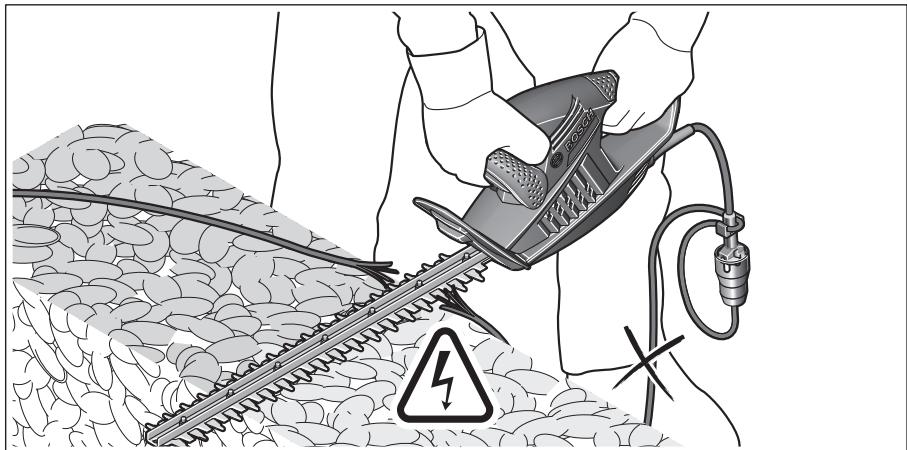

10 | English » The user is responsible for accidents or hazards occurring to other people or their property. > Donotoperate the hedgecutter when barefoot or wearing open sandals, alvays wear substantial footwear and long trousers. The use of sturdy gloves, non-skid footwear and safety glasses is recommended. Do not wear loose cloth- ing or jewellery which can be caught in moving parts. » Thoroughlyinspectthe area where the hedge trimmer is to be used and remove all wires and other foreign objects. > Prior to operation, check cutter blades, blade bolts and cutter assembly for wear or damage. Do not operate with à damaged or excessively worn cutting device. > Check cable for damage before starting work and replace if necessary. Keep cable away from heat, oil and sharp edges. > Know how to stop the hedge trimmer quickly in an emer- gency. > Cut a hedge only in daylight or in good artificial light. > Never operate the hedgecutter with defective guards or without the guard in place. > Always ensure al handles and guards supplied are fitted when using the hedgecutter. Never attempt to use an in- complete hedgecutter or one with an unauthorised modifi- cation. > Never hold the hedgecutter by the guard. > While operating the hedgecutter always be sure of a safe andsecure operating position at all times, especially when using steps or a ladder. > Always be aware of your surroundings and stay alert for possible hazards that you may not hear whilst operating the hedgecutter. > Remove the plug from the socket: — before checking, clearing a blockage or working on the hedgecutter. — after striking a foreign object, inspect the hedgecutter for damage and make repairs as necessary, — ifthe hedgecutter starts to vibrate abnormally check immediately. > Keep all nuts, bolts and screws tight to ensure that the hedgecutter is always in a safe working condition. » The hedgecutter should be stored in a dry, high or locked up place out of the reach of children. > Replace worn or damaged parts for safety. > Do not attempt to repair the machine unless you are quali- fied to do so. » Ensure replacement parts fitted are Boschapproved. > Tosafeguard'against contact withthe moving cutter blade, this hedge trimmer is constructed with two handles each with ablade control (switch). To operate the hedge cutter, both controls must be actuated simultaneously. Do not use the tool, fit runs without a switch being actuated or just one switch being actuated. Electrical Safety > Warning! Switch off, remove plug from mains before adjusting, cleaning or if cable is cut, damaged or entan- gled. > The blades continue to move for a few seconds after the hedgecutter is switched off. Caution! Do not touch the moving blades. Your machine is double insulated for safety and requires no earth connection. The operating voltage is 230 V AC, 50 Hz {for non-EU countries 220 V, 240 V as applicable). Only use approved extension cables. Contact your Bosch Service Cen- tre for details. Extension cords should only be used if they comply with HOSVV-F or HOSRN-F types. Itis recommended for increased electrical safety touse a Resid- ual Current Device (RCD) with a tripping current of not more than 30 mA. Always check your RCD every time you use it. Refer to the instruction manual of the extension cord, lead, reel manufacturer and your local wiring regulations. For products not sold in GB:

WARNING: For your safety, is required that the plug at-

tached to the product is connected with the extension cord The coupling of the extension cord must be protected against splash water, be made of rubber or coated with rubber. The extension cord must be used with a cable strain relief. The connection lead must be inspected for signs of damage at regular intervals and may only be used ifin perfect condition. Ifthe supply cable on the productis damaged, it must only be replaced by a Bosch Service Centre. Products sold in GB only: Your product is fitted with a BS 1363/A approved electric plug with internal fuse (ASTA approved to BS 1362). Ifthe plugis not suitable for your socket outlets, it should be cutoff and an appropriate plug fitted in its place by an author- ised customer service agent. The replacement plug should have the same fuse rating as the original plug. The severed plug must be disposed of to avoid a possible shock hazard'and should never be inserted into a mains sock etelsewhere. Products sold in AUS and NZ only: Use aresidual current de- vice (RCD) with a rated residual current of 30 mA or less. Maintenance > Always wear gardening gloves when handling or working near the sharp blades. > Examine the machine and replace worn or damaged parts for safety. > Always lubricate the cutting blade with protective spray before storage. > Keepallnuts, bolts and screws tight to be sure thatthe ma chine is in safe working condition. > Ensure replacement parts fitted are Boschrapproved. Symbols The following symbols are important for reading and under- standing the operating instructions. Please take note of the symbols and their meaning, The correct interpretation of the symbols will help you to use the machine in a better and safer manner. F016L817321(29.5.17)

C1 & OBi_BUCH-1297-008.book Page 11 Monday, May 29, 2017 10:18 AM

Lis English] 11 Symbol Meaning Symbol Meaning O Wear protective gloves  Beware electric shock hazard. Wiear eye protection. / Permitted action f Movement direction X Prohibited action = Accessories I Suitching On se oO Suitching Of Intended Use The machines intended for cutting and timing hedges and bushes in domestic use. Technical Data Hedgecutter AHS4516 AHS5016 AHS5516 AHS60-16 Article number 3600H47A. 3600H47B. 3600H47C. 3600H47D.. Rated power input w 420 450 450 450 Cuttinglength mm 250 500 550 600 Tooth opening mm 16 16 16 16 Noload stroke rate min 3400 3400 3400 3400 Wieightaccording to EPTA Procedure 01:2014 ke 26 27 27 28 Protection class Gun Gun on Gyn The values given are valid for a nominal voltage [U] of 230 V. For different voltages and models for specific countries, these values can vary Hedgecutter AHS450-16 AHS480-16 AHS500-16 AHS550-16 Atticle number 3600H47A. 3600H47B. 3600H47B. 3600HA7C.. Rated power input w 420 450 450 450 Cuttinglength mm 450 480 500 550 Tooth opening mm 16 16 16 16 No-load stroke rate min 3400 3400 3400 3400 Weight according to EPTA-Procedure 01:2014 kg 26 27 27 27 Protection class Eu Eu Eu En The values given are valid for a nominal voltage [U] of 230 V. For different voltages and models for specific countries, these values can vary Noise/Vibration Information Sound emission values determined according to EN60745-2-15. Typically the Asweighted noise levels of the product are: Sound pressure level 75 dB(A); sound power level 95 dB (A). Uncertainty K = 2 dB. Wear hearing protection! Vibration total values a, (triax vector sum) and uncertainty K determined according to EN 60745-2-15: à, <2.5m/s2, K= 1.5 m/s2. The vibration level given in this information sheet has been measured in accordance with a standardised test given in EN 60745 and may be used to compare one tool with anoth- er. Itmay be used for a preliminary assessment of exposure. Bosch Power Tools

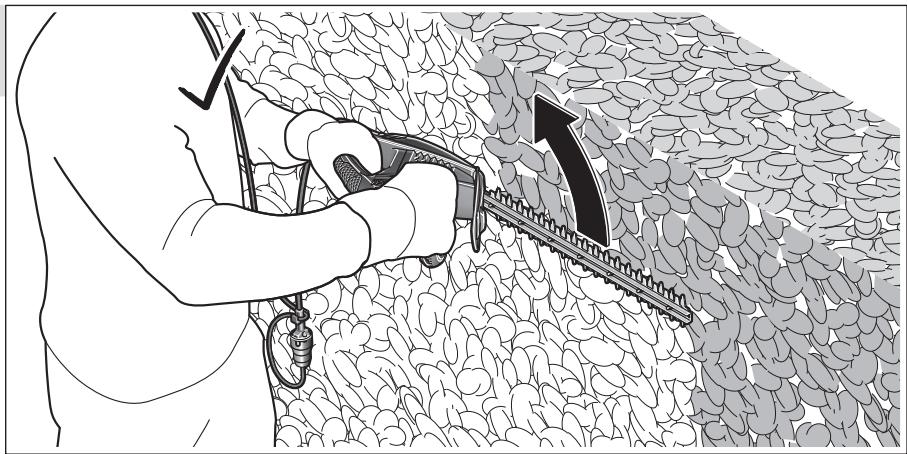

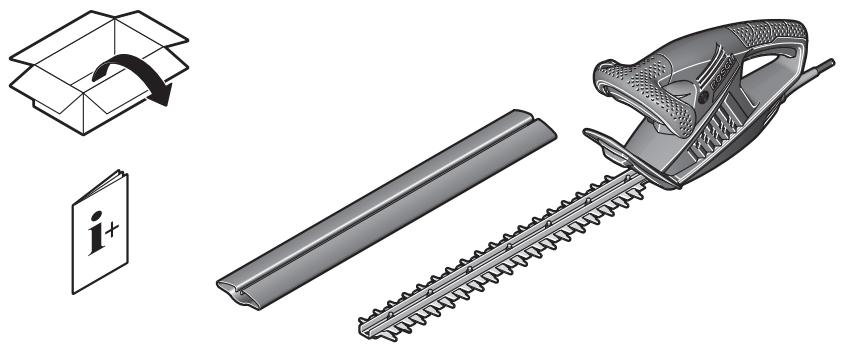

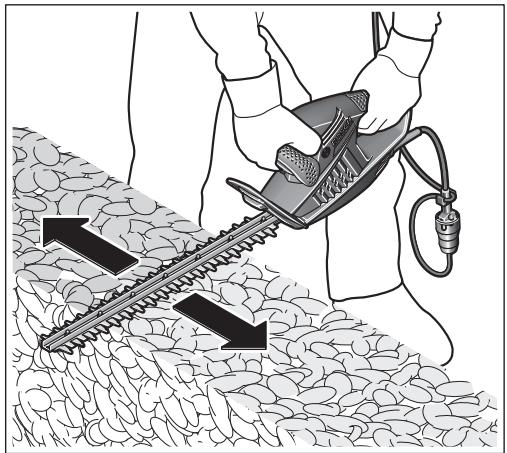

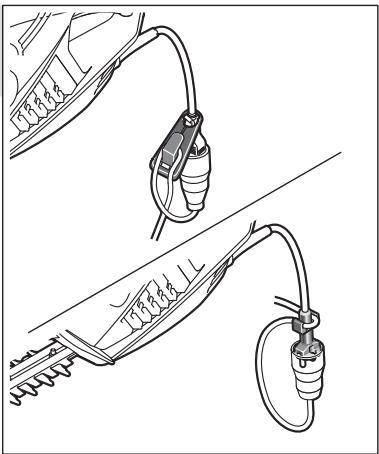

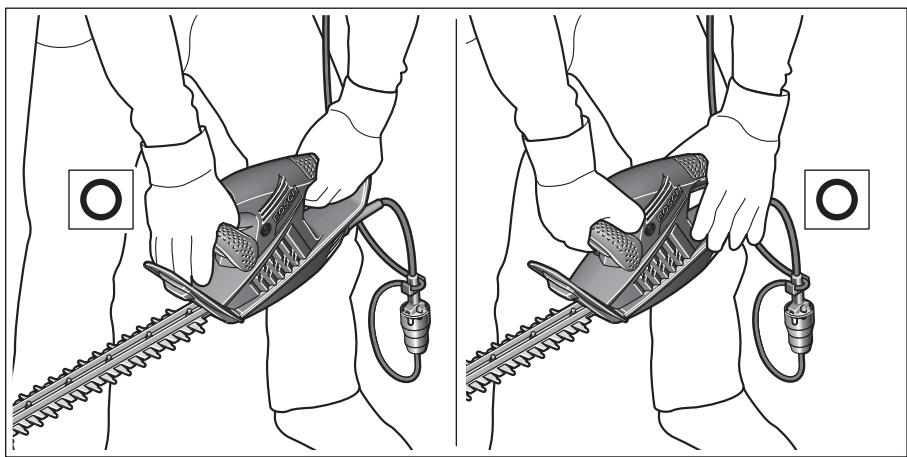

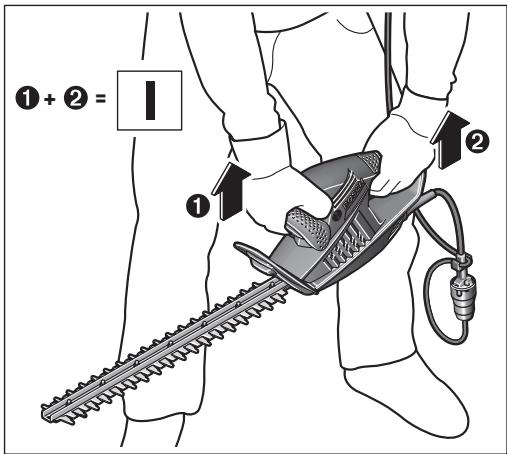

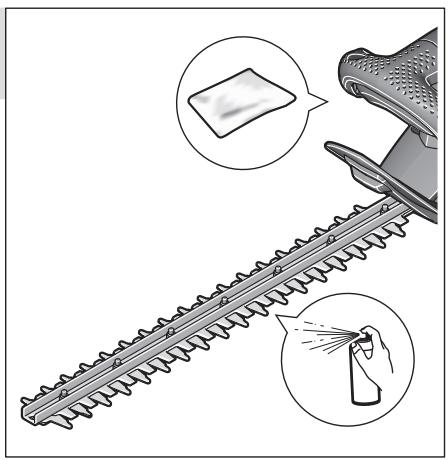

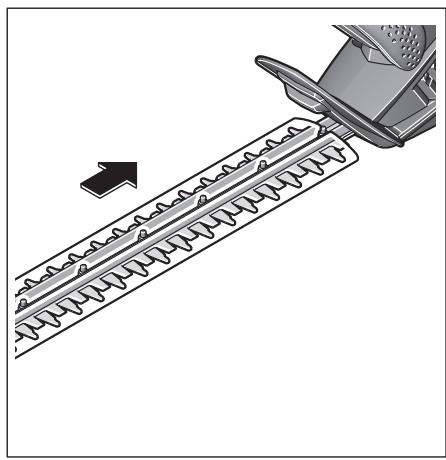

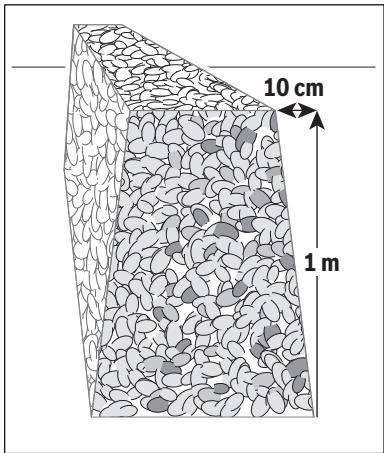

OBi_BUCH-1297-008.book Page 12 Monday, May 29, 2017 10:18 AM 12 | English The declared vibration emission level represents the main ap- plications of the tool. However if the tool is used for different applications, with different accessories or insertion tools oris poorly maintained, the vibration emission may differ. This may significantly increase the exposure level over the total working period. Anestimation of the level of exposure to vibration should also take into account the times when the tool is switched off or when tis running but not actually doing the job. This may sig- nificantly reduce the exposure level over the total working period. identify additional safety measures to protect the operator from the effects of vibration such as: maintain the tool andthe accessories, keep the hands warm, organisation of work pat- Mounting and Operation Action Figure Pa Delivery Scope 1 167 Connectingthe extensionlead 2 167 Starting 2 167 Stopping 2 168 Working Advice 2,3 167-168 Blade Maintenance 4 169 Storage and Transport 4 169 tems, Selecting Accessories 5 169 Troubleshooting Prol Possible Cause Corrective Action Hedgecutter does not operate Power turned off Turn power on Mains socket faulty Use another socket Extension cable damaged Inspect cable, replace if damaged Fuse faulty/bloun Replace fuse Hedgecutter operates intermittentiy Extension cable damaged Inspect cable, replace if damaged Internal wiring of machine damaged Contact Service Agent On/Off switch defective Contact Service Agent Motor runs but blades remain stationary Internal fault Contact Service Agent Cutting blade hot Cutting blade blunt Have blade sharpened Cutting blade has dents Have blade inspected/overhauled Too much friction, due to lack of lubricant Apply lubricant spray (1609 200 399) Excessive vibrations/noise Machine defective Contact Service Agent After-sales Service and Application Great Britain + Robert Bosch Ltd. (B.S.C.) Service P.O. Box 98 www.bosch-garden.com Broadwater Park In all correspondence and spare parts orders, please ahrays North Orbital Road include the 10-digi article number given on the type plate of Denham the garden product Uoridee Atwww.bosch-pt.co.uk you can order spare parts or arrange the collection of a product in need of servicing or repair. Tel. Service: (0344) 7360109 E-Mail: boschservicecentre@bosch.com F016L817321(29.5.17) Bosch Power Tools

C1 4 OBi_BUCH-1297-008.book Page 15 Monday, May 29, 2017 10:18 AM

Ÿ/-OBi_BUCH-1297-008.book Page 16 Monday, May 29, 2017 10:18 AM

C1 & OBi_BUCH-1297-008.book Page 17 Monday, May 29, 2017 10:18 AM

É © 4 OBi_BUCH-1297-008.book Page 19 Monday, May 29, 2017 10:18 AM

É © 4 OBi_BUCH-1297-008.book Page 20 Monday, May 29, 2017 10:18 AM

É © 4 OBi_BUCH-1297-008.book Page 21 Monday, May 29, 2017 10:18 AM

C1 & OBi_BUCH-1297-008.book Page 22 Monday, May 29, 2017 10:18 AM

É © 4 OBi_BUCH-1297-008.book Page 26 Monday, May 29, 2017 10:18 AM

C1 & OBi_BUCH-1297-008.book Page 28 Monday, May 29, 2017 10:18 AM

É © 4 OBi_BUCH-1297-008.book Page 30 Monday, May 29, 2017 10:18 AM

É © 4 OBi_BUCH-1297-008.book Page 31 Monday, May 29, 2017 10:18 AM

C1 & OBi_BUCH-1297-008.book Page 33 Monday, May 29, 2017 10:18 AM

C1 & OBi_BUCH-1297-008.book Page 52 Monday, May 29, 2017 10:18 AM

Ÿ/-OHi_BUCH-1297-008.book Page 53 Monday, May 29, 2017 10:18 AM Feilsaking

C1 4 OBi_BUCH-1297-008.book Page 56 Monday, May 29, 2017 10:18 AM

C1 & OBi_BUCH-1297-008.book Page 57 Monday, May 29, 2017 10:18 AM

C1 & OBi_BUCH-1297-008.book Page 62 Monday, May 29, 2017 10:18 AM

C1 & OBi_BUCH-1297-008.book Page 67 Monday, May 29, 2017 10:18 AM

Ÿ7-OHi_BUCH-1297-008.book Page 72 Monday, May 29, 2017 10:18 AM

C1 & OBj_BUCH-1297-008.book Page 73 Monday, May 29, 2017 10:18 AM

Ÿ/-OHi_BUCH-1297-008.book Page 77 Monday, May 29, 2017 10:18 AM

C1 & OBi_BUCH-1297-008.book Page 78 Monday, May 29, 2017 10:18 AM

C1 & OBi_BUCH-1297-008.book Page 83 Monday, May 29, 2017 10:18 AM

C1 & OBi_BUCH-1297-008.book Page 89 Monday, May 29, 2017 10:18 AM

C1 4 OBi_BUCH-1297-008.book Page 90 Monday, May 29, 2017 10:18 AM

É © & OBj_BUCH-1297-008.bo0k Page 91 Monday, May 29, 2017

TOPOKHOCTH NPENOTBPALIAT HENPEAHAMEPEHHOE

É © 4 OBi_BUCH-1297-008.book Page 93 Monday, May 29, 2017 10:18 AM

É © 4 OBi_BUCH-1297-008.book Page 94 Monday, May 29, 2017 10:18 AM

YCTOÏANBOCTHIO CBOETO NONOKEHAR H COXPAHABTE

C1 & OBi_BUCH-1297-008.book Page 95 Monday, May 29, 2017 10:18 AM

& 4 OBi_BUCH-1297-008.book Page 96 Monday, May 29, 2017 10:18 AM

C1 $7-OBI_BUCH-1297-008.book Page 97 Monday, May 29, 2017 10:18 AM

& 4 OBi_BUCH-1297-008.book Page 100 Monday, May 29, 2017 10:18 AM

C1 & OBi_BUCH-1297-008.book Page 101 Monday, May 29, 2017 10:18 AM

& 4 OBi_BUCH-1297-008.book Page 102 Monday, May 29, 2017 10:18 AM

É © 4 OBi_BUCH-1297-008.book Page 103 Monday, May 29, 2017 10:18 AM

®7-OBi_BUCH-1297-008.book Page 105 Monday, May 29, 2017 10:18 AM

É © 4 OBi_BUCH-1297-008.book Page 106 Monday, May 29, 2017 10:18 AM

C1 4 OBi_BUCH-1297-008.book Page 107 Monday, May 29, 2017 10:18 AM

C1 K®7-DES_BUCH-1297-008.book Page 108 Monday, May 29, 2017 10:18 AM

C1 4 OBi_BUCH-1297-008.book Page 111 Monday, May 29, 2017 10:18 AM

C1 & OBi_BUCH-1297-008.book Page 113 Monday, May 29, 2017 10:18 AM

É © 4 OBi_BUCH-1297-008.book Page 117 Monday, May 29, 2017 10:18 AM

& 4 OBI_BUCH-1297-008.book Page 118 Monday, May 29, 2017 10:18 AM

C1 4 OBi_BUCH-1297-008.book Page 119 Monday, May 29, 2017 10:18 AM

& 4 OBi_BUCH-1297-008.book Page 120 Monday, May 29, 2017 10:18 AM

É © 4 OBi_BUCH-1297-008.book Page 123 Monday, May 29, 2017 10:18 AM

& 4 OBI_BUCH-1297-008.book Page 125 Monday, May 29, 2017 10:18 AM

®7-OHi_BUCH-1297-008.book Page 133 Monday, May 29, 2017 10:18 AM

C1 | & OBI_BUCH-1297-008.book Page 134 Monday, May 29, 2017 10:18 AM

C1 & OBI_BUCH-1297-008.book Page 139 Monday, May 29, 2017 10:18 AM

C1 & OBI_BUCH-1297-008.book Page 144 Monday, May 29, 2017 10:18 AM

C1 & OBi_BUCH-1297-008.book Page 149 Monday, May 29, 2017 10:18 AM

C1 4 OBi_BUCH-1297-008.book Page 150 Monday, May 29, 2017 10:18 AM

C1 K®7-DES_BUCH-1297-008.book Page 155 Monday, May 29, 2017 10:18 AM

C1 | & OBI_BUCH-1297-008.book Page 168 Monday, May 29, 2017 10:18 AM

É © 4 OBi_BUCH-1297-008.book Page 1 Monday, May 29, 2017 10:18 AM

C1 $7-OBi_BUCH-1297-008.book Page IV. Monday, May 29, 2017 10:18 AM
