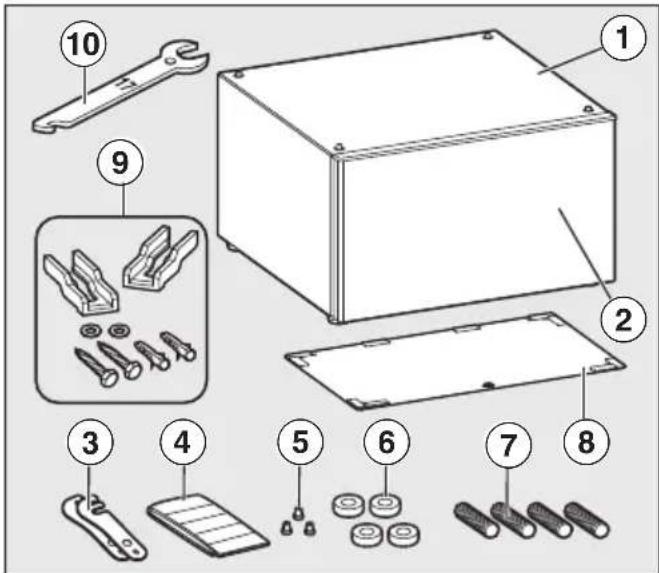

Components of the plinth

Exploded view diagram of an electronic enclosure with numbered parts for identification

① Plinth
② Drawer (max. load 15 kg)
③ Connecting pieces
④ Adhesive strips for rear panel
⑤ Raised-head screws, CEM 4 x 10
⑥ Spacer sleeves
⑦ Set screws, M 10 x 40 mm
⑧ Rear panel for the plinth
⑨ Installation kit for fastening to the floor
⑩ Miele open spanner

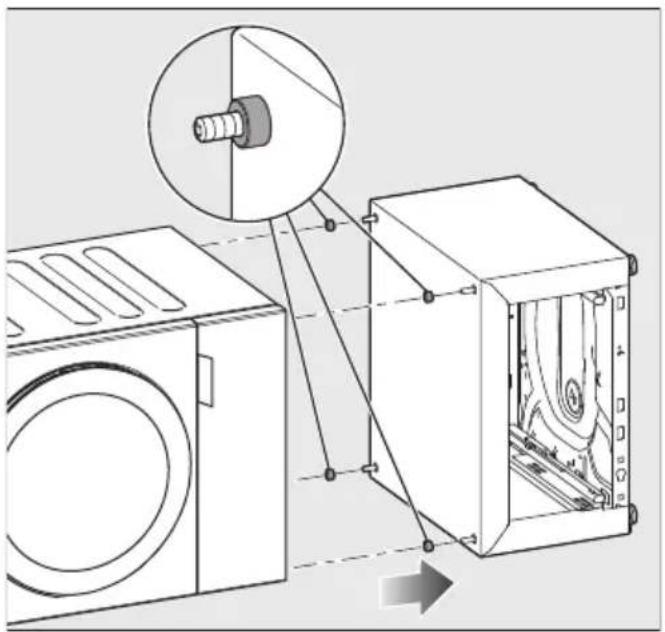

Installing the washing machine

The plinth is only intended for Miele washing machines and tumble dry-ers.

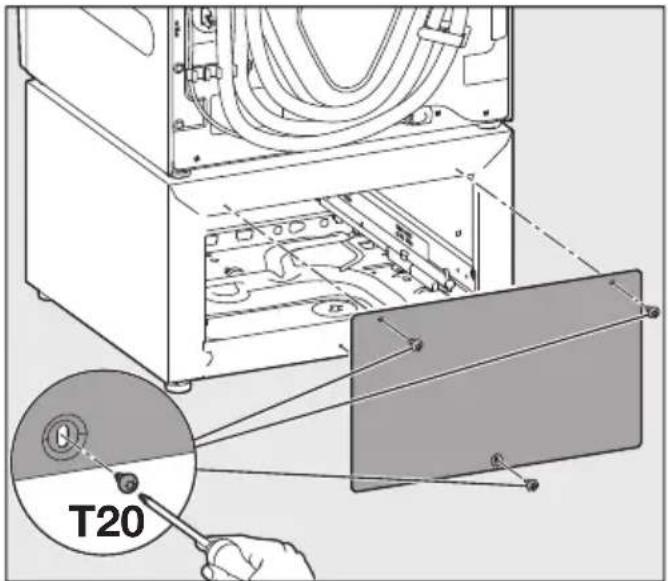

Risk of accidents due to washing machine tipping over.

If the washing machine is not screwed to the plinth, it may tip over. Screw the washing machine to the plinth.

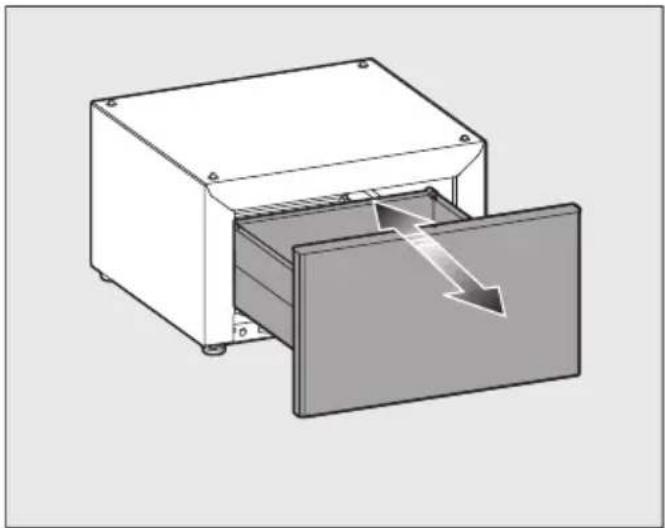

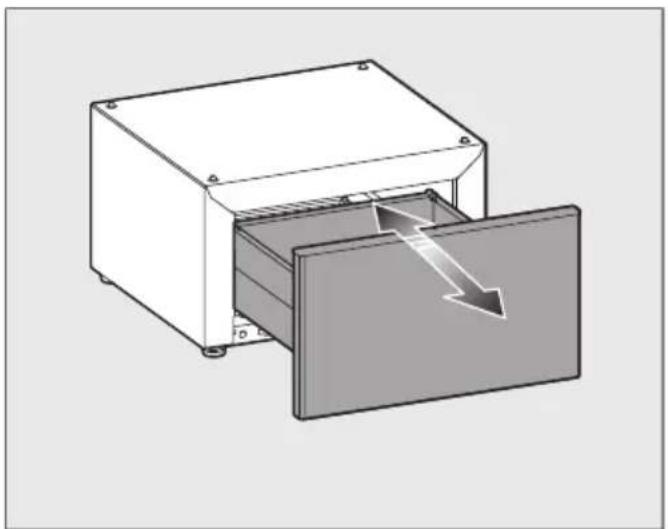

Removing the drawer

Diagram of an open electrical enclosure with a door, showing internal structure and airflow direction (no text or symbols)

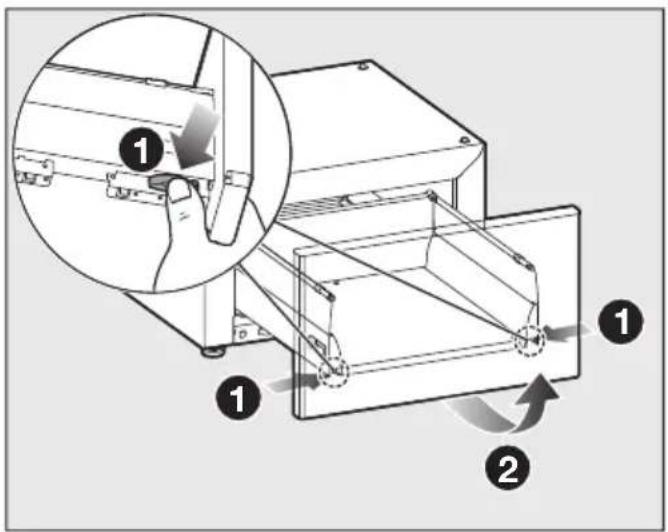

■ Press against the drawer.
■ Pull the drawer all the way out.

Technical diagram showing a mechanical assembly with numbered components and a magnified inset highlighting a specific part.

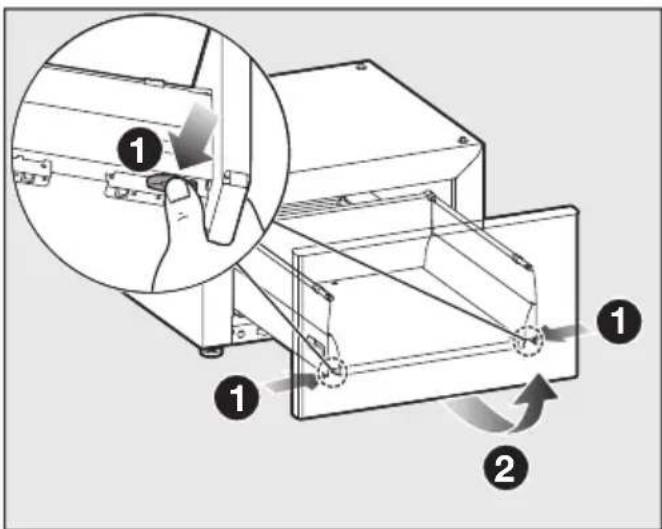

1 Press against the retainers at the sides.
2 Lift the drawer slightly and remove it.
■ Push the runners back into the plinth.

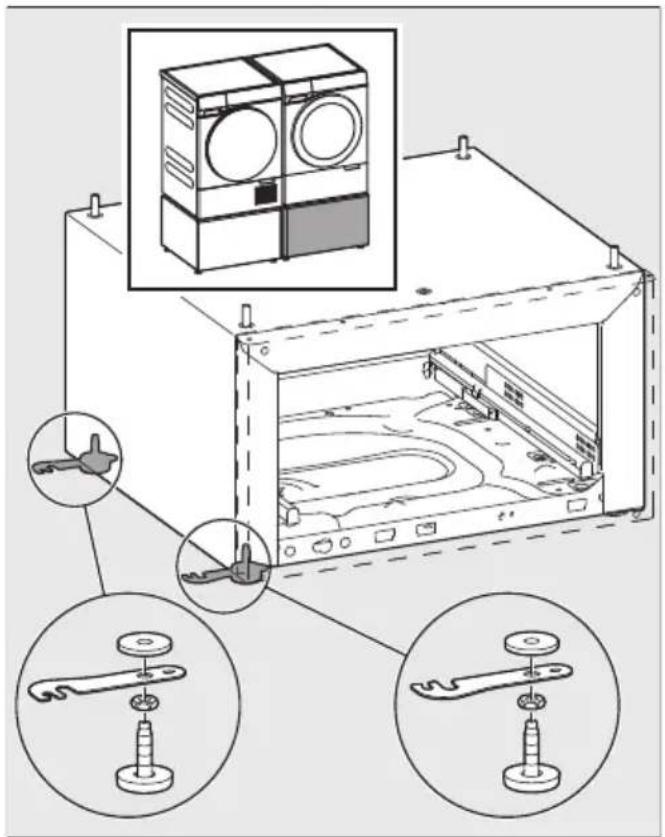

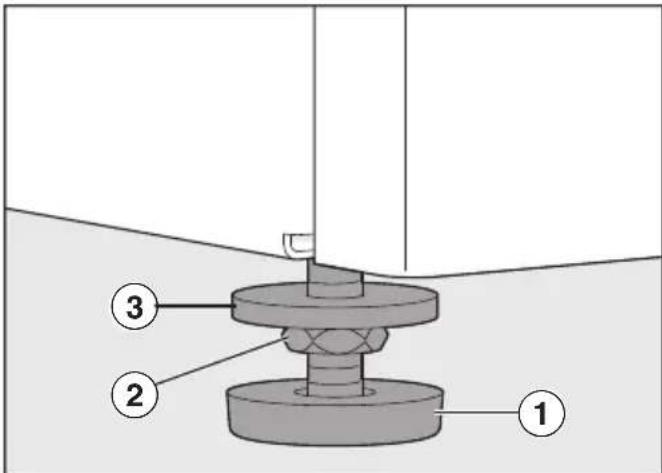

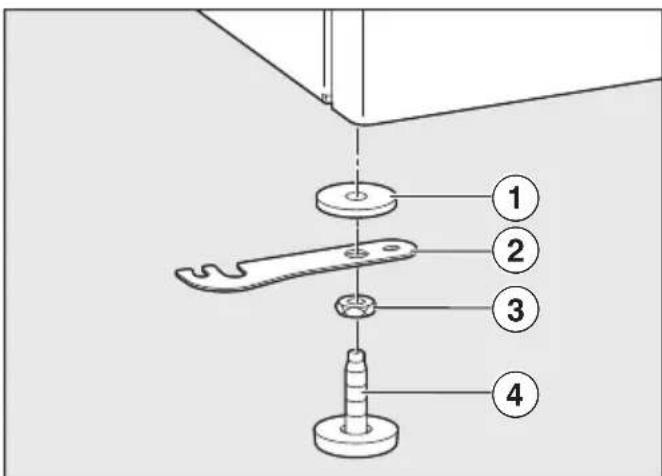

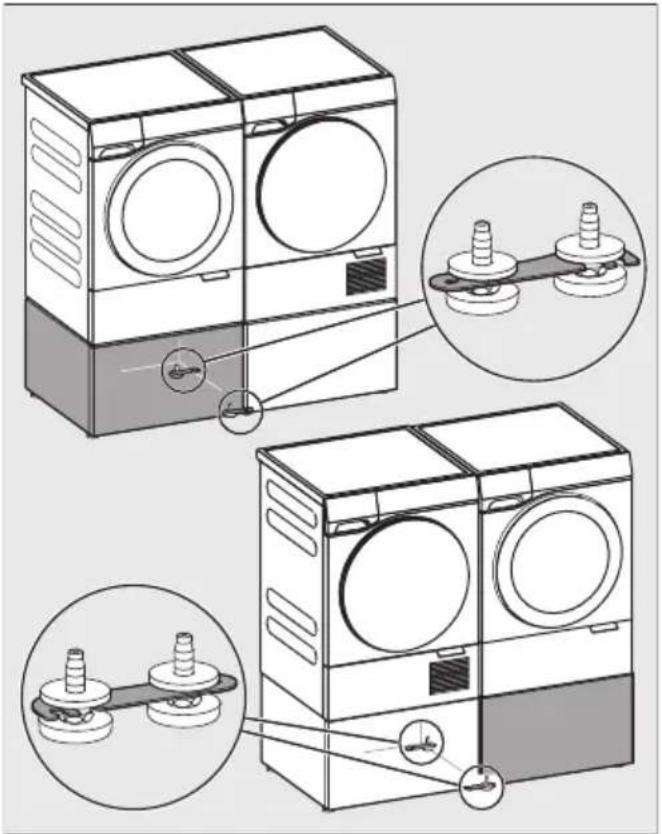

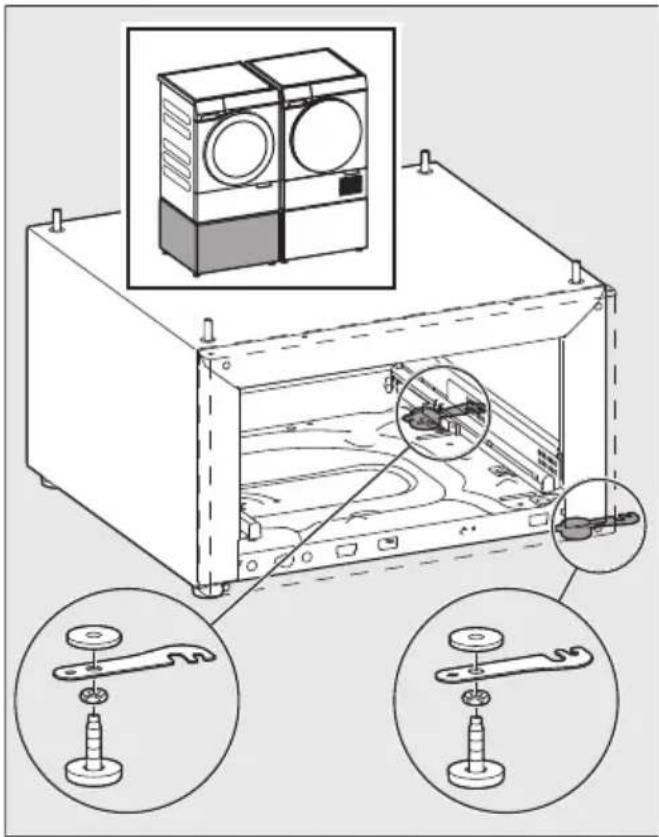

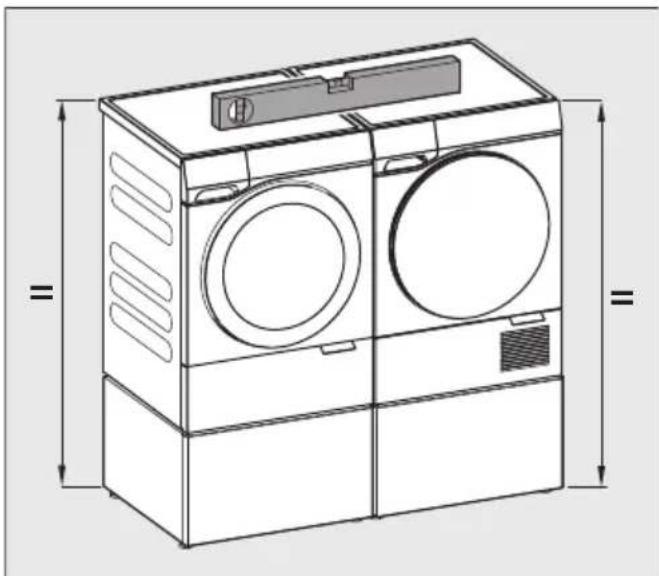

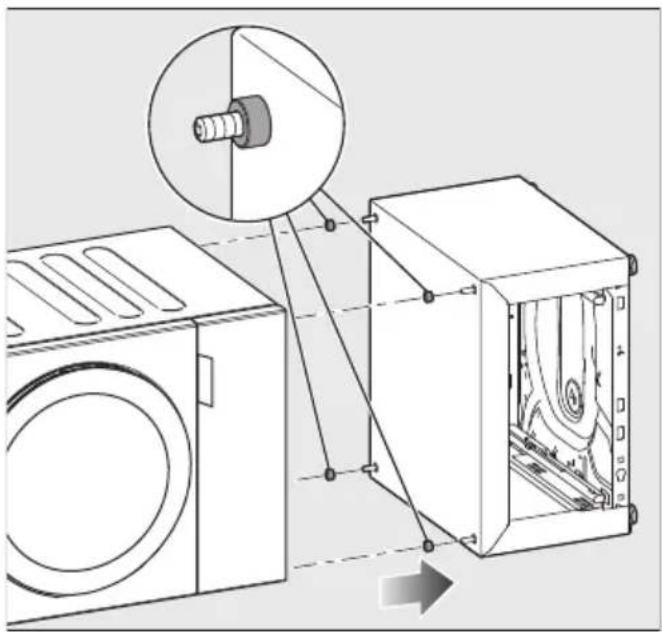

Using the connecting pieces

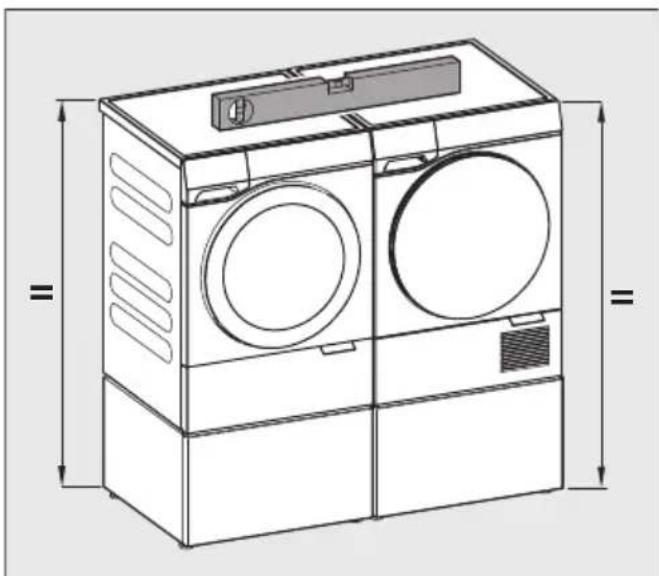

If 2 plinths are installed side by side, they must be connected to each other. Connecting pieces are provided for this purpose.

How the connecting pieces are mounted depends on the washing machine door hinging.

Tip: You should mount the connecting pieces even if you do not have a second plinth. This will avoid the possibly difficult task of retrofitting and also ensures that the connecting pieces are stored safely.

Left-hand hinging

Technical diagram of a washing machine with close-up insets showing component assembly and mounting details

Right-hand hinging

Technical diagram of a washing machine with labeled components and exploded view, showing internal structure and mounting details.

Fitting the connecting pieces

The connecting pieces are fitted on the feet of the plinth.

Removing the feet from the plinth

The feet must be removed from the plinth in order to mount the connecting pieces.

Technical diagram of a mechanical assembly with numbered components labeled 1, 2, and 3

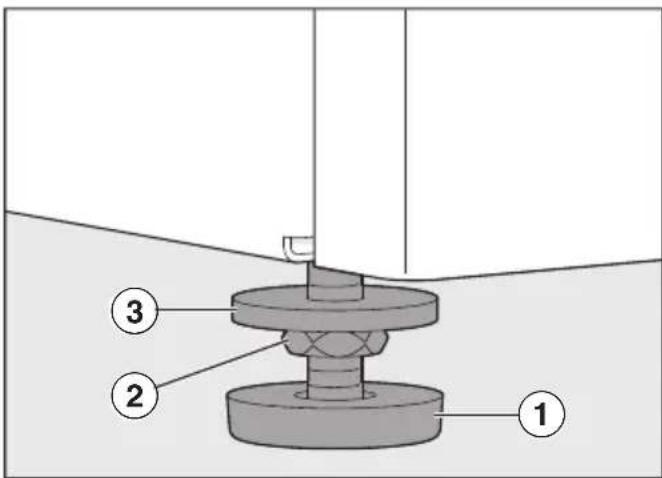

■ Using an open spanner, turn the counter nut ② between the washer ① and the foot ③ in a clockwise direction.
■ Repeat this step for all 4 feet.
■ Unscrew the 2 right or left feet all the way.

Fitting the connecting pieces

Technical diagram showing a mechanical assembly with numbered parts labeled 1 to 4

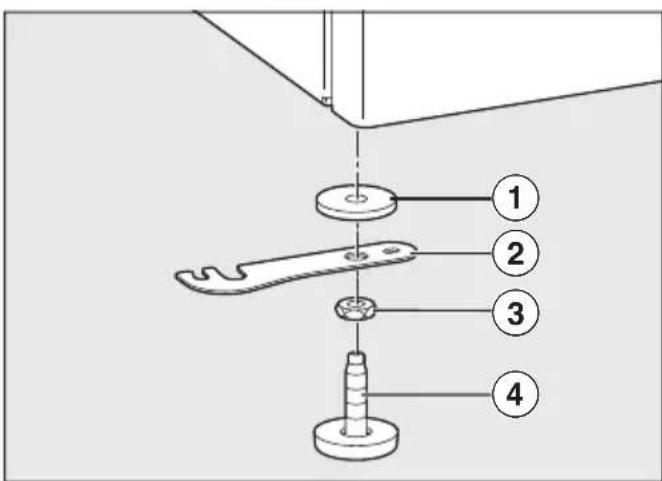

■ Fit the connecting pieces together with the feet that have been removed.

The components should be in the following order, starting with the closest to the plinth:

1. Washer
2. Connecting piece
3. Counter nut
4. Foot

■ Screw the plinth feet back on but do not secure them with the counter nut yet.

Preparing the rear panel of the plinth

Diagram of a rectangular device with corner brackets and an inset showing a circular component (no text or symbols)

■ Stick the sealing strips from the companion pack to the inside of the rear panel as shown in the image.

Preparing the washing machine

The following measures must be carried out:

1. Fit the transport safety devices (if they have been removed).
2. Drain the water (if the washing machine has been used).
3. Remove the detergent drawer.
4. Remove detergent cartridges (if inserted).

Connecting the washing machine to the plinth

⚠️ Damage to washing machine and floor.

The washing machine and the floor may be damaged if the instructions for preparing the washing machine are not observed.

Observe the instructions for preparing the washing machine.

Laying the washing machine on its side

This step must be carried out by 2 people.

■ Prepare a soft, flat surface (e.g. a blanket).
■ Slowly lay the washing machine on its side.

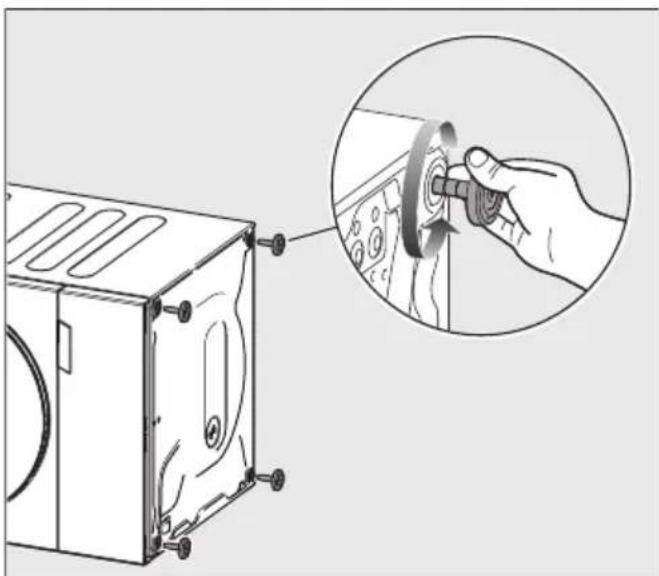

Removing the feet from the washing machine

Diagram showing a hand operating a circular component next to a device casing, with an inset close-up of the component (no text or symbols present)

■ Using an open spanner, turn the counter nut in a clockwise direction.
■ Unscrew the foot all the way and remove it.
■ Repeat the process for all 4 feet.

Screwing the plinth to the washing machine

Technical line drawing of a washing machine with internal components and a circular component inserted into the air gap (no text or symbols)

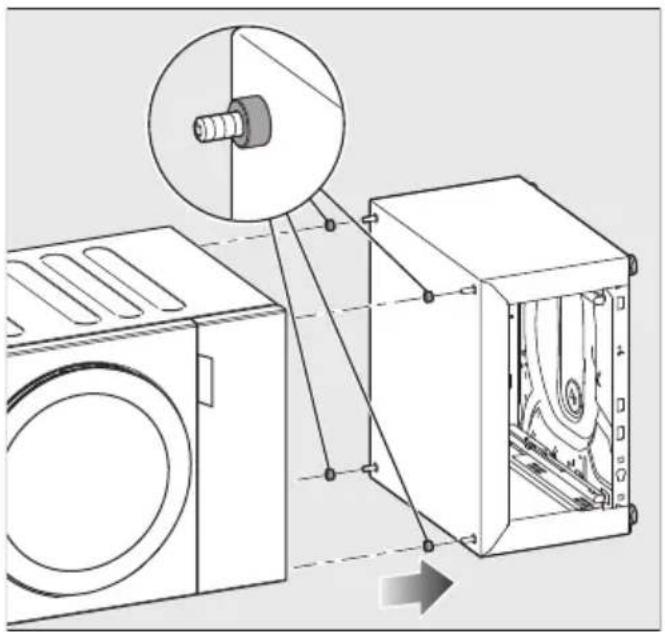

■ Place the spacer sleeves on the set screws.
■ Push the plinth and the washing machine together. The set screws must be inserted in the holes of the feet that have been removed from the washing machine.

Technical line drawing of a washing machine with internal components and a wrench, showing exploded view (no text or symbols)

■ Using an open spanner, tighten all 4 threaded bolts alternately and evenly inside the plinth.

The plinth is screwed securely to the washing machine.

Standing the washing machine/plinth assembly upright

This step must be carried out by 2 people.

■ Carefully stand the assembly upright again.

Fastening the rear panel to the plinth

T20

■ Use the raised-head screws to screw the prepared panel to the rear of the plinth.

Inserting the drawer

■ Press against the two runners.

The runners move out slightly.

■ Pull the runners all the way out.

■ Place the drawer on the runners.

■ Push the drawer into the plinth.

The drawer audibly engages.

Tip: Open and close the drawer again to check that it is engaged correctly.

See also "Aligning the drawer".

Aligning and securing the feet of the plinth

The washing machine/plinth assembly must be anchored to the floor with tensioning strips in the case of single machine installation. See also "Using tensioning strips".

The plinth must stand perfectly level on all 4 feet to ensure safe and proper operation. Incorrect installation may increase water and energy consumption.

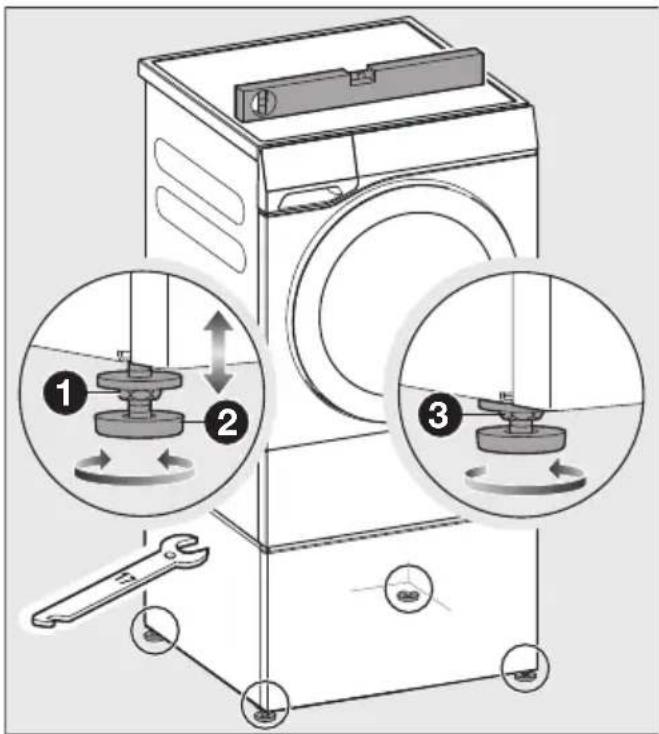

■ Use a spirit level to check the washing machine is standing level.
■ Unscrew one or more feet to level the appliance.

Diagram illustrating three steps of washing machine tooling: press, rotary press, and wrenching mechanism.

Using an open spanner, turn the counter nut on the feet in a clockwise direction.
2 Turn the counter nut together with the feet to unscrew.
3 Hold the feet securely with water pump pliers. Turn the counter nut using an open spanner until it sits firmly up against the casing of the plinth.

Tip: If the connecting pieces are not required, fold them in.

Installing the tumble dryer

The plinth is only intended for Miele washing machines and tumble dry-ers.

Risk of tipping over.

If the plinth is not anchored in place, it may move around with the tumble dryer or tip over.

Anchor the plinth in place with the tensioning strips provided.

Preparing the plinth for mounting

Removing the drawer

Diagram of an open and closed electrical enclosure with a downward arrow indicating internal flow or movement (no text or symbols)

■ Press against the drawer.
■ Pull the drawer all the way out.

Technical diagram showing a mechanical assembly with numbered components and a magnified inset view of the component being inserted.

1 Press against the retainers at the sides.
2 Lift the drawer slightly and remove it.
■ Push the runners back into the plinth.

Replacing set screws

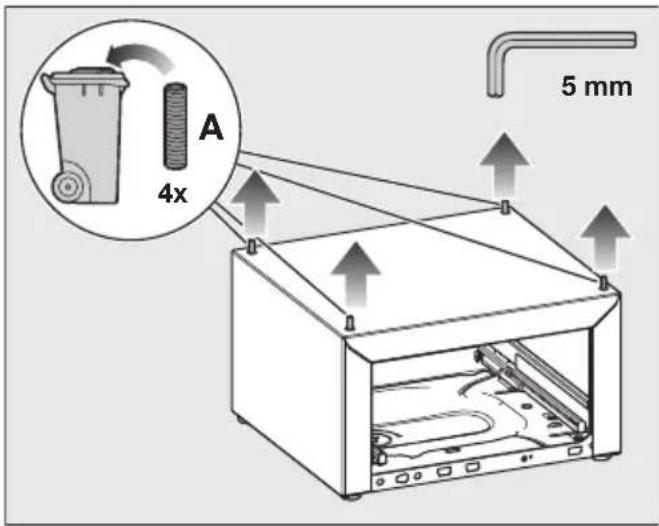

The set screws already fastened to the plinth must be replaced with the shorter set screws provided.

A 4x 5 mm

■ Unscrew the set screws A using an Allen key while holding the threaded bolts in the plinth with water pump pliers.

The longer set screws A are not required when mounting a tumble dryer and can be disposed of after removal.

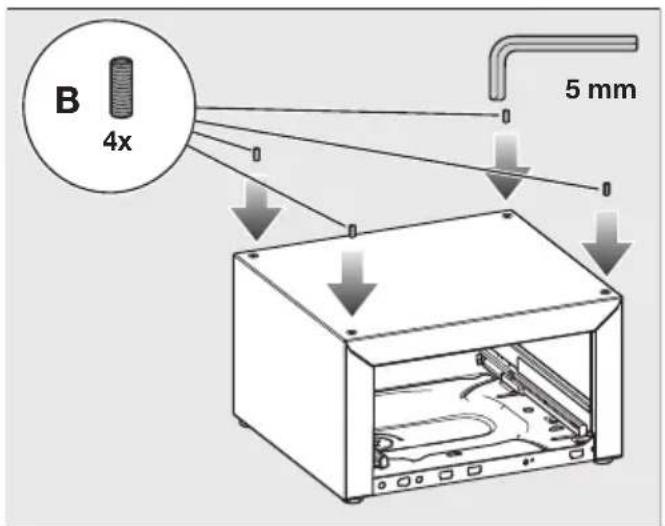

B 4x 5 mm

■ Screw the shorter set screws B all the way into the plinth.

Preparing the rear panel of the plinth

Diagram of a rectangular device with corner brackets and an inset showing a circular feature on a flat surface (no text or symbols)

■ Stick the sealing strips from the companion pack to the inside of the rear panel as shown in the image.

Inserting the drawer

■ Press against the two runners.

The runners move out slightly.

■ Pull the runners all the way out.
■ Place the drawer on the runners.
■ Push the drawer into the plinth.

The drawer audibly engages.

Tip: Open and close the drawer again to check that it is engaged correctly.

See also "Aligning the drawer".

Preparing the tumble dryer

1. Empty the condensate container

■ Empty the condensate container as described in the operating instructions for the tumble dryer.

2. Screw in the dryer feet

Technical diagram illustrating mechanical assembly steps with labeled parts and directional arrows

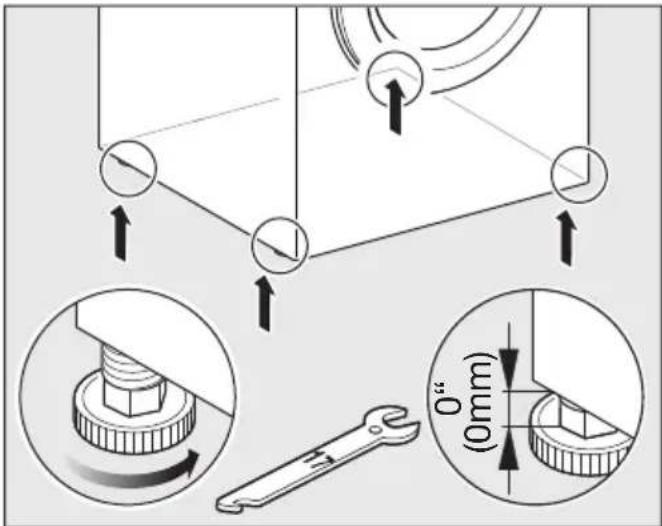

■ Screw the 4 tumble dryer feet all the way in.

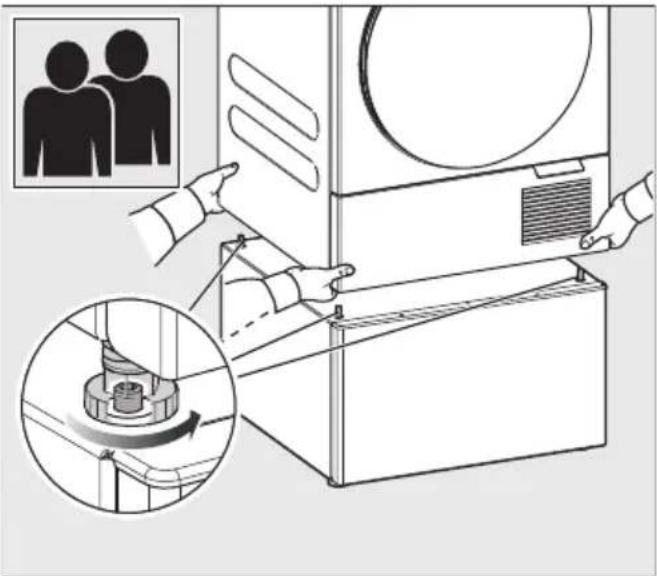

Lifting the tumble dryer onto the plinth

This step must be carried out by 2 people.

Risk of fingers being crushed.

Fingers may be crushed if they are trapped between the dryer casing and the set screws.

Do not lift the tumble dryer by the corners.

Illustration of a refrigerator with hands operating the door, showing a close-up of the interiormost appliance (no text or symbols present)

■ Lift the tumble dryer onto the plinth.
■ Guide the openings in the dryer feet onto the set screws.

Connecting the tumble dryer to the rear panel of the plinth

T20

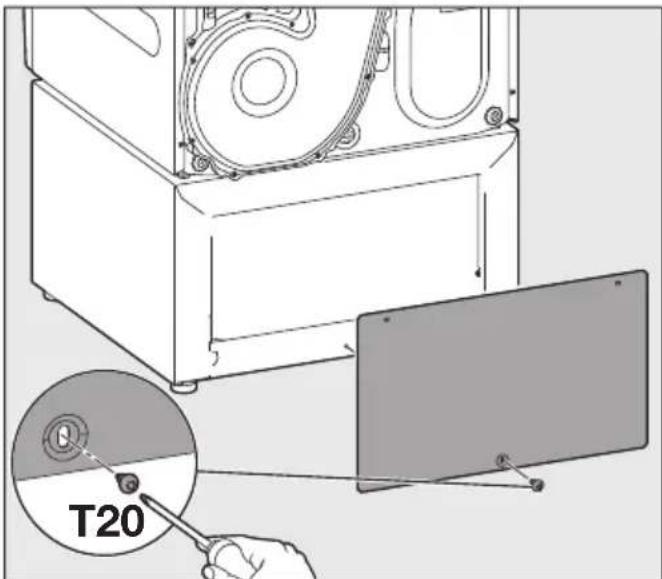

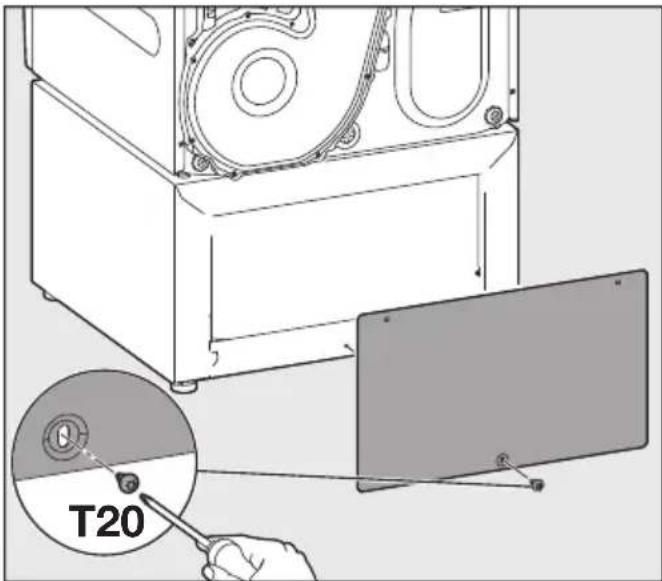

■ Screw the rear panel onto the plinth at the bottom using one of the raised-head screws provided so it is hand-tight.

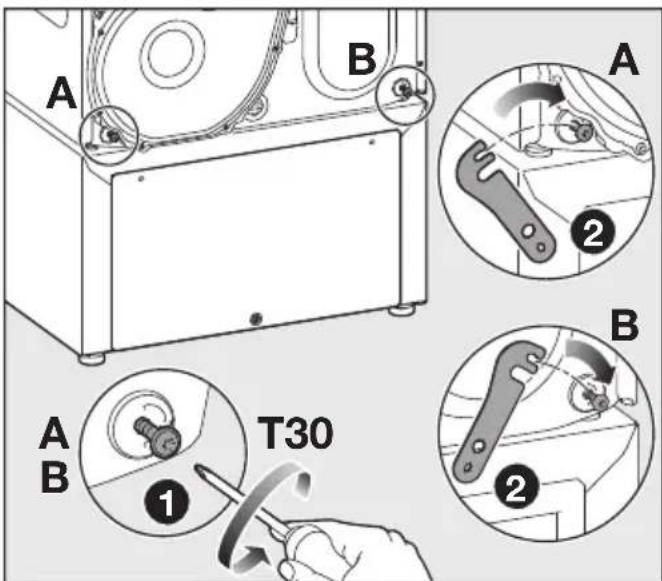

1 Loosen the two bottom screws A and B on the dryer rear panel (do not remove them).

2 Hook the connecting pieces onto the loosened screws.

T20/T30

1 Use the raised-head screws to screw the connecting pieces and the rear panel to the plinth.

2 Retighten the screws on the tumble dryer.

3 Tighten the bottom raised-head screw on the rear panel.

Aligning and securing the feet of the plinth

The tumble dryer/plinth assembly must be anchored to the floor with tensioning strips in the case of single machine installation.

See also "Using tensioning strips".

The plinth with the tumble dryer must stand perfectly level on all 4 feet to ensure safe and proper operation.

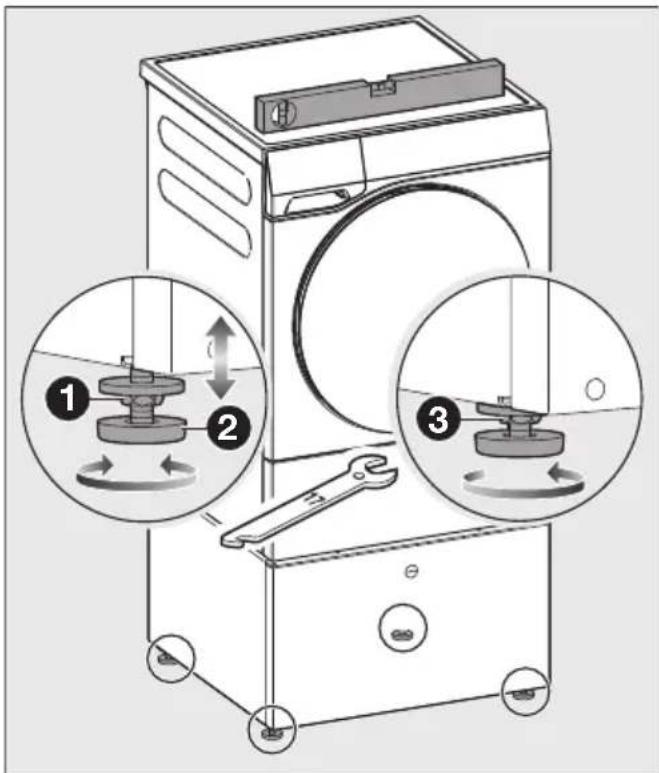

■ Use a spirit level to check that the dryer is standing level.
■ Unscrew one or more feet to level the appliance.

Diagram of a washing machine with three labeled parts showing internal components and directional arrows indicating rotation or adjustment.

Using an open spanner, turn the counter nut on the feet in a clockwise direction.
2 Turn the counter nut together with the feet to unscrew.
3 Hold the feet securely with water pump pliers. Turn the counter nut using an open spanner until it sits firmly up against the casing of the plinth.

Using tensioning strips

Anchoring the plinth to the floor using tensioning strips

Risk of tipping over.

If the plinth is not anchored in place, it may move around with the washing machine or tumble dryer or tip over. Anchor the plinth in place with the tensioning strips provided.

Diagram of a washing machine with two views of its internal components (no text or symbols present)

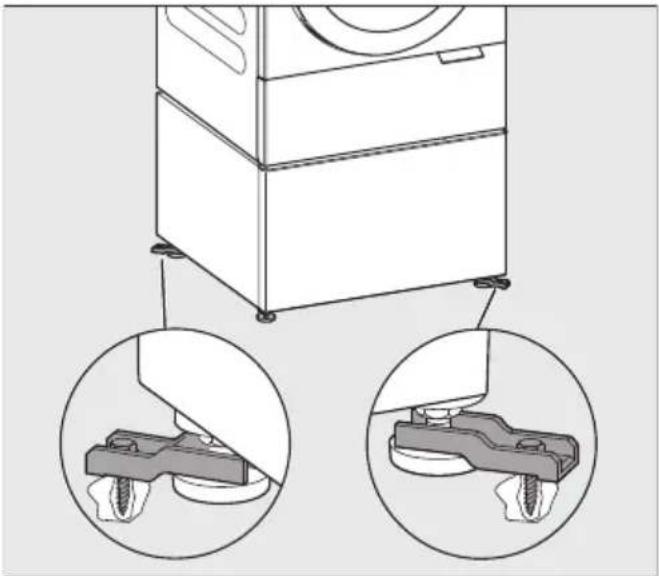

■ Anchor the plinth feet diagonally with the tensioning strips provided, e.g. the front right foot and the rear left foot.

This will provide the best protection against moving around or tipping over.

Tip: The anchoring will be most effective if the tensioning strips are turned out slightly when fastened in place. Refer to the installation instructions for the tensioning strips.

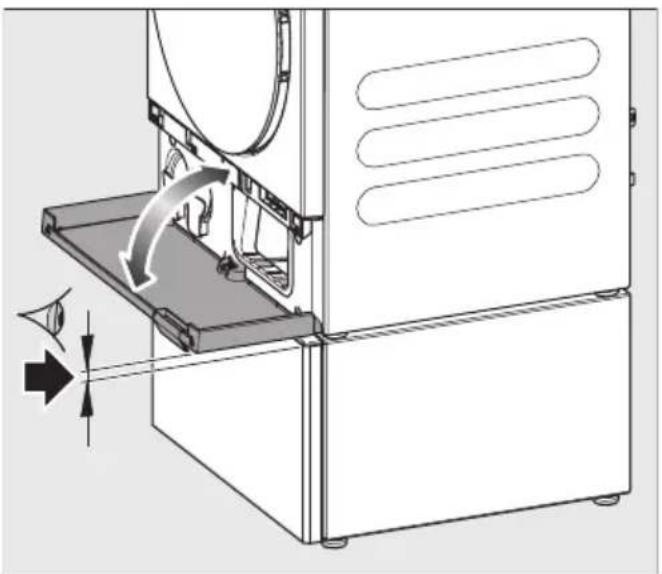

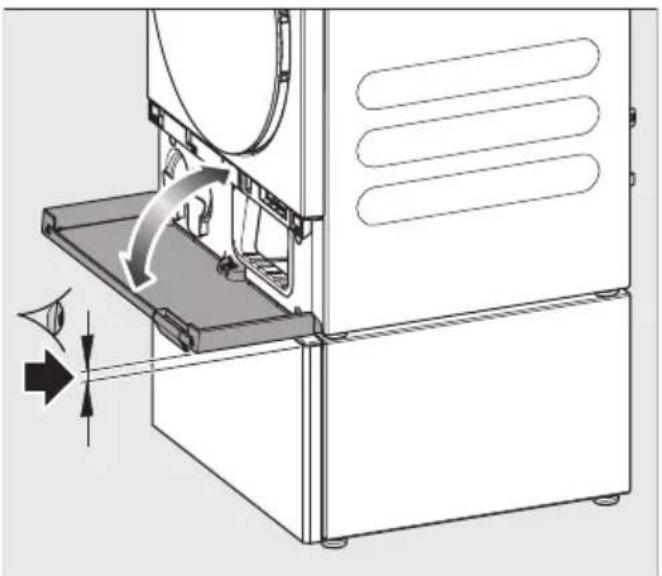

Aligning the drawer

If the drawer front is not exactly in line with the tumble dryer or the washing machine, it can be adjusted.

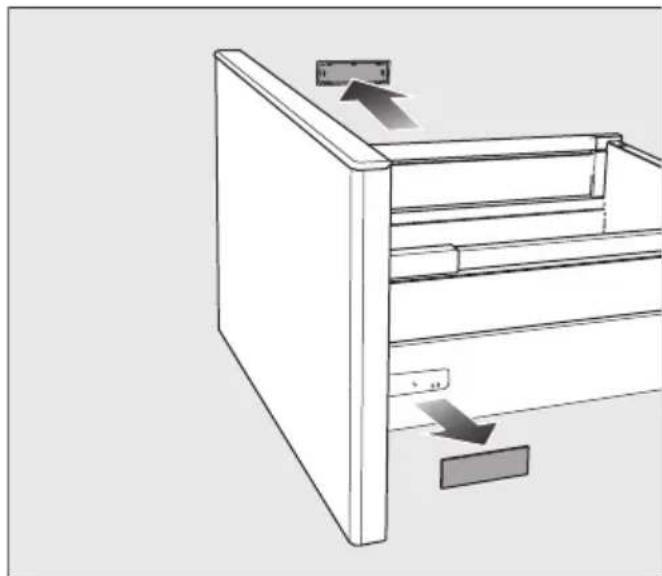

Removing the cover cap

Diagram of a box with a door and internal panel, showing a downward arrow indicating flow or movement (no text or symbols present)

■ Open the drawer.

■ There is a cover cap on each side of the drawer.

Line drawing of a cabinet drawer with two arrows indicating movement or force (no text or symbols)

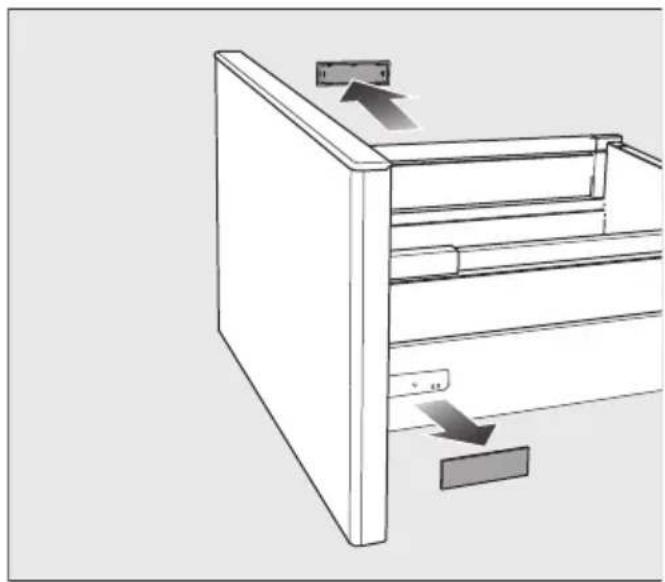

■ Remove the cover caps by hand.

Aligning the drawer vertically

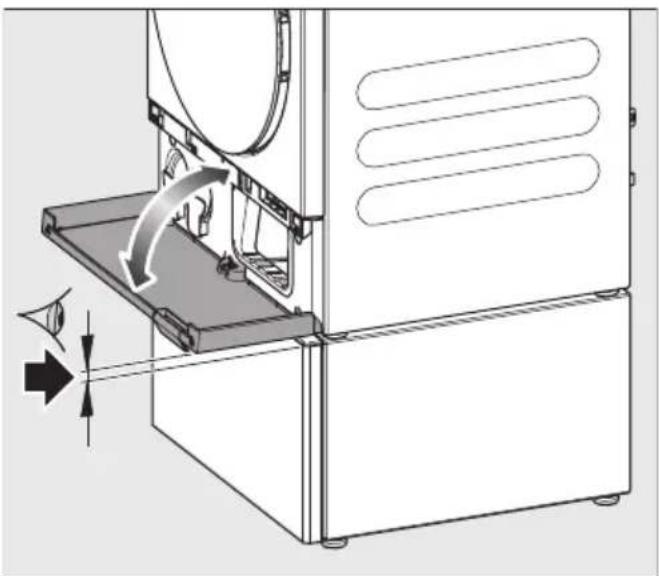

On both sides of the drawer is a wheel which can be used to adjust the height of the front.

Make sure you adjust the height evenly on the right and left.

Technical diagram showing a door mechanism with directional arrows and a magnified inset highlighting a hand pressing a 'PRE33' component.

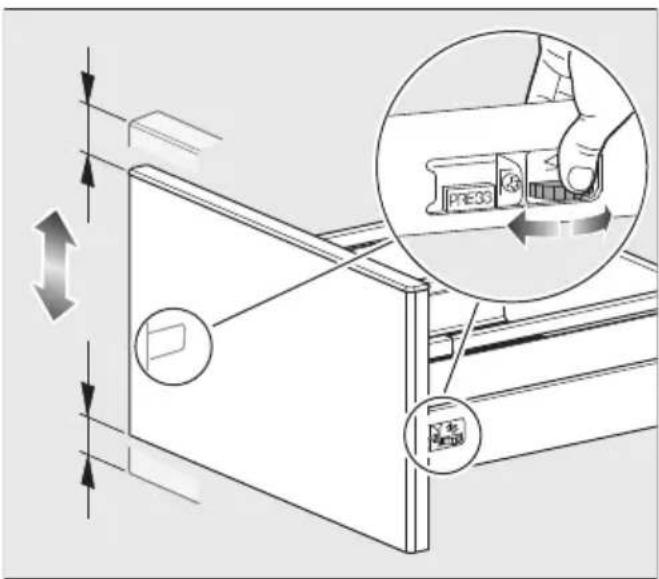

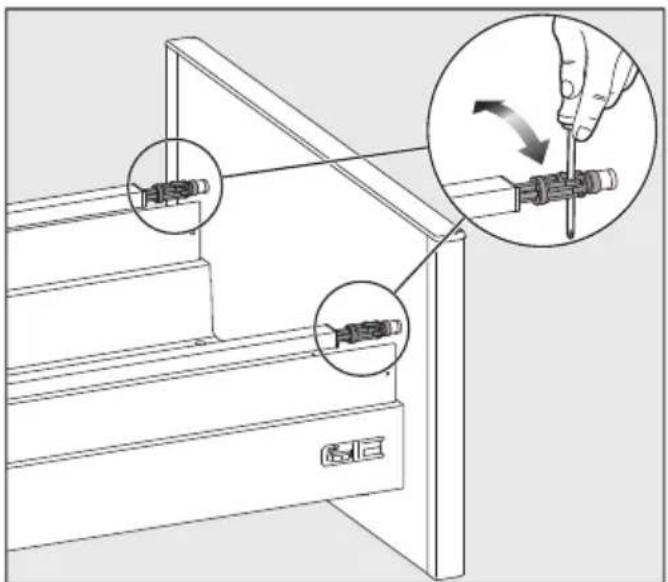

■ Turn the wheel to move the drawer up or down.

■ Replace the cover caps.

Technical line drawing of a mechanical device with internal components and directional arrows indicating motion (no text or symbols)

Tip: Make sure that the plinth flap can still be opened completely downwards.

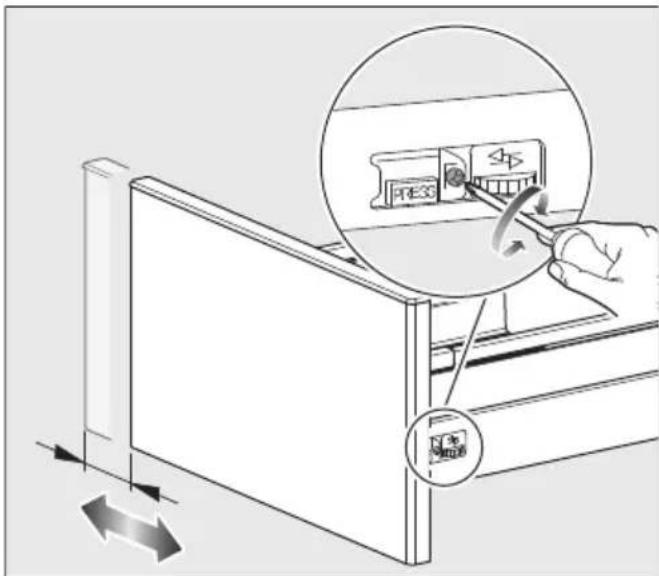

Aligning the drawer horizontally

There is also a screw on the right-hand side, which can be used to move the drawer front horizontally to the right or left.

Diagram illustrating a device's operation with a magnified view showing a button labeled '1353' and a file icon, indicating playback or status change.

■ Turn the screw to move the drawer front to the right or left.

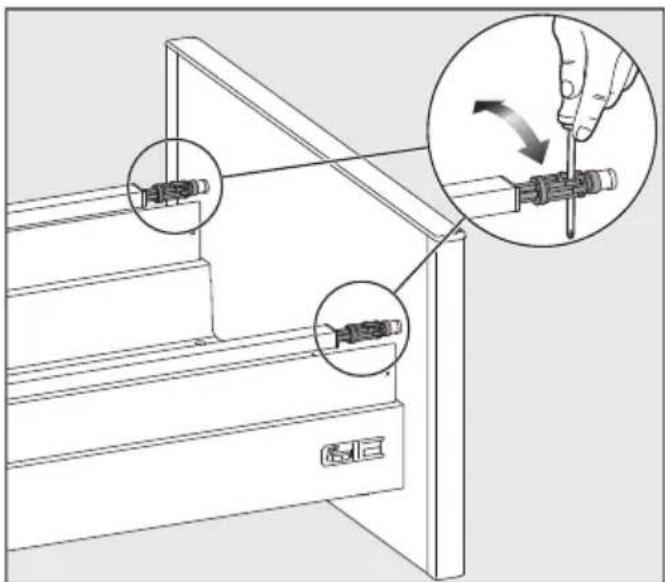

Adjusting the inclination of the drawer

Technical line drawing of a mechanical assembly with two circular components and a magnified inset showing a hand holding a tool (no text or symbols)

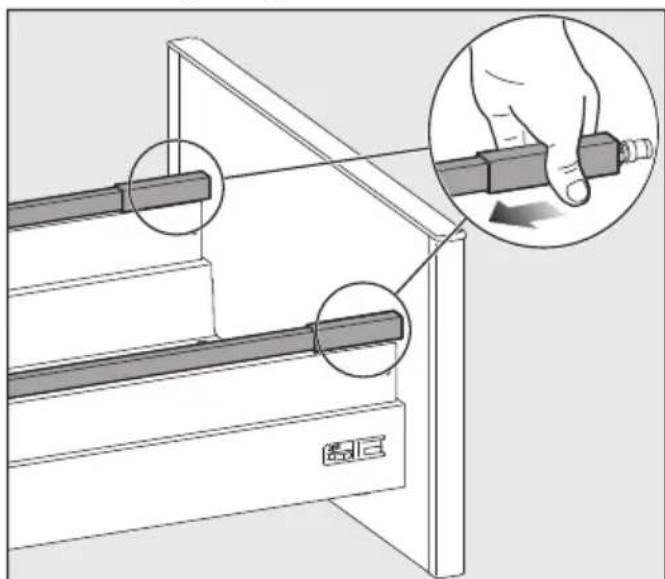

■ Slide the two covers back.

Technical line drawing of a mechanical assembly with three circular insets showing close-up views of a tool interacting with a component (no text or symbols present)

■ To adjust the inclination of the drawer, turn the two rails using a screwdriver.

Pair installation

If the tumble dryer and washing machine are installed side by side, the plinths must be connected using the connecting pieces on the feet of the washing machine plinth. If the connecting pieces are on the right-hand side, the tumble dryer will be on the right; if the connecting pieces are on the left-hand side, the tumble dryer will be on the left.

Line drawing of a two-story front-loading washing machine with side panels and ventilation slots (no text or symbols)

During installation, please note the following:

- The plinths must be the same height.

- The plinths must be in line with each other.

Connecting the plinths

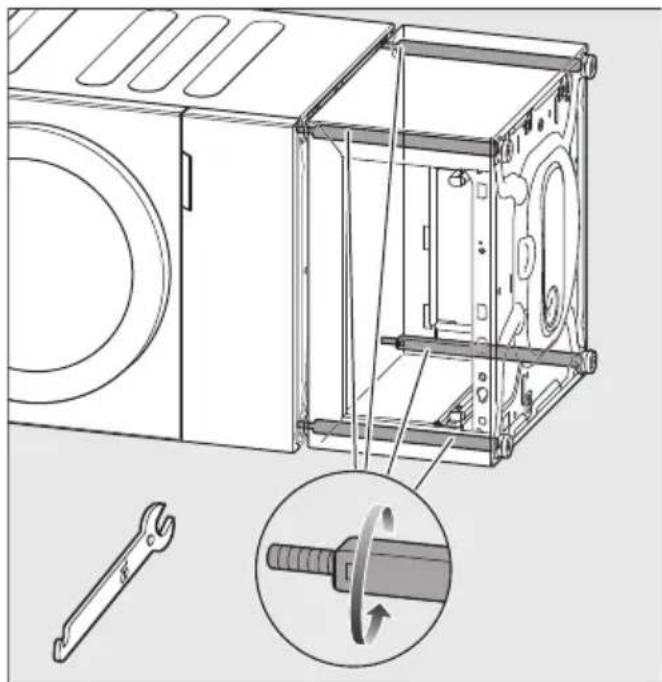

■ Loosen the counter nuts on the feet of the plinth of the washing machine and the tumble dryer.
■ Fold out the connecting pieces on the feet of the washing machine plinth.
■ Push the two plinths together.

Technical line drawing of a washing machine with two views showing internal components and mounting points (no text or labels)

■ Place the connecting pieces around the feet of the tumble dryer plinth.
- Check that the plinths are the same height and that they are in line with each other.
■ If the heights are different, adjust the feet accordingly.
■ Secure all feet using the counter nuts.

Exploded view diagram of an electronic enclosure with numbered parts for identification

Diagram of a mechanical device with a rectangular box and internal panel, showing a downward arrow indicating flow or force (no text or symbols present)

Technical diagram showing a mechanical assembly with numbered components and a magnified inset highlighting a specific part.

Technical diagram of a washing machine with close-up insets showing component details and mounting hardware.

Technical diagram of a washing machine with labeled components and close-up views showing internal structure and mounting details.

Technical diagram of a mechanical assembly with numbered components labeled 1, 2, and 3

Technical diagram showing a mechanical assembly with numbered parts labeled 1 to 4

Diagram showing a rectangular panel with corner brackets and an inset close-up of a circular feature (no text or symbols)

Diagram showing a hand using a tool to adjust or install a circular component on a machine casing (no text or symbols present)

Technical line drawing of a washing machine with internal components and a magnified inset showing a component (no text or symbols)

Technical line drawing of a washing machine with internal components and a wrench, showing exploded view (no text or symbols)

Diagram showing three steps of washing machine operation: tool, press, and press mechanism with labeled diagrams.

3D diagram of a box with an open drawer and internal structure, showing a downward arrow indicating flow or direction (no text or symbols)

Technical diagram showing a mechanical device with labeled parts and an inset magnified view of the component being inserted.

A 4x 5 mm

Diagram of a rectangular device with corner brackets and an inset showing a circular feature on a flat surface (no text or symbols)

Technical diagram illustrating mechanical assembly steps with labeled parts and directional arrows

Diagram illustrating a kitchen appliance operation with labeled parts and a magnified inset showing internal components.

Diagram of a washing machine with three labeled parts showing mechanical components and directional arrows indicating rotation or adjustment.

Diagram of a washing machine with two views of its internal components (no text or symbols present)

Diagram of an open industrial box with a downward arrow indicating internal flow or movement (no text or symbols)

Line drawing of a cabinet or drawer with arrows indicating movement or force, no text or symbols present

Technical diagram showing a door handle mechanism with directional arrows and a magnified inset highlighting a hand pressing a 'PRE33' component.

Technical line drawing of a mechanical device with internal components and directional arrows indicating motion (no text or symbols)

Diagram illustrating a printer's internal structure with magnified view showing the printer's internal components and directional arrows.

Technical illustration of a mechanical assembly with two circular components and a magnified inset showing a hand holding a tool (no text or symbols)

Technical line drawing of a mechanical assembly with three circular insets showing a hand holding a tool, no text or symbols present.

Line drawing of a two-loading washing machine with front panel and side panels, showing height dimension (no text or symbols)

Technical line drawing of a washing machine with three views showing internal components and mounting hardware (no text or labels)

Exploded view diagram of an electronic enclosure with numbered parts for identification

Diagram of a mechanical device with a rectangular box and internal panel, showing a downward arrow indicating flow or force (no text or symbols present)

Technical diagram showing a mechanical assembly with numbered components and a magnified inset highlighting a specific part.

Technical diagram of a washing machine with close-up insets showing component assembly and mounting details

Technical diagram of a washing machine with labeled components and exploded view, showing internal structure and mounting details.

Technical diagram of a mechanical assembly with numbered components labeled 1, 2, and 3

Technical diagram showing a mechanical assembly with numbered parts for identification

Diagram of a rectangular device with corner brackets and an inset showing a circular component (no text or symbols)

Diagram showing a hand operating a circular component next to a device casing, with an inset close-up of the component (no text or symbols present)

Technical line drawing of a washing machine with internal components and a circular component inserted into the air gap (no text or symbols)

Technical line drawing of a washing machine with internal components and a wrench tool, showing assembly and disassembly (no text or symbols)

Diagram illustrating three steps of washing machine operation: press, press, and tool, with numbered annotations.

Diagram of a box with a door and internal panel, showing a downward arrow indicating flow or movement (no text or symbols present)

Technical diagram showing a mechanical device with labeled parts and a magnified inset view of the component being inserted.

A 4x 5 mm

3D diagram of a rectangular device with corner brackets and an inset showing a circular feature on a base plate (no text or symbols)

Technical diagram illustrating mechanical assembly steps with labeled parts and dimension annotations

Illustration of a kitchen appliance with hands operating the door, showing internal components and a close-up of a mechanical component (no text or symbols present)

Diagram of a washing machine with three labeled parts showing mechanical components and directional arrows indicating rotation or adjustment.

Line drawing of a washing machine with two inset views showing internal components (no text or symbols)

Diagram of a box with a door and internal panel, showing a downward arrow indicating flow or movement (no text or symbols present)

■ Avage sahtel.
■ Sahtli mölemal lengil on kattekork.

Line drawing of a cabinet or drawer with arrows indicating movement or force (no text or symbols)

Technical diagram showing a door handle mechanism with labeled parts and directional arrows indicating movement or force.

Technical line drawing of a mechanical device with internal components and directional arrows indicating motion (no text or symbols)

Diagram illustrating a printer press operation with magnified view of the printer's internal structure and directional arrows indicating motion.

Technical line drawing of a mechanical assembly with two parts highlighted, showing hand positioning and a magnified inset (no text or symbols)

■ Lükake mölemad katted taha.

Technical line drawing of a mechanical assembly with two views of a tool inserted into a bracket (no text or symbols present)

Line drawing of a two-story washing machine with front panel and side doors, shown in isometric view (no text or symbols)

Technical line drawing of a washing machine with three views showing internal components and mounting hardware (no text or labels)

Exploded view diagram of an electronic enclosure with numbered parts for identification

Diagram of an open electrical enclosure with a door, showing internal structure and airflow direction (no text or symbols)

Technical diagram showing a mechanical assembly with numbered components and a magnified inset highlighting a specific part.

Technical diagram of a washing machine with labeled components and close-up insets showing mechanical parts.

Technical diagram of a washing machine with labeled components and close-up views showing internal structure and mounting details.

Technical diagram of a mechanical assembly with numbered components labeled 1, 2, and 3

Technical diagram showing a mechanical assembly with numbered parts labeled 1 to 4

Diagram showing a rectangular panel with corner brackets and an inset close-up of a circular component (no text or symbols)

Diagram showing a hand operating a circular component next to a device casing, with an inset close-up of the component (no text or symbols present)

Technical line drawing of a washing machine with internal components and directional arrows indicating motion (no text or symbols)

Technical line drawing of a washing machine with internal components and a wrench, showing exploded view (no text or symbols)

Diagram illustrating three steps of washing machine tooling: press, rotary press, and manual wrenching.

3D diagram of an open box with a gray panel and a white internal structure, showing internal flow direction (no text or symbols)

Technical diagram showing a mechanical device with labeled parts and a magnified inset view of the component being inserted.

A 4x 5 mm

Diagram of a rectangular device with corner brackets and an inset showing a circular feature on a flat surface (no text or symbols)

Technical diagram illustrating mechanical assembly steps with labeled parts and dimension annotations

Illustration of a kitchen appliance with hands operating it, showing a close-up of the interior and a magnified view of the device's internal structure (no text or symbols present)

Diagram of a washing machine with three labeled parts showing internal components and directional arrows indicating rotation or adjustment.

Diagram of a washing machine with two views of its internal components (no text or symbols present)

Diagram of an open electrical enclosure with a downward arrow indicating internal flow or movement (no text or symbols)

Avaa laatikko.

Line drawing of a cabinet or drawer with arrows indicating movement or force, no text or symbols present

Technical diagram showing a door mechanism with labeled components and directional arrows indicating movement or force.

Technical line drawing of a mechanical device with internal components and directional arrows indicating motion (no text or symbols)

Diagram illustrating a device's operation with a magnified view showing a button labeled '1353' and a file icon, indicating playback or status change.

Technical line drawing of a mechanical assembly with two circular components and a magnified inset showing a hand holding a tool (no text or symbols)

Technical line drawing of a mechanical assembly with three circular insets showing close-up views of a tool interacting with a component (no text or symbols present)

Line drawing of a two-loading washing machine with side panels and front panel (no text or symbols)

Technical line drawing of a washing machine with three views showing internal components and mounting hardware (no text or labels)

Exploded view diagram of an electronic device with numbered parts for identification

Diagram of a box with an open lid and internal arrow indicating direction (no text or symbols)

Technical diagram showing a mechanical device with labeled parts and an inset magnified view of the component being inserted.

Technical diagram of a washing machine with close-up insets showing component assembly and mounting details

Technical diagram of a washing machine with labeled components and exploded view, showing internal structure and mounting details.

Technical diagram of a mechanical assembly with numbered components labeled 1, 2, and 3

Technical diagram showing a mechanical assembly with numbered parts labeled 1 to 4

Diagram showing a rectangular device with corner brackets and an inset close-up of a circular feature, no text or symbols present.

Diagram showing a hand operating a circular device with a rotating knob, next to a separate view of the device's interior (no text or symbols present)

Technical line drawing of a washing machine with internal components and a magnified view showing internal structure (no text or symbols)

Technical line drawing of a washing machine with internal components and a wrench, showing exploded view (no text or symbols)

Diagram showing three steps of washing machine operation: press, press, and tool, with labeled diagrams.

Diagram of an open industrial box with a downward arrow indicating internal flow or movement (no text or symbols present)

Technical diagram showing a mechanical device with labeled parts and a magnified inset view of the component being inserted.

A 4x 5 mm

Diagram showing a rectangular panel with corner brackets and an inset close-up of a circular component (no text or symbols)

Technical diagram illustrating mechanical assembly steps with labeled parts and dimensions

Diagram illustrating a kitchen appliance operation with labeled parts and a magnified inset showing the internal mechanism.

Diagram of a washing machine with three labeled parts showing internal components and directional arrows indicating rotation or adjustment.

Diagram of a washing machine with two views of its internal components (no text or symbols present)

Diagram of an open industrial box with a downward arrow indicating internal flow or movement (no text or symbols)

Line drawing of a cabinet or drawer with arrows indicating movement or force (no text or symbols)

Technical diagram showing a door handle mechanism with directional arrows and a magnified inset highlighting a hand pressing a 'PRE33' button.

Technical line drawing of a mechanical device with internal components and directional arrows indicating motion (no text or symbols)

Diagram illustrating a device's operation with a magnified view showing a button labeled '1353' and a file icon, indicating playback or status change.

Technical line drawing of a mechanical assembly with two circular components and a magnified inset showing a hand holding a tool (no text or symbols)

Technical line drawing of a mechanical assembly with three circular insets showing close-up views of a tool interacting with a component (no text or symbols present)

Line drawing of a two-loading washing machine with side panels and front panel (no text or symbols)

Technical line drawing of a washing machine with three views showing internal components and mounting hardware (no text or labels)

Exploded view diagram of an electronic enclosure with numbered parts for identification

① Podnožje
② Ladice (opterećenje max.i 15 kg)
③ Vezni element
④ Ljepljive trake za stražnju stranicu
⑤ Vijak s lećastom glavom CEM 4 × 10
⑥ Odstojnici
⑦ Navojni klinovi M 10 × 40 mm
⑧ Stražnja strana za podnožje
⑨ Set za ugradnju podnog pričvršćenja
⑩ Miele viličasti ključ

Postavljanje perilice rublja

Diagram of an open box with a downward arrow indicating internal flow or movement (no text or symbols)

■ Dodirnite prema unutra ladicu.
■ U potpunosti izvucite ladicu.

Technical diagram showing a mechanical assembly with numbered components and a magnified inset highlighting a specific part.

① Pritisnite o bočne kukice.
2 Lagano podignite ladicu te ju uklonite.
■ Izvlačne vodilice vratite natrag u podnožje.

Technical diagram of a washing machine with close-up insets showing component assembly and mounting details

Technical diagram of a washing machine with labeled components and exploded view, showing internal structure and mounting details.

Technical diagram of a mechanical assembly with numbered components labeled 1, 2, and 3

Pomoću viličastog ključa okrenite protumaticu ② između podloška ① i nožice ③ u smjeru kazaljke na satu.
■ Ovaj korak ponovite na sve 4 nožice.
■ Potpuno odvrnite 2 desne ili lijeve nožice.

Technical diagram showing a mechanical assembly with numbered parts labeled 1 to 4

■ Ponovno postavite vezni element s demontiranim nožicama.

3D diagram of a rectangular device with corner brackets and an inset showing a circular component (no text or symbols)

Diagram showing a hand operating a circular component next to a device casing, with an inset close-up of the component (no text or symbols present)

■ Pomoću ključa okrenite protumaticu u smjeru kazaljke na satu.
■ U potpunosti odvrnite i uklonite nožicu.
■ Ovaj postupak ponovite na sve 4 nožice.

Pričvršćivanje podnožja s perilicom rubl- ja

Technical line drawing of a washing machine with internal components and a magnified inset showing a mechanical assembly (no text or symbols)

Technical line drawing of a microwave oven with internal components and a wrench, showing exploded view (no text or symbols)

Diagram of a washing machine with three labeled parts showing mechanical components and rotation directions.

Pomoću viličastog ključa okrenite protumaticu nožica u smjeru kazaljke na satu.
2 Odvijte protumaticu zajedno s nožicama.

3 Nožice čvrsto držite pomoću vodoinstalaterskih kliješta. Pomoću vi-ličastog ključa čvrsto okrenite protumaticu u suprotnom smjeru od kućiš-ta podnožja.

Diagram of an open industrial box with a downward arrow indicating internal flow or movement (no text or symbols)

■ Dodirnite prema unutra ladicu.
■ U potpunosti izvucite ladicu.

Technical diagram showing a mechanical assembly with numbered components and a magnified inset view of a component being inserted.

① Pritisnite o bočne kukice.
2 Lagano podignite ladicu te ju uklonite.
- Izvlačne vodilice vratite natrag u podnožje.

A 4x 5 mm

- Odvijte navojne klinove A imbus ključem i pri tome čvrsto držite navojne klinove na podnožju vodoinstalaterskim kliještima.

Izvađeni, duži navojni klinovi A nisu potrebni za postavljanje sušilice rublja i mogu se maknuti na stranu.

B 4x 5 mm

3D diagram of a rectangular device with corner brackets and an inset showing a circular feature on a flat surface (no text or symbols)

Technical diagram illustrating mechanical assembly steps with labeled parts and dimensions

■ 4 nožice sušilice rublja u potpunosti odvijte.

Diagram illustrating a kitchen appliance operation with labeled parts and a magnified inset showing the interior mechanism.

■ Podignite sušilicu na podnožje.
■ Umetnite otvore nožica sušilice u na- vojne klinove.

Povezivanje sušilice sa stražnjom stranom podnožja

T20

Diagram of a washing machine with three labeled parts showing mechanical components and directional arrows indicating rotation or adjustment.

Pomoću viličastog ključa okrenite protumaticu nožica u smjeru kazaljke na satu.
2 Odvijte protumaticu zajedno s nožicama.
3 Nožice čvrsto držite pomoću vodoinstalaterskih kliješta. Pomoću viličastog ključa čvrsto okrenite protumaticu u suprotnom smjeru od kućišta podnožja.

Diagram of a washing machine with two views of its internal components (no text or symbols present)

Dijagonalno usidrite nožice podnožja pomoću priloženih zateznih pločica, npr. prednju desnu nožicu i stražnju lijevu nožicu.

Tako se postiže najbolja zaštita od pomicanja ili prevrtanja.

Savjet: Najučinkovitije sidrenje je kada su zatezne pločice blago prema van postavljene i pričvršćene. Pridržavajte se uputa za montažu zateznih pločica.

Poravnanje ladice

Diagram of a box with a door and internal panel, showing a downward arrow indicating flow or movement (no text or symbols present)

■ Otvorite ladicu.
■ Na obje šarke ladice nalazi se po je- dan poklopac.

Line drawing of a cabinet or drawer with arrows indicating movement or force, no text or symbols present

■ Rukom uklonite poklopce.

Technical diagram showing a door mechanism with directional arrows and a magnified inset highlighting a hand pressing a key labeled 'PRE30' and 'OK'.

■ Kako biste ladicu pomicali prema gore ili dolje, okrećite kotačić.
■ Ponovno postavite poklopac.

Technical line drawing of a mechanical device with internal components and directional arrows indicating motion (no text or symbols)

Diagram illustrating a printer press operation with magnified view of the printer's internal structure and directional arrows indicating motion.

■ Za pomicanje maske lijevo ili desno, okrećite vijak.

Podešavanje nagiba ladice

Technical illustration of a mechanical assembly with two parts highlighted, showing hand positioning and tool insertion (no text or symbols)

■ Oba pokrova pomaknite prema otraga.

Technical line drawing of a mechanical assembly with two views of a tool inserted into a bracket (no text or symbols present)

■ Za prilagodbu nagiba ladice, okrenite obje šipke ograde pomoću odvijača.

Postavljanje parova

Technical line drawing of a two-loading washing machine with side panels and front panel (no text or symbols)

Prilikom postavljanja obratite pažnju na sljedeće:

Technical line drawing of a two-loading washing machine with close-ups of its internal components (no text or labels)

■ Postavite vezne elemente oko nožica podnožja sušilice.

Exploded view diagram of an electronic enclosure with numbered parts for identification

Diagram of an open electrical enclosure with a door, showing internal structure and airflow direction (no text or symbols)

Technical diagram showing a mechanical assembly with numbered components and a magnified inset highlighting a specific part.

Technical diagram of a washing machine with labeled components and close-up insets showing mechanical parts.

Jobbos ajtónyitás

Technical diagram of a washing machine with labeled components and exploded view, showing internal structure and mounting details.

Technical diagram of a mechanical assembly with numbered components labeled 1, 2, and 3

Technical diagram showing a mechanical assembly with numbered parts labeled 1 to 4

Diagram of a rectangular device with corner brackets and an inset showing a circular component (no text or symbols)

Diagram showing a hand using a tool to adjust or install a circular component on a machine casing (no text or symbols present)

Technical line drawing of a washing machine with internal components and a magnified inset showing a bolt (no text or symbols)

Technical line drawing of a washing machine with internal components and a wrench, showing exploded view (no text or symbols)

Diagram illustrating three steps of washing machine tooling: manual, rotary press, and manual press with wrench and wrench.

3D diagram of an open box with a gray panel and a white housing, showing internal flow direction (no text or symbols)

Technical diagram showing a mechanical assembly with numbered components and a magnified inset view of the component being inserted.

A 4x 5 mm

Diagram of a rectangular device with corner brackets and an inset showing a circular component (no text or symbols)

Technical diagram illustrating mechanical assembly steps with labeled parts and directional arrows

Diagram illustrating a kitchen appliance operation with labeled parts and a magnified inset showing the internal mechanism.

Diagram of a washing machine with three labeled parts showing internal components and directional arrows indicating rotation or adjustment.

Diagram of a washing machine with two views of its internal components (no text or symbols present)

Diagram of an open electrical enclosure with a downward arrow indicating internal flow or movement (no text or symbols present)

Line drawing of a cabinet or drawer with arrows indicating movement or force (no text or symbols)

Technical diagram showing a door mechanism with directional arrows and a magnified inset highlighting a hand pressing a 'F E33' button.

Technical line drawing of a mechanical device with internal components and directional arrows indicating motion (no text or symbols)

Diagram illustrating a printer press operation with magnified view of the printer's internal structure and directional arrows indicating motion.

Technical line drawing of a mechanical assembly with two parallel rods and a hand holding a tool, showing a magnified inset (no text or symbols)

Technical line drawing of a mechanical assembly with two views of a tool inserted into a bracket (no text or symbols present)

Line drawing of a two-story front-loading washing machine with side panels and top control panel (no text or symbols)

Technical line drawing of a two-wheeled washing machine with close-ups of its internal components (no text or symbols)

Exploded view diagram of an electronic device with numbered parts for identification

Diagram of a box with an open lid and internal arrow indicating direction (no text or symbols)

Technical diagram showing a mechanical device with labeled parts and a magnified inset highlighting a component detail.

Technical diagram of a washing machine with labeled components and close-up insets showing mechanical parts.

Technical diagram of a washing machine with labeled components and close-up views showing internal structure and mounting details.

Technical diagram of a mechanical assembly with numbered components labeled 1, 2, and 3

Technical diagram showing a mechanical assembly with numbered parts labeled 1 to 4

Diagram showing a rectangular device with corner brackets and an inset close-up of a circular component (no text or symbols)

Diagram showing a device with a close-up view of its internal components, no text or symbols present.

Technical line drawing of a washing machine with internal components and a magnified view of the component (no text or symbols)

Technical line drawing of a washing machine with internal components and a wrench icon (no text or symbols)

Diagram illustrating three steps of washing machine tooling: press, rotary press, and manual press application.

3D diagram of a box with an open lid and internal arrow indicating direction (no text or symbols)

Technical diagram showing a mechanical device with labeled parts and a magnified inset view of the component being inserted.

A 4x 5 mm

Diagram showing a rectangular panel with corner brackets and an inset close-up of a circular feature, plus a separate 3D model of a rectangular component (no text or symbols)

Technical diagram illustrating mechanical assembly steps with labeled parts and dimensions

Diagram illustrating a kitchen appliance operation with labeled parts and a magnified inset showing the internal mechanism.

Diagram of a washing machine with three labeled parts showing mechanical components and directional arrows indicating rotation or adjustment.

Line drawing of a washing machine with two inset views showing internal components (no text or symbols)

Diagram of a box with a door and internal panel, showing a downward arrow indicating flow or movement (no text or symbols present)

Line drawing of a cabinet or drawer with arrows indicating movement or force, no text or symbols present

Technical diagram showing a door mechanism with directional arrows and a magnified inset highlighting a hand pressing a key labeled 'PRE30' and '###'.

Technical line drawing of a mechanical device with internal components and directional arrows indicating motion (no text or symbols)

Diagram illustrating a device's operation with magnified view of a card slot and file icon, showing directional arrows and text labels.

Technical line drawing of a mechanical assembly with two circular insets showing hand positioning and a magnified view of a tool (no text or symbols)

Technical line drawing of a mechanical assembly with three circular insets showing close-up views of a tool (no text or symbols present)

Line drawing of a two-loading washing machine with side panels and front panel (no text or symbols)

Technical line drawing of a washing machine with three views showing internal components and mounting points (no text or labels)

Exploded view diagram of an electronic enclosure with numbered parts for identification

Diagram of a mechanical device with a rectangular box and internal panel, showing a downward arrow indicating force or direction (no text or symbols present)

Technical diagram showing a mechanical assembly with numbered components and a magnified inset highlighting a specific part.

Technical illustration of a washing machine with internal components and close-up insets showing mechanical parts (no text or symbols)

Technical diagram of a washing machine with labeled components and exploded view, showing internal structure and mounting details.

Technical diagram of a mechanical assembly with numbered components labeled 1, 2, and 3

Technical diagram showing a mechanical assembly with numbered parts labeled 1 to 4

Diagram of a rectangular device with corner brackets and an inset showing a circular component (no text or symbols)

Diagram showing a hand operating a circular component next to a device casing, with an inset close-up of the component (no text or symbols present)

Technical line drawing of a washing machine with internal components and a magnified view showing internal structure (no text or symbols)

Technical line drawing of a microwave oven with internal components and a wrench, showing exploded view (no text or symbols)

Diagram showing three steps of washing machine operation: press, rotary press, and wrenching tool.

Diagram of an open industrial box with a downward arrow indicating internal flow or movement (no text or symbols present)

Technical diagram showing a mechanical device with labeled parts and a magnified inset view of the component being inserted.

A 4x 5 mm

Diagram showing a rectangular panel with corner brackets and an inset close-up of a circular feature, no text or symbols present.

Technical diagram illustrating mechanical assembly steps with labeled parts and directional arrows

Diagram illustrating a kitchen appliance operation with labeled parts and a magnified inset showing the internal mechanism.

Diagram of a washing machine with three labeled parts showing internal components and directional arrows indicating rotation or adjustment.

Diagram of a washing machine with two views of its internal components (no text or symbols present)

Diagram illustrating a printer press operation with magnified view showing the printer's internal structure and directional arrows.

Technical line drawing of a mechanical assembly with two parts highlighted, showing hand positioning and tool insertion (no text or symbols)

■ Abu dangčius stumkite atgal.

Technical line drawing of a mechanical assembly with two views of a tool inserted into a bracket (no text or symbols present)

Line drawing of a two-story washing machine with front panel and side panels, showing height dimension lines (no text or symbols)

Statydami atkreipkite dèmesj:

Technical line drawing of a washing machine with two views showing internal components and mounting hardware (no text or labels)

Exploded view diagram of an electronic enclosure with numbered parts for identification

Diagram of an open industrial box with a downward arrow indicating internal flow or movement (no text or symbols)

Technical diagram showing a mechanical device with labeled parts and a magnified inset view of the component being inserted.

Technical diagram of a washing machine with labeled components and close-up insets showing mechanical parts.

Technical diagram of a washing machine with labeled components and close-up views showing internal structure and mounting details.

Technical diagram of a mechanical assembly with numbered components labeled 1, 2, and 3

Technical diagram showing a mechanical assembly with numbered parts labeled 1 to 4

Diagram of a rectangular device with corner brackets and an inset showing a circular feature on a flat surface (no text or symbols)

Diagram showing a washing machine with a close-up view of the component being inserted into a circular opening (no text or symbols present)

Technical line drawing of a washing machine with internal components and directional arrows indicating motion (no text or symbols)

Technical line drawing of a microwave oven with internal components and a wrench, showing exploded view (no text or symbols)

Diagram illustrating three steps of washing machine tooling: press, rotary press, and wrenching mechanism.

Diagram of an open industrial box with a downward arrow indicating internal flow or movement (no text or symbols present)

Technical diagram showing a mechanical device with labeled parts and a magnified inset view of the component being inserted.

A 4x 5 mm

Diagram showing a rectangular panel with corner brackets and an inset close-up of a circular feature, no text or symbols present.

Technical diagram illustrating mechanical assembly steps with labeled parts and directional arrows

Diagram illustrating a kitchen appliance operation with labeled parts and a magnified inset showing the interior mechanism.

Diagram of a washing machine with three labeled parts showing mechanical components and directional arrows indicating rotation or adjustment.

Diagram of a washing machine with two views of the base and side view showing internal components (no text or symbols)

Diagram of a box with a drawer and internal panel, showing a downward arrow indicating flow or movement (no text or symbols present)

Diagram of a cabinet or drawer with arrows indicating movement or force, no text or symbols present

■ Ar rokām nonemiet tos.

Technical diagram showing a door mechanism with labeled parts and directional arrows indicating movement or force, including a magnified inset of a hand pressing a 'F33' button.

Technical line drawing of a mechanical device with internal components and directional arrows indicating motion (no text or symbols)

Diagram illustrating a printer press operation with magnified view showing the printer's internal structure and directional arrows.

Technical line drawing of a mechanical assembly with two parts highlighted, showing hand positioning and a magnified inset (no text or symbols)

Technical line drawing of a mechanical assembly with two views of a tool inserted into a bracket (no text or symbols present)

Line drawing of a two-story washing machine with front panel and side panels, showing height dimension lines (no text or symbols)

Technical line drawing of a two-loading washing machine with close-ups of its internal components (no text or labels)

Exploded view diagram of an electronic device with numbered parts for identification

Diagram of a box with a door open, showing internal structure and a downward arrow indicating flow or movement (no text or symbols)

Technical diagram showing a mechanical assembly with labeled parts and an inset magnified view of a component being inserted.

Technical diagram of a washing machine with close-up insets showing component details for assembly or maintenance.

Deuraanslag rechts

Technical diagram of a washing machine with labeled components and exploded view, showing internal structure and mounting details.

Technical diagram of a mechanical assembly with numbered components labeled 1, 2, and 3

Technical diagram showing a mechanical assembly with numbered parts labeled 1 to 4

Diagram showing a rectangular panel with corner brackets and an inset close-up of a circular component (no text or symbols)

Diagram showing a hand operating a circular component next to a device casing, with an inset close-up of the component (no text or symbols present)

Technical line drawing of a washing machine with internal components and a magnified inset showing the shaft (no text or symbols)

Technical line drawing of a washing machine with internal components and a wrench, showing exploded view (no text or symbols)

Diagram showing three steps of washing machine operation: press, rotary press, and wrenching tool.

Diagram of an open industrial box with a downward arrow indicating internal flow or movement (no text or symbols)

Technical diagram showing a mechanical device with labeled parts and a magnified inset view of the component being inserted.

A 4x 5 mm

Diagram showing a rectangular panel with corner brackets and an inset close-up of a circular feature, plus a separate flat object (no text or symbols)

Technical diagram illustrating mechanical assembly steps with labeled parts and directional arrows

Illustration of a kitchen appliance with hands operating the door, showing a close-up of a rotary knob and a magnified inset of two people (no text or symbols)

Diagram of a washing machine with three labeled parts showing mechanical components and directional arrows indicating rotation or adjustment.

Diagram of a washing machine with two views of its base, showing internal components and mounting hardware (no text or symbols present)

Diagram of an open industrial box with a downward arrow indicating internal flow or movement (no text or symbols)

Line drawing of a cabinet or drawer with arrows indicating movement or force (no text or symbols)

Technical diagram showing a door handle mechanism with directional arrows and a magnified inset highlighting the 'PRE33' component.

Technical line drawing of a mechanical device with internal components and directional arrows indicating motion (no text or symbols)

Diagram illustrating a printer's internal structure with magnified view showing the printer's internal components and directional arrows.

Technical line drawing of a mechanical assembly with two circular components and a magnified inset showing a hand holding a tool (no text or symbols)

Technical line drawing of a mechanical assembly with three circular insets showing a hand holding a tool, no text or symbols present.

Line drawing of a two-story washing machine with front panel and side panels, showing height dimension lines (no text or symbols)

Technical line drawing of a washing machine with three views showing internal components and mounting hardware (no text or labels)

Exploded view diagram of an electronic device with numbered parts for identification

Diagram of a box with a door open, showing internal structure and a downward arrow indicating flow or movement (no text or symbols)

Technical diagram showing a mechanical assembly with labeled parts and an inset magnified view of a component being inserted.

Technical diagram of a washing machine with close-up insets showing component assembly and mounting details

Technical diagram of a washing machine with labeled components and exploded view, showing internal structure and mounting details.

Technical diagram of a mechanical assembly with numbered components labeled 1, 2, and 3

Technical diagram showing a mechanical assembly with numbered parts labeled 1 to 4

Diagram of a rectangular device with corner brackets and an inset showing a circular component (no text or symbols)

Diagram showing a hand operating a mechanical component with a magnified inset view (no text or symbols)

Technical line drawing of a washing machine with internal components and a magnified inset showing a component (no text or symbols)

■ Monter avstandshylser på settskrue- ne.
■ Skyv sokkelen og vaskemaskinen sammen. Settskruene må settes inn i hullene i de fjernede føttene på vaskemaskinen.

Technical line drawing of a washing machine with internal components and a wrench icon, showing no text or symbols.

Diagram illustrating three steps of washing machine tooling: press, press, and manual press with labeled diagrams.

1 Skru ut läsemutteren på føttene med klokken ved hjelp av en fastnøkkel.
2 Skru ut läsemutteren sammen med föttene.
Hold føttene fast med en vannpumpetang. Skru fast låse-mutrene mot kabinettet til sokkelen med en fastnøkkel.

Diagram of an open industrial box with a downward arrow indicating internal flow or movement (no text or symbols)

Technical diagram showing a mechanical assembly with numbered components and a magnified inset view of a component being inserted.

A 4x 5 mm

■ Skru ut settskruene A med en innven-dig sekskantnøkkel mens du holder gjengeboltene i sokkelen med en vannpumpetang.

3D diagram of a rectangular device with corner brackets and an inset showing a circular feature on a flat surface (no text or symbols)

Technical diagram illustrating mechanical assembly steps with labeled parts and directional arrows

Diagram illustrating a kitchen appliance operation with labeled parts and a magnified inset showing a rotating component.

Diagram of a washing machine with three labeled parts showing mechanical components and directional arrows indicating rotation or adjustment.

1 Skru ut läsemutteren på føttene med klokken ved hjelp av en fastnøkkel.
2 Skru ut läsemutteren sammen med föttene.
Hold føttene fast med en vannpumpetang. Skru fast låse-mutrene mot kabinettet til sokkelen med en fastnøkkel.

Bruk braketter

Line drawing of a washing machine with two inset views showing internal components (no text or symbols)

Diagram of an open box with a downward arrow indicating internal flow or movement (no text or symbols)

Diagram of a cabinet or drawer with arrows indicating movement or force, no text or symbols present

■ Fjern dekslene for hånd.

Juster skuffen vertikalt

Technical diagram showing a door handle mechanism with directional arrows and a magnified inset highlighting a hand pressing a 'PRE33' component.

Technical line drawing of a mechanical device with internal components and directional arrows indicating motion (no text or symbols)

Diagram illustrating a printer press operation with magnified view of the printer's internal structure and directional arrows indicating motion.

Technical diagram of a mechanical assembly with two parts highlighted, showing hand positioning and a magnified inset (no text or symbols)

■ Skyv de to dekslene bakover.

Technical line drawing of a mechanical assembly with two views of a component being inserted, showing hand and tool positioning (no text or symbols)

Line drawing of a two-story front-loading washing machine with side panels and ventilation slots (no text or symbols)

Technical line drawing of a washing machine with two views and close-ups of components (no text or symbols)

Exploded view diagram of an electronic device with numbered parts for identification

Diagram of a box with a door open, showing internal structure and a downward arrow indicating flow or movement (no text or symbols)

Technical diagram showing a mechanical device with labeled parts and a magnified inset highlighting a component detail.

Technical illustration of a washing machine with internal components and close-up insets showing mechanical parts (no text or symbols)

Technical diagram of a washing machine with labeled components and exploded view, showing internal structure and mounting details.

Technical diagram of a mechanical assembly with numbered components labeled 1, 2, and 3

Technical diagram showing a mechanical assembly with numbered parts labeled 1 to 4

Diagram of a rectangular device with corner brackets and an inset showing a circular component (no text or symbols)

Diagram showing a hand operating a circular component next to a device casing, with an inset close-up of the component (no text or symbols present)

Technical line drawing of a washing machine with internal components and a magnified inset showing a component (no text or symbols)

Technical line drawing of a washing machine with internal components and a wrench, showing exploded view (no text or symbols)

Diagram showing three steps of washing machine tool installation: press, rotary press, and wrenching tool.

Diagram of an open industrial box with a downward arrow indicating internal flow or movement (no text or symbols)

Technical diagram showing a mechanical device with labeled parts and a magnified inset view of the component being inserted.

A 4x 5 mm

Diagram of a rectangular device with corner brackets and an inset showing a circular feature on a flat surface (no text or symbols)

Technical diagram illustrating mechanical assembly steps with labeled parts and directional arrows

Diagram illustrating a kitchen appliance operation with hands and a magnified inset showing the internal mechanism.

Diagram of a washing machine with three labeled parts showing internal components and directional arrows indicating rotation or adjustment.

Diagram of a washing machine with two views of its internal components (no text or symbols present)

Diagram of a box with a door and internal panel, showing a downward arrow indicating flow or movement (no text or symbols present)

Line drawing of a cabinet or drawer with arrows indicating movement or force, no text or symbols present

Technical diagram showing a door mechanism with labeled parts and directional arrows indicating movement or assembly.

Technical line drawing of a washing machine with internal components and directional arrows indicating motion (no text or symbols)

Diagram illustrating a printer's internal structure with magnified view showing the printer's internal components and directional arrows.

Technical line drawing of a mechanical assembly with two circular components and a magnified inset showing a hand holding a tool (no text or symbols)

Technical line drawing of a mechanical assembly with three circular insets showing close-up views of a tool interacting with a component (no text or symbols present)

Line drawing of a two-loading washing machine with side panels and front panel (no text or symbols)

Technical line drawing of a washing machine with two views and close-ups of components (no text or symbols)

Exploded view diagram of an electronic enclosure with numbered parts for identification

Diagram of a box with a door open, showing internal structure and a downward arrow indicating flow or movement (no text or symbols)

Technical diagram showing a mechanical assembly with labeled parts and an inset magnified view of a component being inserted.

Technical diagram of a washing machine with labeled components and close-up insets showing mechanical parts.

Technical diagram showing installation of a washing machine with labeled components and close-ups of mechanical parts.

Technical diagram of a mechanical assembly with numbered components labeled 1, 2, and 3

Technical diagram showing a mechanical assembly with numbered parts labeled 1 to 4

Diagram showing a rectangular panel with corner brackets and an inset close-up of a circular component (no text or symbols)

Diagram showing a hand operating a circular component with a knob, next to a device casing (no text or symbols present)

Technical line drawing of a washing machine with internal components and a circular component inserted into the housing (no text or symbols)

Technical line drawing of a washing machine with internal components and a wrench, showing exploded view (no text or symbols)

Diagram illustrating three steps of washing machine tooling: press, rotary dialing, and wrenching.

Diagram of a box with a door open, showing internal structure and a downward arrow indicating flow or movement (no text or symbols)

Technical diagram showing a mechanical device with labeled parts and a magnified inset view of the component being inserted.

A 4x 5 mm

Diagram of a rectangular device with corner brackets and an inset showing a circular feature on its surface (no text or symbols)

Technical diagram illustrating mechanical assembly steps with labeled parts and dimensions

Diagram illustrating a kitchen appliance operation with labeled parts and a magnified inset showing the interior scene.

Diagram of a washing machine with three labeled parts showing mechanical components and directional arrows indicating rotation or adjustment.

Diagram of a washing machine with two views of its internal components (no text or symbols present)

Diagram of an open industrial box with a downward arrow indicating internal flow or movement (no text or symbols)

Line drawing of a cabinet or drawer with arrows indicating movement or force (no text or symbols)

Technical diagram showing a door handle mechanism with directional arrows and a magnified inset highlighting a hand pressing a 'PRE33' button.

Technical line drawing of a washing machine interior with directional arrows indicating motion (no text or symbols)

Diagram illustrating a file transfer or processing operation with labeled components and directional arrows indicating flow.

Technical illustration of a mechanical assembly with two circular components and a magnified inset showing a hand holding a tool (no text or symbols)

Technical line drawing of a mechanical assembly with three circular insets showing close-up views of a tool interacting with a component (no text or symbols present)

Line drawing of a two-story front-loading washing machine with side panels and ventilation slots (no text or symbols)

Technical line drawing of a washing machine with two views and close-ups of components (no text or symbols)

Exploded view diagram of an electronic device with numbered parts for identification

Diagram of a box with a drawer and internal panel, showing a downward arrow indicating flow or movement (no text or symbols present)

Technical diagram showing a mechanical assembly with numbered components and a magnified inset highlighting a specific part.

Technical diagram of a washing machine with labeled components and close-up insets showing mechanical parts.

Balama uşă dreapta

Technical diagram of a washing machine with labeled components and exploded view, showing internal structure and mounting details.

Technical diagram of a mechanical assembly with numbered components labeled 1, 2, and 3

Technical diagram showing a mechanical assembly with numbered parts labeled 1 to 4

Diagram of a rectangular device with corner brackets and an inset showing a circular component (no text or symbols)

Diagram showing a hand operating a circular device with a scroll wheel, next to a box-like device (no text or symbols present)

Technical line drawing of a washing machine with internal components and a circular component inserted into the air gap (no text or symbols)

Technical line drawing of a washing machine with internal components and a wrench, showing exploded view (no text or symbols)

Diagram showing three steps of washing machine tooling: press, rotary press, and wrenching mechanism.

3D diagram of an open box with a downward arrow indicating internal flow or movement (no text or symbols)

Technical diagram showing a mechanical device with labeled parts and a magnified inset view of the component being inserted.

A 4x 5 mm

Diagram showing a rectangular panel with corner brackets and an inset close-up of a circular feature, no text or symbols present.

Technical diagram illustrating mechanical assembly steps with labeled parts and dimensions

Diagram illustrating a kitchen appliance operation with labeled parts and a magnified inset showing the interior mechanism.

Diagram of a washing machine with three labeled parts showing mechanical components and directional arrows indicating rotation or adjustment.

Line drawing of a washing machine with two inset views showing mechanical components (no text or symbols)

Diagram of an open box with a gray panel and a white housing, showing internal flow direction (no text or symbols)

Line drawing of a cabinet or drawer with arrows indicating movement or force (no text or symbols)

Technical diagram showing a door handle mechanism with directional arrows and a magnified inset highlighting a hand pressing a 'PRE33' button.

Technical line drawing of a mechanical device with internal components and directional arrows indicating motion (no text or symbols)

Diagram illustrating a device's operation with a magnified view showing a button labeled '1353' and a file icon, indicating playback or status change.

Technical illustration of a mechanical assembly with two circular components and a magnified inset showing a hand holding a tool (no text or symbols)

Technical line drawing of a mechanical assembly with three circular insets showing close-up views of a tool interacting with a component (no text or symbols present)

Line drawing of a two-story front-loading washing machine with side panels and height dimension lines (no text or symbols)

Technical diagram showing front and side views of a washing machine with labeled components and mounting points.

Exploded view diagram of an electronic enclosure with numbered parts for identification

Diagram of a box with an open lid and internal arrow indicating direction (no text or symbols)

Technical diagram showing a mechanical assembly with labeled parts and an inset magnified view of a component being inserted.

Technical diagram of a washing machine with labeled components and close-up insets showing mechanical assembly details.

Technical diagram of a washing machine with labeled components and exploded view, showing internal structure and mounting details.

Technical diagram of a mechanical assembly with numbered components labeled 1, 2, and 3

Technical diagram showing a mechanical assembly with numbered parts labeled 1 to 4

Diagram showing a rectangular device with corner brackets and an inset close-up of a circular component (no text or symbols)

Diagram showing a hand operating a circular device with a knob, next to a mechanical housing component (no text or symbols present)

Technical line drawing of a washing machine with internal components and a magnified view (no text or symbols)

Technical line drawing of a washing machine with internal components and a wrench, showing exploded view (no text or symbols)

Diagram illustrating three steps of washing machine tooling: manual, press, and press with labeled parts.

Diagram of a mechanical device with a rectangular housing and internal panel, showing a downward arrow indicating flow or force (no text or symbols present)

Technical diagram showing a mechanical device with labeled parts and a magnified inset view of the component being inserted.

A 4x 5 mm

Diagram of a rectangular device with corner brackets and an inset showing a circular feature on a flat surface (no text or symbols)

Technical diagram illustrating mechanical assembly with labeled parts and directional arrows, including a wrench and 0mm dimension annotation.

Illustration of a kitchen appliance with hands operating the door, showing a close-up of a rotary knob and a magnified inset of two people (no text or symbols)

Diagram of a washing machine with three labeled parts showing internal components and directional arrows indicating motion or assembly.

Diagram of a washing machine with two views of its internal components (no text or symbols present)

Diagram of a box with a door and internal panel, showing a downward arrow indicating flow or movement (no text or symbols present)

Diagram of a cabinet or drawer with arrows indicating movement or force, no text or symbols present

Technical diagram showing a door mechanism with directional arrows and a magnified inset highlighting a hand pressing a 'PRESS' button.

Technical line drawing of a mechanical device with internal components and directional arrows indicating motion (no text or symbols)

Diagram illustrating a printer press operation with labeled parts and directional arrows indicating movement

Technical diagram of a mechanical assembly with two circular insets showing hand positioning and a tool (no text or symbols)

Technical diagram showing mechanical assembly with labeled parts and a hand operating a tool, including magnified views of the component.

Line drawing of a two-story washing machine with front panel and side panels, showing height dimension (no text or symbols)

Technical line drawing of a two-loading washing machine with close-ups of its internal components (no text or labels)

Exploded view diagram of an electronic enclosure with numbered parts for identification

Diagram of an open electrical enclosure with a door, showing internal structure and airflow direction (no text or symbols)

Technical diagram showing a mechanical assembly with labeled parts and a magnified inset view of the component being inserted.

Technical diagram showing a washing machine with internal components and close-up insets of mechanical parts, likely illustrating a washing or cleaning process.

Záves dverí vpravo

Technical diagram of a washing machine with labeled components and exploded view, showing internal structure and mounting details.

Technical diagram of a mechanical assembly with numbered components labeled 1, 2, and 3

Technical diagram showing a mechanical assembly with numbered parts labeled 1 to 4

Diagram of a rectangular device with corner brackets and an inset showing a circular component (no text or symbols)

Diagram showing a hand operating a circular component next to a device casing, with an inset close-up of the component (no text or symbols present)

Technical line drawing of a washing machine with internal components and a magnified view of the housing (no text or symbols)

Technical line drawing of a washing machine with internal components and a wrench, showing exploded view (no text or symbols)

Diagram illustrating three steps of washing machine tooling: press, rotary dial, and wrench application.

3D diagram of an open box with a downward arrow indicating internal flow or movement (no text or symbols)

Technical diagram showing a mechanical device with labeled parts and a magnified inset view of the component being inserted.

A 4x 5 mm

Diagram showing a rectangular panel with corner brackets and an inset close-up of a circular feature, plus a separate flat object (no text or symbols)

Technical diagram illustrating mechanical assembly steps with labeled parts and directional arrows

Diagram illustrating a kitchen appliance operation with labeled parts and a magnified inset showing internal components.

Diagram of a washing machine with three labeled parts showing internal components and directional arrows indicating rotation or adjustment.

Diagram of a washing machine with two views of its internal components (no text or symbols present)

Diagram of a box with a door and internal panel, showing a downward arrow indicating flow or movement (no text or symbols present)

■ Otvorte zásuvku.
■ Na oboch závesoch zásuviek je krytka.

Line drawing of a cabinet or drawer with arrows indicating movement or force (no text or symbols)

■ Odstráňte rukou krytky.

Technical diagram showing a door mechanism with directional arrows and a magnified inset of a hand holding a device labeled 'PRE33' and 'Auto'.

Technical line drawing of a mechanical device with internal components and directional arrows indicating motion (no text or symbols)

Diagram illustrating a printer press operation with magnified view showing the printer's internal structure and directional arrows.

Technical line drawing of a mechanical assembly with two parts highlighted, showing hand positioning and tool insertion (no text or symbols)

■ Oba kryty posuňte dozadu.

Technical line drawing of a mechanical assembly with two views of a tool inserted into a bracket (no text or symbols present)

Line drawing of a two-loading washing machine with front panel and side panels, shown in isometric view (no text or labels)

Technical line drawing of a washing machine with two side views and close-ups of its components (no text or symbols)

■ Spojovacie časti položte okolo nôh sokla sušičky.

Exploded view diagram of an electronic enclosure with numbered parts for identification

Diagram of an open electrical enclosure with a door, showing internal structure and airflow direction (no text or symbols)

■ Pritisnite na predal.
■ Predal potegnite do konca iz ohišja.

Technical diagram showing a mechanical assembly with numbered components and a magnified inset highlighting a specific part.

Technical diagram of a washing machine with labeled components and close-up insets showing mechanical parts.

Tečaj vrat desno

Technical diagram of a washing machine with labeled components and exploded view, showing internal structure and mounting details.

Vgradnja spojnih kosov

Technical diagram of a mechanical assembly with numbered components labeled 1, 2, and 3

Technical diagram showing a mechanical assembly with numbered parts labeled 1 to 4

■ Spojna kosa namestite skupaj z demontiranima nogama.

Diagram showing a rectangular device with corner brackets and an inset close-up of a circular component (no text or symbols)

Diagram showing a hand operating a circular device with a knob, next to a box with control panel (no text or symbols present)

Technical line drawing of a washing machine with internal components and a magnified view showing internal structure (no text or symbols)

Technical line drawing of a washing machine with internal components and a wrench, showing exploded view (no text or symbols)

Diagram illustrating three steps of washing machine tooling: press, rotary dialing, and wrenching.

1 Z viličastim ključem sprostite nasprotne matice nog v smeri urnega kazalca.
2 Nato nasprotne matice odvijte skupaj z nogami.

3D diagram of an open box with a downward arrow indicating internal flow or movement (no text or symbols)

■ Pritisnite na predal.
■ Predal potegnite do konca iz ohišja.

Technical diagram showing a mechanical assembly with numbered components and a magnified inset view of the component being inserted.

A 4x 5 mm

Navojne sornike A odvijte z notranjim šestrobim ključem in pri tem s cevnimi kleščami zadržite navojne sornike v podnožju.

3D diagram of a rectangular device with corner brackets and an inset showing a circular feature on a flat surface (no text or symbols)

Technical diagram illustrating mechanical assembly steps with labeled parts and directional arrows

Diagram illustrating a kitchen appliance operation with labeled parts and a magnified inset showing internal components.

Diagram of a washing machine with three labeled parts showing mechanical components and rotation directions

① Z viličastim ključem sprostite nasprotne matice nog v smeri urnega kazalca.
2 Nato nasprotne matice odvijte skupaj z nogami.

Diagram of a washing machine with two close-up insets showing internal components (no text or symbols)

Noge podnožja pritrdite diagonalno na tla s priloženimi vpenjalnimi sponami, npr. sprednjo desno in zadnjo levo nogo.

Diagram of a box with a door and internal panel, showing a downward arrow indicating flow or movement (no text or symbols present)

■ Odprite predal.
■ Na obeh straneh predala sta pokrovčka.

Line drawing of a cabinet or drawer with arrows indicating movement or force, no text or symbols present

Technical diagram showing a door mechanism with labeled parts and a magnified inset highlighting a hand pressing a 'PRE30' button.

Če želite predal premakniti navzgor ali navzdol, zavrtite kolesce.
■ Ponovno namestite pokrovčka.

Technical line drawing of a mechanical device with internal components and directional arrows indicating motion (no text or symbols)

Diagram illustrating a printer press operation with magnified view of the printer's internal structure and directional arrows indicating motion.

Če želite ploščo premakniti v levo ali desno, zavrtite vijak.

Prilagoditev nagiba predala

Technical line drawing of a mechanical assembly with two circular inset views showing hand positioning (no text or symbols)

■ Oba pokrovčka potisnite nazaj.

Technical line drawing of a mechanical assembly with two views of a component being inserted, showing hand and tool positioning (no text or symbols)

Line drawing of a two-story washing machine with front panel and side panels, showing height dimension (no text or symbols)

Technical line drawing of a washing machine with two views showing internal components and mounting hardware (no text or labels)

Exploded view diagram of an electronic enclosure with numbered parts for identification

① Postolje
② Fioku (Maksimalna količina 15 kg)
③ Spojni delovi
④ Lepljiva traka za zadnju stranu
⑤ Zavrtnji sa sočivastom glavom CEM 4 x 10
⑥ Odstojne čaure
⑦ Navojne čivije M 10 x 40 mm
⑧ Zadnja strana za postolje
⑨ Ugradni set za podno pričvršćivanje
⑩ Miele viljuškasti ključ

Montaža mašine za pranje veša

Diagram of a box with a door open, showing internal structure and a downward arrow indicating flow or movement (no text or symbols present)

■ Pritisnite fioku.
■ Kompletno izvucite fioku.

Technical diagram showing a mechanical device with labeled parts and an inset magnified view of the component being inserted.

1 Pritisnite bočne kukice za fiksiranje.
② Blago podignite fioku i uklonite je.
■ Zatim ponovo gurnite teleskopske vođice nazad u postolje.

Upotreba spojnih delova

Technical diagram of a washing machine with labeled components and close-up insets showing mechanical parts.

Technical diagram of a washing machine with labeled components and exploded view, showing internal structure and mounting details.

Ugradnja spojnih delova

Spojni delovi se ugrađuju kod nožica postolja.

Technical diagram of a mechanical assembly with numbered components labeled 1, 2, and 3

• Odvrnite pomoću viljuškastog ključa kontra navrtke ② između podloške ① i nožice ③ u smeru kretanja kazaljke na satu.
  ■ Ponovite ovaj korak za sve 4 nožice.
  ■ Kompletno odvrnite 2 desne ili leve nožice.

Ugradnja spojnih delova

Technical diagram showing a mechanical assembly with numbered parts labeled 1 to 4

■ Ponovo postavite spojne delove sa demontiranim nožicama.

Obratite pažnju na sledeći redosled, gle- dano sa postolja:

1. Podloška

2. Spojni deo

3. Kontra navrtka

4. Nožica

■ Ponovo navrnite nožice postolja, ali nemojte fiksirati kontra navrtke.

Diagram of a rectangular device with corner brackets and an inset showing a circular component (no text or symbols)

■ Zalepite zaptivne trake iz isporuke na unutrašnju stranu zadnje stranice u skladu sa prikazom na slici.

Diagram showing a hand using a tool to adjust or install a circular component on a device casing (no text or symbols present)

Viljuškastim ključem odvrnite kontra navrtku u smeru kretanja kazaljke na satu.
■ Kompletno odvrnite nožicu i skinite je.
■ Ponovite ovaj postupak za sve 4 noži- ce.

Pričvršćivanje postolja na mašinu za pranje veša

Technical line drawing of a washing machine with internal components and a magnified inset showing a mechanical assembly (no text or symbols)

Technical line drawing of a washing machine with internal components and a wrench, showing exploded view (no text or symbols)

■ Pomoću viljuškastog ključa naizme-nično i ravnomerno navrnite sve 4 na-vojne čivije u unutrašnjost postolja.

Postolje se čvrsto fiksira za mašinu za pranje veša.

Ravnanje kombinacije mašine za pranje veša i postolja

Za ovaj korak su potrebne 2 osobe.

■ Ponovo pažljivo poravnajte kombina- ciju.

Diagram illustrating three steps of washing machine tooling: press, rotary press, and wrenching mechanism.

① Viljuškastim ključem odvrnite kontra navrtke nožica u smeru kretanja kazaljke na satu.
2 Odvrnite kontra navrtke zajedno sa nožicama.

Diagram of a box with an open lid and internal arrow indicating direction (no text or symbols)

■ Pritisnite fioku.
■ Kompletno izvucite fioku.

Technical diagram showing a mechanical assembly with numbered components and a magnified inset view of the component being inserted.

① Pritisnite bočne kukice za fiksiranje.
2 Blago podignite fioku i uklonite je.
■ Zatim ponovo gurnite teleskopske vođice nazad u postolje.

Zamena navojnih čivija

A 4x 5 mm

3D diagram of a rectangular device with corner brackets and an inset showing a circular feature on a flat surface (no text or symbols)

■ Zalepite zaptivne trake iz isporuke na unutrašnju stranu zadnje stranice u skladu sa prikazom na slici.

Postavljanje fioke

■ Pritisnite obe teleskopske vodice.
Teleskopske vođice se malo izvlače.
■ Kompletno izvucite teleskopske vodi- ce.
■ Postavite fioku na teleskopske vodice.
■ Gurnite fioku u postolje.

Fioka čujno se čujno uglavljuje na me-sto.

Technical diagram illustrating mechanical assembly steps with labeled parts and directional arrows

Diagram illustrating a kitchen appliance operation with labeled parts and a magnified inset showing a rotary switch mechanism.

■ Podignite mašinu za sušenje veša na postolje.
■ Uvedite otvore nožica mašine za sušenje veša u navojne čivije.

Diagram of a washing machine with three labeled parts showing internal components and directional arrows indicating rotation or adjustment.

Diagram of a washing machine with two views of its internal components (no text or symbols present)

Pomoću isporučenih steznih spojnica dijagonalno fiksirajte nožice postolja, npr. prednju desnu nožicu i zadnju le-vu nožicu.

Na taj način ćete postići najbolju zaštitu od pomeranja ili prevrtanja.

Savet: Najefikasnije fiksiranje je kada su stezne spojnice učvršćene tako da budu malo zakrenute prema spolja. Obratite pažnju na uputstvo za montažu steznih spojnica.

Ravnanje fioke

Ukoliko prednja ploča fioke nije precizno poravnata sa mašinom za sušenje veša ili sa mašinom za pranje veša, prednja ploča se može prilagoditi.

Uklanjanje poklopca

Diagram of an open electrical enclosure with a door, showing internal structure and airflow direction (no text or symbols)

■ Otvorite fioku.
■ Na obe stranice fioke se nalazi poklo-pac.

Line drawing of a cabinet or drawer with arrows indicating movement or force, no text or symbols present

■ Ručno uklonite poklopce.

Vertikalno ravnanje fioke

Na obe strane fioke se nalazi točkić pomoću koga se može podešavati visina prednje ploče fioke.

Vodite računa da visina bude podjedna- ko podešena i desno i levo.

Technical diagram showing a door handle mechanism with directional arrows and a magnified inset highlighting a hand pressing a 'PRE33' button.

■ Da bi se fioka pomerala nagore ili nadole, obrćite točkić.
■ Ponovo postavite poklopce.

Technical line drawing of a mechanical device with internal components and directional arrows indicating motion (no text or symbols)

Savet: Vodite računa da se poklopac postolja uređaja i dalje može kompletno otvoriti nadole.

Horizontalno ravnanje fioke

Na desnoj stranici fioke se dodatno nalazi zavrtanj pomoću koga se maska može pomerati udesno ili ulevo.

Diagram illustrating a printer press operation with magnified view of the printer's internal structure and directional arrows indicating motion.

■ Za pomeranje maske ulevo ili udesno, obrćite zavrtanj.

Technical diagram of a mechanical assembly with two parts highlighted, showing hand positioning and tool insertion (no text or symbols)

■ Gurnite oba poklopca prema nazad.

Technical line drawing of a mechanical assembly with two views of a component being inserted, showing hand and tool positioning (no text or symbols)

■ Da biste prilagodili nagib fioke, pomoću odvijača obrćite obe šipke ograde.

Postavljanje u paru

U slučaju da se mašina za sušenje veša i mašina za pranje veša moraju postaviti jedna pored druge, postolja se na nožicama mašine za pranje moraju povezati pomoću spojnih delova. Ukoliko su spojni delovi na desnoj strani, mašina za sušenje veša stoji desno, ukoliko su spojni delovi na levoj strani, mašina za sušenje veša stoji levo.

Line drawing of a two-story front-loading washing machine with side panels and ventilation slots (no text or symbols)

Prilikom postavljanja obratite pažnju:

Technical line drawing of a washing machine with four views showing internal components and mounting hardware (no text or labels)

■ Postavite spojne delove oko nožica postolja mašine za sušenje veša.
■ Proverite da li visine postolja međusobno odgovaraju i da li je poravnanje ispravno.
■ Različite visine izjednačite pomoću nožica.
■ Kontrirajte sve nožice kontra navrtkama.

Sockelns komponenter

Exploded view diagram of an electronic enclosure with numbered parts for identification

Diagram of an open electrical enclosure with a door, showing internal structure and airflow direction (no text or symbols)

Technical diagram showing a mechanical assembly with numbered components and a magnified inset highlighting a specific part.

Technical diagram of a washing machine with labeled components and close-up insets showing mechanical parts.

Luckhängning höger

Technical diagram of a washing machine with labeled components and close-up views showing internal structure and mounting details.

Installera adaptrarna

Technical diagram of a mechanical assembly with numbered components labeled 1, 2, and 3

Technical diagram showing a mechanical assembly with numbered parts labeled 1 to 4

Diagram of a rectangular device with corner brackets and an inset showing a circular component (no text or symbols)

Diagram showing a hand operating a circular device with a knob, next to a box-like device (no text or symbols present)

Technical line drawing of a washing machine with internal components and directional arrows indicating motion (no text or symbols)

Technical line drawing of a washing machine with internal components and a wrench, showing exploded view (no text or symbols)

Diagram showing three steps of washing machine operation: press, rotary press, and manual press with labeled diagrams.

Diagram of an open industrial box with a downward arrow indicating internal flow or movement (no text or symbols)

Technical diagram showing a mechanical device with labeled parts and a magnified inset view of the component being inserted.

A 4x 5 mm

Diagram showing a rectangular panel with corner brackets and an inset close-up of a circular feature, no text or symbols present.

Technical diagram illustrating mechanical assembly steps with labeled parts and directional arrows

Illustration of a refrigerator with hands operating the door, showing a close-up of the interiormost appliance (no text or symbols present)

Diagram of a washing machine with three labeled parts showing internal components and directional arrows indicating motion or assembly.

Diagram of a washing machine with two views of the base panel showing internal components (no text or symbols)

Diagram of a box with a door and internal panel, showing a downward arrow indicating flow or movement (no text or symbols present)

Line drawing of a cabinet or drawer with arrows indicating movement or force, no text or symbols present

Technical diagram showing a door mechanism with directional arrows and a magnified inset highlighting a hand pressing a key labeled 'PRE30' and '###'.

Technical line drawing of a mechanical device with internal components and directional arrows indicating motion (no text or symbols)

Diagram illustrating a file transfer process with labeled components and directional arrows indicating movement

Technical line drawing of a mechanical assembly with two circular components and a magnified inset showing a hand holding a tool (no text or symbols)

Technical line drawing of a mechanical assembly with three circular insets showing close-up views of a tool interacting with a component (no text or symbols present)

Line drawing of a two-loading washing machine with front and back panels, showing height dimension lines (no text or symbols)

Observera under installationen:

Technical line drawing of a washing machine with two views showing internal components and mounting points (no text or labels)

Exploded view diagram of an electronic enclosure with numbered parts for identification

Diagram of a box with a door open, showing internal structure and a downward arrow indicating flow or movement (no text or symbols)

Technical diagram showing a mechanical assembly with labeled parts and an inset magnified view of a component being inserted.

Technical diagram of a washing machine with close-up insets showing component alignment and mounting details

Technical diagram of a washing machine with labeled components and close-up views showing internal structure and mounting details.

Technical diagram of a mechanical assembly with numbered components labeled 1, 2, and 3

Technical diagram showing a mechanical assembly with numbered parts labeled 1 to 4

Diagram of a rectangular device with corner brackets and an inset showing a circular component (no text or symbols)

Diagram showing a hand operating a circular component next to a device casing, with an inset close-up of the component (no text or symbols present)

Technical line drawing of a washing machine with internal components and a magnified inset showing a mechanical assembly (no text or symbols)

Technical line drawing of a washing machine with internal components and a wrench, showing exploded view (no text or symbols)

Diagram illustrating three steps of washing machine tooling: press, rotary press, and wrenching mechanism.

3D diagram of an open box with a downward arrow indicating internal flow or movement (no text or symbols)

Technical diagram showing a mechanical assembly with numbered components and a magnified inset view of a component being inserted.

A 4x 5 mm

3D diagram of a rectangular device with corner brackets and an inset showing a circular feature on a flat surface (no text or symbols)

Technical diagram illustrating mechanical assembly steps with labeled parts and dimensions

Diagram illustrating a kitchen appliance operation with hands operating the door and a close-up of the valve mechanism, accompanied by an inset showing two human silhouettes.

Diagram of a washing machine with three labeled parts showing internal components and directional arrows indicating rotation or adjustment.

Diagram of a washing machine with two inset views showing internal components (no text or symbols)

Diagram of an open industrial box with a downward arrow indicating internal flow or movement (no text or symbols)

Line drawing of a cabinet or drawer with arrows indicating movement or force (no text or symbols)

Technical diagram showing a door handle mechanism with directional arrows and a magnified inset highlighting a hand pressing a 'PRE33' button.

Technical line drawing of a mechanical device with internal components and directional arrows indicating motion (no text or symbols)

Diagram illustrating a printer press operation with magnified view of the printer's internal structure and directional arrows indicating motion.

Technical illustration of a mechanical assembly with two parts highlighted, showing hand positioning and tool insertion (no text or symbols)

Technical line drawing of a mechanical assembly with two views of a tool inserted into a bracket (no text or symbols present)

Line drawing of a two-story washing machine with front panel and side panels, showing height dimension lines (no text or symbols)

Technical line drawing of a two-wheeled washing machine with close-ups of its internal components (no text or symbols)

Exploded view diagram of an electronic enclosure with numbered parts for identification

Diagram of a box with a lid removed, showing internal structure and airflow direction (no text or symbols)

Technical diagram showing a mechanical device with labeled parts and a magnified inset view of the component's adjustment.

Technical diagram of a washing machine with labeled components and close-up insets showing mechanical parts.

Technical diagram of a washing machine with labeled components and close-up views showing internal structure and mounting details.

Technical diagram of a mechanical assembly with numbered components labeled 1, 2, and 3

Technical diagram showing a mechanical assembly with numbered parts labeled 1 to 4

Diagram showing a rectangular panel with corner brackets and an inset close-up of a circular feature, plus a separate flat panel (no text or symbols)

Diagram showing a hand operating a rotary knob next to a device casing, with an inset close-up of the knob (no text or symbols present)

Technical line drawing of a washing machine with internal components and directional arrows indicating motion (no text or symbols)

Technical line drawing of a washing machine with internal components and a wrench, showing exploded view (no text or symbols)

Diagram illustrating three steps of washing machine tooling: press, rotary press, and manual wrenching.

3D diagram of a box with a door open, showing internal structure and airflow direction (no text or symbols)

Technical diagram showing a mechanical device with labeled parts and a magnified inset view of the component being inserted.

A 4x 5 mm

Diagram of a rectangular device with corner brackets and an inset showing a circular feature on a flat surface (no text or symbols)

Technical diagram illustrating mechanical assembly steps with labeled parts and directional arrows

Diagram illustrating a kitchen appliance operation with labeled parts and a magnified inset showing the interior mechanism.

Diagram of a washing machine with three labeled parts showing internal components and directional arrows indicating rotation or adjustment.

Diagram of a washing machine with two views of the mounting bracket (no text or symbols present)

Diagram of an open industrial box with a downward arrow indicating internal flow or movement (no text or symbols present)

Line drawing of a cabinet or drawer with arrows indicating movement or force (no text or symbols)

Technical diagram showing a door mechanism with directional arrows and a magnified inset of a hand pressing a button labeled 'PRESS'.

Technical line drawing of a refrigerator interior with airflow arrows indicating movement (no text or symbols)

Diagram illustrating a printer press operation with magnified view of the printer's internal structure and directional arrows indicating motion.

Technical illustration of a mechanical assembly with two parts highlighted, showing hand positioning and a magnified inset (no text or symbols)

Technical line drawing of a mechanical assembly with two circular insets showing a hand holding a tool, no text or symbols present.

Line drawing of a two-story washing machine with front panel and side panels, showing height dimension lines (no text or symbols)

Technical line drawing of a washing machine with two views showing internal components and mounting hardware (no text or labels)

Exploded view diagram of an electronic enclosure with numbered parts for identification

Diagram of a box with a door open, showing internal structure and a downward arrow indicating flow or movement (no text or symbols)

■ 向内按压抽屉。
■ 完全拉出抽屉。

Technical diagram showing a mechanical assembly with labeled parts and an inset magnified view of a component being inserted.

Technical illustration of a washing machine with internal components and close-up insets showing mechanical parts (no text or symbols)

右侧铰链

Technical diagram of a washing machine with labeled components and exploded view, showing internal components and mounting details.

安装连接件

连接件安装在底座的支脚上。

从底座拆下支脚

要安装连接件，必须从底座上拆下支脚。

Technical diagram of a mechanical assembly with numbered components labeled 1, 2, and 3

Technical diagram showing a mechanical assembly with numbered parts labeled 1 to 4

■ 将连接件与拆下的支脚装在一起。

Diagram showing a rectangular panel with corner brackets and an inset close-up of a circular feature, no text or symbols present.

Diagram showing a hand operating a circular component next to a device casing, with an inset close-up of the component (no text or symbols present)

Technical line drawing of a washing machine with internal components and a magnified view showing internal structure (no text or symbols)

Technical line drawing of a washing machine with internal components and a wrench, showing exploded view (no text or symbols)

Diagram showing three steps of washing machine tooling: press, rotary press, and wrenching mechanism.

Diagram of a box with a door and internal panel, showing a directional arrow (no text or symbols)

■ 向内按压抽屉。
■ 完全拉出抽屉。

Technical diagram showing a mechanical device with labeled parts and a magnified inset view of the component being inserted.

A 4x 5 mm

Diagram showing a rectangular panel with corner brackets and an inset close-up of a circular feature, plus a separate flat object (no text or symbols)

Technical diagram illustrating mechanical assembly steps with labeled parts and dimensions

Diagram illustrating a kitchen appliance operation with labeled parts and a magnified inset showing a rotary switch mechanism.

■ 将干衣机抬到底座上。

■ 将干衣机支脚的开孔套到固定螺杆上。

将干衣机连接到底座的后面板上

T20

Diagram of a washing machine with three labeled parts showing mechanical components and directional arrows indicating rotation or adjustment.

Diagram of a washing machine with two views of its internal components (no text or symbols present)

Diagram of an open industrial box with a downward arrow indicating internal flow or movement (no text or symbols)

Line drawing of a cabinet or drawer with arrows indicating movement or force, no text or symbols present

■ 用手取下装饰盖板。

垂直对齐抽屉

Technical diagram showing a door handle mechanism with labeled parts and directional arrows indicating movement or assembly.

Technical line drawing of a mechanical device with internal components and directional arrows indicating motion (no text or symbols)

Diagram illustrating a device's internal processing step with magnified view showing a component labeled '1930' and a small icon for '电'.

Technical illustration of a mechanical assembly with two circular insets showing hand positioning and a tool interacting with a component (no text or symbols)

■ 将两个装饰套向后滑动。

Technical line drawing of a mechanical assembly with two views of a component being inserted, showing hand and tool (no text or symbols)

Line drawing of a two-loading washing machine with front panel and side panels, shown in isometric view (no text or symbols)

安装过程中请注意以下几点：

- 底座的高度必须相同。

- 两个底座必须互相对齐。

连接底座

Technical line drawing of a washing machine with two views showing internal components and mounting hardware (no text or labels)
