USER MANUAL EASY PRESSING TEFAL

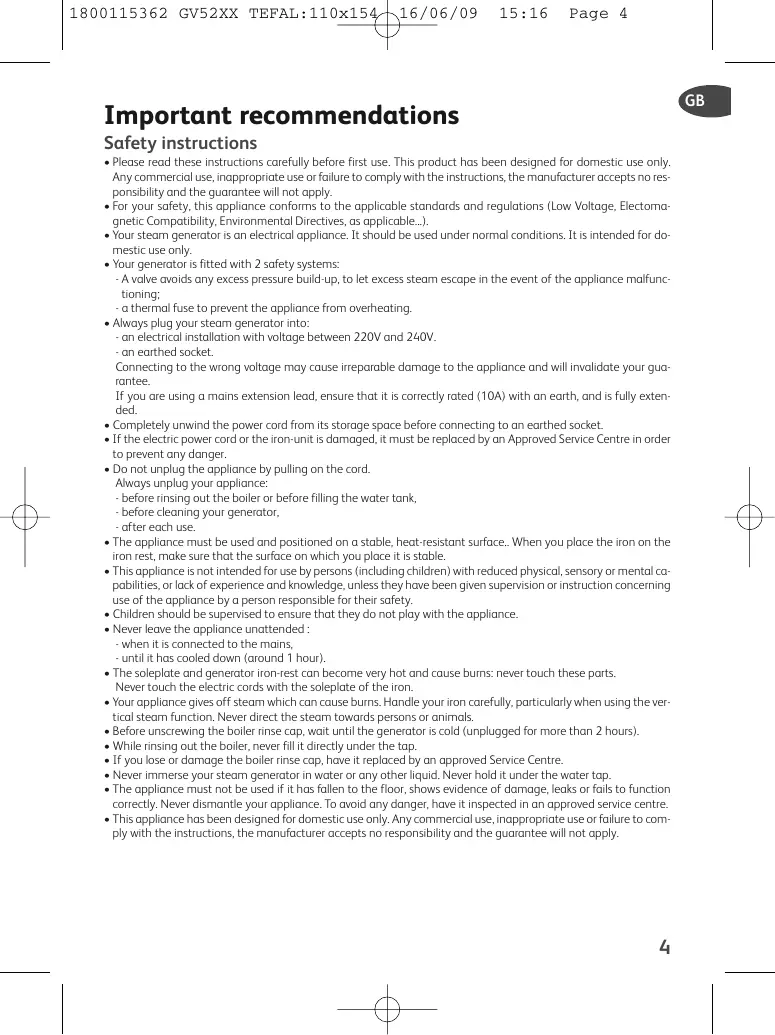

Safety instructions • Please read these instructions carefully before first use. This product has been designed for domestic use only. Any commercial use, inappropriate use or failure to comply with the instructions, the manufacturer accepts no responsibility and the guarantee will not apply. • For your safety, this appliance conforms to the applicable standards and regulations (Low Voltage, Electomagnetic Compatibility, Environmental Directives, as applicable...). • Your steam generator is an electrical appliance. It should be used under normal conditions. It is intended for domestic use only. • Your generator is fitted with 2 safety systems: - A valve avoids any excess pressure build-up, to let excess steam escape in the event of the appliance malfunctioning; - a thermal fuse to prevent the appliance from overheating. • Always plug your steam generator into: - an electrical installation with voltage between 220V and 240V. - an earthed socket. Connecting to the wrong voltage may cause irreparable damage to the appliance and will invalidate your guarantee. If you are using a mains extension lead, ensure that it is correctly rated (10A) with an earth, and is fully extended. • Completely unwind the power cord from its storage space before connecting to an earthed socket. • If the electric power cord or the iron-unit is damaged, it must be replaced by an Approved Service Centre in order to prevent any danger. • Do not unplug the appliance by pulling on the cord. Always unplug your appliance: - before rinsing out the boiler or before filling the water tank, - before cleaning your generator, - after each use. • The appliance must be used and positioned on a stable, heat-resistant surface.. When you place the iron on the iron rest, make sure that the surface on which you place it is stable. • This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. • Children should be supervised to ensure that they do not play with the appliance. • Never leave the appliance unattended : - when it is connected to the mains, - until it has cooled down (around 1 hour). • The soleplate and generator iron-rest can become very hot and cause burns: never touch these parts. Never touch the electric cords with the soleplate of the iron. • Your appliance gives off steam which can cause burns. Handle your iron carefully, particularly when using the vertical steam function. Never direct the steam towards persons or animals. • Before unscrewing the boiler rinse cap, wait until the generator is cold (unplugged for more than 2 hours). • While rinsing out the boiler, never fill it directly under the tap. • If you lose or damage the boiler rinse cap, have it replaced by an approved Service Centre. • Never immerse your steam generator in water or any other liquid. Never hold it under the water tap. • The appliance must not be used if it has fallen to the floor, shows evidence of damage, leaks or fails to function correctly. Never dismantle your appliance. To avoid any danger, have it inspected in an approved service centre. • This appliance has been designed for domestic use only. Any commercial use, inappropriate use or failure to comply with the instructions, the manufacturer accepts no responsibility and the guarantee will not apply.

Temperature setting mark Iron temperature adjustment button Thermostat light Iron rest Boiler (inside the base-unit) Lock system (according to model) Power and steam cord storage compartment

Power cord Boiler cap Illuminated on/off switch Steam ready indicator light (according to model) Steam flow adjustment dial (according to model)

Locking system for retaining the iron on the base

Lock system (depending on model) • Your steam generator is equipped with a retaining hoop which locks the iron on its base for easier transport and storage: - Locking - fig.1 - Unlocking - fig.2 • To carry your steam generator by the iron handle: - Place the iron on the iron rest of the generator and raise the retaining hoop over the iron until it locks into place (audible click) - fig.1. - Grasp the handle of the iron to carry your steam generator - fig.3.

What water to use ? • Your iron has been designed to operate using untreated tap water. However, in some coastal regions, your water may have a high salt content. In this case, only use demineralised water. • Types of water not to use: Heat concentrates the elements contained in water during evaporation. The types of water listed below may contain organic waster, mineral or chemical elements that can cause spitting, brown staining or premature wear of the appliance: water from clothes dryers, scented or softened water, water from refrigerators, batteries, air conditioners, rain water, boiled, filtered or bottled water. These types of water should NOT be used in your TEFAL steam generator. Also only use distilled or demineralised water as advised left. • Ironing Boards: Due to the powerful steam output, a mesh type iorning board must be used to allow any excess steam to escapte and to avoid steam venting sideways.

If your water is very hard

(check with your local water authority) it is possible to mix tap water with store-bought distilled or demineralised water in the following proportions : 50% untreated tap water, 50% distilled or demineralised water.

Place your steam generator on a flat, stable, heat-resistant surface.

Check that your appliance is unplugged and cold. Unscrew the boiler cap. Using a water jug, fill with maximum 1 litre of water. Fill the boiler, taking care that the water does not spill over fig.4. If this occurs, remove the excess water. • Replace the boiler cap, screwing on firmly, but not over tight.

Using your steam generator

• Completely unwind the power cord and the steam cord from its storage space . • Tilt the locking ring of the iron forwards to release the safety catch. • Plug in your steam generator to an earthed socket. • Press the on/off luminous switch. It comes on and the boiler heats up. • After approximately 8 minutes or when the steam ready indicator light comes on (according to model), the steam is ready - fig.5. • During ironing the iron’s thermostat light and the steam indicator (according to model) will go on and off according to the temperature control.

The first time the appliance is used, there may be some fumes and smell but this is not harmful. They will not affect use and will disappear rapidly.

1800115362 GV52XX TEFAL:110x154

• Set the iron temperature adjustment dial and the steam flow adjustment dial (according to model) to the type of fabric to be ironed (see table below). • The thermostat light comes on. • To obtain steam, press on the steam control button on the iron handle fig.6. • The steam will stop when you release the button.

TYPE OF FABRIC Linen, Cotton

(Polyester,Acetate,Acrylic, Polyamide)

Mixed fibre fabrics : set the ironing temperature to the setting for the most delicate fabric.

Woollen garments : press repeatedly on the steam control button - fig.6 to obtain short bursts of steam, without placing the iron on the garment itself. This will avoid making the fabric shiny.

The generator and the iron are ready to iron when the steam ready indicator light (according to model) is lit and the iron thermostat dial light has gone out.

SETTING THE TEMPERATURE

(according to model)

• Start with the fabrics to be ironed at a low temperature and finish with those which need higher temperatures (••• or Max).

• To prime the steam circuit, either before using the iron for the first time, or if you have not used the steam function for a few minutes, press the steam control button - fig.6. several times in a row, holding the iron away from your clothes.This will enable any cold water to be removed from the steam circuit. • For delicate fabrics, press the steam control button (on the handle of the iron) intermittently to avoid possible water droplets appearing with the steam. • If you are using starch, it should be sprayed onto the reverse side of the fabric to be ironed.

• Do not press on the steam control button - fig.6.

Vertical steam ironing

Never unscrew the boiler cap while it’s still steaming.

• Set the iron temperature dial and the steam flow adjustment dial (according to model) to the max. position.

• Hang the garment on a coat hanger and hold the fabric slightly taut with one hand. • Press repeatedly on the steam control button - fig.6.(on the iron handle) moving the iron from top to bottom - fig.7.

F H As steam is very hot, never attempt to remove creases from a garment while it is being worn, always hang garment on a coat hanger. For fabrics other than linen or cotton, hold the iron a few centimetres from the garment to avoid burning the fabric.

SLO RU Filling the boiler during use UA

• VERY IMPORTANT : Before opening your boiler, ensure that there is no more steam left inside by pressing the steam control button - fig.6 located on the handle of the iron and keep it pressed down until there is no more steam.

• Stop the generator by pressing the on/off switch and disconnecting the plug. • Slowly unscrew the boiler cap. • Using a water jug, fill with maximum 1 litre of water. • Fill the boiler fig.4, taking care that the water does not spill over. If this occurs, remove the excess water. • Replace the boiler cap, screwing on tightly, reconnect your generator to the mains, and switch it on. • Wait until the boiler heats up. After approximately 8 minutes or when the steam ready indicator light comes on (according to model), the steam is ready.

1800115362 GV52XX TEFAL:110x154

Storing the generator

• Warning: do not touch the soleplate while still hot. • Fold the carrying arm down onto the iron until it clicks into position, ensuring that your iron is safely locked onto its housing (depending on model). • Store the electrical cord in its storage place - fig.8. • Storing the steam cord - fig.9. • Leave the iron (and the iron rest) to cool down for 1 hour before storing it away.

Maintenance and cleaning

Before cleaning, ensure that your steam generator is unplugged and that the soleplate and the iron rest have cooled down. Do not use detergent or descaling products for cleaning the soleplate or the base unit. Never hold the iron or the base unit under the tap.

Cleaning the soleplate

• Regularly clean the soleplate with a non-metallic sponge.

• Clean the plastic parts of the appliance occasionally with a soft dampened cloth.

• Be careful : To extend the life of your boiler and to avoid the building up of scale, it is essential that you rinse out the boiler at least after every 10 uses (approximately once a month).

• Check that the generator is cold and unplugged for more than 2 hours. • Using a jug, fill the boiler 3/4 full with untreated tap water- fig.10 • Shake the base unit for a few moments and then empty it completely over your sink - fig.11. • To obtain the best results, we advise you to repeat this operation.

If your water is hard, increase the frequency.

In particular, do not use descaling agents for rinsing out the boiler, as they could damage it.

A problem with your generator ?

PROBLEMS The generator does not come on and the thermostat light is not illuminated. Water runs out of the holes in the soleplate.

Water streaks appear on the linen.

CAUSES The appliance is not switched on.

SOLUTIONS Check that your appliance is correctly plugged in

Water has condensed in the pipes because you are using steam for the first time or you have not used it for some time.

The soleplate is not hot enough.

Press on the steam control button away from your ironing board until the iron produces steam.

Wait for the thermostat light to go out before activating the steam button. Contact an Approved Service Centre.

Your thermostat is faulty: the iron is not hot enough.

Your ironing board is saturated with Check that your ironing board is water because it is not suitable for suitable. use with a steam generator.

1800115362 GV52XX TEFAL:110x154

GB PROBLEMS CAUSES White streaks come through the holes in the soleplate.

Your boiler has a build-up of scale because it has not been rinsed out regularly.

Brown streaks come through the holes in the soleplate and stain the linen.

You are using chemical descaling agents or additives in the water for ironing.

Never add this type of product in the water tank or in the boiler (see § “for what water may be used”). Contact an Approved Service Centre.

The soleplate is dirty or brown and may stain the linen.

You are ironing at too high a temperature.

See our recommendations regarding temperature control setting.

There is no steam or there is little steam.

Steam escapes from the rinse plug.

Steam or water escapes under the appliance.

SOLUTIONS D F NL E P I Your linen is not rinsed sufficiently Ensure linen is rinsed thoroughly to or you have ironed a new garment remove any soap deposits or before washing it. chemicals on new garments which may be sucked up by the iron.

You are using starch. Always spray starch on the reverse side of the fabric to be ironed. The water tank is empty (red light Fill the tank and press the "Restart" on). button until the indicator goes out.

DK N S FIN The soleplate temperature is set to The generator is working but steam the maximum. is very hot and dry As a consequence, it is less visible.

TR GR The rinse plug has not been tightened correctly.

Tighten the rinse plug correctly.

The rinse plug seal is damaged.

Contact an Approved Service Centre to order a new rinse plug seal.

CZ The generator is faulty.

Stop using the generator and contact an ApprovedService Centre.

SK The generator is faulty.

Stop using the generator and contact an Approved Service Centre.

PL H SLO Environment protection first !

RU Your appliance contains valuable materials which can be recovered or recycled.

Leave it at a civic waste disposal centre.

UA If you have any problems or queries please call our Customer Relations team first for expert help and advice:

0845 602 1454 - UK / (01) 677 4003 - Ireland or consult our website - www.tefal.co.uk
