USER MANUAL Ultraglide Diffusion FV3260 TEFAL

Illustration of a T-fal ultraglide steam iron with visible branding and body (no text or symbols on the device itself)

Mod.: FV32xx series

ENG

FR

ESP

1 2 3 4 5 6 7 8 9 10 MAX 111213

14 ULTRAGLIDE Diffusion

Diagram of a mechanical device with a circular arrow indicating rotation, labeled 'fig 1' at bottom (no readable text or symbols)

fig.1

Diagram of a car seatbelt mechanism with directional arrow and label 'fig 2' (no text or symbols on diagram itself)

fig.2

Illustration of a person using a power iron on an iron cutting board (no text or symbols)

fig.3

cooling pan cooling pan Fig.4

fig.4

wool Fig.5

fig.5

Diagram of a mechanical device with a circular component and directional arrow, labeled 'fig.6' (no readable text or symbols)

fig.6

Close-up of a car interior showing a hand holding a car seatbelt with a downward arrow indicating force or motion (no text or symbols)

Diagram showing a car interior with a downward arrow and label 'fig.8' (no readable text or symbols)

Illustration of a hand using a power iron to clean a surface, with arrows indicating direction (no text or symbols)

Illustration of a car interior with a starburst effect, no visible text or symbols

Illustration of an iron on a circular frame, labeled 'fig.11' (no text or symbols on the diagram itself)

b a fig.12

IMPORTANT SAFEGUARDS

Read all instructions before using the iron.

When using your flatiron, basic safety precautions should always be followed, including the following:

1. Use iron only for its intended use.
2. To protect against a risk of electric shock, do not immerse the iron or the base of the iron in water or other liquids.
3. The iron should always be turned OFF before plugging or unplugging from outlet. Never yank cord to disconnect from outlet; instead, grasp plug and pull to disconnect.
4. Do not allow cord to touch hot surfaces. Let iron cool completely before putting away. Loop cord loosely around iron when storing.
5. Always disconnect iron from electrical outlet when filling with water or emptying and when not in use.
6. Do not operate iron with a damaged cord or if the iron has been dropped or damaged. To avoid the risk of electric shock, do not disassemble the iron. Contact our Consumer Service Department for examination, repair or adjustment. Incorrect reassembly can cause a risk of electric shock when the iron is used.
7. Close supervision is necessary for any appliance being used by or near children. Do not leave iron unattended while connected or on an ironing board.
8. Burns can occur from touching hot metal parts, hot water or steam. Use caution when you turn a steam iron upside down - there may be hot water in the reservoir.
9. This appliance is only for domestic and personal use.

SPECIAL INSTRUCTIONS

1. To avoid a circuit overload, do not operate another high-wattage appliance on the same circuit.
2. If an extension cord is absolutely necessary, a 13 ampere cord should be used. Cords rated for less amperage may overheat. Care should be taken to arrange the cord so that it cannot be pulled or tripped over.

SAVE THESE INSTRUCTIONS

For your safety

• This appliance complies with the technical rules and standards for safety currently in force (Electromagnetic Compatibility, Low Voltage, Environnement).
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.
• Warning ! The voltage of your electrical outlet must correspond to that of the iron (120V). Connecting to the wrong voltage may cause irreversible damage to the iron and will invalidate the guarantee.
• If the electrical cord becomes damaged, it must be immediately replaced by an Approved Service Center to avoid any danger.
• The appliance should not be used if it has fallen, if it has obvious damage, if it leaks or has functional anomalies.

Never dismantle your appliance: have it inspected by an Approved Service Center to avoid any danger.

• Always unplug your appliance: before filling or rinsing the reservoir, before cleaning it and after each use.
• Never leave the appliance unattended when it is connected to a power source; if it has not cooled down for approximately 1 hour.
• Your appliance gives off steam, which may cause burns, especially when you are ironing on a corner of your ironing board. Never direct the steam towards people or animals.
• Your iron should be used and placed on a stable surface. When you put your iron onto its heel or the iron rest, make sure that the surface on which you put it is stable.
• Any inappropriate use or use contrary to these instructions releases the brand from all responsibility and renders the guarantee invalid.

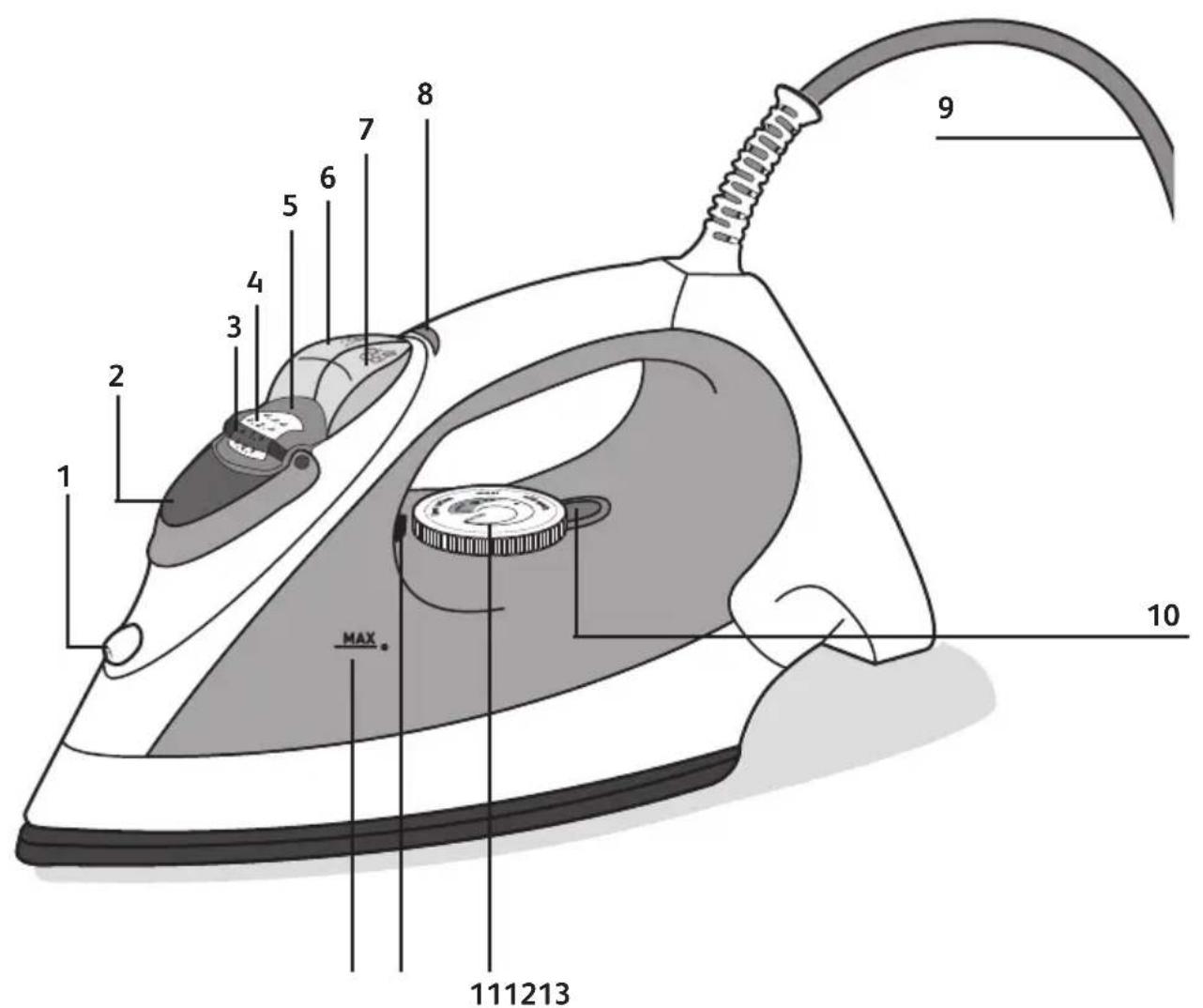

Description

1. Spray
2. Water filling inlet lid
3. Steam control lever
4. Anti-scale valve
5. Self-Clean button
6. Spray button

7. Burst of steam button

8. Auto-off indicator light (depending on model)

9. Electric power cord
10. Temperature ready light
11. Temperature control dial
12. Temperature select position
13. Maximum water level indicator

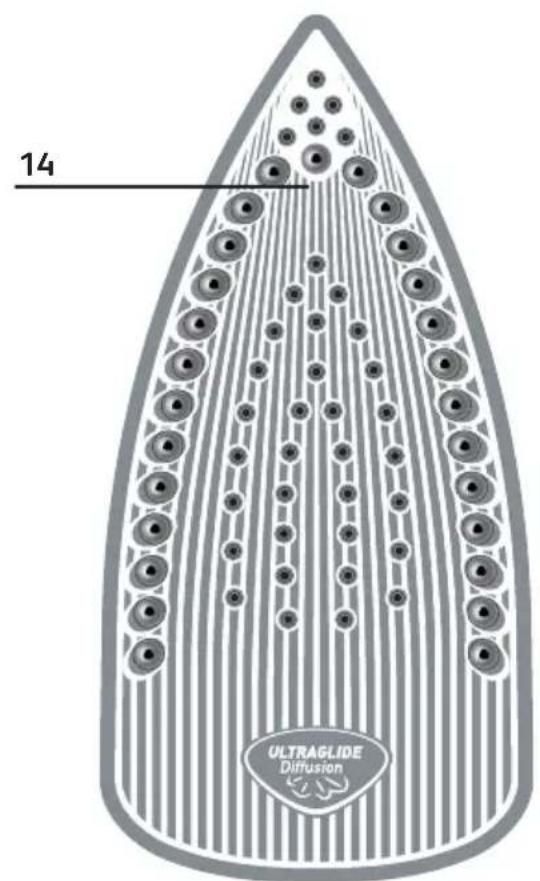

14. Soleplate

Before first use

• Before using your iron with steam for the first time, we recommend that you place and keep the iron in a horizontal position for a few moments and press the burst of steam button several times away from your fabric.
• During the first few uses, a harmless odor and smoke may be emitted from the iron. This has no effect on the iron and will disappear quickly.

Please read these instructions carefully and keep them for future reference.

Remove any labels, stickers or hangtags from the body or soleplate of the iron before plugging it in.

What type of water should be used?

If you have very hard water, it is recommended that you mix tap water with purified (bottled) water in the following ratio:

- 50% tap water, - 50% purified (bottled) water. This will reduce the amount of lime scale build-up in your iron and reduce the amount of times you will need to clean your iron.

• Your iron has been designed to function with untreated tap water. However, due to the natural minerals found in tap water, it is recommended that you clean the iron once a month using the self cleaning method on page 5.
• Never use any of the following water types as this may cause spitting, brown staining or premature aging of your iron: 100% purified water (bottled water), water from tumble dryers, scented water, softened water, water from refrigerators, water from batteries, water from air conditioners, distilled water, rain water, boiled or filtered water, etc.
• The integrated anti-scale system (depending on model) prolongs the life of the iron and provides a better ironing quality by ensuring a constant flow of steam.

Use

Filling the water tank

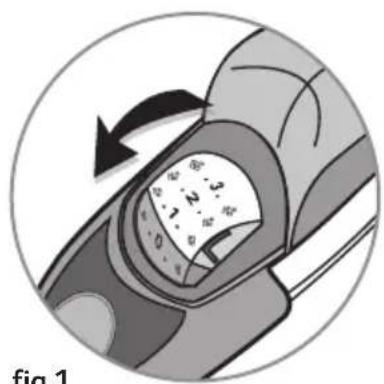

• Unplug your iron before filling it and set the steam control lever to .0. (fig.1).

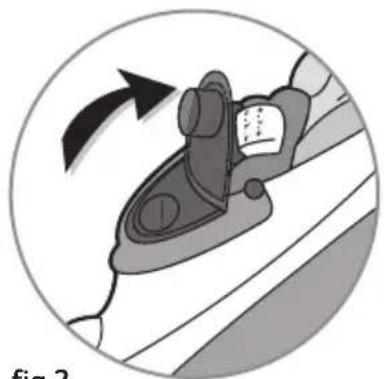

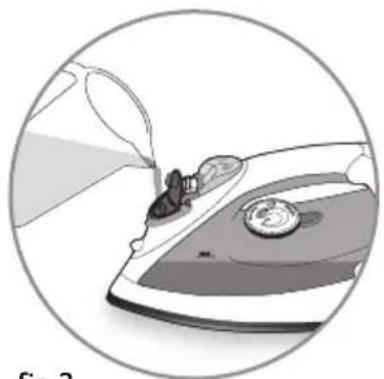

• Open the water tank filling inlet lid (fig.2), place the iron in a horizontal position and fill it with water (fig.3).
• Close the water tank filling inlet lid.

Do not exceed the "MAX" fill level as indicated on the water tank of the iron.

Adjusting the temperature and the steam

- It is normal for the temperature indicator light to turn on and off during ironing. - In order to avoid water leaking from the soleplate onto your garment:

• Set the steam lever to · 0. when ironing silk or synthetic fabrics and set it to for wool.
• Should you need to turn down the temperature, wait until the temperature light comes back on before beginning to iron again.
• When ironing fabrics with mixed fabrics, set the iron temperature for the most delicate fabric.
• For delicate fabrics, we recommend testing the fabric first on an inconspicious place for example, (inside the hem).

• If you want to iron without steam, set the steam control lever to ♦.0.

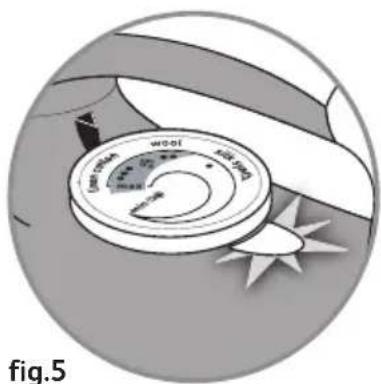

• Adjust the temperature (see table below) by turning the temperature control dial to the temperature select position (fig. 4).

• When the iron is plugged in, the temperature control light will remain “on” until the temperature is reached. Once the temperature is reached, it will go “off” (fig.5).

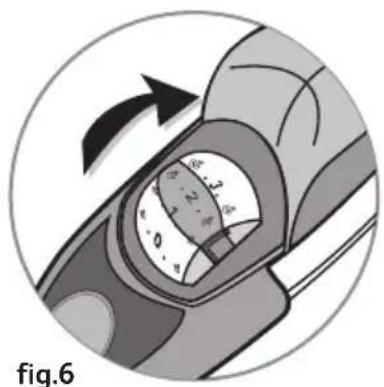

• Adjust the amount of continuous steam output by moving the steam control lever (fig.6). See below table for recommended steam output levels.

FABRIC	POSITION OF TEMPERATURE BUTTON	STEAM SETTING POSITION
LINEN MAX		.3.
COTTON		.2.
WOOL		.1.
SILK
SYNTHETIC (Polyester, Acetate, Acrylic, Polyamid)		.0.

= STEAM ZONE

- Your iron heats up quickly, therefore, begin ironing with fabrics that are ironed at lower temperatures first, then go on to those requiring a higher temperature.

Obtaining more steam

- Press the Burst of Steam button ⚙ periodically to remove stubborn wrinkles (fig.7).

In order to achieve the maximum amount of steam, it is recommended that you wait a few seconds after you push the burst of steam button again.

Spray Function

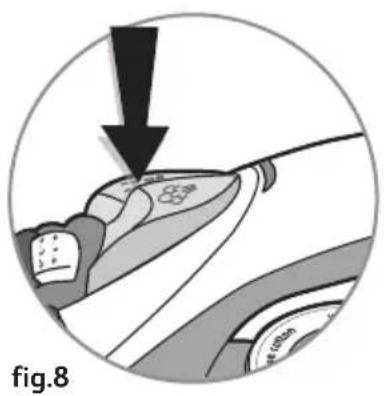

- The Spray button ⬆ (fig.8) will release a mist of water onto your fabrics. Use this to remove stubborn wrinkles.

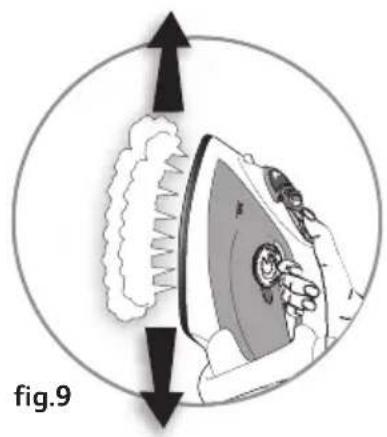

Vertical steam function (depending on model)

This is ideal for removing wrinkles in delicate garments, jackets, skirts, curtains, etc.:

- Hang the garment on a hanger and hold the fabric slightly taut with one hand.

Every fifth time you press the button, return the iron to the horizontal position.

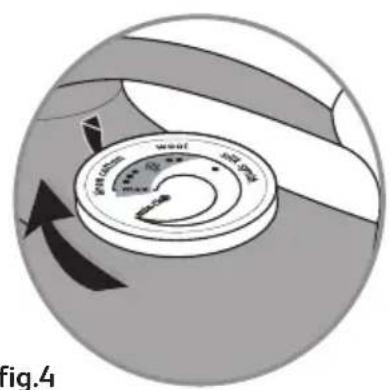

• Set the temperature control dial to MAX (fig.4).

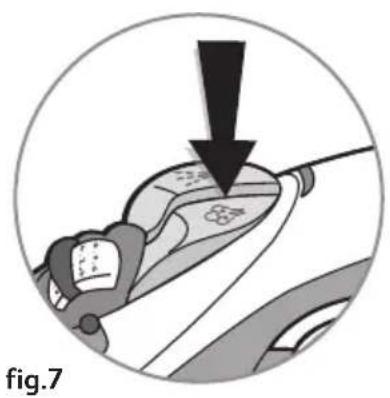

• Repeatedly press the Burst of Steam button ✿ fig.7) and continuously move the iron over the fabric (fig.9).
• Hold the iron a few inches from the fabric to avoid burning delicate fabrics.

The steam is very hot.

When using the vertical steam function, always iron with the garment on a hanger, never while wearing it.

3-Way automatic shut-off (depending on model)

When the auto-off warning light is on, it is normal for the temperature light to remain off.

The iron is equipped with an electronic system that will automatically cut the power source to your iron if it is left vertically on its heel for more than 8 minutes, on its soleplate for more than 30 seconds or on its side for more than 30 seconds.

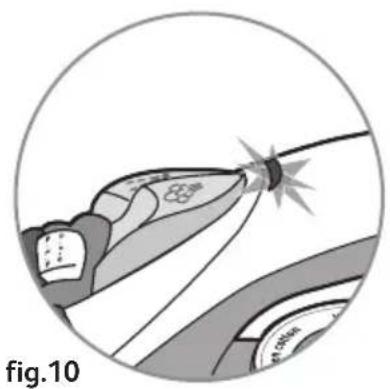

The auto-off warning light (fig.10) will flash when the iron is in the shut off mode.

- To restart the iron, gently shake the iron until the warning light stops flashing.

Storing your iron

• Set the steam control lever to and. unplug the iron.
• Let the soleplate cool completely and empty the water tank. A small amount of water may remain in the water tank.
• Wrap the cord around the heel of the iron.

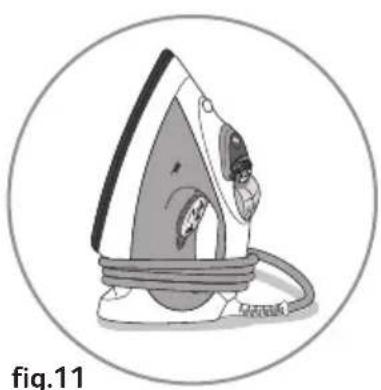

• Store the iron on its heel (fig.11).

Maintenance and cleaning

Cleaning the anti-scale valve

It is recommended that you clean the anti-scale valve once a month to remove scale build up on the valve.

Clean the anti-scale valve as noted below:

• Unplug your iron and empty the water tank.

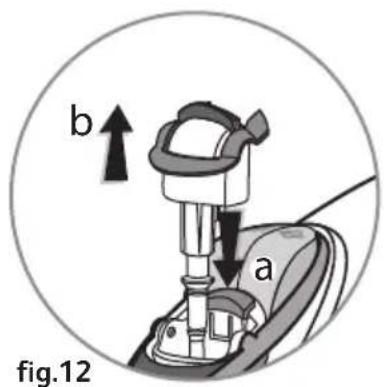

• Press the Self-Clean ejection buttonfig.12a) and remove the anti-scale valve (fig.12b)
• Soak the valve (the black section only) in white vinegar or plain lemon juice for 4 hours.
• Rinse the valve under running water and put the anti-scale valve back.

Unplug your iron and let it cool completely before cleaning it.

The iron will not function without the anti-scale valve.

Never touch the end of the valve!

Cleaning the iron

It is recommended that you clean the iron once a month to slow down scale build up and prolong the life of the iron.

Clean your iron as noted below:

• Unplug the iron, set the steam control lever to and fill the water tank to MAX.
• Place the iron on its heel, set the temperature dial to MAX, plug in the iron and wait for the indicator light to go out.
• Unplug the iron and place it horizontally over a sink.
• Press the Self-Clean ejection button (fig.12a) and remove the anti-scale valve (fig.12b).
• Gently shake the iron over the sink until all of the water (along with impurities) runs out through the soleplate.
• At the end of the operation, put the anti-scale valve back into the iron and allow it to heat for 2 minutes on its heel to dry the soleplate.

Cleaning the soleplate

- Unplug the iron. When the soleplate is slightly warm, wipe it with a soft cloth.

Never use abrasive or aggressive products.

If there is a problem

PROBLEM POSSIBLE CAUSE SOLUTION
Water drips from the holes of the soleplate.	The chosen temperature is too low and does not allow for the formation of steam.	Position the temperature control dial in the steam range (from •• to MAX).
	You are using steam while the iron is not hot enough.	Wait until the temperature light goes out.
	You are using the Burst of Steam button too often.	Wait a few seconds before pressing the button again.
	There is too much steam.	Move the steam control lever to a lower setting.
	You have stored the iron horizontally, without emptying it and without setting it to .0.	See the section "Storing your iron".
Brown streaks come through the holes of the soleplate and stain the fabric.	You are using chemical descaling agents.	Do not add any descaling agents into the water tank.
	You are not using the right type of water.	Perform a self-cleaning operation and consult the chapter "What type of water should be used?".
	Fabric fibers have accumulated in the holes of the soleplate and are burning.	Perform the self-cleaning operation and clean the soleplate with a damp sponge. Vacuum the holes of the soleplate from time to time.
	Your fabric has not been rinsed sufficiently or you have ironed a new garment before washing it.	Make sure that your fabric is rinsed sufficiently so as to remove any deposits of soap or chemical products on new clothes.
The soleplate is dirty or brown and is staining the fabric.	The temperature is set too high.	Clean the soleplate with a damp sponge and lower the temperature.
	You are using starch.	Clean the soleplate with a damp sponge. Always spray starch onto the reverse side of the fabric to be ironed.
There is little or no steam.	The water tank is empty.	Fill it.
	The anti-scale valve is dirty.	Clean the anti-scale valve.
	Your iron has a build-up of scale.	Clean the anti-scale valve and perform the self-cleaning iron operation.
	Your iron has been used dry for too long.	Perform the self-cleaning iron operation.
The soleplate is scratched or damaged.	You have used your iron on an abrasive surface or it has been misused.	The T-fal iron has a Lifetime warranty on the soleplate (valid in USA and CANADA only). Please contact our consumer service department at 1-800-395-8325.
Steam or water comes from the iron as you finish filling the tank.	The steam control lever is not set to the .0. position.	Set the steam control lever to .0.
	The water tank is overfilled.	Never exceed the Max level.
The spray button does not spray water.	The water tank is not filled enough. Fill the water tank.

For all other problems or questions, please contact our Consumer Service Department at 1-800-395-8325 or visit us at www.t-falusa.com. Or in Canada at 1-800-418-3325 or visit our website at www.t-fal.ca. You may also contact an approved Service Center, please visit our website for their contact information.
