USER MANUAL Easy Steam FV1940 TEFAL

Black and white image of a Tfal air iron with visible internal components and handle (no text or symbols on the device itself)

EN

ES

EN For further usage information /

Diagram illustrating the working principle of an iron iron, showing how to adjust components like cutting, cleaning, and finishing.

FR

SOMMAIRE

RECOMMANDATIONS IMPORTANTES DE SÉCURITÉ

Diagram illustrating ship safety rules with warning symbols and labeled diagrams for different operational conditions.

PREPARATION

PROBLEMES CAUSES POSSIBLES SOLUTIONS

Important safety recommendations p. 20

Before first use p. 22

PREPARATION

Which water should I use? p. 23

Filling the water tank.... p. 23

USE

Adjusting the temperature and steam.... p. 24

Dry ironing p. 25

Getting more steam.... p. 25

Vertical steam ironing.... p. 26

Dampening clothing (Spray) p. 27

While ironing p. 27

IRON STORAGE AND MAINTANANCE

Storing your iron.... p. 28

Cleaning the soleplate p. 29

Cleaning the steam chamber p. 29

IS THERE A PROBLEM WITH YOUR IRON?

Problems, possible causes, solutions.... p. 32-33

IMPORTANT SAFETY INSTRUCTIONS

Read all instructions before using the iron.

When using your iron, basic safety precautions should always be followed, including the following:

1. Use iron only for its intended use.
2. To protect against a risk of electric shock, do not immerse the iron in water or other liquids.
3. Always turn the iron OFF before plugging or unplugging the iron from the electrical outlet. Never pull on the cord to disconnect the iron from the electrical outlet; instead, grasp the plug and pull on the plug to disconnect the iron.
4. Do not allow cord to touch hot surfaces. Let iron cool completely before putting away. Loop cord loosely around iron when storing.
5. Always disconnect iron from electrical outlet when filling with water or emptying and when not in use.
6. Do not operate iron with a damaged cord or if the iron has been dropped or damaged. To avoid the risk of electric shock, do not disassemble the iron. Contact our Consumer Service Department for examination, repair or adjustment. Incorrect reassembly can cause a risk of electric shock when the iron is used.
7. Close supervision is necessary for any appliance being used by or near children. Do not leave iron unattended while connected or on an ironing board.
8. Burns can occur from touching hot metal parts, hot water or steam. Use caution when you turn a steam iron upside down - there may be hot water in the reservoir.
9. This appliance is only for domestic and personal use.

SPECIAL INSTRUCTIONS

1. To avoid a circuit overload, do not operate another high-wattage appliance on the same circuit.
2. If an extension cord is absolutely necessary, a 15 amp. cord should be used. Cords rated for less amper may overheat. Care should be taken to arrange the cord so that it cannot be pulled or tripped over.

SAVE THESE INSTRUCTIONS

For your safety

PLEASE READ THESE INSTRUCTIONS CAREFULLY

AND KEEP THEM FOR FUTURE REFERENCE.

This appliance complies with the technical rules and standards for safety currently in force (Electromagnetic Compatibility, Low Voltage, Environnement).

• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children must be supervised to ensure that they do not play with the appliance.

• The iron must not be left unattended while it is connected to the supply mains.

• Keep the iron and its cord out of reach of children less than 8 years.

• During the first few uses, a harmless odor and a small amount of smoke may be given off. This has no effect on the use of the iron and will disappear quickly.
• Warning! The voltage of your electrical installation must correspond to that of the iron (120V). Connecting to the wrong voltage may cause irreversible damage to the iron and will terminate the guarantee.
• If it is absolutely essential to use an extension cable, choose a 15 amp cord.
• If the electrical cord becomes damaged, it must be immediately replaced by an Approved Service Centre to avoid any danger.
• The appliance should not be used if it has fallen, if it has obvious damage, if it leaks or functions incorrectly. Never dismantle your appliance: have it inspected by an Approved Service Centre, to avoid any danger.
• Never immerse your iron in water!
• Do not unplug your appliance by pulling on the cord. Always unplug your appliance: before filling or rinsing the water tank, before cleaning it, after each use.
• Never leave the appliance unattended when it is connected to the mains. Before storing the appliance, once it is unplugged, please wait until it has cooled down (around 1 hour).
• Your appliance gives off steam, which may cause burns. Take extra care especially when you are ironing close to the edge or on a corner of your ironing board. Never direct the steam towards people or animals.
• Your iron should be used and placed on a flat, stable, heat-resistant surface. When you put your iron onto its iron rest, make sure that the surface on which you put it is stable.
• This product has been designed for domestic and indoor use only. The manufacturer will accept no responsibility and the guarantee will be terminated, if this product is used for commercial purposes, inappropriate use or failure to comply with the instructions.

Environment protection first!

① Your appliance contains valuable materials which can be recovered or recycled.
Leave it at a local civic waste collection point.

BEFORE FIRST USE

Remove any labels from the soleplate before heating the iron.

Before using the steam function in your iron for the first time, we recommend that you allow the iron to operate a few moments in a horizontal position without coming into contact with your laundry. Keeping the iron in this position, push the steam button several times.

During the first few uses, the appliance may produce smoke, a harmless odor and a light emission of particles. These are simply the engineering residues from the manufacturing process burning off. These are harmless and will quickly disappear.

PREPARATION

Which water should I use?

• Your appliance was designed to operate using untreated tap water. However, it is necessary to periodically clean the steam chamber to remove any mineral deposits.
• Do not use pure demineralised or pure distilled water, water from clothes dryers, scented or softened water, rain water, filtered, bottled or boiled water, water from refrigerators, batteries or air conditioners, pure distilled water or rain water as these may damage the iron. These types of water contain organic waste, mineral elements that become concentrated when heated and cause spitting, brown staining, leaking or premature wear on your iron

If your water is very hard (above 30^ f or 17^ dH or 21^ e) mix 50% untreated tap water with 50% distilled water (available in hardware stores).

Filling the water tank

• Unplug the iron before filling it.
• Set the steam control to
• Lift the iron and, holding it at a slight incline, point the soleplate up.
• Open the water tank cover.
• Fill the water tank to the mark "MAX".
• Close the water tank cover.

USE

- Plug in the appliance.

Adjusting the temperature and steam

- Adjust the temperature and steam control, referring to the table below.

FABRIC	TEMPERATURE CONTROL POSITION	STEAM CONTROL POSITION
LINEN	MAX
COTTON	●●●
WOOL	●●
SILK/SYNTHETIC (Polyester, Acetate, Acrylic, Polyamino;)	●

• STEAM ZONE

• The temperature indicator light turns on.

- It will turn off automatically once the soleplate achieves the desired temperature.

Your iron heats quickly: begin with fabrics that require lower temperatures.

When ironing fabrics with most delicate fibers: set the ironing temperature for the most fragile fiber.

The iron will not heat up if the thermostat control is set to "MIN".

Dry ironing

Getting more steam

• Set the temperature according to the fabric to be ironed.
• Put the command on no steam position
• You may continue to iron when the indicator light turns off.
• Put the command on steam position
• Set the thermostat control to "MAX" or "●●●".
• Press the turbo steam button periodically (turbo steam).
• To avoid water dripping on the laundry, maintain an interval in between each press.

NO max.

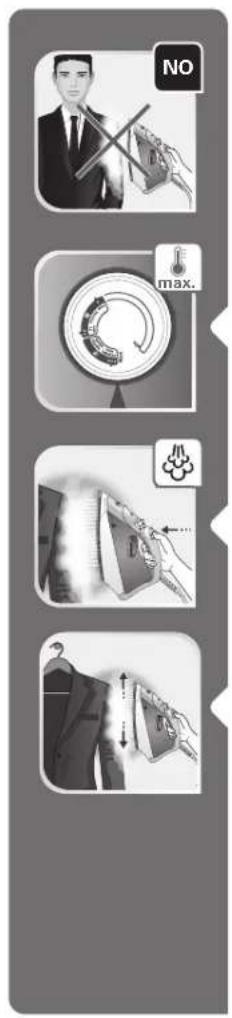

Vertical steam ironing

• Hang the item on a hanger. The steam is very hot; never steam iron clothing while it is being worn - always use a hanger.
• Set the thermostat control to "MAX".
• Press the turbo steam button (turbo steam) in pulses, moving the iron from top to bottom.
• Hold the iron at a distance of a few centimeters from the clothing to avoid burning delicate fabrics.

NO OK

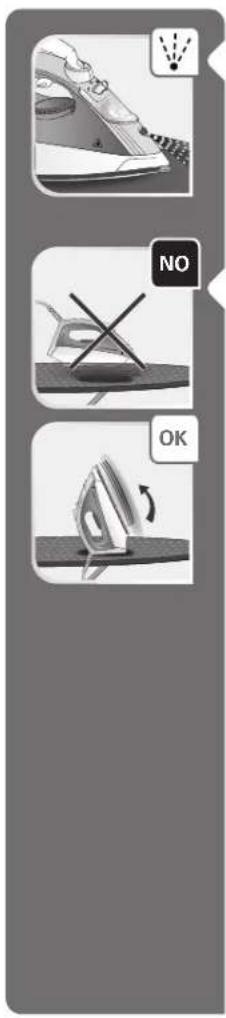

Dampening clothing (Spray)

• Press repeatedly on the spray button to moisten clothing and remove stubborn creases.
• Ensure that there is water in the tank before using the spray button.

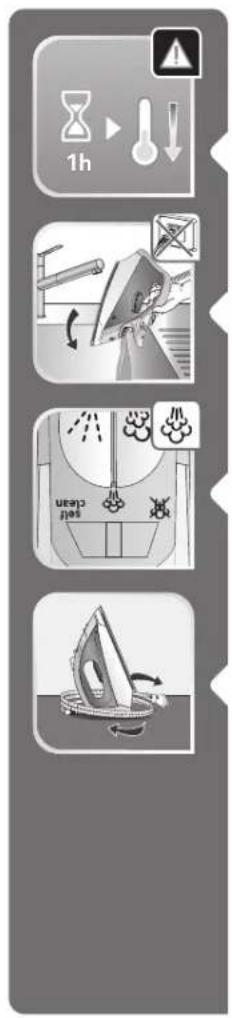

While ironing

- Do not lay the iron down on the soleplate; use the heel rest for this purpose.

1h Clean Clean

IRON STORAGE AND MAINTANANCE

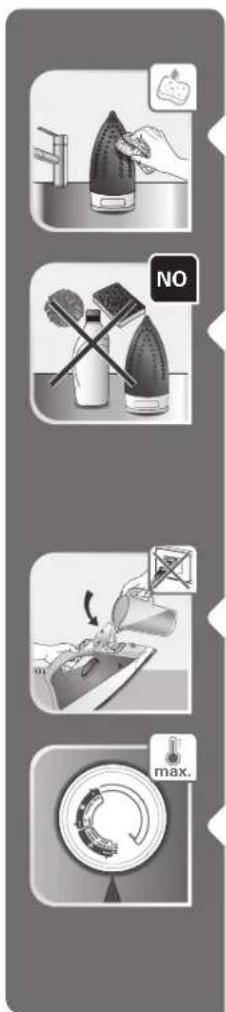

Storing your iron

• Unplug the iron and wait for the soleplate to cool (approx. 45 min.).
  • Empty the water tank.
• Set the steam control to
• Wrap the cord around the iron's heel rest. Store the iron on its heel rest.

NO max.

Cleaning the soleplate

• While the soleplate is still cool, clean it with a wet sponge.
• Never use chemical or abrasive products.

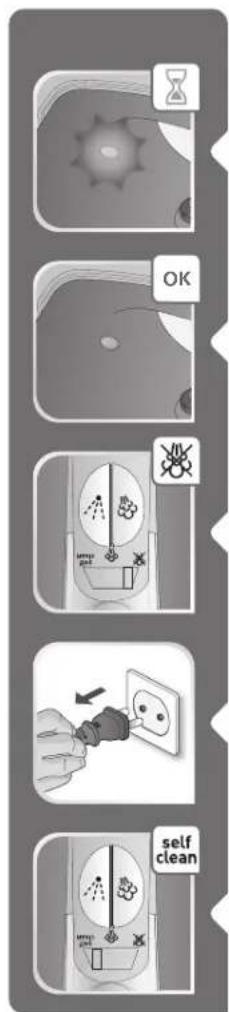

Cleaning the steam chamber

• Fill the water tank to the mark "MAX".
• Plug the iron and set the thermostat control to «MAX».

OK self clean

• The temperature indicator light turns on.
- It will turn off automatically once the soleplate achieves the desired temperature.
- Put the iron on non-steam mode.
- Unplug the iron.
- Put the iron on self-clean mode.

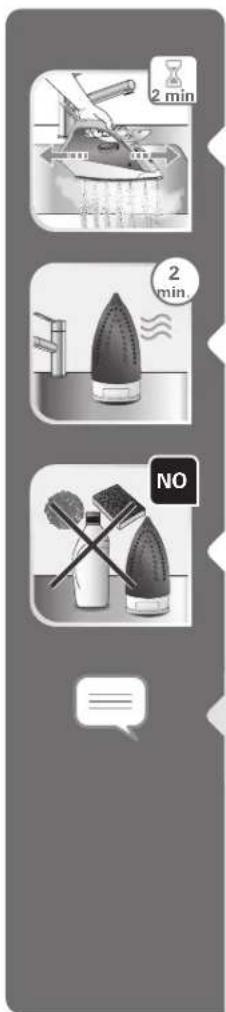

2 min 2 min. NO

• Shake the iron for two minutes on top fo your sink.
• Plug in your iron for 2 minutes on the heel rest to dry the soleplate.
• Unplug your iron and, once cooled, wipe it with a wet sponge.
• Never use chemical or abrasive products.

During the next use, turn on your iron in a horizontal position without putting it into contact with your laundry in order to eliminate any water containing mineral residues that remain in the soleplate.

IS THERE A PROBLEM WITH YOUR IRON?

PROBLEMS	POSSIBLE CAUSES		SOLUTIONS
Water is leaking from the holes in the soleplate.	You are using the steam when the iron is not hot enough.		Wait for the indicator light to turn off.
	You are using the turbo steam) too button		Wait a few seconds between each use.
	You have stored the horizontally without the water tank or steam control to [GZW] [Z7AC] [Z23A]	emptying the	See the chapter on «Storing your iron».
	The chosen temper low and does not formation of steam [B07C]	is too the	Position the thermostat in the steam range (from ●●● to MAX).
The iron leaks at the start of ironing.	The steam control set to ☑ when filling tank.	not water	Ensure that the steam control dial is set to ☑ when filling the water tank.
A brown discharge coming from the soleplate is staining the clothing.	You are using chel descaling agents.		Do not introduce a descaling agent into the water tank.
	You are not using of water. [SW53]	light type	Clean the steam chamber and see the chapter on «What water should I use?»
	Clothing fibres are in the holes of the burning. [BTZD] [Q6HHK]	ng up ate and	Clean the steam chamber and the soleplate with a damp sponge. Periodically vacuum the holes in the soleplate.
The soleplate is dirty or brown and may stain clothing.	The temperature of too hot. [32ZA] [KYAZ] [53O2]	iron is	Clean the soleplate as indicated above. Consult the table of temperatures to adjust the temperature.
	You are using star [SAHX] [DTBD] [C09X]	an the soleplate as indicated above. Spray the starch on the reverse side of the clothing to be ironed.
	Your laundry has rinsed sufficiently ironing a new item before washing it. [Z7ZX]	en are nothing	Ensure that your laundry is sufficiently rinsed to eliminate potential soap deposits or chemical products on new items of clothing.

IS THERE A PROBLEM WITH YOUR IRON?

PROBLEMS POSSIBLE CAUSES SOLUTIONS
Your iron produces little to no steam.	The water tank is empty. Fill it up.
	Your iron has been used for too long in the dry ironing function.	Clean the steam chamber.
	The chosen temperature is too low and does not allow the formation of steam.	See the chapter "Adjusting the temperature and steam". Clean the anti-calc valve.
	Your iron is clogged up with limescale.	Clean the anti-calc valve.
The soleplate is scratched or damaged.	You have placed your iron on a metallic iron rest or ironed over metal zips or fasteners.	Always place your iron on its heel rest when not in use. Do not iron over metal zips or fastners.
The iron steams once the water tank has been filled.	The steam control dial is not set to ☒.	Ensure that the steam control dial is set to ☒
	The water tank is too full. Do not exceed the max level for filling.
The spray does not spray water.	The water tank is not full enough.	Add water to the water tank.
The iron rejects particles	The soleplate may be dlogged up with limescale	Proceed to a self cleaning

If you have any problems or queries please call our Customer Relations team first for expert help and advice: consult our website for contact details www.t-fal.com
