USER MANUAL Turbo Pro Anti-Calc FV5636 TEFAL

Black and white photo of a T-fal TurboPro steam iron with visible branding and control panel (no text beyond brand name)

EN For further usage information /

IMPORTANT SAFETY INSTRUCTIONS

Read all instructions before using the iron.

When using your iron, basic safety precautions should always be followed, including the following:

1. Use iron only for its intended use.
2. To protect against a risk of electric shock, do not immerse the iron in water or other liquids.
3. Always turn the iron OFF before plugging or unplugging the iron from the electrical outlet. Never pull on the cord to disconnect the iron from the electrical outlet; instead, grasp the plug and pull on the plug to disconnect the iron.
4. Do not allow cord to touch hot surfaces. Let iron cool completely before putting away. Loop cord loosely around iron when storing.
5. Always disconnect iron from electrical outlet when filling with water or emptying and when not in use.
6. Do not operate iron with a damaged cord or if the iron has been dropped or damaged. To avoid the risk of electric shock, do not disassemble the iron. Contact our Consumer Service Department for examination, repair or adjustment. Incorrect reassembly can cause a risk of electric shock when the iron is used.
7. Close supervision is necessary for any appliance being used by or near children. Do not leave iron unattended while connected or on an ironing board.
8. Burns can occur from touching hot metal parts, hot water or steam. Use caution when you turn a steam iron upside down - there may be hot water in the reservoir.
9. This appliance is only for domestic and personal use.

SPECIAL INSTRUCTIONS

1. To avoid a circuit overload, do not operate another high-wattage appliance on the same circuit.
2. If an extension cord is absolutely necessary, a 15 amp. cord should be used. Cords rated for less amper may overheat. Care should be taken to arrange the cord so that it cannot be pulled or tripped over.

SAVE THESE INSTRUCTIONS

For your safety

PLEASE READ THESE INSTRUCTIONS CAREFULLY AND KEEP THEM FOR FUTURE REFERENCE.

This appliance complies with the technical rules and standards for safety currently in force (Electromagnetic Compatibility, Low Voltage, Environnement).

• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children must be supervised to ensure that they do not play with the appliance.
• During the first few uses, a harmless odour and a small amount of smoke may be given off. This has no effect on the use of the iron and will disappear quickly.
• Warning! The voltage of your electrical installation must correspond to that of the iron (120V or 127 V). Connecting to the wrong voltage may cause irreversible damage to the iron and will terminate the guarantee.
• If it is absolutely essential to use an extension cable, choose a 15 amp cord.
• If the electrical cord becomes damaged, it must be immediately replaced by an Approved Service Centre to avoid any danger.
• The appliance should not be used if it has fallen, if it has obvious damage, if it leaks or functions incorrectly. Never dismantle your appliance: have it inspected by an Approved Service Centre, to avoid any danger.
• Never immerse your iron in water!
• Do not unplug your appliance by pulling on the cord. Always unplug your appliance: before filling or rinsing the water tank, before cleaning it, after each use.
• Never leave the appliance unattended when it is connected to the mains. Before storing the appliance, once it is unplugged, please wait until it has cooled down (around 1 hour).
• Your appliance gives off steam, which may cause burns. Take extra care especially when you are ironing close to the edge or on a corner of your ironing board. Never direct the steam towards people or animals.
• Your iron should be used and placed on a flat, stable, heat-resistant surface. When you put your iron onto its iron rest, make sure that the surface on which you put it is stable.
• This product has been designed for domestic use only. The manufacturer will accept no responsibility and the guarantee will be terminated, if this product is used for commercial purposes, inappropriate use or failure to comply with the instructions.

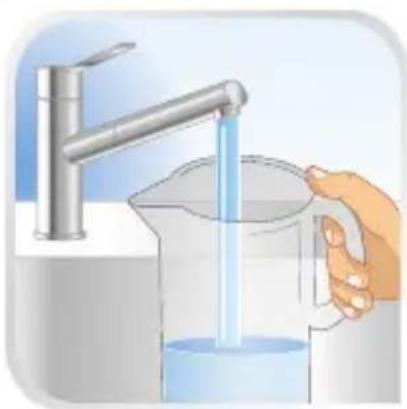

What water to use?

Your appliance has been designed to function with untreated tap water. However, it is necessary to operate the Self-Clean function regularly in order to eliminate hard water deposits from the steam chamber.

If your water is very hard (check with your local water authority), it is possible to mix untreated tap water with store-bought distilled or demineralised water in the following proportions: - 50% untreated tap water, - 50% distilled or demineralised water.

Types of water not to use?

Heat concentrates the elements contained in water during evaporation. The types of water listed below contain organic waste or mineral elements that can cause spitting, brown staining, or premature wear of the appliance: water from clothes dryers, scented or softened water, water from refrigerators, batteries or air conditioners, pure distilled or demineralised water or rain water should not be used in your Tefal iron. Also do not use boiled, filtered or bottled water.

Problems with your iron?

PROBLEM POSSIBLE CAUSES SOLUTIONS
Brown water is dripping from the soleplate and soiling your clothes.	You are using chemical descaling products.	Do not put any descaling product into the water tank.
	You are not using the right water. Perform a self-clean and consult the "What water to use?" section.
The soleplate is dirty or brown and may soil clothes.	The temperature is too high. Clean the soleplate as indicated in the user guide Use a lower temperature.
Your iron produces little or no steam.	Your iron has limescale.	Clean the anti-limescale valve and perform a self-clean.
The soleplate is scratched or damaged.	You have positioned your iron flat on the metallic iron support.You have cleaned your soleplate with an abrasive cloth or steel wool.	Always place your iron in the support base Clean the soleplate as indicated in the user guide.
Your soleplate emits particles.	Limescale is starting to build up on your soleplate.	Perform a self-clean .
Water drips from the holes in the soleplate.	You are using steam while the iron is not hot enough.	Wait until the thermostat light goes out.

Environment

Environment protection first !

Leave it at a local civic waste collection point.
i Your appliance contains valuable materials which can be recovered or recycled.

Durilium Airglide Soleplate Enamel Finish Limited Lifetime Guarantee

valid in USA and Canada only

The manufacturer warrants the iron's UltraglideTM soleplate Enamel finish to be free of manufacturing defects for life of the iron from the date of purchase. This warranty only applies as long as the iron heats up and does not cover damage due to accident, misuse or commercial use and does not cover staining, discoloration or scratching of the enamel soleplate.

Defective products may be returned by the original purchaser or any subsequent owner, postage pre-paid together with proof of purchase date to T-fal.

Defective products will be repaired, or at manufacturer's discretion, replaced at no charge including return postage.

Repairs not covered by this warranty will be performed at current cost for parts and labor plus return postage. Manufacturer's sole obligation and your exclusive remedy under this warranty are limited to such repair or replacement of the soleplate. This is a limited warranty and is in lieu of all other warranties, express or implied, including merchantability. This warranty gives you specific legal rights. You may also have other legal rights varying from province to province, state to state.

If you have a claim:

Please read the Limited Guarantee carefully before you decide to return your product and contact our Consumer Service Department.

What happens to my return?

If the inspection shows that the product is defective, under our Limited Lifetime Guarantee, T-fal will attempt to repair or will replace the soleplate at no cost to you. If our inspection shows that the product is not defective under our Limited Guarantee we will return it to you shipping charges prepaid.

PRÉCAUTIONS IMPORTANTES

Empty rounded rectangle outline with no text or symbols

CENTRO DE SERVICIO DIRECTO IMPORTADOR Y COMERCIALIZADOR

Goldsmith No. 38-2 Planta Baja Groupe SEB México, S.A. de C.V.

Col. Polanco Chapultepec Calle Goldsmith 38-401

Del. Miguel Hidalgo, C.P. 11560 Piso 4 - Polanco

Tel: [phone]

EN Please read carefully the "Safety and use instructions" booklet before first use / FR Veuillez lire attentivement le livret "Consignes de sécurité et d'utilisation" avant la première utilisation / ES Lea detenidamente el libro «Instrucciones de seguridad y de uso» antes de utilizar el aparato por primera vez

EN Depending on model / FR Selon modèle / ES Según modelo

1.

Simple line drawing of a steam iron (no text or symbols)

Simple line drawing of a cup pouring liquid into a clipboard (no text or symbols)

Safety warning symbol with crossed red X and black 'X' on white background, indicating no protection or disapproval.

STOP

Illustration of a hand using a power tool to press down a steam iron, with no text or symbols present.

Illustration of a hand pouring liquid from a beaker into a faucet (no text or symbols)

Illustration of hands pouring liquid from a container into a tray with a tool, no text or symbols present

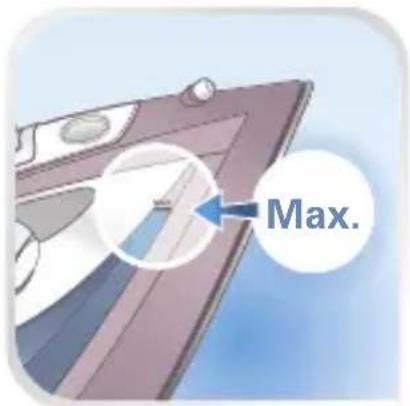

Max.

Illustration of a hand using a power iron to press down a machine, with no text or symbols present.

NO

1.

Simple line drawing of a steam iron (no text or symbols)

Illustration of a hand inserting a plug into an electrical outlet (no text or symbols)

Hand inserting a white plug into a wall-mounted electrical outlet (no text or symbols visible)

Illustration of a car with a red starburst and an hourglass icon (no text or symbols)

Illustration of a modern architectural interior with curved walls and a circular base (no text or symbols)

2.

Simple line drawing of a hand using a tool to cut or spread a rectangular object (no text or symbols)

Illustration of a hand using a power tool to clean or brush a surface (no text or symbols)

STOP

Illustration of a hand washing a hot airfoil and a close-up of a tool on a curved surface (no text or symbols)

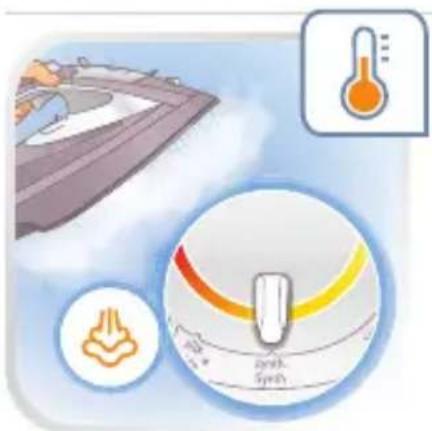

Diagram illustrating a heating system with a thermometer and a dial indicator, alongside icons for heating elements.

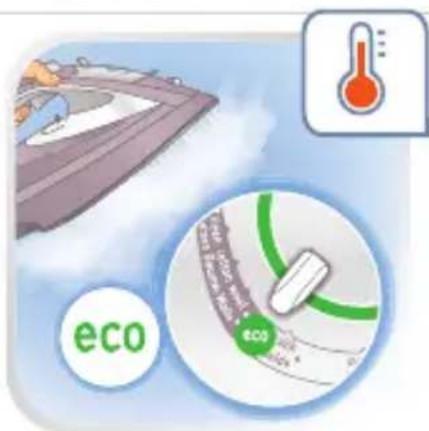

eco ECO

Illustration showing a steamer and a thermometer with Chinese text, alongside a cartoon character and a thermometer icon.

Illustration of a curved road with a red starburst and an hourglass icon (no text or symbols)

Illustration of a stylized abstract shape with a circular base and curved elements, no text or symbols present.

Illustration of a person using a steam iron to clean or adjust air (no text or symbols visible)

2.

Illustration of a hand using a tool to cut or spread material on a surface (no text or symbols)

Illustration of a hand using a tool to clean or mark a flat surface with a cross symbol (no text or symbols present)

STOP

Illustration of a person using an air conditioner to press down a garment (no text or symbols visible)

TURBO

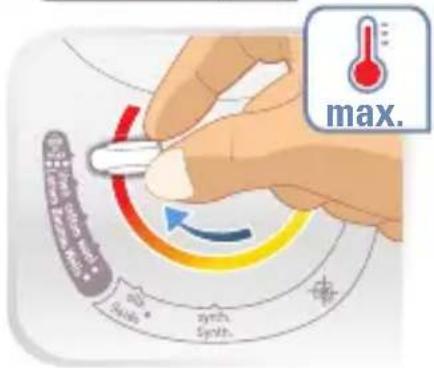

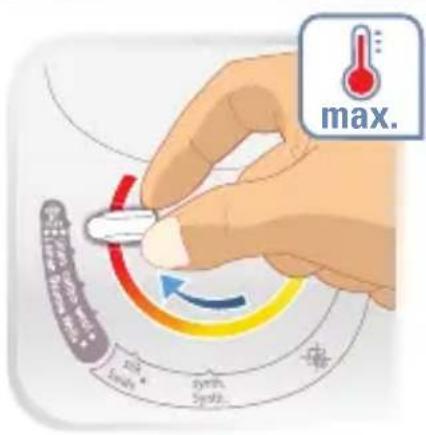

max. Temperature S - 100°C S - 200°C S - 300°C S - 400°C S - 500°C S - 600°C S - 700°C S - 800°C S - 900°C S - 1000°C

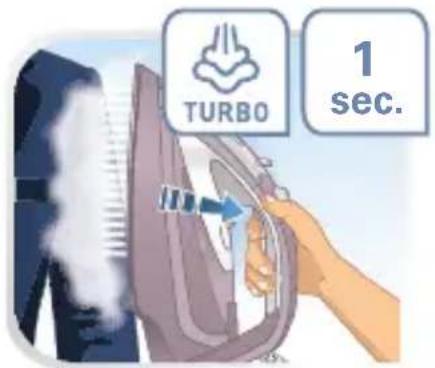

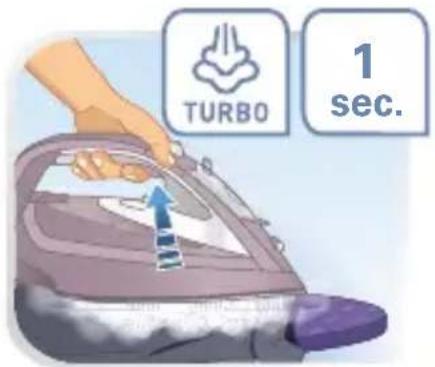

TURBO 1 sec.

Illustration of a person using an iron on a machine, showing mechanical components and motion arrows (no text or symbols)

2.

Illustration of a hand using a tool to cut or spread material on a surface (no text or symbols)

Illustration of a hand using a power tool to clean or store items (no text or symbols)

max. dual synch synch.

TURBO 1 sec.

Illustration of a hand using a steam iron to clean clothing, with no visible text or symbols

Purple square icon with a white circular arrow symbol pointing left, resembling a refresh or move (no text or numbers)

NO

Illustration of a hand using a tool to cut a piece of food on a cutting board (no text or symbols)

Illustration of a hand using a power iron to clean air, with a magnified inset showing the same iron (no text or symbols present)

Illustration of a hand using a steam iron to clean air, showing the blade and handle (no text or symbols)

2.

Illustration of a hand using a power tool to cut a sheet of paper (no text or symbols visible)

Warning symbol with exclamation mark inside a triangle (no text or numbers)

Illustration of an iron on a purple surface with red heating effect and 'OK' button (no text or symbols on the image itself)

Illustration of an iron on a purple surface with a red X mark, no text or symbols present.

Illustration showing a hand pouring liquid from a container into a machine, with a red 'X' symbol indicating no chemical reaction.

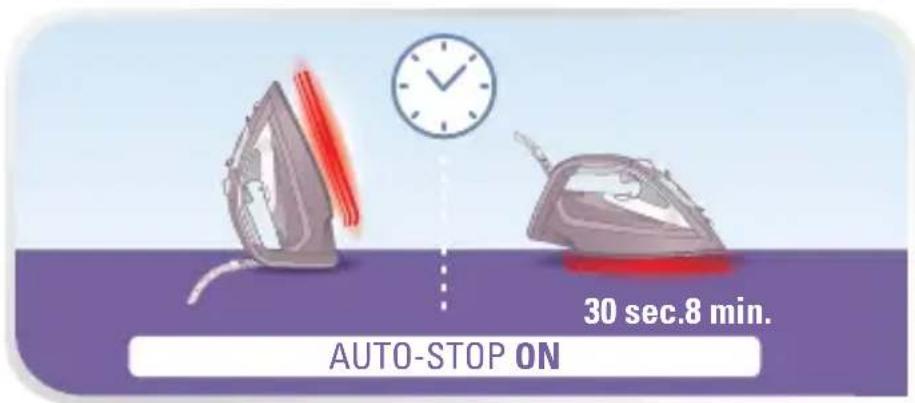

SAFETY AUTO-STOP

EN Depending on model / FR Selon modèle / ES Según modelo

Hand inserting a white plug into a wall-mounted electrical socket (no text or symbols visible)

Illustration of a stylized eye with a hand gesture and hourglass icon (no text or symbols)

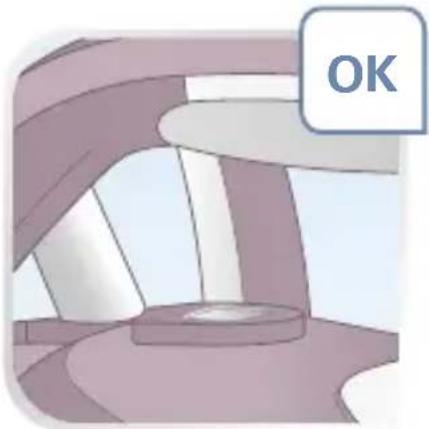

Illustration of a stylized car interior with a 'OK' button (no text or symbols on the car itself)

2.

Simple line drawing of a hand using a tool to cut or spread a rectangular object (no text or symbols)

● ● ●

AUTO-STOP ON 30 sec.8 min.

Illustration of a thermometer and blood particles with a magnified inset showing temperature change (no text or symbols)

Illustration of a person ironing an iron with a curved arrow indicating motion (no text or symbols)

Illustration of a stylized eye with a hand holding a clock, no text or symbols present

Illustration of a modern architectural structure with curved surfaces and a circular base (no text or symbols)

3.

Simple line drawing of a jacket and tie (no text or symbols)

Simple line drawing of a folded paper or cable with a rectangular object on top (no text or symbols)

STOP

Hand inserting a plug into an electrical outlet (no text or symbols visible)

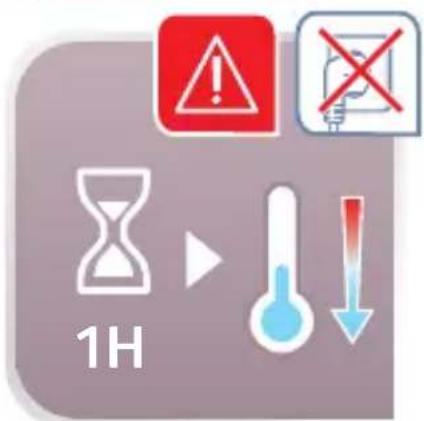

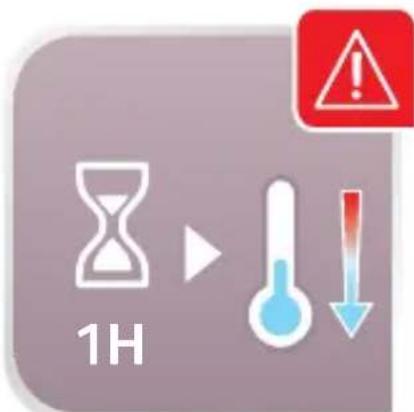

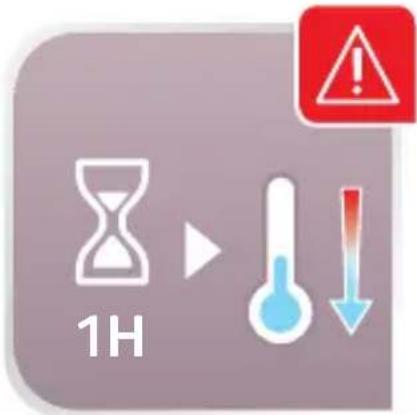

1H

Illustration of a hand using a hairdryer to clean water, with no text or symbols present.

Illustration of a car climbing rope with directional arrows indicating motion (no text or symbols)

Illustration of a person standing beside a large iron on a boat (no text or symbols)

3.

Simple line drawing of a shirt and pocket (no text or symbols)

Simple line drawing of a conical object with internal dotted pattern and surrounding stars (no text or symbols)

1H

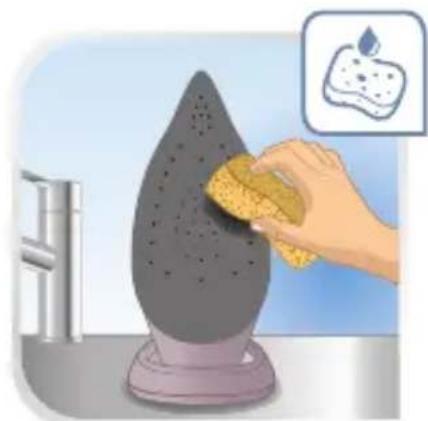

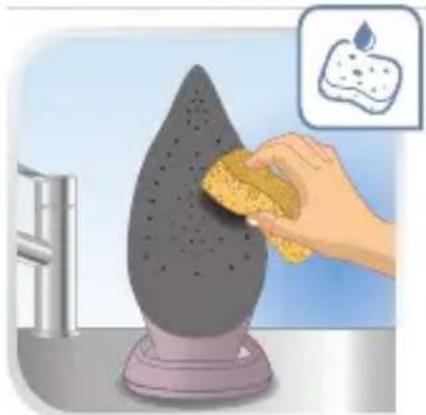

Illustration of a hand cleaning a teardrop-shaped object with a sponge, next to a small inset showing a food item (no text or symbols)

NO

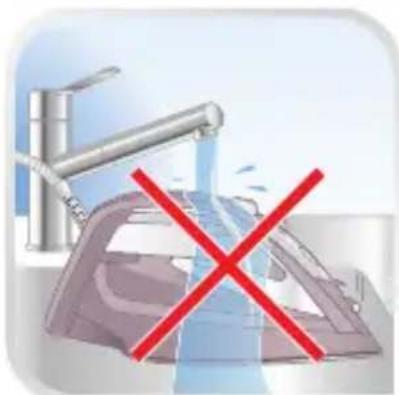

Illustration of a faucet spraying water over a car with a red X symbol (no text or labels)

Simple line drawing of a printer with a lid and spout, no text or symbols present

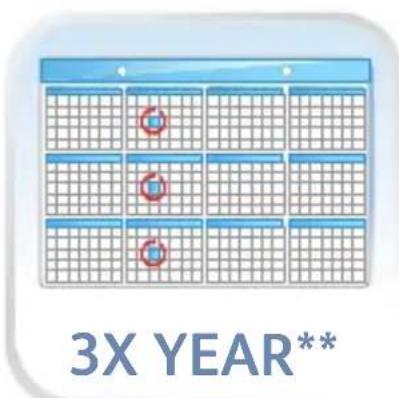

3X YEAR**

Hand inserting a white plug into an electrical outlet (no text or symbols visible)

1H

3.

Simple line drawing of a jacket and a folded shirt (no text or symbols)

Illustration of a hand using a iron on a surface with a blue arrow indicating rotation (no text or symbols)

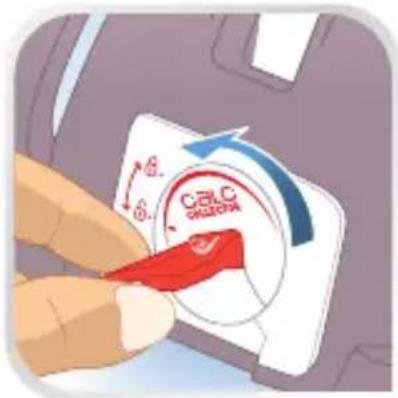

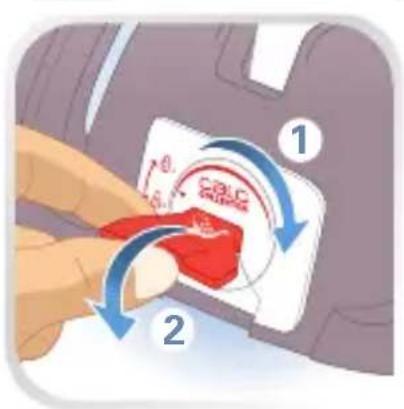

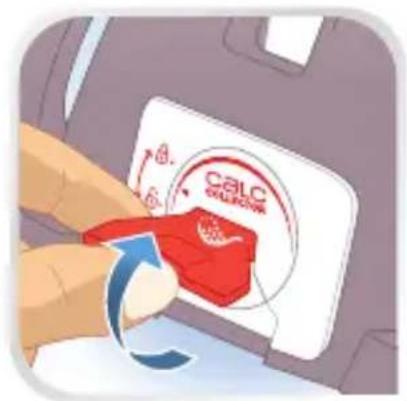

CALC CHINESE

CALC RATIO

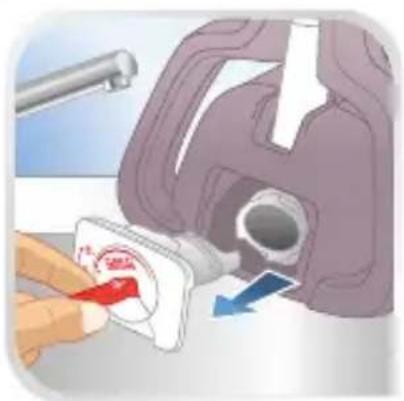

Illustration of a hand using a tool to clean a purple fuel can with a red label and blue arrow (no text or symbols)

Illustration of a hand cleaning a faucet with a red-handled tool, showing liquid flow and a magnified view (no text or symbols)

Illustration of a hand inserting a red plastic clip into a fuel pump component (no text or symbols visible)

Diagram showing a hand pressing a red object on a car interior, labeled with steps 1 and 2.

Safety warning illustration showing a person using an air conditioner with a red X mark indicating no need, and a warning symbol with an exclamation mark.

Simple line drawing of a shirt and jacket with a folded top (no text or symbols)

Illustration of a magic wand with sparkles (no text or symbols)

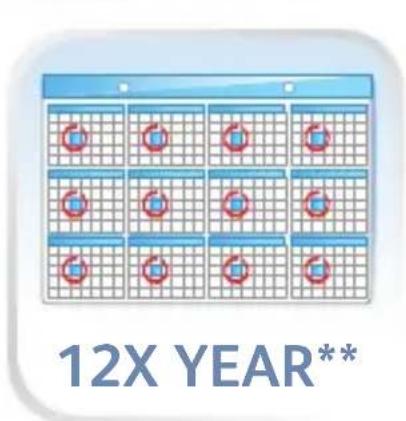

12X YEAR**

Safety warning illustration showing a hand using a valve to clean water, with warning symbols and arrows indicating safety actions.

Illustration of a hand using a power iron to adjust a small electronic component (no text or symbols visible)

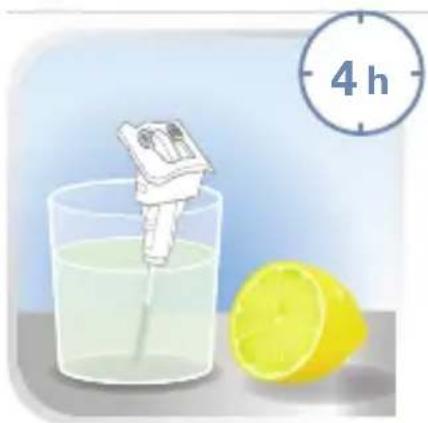

Illustration of a pipette stirring liquid in a glass with a lemon and a clock showing 4 hours (no text or symbols on the main subject)

Illustration of a hand pouring liquid into a stainless steel faucet (no text or symbols)

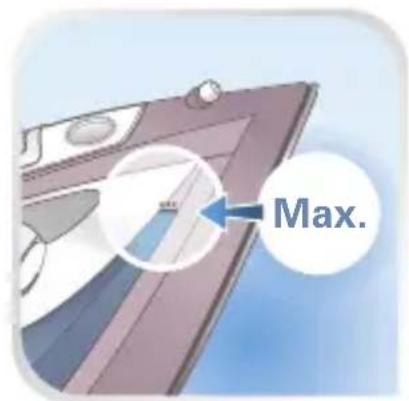

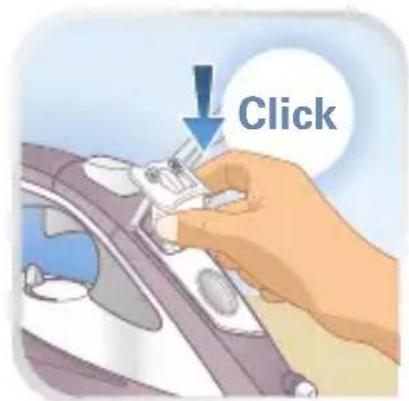

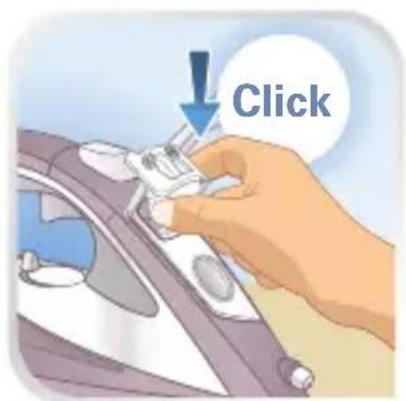

Click

3.

Simple line drawing of a jacket and tie (no text or symbols)

Illustration of a wizard with stars and candles, enclosed in a rounded square frame (no text or symbols)

3X YEAR**

Max.

Hand inserting a white plug into a wall-mounted electrical outlet (no text or symbols visible)

Illustration of a car with a red starburst and an hourglass icon (no text or symbols)

Illustration of a modern architectural structure with curved walls and a circular base, featuring a 'OK' button (no text or symbols on the structure itself)

Hand inserting a white plug into an electrical outlet (no text or symbols visible)

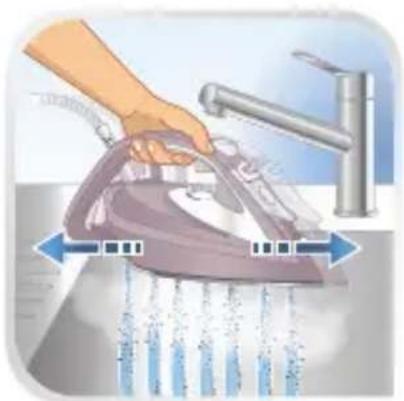

Illustration of a hand using an iron on a kitchen sink, with a faucet and water nearby (no text or symbols)

Illustration of a hand using a power tool to adjust or install a car air conditioner (no text or symbols visible)

3.

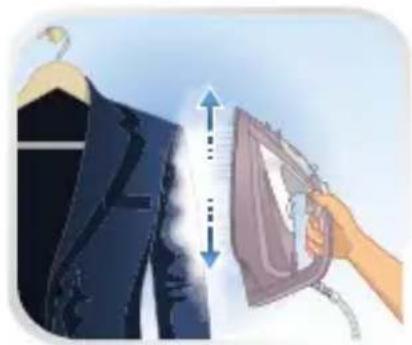

Simple line drawing of a jacket and tie (no text or symbols)

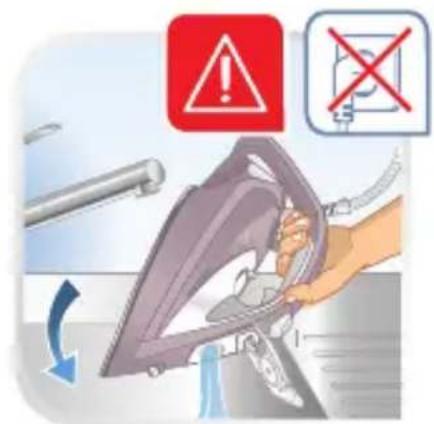

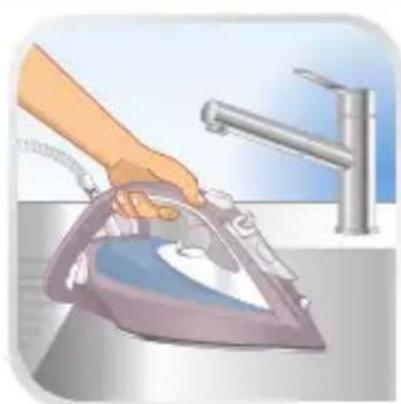

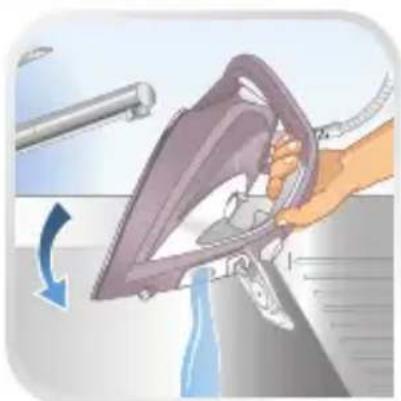

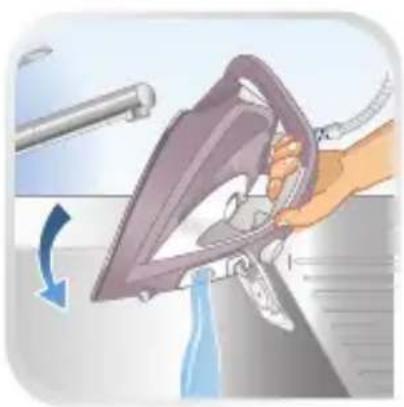

Illustration of a hand using an iron on a kitchen, with water flowing from the drain (no text or symbols)

Click

Hand inserting a plug into an electrical outlet (no text or symbols visible)

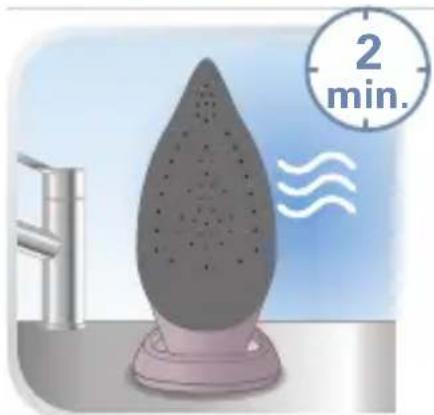

Illustration of a hairless steamer with a 2-minute time indicator (no text or symbols on the device itself)

Hand inserting a white plug into an electrical outlet (no text or symbols visible)

1H

Illustration of a hand cleaning a clay pot with a sponge, next to a kitchen sink (no text or symbols)

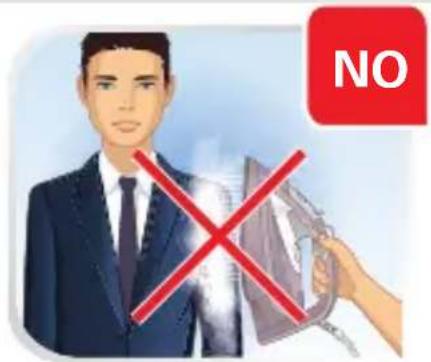

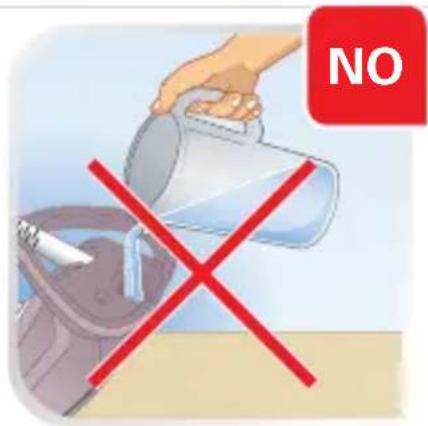

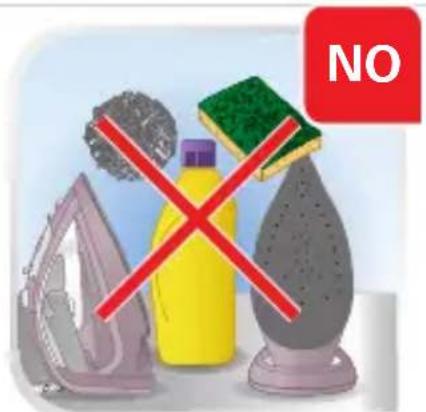

NO
