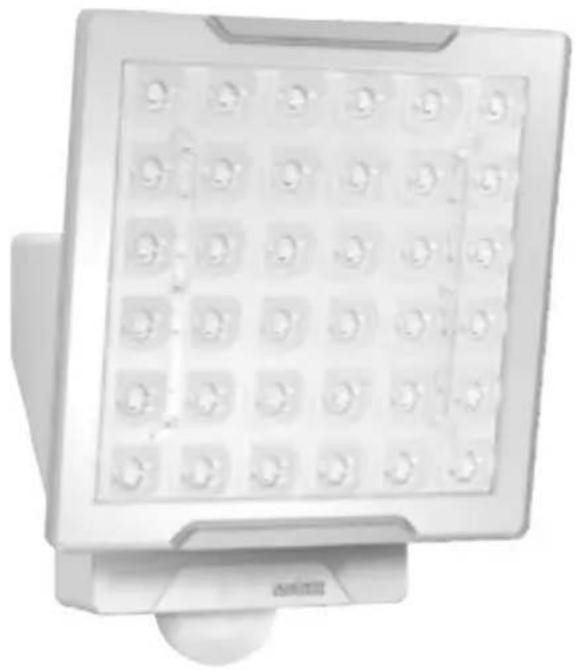

Product type	LED sensor floodlight
Brand	Steinel
Model	XLED PRO Square XL S
Dimensions (H × W × D)	230 × 178 × 130 mm
Supply voltage	220-240 V / 50/60 Hz
Power consumption	47 W
Luminous flux	3770 lm
Luminous efficacy	80 lm/W
Color temperature	3900 K (neutral white)
Color rendering index	Ra = 80
Detection angle	240°
Detection range	12 m (installation height 2-6 m)
Protection rating	IP54
Protection class	I
Impact resistance	IK03
Ambient temperature	-20 °C to +40 °C
Main functions	PIR motion detection, adjustable night light (OFF/10 min/night), time setting 5 s to 15 min, threshold 2-1000 lx, forced ON 4 h, adjustable 0-90° vertical, 360° horizontal
Average lifespan	50,000 hours (L70B50 at 25°C)
Manufacturer warranty	5 years
Maintenance and cleaning	Clean the lens with a damp cloth, no detergent
Repairability	The light source is not replaceable; replace the entire floodlight if defective.

Frequently Asked Questions - XLED PRO Square XL S STEINEL

How to install the XLED PRO Square XL S floodlight?

Turn off power. Mount the wall bracket after drilling holes. Connect the mains cable (L, N, PE) to the terminal block. Fit the housing onto the bracket and tighten screws. Switch on power and adjust functions.

Can I use a dimmer with this floodlight?

No, the floodlight is not dimmable. Use of a dimmer is excluded.

What to do if the floodlight does not turn on?

Check the fuse, switch, and cable. Ensure the threshold setting is suitable for ambient brightness. If problem persists, adjust the detection zone.

How to adjust the time setting (lighting duration)?

Use the rotary knob K (fig. 6.1). Adjust continuously from 5 seconds to 15 minutes. Each new detected movement restarts the timer.

How to activate the night light?

Turn knob J (fig. 6.1) to desired position: OFF (no night light), 10 min (night light for 10 min after switch-off), or << (night light all night).

How to clean the floodlight?

Clean the detection lens with a damp cloth. Do not use detergent. No other maintenance required.

What is the product warranty?

Steinel offers a 5-year manufacturer warranty on perfect condition and proper function. To claim warranty, send the product with proof of purchase to your dealer.

Can I replace the LED if it is defective?

No, the light source is not replaceable. If the LED fails, replace the entire floodlight.

How to use the RC9 remote control?

The RC9 remote control (optional) allows setting brightness, time, threshold, night light, and forced ON. Point it at the floodlight to make adjustments.

What to do if the floodlight turns on and off continuously?

This may be due to animals in the detection zone, wind moving trees, or temperature fluctuations. Mask or adjust the detection zone to avoid false triggers.

USER MANUAL XLED PRO Square XL S STEINEL

White computer monitor with grid of small circular buttons, mounted on a stand (no visible text or symbols)

Exterior view of a white office building (no signage)

GB ..... 13 Follow written instructions!

Technical line drawing of an electronic device housing with internal components and a separate gear-like component below (no text or symbols)

3.2 XLED PRO Square XL S

178 178 82 40,5 87 35 124 130 29,5 81 178 208 230 156,5

3.3 XLED PRO Wide XL S

Technical line drawing of an electronic device casing with internal components and a separate gear-like component (no text or symbols)

0000

3.5

Technical diagram of a computer monitor with labeled components and internal wiring, including front and side views.

3.4 XLED PRO Wide XL S

265 124 82 40,5 87 35 126 29,5 135,2 188 165 156,5 80,5

3.6 XLED PRO Square XL S

3.7 XLED PRO Wide XL S

4.1 max. 10 XLED PRO (MASTER) D L ⊕ N D L ⊕ N D L ⊕ N L N D L PE ⊕ N

4.4

4.2 max. 10 XLED PRO (SLAVE) DL N DL N DL N L N D L PE N

4.5 5 ≤12m < 5m

4.3 max. 12 m 2 m - 6m

5.1 1 2 3

5.2

5.3

5.4

5.5 DL N

5.6 1 2 3

5.7 I O

6.1

10 min OFF J K L

6.2

2 x 5 s - 15 min 4 x 4 h

6.3

Three-panel illustration showing a hand holding a leaf, a close-up of the leaf with light rays, and a close-up of a circular object (no text or symbols)

12 m 12 m 12 m 12 m

6.4

Three-step diagram showing a lamp, a hand holding a slide, and a sunlit bowl with rays (no text or symbols)

12 m 12 m 12 m 12 m

6.5

90°

6.6

360°

DE

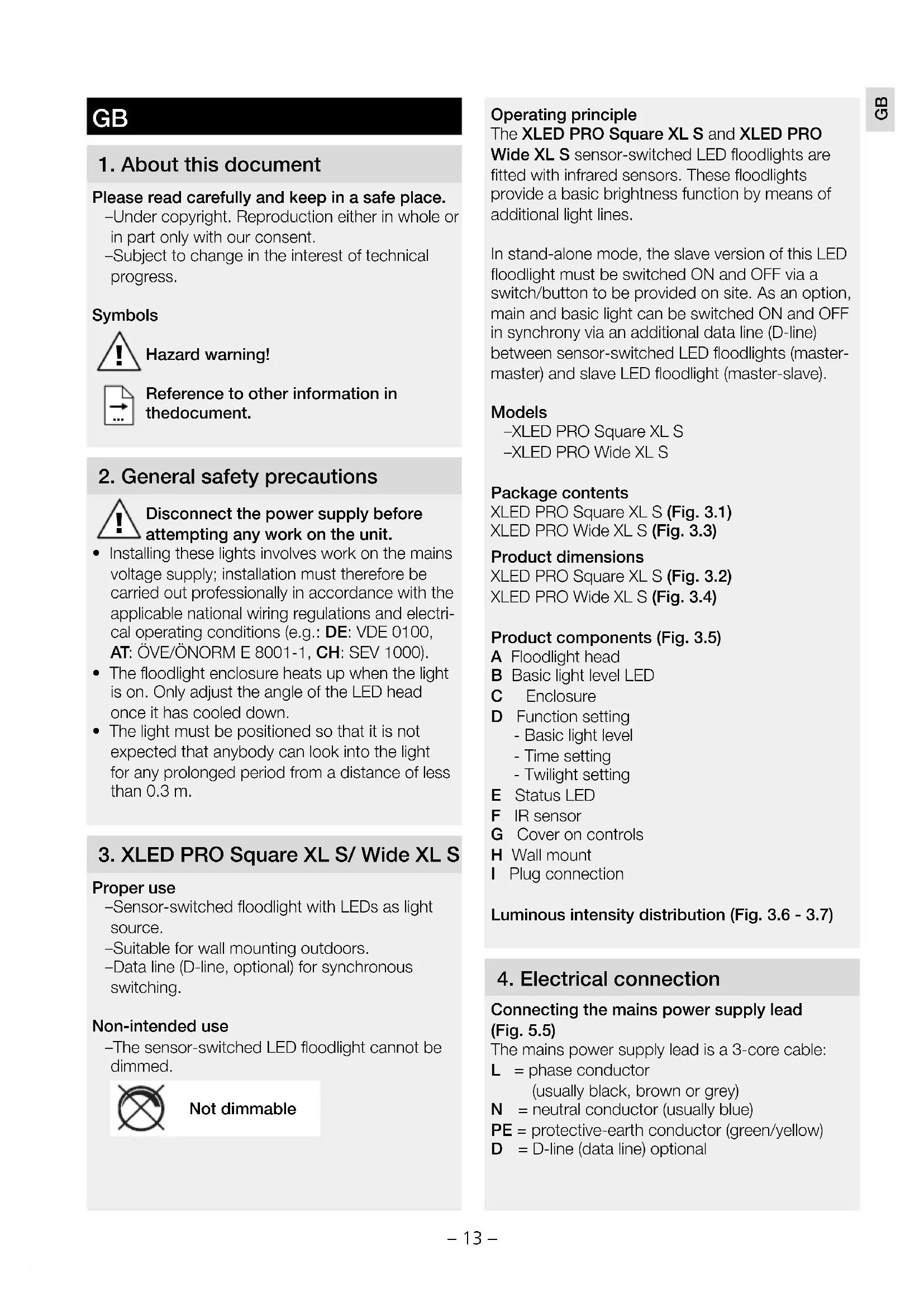

3. XLED PRO Square XL S/ Wide XL S

Please read carefully and keep in a safe place.

—Under copyright. Reproduction either in whole or in part only with our consent.

-Subject to change in the interest of technical progress.

Symbols

Hazard warning!

Reference to other information in thedocument.

2. General safety precautions

Disconnect the power supply before attempting any work on the unit.

• Installing these lights involves work on the mains voltage supply; installation must therefore be carried out professionally in accordance with the applicable national wiring regulations and electrical operating conditions (e.g.: DE: VDE 0100, AT: ÖVE/ÖNORM E 8001-1, CH: SEV 1000).
• The floodlight enclosure heats up when the light is on. Only adjust the angle of the LED head once it has cooled down.
• The light must be positioned so that it is not expected that anybody can look into the light for any prolonged period from a distance of less than 0.3 m.

3. XLED PRO Square XL S/ Wide XL S

Proper use

–Sensor-switched floodlight with LEDs as light source.
-Suitable for wall mounting outdoors.
-Data line (D-line, optional) for synchronous switching.

Non-intended use

- The sensor-switched LED floodlight cannot be dimmed.

Not dimmable

Operating principle

The XLED PRO Square XL S and XLED PRO

Wide XL S sensor-switched LED floodlights are fitted with infrared sensors. These floodlights provide a basic brightness function by means of additional light lines.

In stand-alone mode, the slave version of this LED floodlight must be switched ON and OFF via a switch/button to be provided on site. As an option, main and basic light can be switched ON and OFF in synchrony via an additional data line (D-line) between sensor-switched LED floodlights (master-master) and slave LED floodlight (master-slave).

Models

-XLED PRO Square XL S

-XLED PRO Wide XL S

Package contents

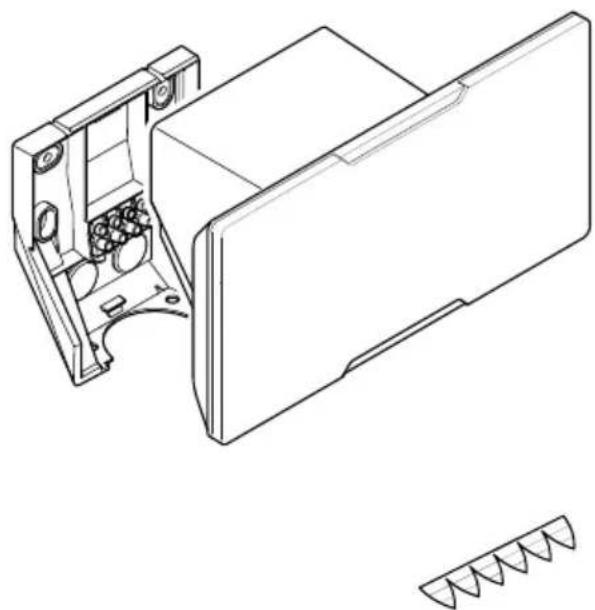

XLED PRO Square XL S (Fig. 3.1)

XLED PRO Wide XL S (Fig. 3.3)

Product dimensions

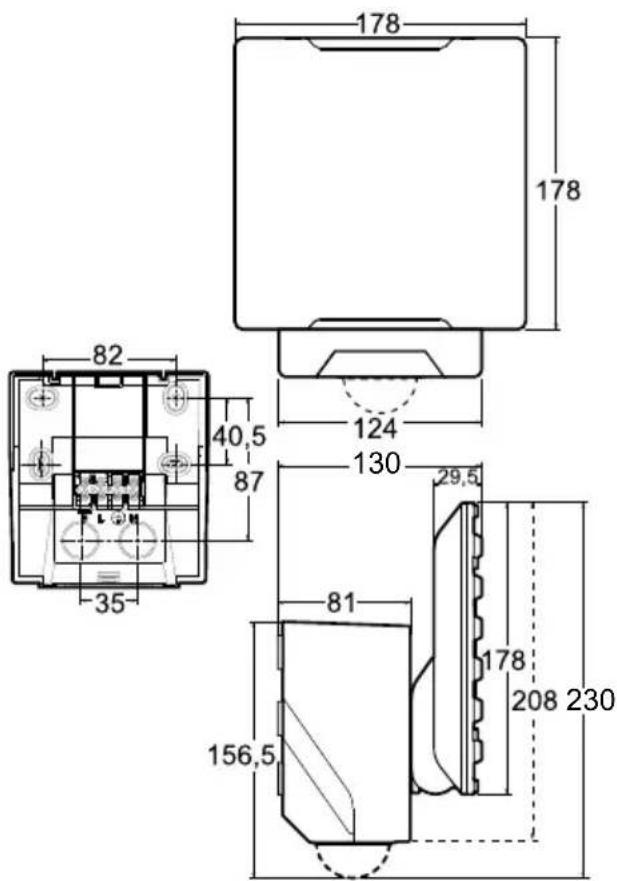

XLED PRO Square XL S (Fig. 3.2)

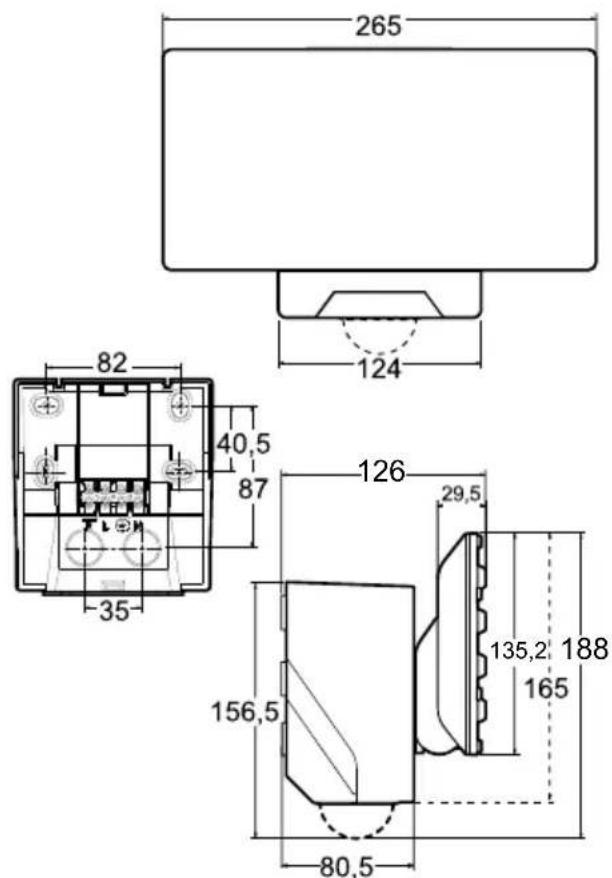

XLED PRO Wide XL S (Fig. 3.4)

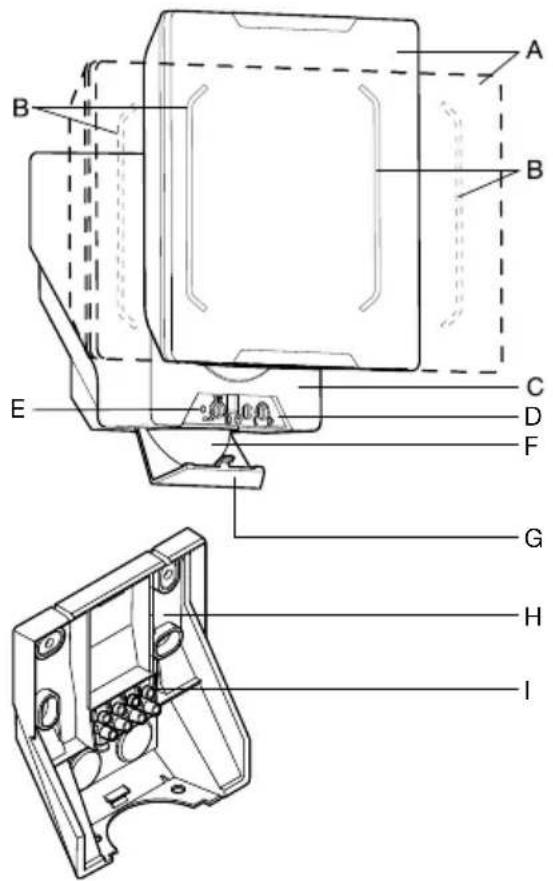

Product components (Fig. 3.5)

A Floodlight head
B Basic light level LED
C Enclosure
D Function setting

• Basic light level
• Time setting
• Twilight setting

E Status LED
F IR sensor
G Cover on controls
H Wall mount
I Plug connection

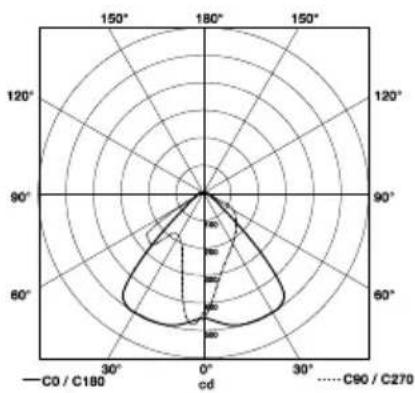

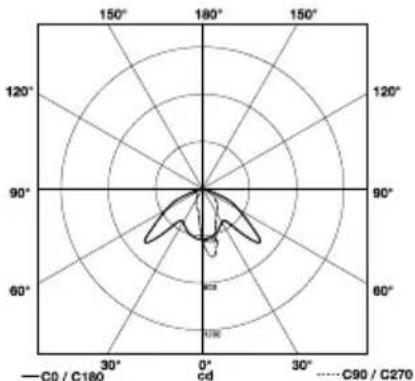

Luminous intensity distribution (Fig. 3.6 - 3.7)

4. Electrical connection

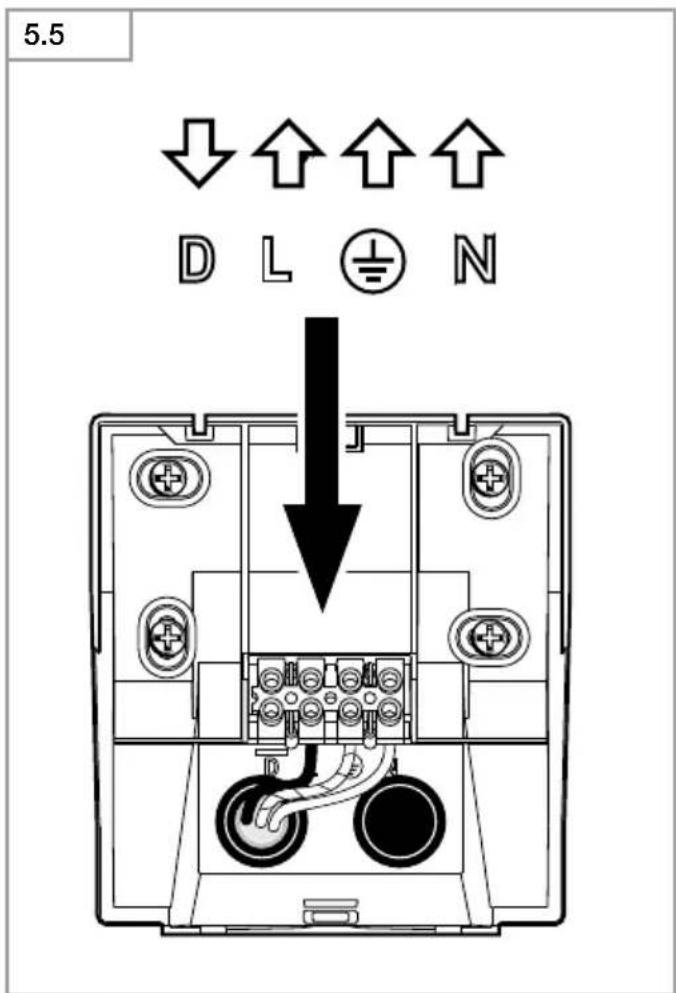

Connecting the mains power supply lead (Fig. 5.5)

The mains power supply lead is a 3-core cable:

L = phase conductor
(usually black, brown or grey)
N = neutral conductor (usually blue)
PE = protective-earth conductor (green/yellow)
D = D-line (data line) optional

If you are in any doubt, identify the conductors using a voltage tester; then disconnect from the power supply again. Connect phase (L) and neutral conductor (N) to the terminal block.

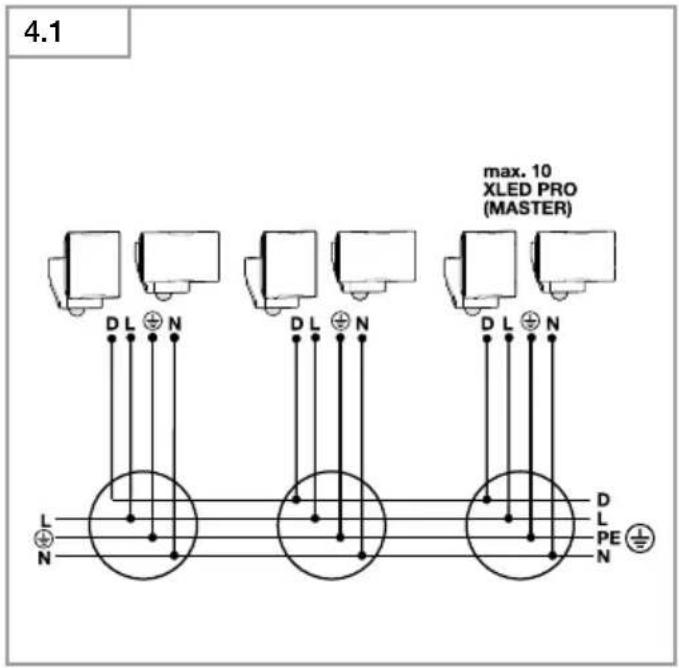

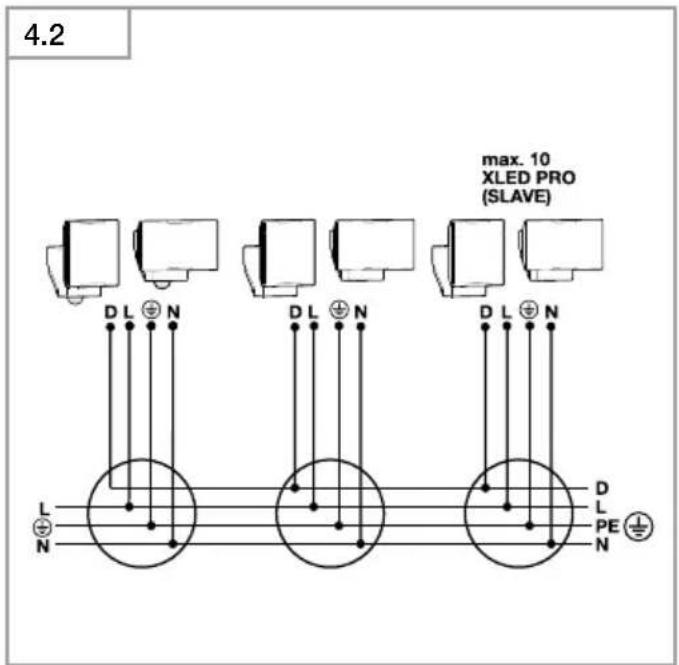

Wiring diagram (Fig. 4.1/4.2)

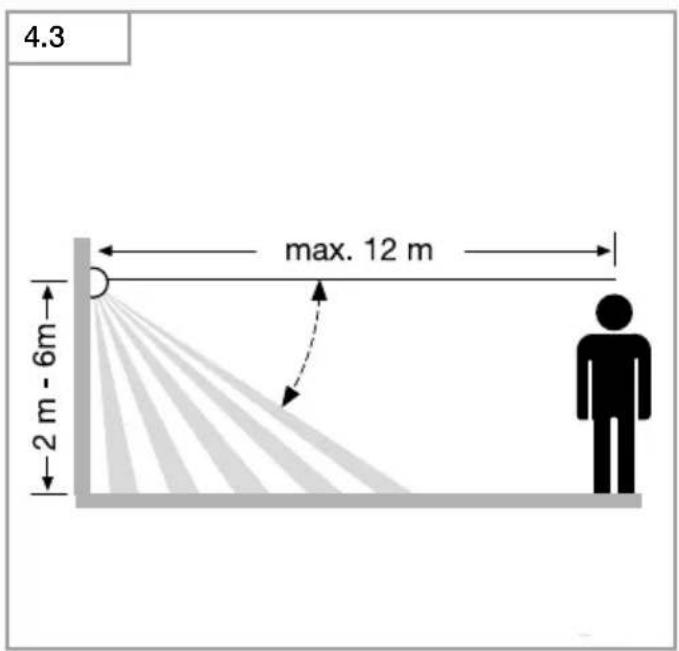

Reach diagram (Fig. 4.3)

Note:

A mains switch for switching the light ON and OFF can be installed in the mains supply lead.

This is required for the manual override function

→ "6. Functions"

Important:

Mixing up the connections will produce a short circuit later on in the floodlight or your fuse box. In this case, you must identify the individual conductors once again and re-connect them.

Note: the light source in this light cannot be replaced. If the light source needs to be replaced (e.g. at the end of its service life), the complete light must be replaced.

LED LED

5. Mounting

• Check all components for damage.
• Do not use the product if it is damaged.

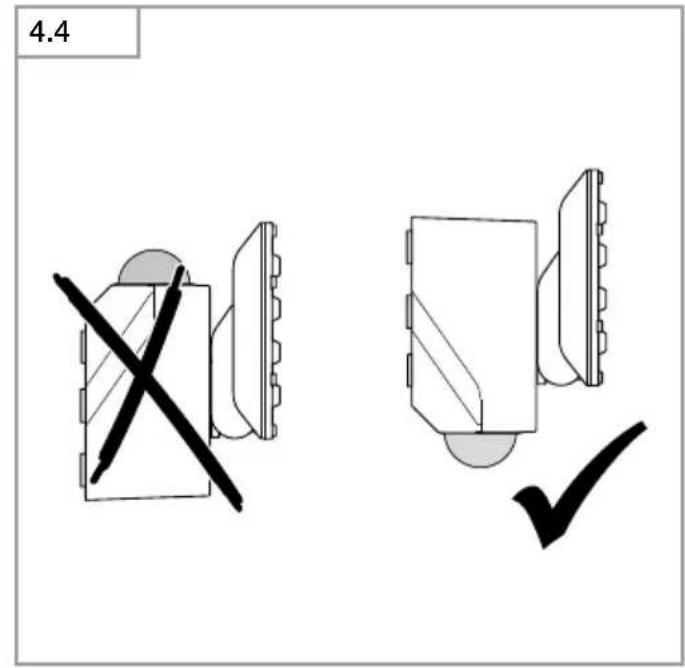

• Aiming the sensor (Fig. 4.4)

The most reliable way to detect movement is given by mounting the light to point across the direction in which people walk and by making sure no obstacles (e.g. trees, walls etc.) interrupt the line of sensor vision.

Mounting procedure

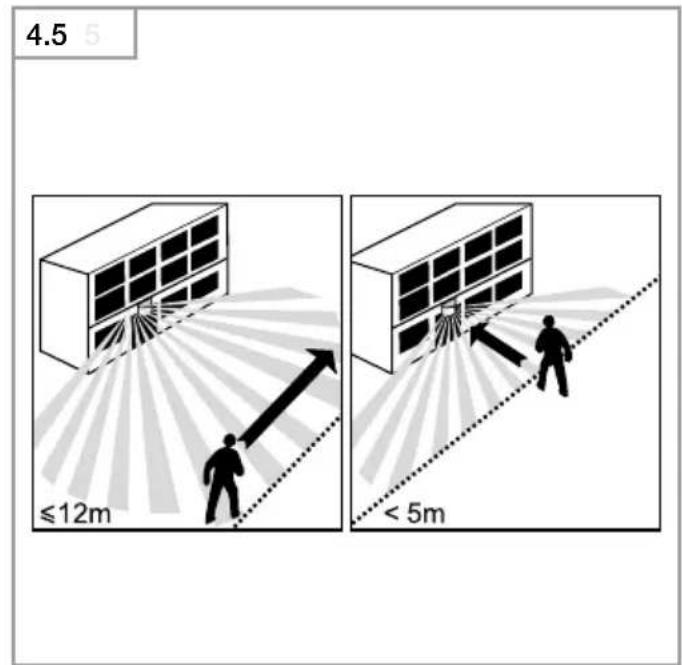

• Select appropriate site of installation, giving consideration to reach and detection of movements (Fig. 4.5)

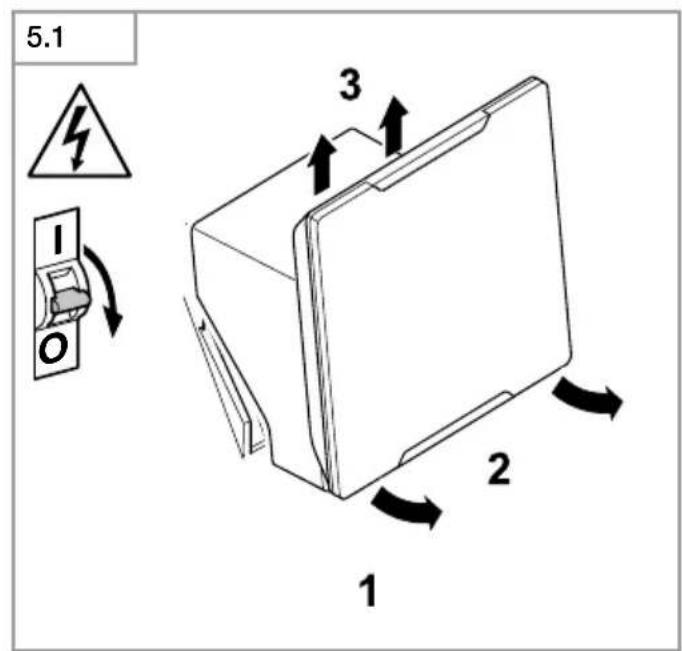

• Switch OFF power supply (Fig. 5.1)
• Undo retaining screws (Fig. 5.1)
• Detach enclosure from wall mount (Fig. 5.1)

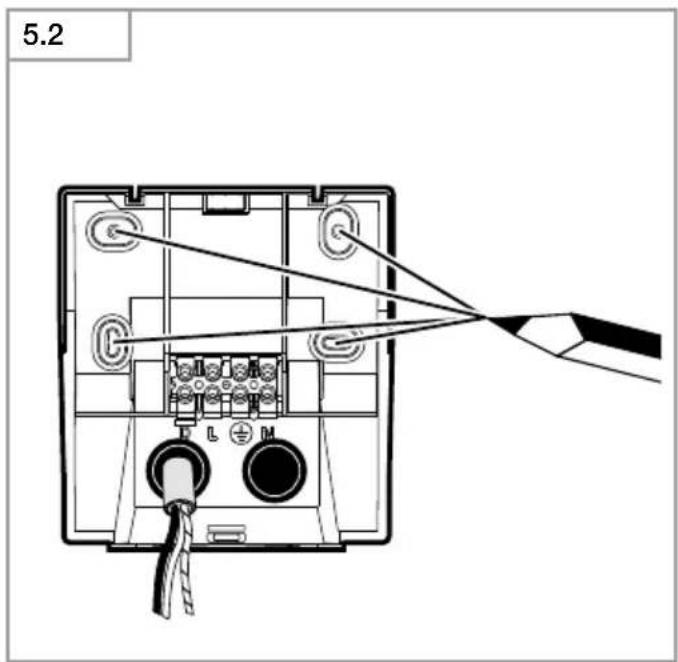

  • Mark drill holes (Fig. 5.2)

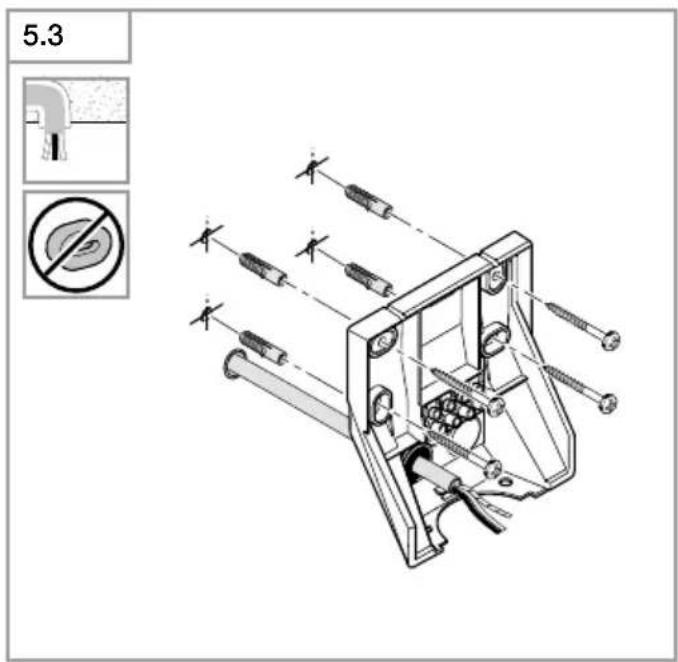

• Drill holes and insert wall plugs (Fig. 5.3)
• Concealed installation (Fig. 5.3)

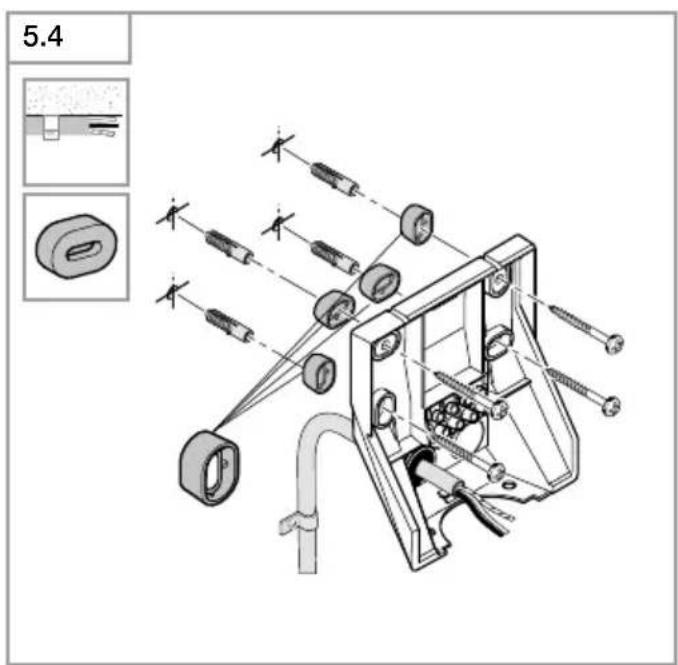

• Surface-mounted installation (Fig. 5.4)

• Connect conductors (Fig. 5.5)

• Fit enclosure onto wall mount. Ensure correct plug connection (Fig. 5.6).

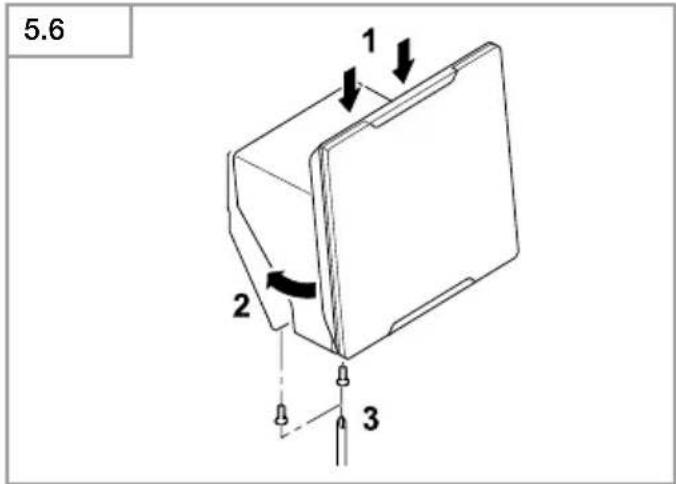

• Screw in retaining screws (Fig. 5.6)

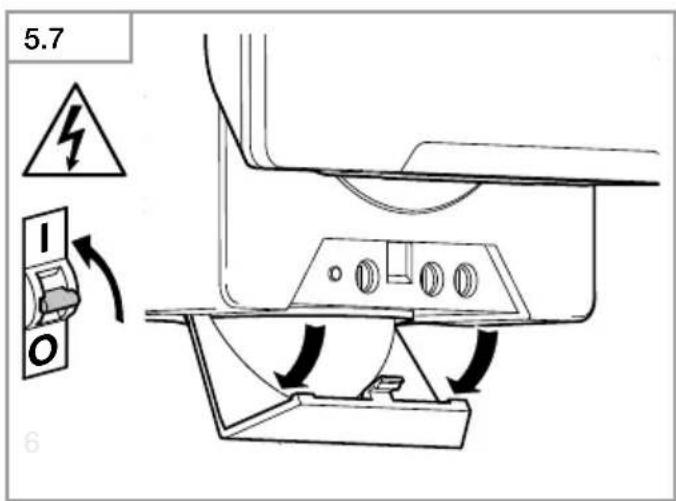

• Switch ON power supply (Fig. 5.7)
• Open cover over controls (Fig. 5.7)
• Make settings "6. Function"

6. Function

Factory settings

Basic brightness: OFF

Time setting: 5 seconds

Twilight setting: daylight mode

Once you have installed the wall mount and connected the floodlight to the power supply, it can be put into operation. If the floodlight is put into operation manually at the light switch, it will switch OFF after 40 s for the calibration phase and is then activated for sensor mode. It is not necessary to operate the light switch a second time.

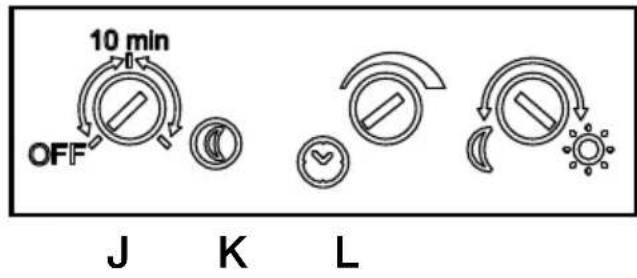

Function (Fig. 6.1)

Basic brightness (Fig. 6.1/J)

Basic brightness by means of basic light LEDs provides a low level of illumination. The main light is only switched on for the time selected when movement occurs in the detection zone. The light then switches to the selected level of basic brightness

-OFF = no basic light
- 10 min = basic light for 10 min upon expiry of the time selected
-“” = basic light all night

Time setting / stay-ON time (Fig. 6.1/K)

The time you want the floodlight to stay on for (main light) is infinitely adjustable from approx. 5 s to a maximum of 15 min. Any movement detected before this time elapses will restart the timer.

Note:

Whenever the light switches OFF, motion detection is interrupted for approx. 2 s. The light will only switch ON in response to movement once this period has elapsed.

Twilight setting / response threshold

(Fig. 6.1/L)

The floodlight's chosen response threshold can be infinitely varied from approx. 2-1000 lux.

-Control dial set to ⚙ = daylight mode (depending on ambient brightness)

-Control dial set to = twilight mode (approx. 2 lux)

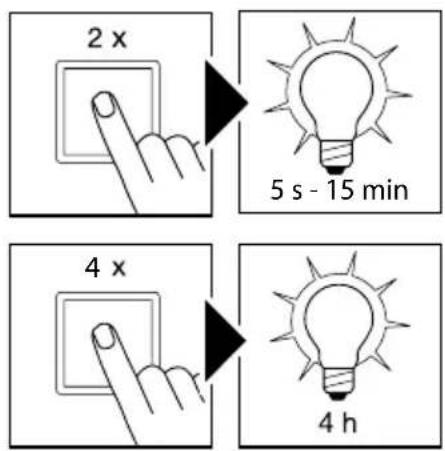

Manual override function (Fig. 6.2)

If a mains switch is installed in the mains supply lead, the following functions are provided in addition to simply switching light ON and OFF:

Sensor mode: (Fig. 6.2)

-Switch light ON (when light is OFF):

-Switch OFF and ON 2×. Light stays ON for the period selected.

-Switch light OFF (when light is ON):

-Switch OFF and ON once. Light goes out or switches to sensor mode.

Manual override: (Fig. 6.2)

-Activate manual override:

- Turn switch OFF and ON 4×. The floodlight is set to manual override for 4 hours (status LED ON). Then it returns automatically to sensor mode (status LED OFF).

-Deactivate manual override:

-Switch OFF and ON once. The floodlight goes out or switches to sensor mode.

Important:

Switching must take place within 0.2 to 1 second.

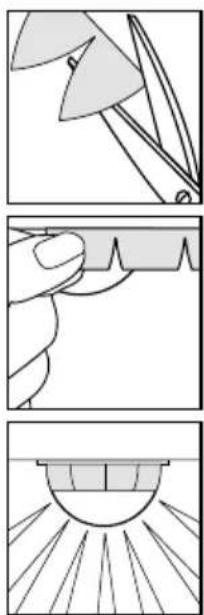

Reach adjustment

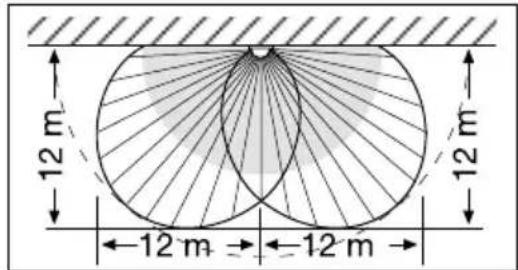

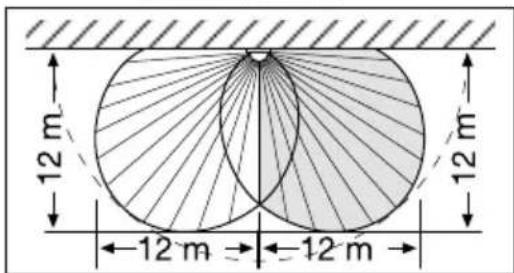

Depending on mounting height, the detection zone setting can be optimised to suit requirements. The film shroud can be used for masking out any number of lens segments to limit reach as required. Inadvertent triggering is ruled out or the sensor can be targeted to watch over danger spots.

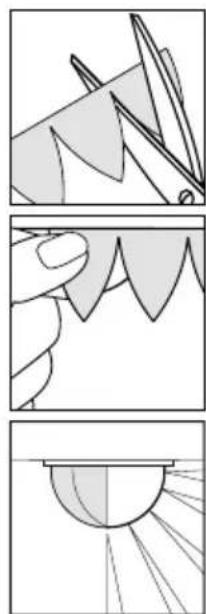

-limited at side (Fig. 6.3)

-limiting reach (Fig. 6.4)

Other:

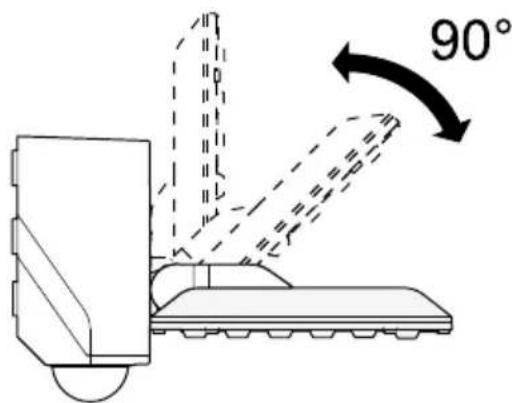

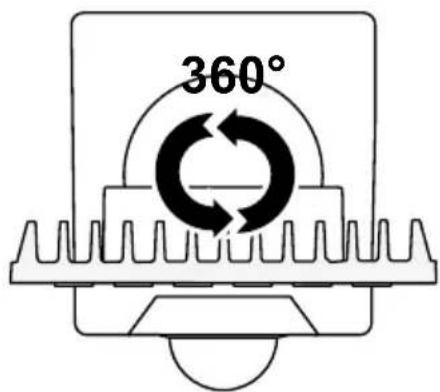

- Floodlight adjustment range (Fig. 6.5/6.6)

7. Accessories (optional)

Remote control RC 9 (EAN 4007841007638)

The XLED PRO XL S provides additional functions by using the RC 9 remote control. The optional RC 9 remote control makes it easier to install

larger-type lighting systems as it is then no longer necessary to set each light before it is installed. Any number of floodlights can be controlled via remote control.

Remote control functions

1. Brightness setting
2. Daylight mode
3. Night mode
4. Teach mode
5. Time setting
6. Any chosen light ON time
7. Manual override
8. Install mode
9. Reset

Smart remote (optional)

(EAN 4007841009151)

-Control via smartphone or tablet
-Replaces remote control
-Load appropriate app and connect by Bluetooth

8. Maintenance and care

This product requires no maintenance.

The detector lens may be cleaned with a damp cloth (without detergents) if dirty.

Important note: the control gear cannot be replaced.

210V LED

9. Disposal

Electrical and electronic equipment, accessories and packaging must be recycled in an environmentally compatible manner.

Do not dispose of electrical and electronic equipment as domestic waste.

EU countries only:

Under the current European Directive on Waste Electrical and Electronic Equipment and its implementation in national law, electrical and electronic equipment no longer suitable for use must be collected separately and recycled in an environmentally compatible manner.

10. Manufacturer's Warranty

As purchaser, you are entitled to your statutory rights against the vendor. If these rights exist in your country, they are neither curtailed nor restricted by our Warranty Declaration. We guarantee that your STEINEL Professional sensor product will remain in perfect condition and proper working order for a period of 5 years. We guarantee that this product is free from material-, manufacturing- and design flaws. In addition, we guarantee that all electronic components and cables function in the proper manner and that all materials used and their surfaces are without defects.

Making Claims

If you wish to make a claim, please send your product complete and carriage paid with the original receipt of purchase, which must show the date of purchase and product designation, either to your retailer or contact us at STEINEL (UK) Limited, 25 Manasty Road, Axis Park, Orton Southgate, Peterborough, PE2 6UP, for a returns number. For this reason, we recommend that you keep your receipt of purchase in a safe place until the warranty period expires. STEINEL shall assume no liability for the costs or risks involved in returning a product.

For information on making claims under the terms of the warranty, please go to www.steinel-professional.de/garantie

If you have a warranty claim or would like to ask any question regarding your product, you are welcome to call us at any time on our Service Hotline [phone].

Further information: http://www.stinel.de

11. Technical specifications
Dimensions (H × W × D) XLED PRO Square XL S: 230 × 178 × 130 mmXLED PRO Wide XL S: 188 × 265 × 126 mm
Supply voltage 220-240 V / 50 / 60 Hz
Power consumption (Pon) XLED PRO Square XL S: 47 WXLED PRO Wide XL S: 45 W
Luminous flux XLED PRO Square XL S: 3,770 ImXLED PRO Wide XL S: 3,489 Im
Efficiency XLED PRO Square XL S: 80 lm/WXLED PRO Wide XL S: 78 lm/W
Standby sensor (Psb) 0.27 W
Area illuminated XLED PRO Square XL S: 362 cmXLED PRO Wide XL S: 403 cm2
Colour temperature 3,900 K (neutral white)
Colour rendering index Ra = 80
Colour consistency SDCM Starting value 3
Average rated life expectancy L70B50 at 25°C: 50,000 hours
Luminous intensity distribution	XLED PRO Square XL S:	XLED PRO Wide XL S:
Sensor technology	PIR (passive Infrared)
Basic light level	10 min, 30 min (via RC 9), all night
Detection reach 12 m (mounting height 2 m to max. 6 m)
Angle of coverage	240°
Adjustment range	0 - 90° vertically360° horizontally
Time setting	5 s - 15 min (control dial)5 s - 60 min (Smart Remote)10 s - 15 min (RC 9)
Twilight setting	2 - 1,000 lux (potentiometer)2 - 1,000 lux, infinitely variable (Smart Remote)2, 10, 30, 50, 100 lux, daylight mode (RC 9)
Programme setting	OFF = no basic light level, 10 min, all night (potentiometer)OFF, 10 min up to 30 min, all night (Smart Remote)
Permanent light	4 h, adjustable (button, RC 9, Smart Remote)
IP rating	IP54
Protection class	I
Impact resistance	IK03
Ambient temperature	-20°C to +40°C

12. Troubleshooting

Malfunction Cause Remedy

Sensor-switched LED floodlight without power	■ Fuse has tripped, not switched ON, break in wiring■ Short circuit	■ Activate, change fuse, turn ON power switch, check wiring with voltage tester■ Check connections
Sensor-switched LED floodlight will not switch ON	■ Twilight setting in night-time mode during daytime operation■ Mains power switch OFF■ Fuse has tripped■ Detection zone not properly targeted	■ Adjustsetting■ SwitchON■ Fit new fuse, check connection if necessary■ Readjust
Sensor-switched LED floodlight will not switch OFF	■ Continuous movement in the detection zone	■ Check zone and readjust if necessary or apply shroud
Sensor-switched LED floodlight keeps switching ON and OFF	■ Animals moving in the detection zone	■ Fit shrouds to target sensor; adjust detection zone, or fit shrouds
Sensor-switched LED floodlight switches ON when it should not	■ Wind moving trees and bushes in the detection zone■ Cars on the road being detected■ Sudden change in temperature caused by weather (wind, rain, snow) or air discharged from fans, open windows■ Sensor-switched LED floodlight swaying (moving), resulting, for example, from gusts of wind or heavy precipitation	■ Fit shrouds to target sensor■ Fit shrouds to target sensor■ Change detection zone, mount in a different place■ Fit sensor-switched LED floodlight to a firm surface

FR

3. XLED PRO Square XL S/ Wide XL S

Utilisation conforme aux prescriptions

3. XLED PRO Square XL S/ Wide XL S

XLED PRO Square XL S (afb. 3.1)

XLED PRO Wide XL S (afb. 3.3)

Afmetingen product

XLED PRO Square XL S (afb. 3.2)

XLED PRO Wide XL S (afb. 3.4)

LED ×2 LED

5. Montage

Functions (afb. 6.1)

-Bediening via smartphone of tablet

–Vervangt de afstandsbediening

- Passende app laden en via Bluetooth verbinden

3. XLED PRO Square XL S/ Wide XL S

3. XLED PRO Square XL S/ Wide XL S

Uso previsto

3. XLED PRO Square XL S/ Wide XL S

Utilização prevista

3. XLED PRO Square XL S/ Wide XL S

3. XLED PRO Square XL S/ Wide XL S

Korrekt anvendelse

L = Fase (oftenst brun)

-Sluk for permanent lys:

3. XLED PRO Square XL S/ Wide XL S

LED 222 LED

5. Asennus

3. XLED PRO Square XL S/ Wide XL S

XLED PRO Square XL S (ill. 3.1)

XLED PRO Wide XL S (ill. 3.3)

Produktmål

XLED PRO Square XL S (ill. 3.2)

XLED PRO Wide XL S (ill. 3.4)

Permanent lys (ill. 6.2)

Permanent lys: (ill. 6.2)

–Tenne permanent lys:

-Slå bryteren 4 × AV og PÅ. Lyskasteren stilles på permanent lys i 4 timer (status-LED TENNES).

3. XLED PRO Square XL S/ Wide XL S

3. XLED PRO Square XL S/ Wide XL S

3. XLED PRO Square XL S/ Wide XL S

3. XLED PRO Square XL S/ Wide XL S

LED 222 LED

5. Montáž

3. XLED PRO Square XL S/ Wide XL S

Správne používanie

3. XLED PRO Square XL S/ Wide XL S

3. XLED PRO Square XL S/ Wide XL S

-Aprinderea luminii continue:

5 ANI GARANTIA PRODUCATORULUI

3. XLED PRO Square XL S/ Wide XL S

Namenska uporaba

3. XLED PRO Square XL S/ Wide XL S

Namjenska uporaba

XLED PRO Square XL S (sl. 3.2)

XLED PRO Wide XL S (sl. 3.4)

Pregled proizvoda (sl. 3.5)

A Glava reflektora
B Osnovno LED svjetlo
C Kućište
D Podešavanje funkcija
- Osnovno svjetlo
- Podešavanje vremena
- Podešavanje svjetlosnog praga

E Status LED

F IC senzor

3. XLED PRO Square XL S/ Wide XL S

D = D-Line (andmekaabel), lisavarustus

3. XLED PRO Square XL S/ Wide XL S

- XLED PRO Square XL S

-XLED PRO Wide XL S

3. XLED PRO Square XL S/ Wide XL S

Pareiza lietošana

3. XLED PRO Square XL S XL S/ Wide XL S

Diagram showing a circuit or device with labeled components including a 210V power source and an LED output.

9. Утилизация

3. XLED PRO Square XL S XL S/ Wide XL S

Употреба по предназначение

—Сензорен прожектор с LED-осветителни тела.

LED 230V LED

9. Отстраняване

3. XLED PRO Square XL S/ Wide XL S

按规定使用

- 带 LED 的感应灯用作光源。

- 适用于室外的墙壁安装。

- XLED PRO Square XL S

-XLED PRO Wide XL S

供货范围

XLED PRO Square XL S (图 3.1)

XLED PRO Wide XL S (图 3.3)

产品尺寸

XLED PRO Square XL S (图 3.2)

XLED PRO Wide XL S (图 3.4)

设备概况（图 3.5）

A LED 泛光灯灯头

B 底灯 LED

C 壳体

D 功能设置

- 底灯

- 时间设置

- 亮度设置

E 状态 LED

F 红外感应器

G 操作元件盖罩

H 墙壁支架

1 插接

光强分布（图 3.6 - 3.7）

4. 电气连接

连接电源线 (图 5.5)

电源线由 3 芯电缆组成：

World map silhouette in grayscale, showing continents and oceans without any text or labels

Contact

www.steinel.de/contact

QR code image containing encoded data, no visible human-readable text
