USER MANUAL AdvancedLevel 360 BOSCH

(9) 1/4" tripod mount (10) Battery compartment cover locking mechanism (11) Battery compartment cover (12) Laser warning label (13) Serial number

Accessories shown or described are not included with the product as standard. You can find the complete selection of accessories in our accessories range. Technical Data Cross line laser AdvancedLevel 360 Article number 3 603 F63 B.. Working range (diameter) up to approx.

Laser class 2 Laser lines – Laser type 500–540nm, < 10mW – Colour of the laser beam Green – C

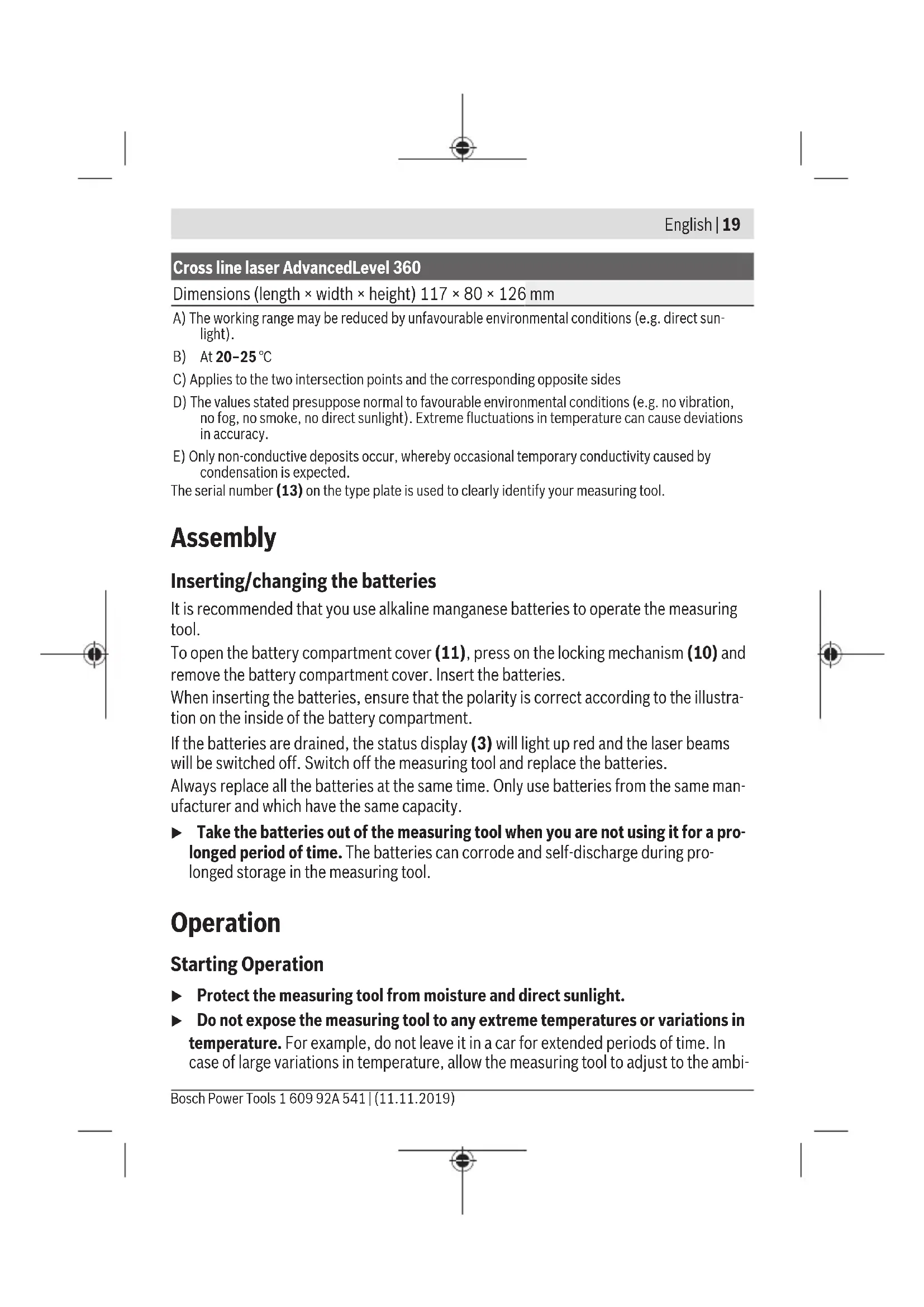

– Divergence 0.8mrad (full angle) Tripod mount 1/4" Batteries 4×1.5V LR6(AA) Operating duration (for cross-line mode) at least 4h Weight according to EPTA-Procedure 01:2014 0.52kg 1 609 92A 541 | (11.11.2019) Bosch Power ToolsEnglish | 19 Cross line laser AdvancedLevel 360 Dimensions (length× width× height) 117× 80× 126mm A) The working range may be reduced by unfavourable environmental conditions (e.g. direct sun- light).
