USER MANUAL ES 1814 ALPINA

Chain-saw for tree service

WARNING: read thoroughly the instruction booklet before using the machine.

ENGLISH - Translation of the original instruction

Ίντσες / mm Κωδικός Κωδικός SPR 255 A 305 SPR 255 C A 305 C 3/8” 10” / 25 cm 0,050” / 1,27 mm OREGON 100SDEA041 OREGON 91PX040X 91P040X 3/8” 12” / 30 cm 0,050” / 1,27 mm OREGON 120SDEA041 OREGON 91PX045X 91P045X 1/4” 10” / 25 cm 0,050” / 1,27 mm QIRUI AT10-50 LONGER E1-25AP060T***WARNING! This special type of chain-saw was designed for maintaining trees and must therefore be used only by a trained operator using a work tool that is safe and carefully designed. This chain-saw must be used only for maintaining trees in compliance with the above conditions. It is generally used with two hands in the same way as a conventional chain-saw. Some national regulations can restrict use of the machine.

INTRODUCTION 1 Dear Customer, thank you for choosing one of our products. We hope that you will be completely satised with this machine and that it fully meets your expectations. This manual has been compiled in order to provide you with all the information you need to get acquainted with the machine and use it safely and e ciently. Don’t forget that it is an integral part of the machine, so keep it handy so that it can be con sult ed when necessary, and pass it on to a further user if you resell or loan the machine. Your new machine has been designed and manufactured in pursuance with current regulations, and is safe and reliable if used in compliance with the instructions provided in this manual (proper use). Using the machine in any other way, or non-compliance with the safety specications relative to use, mainte- nance and repair is considered “improper use” which will invalidate the warranty, relieve the manufacturer from all liabilities, and the user will consequently be liable for all and any damage or injury to himself or others. Since improvements are periodically made to our products, you may nd slight dierences between your machine and the descriptions contained in this manual. Certain modications can be made to the machine without prior warning and without the obligation to update the manual, although the essential safety and function characteristics will remain unaltered. In case of any doubts, please contact your dealer. And now enjoy your work! CONTENTS

10. Spiked bumper (if provided)

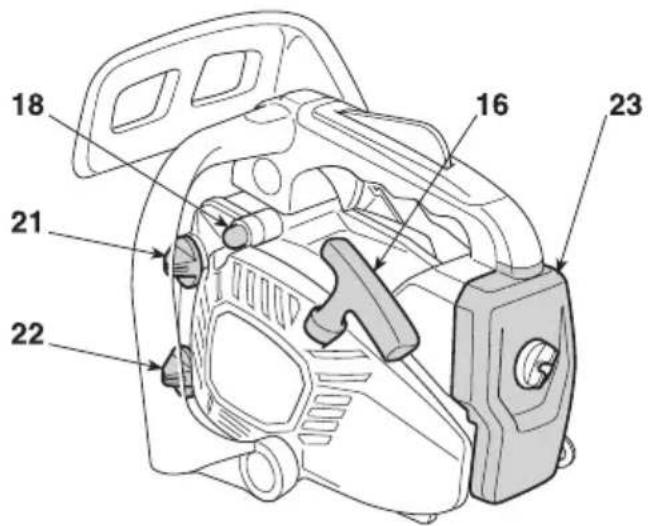

22. Chain oil tank cap

23. Air cleaner cover

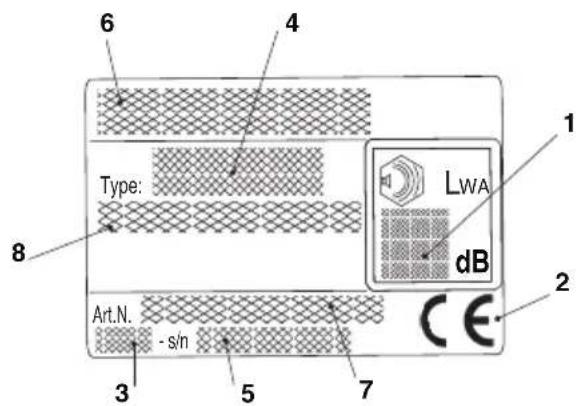

2. Conformity marking

3. Month / Year of manufacture

6. Name and address of Manufacturer

The example of the declaration of conformity can be found on the penultimate page of the manual.

LEN SYMBOLS 3 Maximum noise and vibration levels [1] Measured sound pressure level at ear’s operator – Measurement uncertainty dB(A) dB(A)

Garanteed sound power level dB(A 110 Vibrations level – Front handle – Rear handle – Measurement uncertainty m/sec

/min < 3000 - 3500 < 3000 - 3500 Maximum admissible rpm without load with chain installed

Maximum power specic consumption g/kWh 560 560 Oil tank capacity cm

Chain pinion teeth / pitch 6T / 3/8 8T / 1/4 Cutting length mm 220 / 270 235 Weight (with empty tank) kg 3,2 3,2 Maximum chain speed m/s 21 18,6 [1] WARNING! The vibration value may vary according to the usage of the machine and its tted equipment, and be higher than the one indicated. Safety measures must be established to protect the user and must be based on the load estimate generated by the vibrations in real usage conditions. In this regard, all the operational cycle phases must be taken into consideration, such as switching o or idle running.

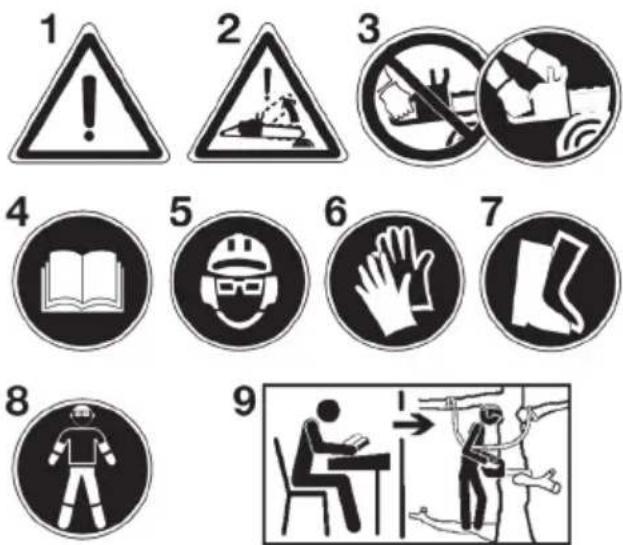

1) Warning! Read, understand and follow all

2) Warning! Danger of kickback.

3) Use the chain saw with two hands.

4) Read operator’s instruction book before oper-

5) Wear head, eye and ear protection. If you are

using the machine every day in normal con- ditions, you can be exposed to a noise level of 85 dB (A) or higher.

6) Wear strong working gloves.

7) Wear boots or protective shoes with grippy

soles and steel toecaps.

9) This saw is for trained tree service operators

This chain-saw was designed to be used only by a trained operator for pruning and cutting the crowns of tall tree branches, for cutting bushes, trunks or wooden beams whose diameter depends on the guide bar length. It can only be used to cut wood. Any other use is unintended use. FURTHERMORE, THE MACHINE MUST ONLY BE

USED BY TRAINED PROFESSIONAL TREE MAINTE-

NANCE OPERATORS. While using the chain-saw, the operator must use proper personal protective equipment according to the instruc- tions in the manual and the pictograms on the chain-saw. Safety devices and references for use and maintenance are also an integral part of the instruction manual. Persons using the chain-saw or doing maintenance must be famil- iar with the manual. Only original spare parts or those ap- proved by the manufacturer (guide bar, saw chain, spark plug) and the authorised combinations of guide bar / saw chain indicated in the manual can be used. The user and not the manufacturer is liable for all acci- dents due to unintended use and/or unauthorised modi- cations made to the chain-saw. The chain-saw must only be used outdoors. Residual risks Even using the chain-saw according to instructions, there are always residual risks that cannot be eliminated. The following are potential risks according to the type and construction of the chain-saw: – Contact with exposed teeth of the saw chain (cutting risk). – Access to the rotating chain (cutting risk). – Abrupt, unexpected movement of the guide bar (cut- ting risk). – Parts of the chain are projected (cutting/injury risk). – Parts of the piece being sawed are projected.

• The engine stops immediately with the switch in the «O» posi- tion

14) Carburettor adjustments

L = low speed mixture adjuster H = high speed mixture adjuster

16) Chain brake (the sym-

bol shows the direction in which the brake is released)

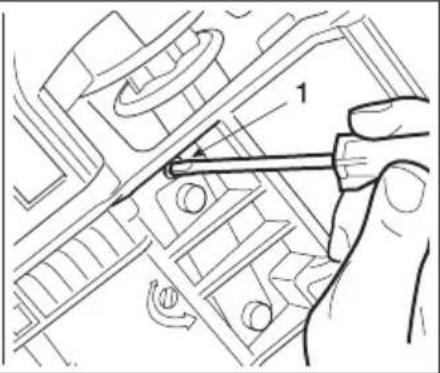

17) Oil pump regulator

• If you turn the rod with a screwdriver, following the arrow toward the «MAX» position, a greater quantity of oil will ow on the chain;

• if you turn it toward the «MIN» position, a lesser quantity will ow.

18) Direction in which the

chain runs 19– Inhalation of particles of the piece, petrol emissions from the engine. – Fuel (petrol / oil) contacts the skin. - Hearing loss if ear protection is not worn during work. A) TRAINING

1) Read the instructions carefully. Become acquainted

with the controls and the proper use of the machine. Learn how to stop the engine quickly.

2) Never allow children or persons unfamiliar with these

instructions to use the machine. Local regulations may restrict the age of the operator.

3) The machine must never be used by more than one

– when people, especially children or pets are in the vi- cinity; – if the user is tired or unwell, or has taken medici ne, drugs, alcohol or any substances which may slow his reexes and compromise his jud gement; – if the user is not capable of holding the machine rmly with two hands and/or remaining standing on the ground whilst working.

5) Remember that the operator or user is responsible for

accidents or hazards occurring to other people or their property. B) PREPARATION

1) Always wear adequate clothing which does not

hamper movements when using the ma chine. – Always wear slim-tting protective clothing, tted with shear-proof protection devices. – Always wear a helmet, protective gloves, eye-goggles, a half-mask respirator and safety anti-shear boots with non-slip soles. – Always wear ear and hearing protection de vi ces. – Never wear scarves, shirts, necklaces, or any han ging or apping accessory that could catch in the machine or in any objects or materials in the work area – Tie your hair back if it is long.

2) WARNING: DANGER! Fuel is highly ammable:

– keep the fuel in containers which have been specically manufactured and homologated for such use; – never smoke when handling fuel; – slowly open the fuel tank to allow the pressure in side to decrease gradually; – top up the tank with fuel in the open air, using a fun nel; – add fuel before starting the engine. Never re move the fuel tank cap or add fuel while the engine is run- ning or when the engine is hot; – if you have spilt some fuel, do not attempt to start the engine but move the machine away from the area of spillage and avoid creating any sour ce of ignition until the fuel has evaporated and fuel vapours have dissi- pated; – immediately clean up all traces of fuel spilt on the ma- chine or on the ground; – never start the machine in the same place you relled it with fuel; – make sure your clothing does not come into contact with the fuel, on the contrary, change your clothes be- fore starting the engine; – always put the tank and fuel container caps back on and tighten well.

3) Replace faulty or damaged silencers.

4) Before using the machine, check its general condi-

tion and in particular: – the throttle trigger and the safety lever must move freely, they must not need forcing and should return automati- cally and rapidly back to the neutral position; – the throttle trigger must remain locked until the safety lever is pressed; – the engine stop switch must easily move from one posi- tion to the other; – the electric cables and in particular the spark plug cable must be in perfect condition to avoid the generation of any sparks, and the cap must be correctly tted on the spark plug; – the machine handgrips and protection devices must be clean and dry and well fastened to the machine; – the chain brake must be in perfect working or der; – the bar and the chain must be tted correctly; – the chain must be tensioned correctly.

5) Before starting your work, make sure that all the pro-

tection devices are correctly tted. C) OPERATION

1) Do not operate the engine in a conned space where

dangerous carbon monoxide fumes can collect. Make sure air circulates when working in pits, holes or similar.

2) Work only in daylight or good articial light.

3) Take a rm and well-balanced position:

– where possible, avoid working on wet, slippery gro und or in any case on uneven or steep gro und that does not guarantee stability for the operator; – avoid using unstable ladders or platforms; – do not work with the machine above your shoulders; – never run, but walk carefully paying attention to the lay of the land and any eventual obstacles. – avoid working alone or in an isolated place, in case you have to nd help after an accident.

4) Make sure the machine is securely locked when you

start the engine: – start the motor in an area at least 3 metres from where you refuelled; – check that there are no persons in the vicinity of the machine; – do not direct the silencer and therefore the exhaust fumes towards inammable materials. – watch out for ying debris caused by the movement of the chain, especially when it hits obstacles or foreign objects.

5) Do not change the engine tuning and do not rev the

engine excessively at maximum speed.

6) Do not strain the machine too much and do not use a

small chain-saw for heavy-duty sawing. If you use the right machine, you will reduce the risk of hazards and improve the quality of your work.

7) Check that when the machine is running idle, there is

no movement of the chain and, after pres s ing the throt- tle trigger, the engine quickly returns to minimum speed.

8) Take care not to hit the bar hard against foreign objects

or ying debris caused by the movement of the chain.

– whenever you leave the machine unattended; – before refuelling.

10) Stop the engine and disconnect the spark plug

cable: – before cleaning, checking or working on the ma chine; – after striking a foreign object. Inspect the ma chine for any damage and make repairs before re starting it again; – if the machine begins to abnormally vibrate (Imme diate look for the cause of the vibrations and take for neces- sary controls at a Specialised Centre). – when the machine is not in use. SAFETY REQUIREMENTS 5 EN11) Avoid exposure to dust and sawdust produced by the chain when cutting.

D) MAINTENANCE AND STORAGE

1) Keep all nuts, bolts and screws tightly fastened to be

sure the equipment is in safe working condition. Routine maintenance is essential for safety and for maintain- ing a high performance level.

2) Do not store the machine with fuel in the tank in an

area where the fuel vapours could reach an open ame, a spark or a strong heat source.

3) Allow the engine to cool before storing in any en-

4) To reduce re hazards, keep the engine, ex haust si-

lencer and fuel storage area free from saw dust, branches, leaves, or excessive grease; ne ver leave containers with the cut debris inside the storage area.

5) If the fuel tank has to be emptied, thisshould be done

outdoors once the engine hascooled down.

6) If the fuel tank has to be emptied, this should be

done outdoors once the engine has cooled down.

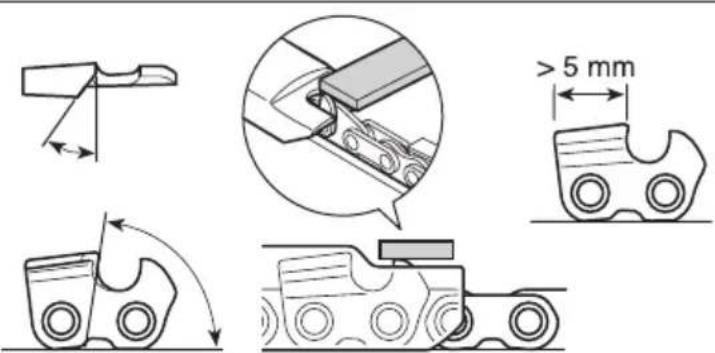

7) Make sure the chain is well sharpened. Any work

on the chain and bar require specic experience and spe- cial tools. For safety purposes, we recommend you con- tact your dealer to ensure work is done correctly.

8) For safety reasons, never use the machine with

worn or damaged parts. Damaged parts are to be replaced and never repaired. Only u se original spare parts. Parts that are not of the sa me quality can seriously damage the equipment and compromise safety.

9) Before putting the machine away, check you have re-

moved wrenches or tools used for maintenance.

10) Store the machine out of the reach of children!

E) TRANSPORTATION AND HANDLING

1) Whenever the machine is to be handled or tran sported

you must: – turn o the engine, wait for the chain to stop and discon- nect the spark plug cap; – mount the bar cover; – only hold the machine using the handgrips and position the bar in the opposite direction to that used during operation.

2) When using a vehicle to transport the machine, posi-

tion it so that it can cause no danger to persons and fasten it rmly in place to avoid it from tipping over, which may cause damage or fuel spillage.

• Keep all parts of the body away from the saw chain when the chain saw is operating. Before you start the chain saw, make sure the saw chain is not contacting anything. A moment of inattention while operating chain saws may cause entanglement of your clothing or body with the saw chain.

• When working with two hands, the right hand must always hold the rear grip and the left hand the front grip. Holding the chain saw with a reversed hand conguration increases the risk of personal injury and should never be done.

• Wear safety glasses and hearing protection. Fur- ther protective equipment for head, hands, legs and feet is recommended. Adequate protective cloth- ing will reduce personal injury by ying debris or acci- dental contact with the saw chain.

• When cutting a limb that is under tension be alert for spring back. When the tension in the wood bres is released the spring loaded limb may strike the operator and/or throw the chain saw out of control.

• Use extreme caution when cutting brush and sap- lings. The slender material may catch the saw chain and be whipped toward you or pull you o balance.

• Carry the chain saw by the front handle with the chain saw switched o and away from your body. When transporting or storing the chain saw always t the guide bar cover. Proper handling of the chain saw will reduce the likelihood of accidental contact with the moving saw chain.

• Follow instructions for lubricating, chain tension- ing and changing accessories. Improperly tensioned or lubricated chain may either break or increase the chance for kickback.

• Keep handles dry, clean, and free from oil and grease. Greasy, oily handles are slippery causing loss of control.

• This machine’s starter u nit generates an average sized electromagnetic eld, but it is not however possible to exclude the possibility of interference on any active or passive medical devices that operators may be wearing; this could be risky for their health conditions. All those using medical devices should always consult their GP, or the device manufacturer, before using this machine.

G) CAUSES AND OPERATOR PREVENTION

OF KICKBACK: Take special care in slippery conditions (wet ground or snow) and on rough or overgrown terrain. Beware of hid- den obstacles such as cut tree trunks, roots, holes and ditches to avoid stumbling. Be extremely cautious when working on slopes or uneven ground. Never use the chain- saw with one hand. Using one hand makes it more dicult to control kickback and prevent the bar or chain from skat- ing or bouncing along a limb or log. Kickback may occur when the nose or tip of the guide bar touches an object, or when the wood closes in and pinches the saw chain in the cut. Tip contact in some cases may cause a sudden reverse reaction, kicking the guide bar up and back towards the operator. Pinching the saw chain along the top of the guide bar may push the guide bar rapidly back towards the operator. Either of these reactions may cause you to loose control of the saw which could result in serious personal injury. Do not rely exclusively upon the safety devices built into your saw. As a chain saw user, you should take several steps to keep your cutting jobs free from accident or injury. Kickback is the result of tool misuse and/or incorrect op- erating procedures or conditions and can be avoided by taking proper precautions as given below:

• Hold the saw rmly, with the thumbs and ngers around the chain saw grips, and position your body and arms so that you can resist the force of a kickback. Kickback forces can be controlled by the operator, if proper precautions are taken. Do not let go of the chain saw.

• Do not overreach and do not cut above shoulder height. This helps prevent unintended tip contact and enables better control of the chain saw in unexpected situations.

• Only use replacement bars and chains specied by the manufacturer. Incorrect replacement bars and chains may cause chain breakage and/or kickback. 6 SAFETY REQUIREMENTS EN• Follow the manufacturer’s sharpening and main- tenance instructions for the saw chain. Decreasing the depth gauge height can lead to increased kickback.

H) CHAIN-SAW OPERATING TECHNIQUES

Always observe the safety regulations and use the most suitable sawing techniques. J) RECOMMENDATION

FOR THE FIRST-TIME USERS

Before felling or delimbing for the rst time, make sure: – you have been specically trained to use this type of equipment; – you have carefully read the safety regulations and user instructions contained in this manual; – you practise rst on logs on the ground or attached to trestles, in order to get familiar with the machine and the most suitable cutting techniques.

K) HOW TO READ THE MANUAL

Certain paragraphs in the manual contain particularly sig- nicant information and are marked with various levels of highlighting with the following meaning: NOTE

IMPORTANT These give details or further infor- mation on what has already been indicated, and aim to prevent both damage to the machine, and the machine from causing damage. WARNING! Non-observance will re sult in the risk of injury to oneself or others. DANGER! Non-observance will re sult in the risk of serious injury or death to oneself or oth- ers.

3.1 WORKING WITH TREE SERVICE CHAIN-SAWS

FROM A ROPE AND HARNESS

This chapter sets out working practices to re du ce the risk of injury from tree service chainsaws when working at height from a rope and harness. While it may form the basis of guidance and trai ning litera- ture, it should not be regarded as a sub stitute for formal training. General requirements working at height Operators of tree service chainsaws working at height from a rope and harness should never work alone. A competent ground worker trained in appro pria te emer- gency procedures should assist them. Operators of tree service chainsaws for this work should be trained in general safe climbing and work positioning techniques and shall properly e quipped with harnesses, ropes, strops, karabiners and other equipment for main- taining se cu re and safe working positions for both them- selves and the saw. Preparing to use the saw in the tree The chainsaw should checked, fuelled, started and warmed up by the ground worker before it is sent up to the opera- tor in the tree. The chainsaw should be tted with a suitable strop for atta ching to the op- erator’s harness: a) choke the strop around the attachment point on the rear of the saw (A); b) provide suitable karabiners to allow indirect (i.e. via the strop) and direct attachment (i.e. at the attachment point on the saw) of saw to the operators harness; c) ensure the saw is securely attached when it is being sent up to the operator; d) ensure the saw it secured to the harness before it is disconnected from the means of a scent. The saw should only be attached to the recommended attachment points on the harness. These may be at mid- point (front or rear) or at the sides. Where possible attaching the saw to centre rear mid-point will keep it clear of climbing lines and support its weight centrally down the operator’s spine. When moving the saw from any at- tachment point to another, opera- tors should ensure it is se cured in the new position before releasing it from the previous attachment point. These can be found on the midpoint (front or rear) or on the sides. When possible, fasten the chain- saw to the rear central midpoint to prevent it from interfering with the climbing ropes and make sure it supports the operator’s weight in the middle, toward the bottom of the operator’s spinal cord. When moving the chain-saw from one fastening point to another, it is advisable that operators are sure they are fastened to a new position before unfastening from the previous fastening point. Using the chainsaw in the tree SAFETY REQUIREMENTS 7 ENAn analysis of accidents with these saws during tree ser- vice operations shows the primary cause as being inap- propriate one-handed use of the saw. In the vast majority of accidents, operators fail to adopt a secure work position witch allows them to hold both handles of the saw. This results in an increased risk of injury due to:

• not having a rm grip on the saw if it kicks back;

• a lack of control of the saw such that it is mo re liable to contact climbing lines and operators body (particularly the left hand and arm)

• losing control from insecure work position re sul ting in contact with the saw (unexpected mo vement during operation of the saw). Securing the work position for two-handed use To allow the operator to hold the saw with both hands, they should as general rule, aim for se cur e work position where they are operating the saw at:

• hip level when cutting horizontal sections;

• solar plexus level when cutting vertical sections. Where the operator is working close into vertical stems with a low lateral forces on their work position, then a good footing may be all that is needed to maintain a secure work posi- tion. However as operators mo ve away from the stem, they will need to ta ke steps to remove or count er act the increasing la teral forces by, for ex am ple, a re-direct of the main line via a supplementary anchor point or using an adjustable strop direct from the harness to a supplementary an chor point. Gaining a good footing at the working position can be as- sisted by use of a temporary foot stirrup crea ted from an endless sling. Starting the saw in the tree When starting the saw in the tree, the operator should: a) apply the chain brake before starting; b) hold saw on either the left or right of the body when starting:

1) on the left side hold the saw with either the left hand

on the front handle or the right hand on the rear handle and thrust the saw away from the body while holding the pull starter cord in the other hand;

2) on the right side, hold the saw with the right hand on

either handle and thrust the saw a way from the body while holding the pull star ter cord in the left hand. The chain brake should always be engaged before lower- ing a running saw onto its strop. Operators should always check the saw has sucient fuel before undertaking criti- cal cuts. One-hand use of the chainsaw Operators should not use tree service chainsaws onehanded in place of unstable work positioning or in preference to a hand- saw when cutting small di- ameter wood at the branch tips. Tree service chainsaws should only be used one- handed where:

• the operator cannot gain a work position enabling two- han ded use; and

• they need to support their working po sition with one hand; and the saw is being used at full stretch, at right angles to and out of line with the operator’s body. Operators should never:

• cut with the kickback zone at the tip of the chainsaw guide bar

• “hold and cut” sections

• attempt to catch falling sections. Freeing a trapped saw If the saw should become trapped during cutting, opera- tors should:

• switch o the saw and attach it securely to the tree inboard (i.e. towards the truck side) of the cut or to a separate tool line;

• pull the saw from the kerf whilst lifting the branch as necessary;

• if necessary, use a handsaw or second chain saw to release the trapped saw by cutting a mi nimum of 30 cm away from the trapped saw. Whether a handsaw or a chainsaw is used to free a stuck saw, the release cuts should always be outboard (toward the tips of the branch), in order to prevent the saw be- ing taken with the section and further complicating the situation. 8 SAFETY REQUIREMENTS ENIMPORTANT The machine is supplied with the bar and chain dismantled and the oil and fuel tanks empty. WARNING! Unpacking and complet- ing the assembly should be done on a at and stable surface, with enough space for ma- chi ne handling and its packaging, always making use of suitable equipment. Disposal of the packaging should be done in ac cordance with the local regulations in force. WARNING! Always wear heavy-duty gloves when handling the bar and chain. Mount the bar and chain very carefully so as not to impair the safety and eciency of the machine. If in doubt, contact your dealer. Before tting the bar, make sure the chain brake is not engaged; this is done by pulling the front hand guard right back towards the body of the machine. WARNING! Perform all operations with the engine o.

1. SPIKED BUMPER ASSEMBLY

(if not already factory assembled) – Unscrew the nut (1) and remove the clutch cover (2). – Secure the spiked bumper (3) to the machine frame using the two supplied screws (4) (Fig. 1).

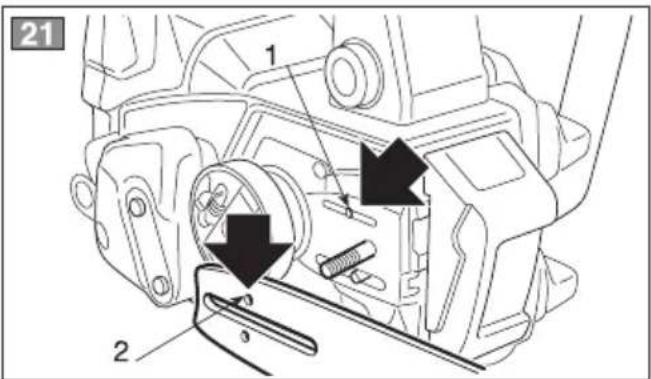

2. BAR AND CHAIN MOUNTING

– Unscrew the nut and remove the clutch cover to access the drive sprocket and the point where the bar is to be tted (Fig. 2). – Remove the plastic spacer, (1); this spacer must be used exclusively when transporting the ma- chine in its packaging and must not be used at any other time (Fig. 2). – Assemble the bar (2) by inserting the stud bolt in the groove and push it towards the back of the machine body (Fig. 3). – Mount the chain in the right direction around the drive sprocket and along the bar rail (Fig. 4). If the tip of the bar has a nose sprocket, make sure the drive links t correctly in the sprocket rims. – Remove the cover without tightening the nut, making sure to insert the two rear fasteners in their respective slots properly. – Check that the chain tension adjuster pin (3) of the clutch cover is tted properly in the hole on the bar; if it isn’t, turn the chain tension ad ju ster screw (5) using a screwdriver until the pin is completely inserted (Fig. 5). – Turn the chain tension adjuster screw (4) to ad- just the chain tension (Fig. 5). – Lifting the bar, tighten the cover nut securely using the supplied wrench (Fig. 6).

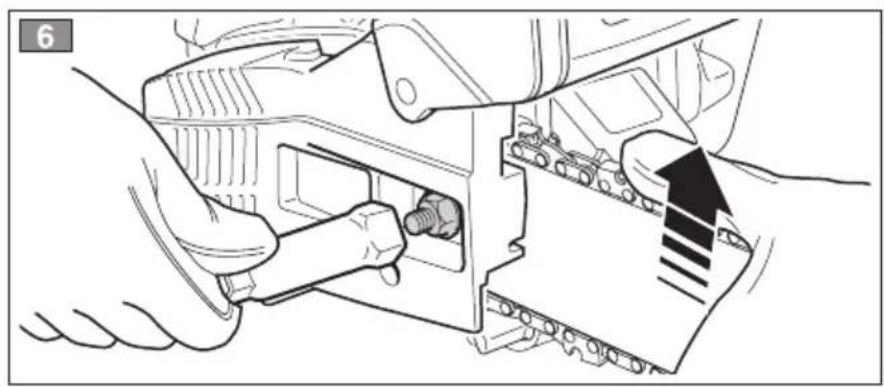

• Checking the chain tension Check the chain tension. The tension is correct when the drive links do not slip out of the chain guides if you hold the chain in the middle of the bar (Fig. 7). MACHINE ASSEMBLY 9

4. MACHINE ASSEMBLYTo prepare the fuel mixture:

– Place about half the amount of petrol in a ho- mologated tank – Add all the oil, according to the chart. – Add the rest of the petrol. – Close the top and shake well. IMPORTANT The fuel mixture tends to age. Do not prepare excessive amounts of the fuel mixture to avoid deposits from forming. IMPORTANT Keep the petrol and fuel mix- ture containers separate and easily identiable to avoid the mistake of using one in place of the other. IMPORTANT Periodically clean the petrol and fuel mixture containers to remove any even- tual deposits. IMPORTANT Be careful that, if the agita- tion is insucient, there is an increased danger of early piston seizing due to abnormally lean mix- ture. Also, be careful that, if the usage in the in- struction manual is not observed as to the mixed gasoline, etc. de scri bed therein, it may not be cov- ered by the warranty.

WARNING! Petrol and petrol fumes are highly ammable. RISK OF BURNS AND FIRE. WARNING! Open the fuel tank cap carefully as pressure may have formed inside. DANGER! – Do not smoke during refuelling and avoid inhaling petrol fumes. – Add fuel before starting the engine. – Make sure that the fuel tank cap is properly closed after refuelling.

1. PREPARING THE FUEL

This machine is tted with a two-stroke engine which requires a mixture of petrol and lubricating oil. IMPORTANT Using petrol alone will dam- age the motor and will cause for invalidation of the warranty. IMPORTANT Only use quality fuels and oils to maintain high performance and guarantee the duration of the mechanical parts over time.

• Petrol characteristics Only use unleaded petrol with a fuel grade of at least 90 N.O. IMPORTANT Unleaded petrol tends to cre- ate deposits in the container if preserved for more than 2 months. Always use fresh petrol!

• Oil characteristics Only use top quality synthetic oil specically for two-stroke engines. Your dealer can provide you with oils which have been specically developed for this type of engine, and which are capable of guaranteeing a high level of protection. The use of these oils makes it possible to prepare a 2,5% mixture, consisting in 1 part oil to 40 parts petrol.

• Preparation and preservation of the fuel mixture DANGER! Petrol and the fuel mixture are highly inam- mable! – Keep the petrol and fuel mixture in homolo- gated fuel containers, in safe place, away from any ames or heat sources. – Never leave the containers within the reach of children. – Never smoke whilst preparing the mixture and avoid inhaling the petrol fumes. The chart indicates the amount of petrol and oil to use to prepare the fuel mixture according to the type of oil used.

Petrol Synthetic oil 2-stroke liters liters cm

10 0.250 250– check that all the screws on the machine and the bar are tightly fastened; – check that the chain is sharp and there are no signs of any damage; – check that the air lter is clean; – check that handgrips and protection devices are clean and dry, correctly mounted and well fastened to the machine; – check that the handgrips are well fastened; – check that the chain brake is working eciently; – check the chain tension.

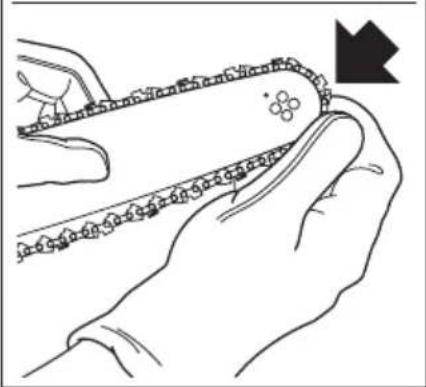

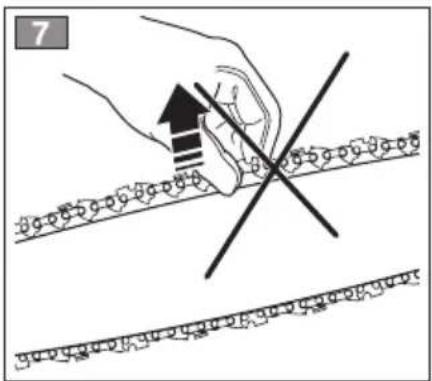

5. CHECKING THE CHAIN TENSION

WARNING! Perform all operations with the engine o. The tension is correct when the drive links do not slip out of the chain guides if you hold the chain in the middle of the bar (Fig. 7). – Loosen the cover nut, using the supplied wrench (Fig. 5). – Turn the chain tension adjuster screw (4) to ad- just the chain tension (Fig. 5). – Lifting the bar, tighten the cover nut securely using the supplied wrench (Fig. 6).

6. CHECKING THE CHAIN BRAKE

This machine is equipped with a safety brake sy- stem. The chain brake is a device which stops the chain instantaneously if the chain saw recoils due to kickback. Normally, the brake is activated auto- matically by i nertial force. It can also be activated manually by pushing the brake lever (left-hand guard) down toward the front. This brake can be operated manually by pushing the front guard forward. To release the brake, pull the front guard towards the handgrip until you hear a click. To check that the brake works eciently, proceed as follows: – Make sure you are holding the machine rmly with both hands when you start the engine – Use the accelerator level to keep the chain moving, push the brake lever forwards using the back of you left hand; the chain must stop im- mediately. – When the chain has stopped, immediately re- lease the accelerator lever. – Release the brake. WARNING! Do not use the machine if the chain brake does not function correctly and have it inspected by your dealer. – Never remove the fuel tank cap or add fuel while the engine is running or still hot. – Check for any leaks. – Start the engine well away from the refuel- ling point. Before refuelling: – Shake the fuel mixture container well. – Place the machine on a at stable surface, with the fuel tank cap facing upwards. – Clean the fuel tank cap and the surrounding area to avoid any dirt from entering the tank during relling. – Carefully open the fuel tank cap to allow the pressure inside to decrease gradually. Use a funnel to rell and avoid lling the tank to the brim. WARNING! Always close the fuel tank cap rmly. WARNING! Immediately clean all tra- ces of fuel which may have dripped on the machine or the ground and do not start the engine until the petrol fumes have dissipated.

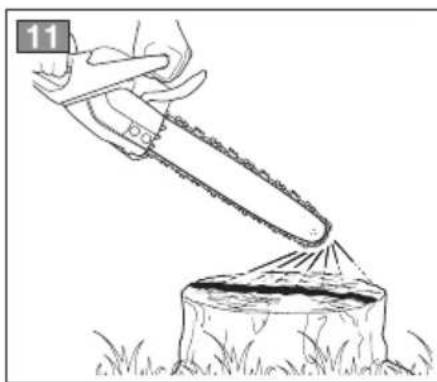

IMPORTANT Only use special oil for chain saws or adhesive oil for chain saws. Do not use oil containing impurities so as not to block the oil lter and to prevent irreparable damage to the oil pump. IMPORTANT The special oil for lubricating the chain is biodegradable. Use of a mineral oil or engine oil causes serious damage to the environ- ment. It is essential that you use good quality oil to lu- bricate the cutting parts eectively. Used or poor quality oil does not guarantee good lubrication and reduces the duration of the chain and bar. It is always worth topping up the oil tank complete ly (using a funnel) every time you refuel. Since the oil tank capacity is enough to guarantee that the fuel runs out rst, you will avoid the risk of operating the machine without lubricant.

4. CHECKING THE MACHINE

Before starting work please: – check that the clutch functions properly (chain does not move in idle) – inspect the chain-saw daily or before using, or after being dropped to identify signicant dam- age or defects, – ll the relevant tanks with fuel and oil;

PREPARING TO WORK 11

ENIMPORTANT To avoid breaking the starter rope, do not pull the whole length of it or let it slide along the edge of the cable guide hole. Release the starter gradually, to avoid letting it y back un- controllably.

7. Push the choke knob inward halfway.

8. Pull the starter rope again until the engine starts

as normal NOTE If the starter rope is pulled repeatedly with the choke on, it may ood the en- gine and make starting dicult. If you have ooded the engine, remove the spark plug and gently pull the handle on the starter rope to eliminate any excess fuel; then dry the spark plug electrodes and replace it on the engine.

9. When the engine has started, press the throttle

trigger to disconnect the starter and allow the engine to idle. IMPORTANT Do not let the engine run at high power with the chain brake engaged, as this could cause overheating and damage to the clutch.

10. Let the engine run idle for at least 1 minute

before using the machine.

• Hot starting When hot starting (immediately after stopping the engine), follow the procedure indicated above in points 1 - 2 - 5 - 6 - 9. WARNING! Carefully follow the in- struc tions under “For your safety” ( 3.1). USE OF THE ENGINE (Fig. 10) IMPORTANT Always disengage the chain brake, pulling the lever towards you before using the accelerator. The chain speed is regulated by the throttle trigger (1) on the rear handgrip (2). The throttle trigger only works if the lockout (3) is pressed at the same time. The movement is transmitted from the engine to the chain by a centrifugal mass clutch that pre- vents the chain from moving when the engine is running at minimum speed.

WARNING! The engine must be start ed in an area at least 3 metres from where you relled the fuel tank. Before starting the engine: – Place the machine rmly on the ground. – Take o the bar cover. – Make sure the bar is not touching the ground or any other object.

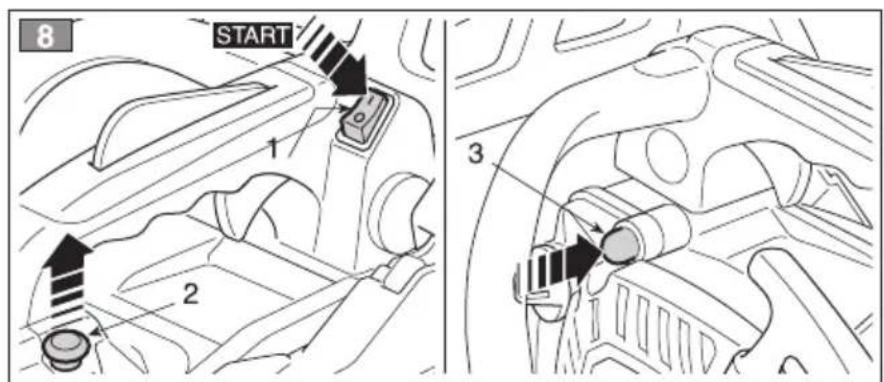

• Cold starting NOTE A “cold” start of the engine means starting it after at least 5 minutes from when it was switched o or after refuelling. To start the engine (Fig. 8):

1. Check that the chain brake is engaged (with the

front hand guard pushed forward).

2. Set the switch (1) to «START».

3. Pull the knob (2) as far as possible to engage

to prime the carburettor.

5. Hold the machine rmly on the ground with one

hand on the grip, in order not to lose control of the machine during start-up (Ill. 9). WARNING! If the machine is not held rmly, the force of the engine could cause the user to lose his balance or direct the bar to- wards him or an obstacle.

6. Pull the starter rope slowly for 10 - 15 cm until

you feel some resistance, then tug it hard a few times until you hear the engine turn over. WARNING! Never wind the starter ca- ble around your hand. DANGER! Never start the chain saw by holding on to the starter cable and allowing it to fall. This is an extremely dangerous method as you lose complete control over the machine and the chain. 12 HOW TO START - USE - STOP THE ENGINE

the operator to vibrations and may cause “white nger” syndrome. Wear gloves and keep your hands warm to reduce this risk. If any “white nger” symptoms appear, seek medical advice immediately. “White nger” symp toms include: numbness, loss of feel- ing, tingling, pricking, pain, loss of strength, changes in skin colour or condition. These symptoms normally appear in the ngers, hands or wrists. The risk increases at low temperatures.

• Plan your work schedule to spread any high vibration tool use over a number of days. WARNING! It takes specic training to use the machine for felling and delimbing. WARNING! Keep all parts of your bo- dy away from the saw chain when the engine is running. WARNING! Never cut in high wind, bad weather, when visibility is poor or in very high or low temperatures. Always check the tree for dead branches which could fall during the felling operation. WARNING! Do not operate the chain saw in a tree unless specially trained to do so. IMPORTANT Always remember that an incorrectly used chain-saw may disturb others and have a serious impact on the environment. To respect people and the environment: – Avoid using the machine in environments or at times of the day when it may disturb others. – Scrupulously comply with local regulations and provisions for the disposal of waste materials after sawing. – Scrupulously comply with local regulations and provisions for the disposal of oils, damaged parts or any elements which have a strong im- pact on the environment. – A certain amount of chain lubricating oil is re le- ased into the environment when the machine is running, so only use biodegradable oils made specically for this use. – To avoid the risk of re, do not leave the ma chi ne with the engine hot on leaves or dry grass. WARNING! Always wear suitable clo- thing when using the machine. Your dealer can provide you with all the information on the most suitable accident-prevention devices to guarantee your safety. Do not grip the handles with constant or ex- cessive pressure. WARNING! When you have reduced speed to a minimum, it may take a few sec- onds for the chain to stop. IMPORTANT If the machine does not turn o, pull the starter to ood and stop the engine and immediately contact the dealer to nd the cause of the problem and request necessary repairs. WARNING! Do not use the machine if the chain moves when the engine is running idle; in this case, contact your dealer. The correct running speed will be achieved by pressing the throttle trigger (1) as far as possible. IMPORTANT Avoid using the engine at full power for the rst 6-8 working hours. STOPPING THE ENGINE (Fig. 10) To stop the engine: – Release the throttle trigger (1) and allow the engine to run idle for a few seconds. – Set the switch (4) to «STOP». HOW TO START - USE - STOP THE ENGINE / USING THE MACHINE 13

7. USING THE MACHINEThis contact with the tip of the chain can cau se

a rapid backward motion, pushing the gui de bar up and towards the operator. This also hap pens when the chain is jammed along the up per part of the bar. In both cases, kickback can cause the operator to lose control of the chain-saw, leading to serious consequences. WARNING!

• Before proceeding to your job, read the sec tion “For Safe Oper ation”. It is recom- mended to rst practice sawing easy logs. This also helps you get accustomed to your unit.

• Always follow the safety regulations. The chain saw must only be used for cutting wood. It is forbidden to cut other types of ma terial. Vibrations and kickback vary with di erent materials and the requirements of the safety regulations would not be re spec- ted. Do not use the chain saw as a lever for lift ing, moving or splitting objects. Do not lock it over xed stands. It is forbidden to hitch tools or applications to the PTO other than those specied by the manufacturer.

• It is not necessary to force the saw into the cut. Apply only light pressure while running the engine at full throttle.

• When the saw chain is caught in the cut, do not attempt to pull it out by force, but use a wedge or a lever to open the way.

• If there is a barrier between the piece to be cut and the chain-saw, turn o the chain- saw and wait until it stops completely. Wear protective gloves and remove the obstacle. If the chain must be removed, follow the in- structions in the chapter dedicated to chain- saw assembly. A test run must be done after having removed the obstacle and reassem- bled the chain. If you notice vibrations or mechanical noises, stop working and con- tact your dealer.

• Using the spiked bumper (if provided) (Fig. 12)

1. Dig the spiked bumper into the log and use it as

a pivot. Cut with an arched motion to make the bar penetrate the wood.

2. Repeat several times if necessary, changing

the point where you plant the spiked bumper.

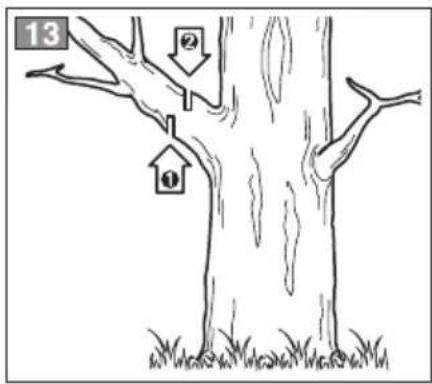

• Delimbing (Fig. 13) WARNING! Make sure there is nothing or nobody in the area where the branches will fall.

1. CHECKS DURING WORK

• Checking the chain tension The chain tends to stretch gradually as you work, so you need to check its tension frequently. IMPORTANT During the rst period of use (or after replacing the chain), it must be checked more frequently due to settling of the chain. WARNING! Never work with the chain loose, as it can be hazardous if the chain slips out of its guides. To adjust the chain tension, follow the instructions in Chapter 5.5.

• Checking the oil delivery IMPORTANT Never use the machine with- out lubrication! The oil tank may get almost empty every time the fuel runs out. Make sure you top up the oil tank every time you refuel the chain-saw. WARNING! Make sure the bar and the chain are in place when you check the oil de- livery. Start the engine, keep it running at medium power and check if the chain oil is delivered as shown in the gure (Fig. 11). You can adjust the chain oil ow using a screw- driver on the adjuster screw (1 or 1a) of the oiler, which is on the bottom of the machine (Fig. 11).

2. DIRECTIONS FOR USE AND CUTTING

TECHNIQUES Before felling or delimbing for the rst time, prac- tise sawing logs on the ground or on trestles, so that you can get familiar with the machine and the most suitable sawing techniques. WARNING! Stop the engine immedi- ately if the chain stops during sawing. Be wa re of kickback, which can occur if the bar con- tacts an obstacle. Kickback occurs when the tip of the chain co mes in contact with an object or when the wood contracts and jams the chain during sa- wing.

14 USING THE MACHINE

EN1. Check the direction in which the branch is at- tached to the tree.

2. First cut on the side where the branch bends

and then nish cutting on the opposite side.

• Sawing a log on the ground (Fig. 17) Cut up to half the diameter, roll the log over and nishing sawing on the other side.

• Sawing a raised log (Fig. 18)

1. If you are sawing the overhanging end of a sup-

ported log (A), rst cut a third of the diameter from the bottom upwards, then nish from the top.

2. If you are sawing between two supports (B), cut

a third of the diameter from the top downwards, then nish from the bottom.

3. END OF OPERATIONS

When you have nished your work: – Switch off the engine as indicated above (Chap. 6). – Wait for the chain to stop and allow the machine to cool. – Loosen the bar fastening nut to reduce chain tension. – Remove any traces of sawdust or oil deposits from the chain. – If there is excessive dirt or resin build-up, disas- semble the chain and place it in a container with a specic cleanser. Then rinse it with clean water and treat it with a suitable anticorrosive spray, before reassembling on the machine. – Fit the bar cover before reassembling the ma- chine. WARNING! Allow the engine to cool be f ore storing in any enclosure. To reduce re hazards, clean the machine thoroughly to get rid of any sawdust, bran- ches, leaves or excess grease, never leave containers with the cut debris inside the stor- age area. WARNING! For pruning high up using a rope and a belt slings, carefully follow the instructions under “For your safety” ( 3.1). WARNING!

• Do not work standing on unstable bases or rung ladders.

• Do not cut above shoulder height.

1. Stand opposite the branch you want to cut.

2. Start cutting lower branches followed by the

3. Cut downwards to prevent the bar from getting

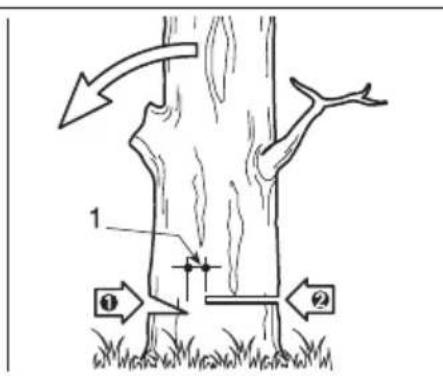

• Felling (Fig. 14) WARNING! When felling on slopes, always stand uphill from the tree and check that the felled trunk cannot cause damage if it rolls down the hill.

1. Decide where the tree should fall – you should

consider the wind, the natural lean of the tree, the position of the heaviest branches and how easy the work is after felling, etc.

2. Clear the area around the tree and nd a stable

3. Plan obstacle-free escape routes at a 45° angle

back and away from the direction of fall. These routes must allow you reach a safe area at a distance of about 2.5 times the length of the tree to be felled.

4. On the side of the fall, mark a felling notch

around a third of the trunk’s diameter.

5. Cut the tree on the other side, slightly above the

bottom of the notch, leaving the uncut wood to act as a “hinge” (1) of approx. 5-10 cm.

6. Reduce the thickness of this hinge without pull-

ing out the bar, until the tree falls.

7. In particular or unstable conditions, you can

complete felling by inserting wedges (2) on the opposite side of the fall, and hitting them with a hammer until the tree falls.

• Bucking (Fig. 15) WARNING! Be careful of where the bran ches are lying on the ground, the risk of them being under tension, the direction the branch may go during cutting and the risk of the tree being unstable after the branch has been cut.

USING THE MACHINE 15

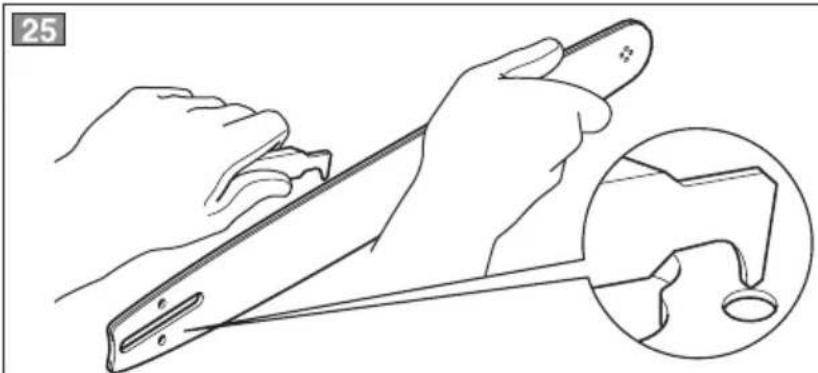

ENCHAIN BRAKE Regularly check the eciency of the chain brake and the condition of the metal band around the clutch bell, remove the casing (as illustrated in Chap. 4.1) and replace it correctly when the opera- tion has been completed. Replace this band when the points in contact with the clutch bell wear down to about half the thick- ness of the two ends not subject to rubbing. CHAIN SPROCKET Regularly check the condition of the sprocket with your local retailer and replace it when wear ex- ceeds the accepted limits. Do not mount a new chain with a worn sprocket or vice-versa. LUBRICATION HOLE (Fig. 21) Periodically remove the casing (as illustrated in Chap. 4.1) remove the bar and check that neither the machine lubrication holes (1) or the bar (2) are clogged. CHAIN CATCHER This is an important safety device that restrains the chain if it breaks or degrooves. Regularly check the condition of the pin and re- place it if damaged.

Periodically check that all the nuts and screws are securely tightened and the handgrips are tightly fastened. CLEANING THE AIR FILTER (Fig. 22) IMPORTANT Cleaning the air lter is es- sen tial to guarantee the eciency and duration of the machine. Do not work with a damaged lter or without a lter, as this could permanently damage the engine. It must be cleaned after every 15 working hours. WARNING! For your safety and that of others: – Correct maintenance is essential to main- tain the original eciency and safety of the machine over time. – Keep all nuts, bolts and screws tight to be sure the equipment is in safe working con- dition. – Never use the machine with worn or dam- aged parts. Damaged parts are to be re- placed and never repaired. – Only use original spare parts. Parts that are not of the same quality can seriously dam- age the equipment and compromise safety. WARNING! During maintenance op- erations: – Remove the spark plug cap. – Wait until the engine is suciently cold. – Use protective gloves when handling the bar and chain. – Keep the bar protection devices on, except when intervening directly on the bar or the chain. – Never dispose of oils, fuel or other polluting materials in unauthorised places. CYLINDER AND SILENCER (Fig. 19) To reduce re risks, periodically clean the cylinder aps with compressed air and clear the silencer area to get rid of sawdust, branches, leaves or other debris. STARTING SYSTEM To avoid overheating and damage to the engine, always keep the cooling air vents clean and free of sawdust and debris. The starter rope must be replaced as soon as it shows signs of wear. CLUTCH UNIT (Fig. 20) Keep the clutch bell free of sawdust and debris, remove the casing (as illustrated in Chap. 4.1) and replace it correctly when the operation has been completed. Have your dealer check the greasing of the internal bearing every 30 hours (approx.).

WARNING! The specications of the chain and the bar homologated for this machine are shown in the “EC Conformity Statement” provided. Do not use other types of chains or bars for safety reasons. The table gives the sharpening data for dierent types of chains, but this does not mean you can use dierent chains from the homologated one. When performance is poor, rst check that the chain runs smoothly and the bar rails are not dis- torted, then contact your dealer to check the car- buretion and the engine.

• Tuning minimum speed WARNING! The chain must not move when the engine is running idle. If the chain moves when the engine is running idle, con- tact your dealer to correctly regulate the en- gine.

SHARPENING THE CHAIN

WARNING! To ensure that the chain- saw works safely and eciently, it is essential that the cutting components are well-sharp- ened. Sharpening is necessary when:

• The sawdust looks like dust.

• Cutting becomes more dicult.

• The cut is not straight.

• Vibrations increase.

• Fuel consumption increases. WARNING! If the chain is not su- ciently sharpened, the kick-back’s risk in- creases. A specialized centre will sharpen the chain using the right tools to ensure minimum removal of mate- rial and even sharpness on all the cutting edges. To clean the lter: – Unscrew the knob (1). – Remove the lid (2) and the lter element (3). – Gently tap the lter element (3) to remove the dirt and, if necessary, clean it with low pressure compressed air. IMPORTANT The lter element (3) must never be washed and must be replaced if it is too dirty or damaged. – Reassemble the lter element (3) and the lid (2). – Screw the knob (1) back on. CHECKING THE SPARK PLUG (Fig. 23) The spark plug can be accessed by removing the air lter cover. Periodically remove and clean the spark plug us- ing a metal brush to get rid of any deposits. Check and reset the correct distance between the electrodes. Replace the spark plug and fasten it rmly using the supplied wrench. The spark plug must be replaced with one with the same characteristics whenever the electrodes have burnt or the insulation has worn, and in any case every 100 working hours.

TUNING THE CARBURETTOR

The carburettor is tuned by the manufacturer to achieve maximum performance in all situations, with a minimum emission of toxic gas in compli- ance with the regulations in force.

Chain pitch Limiter tooth level (a) File diameter (d) inches inches mm inches mm 3/8 0,025 0,64 5/32 4,0 1/4 0,025 0,64 5/32 4,0 a d a dAll and any operations performed in unauthorised centres or by unqualied persons will totally invali- date the warranty. STORAGE After every work stint, clean the machine thor- oughly to remove all dust and debris, and repair or replace any faulty parts. The machine must be stored in a dry place away from the elements and with the bar cover correctly tted.

LONG PERIODS OF DISUSE

IMPORTANT If you are not going to use the machine for a period of more than 2-3 months, we recommend you do a few things before putting it away. This will make it easier when you want to use the machine again and will also prevent per- manent damage to the engine.

• Storage Before putting the machine away: – Clean and maintain the chain-saw before sto- ring. – Unscrew the nut, disassemble the cover and remove the chain and bar. – Empty the oil tank, ll with about 100-120 cc of specic liquid detergent and plug the cap. – Remove the cover without tightening the nut, making sure to insert the two rear fasteners in their respective slots properly. – Start the engine and keep it running until all de- tergent is used. – Start the engine and run it idle until it uses up all the fuel that is left in the tank and the carburettor. – Remove the spark plug after the engine cools. – Pour a teaspoon of (new) 2-stroke engine oil into the spark plug slot. – Pull the starter grip several times to deliver oil to the cylinder. – Replace the spark plug with the piston in the dead end upper position (visible from the spark plug slot when the piston is at maximum stroke).

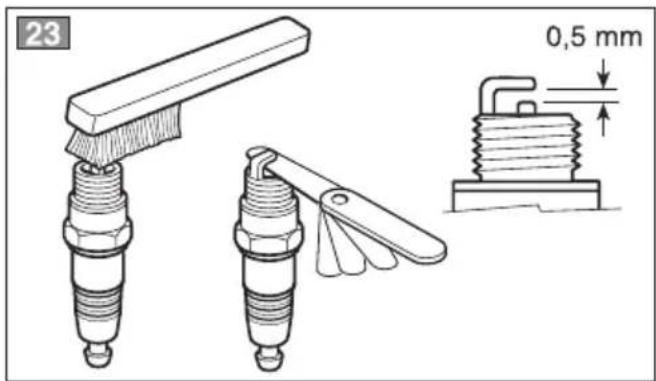

• Restarting work When you wish to start using the machine again: – Remove the spark plug. – Pull the starter rope a few times to eliminate excess oil. – Check the spark plug as described in chapter “Checking the spark plug”. – Prepare the machine as indicated in the para- graph entitled “Preparing for work”. If you sharpen the chain yourself, use special round-section les with the right diameter depend- ing on the type of chain (see “Chain Maintenance Table”). You need a certain amount of skill and experience to avoid damaging the cutting edges. Sharpen the chain as follows (Fig. 24): – Switch o the engine, release the chain brake and secure the bar with the chain in a vice so that the chain can run smoothly. – Tighten the chain if it is loose. – Mount the le in the guide and then insert it in the tooth at a constant angle from the cutting edge. – Sharpen in a forward motion a few times and repeat this on all the cutting edges facing the same way (right or left). – Turn the bar over in the vice and repeat on all the other cutting edges. – Check that the limiter tooth does not stick out further than the inspection instrument and le any projecting parts with a at le, rounding o the edge. – After sharpening, remove all traces of ling and dust and lubricate the chain in an oil bath. Replace the chain whenever: – The length of the cutting edges reduces to 5 mm or less; – There is too much play between the links and the rivets. BAR MAINTENANCE (Fig. 25) To avoid asymmetrical wear on the bar, make sure it is turned over periodically. To keep the bar in perfect working order, proceed as follows: – grease the bearings on the nose sprocket (if present) with the syringe; – Clean the bar groove with the scraper (not in- cluded); – clean the lubrication holes; – with a at le, remove burr from the edges and level o the guides. Replace the bar whenever: – the groove is not as deep as the height of the drive links (which must never touch the bottom); – the inside of the guide is worn enough to make the chain lean to one side. EXTRAORDINARY MAINTENANCE All maintenance operations not foreseen in this manual must be performed exclusively by your dealer.

18 MAINTENANCE AND STORAGE

ENThe table contains a list of all possible combina- tions between bar and chain, indicating those which may be used on each machine, marked with the symbol “

WARNING! In consideration that the selection, application and usage of bar and chain are actions made solely by the user, the latter assumes responsibility for damages of TROUBLESHOOTING / ACCESSORIES 19

1) The engine will not

start or will not keep running

2) The engine starts but

irregularly and lacks in power when revved

4) The engine gives o

an excessive amount of smoke

5) No oil is released

– Incorrect starting procedure – Dirty spark plug or incorrect distance between the electrodes – Air lter clogged – Carburetion problems – Air lter clogged – Carburetion problems – Dirty spark plug or incorrect distance between the electrodes – Carburetion problems – Incorrect composition of the fuel mixture – Carburetion problems – Bad quality oil – Lubrication holes are clogged – Follow the instructions (see chapter 6) – Check the spark plug (see chapter 8) – Clean and/or replace the lter (see chapter 8) – Contact your dealer – Clean and/or replace the lter (see chapter 8) – Contact your dealer – Check the spark plug (see chapter 8) – Contact your dealer – Prepare the fuel mixture according to the instructions (see chap. 5) – Contact your dealer – Empty the tank, clean it and pipes with liquid detergent and change the oil – Clean

PROBLEM LIKELY CAUSE SOLUTION

any kind due to such actions. When in doubt or if lacking knowledge of the specicity of each bar or chain, contact your retailer or spe- cialised gardening centre. Use of unapproved combinations of bar and chain can reduce the safety level and the ma- chine’s original performances, damage the machine and be dangerous for the operator and other persons.

Bar and chain combinations Pitch BAR CHAIN Model Inches Length Inches /

16 VEDLIKEHOLD OG LAGRING

VEDLIKEHOLD OG LAGRING 17

DALJŠE OBDOBJE NEUPORABE

INNEHÅLLSFÖRTECKNING

EC Declaration of Conformity (Machine Directive 2006/42/EC, Annex II, part A)

2. Herby declares under its own responsibility

that the machine: Chainsaw for forest service felling, bucking, delimbing trees a) Type / Base Model b) Month / Year of manufacture c) Serial number d) Engine: petrol

3. Conforms to directive specifications:

e) Certifying body f) EC examination of Type

4. Reference to harmonised Standards

EC Declaration of Conformity (Machine Directive 2006/42/EC, Annex II, part A) 1. The Company 2. Herby declares under its own responsibility that the machine: Chainsaw for forest service felling, bucking, delimbing trees a) Type / Base Model b) Month / Year of manufacture c) Serial number d) Engine: petrol 3. Conforms to directive specifications: e) Certifying body f) EC examination of Type 4. Reference to harmonised Standards g) Sound power level measured h) Sound power level guaranteed j) Net power installed n) Person authorised to create the Technical Folder: o) Place and Date DE ( Übersetzung der Originalbetriebsanleitung
