| Product type | Portable nibbler |
| Brand | Fein |
| Model | BLK 3.5 E |
| Rated voltage | 230 V |
| Frequency | 50 - 60 Hz |
| Power consumption | 550 W |
| No-load stroke rate | 1200 - 2700 min⁻¹ (adjustable) |
| Max. steel thickness (400 N/mm²) | 3.5 mm |
| Max. steel thickness (600 N/mm²) | 2.5 mm |
| Max. steel thickness (800 N/mm²) | 1.5 mm |
| Max. aluminum thickness (250 N/mm²) | 4.0 mm |
| Weight according to EPTA | 1.9 kg |
| Double insulation | Yes |
| Restart protection | Yes |
| Electronic stroke preselection | Yes |
| Min. inside radius for curvilinear cuts | 10 mm |
| Cutting tool type | Punch and die |
| Recommended lubrication | Cutting paste (steel), kerosene (aluminum) |
| Maintenance | Blow out with compressed air, grease contact surfaces |
| Replaceable wear parts | Punch and die |
| Approved accessories | Specific FEIN tips and sockets |
Frequently Asked Questions - BLK 3.5 E Fein
User questions about BLK 3.5 E Fein
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Scissors in PDF format for free! Find your manual BLK 3.5 E - Fein and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. BLK 3.5 E by Fein.
USER MANUAL BLK 3.5 E Fein
| BLK3.5E (**) BLK5.0E (**) | |
| 7 232 .. 7 232 .. | |
| P_1 | W 1700 1700 |
| P_2 | W 1000 1000 |
| n_0 | /min 820 820 |
| n_S | m/min 1,5 1,5 |
| Fe 400 | mm 3,5 5,0 |
| Fe 600 | mm 2,3 3,3 |
| Fe 800 | mm 1,8 2,5 |
| Al 250 | mm 3,5 7,0 |
| mm 30,0 43,0 | |
| mm 7,0 90,0 | |
| kg 3,6 3,8 | |
| L_pA | dB 92,1 95,8 |
| K_pA | dB 3,0 3,0 |
| L_wA | dB 100,1 103,8 |
| K_wA | dB 3,0 3,0 |
| L_pCpeak | dB 110,5 112,4 |
| K_pCpeak | dB 3,0 3,0 |
| _h | m/s ^2 10,5 12,4 |
| K_a | m/s ^2 1,5 1,5 |


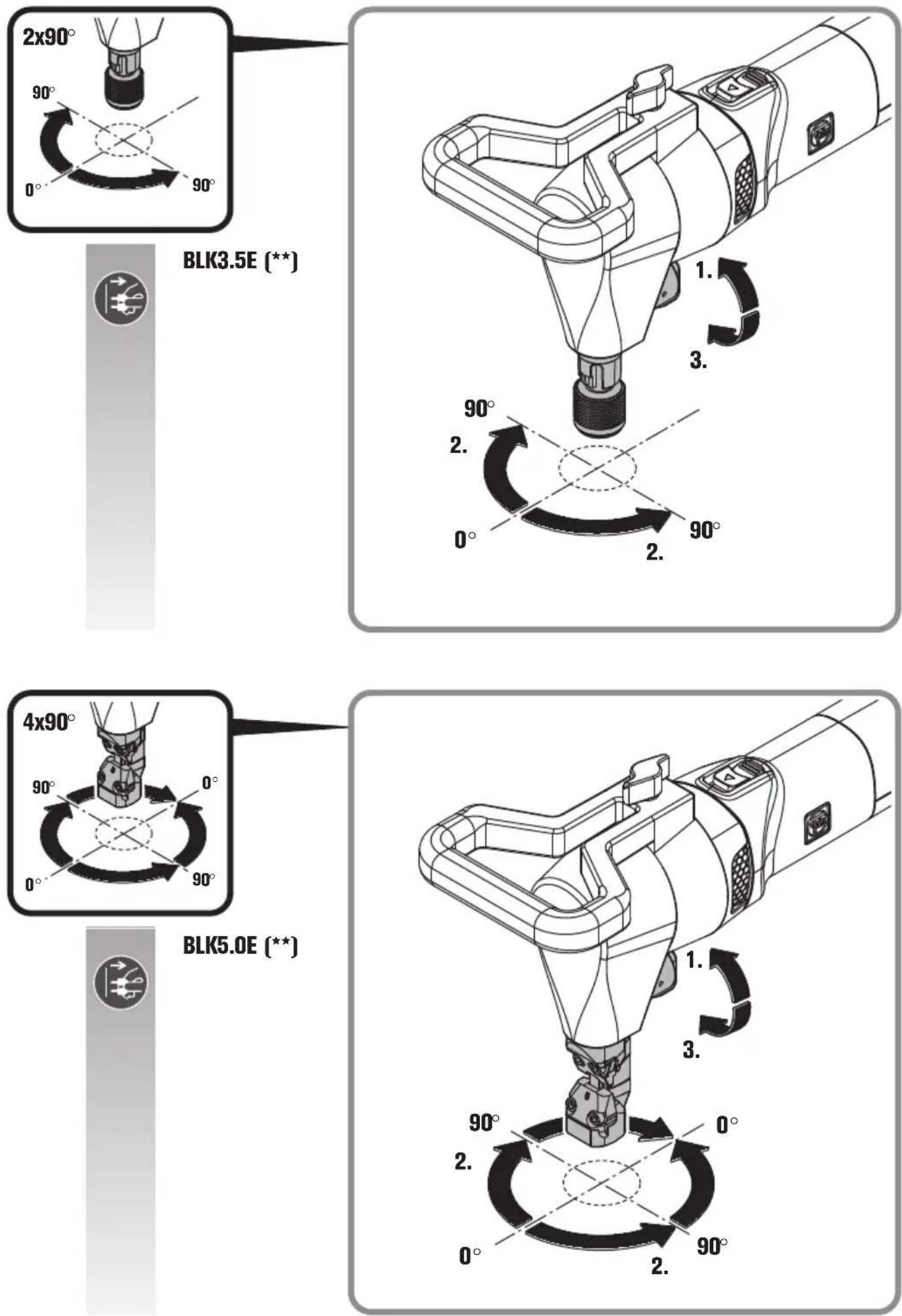

BLK5.0E (**) BLK3.5E (**) BLK5.0E (**) BLK5.0E (**) BLK3.5E (**) 4x90° 90° 0° 90° 7 8 4x90° 90° 0° 90° 6 10 I Bicycle Cyclist


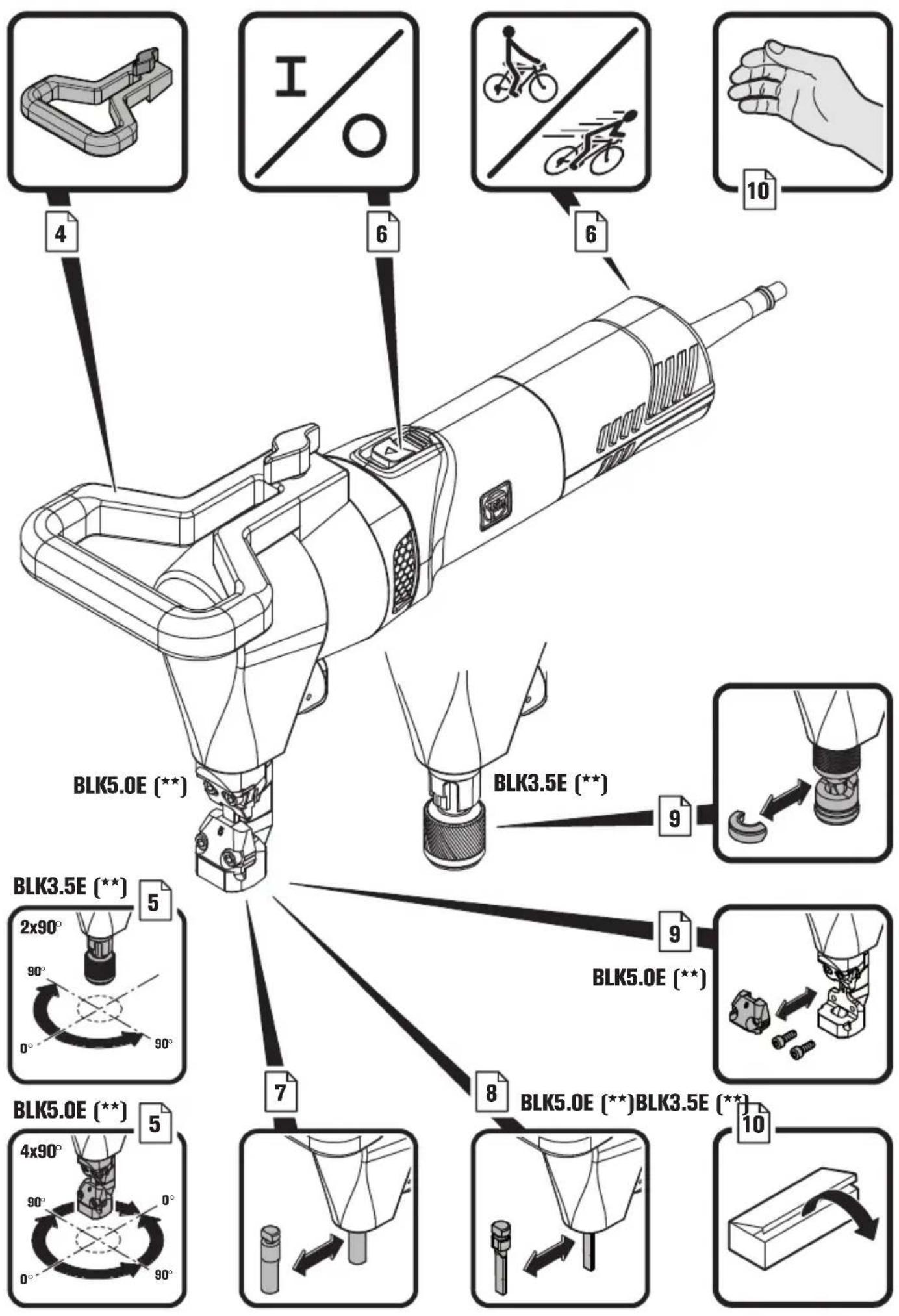

Technical diagram showing assembly steps of a robotic arm with labeled components and a magnified view of the component.


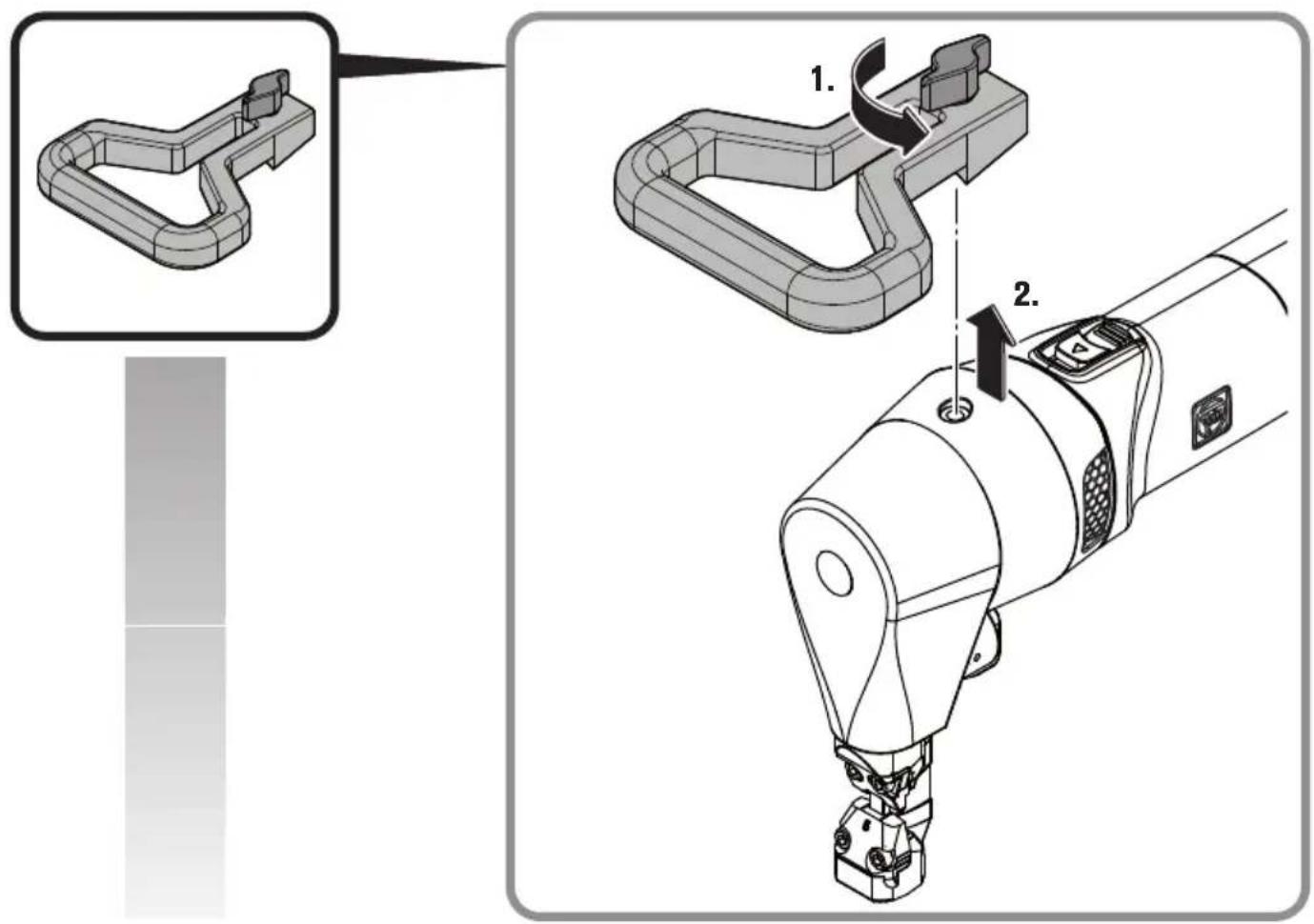

90° 1. 3.2.
45°
5.


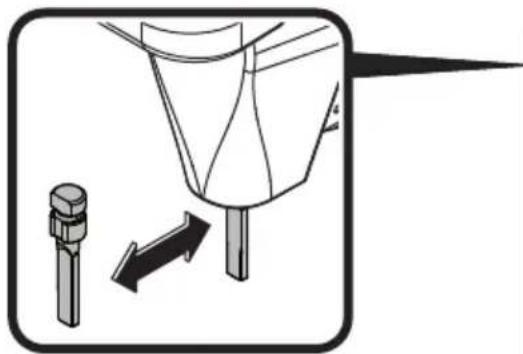

180° 6. 8. 7.


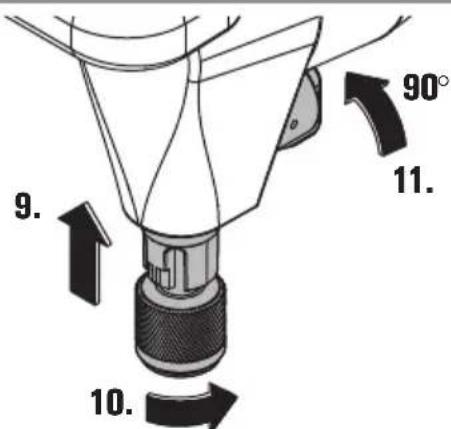

90° 11. 9. 10.45°


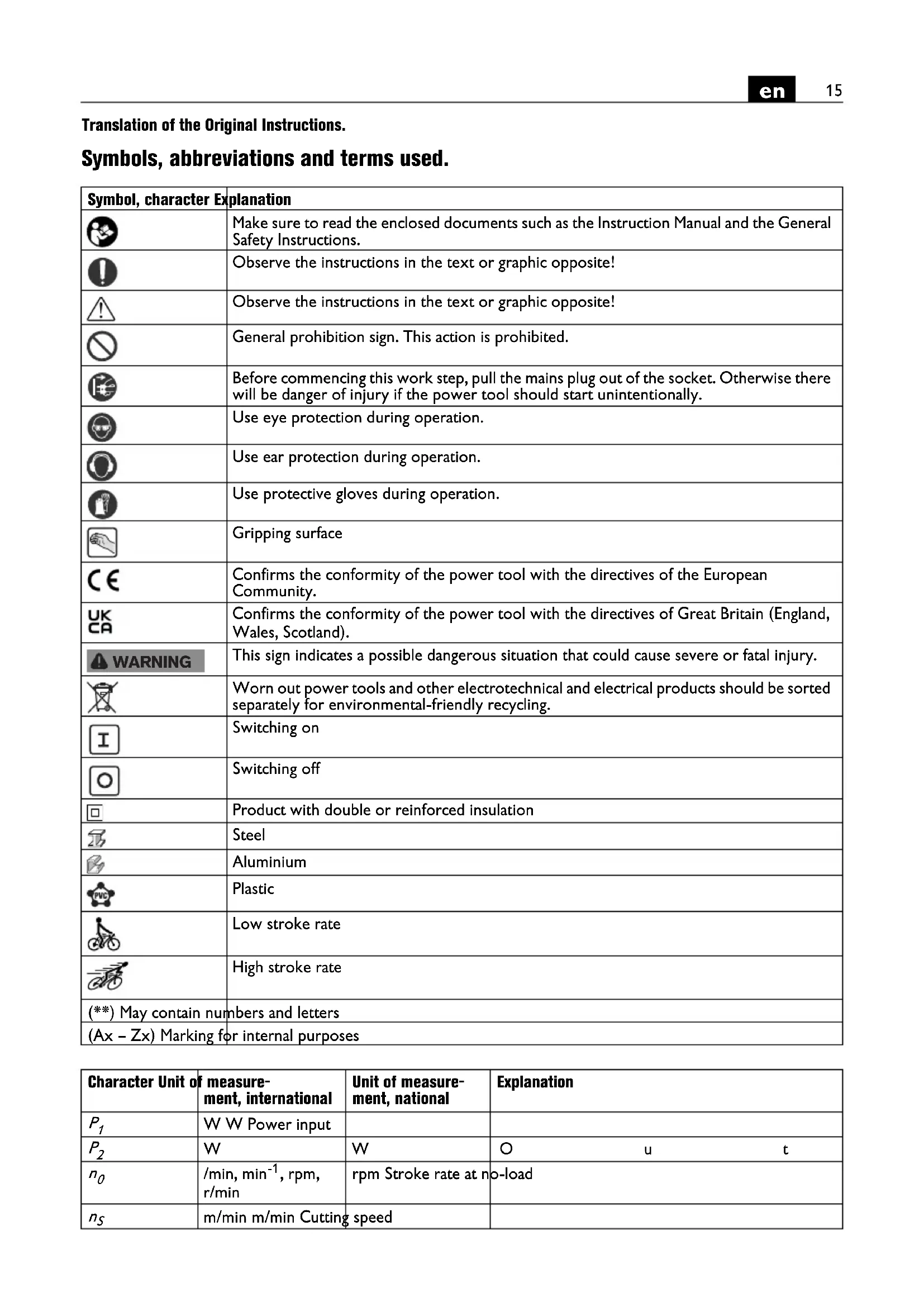

Translation of the Original Instructions.
Symbols, abbreviations and terms used.
| Symbol, character Explanation | |
 | Make sure to read the enclosed documents such as the Instruction Manual and the General Safety Instructions. |
 | Observe the instructions in the text or graphic opposite! |
 | Observe the instructions in the text or graphic opposite! |
 | General prohibition sign. This action is prohibited. |
 | Before commencing this work step, pull the mains plug out of the socket. Otherwise there will be danger of injury if the power tool should start unintentionally. |
 | Use eye protection during operation. |
 | Use ear protection during operation. |
 | Use protective gloves during operation. |
 | Gripping surface |
 | Confirms the conformity of the power tool with the directives of the European Community. |
 | Confirms the conformity of the power tool with the directives of Great Britain (England, Wales, Scotland). |
 WARNING | This sign indicates a possible dangerous situation that could cause severe or fatal injury. |
 | Worn out power tools and other electrotechnical and electrical products should be sorted separately for environmental-friendly recycling. |
 | Switching on |
 | Switching off |
 | Product with double or reinforced insulation |
 | Steel |
 | Aluminium |
 | Plastic |
 | Low stroke rate |
 | High stroke rate |
| (**) May contain numbers and letters | |
| (Ax - Zx) Marking for internal purposes | |
| Character Unit of measurement, international | Unit of measurement, national | Explanation | |
| P_1 | W W Power input | ||
| P_2 | W | O u t | |
| n_0 | /min, min ^-1 , rpm, r/min | rpm Stroke rate at no-load | |
| n_S | m/min m/min Cutting speed | ||
| Character Unit of measurement, international | Unit of measurement, national | Explanation | |
| UV | V | R | a t e |
| fHz Hz Frequency | |||
| M... | mm mm Size of metric thread | ||
| ∅ mm mm Diameter of a round part | |||
| Fe 400 | mm mm Max. work-piece thickness for steel with up to 400 N/mm^2 | ||
| Fe 600 | mm mm Max. work-piece thickness for steel with up to 600 N/mm^2 | ||
| Fe 800 | mm mm Max. work-piece thickness for steel with up to 800 N/mm^2 | ||
| Al 250 | mm mm Max. work-piece thickness for aluminum with up 250 N/mm^2 | ||
| mm mm Diameter of pilot-drill for inside cut-outs | |||
| mm mm Min. inside curve radius | |||
| kg kg Weight according to EPTA-Procedure 01 | |||
| L_pA | dB dB Sound pressure level | ||
| L_wA | dB dB Sound power level | ||
| L_pCpeak | dB dB Peak sound pressure level | ||
| K... | Uncertainty | ||
| a | m/s ^2 | m/s ^2 | Vibrational emission value according to EN 62841 (vector sum of three directions) |
| a_h | m/s ^2 | m/s ^2 | Vibrational emission value |
| m, s, kg, A, mm, V, W, Hz, N, °C, dB, min, m/s ^2 | m, s, kg, A, mm, V, W, Hz, N, °C, dB, min, m/s ^2 | Basic and derived units of measurement from the international system of units SI. | |
For your safety.
WARNING
Read all safety warnings and all instructions. Failure to follow the
warnings and instructions may result in electric shock, fire and/or serious injury.
Save all warnings and instructions for future reference.
Do not use this power tool before you have thoroughly read and completely understood this Instruction Manual and the enclosed "General
Safety Instructions" (document number 3 41 30 465 06 0). The documents mentioned should be kept for later use and enclosed with the power tool, should it be passed on or sold.
Please also observe the relevant national industrial safety regulations.
Intended use of the power tool:
Hand-guided nibbler for cutting sheet metal, cut-outs and tight curves in weather-protected environments without water supply using the application tools and accessories recommended by FEIN.
This power tool is also suitable for use with AC generators with sufficient power output that correspond to the Standard ISO 8528, design type G2. This Standard is particularly not complied with when the so-called distortion factor exceeds 10 %. When in doubt, please refer to the generator instruction/specification guide.
Special safety instructions.
Use auxiliary handle(s), if supplied with the tool. Loss of control can cause personal injury.
Wear personal protective equipment. Depending on application, use face shield, safety goggles or safety glasses. Where appropriate, wear dust mask, hearing protectors, gloves and workshop apron capable of stopping small abrasive or workpiece fragments. The eye protection must be capable of stopping flying debris generated by various operations. The dust mask or respirator must be capable of filtrating particles generated by your operation. Prolonged exposure to high intensity noise may cause hearing loss.
The application tools are sharp. Never place your hand near the application tools. Touching application tools can lead to injuries.
When working at height, secure the work area and the area below it from falling chips and the power tool itself. Falling objects can lead to injuries.
Secure the work piece firmly. A work piece that is gripped tightly in a clamping device or vice, is more secure than if held by hand.
Do not rivet or screw any name-plates or signs onto the power tool. If the insulation is damaged, protection against an electric shock will be ineffective.
Do not use accessories which are not specifically designed and recommended by the power tool manufacturer. Safe operation is not ensured merely because an accessory fits your power tool.
Clean the ventilation openings on the power tool at regular intervals using non-metal tools. The blower of the motor draws dust into the housing. An excessive accumulation of metallic dust can cause an electrical hazard.
Before putting into operation, check the mains connection and the mains plug for damage.
Recommendation: The tool should always be supplied with power via a residual current device (RCD) with a rated current of 30 mA or less.
Vibration and noise emission values
The vibration and noise emission values given in these instructions have been measured according to a measurement method standardised in EN 62841 and can be used to compare power tools with each other. They are also suitable for a preliminary assessment of vibration and noise exposure.
The given vibration and noise emission values represent the main applications of the power tool.
However, if the power tool is used for other applications, with deviating application tools or insufficient maintenance, the overall vibration values and the noise emission values may differ. This can significantly increase the vibration and noise exposure over the total working period.
For an accurate estimation of vibration and noise exposure, the durations when the equipment is switched off or running but not actually in use should also be taken into account. This may significantly reduce the vibration and noise exposure over the total working period.
Identify additional safety measures to protect the operator from the effects of vibration and noise such as: Maintain the power tool and the accessories, keep the hands warm, organization of work patterns.
Operating Instructions.
Guide the power tool toward the work piece only when switched on.
While cutting, hold the power tool as upright as possible to the work-piece surface.
Guide the power tool uniformly and with light feed in the cutting direction. Excessive feed reduces the tool life of the application tools.
Operate the power tool in continuous operation only at the highest stroke rate setting (6) (see page 6).
The stroke rate settings (1 ... 5) are to be used only for brief cuts where, for example, exact cutting along a cutting line is required. This applies in particular to work with materials with the maximum possible material thickness.
Do not cut steel sheets where welded. Do not cut layered sheets exceeding the max. work-piece thickness.
To increase the tool life of punch and die, it is recommended to apply a lubricating agent alongside the intended cutting line:
- For cuts in steel sheet: Cutting paste or cutting oil, - For cuts in aluminium: Petroleum.
For inside cuts, a pilot hole is required; see "Technical Data" for diameters.
Do not switch the power tool off until after having removed it from the cutting path.
The symptom for worn punches and dies are a clearly increased feed force at lower working progress.
The punch – not the die – can be reground as long as the length of the reground punch does not fall below the minimum die length.
| Die Minimum punch length | |
| BLK3.5E (**): | |
| 3 13 09 093 00 3 51.5 mm | |
| 3 13 09 094 00 1 51.5 mm | |
| BLK5.0E (**): | |
| 3 13 09 109 00 2 58.8 mm | |
| 3 13 09 107 00 0 56.5 mm | |
| 3 13 09 108 00 8 can not be reground | |
BLK3.5E (**): For template cuts, the template is traced via the lower cylindrical part of the punch guide. The clearance between template and the actual cutting edge is 2.5 mm.
The template should be at least 2 mm thick; the total thickness of template and work piece may not exceed 5.5 mm.
Features
The restarting protection prevents the power tool from automatically restarting if the power supply is interrupted during operation. In this case, switch off the power tool, check the power supply and then switch the power tool on again.
The electronic stroke rate preselection enables the speed to be adapted to the respective application and the respective application tool.
The power tool is fitted with overload and blocking protection. In case of overload or blocking of the application tool, the power supply is interrupted. In this case, switch the power tool off, remove it from the workpiece and check the application tool. Afterwards, switch the power tool on again.
Repair and customer service.
When working metal under extreme operating conditions, it is possible for conductive dust to settle in the interior of the power tool. The total insulation of the power tool can be impaired. Blow out the interior of the power tool via the ventilation slots frequently with dry and oil-free compressed air, and connect a residual current device (RCD) on the line side.
Lightly grease the sliding surfaces between die holder and punch.
Products that have come into contact with asbestos may not be sent in for repair. Dispose of products contaminated with asbestos according to the applicable country-specific regulations for such disposal.
When the machine's power supply cord is damaged, it must be replaced by the manufacturer or their representative.
If required, you can change the following parts yourself: Application tools
Warranty and liability.
The warranty for the product is valid in accordance with the legal regulations in the country where it is marketed. In addition, FEIN also provides a guarantee in accordance with the FEIN manufacturer's warranty declaration.
The delivery scope of your power tool may include only a part of the accessories described or shown in this Instruction Manual.
Declaration of conformity.
This CE declaration is only valid for European Union and EFTA (European Free Trade Association) countries and only for products intended for the EU- or EFTA market. After placing the product on the EU market the UKCA mark loses its mark validity.
The UKCA declaration is only valid for the Great Britain market (England, Wales and Scotland) and only for products intended for the Great Britain market. After placing the product on the Great Britain market the CE mark loses its mark validity.
FEIN declares itself solely responsible for this product conforming with the relevant provisions given on the last page of this Instruction Manual.
Technical documents at:
C. & E. Fein GmbH
Hans-Fein-Straße 81
73529 Schwäbisch Gmünd-Bargau, Germany
Environmental protection, disposal.
Packaging, worn out power tools and accessories should be sorted for environmental-friendly recycling.
China RoHS Status Certificate
中国 RoHS 认证概况
Table of Toxic and Hazardous Substances/Elements and their Content
as required by China's Management Methods for Controlling Pollution by Electronic Information Products
有毒有害物质 / 成分及其含量表
This CE declaration is only valid for European Union and EFTA (European Free Trade Association) countries and only for products intended for the EU or EFTA market. After placing the product on the EU market the UKCA mark loses its mark validity.
EN 62841-1:2015 + AC:2015
EN 62841-2-8:2016
EN 55014-1:2017 + A11:2020
EN 55014-2:2015
EN 55014-2:1997+A1:2001+A2:2008+AC:1997
EN 61000-3-2:2014
EN 61000-3-2:2019
EN 61000-3-3:2013+A1:2019
2006/42/EG, 2014/30/EU, 2011/65/EU
U. Hergosell
i. V. S. Böhm i. V. Dr. M. Hergesell
Director of Quality Director of Product Management Development
The UKCA declaration is only valid for the Great Britain market (England, Wales and Scotland) and only for products intended for the Great Britain market. After placing the product on the Great Britain market the CE mark loses its mark validity.
EN 62841-1:2015 + AC:2015
EN 62841-2-8:2016
EN 55014-1:2017 + A11:2020
EN 55014-2:2015
EN 55014-2:1997+A1:2001+A2:2008+AC:1997
EN 61000-3-2:2014
EN 61000-3-2:2019
EN 61000-3-3:2013+A1:2019
Supply of Machinery Regulations 2008,
EMC Regulations 2016, The Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic Equipment Regulations 2012
U. Hergosell
i. V. S. Böhm i. V. Dr. M. Hergesell
Director of Quality Management Development Director of Product
