ABLS 18 1.6 E AS - Scissors Fein - Free user manual and instructions

Product Type	Cordless Electric Scissors
Brand	Fein
Model	ABLS 18 1.6 E AS
Category	Scissors
Nominal Voltage	18 V
Battery System	AMPShare 18 V Lithium-ion
Cutting Capacity (steel)	1.6 mm (max.)
Cutting Stroke	Not specified (estimated 5-10 mm)
No-load Stroke Rate	Not specified (estimated 2000-3000 rpm)
Weight (without battery)	Approx. 1.2 kg
Dimensions (L x W x H)	Not specified (estimated 250 x 80 x 60 mm)
Operating Temperature	-20 °C to +50 °C
Charging Temperature	0 °C to +35 °C
Battery Type	Lithium-ion 18 V
Protection Rating	IP20 (estimated)
Main Functions	Cutting sheets, steel and metals
Maintenance and Cleaning	Clean the ventilation slots with a soft, dry brush; do not use chemicals
Safety	Remove the battery before any adjustment or cleaning; use protective gloves; observe battery safety instructions
Spare Parts and Repairability	Repair only by an authorized Fein service center; battery replaceable
Transport	Lithium-ion batteries are subject to dangerous goods regulations
Disposal	Do not dispose of with household waste; recycle according to Directive 2006/66/EC
Included Accessories	Battery and charger not included (sold separately)

Frequently Asked Questions - ABLS 18 1.6 E AS Fein

What type of battery should I use with the Fein ABLS 18 1.6 E AS scissors?

Use only 18 V Lithium-ion batteries from the AMPShare range (compatible with Fein and partners). Never use batteries from other brands or modified batteries.

How to charge the battery for the first time?

The battery is delivered partially charged. Before first use, charge it fully with a charger recommended by Fein or an AMPShare partner. Charging must be done between 0 °C and +35 °C.

What sheet metal thickness can be cut with this tool?

The maximum cutting capacity is 1.6 mm in steel. For other materials, follow the manufacturer's recommendations.

How to clean the scissors?

Clean the ventilation slots with a soft, clean, dry brush. Do not use chemicals. Wipe the battery contacts with a dry cloth.

What to do if the battery leaks liquid?

Avoid skin or eye contact. Rinse immediately with clean water and consult a doctor. Wear protective gloves and clean affected surfaces with a dry cloth.

Can I store the tool with the battery installed?

No. Always remove the battery before storing or transporting the tool. Store separately in a dry place between -20 °C and +50 °C.

Is the tool compatible with batteries from other brands?

Only 18 V AMPShare batteries (Fein and partners) are compatible. Use of unauthorized batteries poses a risk of fire or explosion.

How to transport the battery safely?

For personal road transport, no special measures are required. For shipment by a third party, follow the dangerous goods regulations. Isolate the contacts with adhesive tape if the battery is not empty.

What to do if the battery heats up abnormally?

Stop using the tool immediately. Remove the battery and let it cool away from any heat source. If it continues to heat up or shows deformation, contact a Fein authorized service center.

Where can I find spare parts?

Spare parts are available from Fein authorized service centers or on the manufacturer's website. Do not repair the tool yourself.

USER MANUAL ABLS 18 1.6 E AS Fein

AMP II Share I

Powered by

BOSCH

Simple line drawing of an open book with no text or symbols visible

Icon of a person reading a document inside a black circle (no text or symbols)

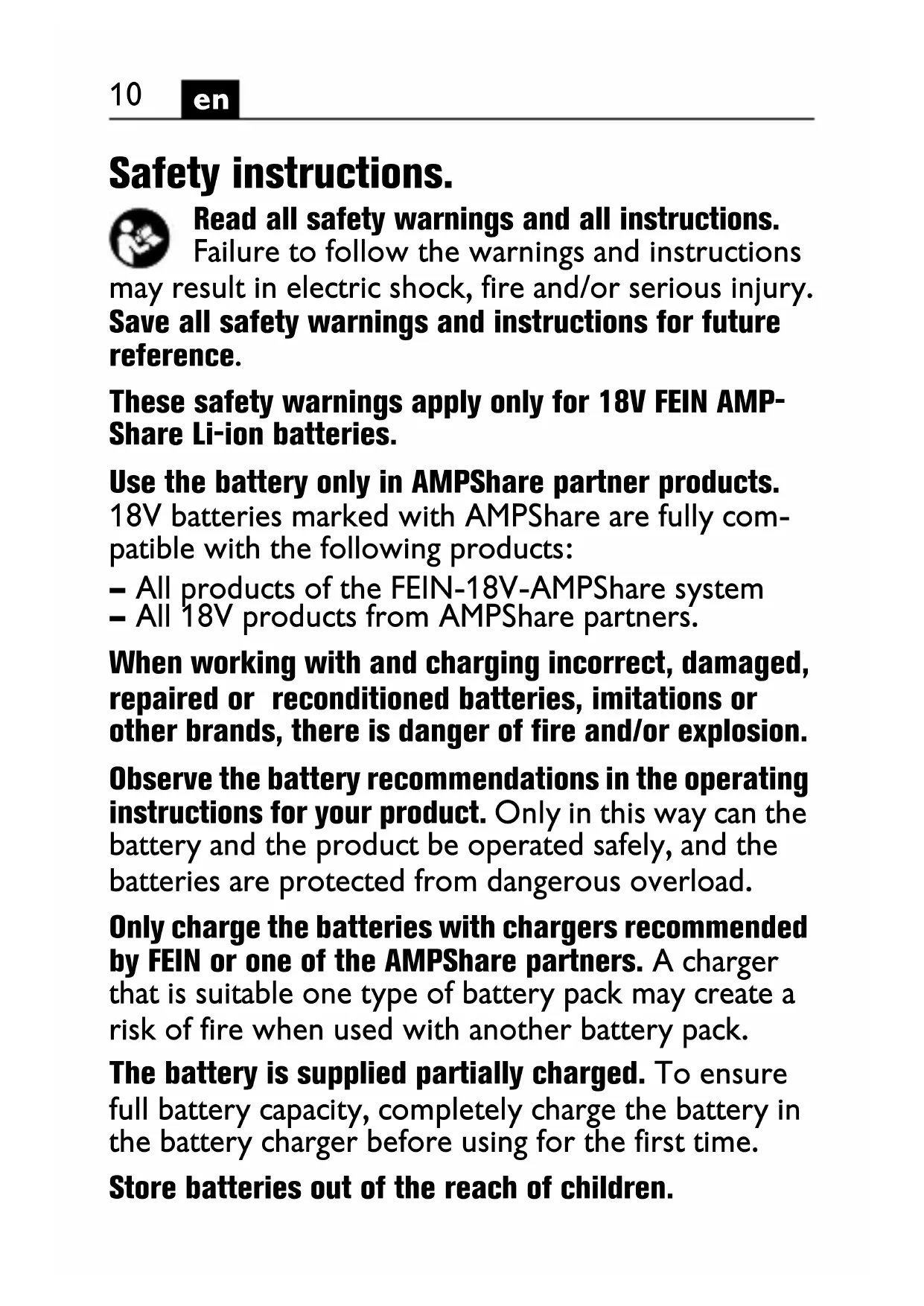

Safety instructions.

Read all safety warnings and all instructions.

Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Save all safety warnings and instructions for future reference.

These safety warnings apply only for 18V FEIN AMP-Share Li-ion batteries.

Use the battery only in AMPShare partner products.

18V batteries marked with AMPShare are fully compatible with the following products:

- All products of the FEIN-18V-AMPShare system

- All 18V products from AMPShare partners.

When working with and charging incorrect, damaged, repaired or reconditioned batteries, imitations or other brands, there is danger of fire and/or explosion.

Observe the battery recommendations in the operating instructions for your product. Only in this way can the battery and the product be operated safely, and the batteries are protected from dangerous overload.

Only charge the batteries with chargers recommended by FEIN or one of the AMPShare partners. A charger that is suitable one type of battery pack may create a risk of fire when used with another battery pack.

The battery is supplied partially charged. To ensure full battery capacity, completely charge the battery in the battery charger before using for the first time.

Store batteries out of the reach of children.

Batteries must not be disassembled, opened or reduced in size. Do not subject batteries to mechanical impact or shock. Hazardous vapours and fluid can escape in case of damage and improper use of the battery. The vapours can irritate the respiratory system. Liquid ejected from the battery may cause skin irritations or burns.

In case of skin contact with battery fluid, rinse immediately with plenty of water. In case of eye contact with battery fluid, wash out the eye with clean water and immediately seek a doctor for treatment!

When the battery fluid has come into contact with objects close by, check the respective components. Avoid skin contact by wearing protective gloves. Clean the parts with dry household paper or replace the parts if necessary. Escaping vapours can irritate the respiratory system. Liquid ejected from the battery may cause skin irritations or burns.

Do not short-circuit the battery. Keep the battery not being used away from paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire.

The battery can be damaged by sharp objects such as nails or screwdrivers or by external force. An internal short-circuit may occur and the battery can burn, smoke, explode or overheat.

Never maintain damaged batteries. Any maintenance of batteries should be performed only by the manufacturer or by authorised after-sales service centers.

Protect the battery against heat, e.g., against continuous intense sunlight, fire, debris, water, and moisture. Danger of explosion and short-circuiting.

Operate and store the battery only at ambient temperatures between -20 °C and +50 °C. As an example, do not leave the battery in a vehicle in summer. At temperatures < 0 °C, machine-specific performance restrictions are possible.

Charge the battery only at ambient temperatures between 0 °C and +35 °C. Charge the battery via USB connection only at ambient temperatures between +10 °C and +35 °C. Charging the battery outside the temperature range may damage the battery or increase the risk of fire.

Handle discharged batteries with care. Batteries are a source of danger, as they can cause a very high short-circuit current. Even when Li-ion batteries appear to be in a discharged state, they never fully discharge.

Do not immerse the battery in liquids, such as (salt) water or beverages. Contact with liquids can damage the battery. This may result in heat build-up, smoke generation, ignition or explosion of the battery. Do not continue to use the battery and contact an after-sales service authorized by FEIN.

Do not use a damaged battery. The use of a battery must be stopped immediately as soon as abnormal properties, such as odour development, heat, discolouration or deformation occur. Continued operation can cause the battery to generate heat and smoke, ignite or explode.

Do not open, crush, overheat or set fire to the battery. Non-observance of this warning may result in burns and fire. Follow the manufacturer's instructions.

Extinguish burning Li-ion batteries with water, sand or a fire blanket.

Avoid physical blows/impact. Impact and penetration of objects can damage batteries. This may result in leakage, heat build-up, smoke generation, ignition or explosion of the battery.

Never charge the battery unattended overnight. Fire and explosion hazards can result in case of non-observance.

Do not remove the battery from its original packaging until it is going to be used.

Remove the battery only when the power tool is switched off.

Before any work on the machine itself, remove the battery from the power tool. If the power tool accidentally starts, there is danger of injury.

Protect the battery against moisture and water. Clean contaminated battery terminals and power tool connections with a dry, clean cloth.

Remove the battery when transporting and storing the power tool.

Observe the safety instructions in the manuals of the chargers from FEIN or the AMPShare partners.

Observe the safety and operating instructions for the battery in the operating manual of the respective power tool.

Maintenance and Service.

Maintenance and cleaning.

Occasionally clean the ventilation slots and the battery terminals with a soft, clean and dry brush.

- Do not use chemical substances for cleaning the battery.

Transport.

The contained Li-ion batteries are subject to the Dangerous Goods Legislation requirements. The user can transport the battery packs by road without further requirements.

When being transported by third parties (e.g.: air transport or forwarding agency), special requirements on packaging and labelling must be observed. For preparation of the item being shipped, consulting an expert for hazardous material is required.

The recommended Li-ion batteries are subject to the Dangerous Goods Legislation requirements. The user can transport the batteries by road without further requirements.

When being transported by third parties (e.g.: air transport or forwarding agency), special requirements on packaging and labelling must be observed. For preparation of the item being shipped, consulting an expert for hazardous material is required.

Dispatch batteries only when the housing is undamaged. Tape or mask off open contacts and pack up the battery in such a manner that it cannot move around in the packaging. Please also observe possibly more detailed national regulations.

Disposal.

Do not dispose of the batteries into household waste!

Packaging should be sorted for environment-friendly recycling.

Properly dispose of batteries only when discharged. For batteries that are not completely discharged, insulate the terminals with tape as a protective measure against short-circuiting.

Only for EC countries:

According to the European Guideline 2002/66/EC, defective or used battery packs/batteries, must be collected separately and disposed of in an environmentally correct manner.
