Product Type	Cordless Hedge Trimmer
Brand	Cramer
Model	82HD
Battery Voltage	82 V
No-Load Speed	4000 min⁻¹
Blade Length	66 cm
Maximum Cutting Capacity	33 mm
Measured Sound Pressure Level	83 dB(A)
Guaranteed Sound Power Level	96 dB(A)
Vibration Level	< 2.5 m/s²
Weight (without battery)	4.2 kg
Compatible Batteries	82V220G, 82V430G, 82V220, 82V430
Compatible Charger	82C1G, 82C2, 82C6
Anti-Jamming Function	Yes, automatic blade reversal
Rotatable Rear Handle	Yes, rotation up to 90°
Safety Microswitch	Yes, on the front handle
Blade Protection	Sheath included
Blade Maintenance	Lubrication after each use
Repairability	Use original Cramer parts, contact an authorized repairer
Compliance Standards	CE, EN 60745-1, EN 60745-2-15

Frequently Asked Questions - 82HD Cramer

How to start the Cramer 82HD hedge trimmer?

Install the battery by aligning the grooves, then press the ON/OFF button (I/O). Then hold the tool with both hands: one hand presses the microswitch on the front handle, the other hand presses the trigger. Release the trigger to stop.

How to safely stop the hedge trimmer?

Release the microswitch and trigger to cut the motor. Then press the ON/OFF button to completely turn off the device. Always remove the battery before any maintenance or storage.

What to do if a branch gets stuck in the blade?

Use the anti-jamming function: press the dedicated button on the control panel. The blade will reverse direction up to six times to free the branch. If necessary, stop the tool, remove the battery, then manually remove debris while wearing gloves.

How to rotate the rear handle?

Place the hedge trimmer on a flat surface. Make sure the trigger is released. Press the rotating lever (7) and turn the handle to 45° or 90° to one side until it clicks into place. To return to center, pull the lever again, turn slightly, release, then continue until the notch.

What type of battery and charger to use?

This hedge trimmer works with Cramer 82V batteries: models 82V220G, 82V430G, 82V220 or 82V430. Use only compatible chargers: 82C1G, 82C2 or 82C6. Follow the charger instructions for safe recharging.

How to maintain the hedge trimmer blade?

After each use, remove the battery and clean the blade. Apply a light motor oil along the top edge of the blade (see figure 7). Never lubricate the blade while the tool is running. Regularly check tooth wear and replace the blade with an original part if necessary.

What are the important safety instructions?

Always wear gloves and safety glasses. Never cut branches thicker than 15 mm. If the blade touches an electrical cable, do not touch it: it may be live. Hold the tool by the insulated handle and cut the power before clearing the blade. Store the device out of reach of children.

How to store the hedge trimmer after use?

Clean the tool thoroughly, put the protective sheath back on the blade and store it in a dry, well-ventilated place away from chemicals. Store the battery in a cool place (below 27°C) and recharge it if discharged. For long-term storage, recharge the battery every 1 to 2 months.

What to do if the motor does not start?

First check that the battery is properly installed: the latches must be locked. Then make sure the battery is charged. If the problem persists, the tool may be damaged; stop using it and contact an authorized repairer.

How to clean the hedge trimmer?

Remove the battery. Clean the housing and handles with a damp cloth soaked in mild detergent. Do not use solvents or petroleum products. The ventilation slots can be cleaned with a small brush or a gentle stream of air. Ensure no moisture enters the device.

USER MANUAL 82HD Cramer

Line drawing of a hairpin and chain, showing mechanical components without any text or symbols

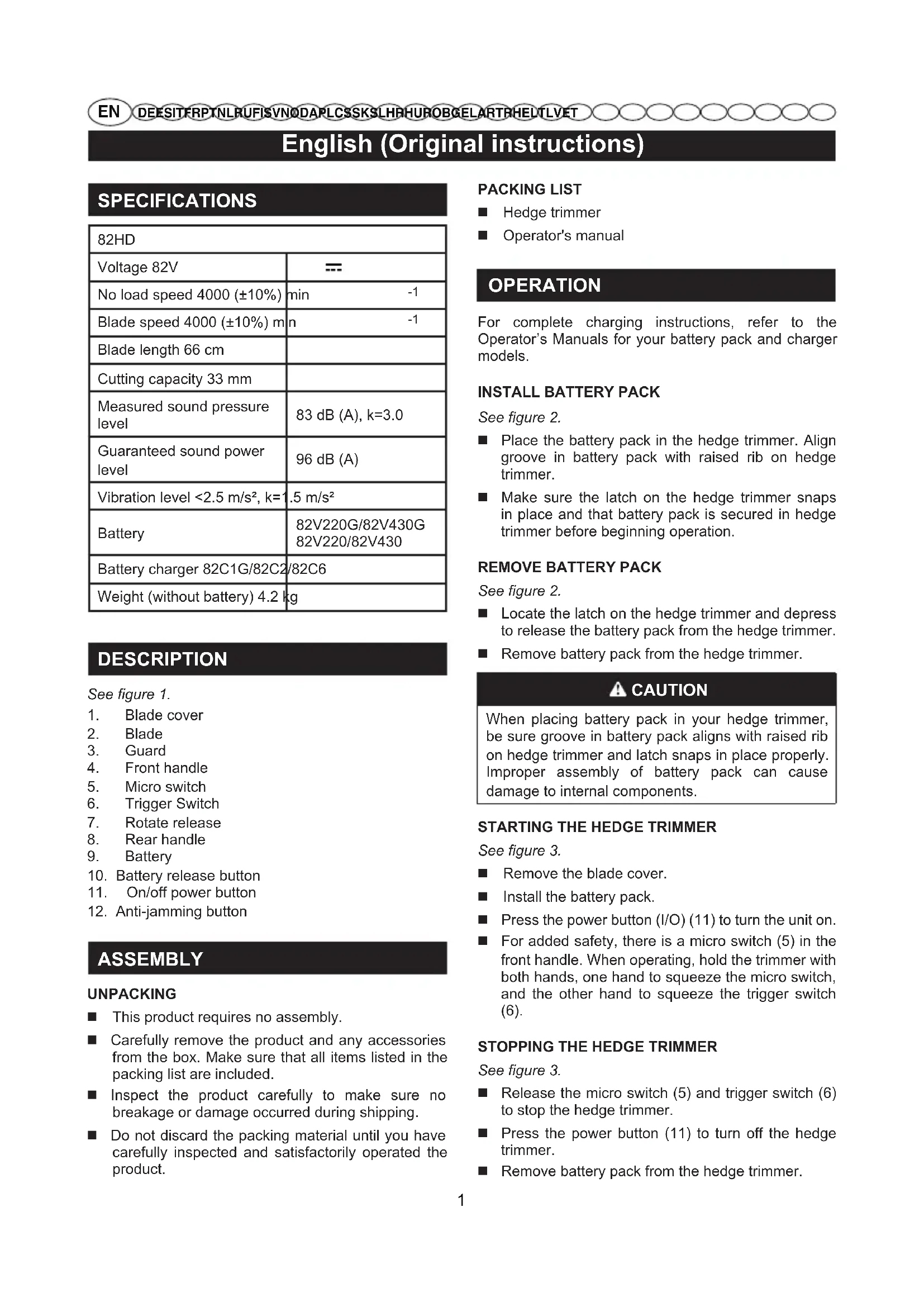

English (Original instructions)

SPECIFICATIONS

82HD
Voltage 82V	---
No load speed 4000 (±10%)	min -1
Blade speed 4000 (±10%) min	-1
Blade length 66 cm
Cutting capacity 33 mm
Measured sound pressure level	83 dB (A), k=3.0
Guaranteed sound power level	96 dB (A)
Vibration level <2.5 m/s2, k=1.5 m/s2
Battery	82V220G/82V430G82V220/82V430
Battery charger 82C1G/82C2	/82C6
Weight (without battery) 4.2 kg

DESCRIPTION

See figure 1.

1. Blade cover
2. Blade
3. Guard
4. Front handle
5. Micro switch
6. Trigger Switch
7. Rotate release
8. Rear handle
9. Battery
10. Battery release button
11. On/off power button
12. Anti-jamming button

ASSEMBLY

UNPACKING

■ This product requires no assembly.
- Carefully remove the product and any accessories from the box. Make sure that all items listed in the packing list are included.
■ Inspect the product carefully to make sure no breakage or damage occurred during shipping.
- Do not discard the packing material until you have carefully inspected and satisfactorily operated the product.

PACKING LIST

■ Hedge trimmer
Operator's manual

OPERATION

For complete charging instructions, refer to the Operator's Manuals for your battery pack and charger models.

INSTALL BATTERY PACK

See figure 2.

Place the battery pack in the hedge trimmer. Align groove in battery pack with raised rib on hedge trimmer.
■ Make sure the latch on the hedge trimmer snaps in place and that battery pack is secured in hedge trimmer before beginning operation.

REMOVE BATTERY PACK

See figure 2.

• Locate the latch on the hedge trimmer and depress to release the battery pack from the hedge trimmer.
  ■ Remove battery pack from the hedge trimmer.

CAUTION

When placing battery pack in your hedge trimmer, be sure groove in battery pack aligns with raised rib on hedge trimmer and latch snaps in place properly. Improper assembly of battery pack can cause damage to internal components.

STARTING THE HEDGE TRIMMER

See figure 3.

■ Remove the blade cover.
■ Install the battery pack.
■ Press the power button (I/O) (11) to turn the unit on.
For added safety, there is a micro switch (5) in the front handle. When operating, hold the trimmer with both hands, one hand to squeeze the micro switch, and the other hand to squeeze the trigger switch (6).

STOPPING THE HEDGE TRIMMER

See figure 3.

■ Release the micro switch (5) and trigger switch (6) to stop the hedge trimmer.
■ Press the power button (11) to turn off the hedge trimmer.
■ Remove battery pack from the hedge trimmer.

English (Original instructions)

USING THE ROTATING REAR HANDLE

See figure 4.

■ Place the hedge trimmer on a flat and even surface.
■ Make sure that you released the trigger.
■ Pull the rotation lever (7) and begin turning the rear handle. Release the rotation lever and turn the handle 45 or 90 degrees to either side until it clicks into place and the lever locks in.
■ To turn the handle back to center, pull the rotation lever again, turn the handle slightly, release the rotation lever and continue turning the handle until it locks into place.

ANTI-JAMMING FUNCTION

If the branch is blocked in the blade, press the anti-jamming button on the control panel, the blade will reverse six times, and the branch should be released.

OPERATING TIPS

■ Do not force the hedge trimmer through heavy shrubbery. This can cause the blades to bind and slow down. If the blades slow down, reduce the pace.
- Do not try to cut stems or twigs that are larger than 15 mm thick, or those obviously too large to feed into the cutting blade. Use a non-powered hand saw or pruning saw to trim large stems.
If desired, you can use a string to help cut your hedge level. Decide how high you want the hedge. Then, stretch a piece of string along the hedge at this height. Trim the hedge just above this guide line of string. See Figure 5. Trim the side of a hedge so that it will be slightly narrower at the top. See Figure 6. More of the hedge will be exposed when shaped this way, and it will be more uniform. If blades do become jammed, stop the motor, allow the blades to stop and remove the battery pack before attempting to remove the obstruction.
■ Wear gloves when trimming thorny or prickly growth. When trimming new growth, use a wide sweeping action, so that the stems are fed directly into the cutting blade. Older growth will have thicker stems and will be trimmed easiest by using a sawing movement.

DANGER

If blade jams on any electrical cord or line, DO NOT TOUCH THE BLADE! IT CAN BECOME ELECTRICALLY LIVE AND VERY DANGEROUS. Continue to hold the hedge trimmer by the insulated rear handle or lay it down and away from you in a safe manner. Disconnect the electrical service to the damaged line or cord before attempting to free the blade from the line or cord. Failure to heed this warning will result in serious personal injury or possible death.

WARNING

Clear the area to be cut before each use. Remove all objects such as cords, lights, wire, or string which can become entangled in the cutting blade and create a risk of serious personal injury.

WARNING

Avoid using solvents when cleaning plastic parts. Most plastics are susceptible to damage from various types of commercial solvents and may be damaged by their use. Use a clean cloth to remove dirt, oil, grease, etc. When servicing use only identical CRAMER replacement parts. Use of any other parts can create a hazard or cause product damage.

CAUTION

Do not at any time let brake fluids, gasoline, petroleum based products, penetrating oils, etc., come in contact with plastic parts. They contain chemicals that may damage, weaken, or destroy plastics.

MAINTENANCE AND REPAIR

Battery units do not have to be plugged into an electrical outlet; therefore, they are always in operating condition. To prevent serious personal injury, always remove the battery and take extra precautions and care when performing maintenance, service or for changing the cutting blade.

English (Original instructions)

WARNING

To prevent serious personal injury, remove the battery pack before servicing, cleaning, or removing material from the unit.

BLADE CARE

■ Lubricate the cutting blades after each use.
■ Periodically inspect the blades for damage and wear.
■ Always use the manufacturer's specified replacement blades.

TO LUBRICATE BLADE

See figure 7.

■ Remove battery pack from hedge trimmer.
■ For easier operation and longer blade life, lubricate the hedge trimmer blade before and after each use. Before lubricating, remove the battery pack and lay hedge trimmer on a flat surface. Apply light weight machine oil along the edge of the top blade.
■ Occasionally, you should oil your hedge trimmer during prolonged use. Before oiling, stop hedge trimmer, remove battery pack, then oil. You then can resume trimming. Do not oil while hedge trimmer is running.

■ All of the bearings in this tool are lubricated with a sufficient amount of high-grade lubricant for the life of the unit under normal operating procedures. Therefore, no further lubrication is required.

WARNING

Do not attempt to modify this unit or create or mount any accessory not specifically recommended in this manual for use with this hedge trimmer. Any such alteration or modification is misuse and could result in a hazardous condition leading to possible serious personal injury.

WARNING

Examine hedge trimmer frequently to assure all parts are unbroken and securely attached. Make sure all screws and fasteners are securely tightened to prevent the risk of serious personal injury.

CLEANING THE HEDGE TRIMMER

WARNING

To prevent serious personal injury, remove the battery pack before servicing, cleaning, or removing material from the unit.

■ Remove the battery pack.
■ Clean the unit using a damp cloth with a mild detergent.
■ Do not use any strong detergents on the plastic housing or the handle. They can be damaged by certain aromatic oils such as pine and lemon, and by solvents such as kerosene.
■ Moisture can cause a shock hazard. Wipe off any moisture with a soft dry cloth.
■ Use a small brush or the air discharge of a small vacuum cleaner brush to clean the air vents on the battery pack housing and motor housing.
- Keep the air vents free of obstructions.

STORING THE HEDGE TRIMMER

See figure 8.

■ Clean the hedge trimmer thoroughly before storing. Store the hedge trimmer in a dry, well-ventilated place that is inaccessible to children. Keep away from corrosive agents such as garden chemicals and deicing salts.
■ Always place blade cover on cutting blades before storing. See Figure 8.
■ Store and charge your batteries in a cool area. Temperatures above or below normal room temperature will shorten battery pack life.
■ Store the battery pack where the temperature is below 27^ C, and away from moisture.
■ Never store batteries in a discharged condition. Wait for battery pack to cool and fully charge immediately.
All batteries gradually lose their charge. The higher the temperature, the quicker they lose their charge. If you store your unit for long periods of time without using it, recharge the batteries every month or two. This practice will prolong battery pack life.

English (Original instructions)

TROUBLESHOOTING

PROBLEM	POSSIBLE CAUSE SO	LUTION
Motor fails to start when switch trigger and micro switch are depressed.	Battery is not secure.	To secure the battery pack, make sure the latches on the top of the battery pack snap into place.
	Battery is not charged.	Charge the battery pack according to the instructions included with your model.
Motor runs,but cutting blades do not move.	Hedger damaged.Do not use hedge trimmer.	Call for technical service.
Hedge trimmer smokes during operation.	Hedger damaged.Do not use hedge trimmer.	Call for technical service.
Motor hums, blades do not move.	Debris or other may be jamming the blades.	Remove battery, clear debris blockage from blades.

HECKENSCHERE AUSSCHALTEN

Siehe Abb. 3.

TUOTTEEN TEKNISET TIEDOT

VEDLIKEHOLD OG REPARASJON

VEDLIKEHOLDE HEKKSAKSENS BLAD

ADVARSEL

VEDLIKEHOLDE HEKKSAKSEN

ADVARSEL

KONSERWACJA I NAPRAWY

KONSERWACJA LISTWY NOŻOWEJ NOŻYC DO ŻYWOPŁOTÓW

OSTRZEŻENIE

EN EC DECLARATION OF CONFORMITY

Manufacturer: Changzhou Globe Co., Ltd.

Address: No. 65 Xinggang Rd., Zhonglou Zone, Changzhou, Jiangsu, China

Name and address of the person authorised to compile the technical file:

Name: Peter Söderström

Adress: Propellergatan 1

211 15 Malmö

Sweden

Herewith we declare that the product

Category ...... CORDLESS HEDGE TRIMMER

Model 2200086

Serial Number ...... See product rating label

Year of Construction ...... See product rating label

■ is in conformity with the relevant provisions of the Machinery Directive (2006/42/EC)

■ is in conformity with the provisions of the following other EC-Directives

EMC Directive (2014/30/EU),

Noise Emission Directive (2000/14/EC amended by 2005/88/EC)

And furthermore, we declare that

■ The following (parts/clauses of) European harmonised standards have been used

EN 60745-1; EN 60745-2-15; EN ISO 3744; ISO 11094; EN 55014-1; EN 55014-2

Measured sound power level 93 dB(A)

Guaranteed sound power level 96 dB(A)

Conformity assessment method to Annex V / Directive 2000/14/EC

Place, date: Changzhou, 08/22/2017

Quality Director

Signature: Ted Qu Haichao

Ted Qu
