USER MANUAL 48LM48SP Cramer

2502886(48LM48SP/48LM48SPK4)

EN | DE | ES | IT | FR | PT | NL | RU | FI | SV | NO | DA |

PL | CS | SK | SL | HR | HU | RO | BG | EL | AR | TR | HE |

LT | LV | ET | MK | SR |

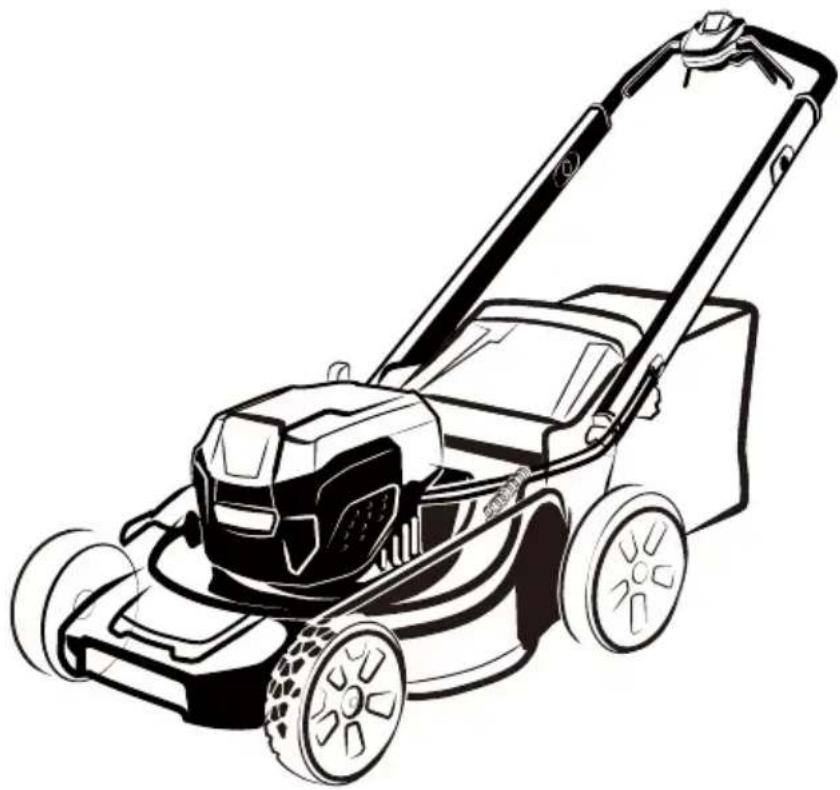

Line drawing of a lawn mower with open handle and wheels (no text or symbols)

DECLARATION OF CONFORMITY (UK)

Name and address of the manufacturer:

Name: GLOBGRO AB

Globe Group Europe

Address: Riggaregatan 53, 211 13 Malmö Sweden

Name and address of the Authorized representative:

Name: Garden Equipment Ltd

Address: 3a Groveley Road, Christchurch, Dorset, BH23 3HB, UK

Name and address of the person authorised to compile the technical file:

Name: Simon Del-Nevo

Address: 3a Groveley Road, Christchurch, Dorset, BH23 3HB, UK

Here with we declare that the product

Category: Lawn Mower

Model: 48LM48SP/48LM48SPK4 (LME473)

Serial number: See product rating label

Year of Construction: See product rating label

• is in conformity with the relevant provisions of the Supply of Machinery (Safety) Regulations 2008.
• is in conformity with the provisions of the following other UK legislation:
  • Electromagnetic Compatibility Regulations 2016
• Noise Emission in the Environment by Equipment for use Outdoors Regulations 2001
  • The Restriction of the Use of Certain Hazardous
  • substances in Electrical and Electronic Equipment Regulations 2012

Furthermore, we declare that the following standard have been used:

BS EN 60335-1, BS EN 60335-2-77, BS EN 62233, BS EN 55014-1, BS EN 55014-2,

BS EN ISO 3744, ISO 11094, BS EN 62321-3-1, BS EN 62321-4, BS EN 62321-5,

BS EN 62321-6, BS EN 62321-7-1, BS EN 62321-7-2, BS EN 62321-8

Conformity assessment method to Annex E Noise Emission in the Environment by Equipment for use Outdoors Regulations 2001.

Measured sound power level 91.5 dB(A)

Guaranteed sound power level 96 dB(A)

Place, date: Christchurch, Dorset, UK 07.06.2021 Signature: Ted Qu, Quality Director

Ted Qu

English

EN

1 General power tool safety warnings....4

2 Description......4

2.1 Purpose.... 4
2.2 Overview.... 4

3 Installation...... 4

3.1 Unpack the machine.... 4
3.2 Install the upper handle ....4
3.3 Unfold the lower handle.... 4
3.4 Install the grass catcher....5
3.5 Install the mulch plug.... 5
3.6 Install the side discharge chute....5
3.7 Set the blade/cutting height.... 5
3.8 Install the battery pack....5
3.9 Remove the battery pack.... 5

4 Mower functions......5

5 Operation....6

5.1 Start the machine.... 6
5.2 Stop the machine.... 6
5.3 Empty the grass catcher....6
5.4 Operate on slopes....6
5.5 Operation tips.... 6

6 Maintenance......6

6.1 General maintenance.... 7
6.2 Replace the blade....7
6.3 Vertical storage....7
6.4 Store the machine.... 7

7 Troubleshooting......7

8 Technical data......8

9 EC Declaration of conformity......8

1 GENERAL POWER TOOL SAFETY WARNINGS

WARNING

Read all safety warnings, instructions, illustrations and specifications provided with this power tool. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.

Save all warnings and instructions for future reference.

The term "power tool" in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

2 DESCRIPTION

2.1 PURPOSE

This machine is used for domestic lawn mowing. The cutting blade must be approximately parallel to the ground. All four wheels must touch the ground while mowing.

2.2 OVERVIEW

Figure 1-11

1	Start button
2	Start handle
3	Self-propel drive lever
4	Upper handle
5	Lower handle
6	Grass catcher
7	Rear discharge flap
8	Height adjustment lever
9	Battery compartment flap
10	Mulch plug
11	Side discharge chute
12	Handle hole
13	Handle bolt
14	Handle nut
15	Handle pin
16	Grass catcher handle
17	Grass catcher hook
18	Rear flap rod
19	Side discharge flap
20	Pivot
21	Safety key
22	Battery pack
23	Battery capacity indicator
24	Self-propel speed control
25	Blade bolt
26	Spacer
27	Blade

28 Battery release button
29 Turbo button

3 INSTALLATION

WARNING

Do not use accessories that are not recommended by the manufacturer.

WARNING

Do not put in the safety key or the battery pack until you finalised the assembly of all the parts.

3.1 UNPACK THE MACHINE

WARNING

Make sure that you correctly assemble the machine before use.

WARNING

• If parts of the machine are damaged, do not use the machine.
• If you do not have all the parts, do not operate the machine.
• If parts are damaged or missing, contact the service center.
• Open the package.
• Read the documentation provided in the box.
• Remove all the unassembled parts from the box.
• Remove the machine from the box.
• Discard the box and packing material in compliance with local regulations.

WARNING

For your personal safety, do not insert battery before the tool is assembled completely.

3.2 INSTALL THE UPPER HANDLE

Figure 2

1. Align the holes in the upper handle and the lower handle.
2. Put the bolts through the holes.
3. Tighten the knobs onto the bolts.
4. Do the same operation on the other side.

3.3 UNFOLD THE LOWER HANDLE

Figure 3

1. Pull up on the handle holes to release the lower handles.
2. Fold the lower handle up until the handle pins lock into position.

i NOTE

Make sure that the two handle pins are in the same position.

3.4 INSTALL THE GRASS CATCHER

Figure 4

1. Remove the mulch plug.
2. Remove the side discharge chute.
3. Open the rear discharge flap and hold it.
4. Hold the grass catcher by its handle and engage the hooks on the rear flap rod.
5. Close the rear discharge flap.

3.5 INSTALL THE MULCH PLUG

Figure 5

1. Remove the grass catcher.
2. Open the rear discharge flap and hold it.
3. Hold the mulch plug by its handle and fit it in the discharge chute.
4. Close the rear discharge flap.

3.6 INSTALL THE SIDE DISCHARGE CHUTE

Figure 6

CAUTION

When you use the side discharge chute,

- Do not install the grass catcher.

- Keep the mulch plug installed.

1. Open the side discharge flap and hold it.
2. Line up the recesses of the side discharge chute below the pivot.
3. Close the side discharge flap.

3.7 SET THE BLADE/CUTTING HEIGHT

The machine can be set to different blade/cutting heights.

Figure 7

1. Pull the height adjustment lever rearward to increase the blade/cutting height.
2. Push the height adjustment lever forward to decrease the blade/cutting height.

3.8 INSTALL THE BATTERY PACK

Figure 8.

WARNING

• If the battery pack or charger is damaged, replace the battery pack or the charger.
• Stop the machine and wait until the motor stops before you install or remove the battery pack.
• Read, know, and do the instructions in the battery and charger manual.

i NOTE

The machine has an automatic switch function that lets the other battery work when the first cannot operate.

1. Open the battery compartment flap.
2. Align the lift ribs on the battery pack with the grooves in the battery compartment.
3. Push the battery pack into the battery compartment until the battery pack locks into place.
4. When you hear a click, the battery pack is installed.
5. Close the battery compartment.

i NOTE

The motor starts only when you put in the safety key.

3.9 REMOVE THE BATTERY PACK

Figure 8

1. Open the battery compartment flap
2. Remove the safety key.
3. Push and hold the battery release button.
4. Remove the battery pack from the machine.

4 MOWER FUNCTIONS

i NOTE

In general, a lawn mower is featured with four functions (rear bagging/ rear discharging/ mulching/ side discharging). These functions can be converted by changing accessory setting. Please see the following table for detail setting.

Please be noted that functions below vary with the mower models.

TO CONVERT MOWER	MULCH PLUG	GRASS BAG	SIDE DISCHARGE CHUTE
For rear discharging	× × ×
For rear bagging ×	×
For mulching × ×
For side discharging	×

"√": installed

"×": removed

5 OPERATION

WARNING

Wear eye protection during operation.

5.1 START THE MACHINE

Figure 9

1. Make sure safety key is inserted into slot.
2. Push and hold the start button.
3. While you hold the start button, grab the start handles in the direction of the handle bar.
4. Once the machine has started, you can release the start button.
5. Press the Turbo button to speed up to 3100/min.

5.1.1 BATTERY CAPACITY INDICATOR

Lights Capacity
4 Green Lights	The battery is above 80% capacity.
3 Green Lights	The battery is between 80% and 60% capacity.
2 Green Lights	The battery is at between 60% and 40% capacity.
1 Green Light	The battery is between 40% and 20% capacity .
Lights go out	The battery is less than 20% capacity and requires charging immediately.

5.2 STOP THE MACHINE

Figure 9

1. Release the handle switch to stop the machine.

WARNING

Wait until the blade fully stops before you start the machine again. Do not quickly turn the machine off and on.

WARNING

Always remove the safety key and battery pack after you complete the work.

5.3 EMPTY THE GRASS CATCHER

1. Stop the machine.
2. Remove the safety key.
3. Remove the battery pack.

4. Open the rear discharge flap and hold it.

5. Hold the grass catcher by its handle and unhook it from the rear flap rod.

6. Close the rear discharge flap.
7. Empty the grass catcher.

5.4 OPERATE ON SLOPES

WARNING

Do not mow on the slopes with incline more than 15^ . If you are not comfortable, do not mow on a slope.

WARNING

Please keep a low self-propelled speed when you mow on a slope.

• Do not go up and down on a slope, mow across the face of the slope. Be careful when you change the direction on a slope.
• Monitor the holes, ruts, rocks, and other hidden objects that can cause you to fall. Remove all obstacles such as rocks and tree limbs.
• Make sure that your footing is stable. If you are out of balance, release the start handle immediately.
• Do not mow near drop-offs, ditches, or embankments.

5.5 OPERATION TIPS

• Do not try to override the operation of the start button or handle switch.
• Do not tilt the machine when you start it.
• Do not put hands or feet near or below the turning parts.
• Keep the discharge chute clean.
• Do not cut wet grass.
  • Higher blade height is necessary for new or thick grass.
• Clean the bottom of the mower deck after each use. Remove grass clippings, leaves, dirt, and other debris.

6 MAINTENANCE

WARNING

Remove the safety key and battery pack from the machine before maintenance.

WARNING

Keep the engine and battery pack free from grass, leaves or too much grease.

CAUTION

Use only approved replacement parts.

CAUTION

Do not let brake fluids, gasoline, petroleum-based materials touch the plastic parts. Chemicals can cause damage to the plastic, and make the plastic unserviceable.

CAUTION

Do not use strong solvents or detergents on the plastic housing or components.

6.1 GENERAL MAINTENANCE

• Before each use, examine the machine for damaged, missing, or loose parts such as screws, nuts, bolts and caps.
• Tighten correctly all the fasteners and caps.
• Clean the machine with a dry cloth. Do not use water.

6.2 REPLACE THE BLADE

Figure 10

▲ WARNING

Use only approved replacement blades.

WARNING

Wear heavy gloves or wind cloth around the blade when you touch the blade.

1. Stop the machine.
2. Make sure that the blades fully stop.
3. Remove the safety key and battery pack.
4. Turn the machine to its side.
5. Use a piece of wood to prevent the movement of the blade.
6. Remove the mounting screw and spacer with a wrench or socket.
7. Remove the blade.
8. Install the new blade. Make sure that the arrows engage the holes in the blade.
9. Put in the mounting screw and spacer and tighten them.

6.3 VERTICAL STORAGE

Figure 11

1. Remove the grass catcher.
2. Remove the battery and safety key.
3. Pull through the handle holes to fold away the handles.
4. Lock the handles into position.
5. Stand the machine on end and make sure that the brackets touch the floor.

6.4 STORE THE MACHINE

• Remove the safety key.
• Remove the battery pack(s).
• Clean the machine before storage.
• Make sure the motor is not hot when you store the machine.

• Make sure that the machine does not have loose or damaged parts. If it is necessary, follow these instructions:

• Replace the damaged parts.

• Tighten the bolts.
• Speak to a person at an approved service center.

- Store the machine in a dry area.

- Make sure that children cannot come near the machine.

7 TROUBLESHOOTING

Problem Possible cause Solution
The handle is not in position.	The bolts are not engaged correctly.	Adjust the height of the handle and make sure that the knobs and bolts are aligned correctly.
The machine does not start.	The battery capacity is low.	Charge the battery pack.
	The handle switch is defective.	Replace the handle switch.
	The safety key is not put in.	Put in the safety key.
The machine cuts grass unevenly.	The lawn is rough.	Examine the mowing area.
	The blade height is not set correctly.	Adjust the blade/cutting height to a higher position.
The machine does not mulch correctly.	Wet grass clippings attach to the deck.	Wait until the grass dries before mowing.
	The mulch plug is missing.	Install the mulch plug.
The machine is hard to push.	The grass is too tall, or the blade height is too low.	Increase the blade/cutting height.
	The grass catcher and the blade drags in thick grass.	Empty the grass clippings from the grass catcher.
There is a high vibration in the machine.	The blade is unbalanced and worn.	Replace the blade.
	The motor shaft is bent.	1. Stop the motor.2. Remove the safety key and battery pack.3. Inspect for damage.4. Repair the machine before you start it again.
The machine stops during mowing.	The blade height is too low.	Increase the blade/cutting height.
	The battery pack is out of power.	Charge the battery pack.
	The grass clippings attach to the deck or the blade.	Remove the battery pack and check the deck.
	Operation temperature of the machine is too high.	Cool the machine.

* If you cannot find the solution to these problems, go to the service center.

8 TECHNICAL DATA

Voltage 48 V
No load speed 2800 / 3100 / min
Cut width 480 mm
Cut height 25 - 80 mm
Self-propelled speed 0.6 - 1.5 m/s
Grass catcher capacity 55 L
Weight (without battery pack)	27.5 kg
Measured sound pressure level	L_PA = 76.4 dB(A), K = 3 dB(A)
Guaranteed sound power level	L_WA.d = 96 dB(A)
Vibration < 2.5 m/s	^2,K=1.5 m/s^2
Battery model BAM713 and other CAM series
Charger model CAM816 and other CAM series

Double-insulated construction
IPX IPX4

9 EC DECLARATION OF CONFORMITY

Name and address of the manufacturer:

Name: GLOBGRO AB

Globe Group Europe

Address: Riggaregatan 53, 211 13 Malmö, Sweden

Name and address of the person authorised to compile the technical file:

Name: Micael Johansson

Address: Riggaregatan 53, 211 13 Malmö, Sweden

Herewith we declare that the product

Category: Lawn Mower

Model: 48LM48SP/48LM48SPK4 (LME473)

Serial number: See product rating label

Year of Construction: See product rating label

• is in conformity with the relevant provisions of the Machinery Directive 2006/42/EC.

• is in conformity with the provisions of the following other EC-Directives:

2014/30/EU

• 2000/14/EC & 2005/88/EC

• 2011/65/EU & (EU)2015/863

Furthermore, we declare that the following parts, clauses of harmonised standards have been used:

- EN 60335-1, EN 60335-2-77, EN 62233, EN ISO 3744, EN 55014-1, EN 55014-2, ISO 11094, IEC 62321-3-1, IEC 62321-4, IEC 62321-5, IEC 62321-6, IEC 62321-7-1, IEC 62321-7-2. IEC 62321-8

Conformity assessment method to Annex VI Directive 2000/14/EC.

Measured sound power level L_WA : 91.5 dB(A)

Guaranteed sound power level L_WA.d : 96 dB(A)

Place, date: Malmö, Signature: Ted Qu, Quality Director 03.03.2021

Ted Qu

Deutsch

DE

9 DÉCLARATION DE CONFORMITÉ CE

VEILIGHEIDSWAARSCHUWIN GEN VOOR ELEKTRISCH GEREEDSCHAP

WAARSCHUWING

6.3 VERTICALE OPSLAG

Afbeelding 11

Malli: 48LM48SP/48LM48SPK4

(LME473)

5.3 TÖMMA GRÄSUPPSAMLAREN

6.1 GENERELT VEDLIKEHOLD

Make sure that you correctly assemble the machine before use.

OSTRZEŻENIE

IEC 62321-4, IEC 62321-5, IEC 62321-6, IEC

62321-7-1, IEC 62321-7-2. IEC 62321-8

.הכלההוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָה

The image contains no legible text or symbols.

48LM48SP/48LM48SPK4 :037

((LME473

IEC 62321-4, IEC 62321-5, IEC 62321-6, IEC

62321-7-1, IEC 62321-7-2. IEC 62321-8

.EC/2000/14 77:75, VI 77:75-77

(WA: 91.5 dB(A)

( W.A.d: 96 dB(A

Malmö, :הַרְׁבָה,

03.03.2021

Lietuvių k.

8 TECHNINIAI DUOMENYS

5.2 PŁAUJMAŠINAS APTURĘŠANA

Attēls Nr. 9

7 PROBLÉMU NOVĚRŠANA
