USER MANUAL 48TB10 Cramer

LT | LV | ET | MK | SR

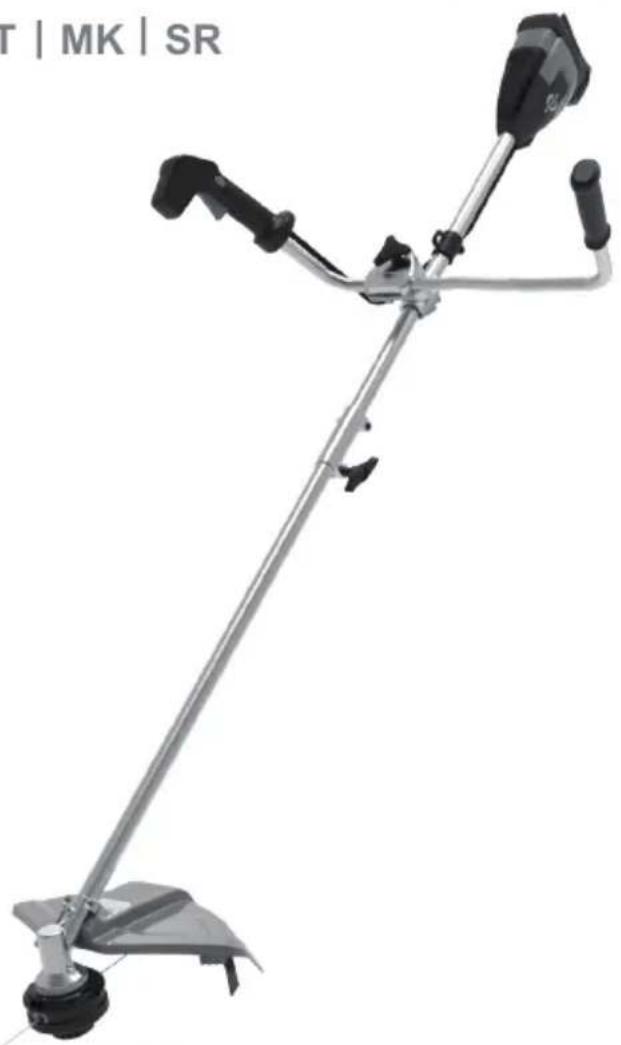

Mechanical tool with articulated arm and base, no visible text or symbols on the device itself

DECLARATION OF CONFORMITY (UK)

Name and address of the manufacturer:

Name: GLOBGRO AB Globe Group Europe

Address: Riggaregatan 53, 211 13 Malmö Sweden

Name and address of the Authorized representative:

Name: Garden Equipment Ltd

Address: First Floor, 3a Groveley Road, Christchurch, Dorset, BH23 3HB, UK

Name and address of the person authorised to compile the technical file:

Name: Simon Del-Nevo

Address: First Floor, 3a Groveley Road, Christchurch, Dorset, BH23 3HB, UK

Here with we declare that the product

Category: String Trimmer & Brush Cutter

Model: 48TB10 (STF457)

Serial number: See product rating label

Year of Construction: See product rating label

• Is in conformity with the relevant provisions of the Supply of Machinery (Safety) Regulations 2008.
  • Is in conformity with the provisions of the following other UK legislation:
  • Electromagnetic Compatibility Regulations 2016
• Noise Emission in the Environment by Equipment for use Outdoors Regulations 2001
  • The Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic Equipment Regulations 2012

Furthermore, we declare that the following standard have been used:

- BS EN 60335-1, BS EN 50636-2-91, BS EN 62233, BS EN 55014-1, BS EN 55014-2, BS EN ISO 11806-1, BS EN ISO 3744, ISO 11094, BS EN 62321-3-1, BS EN 62321-4, BS EN 62321-5, BS EN 62321-6, BS EN 62321-7-1, BS EN 62321-7-2, BS EN 62321-8

Conformity assessment method to Annex E Noise Emission in the Environment by Equipment for use Outdoors Regulations 2001.

String Trimmer:

Measured sound power level )A(Bd 3.39

Guaranteed sound power level 96 dB(A)

Brush Cutter:

Measured sound power level 97.47 dB(A)

Guaranteed sound power level 100 dB(A)

Place, date: Christchurch, Dorset, UK 07.06.2021

Signature: Ted Qu, Quality Director

Ted Qu

English

EN

1 Description......4

1.1 Purpose.... 4
1.2 Overview.... 4
1.3 Packing list.... 4

2 Safety...... 4

3 Installation.... 4

3.1 Unpack the machine.... 4
3.2 Attach the guard....4
3.3 Assemble the shaft....5
3.4 Attach the auxiliary handle....5
3.5 Install the battery pack....5
3.6 Remove the battery pack.... 5

4 Operation.... 5

4.1 Start the machine.... 5
4.2 Stop the machine.... 5
4.3 Operation tips.... 5
4.4 Cutting tips.... 5
4.5 Adjust the length of the cutting line.... 6

4.6 Line cut-off blade.... 6
4.7 Adjust the cutting diameter.... 6

5 Maintenance......6

5.1 General information....6
5.2 Clean the machine....6
5.3 Install the cutting line.... 6
5.4 Replace the spool....6
5.5 Replace the bump knob.... 7
5.6 Remove the trimmer head....7
5.7 Assemble the trimmer head.... 7
5.8 Remove the brush-cutter blade....7
5.9 Assemble the brush cutter blade....7

6 Transportation and storage......7

6.1 Move the machine.... 7
6.2 Store the machine.... 7

7 Troubleshooting......8

8 Technical data......8

9 EC Declaration of conformity......9

1 DESCRIPTION

1.1 PURPOSE

This machine is used to cut grass, light weeds, and other similar vegetation at or around ground level. The cutting plane must be approximately parallel to the ground surface. You cannot use the machine to cut or chop hedges, shrubs, bushes, flowers and compost.

1.2 OVER VIEW

Figure 1 - 19.

1	Battery release button
2	Trigger
3	Lock-out button
4	Auxiliary handle
5	Carrying ring
6	Upper shaft
7	Coupler
8	Lower shaft
9	Cut-off blade
10	Trimmer head
11	Blade
12	Guard
13	Knob
14	Release button
15	Positioning hole
16	Central knob
17	Cap
18	Lower support
19	Slot
20	Spool cover
21	Line exit hole
22	Tab
23	Spool housing
24	Spool
25	Angle transmission hole
26	Metal rod
27	Wrench
28	Nut
29	Outer cup
30	Plate
A	Direction of rotation
B	Best cutting area
C	Dangerous cutting area

1.3 PACKING LIST

1 String trimmer bare tool 3 Auxiliary handle 4 Guard

2 Brush cutter blade

5 Metal rod 8 Shoulder harness
6 Wrench 9 Operator manual
7 Hex wrench

2 SAFETY

▲ WARNING

Make sure that you follow all safety instructions.

Refer to Safety Manual.

3 INSTALLATION

▲ WARNING

Remove the battery pack from the machine before installation.

▲ WARNING

Do not use accessories that are not recommended for this machine.

3.1 UNPACK THE MACHINE

▲ WARNING

Make sure that you correctly assemble the machine before use.

▲ WARNING

• If parts of the machine are damaged, do not use the machine.
• If you do not have all the parts, do not operate the machine.
• If parts are damaged or missing, contact the service center.
• Open the package.
• Read the documentation provided in the box.
• Remove all the unassembled parts from the box.
• Remove the machine from the box.
• Discard the box and packing material in compliance with local regulations.

▲ WARNING

For your personal safety, do not insert battery before the tool is assembled completely.

3.2 ATTACH THE GUARD

Figure 2.

▲ WARNING

Do not touch the cut-off blade.

English

EN

1. Remove the screws from the trimmer head with a Phillips head screwdriver (not included).
2. Put the guard onto the trimmer head.
3. Align the screw holes on the guard with the screw holes on the trimmer head.
4. Tighten the screws.

3.3 ASSEMBLE THE SHAFT

Figure 3.

1. Loosen the knob on the coupler.
2. Push in the release button on the lower shaft.
3. Align the release button with the positioning hole and move the two shafts towards each other.
4. Turn the lower shaft until the button locks into the positioning hole.
5. Tighten the knob.

3.4 ATTACH THE AUXILIARY HANDLE

Figure 4.

1. Loosen the central knob.
2. Remove the cap and the lower support.

i NOTE

Do not miss the spring in the support.

1. Put the auxiliary handle in the lower support.
2. Put the cap to the lower support.
3. Put the entire block in its housing on the shaft.
4. Set the auxiliary handle in the comfortable position.
5. Lock the auxiliary handle with the central knob.

3.5 INSTALL THE BATTERY PACK

Figure 5.

▲ WARNING

• If the battery pack or charger is damaged, replace the battery pack or the charger.
• Stop the machine and wait until the motor stops before you install or remove the battery pack.

• Read, understand, and follow the instructions in the battery and charger manual.

• Align the lift ribs on the battery pack with the grooves in the battery compartment.

• Push the battery pack into the battery compartment until the battery pack locks into place.
• When you hear a click, the battery pack is installed.

3.6 REMOVE THE BATTERY PACK

Figure 5.

1. Push and hold the battery release button.
2. Remove the battery pack from the machine.

4 OPERATION

i IMPORTANT

Before you operate the machine, read and understand the safety regulations and the operation instructions.

WARNING

Be careful when you operate the machine.

4.1 START THE MACHINE

Figure 6.

1. Push the lock-out button and pull the trigger.

4.2 STOP THE MACHINE

Figure 6.

1. Release the trigger to stop the machine.

4.3 OPERA TION TIPS

Figure 7.

WARNING

Keep clearance between the body and the machine.

WARNING

Do not operate the machine without guard in place.

Follow these tips when you use the machine:

• Keep the machine connected to the correctly worn harness.
• Keep a firm hold with two hands on the machine while you operate the machine.
  • Cut tall grass from the top down.

If grass winds around the trimmer head:

• Remove the battery pack.
• Remove the grass.

4.4 CUTTING TIPS

Figure 8.

• Tilt the machine towards the area to be cut. Use the tip of the cutting line to cut grass.
• Move the machine from right to left to prevent thrown debris toward the operator.
• Do not cut in dangerous areas.
• Do not force the trimmer head into uncut grass.

- Wire and picket fences cause cutting line wear and breakage. Stone and brick walls, curbs, and wood can wear the cutting line quickly.

4.5 ADJUST THE LENGTH OF THE CUTTING LINE

Figure 9.

While you operate the machine, the cutting line gets worn and shorter. You can adjust the length of the cutting line.

1. Hit the trimmer head against the ground while you operate the machine.

2. Line is automatically released and the cut-off blade cuts the excess length.

4.6 LINE CUT-OFF BLADE

Figure 10.

This trimmer is equipped with a line cut-off blade on the guard. The line cut off blade continuously trims the line to ensure a consistent and efficient cut diameter. Advance line whenever you hear the engine running faster than normal, or when trimming efficiency diminishes. This will maintain best performance and keep the line long enough to advance properly.

4.7 ADJUST THE CUTTING DIAMETER

Figure 10.

i NOTE

The machine is set at a 356 mm cutting diameter. You can adjust to a 406 mm cutting diameter.

Set the cutting diameter to 356 mm for greater runtime and 406 mm for a larger cutting area.

1. Remove the battery pack.
2. Remove the blade screws from the cut-off blade.
3. Turn the cut-off blade 180°.
4. Tighten the blade screws.

5 MAINTENANCE

i IMPORTANT

Read and understand the safety regulations and the maintenance instructions before you clean, repair or do the maintenance work on the machine.

i IMPORTANT

Make sure that all nuts, bolts and screws are tight. Check regularly that the handles are firmly mounted.

i IMPORTANT

Use only the replacement parts and accessories of the initial manufacturer.

5.1 GENERAL INFORMATION

i IMPORTANT

Only your dealer or approved service center can do the maintenance that is not given in this manual.

Before the maintenance operations:

• Stop the machine.
• Remove the battery pack.
• Cool the motor.
• Store the machine in a cool and dry place.
• Use correct clothing, protective gloves and safety glasses.

5.2 CLEAN THE MACHINE

• Clean the machine after use with a moist cloth dipped in neutral detergent.
• Do not use aggressive detergents or solvents to clean the plastic parts or handles.
• Keep the trimmer head free of grass, leaves, or excessive grease.
• Keep the air vents clean and free of debris to avoid overheating and damage to the motor or the battery.
• Do not spray water onto the motor and electrical components.

5.3 INSTALL THE CUTTING LINE

Figure 11 - 13.

i NOTE

Do not put more than 4 m of cutting line in at a time.

1. Line up the slots on the spool cap with the slots on the trimmer head.
2. Put the cutting line through the hole. Push the cutting line until it exits the opposite hole.
3. Pull the cutting line through until there is an equal quantity of cutting line on each side.
4. Turn the spool cap clock-wise to wind the cutting line into the trimmer head. Keep approximately 13 cm in of cutting line above out of each side of the trimmer head.

5.4 REPLACE THE SPOOL

Figure 14 - 17.

1. Push the tabs on the sides of the trimmer head at the same time.
2. Pull and remove the spool cover.

3. Remove the remaining spool.

4. Replace with a new spool.

5. Put the spool in the spool housing.
6. Push the tabs and install the spool cover onto the spool housing.
7. Push the spool cover until it clicks into position.

5.5 REPLACE THE BUMP KNOB

Figure 16.

1. Simultaneously press the tabs on the sides of the trimmer head.
2. Pull and remove the spool cover .
3. Remove the spool.
4. Hold the bump knob and pry it out with a metal rod (not provided).
5. Put the new bump knob into the spool housing.

5.6 REMOVE THE TRIMMER HEAD

Figure 18.

1. Put the metal rod in the specified angle transmission hole to fix the trimmer head.
2. Turn the trimmer head clockwise to loosen it. Do not remove the spacer from the shaft.

5.7 ASSEMBLE THE TRIMMER HEAD

Figure 18.

1. Put the metal rod in the specified angle transmission hole to fix the trimmer head.
2. Assemble the trimmer head.
3. Turn the trimmer head counterclockwise to tighten it.
4. Remove the metal rod.

i IMPORTANT

You must install the cut-off blade when you use the trimmer head.

5.8 REMOVE THE BRUSH-CUTTER BLADE

Figure 19.

WARNING

Apply the guard to the blade.

1. Put the metal rod in the specified angle transmission hole to fix the trimmer head.
2. Loosen the nut clockwise and remove the outer cup.
3. Remove the brush-cutter blade.

5.9 ASSEMBLE THE BRUSH CUTTER BLADE

Figure 19.

▲ WARNING

Wear gloves and be careful with sharp edges.

▲ WARNING

Apply the guard to the blade.

▲ WARNING

Use the specified Nylon locknut which is packed with the blade, to assemble the blade.

WARNING

You must change the locknut after you use it for 20 times.

1. Put the metal rod in the specified angle transmission hole to fix the trimmer head.
2. Put the brush-cutter blade on top of the inner cup. Make sure the blade is in the center.
3. Put the outer cup above the plate.
4. Put the locknut above the outer cup.
5. Tighten the lock-nut counter-clockwise to 44-58" N.M of torque with a 19mm wrench.

6 TRANSPORTATION AND STORAGE

6.1 MOVE THE MACHINE

When you move the machine, you must:

• Wear gloves.
• Stop the machine.
• Remove the battery pack and charge it.
• Assemble the blade guard.

6.2 STORE THE MACHINE

• Remove the battery pack from the machine.
• Make sure that children cannot come near the machine.
• Keep the machine away from corrosive agents such as garden chemicals and de-icing salts.
• Secure the machine during transportation to prevent damage or injury. Clean and examine the machine for any damage.

7 TROUBLESHOOTING

Problem Possible Cause Solution
The machine does not start when you push the trigger.	No electrical contact between the machine and the battery pack.	1. Remove battery pack.2. Check contact and install the battery pack again.
	The battery pack is depleted.	Charge the battery pack.
	The lock-out button and trigger are not pushed at the same time.	1. Pull the lock-out button and hold it.2. Pull the trigger to start the machine.
The machine stops when you cut.	The guard is not attached to the machine.	Remove the battery pack and attach the guard to the machine.
	Heavy cutting line is used.	Use only with the nylon cutting line of 2 mm diameter.
	The grass winds around the motor shaft or the trim-mer head.	1. Stop the machine.2. Remove the battery pack.3. Remove the grass from the motor shaft and trim-mer head.
	The motor is over-loaded.	1. Remove the trimmer head from the grass.2. The motor will recover to work as soon as the load is removed.3. When you cut, move the trimmer head in and out of the grass to be cut and remove no more than 8" in pass.
	The battery pack or machine is too hot.	1. Cool the battery pack until its function returns to normal.2. Cool the machine for approximately 10 minutes.
	The battery pack is disconnected from the tool.	Install the battery pack again.
	The battery pack is depleted.	Charge the battery pack.

Problem Possible Cause Solution
The line does not advance.	Lines are welded to themselves.	Lubricate with silicone spray.
	Not enough line on spool.	Install more line.
	Lines are worn too short.	Advance the cutting line.
	Lines are tangled on spool.	1. Remove the lines from the spool.2. Wind the lines.
The line keeps breaking.	The machine is used incorrectly.	1. Cut with the tip of the line, avoid stones, walls and other hard objects.2. Advance the cutting line regularly to keep full cutting width.
The grass winds around the trimmer head and motor housing.	Cut tall grass at ground level.	1. Cut tall grass from the top down.2. Remove no more than 8" in each pass to prevent wrapping.
The line does not cut well.	The cut-off blade becomes dull.	Sharpen the cut-off blade with a file or replace it.
Vibration increases obviously.	The line is worn down at one side and not advanced in time.	Make sure that the line on both sides is normal. Advance the line.

8 TECHNICAL DATA

Voltage 48 V
No load speed 6500	±10% min ^-1 (Grass trimmer), 6300 ±10% min ^-1 (Brush cutter)
Cutting head Bump	feed / Brush cutter blade
Cutting line diameter	2 mm
Cutting path diameter	356/406 mm (Grass trimmer), 254 mm (Brush cutter)
Weight (without battery pack)	4.5 kg
Battery model BAM	706/BAM713 and other BAM series
Charger model CAM	806/CAM816 and other CAM series
Grass trimmer Measured sound pressure level	L_PA = 78.4 dB(A), K_pA = 3 dB(A)
Guaranteed sound power level	L_WA.d = 96 dB(A)
Vibration	<2.5 m/s^2, k=1.5 m/s^2
Brush cutter Measured sound pressure level	L_PA = 77.69 dB(A), K=3 dB(A)
Guaranteed sound power level	L_WA.d = 100 dB(A)
Vibration <2.5 m/s	^2, k=1.5 m/s^2

96 dB. Noise value. (Grass trimmer)

100 dB. Noise value. (Brush cutter)

9 EC DECLARATION OF CONFORMITY

Name and address of the manufacturer:

Name: GLOBGRO AB

Globe Group Europe

Address: Riggaregatan 53 211 13 Malmö, Sweden

Name and address of the person authorised to compile the technical file:

Name: Micael Johansson

Address: Riggaregatan 53 211 13 Malmö, Sweden

Herewith we declare that the product

Category: String trimmer / Brush cutter

Model: 48TB10 (STF457)

Serial number: See product rating label

Year of Construction: See product rating label

- is in conformity with the relevant provisions of the Machinery Directive 2006/42/EC.

- is in conformity with the provisions of the following other EC-Directives:

• 2014/30/EU

• 2000/14/EC & 2005/88/EC

• 2011/65/EU & (EU)2015/863

Furthermore, we declare that the following parts, clauses of harmonised standards have been used:

• EN 60335-1; EN 50636-2-91; EN 62233; EN 55014-1; EN 55014-2; EN ISO 3744; ISO 11094; EN ISO 11806-1; IEC 62321-7-2; IEC 62321-4; IEC 62321-5; IEC 62321-6; IEC 62321-7-1; IEC 62321-8; IEC 62321-3-1

Conformity assessment method to Annex VI / Directive 2000/14/EC.

String trimmer

Measured sound power level: L_WA : 93.3 dB(A)

Guaranteed sound power level: L_WA.d : 96 dB(A)

Brush cutter

Measured sound power level: L_WA : 97.47 dB(A)

Guaranteed sound power level: L_WA.d : 100 dB(A)

Place, date: Signature: Ted Qu, Quality Director

Malmö, 09.09.2021

Ted Qu

Deutsch

DE

6.1 DÉPLACEMENT DE LA MACHINE

9 DÉCLARATION DE CONFORMITÉ CE

Herewith we declare that the product

6 TRANSPORT OCH FÖRVARING

6.1 FLYTTA MASKINEN

4.4 TIPS FOR KLIPPING

Figur 8.

4.7 JUSTERE SKJÆREDIAMETEREN

Figur 10.

i MERK

Maskinen er innstilt på en bestemt 356 mm skjærediameter. Du kan justere til en 406 mm skjærediameter.

5.6 AFTAGNING AF KLIPPEHOVED

Figur 18.

5.9 MONTERING AF BUSKRYDDEREN KNIVEN

Figur 19.

ADVARSEL

Make sure that you correctly assemble the machine before use.

OSTRZEŻENIE

5.3 INSTALACE ŽACÍ STRUNY

Obrázek 11 - 13.

i POZNÁMKA

165.... retirement membership parking

165 ---- ---- ---- ---- ---- ---- ---- ---- ---- ---- ---- ---- ---- ---- ---- ---- ---- ---- ---- ---- ---- ---- ---- ---- ---- ---- ---- ---- ---- ---- ---- ---- ---- ---- ---- ---- ---- ---- ---- ---- ---- ---- ---- ---- ---- ---- ---- ---- ---- ---- ---- ---- ---- ---- ---- ---- ---- ---- ---- ---- ---- ---- ---- ---- ---- ---- ---- ---- ---- ---- ---- ---- ---- ---- ---- ---- ---- ---- ---- ---- ---- ---- ---- ---- ---- ---- ---- ---- ---- ---- ---- ---- ---- ---- ---- ---- ---- ---- ---- ---- ....

The image is too blurry to recognize any text content.

11806-1; IEC 62321-7-2; IEC 62321-4; IEC 62321-5;

IEC 62321-6; IEC 62321-7-1; IEC 62321-8; IEC

62321-3-1

The image contains no legible text or symbols.

•

The source image contains no legible text or symbols. According to Rule 4 (Edge Noise Strategy), since the ground truth is not clearly visible, OCR should not output any character. Therefore, the corrected OCR text is:

[No legible text]

The image contains no legible text or characters. It is a graphical symbol and cannot be accurately transcribed.

11806-1; IEC 62321-7-2; IEC 62321-4; IEC 62321-5;

IEC 62321-6; IEC 62321-7-1; IEC 62321-8; IEC

62321-3-1

2000/14/EBGUN/VI 19:00-75 19:00-76

בִרְשָׁה

L_WA : 93.3 dB(A

תְרָה בַרִי הַלְאָה

L_WA.d : 96 dB(A

8 TECHNINIAI DUOMENYS

4.2 MAŠINAS APTURŠANA

Attēls Nr. 6.

7 PROBLÉMU NOVĚRŠANA

Name and address of the person authorised to compile the technical file:

Nimi: Micael Johansson

Aadress: Riggaregatan 53 211 13 Malmö, Rootsi

Käesolevaga kinnitame, et toode
