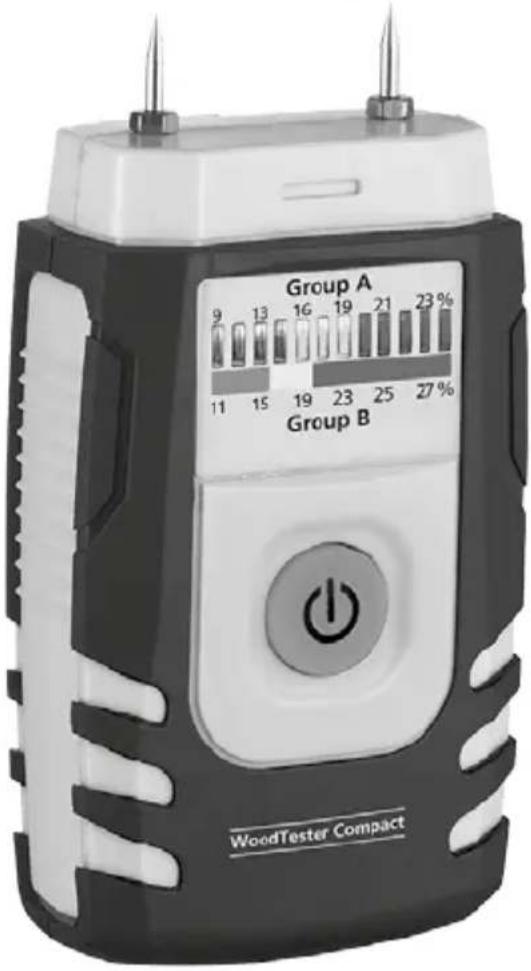

Product Type	Resistance moisture meter for wood
Brand	Laserliner
Model	WoodTester Compact
Measurement Principle	Resistive measurement via integrated electrodes
Wood Groups	2 scales: Group A (beech, linden, willow, ebony) and Group B (oak, maple, alder, spruce, birch, ash)
Measurement Range Group A	9% to 23%
Measurement Range Group B	11% to 27%
Accuracy	± 2%
Display	12 LEDs: 4 green (dry), 3 yellow (damp), 5 red (wet)
Power Supply	1 6LR61 9V battery
Battery Life	Approximately 40 hours
Operating Temperature	0°C to 40°C
Storage Temperature	-10°C to 70°C
Max. Relative Humidity	85%
Approximate Dimensions	160 x 60 x 30 mm (estimated)
Approximate Weight	150 g (with battery, estimated)
Auto Power Off	After 3 minutes of inactivity
Auto-Hold Function	Stores last reading for 5 seconds after removal
Self-Test	At startup, all LEDs briefly light up
Maintenance	Clean electrodes with a dry cloth; store with protective cap
Safety	Sharp electrodes – always use protective cap; avoid hidden conduits

Frequently Asked Questions - WoodTester Compact Laserliner

How does the WoodTester Compact work?

It measures wood moisture via electrical resistance. Insert the electrodes into the wood and read the percentage on the LED display. Values are referenced to dry mass.

What are the wood groups and how do I use them?

Group A (beech, linden, willow, ebony) uses the upper scale; Group B (oak, maple, alder, spruce, birch, ash) uses the lower scale. Select the group using the ON/OFF switch (press to change).

What do the LED colors mean?

Green = dry (bars 0-4), yellow = damp (bars 5-7), red = wet (bars 8-12). For Group B, compare the amplitude with the lower color scale.

Which battery to use and how long does it last?

Use a 9V 6LR61 battery. Battery life is approximately 40 hours. The device automatically turns off after 3 minutes to save battery.

What to do if no LED lights up during a measurement?

The material may be too dry. Perform a self-test by inserting the electrodes into the protective cap: all LEDs should light up. If not, check the battery.

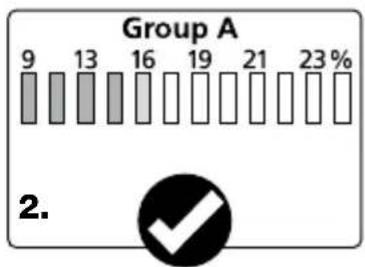

How to interpret a value of 13% for Group A?

13% corresponds to a green LED (dry) according to the Group A scale. The wood is considered dry for woodworking purposes.

Can I measure moisture of materials other than wood?

No, the device is specially calibrated for wood with two species groups. It is not suitable for building materials like plaster or concrete.

Where to take a measurement on a piece of wood?

Choose an untreated area, free of knots, dirt, or resin. Avoid end grain as the wood dries faster there and skews the measurement.

How to maintain the device?

Clean the electrodes with a dry cloth after each use. Always replace the protective cap to avoid injury and protect the device. Store in a dry place.

What to do in case of malfunction or repair?

Consult the complete manual or website www.laserliner.com/info. The device is not user-repairable; contact after-sales service if issues arise. It complies with the WEEE directive for recycling.

USER MANUAL WoodTester Compact Laserliner

Black Laserliner brand electronic device with no visible text or symbols on its body

Group A 9 13 16 19 21 23 % 11 15 19 23 25 27 % Group B WoodTester Compact

DE	02
GB	06
NL	10
DK	14
FR	18
es	22
IT	26
PL	30
FI	34
PT	38
SE	42
NO	46
TR	50
RU	54
UA	58
CZ	62
EE	66
LV	70
LT	74
RO	78
BG	82
GR	86
SI	90
HU	94

Illustration of a mobile phone with a control panel and indicator lights (no text or symbols visible)

Diagram showing a device with labeled components and an '+' symbol indicating positive charge or addition.

Illustration of a mobile phone with an open lid and cable, showing internal components (no text or symbols)

trocken feucht nass

trocken feucht nass

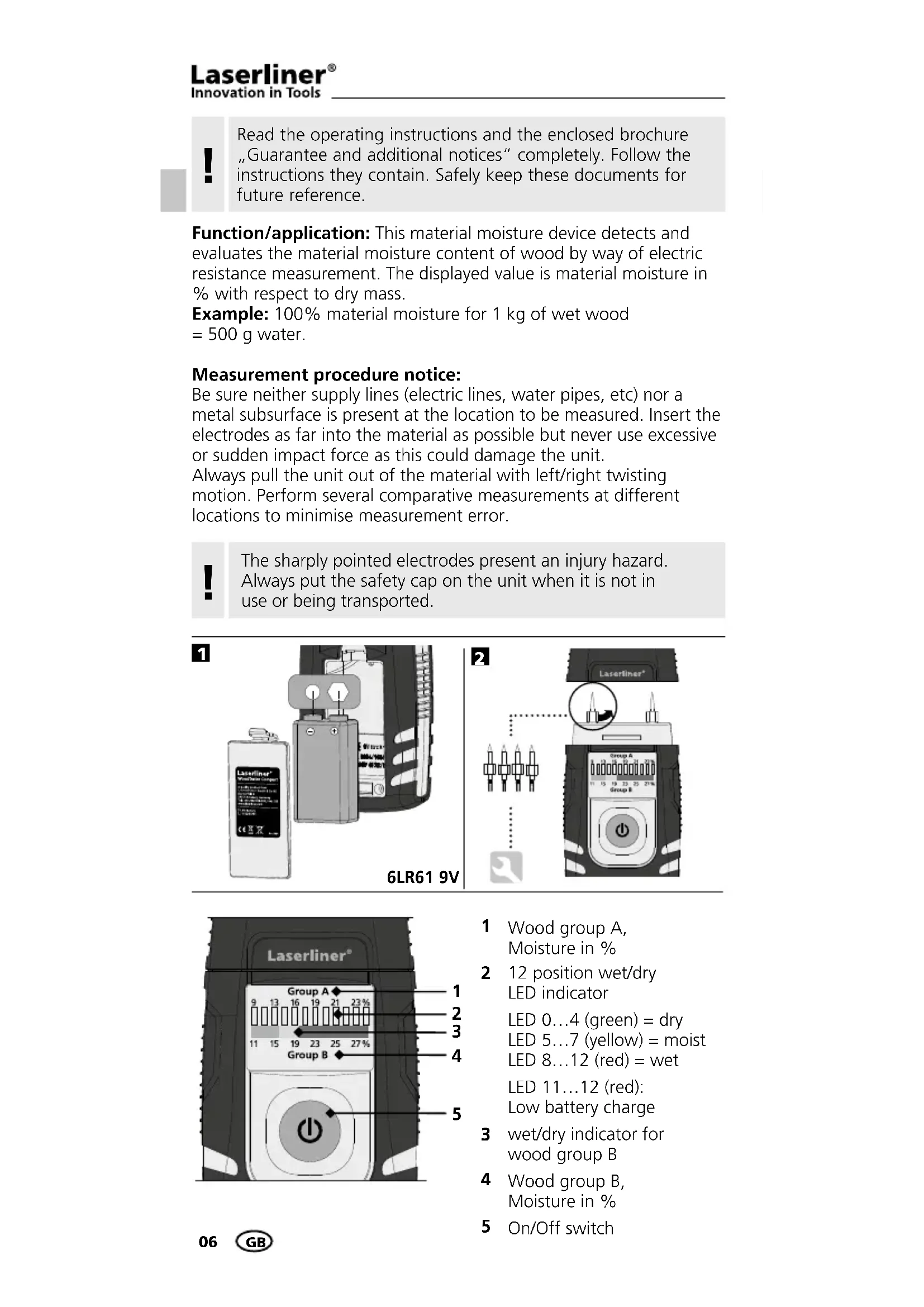

Read the operating instructions and the enclosed brochure „Guarantee and additional notices“ completely. Follow the instructions they contain. Safely keep these documents for future reference.

Function/application: This material moisture device detects and evaluates the material moisture content of wood by way of electric resistance measurement. The displayed value is material moisture in % with respect to dry mass.

Example: 100% material moisture for 1 kg of wet wood = 500 g water.

Measurement procedure notice:

Be sure neither supply lines (electric lines, water pipes, etc) nor a metal subsurface is present at the location to be measured. Insert the electrodes as far into the material as possible but never use excessive or sudden impact force as this could damage the unit.

Always pull the unit out of the material with left/right twisting motion. Perform several comparative measurements at different locations to minimise measurement error.

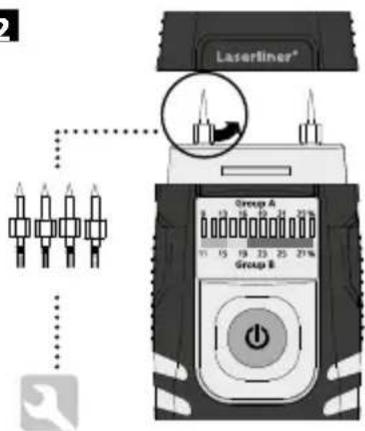

The sharply pointed electrodes present an injury hazard. Always put the safety cap on the unit when it is not in use or being transported.

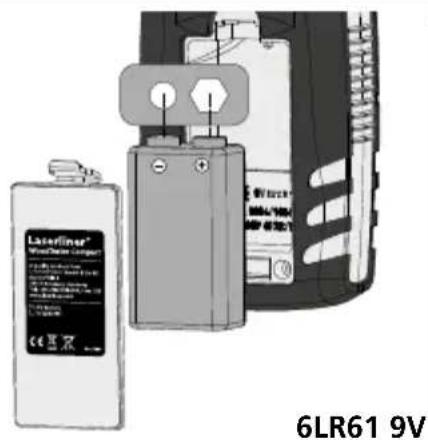

Laserliner® 6LR61 9V

Laserliner® Group A Group B

Laserliner® Group A 9 13 16 19 21 23 % 11 15 19 23 25 27 % Group B 1 2 3 4 5

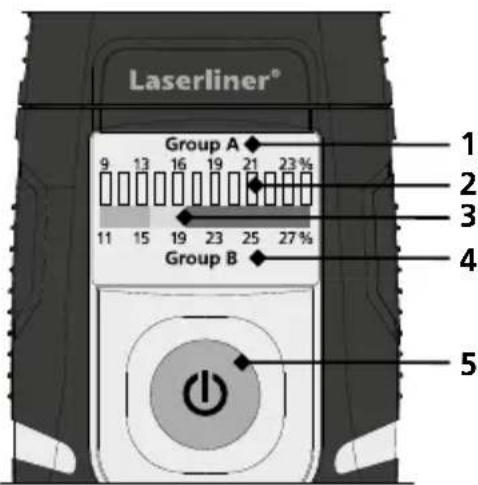

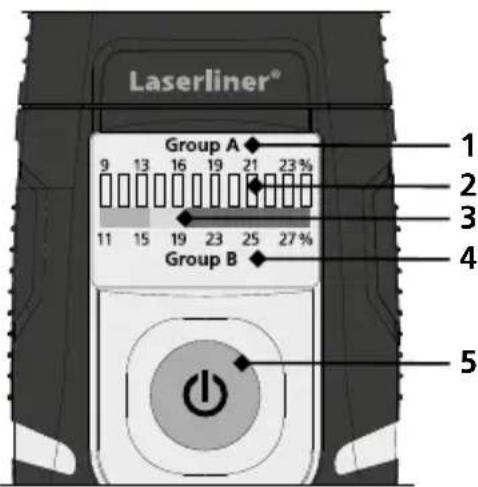

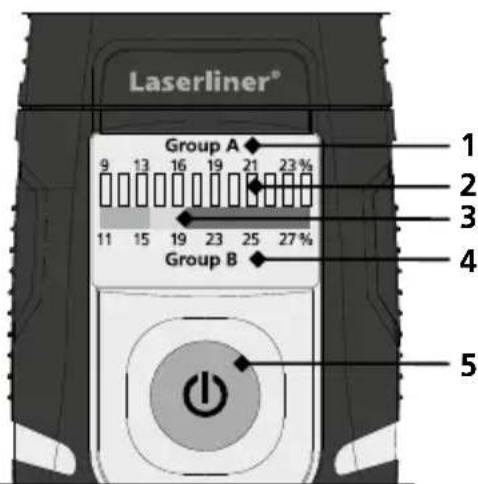

1 Wood group A, Moisture in %
2 12 position wet/dry LED indicator LED 0...4 (green) = dry LED 5...7 (yellow) = moist LED 8...12 (red) = wet LED 11...12 (red): Low battery charge

3 wet/dry indicator for wood group B
4 Wood group B, Moisture in %
5 On/Off switch

WoodTester Compact

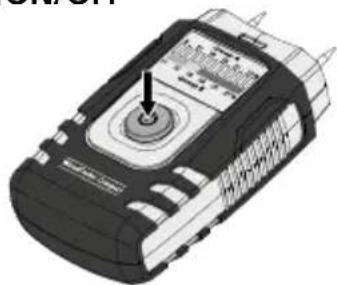

B ON/OFF

Illustration of a mobile phone with a central button and indicator lights (no text or symbols visible)

The device switches itself off automatically after 3 minutes to save battery power. If the device has switched itself off, use the On/Off switch again to switch it on again.

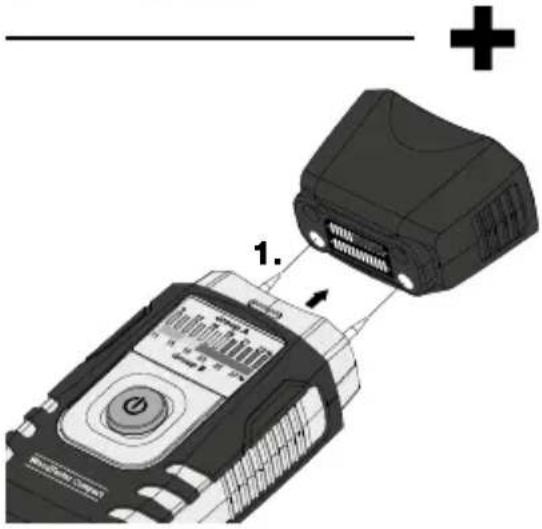

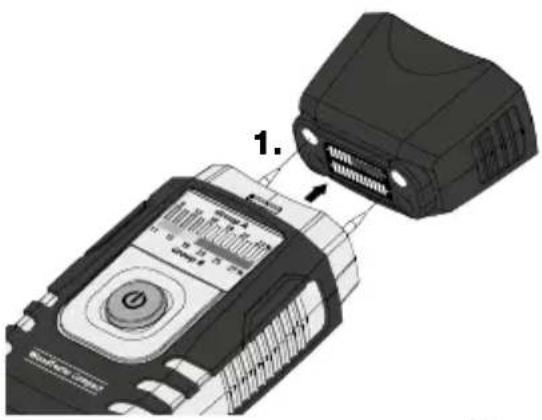

4 Self-test function

1.

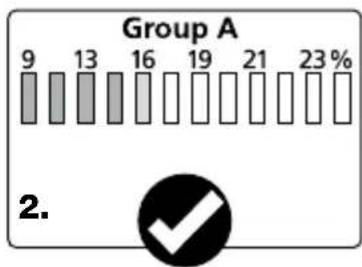

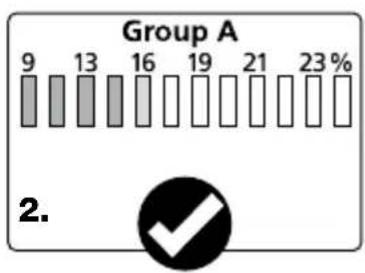

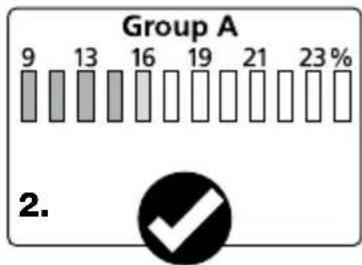

4 green LEDs and one yellow LED light up.

Diagram showing a mobile phone connected to a device with labeled ports and a plus sign, likely illustrating a mobile phone or device connection.

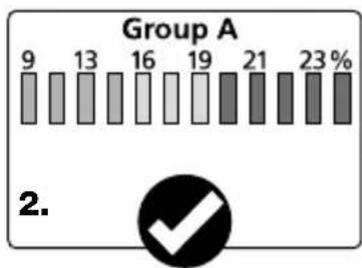

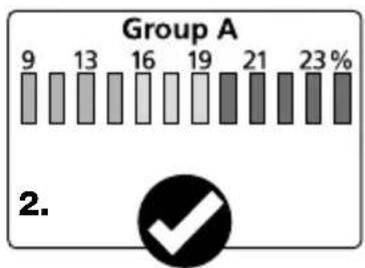

4 green, 3 yellow and 5 red LEDs illuminate.

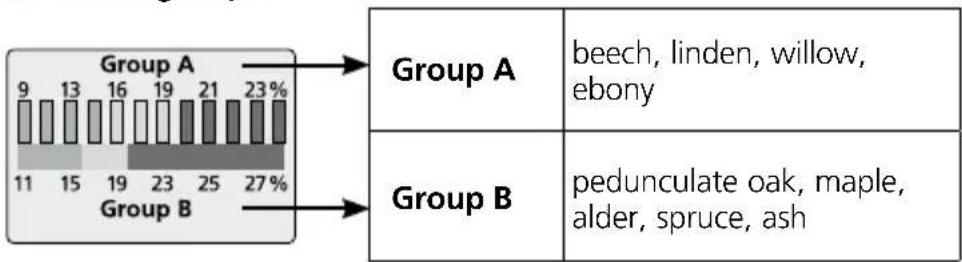

5 Wood groups

6 Determining wood moisture

Illustration of a mobile phone with an open lid and a separate cover (no text or symbols visible)

The location to be measured should be untreated, free of knots, dirt and resin. Measurements should not be made on the end faces of wood because these areas dry particularly quickly such that they produce incorrect measurement results.

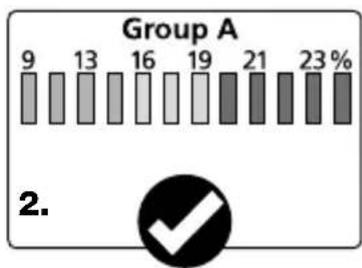

7a Wet/dry LED indicator for group A

dry moist wet

After switching the device on, all 12 LEDs will illuminate briefly. Thereafter, the first green LED will blink continuously. The device is now ready to use. If a measurement for a group A wood is made, the material's moisture in % will be displayed in the upper scale. The LED display bar becomes larger, from left to right, with increasing moisture content. The 12-position LED display is subdivided into 4 green (dry), 3 yellow (moist) and 5 red (wet) segments. The moisture content of wood can be determined both from the percentage figure as well as from the LED colour. Example shown: 13 %, green LED = dry.

7b Wet/dry LED indicator for group B

dry moist wet

If a measurement for a group B wood is now made, the material's moisture in % will be displayed in the lower scale. In this case, the right-most illuminated LED (regardless of colour) and the colour-scale beneath it are used to determine if the wood is to be classified as „dry“, „moist“ or „wet“. Evaluation is now based on the lower colour scale. Green = dry, yellow = moist, red = wet. Example shown: 23 %, red section of the lower scale = wet.

!

If a measurement should produce no change of the LEDs, it is possible that the measured material is too dry. Perform a self-test of the device with the protective cap to make sure the device is in good working order.

8 Auto-Hold function

The last measurement value will continue to display for about 5 seconds after removing the device from the measured material. During this period the LEDs will blink and show the last measurement value. As soon as only the first green LED blinks, the device is ready to make a new measurement.

!

Functional and operational safety is only warranted when the instrument is operated within the specified climatic conditions and is only used for those purposes for which it is designed. The assessment of measurement results and actions taken as a consequence lie in the user's scope of responsibility, depending on the given type of work.

Technical data

Measurement principle	Resistive material moisture measurement by way of integrated electrodes
Material	2 wood scales
Measurement range, wood group A	9% ... 23%
Measurement range, wood group B	11% ... 27%
Accuracy	± 2%
Nominal temperature	22 °C
Permissible operating temperature	0 °C ... 40 °C
Permissible storage temperature	-10 °C ... 70 °C
Permissible max. relative humidity	85%
Power supply	1 x 6LR61 9 V
Battery service life	approx. 40 hours

Technical revisions reserved. 01.15.

EU directives and disposal

This device complies with all necessary standards for the free movement of goods within the EU.

This product is an electric device and must be collected separately for disposal according to the European Directive on waste electrical and electronic equipment.

Further safety and supplementary notices at: www.laserliner.com/info

CE —

Illustration of a mobile phone with a central button and antenna (no visible text or symbols)

Diagram of a mobile phone connected to a device with an attached connector (no text or symbols visible)

Diagram showing a device connected to a device with labeled ports and a plus sign, likely illustrating a physical or electronic component.

4 groene, 3 gele en 5 rode leds branden.

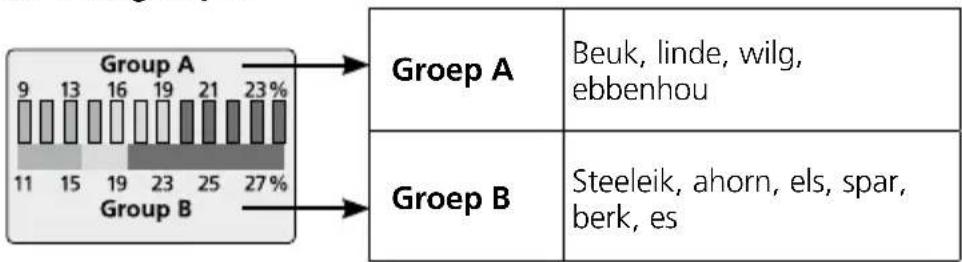

5 Houtgroepen

6 Houtvocht bepalen

Illustration of a mobile phone with an open lid and cable, showing internal components (no text or symbols visible)

droog vochtig nat

droog vochtig nat

Illustration of a mobile phone with a central touchscreen display and antenna (no visible text or symbols)

Diagram of a device with an attached black connector and a digital display showing ports (no text or symbols)

4 grønne LED'er og en gul LED lyser.

Diagram showing a device with labeled components and an '+' symbol indicating positive charge or addition.

Illustration of a mobile phone with an open lid and a separate case, showing no text or symbols.

Illustration of a mobile phone with a central button and antenna (no visible text or symbols)

Diagram of a device with an attached black sensor or sensor module, showing internal components and a labeled connection point (no text or symbols present)

Diagram showing a device connected to a device with labeled ports and a plus sign, likely illustrating a physical or electronic component.

Illustration of a mobile phone with an open lid and cable, showing no text or symbols on the device itself.

sec humide mouillé

sec humide mouillé

Illustration of a mobile phone with a control panel and indicator lights (no text or symbols visible)

Illustration of a mobile phone connected to a device labeled '1.' (no text or symbols on the device itself)

Diagram showing a device with labeled components and an '+' symbol indicating positive charge or addition.

Illustration of a mobile phone with an open lid and cable, showing internal components (no text or symbols visible)

Illustration of a mobile phone with a central touchscreen display and antenna (no visible text or symbols)

Illustration of a mobile phone connected to a device with an attached black connector (no text or symbols visible)

Diagram showing a device with labeled components and an '+' symbol indicating positive charge or addition.

Illustration of a mobile phone with an open lid and cable, showing internal components (no text or symbols visible)

Illustration of a mobile phone with a central touchscreen display and antenna (no visible text or symbols)

Diagram of a mobile phone connected to a device with an attached black connector (no text or symbols visible)

Diagram showing a device with labeled components and an '+' symbol indicating positive charge or addition.

Illustration of a mobile phone with an open lid and cable, showing internal components (no text or symbols)

suche wilgotne mokre

suche wilgotne mokre

LaserLine® Group A Group B 11 15 19 20 21 21% 21% 21% Group A Group B

Laserliner® Group A 9 13 16 19 21 23 % 11 15 19 23 25 27 % Group B 1 2 3 4 5

Illustration of a mobile phone with a central touchscreen display and antenna (no visible text or symbols)

Diagram of a mobile phone connected to a device with an attached black connector (no text or symbols visible)

Diagram showing a device with labeled components and an '+' symbol indicating positive charge or addition.

Illustration of a mobile phone with an open lid and cable, showing internal components (no text or symbols visible)

Illustration of a mobile phone with a central touchscreen display and antenna (no visible text or symbols)

Diagram of a mobile phone connected to a device via a cable, showing ports and battery (no text or symbols present)

4 LEDs verdes e um LED amarelo acesos.

Diagram showing a device with labeled components and an '+' symbol indicating positive charge or addition.

Illustration of a mobile phone with an open lid and cable, showing internal components (no text or symbols visible)

Illustration of a mobile phone with a central touchscreen display and antenna (no visible text or symbols)

Diagram of a mobile phone connected to a device via a cable, showing ports and battery (no text or symbols present)

Diagram showing a device with labeled components and an '+' symbol indicating positive charge or addition.

Illustration of a mobile phone with an open lid and cable, showing internal components (no text or symbols visible)

Torr Fuktig Våt

Torr Fuktig Våt

Lasertiner® Group A Group B

Laserliner® Group A 1 2 3 4 5 9 13 16 19 21 23 % 11 15 19 23 25 27 %

Illustration of a mobile phone with a central button and indicator lights (no text or symbols visible)

Diagram of a device with an attached black component labeled '1.' (no text or symbols on the device itself)

Diagram showing a mobile phone connected to a device with labeled ports and a plus sign, likely illustrating a mobile phone or device connection.

Illustration of a mobile phone with an open lid and cable, showing internal components (no text or symbols visible)

tört fuktig vått

tört fuktig vått

Illustration of a mobile phone with a central touchscreen display and antenna (no visible text or symbols)

Diagram of a mobile phone connected to a device via a cable, showing ports and battery (no text or symbols present)

Diagram showing a device with labeled components and an '+' symbol indicating positive charge or addition.

Illustration of a mobile phone with an open lid and cable, showing internal components (no text or symbols visible)

kuru nemli islak

kuru nemli islak

Illustration of a mobile phone with a central button and antenna (no visible text or symbols)

Diagram of a device with an attached black component labeled '1.' (no text or symbols on the device itself)

Diagram showing a mobile phone connected to a device with labeled ports and a plus sign, likely illustrating a mobile phone or device connection.

Illustration of a mobile phone with an open lid and cable, showing no text or symbols on the device itself.

Illustration of a mobile phone with a control panel and indicator lights (no text or symbols visible)

Diagram of a mobile phone connected to a device via a cable, showing ports and signal interface (no text or symbols)

Diagram showing a device with labeled components and an '+' symbol indicating positive charge or addition.

Illustration of a mobile phone with an open lid and a screen showing internal components (no text or symbols visible)

Illustration of a mobile phone with a central touchscreen display and antenna (no visible text or symbols)

Diagram of a mobile phone connected to a device via a cable, showing ports and signal interface (no text or symbols)

Svítí 4 zelené kontrolky LED a jedna žlutá kontrolka LED.

Diagram showing a device with labeled components and an '+' symbol indicating positive charge or addition.

Illustration of a mobile phone with an open lid and cable, showing internal components (no text or symbols visible)

Illustration of a mobile phone with a central touchscreen display and antenna (no visible text or symbols)

Diagram of a mobile phone connected to a device via a cable, showing ports and signal interface (no text or symbols)

Diagram showing a device with labeled components and an '+' symbol indicating positive charge or addition.

Illustration of a mobile phone with an open lid and cable, showing internal components (no text or symbols)

Illustration of a mobile phone with a central touchscreen display and antenna (no visible text or symbols)

Diagram of a device with an attached black connector and a digital display showing internal components (no text or symbols)

Deg 4 zaļas gaismas diodes un viena dzeltena gaismas diode.

Diagram showing a device with labeled components and an '+' symbol indicating positive charge or addition.

4 zaļi, 3 dzelteni un 5 sarkani LED rād. deg.

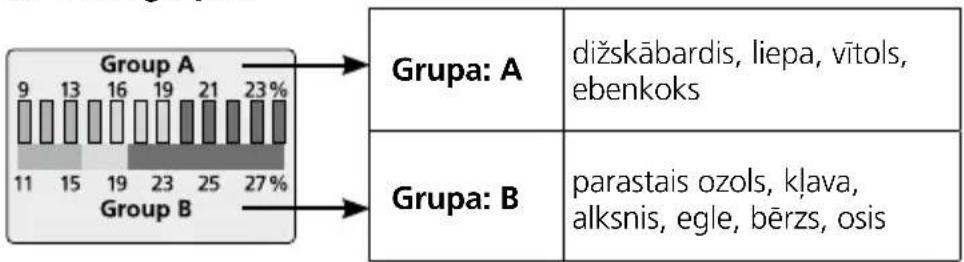

5 Koku grupas:

Illustration of a mobile phone with an open lid and a screen showing internal components (no text or symbols visible)

sauss mitrs slapjš

sauss mitrs slapjš

Illustration of a mobile phone with a central touchscreen display and antenna (no visible text or symbols)

Diagram of a device with an attached black connector and a digital display showing internal components (no text or symbols)

Diagram showing a device with labeled components and an '+' symbol indicating positive charge or addition.

Dega 4 žali, 3 geltoni ir 5 raudoni šviesos diodai.

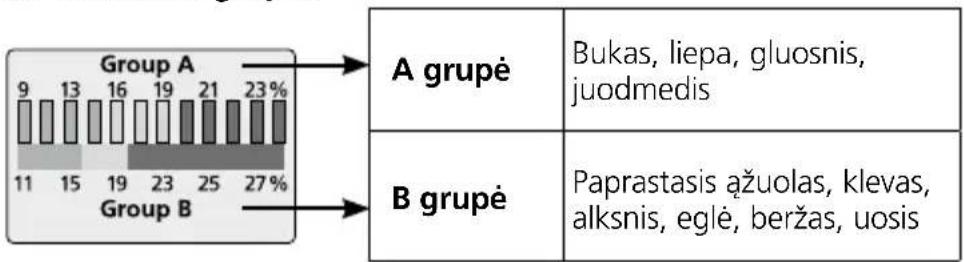

5 Medienos grupės

6 Medienos drègnumo nustatymas

Illustration of a mobile phone with an open lid and cable, showing internal components (no text or symbols)

sausa drégna šlapia

Illustration of a mobile phone with a central button and antenna (no visible text or symbols)

Diagram of a device with an attached black component labeled '1.' (no text or symbols on the device itself)

Diagram showing a mobile phone connected to a device with labeled ports and a plus sign, likely illustrating a mobile phone or device connection.

Illustration of a mobile phone with an open lid and cable, showing internal components (no text or symbols visible)

uscat ud umed

uscat ud umed

Illustration of a mobile phone with a central touchscreen display and antenna (no visible text or symbols)

Diagram of a mobile phone connected to a device via a cable, showing ports and signal interface (no text or symbols)

Diagram showing a device with labeled components and an '+' symbol indicating positive charge or addition.

Illustration of a mobile phone with an open lid and cable, showing no text or symbols on the device itself.

Illustration of a handheld electronic device with a central button and indicator lights (no visible text or symbols)

Diagram of a device with an attached black component labeled '1.' (no text or symbols on the device itself)

Diagram showing a mobile phone connected to a device with labeled ports and a plus sign, likely illustrating a mobile phone or device connection.

Illustration of a mobile phone with an open lid and cable, showing no text or symbols on the device itself.

Illustration of a mobile phone with a central touchscreen display and antenna (no visible text or symbols)

Naprava se po 3 minutah samodejno izključi zaradi varčevanja z baterijo. Če želite napravo po tem znova vključiti, ponovno pritisnite stikalo za vklop/izklop.

4 Funkcija samotesta

Diagram of a mobile phone connected to a device via a cable, showing ports and signal interface (no text or symbols)

Diagram showing a device with labeled components and an '+' symbol indicating positive charge or addition.

Illustration of a mobile phone with an open lid and cable, showing internal components (no text or symbols visible)

Mesto za merjenje mora biti neobdelano, brez vej, umazanije ali smole. Meritev ne izvajati na čelni strani, ker se les tukaj posebno hitro suši, kar vodi do popačenih rezultatov.

7a LED-prikaz mokrega/suhega stanja skupine A

suho vlažno mokro

suho vlažno mokro

Illustration of a mobile phone with a central touchscreen display and antenna (no visible text or symbols)

Diagram of a mobile phone connected to a device via a cable, showing ports and signal interface (no text or symbols)

Diagram showing a device with labeled components and an '+' symbol indicating positive charge or addition.

Illustration of a mobile phone with an open lid and cable, showing internal components (no text or symbols)

Interior scene with a vintage home appliance, lamp, and a digital device displaying a 20% power symbol (no readable text or symbols on main objects)

SERVICE

Umarex GmbH & Co KG

-Laserliner-
