USER MANUAL SD1600V SCHEPPACH

Scroll sawTranslation of original instruction manual

Explanation of the symbols on the device Symbols are used in this manual to draw your attention to potential hazards. The safety symbols and the accompa- nying explanations must be fully understood. The warnings themselves will not rectify a hazard and cannot replace proper accident prevention measures. Warning! Read the operating manual to reduce the risk of injury! Wear protective goggles. Sparks created during work or fragments, chippings and dust eject- ed by the device can case sight loss. Wear hearing protection. Excessive noise can result in a loss of hearing. Wear a dust protection mask. When machining wood and other materials, harmful dust may be generated. Do not machine material containing asbestos! Attention! Danger of injury! Do not reach into saw blade while it is running! The product complies with the applicable European directives. The product complies with the applicable Serbian directives. m Attention! We have marked points in these operating instructions that impact your safety with this symbol.www.scheppach.com

In addition to the safety instructions in this operating manual and the separate regulations of your country, the generally recognised technical rules relating to the operation of such machines must also be observed. We accept no liability for accidents or damage that occur due to a failure to observe this manual and the safety instructions.

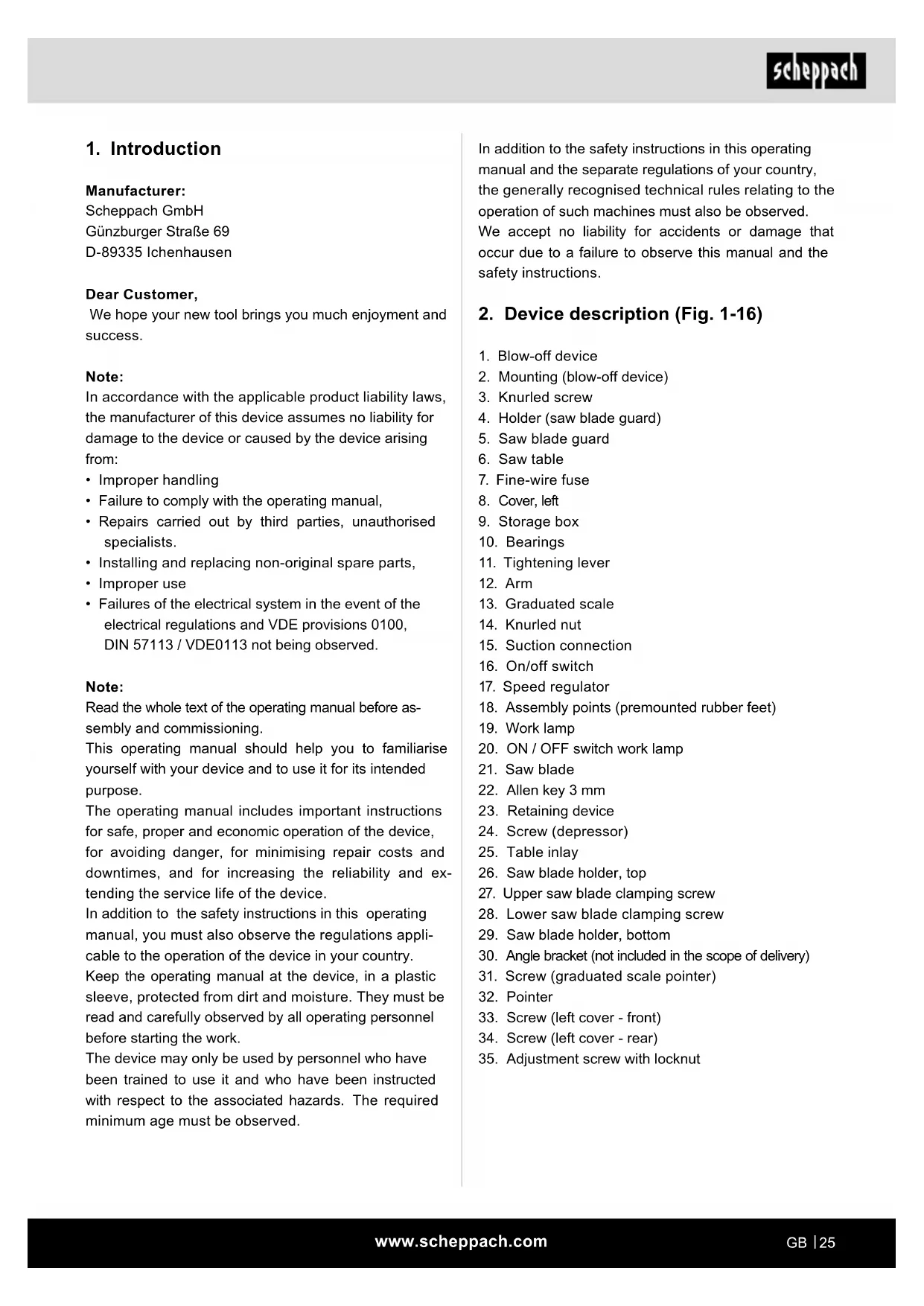

2. Mounting (blow-off device)

15. Suction connection

18. Assembly points (premounted rubber feet)

23. Retaining device

27. Upper saw blade clamping screw

28. Lower saw blade clamping screw

29. Saw blade holder, bottom

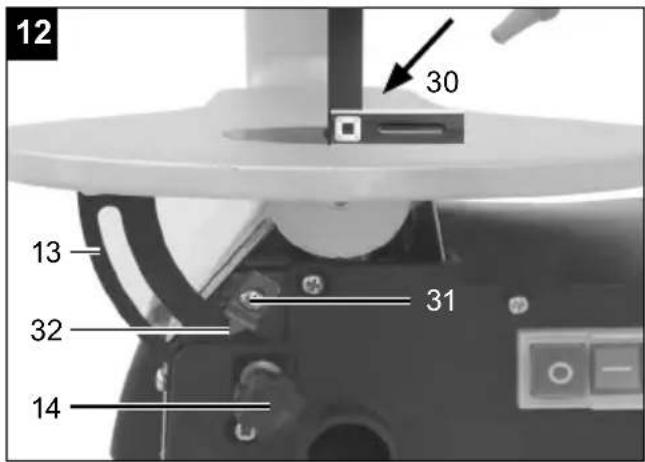

30. Angle bracket (not included in the scope of delivery)

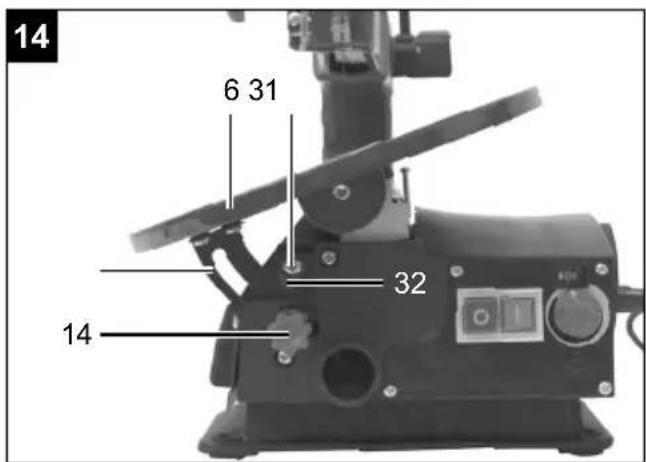

31. Screw (graduated scale pointer)

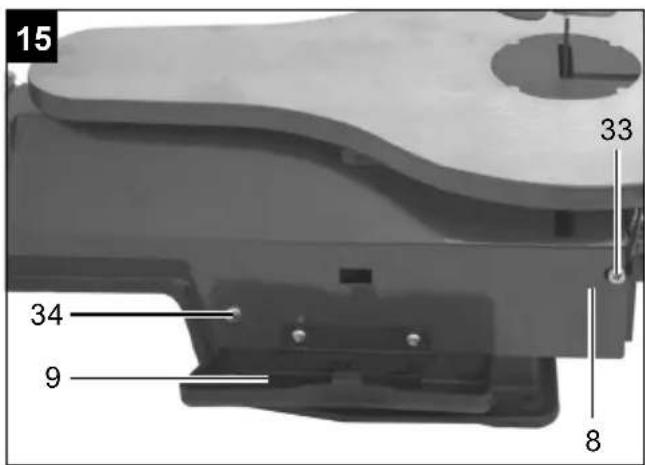

33. Screw (left cover - front)

34. Screw (left cover - rear)

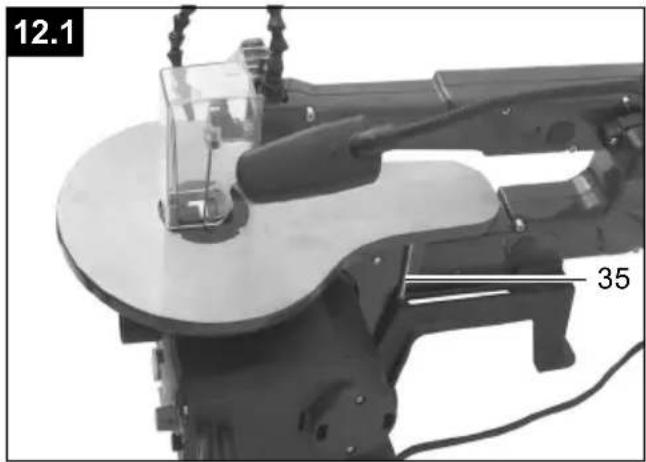

35. Adjustment screw with locknut

Manufacturer: Scheppach GmbH Günzburger Straße 69 D-89335 Ichenhausen Dear Customer, We hope your new tool brings you much enjoyment and success. Note: In accordance with the applicable product liability laws, the manufacturer of this device assumes no liability for damage to the device or caused by the device arising from:

• Failure to comply with the operating manual,

• Repairs carried out by third parties, unauthorised specialists.

• Installing and replacing non-original spare parts,

• Failures of the electrical system in the event of the electrical regulations and VDE provisions 0100, DIN 57113 / VDE0113 not being observed. Note: Read the whole text of the operating manual before as- sembly and commissioning. This operating manual should help you to familiarise yourself with your device and to use it for its intended purpose. The operating manual includes important instructions for safe, proper and economic operation of the device, for avoiding danger, for minimising repair costs and downtimes, and for increasing the reliability and ex- tending the service life of the device. In addition to the safety instructions in this operating manual, you must also observe the regulations appli- cable to the operation of the device in your country. Keep the operating manual at the device, in a plastic sleeve, protected from dirt and moisture. They must be read and carefully observed by all operating personnel before starting the work. The device may only be used by personnel who have been trained to use it and who have been instructed with respect to the associated hazards. The required minimum age must be observed.www.scheppach.com

Residual risks Even when this electric tool is operated properly, residual risks still remain. The following hazards may arise in connection with the design and con- struction of this electric tool:

• Lung damage if suitable dust protection mask is not worn.

• Hearing damage if suitable hearing protection is not worn.

• Risk of accident due to contact with the hands in the uncovered cutting area of the tool.

• Danger of injury during a tool change (cutting haz- ard).

• Danger due to kick-back.

• Tilting of the workpiece due to insufcient workpiece support surface.

• Touching the cutting tool.

• Ejection of branches and workpiece parts.

5. Safety instructions

5.1 General safety instructions for electrical devices

m WARNING The following basic safety measures must be observed when using electric tools for protection against electric shock, and the risk of injury and re. Read all these notices before using the electric tool and store the safety instructions well for later reference.

a) Keep work area clean and well lit. Cluttered or dark areas invite accidents. b) Do not operate power tools in explosive at- mospheres, such as in the presence of am- mable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes. c) Keep children and bystanders away while op- erating a power tool. Distractions can cause you to lose control.

2. Electrical safety

a) Power tool plugs must match the outlet. Nev- er modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodied plugs and matching outlets will reduce risk of electric shock.

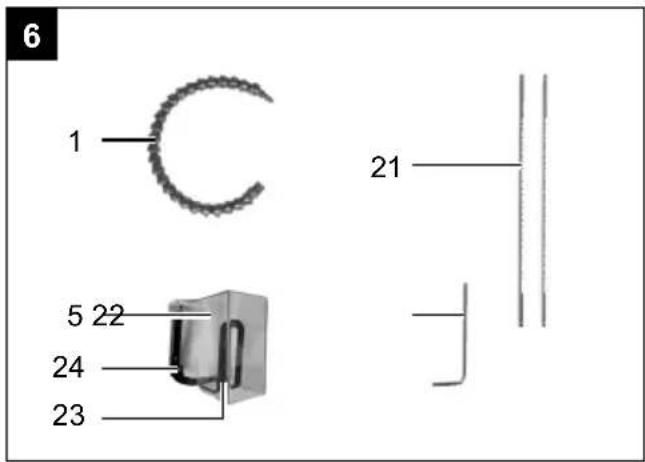

3. Scope of delivery

• Saw blade guard (5) with retaining device (23)

• Saw blade (21) for wood and plastics (2x) (1x pre- mounted)

The scroll saw is used for cutting angular timbers or other materials such as Plexiglas, GRP, foam, rubber, leather and cork. Never use the saw to cut round mate- rial. Round material can tilt easily. Danger of injury! Parts may be ejected! The device may only be used in the intended manner. Any use beyond this is improper. The user/operator, not the manufacturer, is responsible for damages or inju- ries of any type resulting from this. Please observe that our equipment was not designed with the intention of use for commercial or industrial purposes. We assume no guarantee if the equipment is used in commercial or industrial applications, or for equivalent work.

• Only suitable saw blades may be used for the ma- chine.

• An element of the intended use is also the obser- vance of the safety instructions, as well as the as- sembly instructions and operating information in the operating manual.

• Persons who operate and maintain the machine must be familiar with the manual and must be in- formed about potential dangers.

• In addition, the applicable accident prevention regu- lations must be strictly observed.

• Other general occupational health and safety-relat- ed rules and regulations must be observed.

• The liability of the manufacturer and resulting dam- ages are excluded in the event of modications of the machine.www.scheppach.com

g) If devices are provided for the connection of dust extraction and collection facilities, en- sure these are connected and properly used. Use of dust collection can reduce dust-related hazards. h) Do not let familiarity gained from frequent use of tools allow you to become complacent and ig- nore tool safety principles. A careless action can cause severe injury within a fraction of a second.

4. Power tool use and care

a) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed. b) Do not use the power tool if the switch does not turn it on and off. Any power tool that can- not be controlled with the switch is dangerous and must be repaired. c) Disconnect the plug from the power source and/or remove the battery pack, if detachable, from the power tool before making any adjust- ments, changing accessories, or storing pow- er tools. Such preventive safety measures reduce the risk of starting the power tool accidentally. d) Store idle power tools out of the reach of chil- dren and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users. e) Maintain power tools and accessories. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool’s operation. If dam- aged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools. f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control. g) Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation. h) Keep handles and grasping surfaces dry, clean and free from oil and grease. Slippery handles and grasping surfaces do not allow for safe handling and control of the tool in unexpected situations. b) Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded. c) Do not expose power tools to rain or wet con- ditions. Water entering a power tool will increase the risk of electric shock. d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords in- crease the risk of electric shock. e) When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock. f) If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.

a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the inuence of drugs, alcohol or med- ication. A moment of carelessness when using electrical tools can result in serious injuries. b) Use personal protective equipment. Always wear eye protection. Protective equipment such as a dust mask, non-skid safety shoes, hard hat or hearing protection used for appropriate conditions will reduce personal injuries. c) Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your nger on the switch or energising power tools that have the switch on invites accidents. d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury. e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations. f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair and clothing away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.www.scheppach.com

• Switch off the machine to rectify any faults on the blocked tool attachment. Pull out the mains plug. Remove the blockage. Attention! Danger of injury due to saw blade! Wear protective gloves! Perform a test run without a workpiece. Make sure that no unusual noises or vibrations occur. If this is the case, switch the device off and contact the manufacturer.

• Only carry out modications, adjustments, measure- ments and cleaning work when the motor is switched off. Pull out the mains plug.

• Before switching on, make sure that keys and adjust- ing tools are removed.

• Switch off the motor and pull out the mains plug when leaving the work station.

• Electrical installation, repairs and maintenance work may only be carried out by specialists.

• All protective and safety equipment must be reas- sembled immediately after repair or when mainte- nance is completed.

• The safety, operating and maintenance information of the manufacturer, as well as the dimensions spec- ied in the technical data, must be observed.

• The relevant accident prevention regulations and the other generally accepted safety rules must be observed.

• The saw is only intended for installation indoors.

• Workpieces that are smaller than the saw blade guard can cause injuries to the hands and ngers. Use a suitable aid!

• Avoid cramped hand positions when guiding the workpiece and positions in which the hand would slip directly into the saw blade.

• Always insert the saw blade so that the teeth point down towards the saw table.

• Always set the correct blade tension in order to avoid breaking the saw blades.

• Use extra care when cutting material with irregular cutting proles.

• When withdrawing the workpiece, teeth can get caught in the kerf, especially if the shavings block the kerf. In this case you should switch off the saw, pull out the mains plug, open the kerf with a wedge and remove the workpiece.

• Never leave the work station without setting down the saw beforehand. Wait until the saw has come to a standstill.

• Do not place, glue, or assemble any parts on the work table while the saw is running.

• Do not switch on the saw until the work table is cleared of material residues and tools.

a) Have your power tool serviced by a qualied repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained. m WARNING This electric tool generates an electromagnetic eld during operation. This eld can impair active or passive medical implants under certain conditions. In order to prevent the risk of serious or deadly injuries, we recom- mend that persons with medical implants consult with their physician and the manufacturer of the medical im- plant prior to operating the electric tool.

5.2 Special safety instructions

• In an emergency, switch the machine off directly and pull out the mains plug.

• Observe all of these notes before and while working with the saw.

• Never use the saw to cut rewood.

• The machine is equipped with a safety switch against reactivation if the voltage drops.

• If an extension cable is required, make sure that its cross-section is sufcient for the current consump- tion of the saw. Minimum cross-section 1.5 mm

• Only use cable reels in the unrolled state.

• Personnel working on the machine must not be dis- tracted.

• Under no circumstances should the saw blades be braked by pushing against the side after switching off the drive.

• Only install saw blades that are well sharpened, free of cracks and not deformed.

• Faulty saw blades must be replaced immediately.

• Do not use saw blades that do not correspond to the characteristics specied in these usage instructions.

• Ensure that all devices that cover the saw blade work properly.

• Safety equipment on the machine must not be disas- sembled or made unusable.

• Damaged or faulty protective devices must be re- placed immediately.

• Do not cut workpieces that are too small in order to keep them secure in your hands.

• Do not load the machine so much that it comes to a standstill.

• Always press the workpiece rmly against the work- ing plate.

• Never remove loose splinters, chips or jammed wood pieces from the running saw blade.www.scheppach.com

Noise The noise levels have been determined in accordance with EN 61029. Wear hearing protection. Excessive noise can result in a loss of hearing. Sound pressure level L

• The specied vibration emission value has been measured according to a standardised testing pro- cedure and can be used for comparison of one elec- tric tool with another;

• The specied vibration emission value can also be used for an initial assessment of the (vibration) load.

• The vibration emission value can vary from the specied value during the actual use of the electric tool, depending on the type and the manner in which the electric tool is used; A warning:

• It is necessary to determine the safety measures for the protection of the operator based on an assess- ment of the vibration load during the actual conditions of use (In doing so, all parts of the operating cycle must be taken into account such as times in which the electric tool is switched off or times in which it is switched on, but is not running under a load). The stipulated values are emission values and so do not necessarily represent safe work station values. Al- though there is a correlation between emission levels and exposure levels, it is not possible to reliably deter- mine whether additional precautionary measures will be required or not based on this. Factors that could inuence the emissions level pres- ent at any given time at the work station include the duration of exposure, the nature of the working area, other noise sources etc. e.g. the number of machines and neighbouring processes. The permitted workstation values can also vary from country to country. However, this information should ena- ble the operator to better evaluate the hazards and risks. Only leave the workpiece to be machined and any work aids (wedges) on the workbench.

• Always wear safety goggles.

• Keep ngers at a safe distance from the saw blade.

• Guide the workpiece securely and rmly and do not let it loose at any point.

• Never leave the work station without setting down the saw beforehand.

• Do not let your familiarity with the saw lead you to carelessness. Carelessness can lead to serious in- juries in a split second. Store the safety instructions safely.

Mains voltage 220-240 V~/50 Hz Power consumption 80 Watt (S1*) 120 Watt (S6 30%**) Stroke rate 500-1700 rpm Lifting movement 12 mm Base 630 x 295 mm Tilting table 0° to 45° to the left Table size 415 x 255 mm Saw blade length approx. 134 mm Swing 406 mm Cutting height max. at 0° 50 mm Cutting height max. at 45° 22 mm Weight 12.0 kg Subject to technical modications! *Operating mode S1: Continuous operation at constant load **Operating mode S6 30%: Continuous duty with intermittent loading (operating time 10 mins). In order avoid impermissible overheat- ing of the motor, the motor should be driven for only 30% of the operating time with the stipulated nominal power and must then continue to run with no load for the remaining 70% of the operating time. Device emissions valueswww.scheppach.com

• Washer Ø 8.4 mm (8x) (not included in the scope of delivery) The length of the screws to be used vary depending on the thickness of the tabletop. m WARNING Danger of injury! Disconnect the mains plug on the scroll saw before all assembly work.

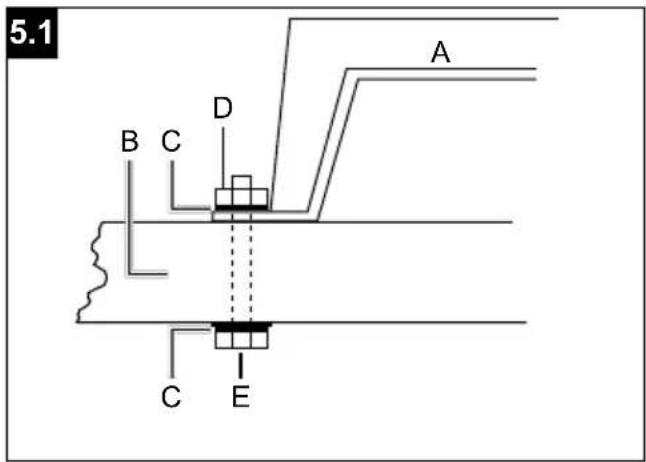

1. Mount the scroll saw on a solid wooden work-

bench. This way, a high noise level due to vibra- tions can be avoided.

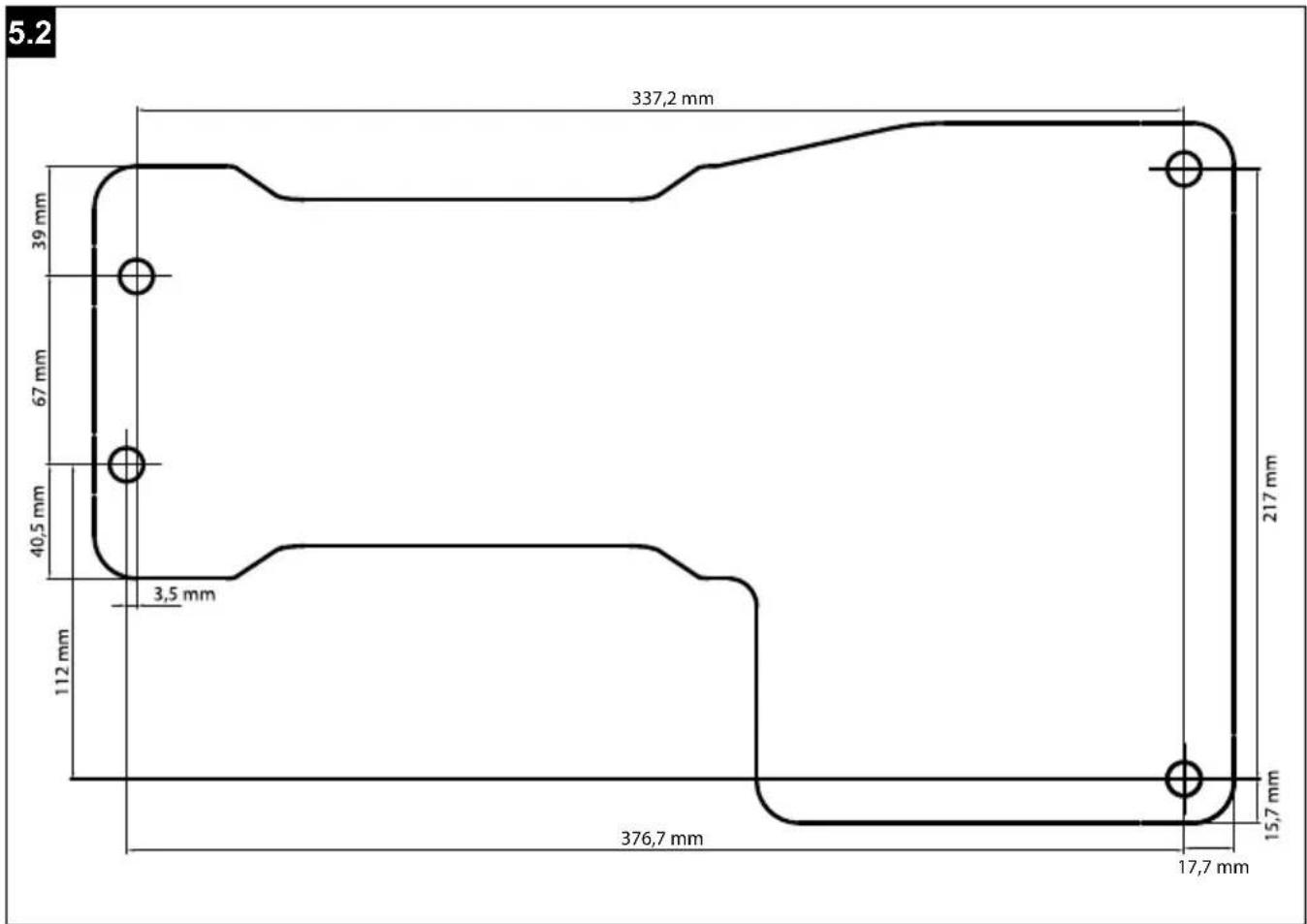

2. Mark the drill holes (see g. 5.2).

3. Drill the 4 holes (diameter 8 mm) into the work-

4. Screw the scroll saw onto the workbench with the

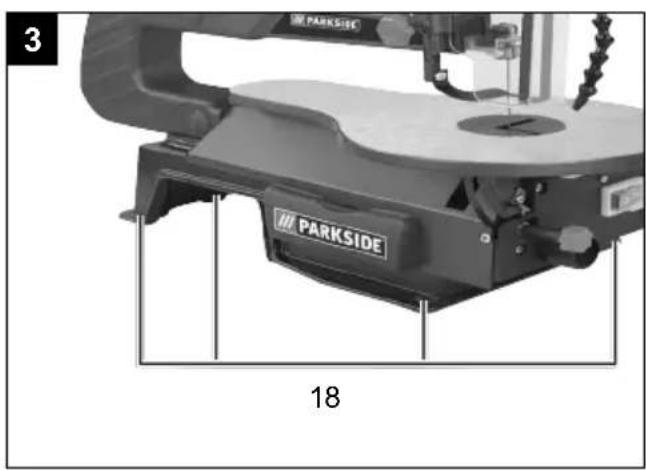

hexagonal bolt (E) through the assembly points (g. 3 pos. 19) in the following sequence (g. 5.1): D Hexagonal nut C Washer A Scroll saw B Workbench C Washer E Hexagonal bolt

5. Tighten the hexagonal nuts (D).

m WARNING Danger of injury! Disconnect the mains plug on the scroll saw before all assembly work.

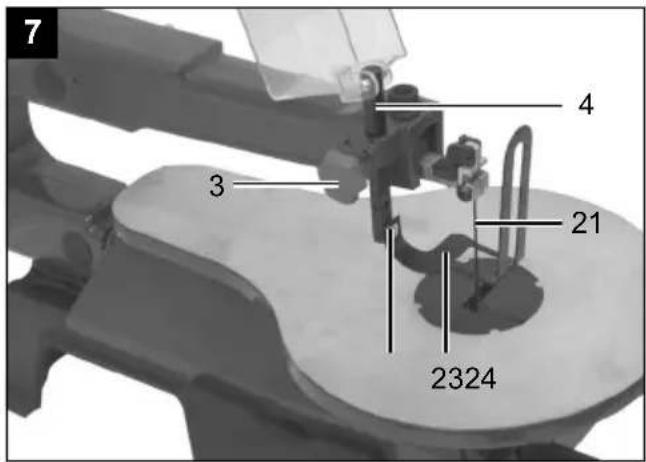

8.1 Installing the saw blade guard (5) and the re-

taining device (23) (g. 6, 7) NOTE: Before assembling the retaining device (23), the saw blade pre-installed at the factory (21) must be removed (see 8.2).

1. Remove the saw blade (21) as described in 8.2.

2. Remove the retaining device (23) from the saw

blade guard (5): Loosen the screw (24) complete- ly using a Phillips screwdriver (not included in the scope of delivery) (see g. 6).

3. Insert the holder (4) into the opening (see g. 7).

4. Fasten the holder (4) with the knurled screw (3).

5. Mount the retaining device (23) to the saw blade

guard (5). Insert the screw (24) into the holder (4). Tighten the screw (24) using a Phillips screwdriver (not included in the scope of delivery).

6. Insert the saw blade (21) again as described in 8.2.

Limit the noise level to a minimum!

• Only use faultless devices.

• Maintain and clean the device at regular intervals.

• Adapt your working methods to the device.

• Do not overload the device.

• Have the device checked if necessary.

• Switch the device off if it is not in use. Suitable saw blades All industry-standard saw blades with a minimum length of 127 mm with and without a pin may be used.

7. Before commissioning

• Open the packaging and carefully remove the de- vice.

• Remove the packaging material, as well as the pack- aging and transport safety devices (if present).

• Check whether the scope of delivery is complete.

• Check the device and accessory parts for transport damage.

• If possible, keep the packaging until the expiry of the warranty period. m WARNING The device and the packaging are not children‘s toys! Do not let children play with plastic bags, lms or small parts! There is a danger of choking or suffocating!

• Prior to commissioning, all covers and safety devic- es must be mounted correctly.

• The saw blade must be able to run freely.

• In case of previously machined wood, be aware of any foreign bodies, such as nails or screws, etc.

• Before pressing the on/off switch, make sure that the saw blade is correctly tted, and that moving parts run smoothly.

• Before connecting the machine, make certain that the data on the type plate matches with the mains power data.

• Only connect the machine to a correctly installed protective contact socket, with fuse protection of at least 10 A.

7.3 Install the scroll saw on the workbench

You require the following for assembly:

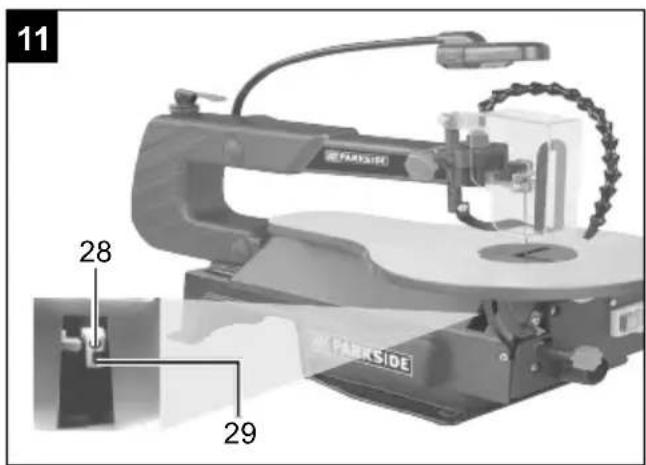

6. Loosen the lower saw blade clamping screw (28)

with the Allen key (22).

7. Remove the saw blade upwards.

8.2.3 Inserting the saw blade without pins

(optional) The teeth of the saw blade must always point downwards.

1. Fix the saw blade (21) in place in the bottom saw

blade holder (29). To x the saw blade (21) in place, tighten the lower saw blade clamping screw (28) with the Allen key (22).

2. Press the support (12) down lightly. Fasten the oth-

er end of the saw blade (21) in the top saw blade holder (26) (see g. 9).

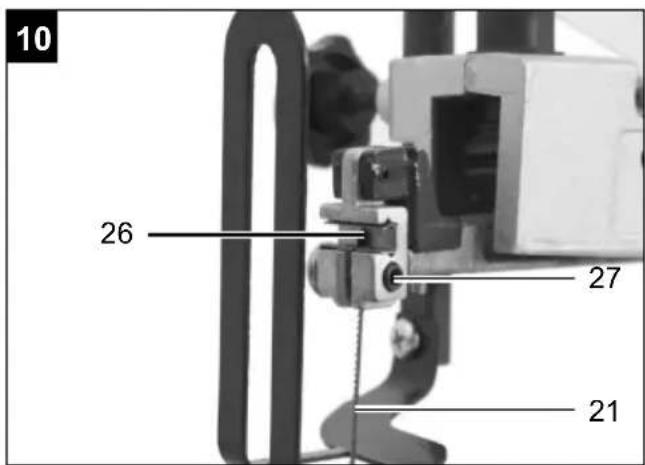

3. Fasten the saw blade (21) using the upper saw

blade clamping screw (27) (see g. 10).

4. Tension the saw blade (21) with the tightening le-

ver (11) by pressing down on it again. Check the tensioning of the saw blade (21). If the tension is too low, you can increase it by turning it clockwise. Before doing this, release the tightening lever (11) again.

5. Re-insert the table inlay (25). (see 8.2.1)

8.2.4 Removing the saw blade with pins

1. To remove the saw blade (21), remove the table

inlay (25) upwards. (see 8.2.1)

2. First, release the tension by ipping the tension le-

ver (11) upwards. Continue reducing the tension by turning counterclockwise as required.

3. Hold the sawblade rmly and press the arm (12)

down slightly (see Fig. 9).

4. Remove the saw blade from the top and bottom

saw blade holder (26/29).

8.2.5 Inserting the saw blade with pins

The teeth of the saw blade must always point down- wards.

1. Insert one end of the saw blade (21) through the

drilled hole in the table. Insert the pins of the saw blade (21) into the corresponding recesses of the top and bottom saw blade holder (26/29).

2. First, insert the saw blade (21) into the bottom saw

the saw blade (21) into the top saw blade holder (26).

4. Check the position of the saw blade pins in the saw

blade holders (26/29).

5. Tension the saw blade (21) with the tightening lever

(11) by pressing down on it again. Check the tension- ing of the saw blade (21).

7. Ensure that the retaining device (23) does not

touch the saw blade (21).

8.1.1 Adjusting the retaining device

NOTE: The retaining device (23) must always be adjusted ac- cording to the workpiece height. However, the work- piece should not be clamped, but should rather be able to move freely. The retaining device (23) is used to lock the workpiece so that it cannot swing upwards, which would destroy the saw blade (21).

1. Loosen the knurled screw (3) to adjust the retain-

2. Adjust the retaining device (23) according to the

height of the workpiece.

m WARNING To avoid injuries due to unintentional start up: Be- fore removing or replacing the saw blade, always press “0” and remove the mains plug from the socket.

2. Set the saw blade guard (5) all the way up to the

Pay attention to the position of the sawing gap when inserting the table inlay (25). The table inlay (25) must be inserted as shown in Fig. 8. Otherwise the machine can be damaged during mitre cuts.

8.2.2 Removing the saw blade without pins

inlay (25) upwards. (see 8.2.1)

2. First, release the tension by ipping the tension le-

ver (11) upwards. If necessary, the tension can be further reduced by turning the tightening lever (11) counterclockwise.

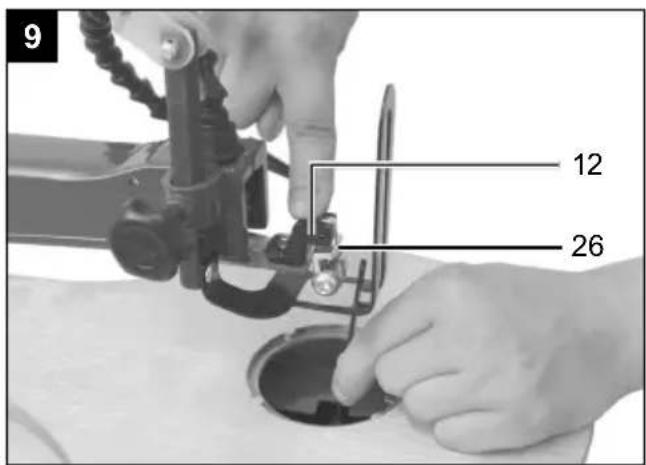

3. Press the support (12) down lightly (see g. 9).

4. Then loosen the upper saw blade clamping screw

into the interior of the machine.www.scheppach.com

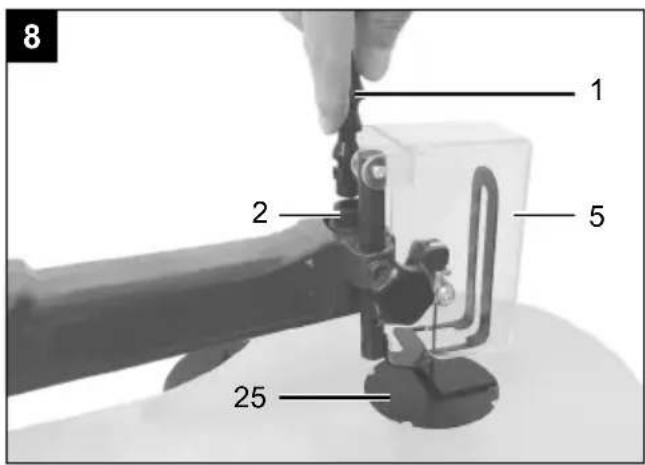

8.5 Installing the blow-off device (g. 8)

1. Ensure that the saw blade guard (5) folded down.

2. Screw the blow-off device (1) clockwise onto the

holder (2) as described in g. 8.

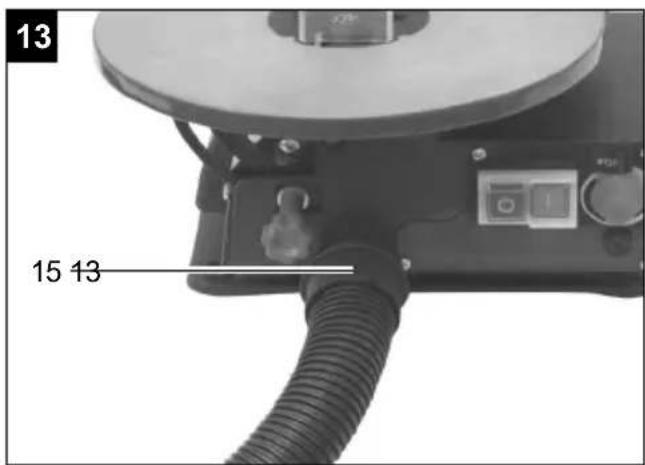

8.6 Chip extraction (g. 13)

ATTENTION: Only operate the product with a suitable chip extraction system. Do not use household vacuum cleaners. Connect a suitable chip extraction system (not included in the scope of delivery) to the suction connection (15) (see g. 13, sample gure). ATTENTION: Check and clean the suction channels at regular intervals.

m Attention! Always make sure the device is fully assembled before commissioning!

• The saw does not cut wood by itself. The user makes cutting possible by guiding the wood into the moving saw blade.

• The teeth only cut the wood on the down stroke.

• The wood must be fed slowly into the saw blade as the teeth of the saw blade are very small.

• Anyone who wants to use the saw requires a cer- tain amount of learning time. During this time some blades are sure to break.

• When cutting thick timbers, particular care must be taken to ensure that the saw blade is not bent or twisted.

• Working carefully will increase the service life of the saw blade.

9.2 Fine-wire fuse (7)

The ne-wire fuse (7) is inserted at the factory and does not need to be installed. If the ne-wire fuse (7) is defective, proceed as described in point 12.2.4.

9.3 On/off switch (16)

• Switching on: Press the “I” button.

• Switching off: Press the “0” button. ATTENTION The machine is equipped with a safety switch against reactivation if the voltage drops. If the tension is too low, you can increase it by turning it clockwise. Before doing this, release the tightening lever (11) again.

6. Re-insert the table inlay (25). (see 8.2.1)

NOTE The left side features a storage box (9), which enables you to stow replacement saw blades and the hexagon wrench.

8.3 Checking the saw blade tension

m WARNING Check the blade tension regularly and after insert- ing a saw blade. Tension the saw blade after assembly by pressing down on the tension lever (11). If the blade tension is too low or too high, proceed as follows:

• Fold the tension lever (11) upwards.

• Turn the tension lever (11) clockwise to increase the tension and counterclockwise to reduce it.

• Press the tightening lever (11) down again to engage the setting. If the tension is correct, the saw blade should produce a light tone when it is “plucked”, like a guitar string.

8.4 Fine adjustment of the angle scale (g. 12; 12.1)

ATTENTION Check the setting of the angle scale before working with the device.

1. Loosen the adjustment screw locknut (35) using a

spanner, size 8 (not included in the scope of de- livery).

2. To set the saw table, use a 90° angle bracket (30)

(not included in the scope of delivery). Place this against the saw table and the saw blade (g. 12).

3. Loosen the knurled nut (14). Adjust the adjustment

screw (35) until the angle between the saw blade (21) and the saw table (6) is 90°.

4. Retighten the knurled nut (14) and the adjustment

5. Loosen the screw (31) and turn the pointer (32) to

6. Make a test cut. Check the angle on the workpiece

with a protractor. If necessary, readjust the pointer (32).www.scheppach.com

10. Electrical connection

The electrical motor installed is connected and ready for operation. The connection complies with the applicable VDE and DIN provisions. The customer‘s mains connection as well as the extension cable used must also comply with these regulations. Damaged electrical connection cable The insulation on electrical connection cables is often damaged. This may have the following causes:

• Pressure points, where connection cables are passed through windows or doors

• Kinks where the connection cable has been improp- erly fastened or routed

• Places where the connection cables have been cut due to being driven over

• Insulation damage due to being ripped out of the wall outlet.

• Cracks due to the insulation ageing. Such damaged electrical connection cables must not be used and are life-threatening due to the insulation damage. Check the electrical connection cables for damage regularly. Ensure that the connection cables are dis- connected from electrical power when checking for damage. Electrical connection cables must comply with the ap- plicable VDE and DIN provisions. Only use connection cables with the marking H 05 VV-F. The printing of the type designation on the connection cable is mandatory. AC motor The mains voltage must be 220-240 V~. Extension cables up to 25 m long must have a cross-section of 1.5 mm

Connections and repair work on the electrical equip- ment may only be carried out by electricians. Please provide the following information in the event of any enquiries:

• Type of current for the motor

• Machine data - type plate If the scroll saw is switched on and the power supply in the mains is interrupted, the scroll saw remains switched off, even if the power supply is re-established. Press the “I” button to switch it on.

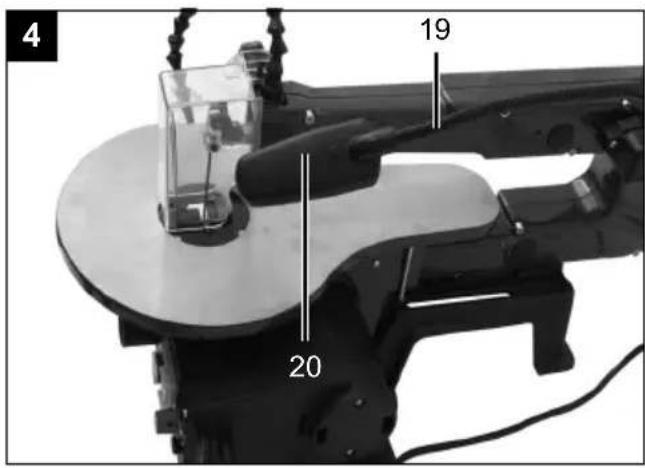

9.4 Work lamp operation (g. 4)

Press the on/off switch (20) to switch the work lamp (19) on and off.

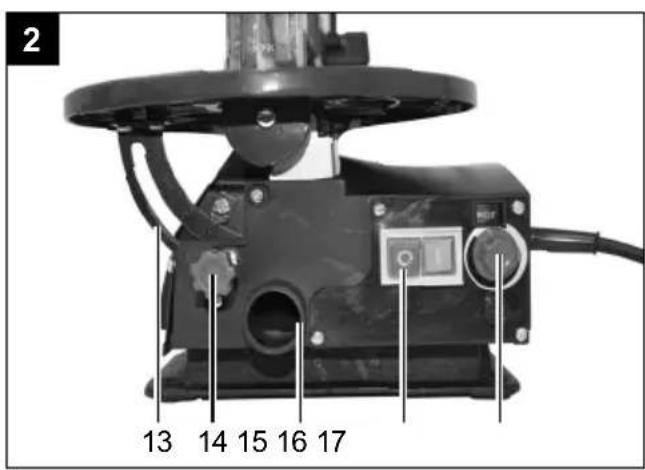

9.5 Speed regulator (g. 2)

The speed regulator (17) allows you to set the stroke rate according to the material to be cut. In case of soft materi- al, we recommend high stroke rates, while strokes rates should be kept low for hard material. Turn the speed reg- ulator (17) clockwise to increase the stroke rate. Turning counterclockwise lowers the stroke rate.

9.6 Making inside cuts

This scroll saw allows inside cuts in workpieces with- out damaging the outside or the circumference of the workpiece.

1. Remove the saw blade (21) as described in 8.2.

2. Drill a hole into the workpiece.

3. Place the workpiece with the drilled hole over the

opening of the table inlay (25) on the saw table (6).

4. Install the saw blade (21) (as described in 8.2)

through the drilled hole in the workpiece and set the blade tension.

5. After completing the inside cut, remove the saw

blade (21) from the blade holders (as described in 8.2).

6. Remove the workpiece from the table.

9.7 Carrying out mitre cuts (g. 14)

m WARNING Be particularly careful when making mitre cuts. The incline of the saw table supports slipping. There is a danger of injury.

1. To carry out mitre cuts, adjust the distance be-

tween the saw blade guard (5) mounted to the re- taining device (23) and the work table accordingly.

2. Swivel the table by loosening the knurled nut (14)

and tilting the saw table (6) into the desired po- sition.

Lubricate the bearing points (10) of the deection roll- ers after approx. 25-30 operating hours at the latest using high-quality machine grease.

12.2.2 Carbon brushes

If excessive sparks are generated, have an electrician check the carbon brushes. ATTENTION The carbon brushes must only be replaced by an elec- trician.

If the mains cable is pulled out, cut, or damaged in some other form, then it should be replaced immedi- ately.

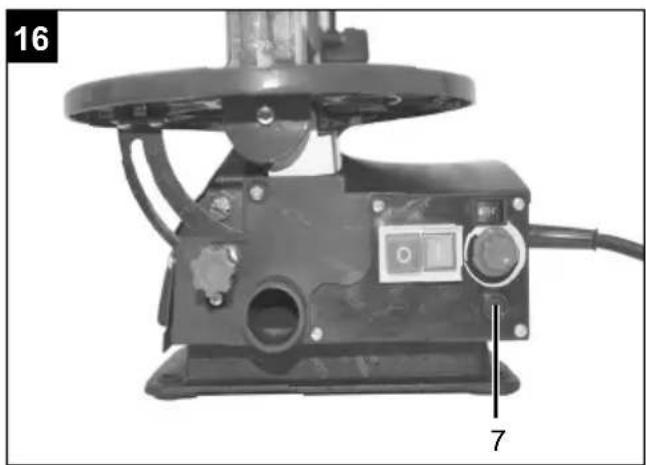

12.2.4 Replacing the ne-wire fuse (Fig. 16)

If the ne-wire fuse (7) is defective, it must be replaced with a ne-wire fuse of the same type 5 A/250 V (ø 5 x 20 mm). m WARNING Do not bypass the ne-wire fuse (7)! Do not use fus- es of any other type! This can lead to damage to the device.

12.3 Service information

With this product, it is necessary to note that the follow- ing parts are subject to natural or usage-related wear, or that the following parts are required as consuma- bles. Wearing parts*: Carbon brushes, saw blade, table inlay

• may not be included in the scope of supply!

12.4 Ordering spare parts

Please provide the following information when ordering spare parts (via the service hotline):

• Device article number (can be found on the packag- ing or in the instructions) Spare parts and accessories can be obtained from our service centre. To do this, scan the QR code on the cover page. Connection type Y If the mains connection cable of this device is dam- aged, it must be replaced by the manufacturer, their service department or a similarly qualied person to avoid dangers.

• Transport the electric tool by lifting it on the recesses provided for this on the frame and the motor cover.

• Never use the protective devices for handling or transport.

• Make sure that the exposed part of the saw blade is covered during transport, e.g. by the protective device.

12. Cleaning, maintenance andorder-

ing spare parts m WARNING Always switch the machine off and remove the mains plug prior to all maintenance and cleaning work.

Keep protective devices, air vents and the motor hous- ing as free of dust and dirt as possible. We recommend cleaning the device directly after every use.

12.1.1 Exterior cleaning

• Clean the device at regular intervals using a damp cloth and a little soft soap.

• Do not use cleaning agents or solvents. These could damage the plastic parts of the device.

• Make sure that no water can penetrate the device interior.

4. Remove the cover (8).

5. Blow out the device interior with low-pressure

6. Attach the cover again (8).

7. Fasten the screw (33).

8. Insert the screw (34) again and tighten it.

• If the manufacturer delivers a new electrical appli- ance to a private household, the manufacturer can arrange for the free collection of the old electrical appliance upon request from the end user. Please contact the manufacturer’s customer service for this.

• These statements only apply to devices installed and sold in the countries of the European Union and which are subject to the European Directive 2012/19/EU. In countries outside the European Un- ion, different regulations may apply to the disposal of waste electrical and electronic equipment.

Store the device and its accessories in a dark, dry and frost-free place that is inaccessible to children. The op- timum storage temperature lies between 5 and 30 ˚C. Store the electric tool in its original packaging.

14. Disposal and recycling

Notes for packaging The packaging materials are recy- clable. Please dispose of packag- ing in an environmentally friendly manner. Notes on the electrical and electronic equipment act [ElektroG] Waste electrical and electronic equipment does not belong in household waste, but must be collected and disposed of sepa- rately!

• Used batteries or rechargeable batteries that are not installed permanently in the old appliance must be removed non-destructively before disposal. Their disposal is regulated by the battery law.

• Owners or users of electrical and electronic devices are legally obliged to return them after use.

• The end user is responsible for deleting their per- sonal data from the old device being disposed of!

• The symbol of the crossed-out dustbin means that waste electrical and electronic equipment must not be disposed of with household waste.

• Waste electrical and electronic equipment can be handed in free of charge at the following places: - Public disposal or collection points (e.g. municipal works yards) - Points of sale of electrical appliances (stationary and online), provided that dealers are obliged to take them back or offer to do so voluntarily. - Up to three waste electrical devices per type of device, with an edge length of no more than 25 centimetres, can be returned free of charge to the manufacturer without prior purchase of a new device from the manufacturer or taken to another authorised collection point in your vicinity. - Further supplementary take-back conditions of the manufacturers and distributors can be ob- tained from the respective customer service.www.scheppach.com

m WARNING Always switch the machine off and remove the mains plug prior to all maintenance and cleaning work. Fault Possible cause Remedy Saw blade without pins loosens after switching off the engine Saw blade clamping screw (27/28) not tightened enough Tighten the saw blade clamping screw (27/28) Motor does not start Mains fuse blown Check mains fuse Extension cable defective Replace the extension lead Fine-wire fuse defective Check the ne-wire fuse and, if necessary, replace it with a ne-wire fuse of the same type. Connection to the motor or switch not OK Have this checked by an electrician Motor or switch faulty Have this checked by an electrician Saw blades brake Tension set incorrectly Set correct tension Load too high Feed workpiece more slowly Incorrect saw blade type Use correct saw blades Workpiece not fed straightly Avoid lateral pressure Saw blade oscillates, not aligned straightly. Holders not aligned Open the screws that fasten the holders. Bring the holders into the vertical posi- tion and tighten the screws again.www.scheppach.com

8.6 Spanenafzuiging (afb. 13)

5. Aperte as porcas sextavadas (D).

16. Declaration of conformity

2000/14/EG_2005/88/EG Noise: measured L

= xx dB; guaranteed L

2000/14/EG_2005/88/EG Noise: measured L

= xx dB; guaranteed L

2000/14/EG_2005/88/EG Noise: measured L

= xx dB; guaranteed L

hereby declares the following conformity under the EU Direc- tive and standards for the following article

2000/14/EG_2005/88/EGNoise: measured L = xx dB; guaranteed L = xx dBAnnex VAnnex VI2016/1628/EUEmission. No:
