Technische Daten

Please read and comply with these original instructions prior to the initial

operation of your appliance and store them for later use or subsequent owners.

Contents

Device elements ..... EN 1

Safety instructions..... EN 1

Proper use ...... EN 2

Safety Devices ..... EN 2

Environmental protection .... EN 2

Before Startup..... EN 3

Start up ...... EN 3

Operation ...... EN 4

Transport..... EN 5

Storage ..... EN 6

Care and maintenance ..... EN 6

Troubleshooting ..... EN 7

Accessories and Spare Parts. EN 7

Warranty ...... EN 8

EU Declaration of Conformity. EN 8

Technical specifications ..... EN 9

Device elements

Please unfold the front picture side

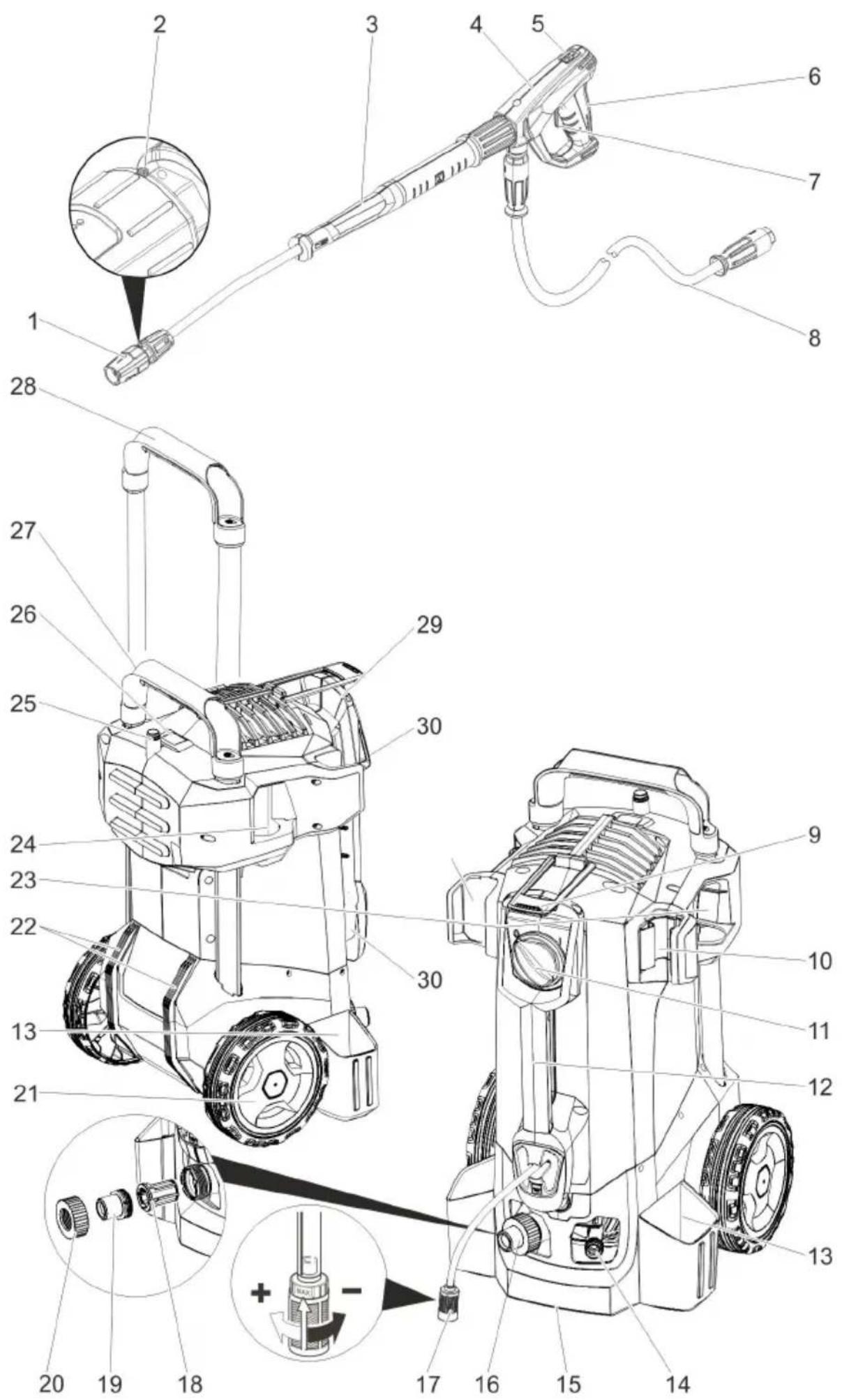

1 Nozzle

2 Marking of the nozzle

3 Spray lance EASY!Lock

4 Trigger gun EASY!Lock

5 Safety catch

6 Triggering lever

7 Safety lever

8 High pressure hose EASY!Lock

9 Rubber band (not with appliances with hose drum)

10 Spray lance holder with clamping, for transportation

11 Power switch

12 Carrying handle

13 Quiver for spray lance

14 High-pressure connection EASY!Lock

15 Handle

16 Water connection

17 Detergent suction hose with filter and detergent dosing

18 Sieve

19 Hose hub

20 Union joint

21 Wheel cap

22 Skid/parking runner

23 Nozzle rack for rotor nozzle (rotor nozzle is only included in the scope of delivery with model HD...Plus)

24 Nozzle rack for triple nozzle

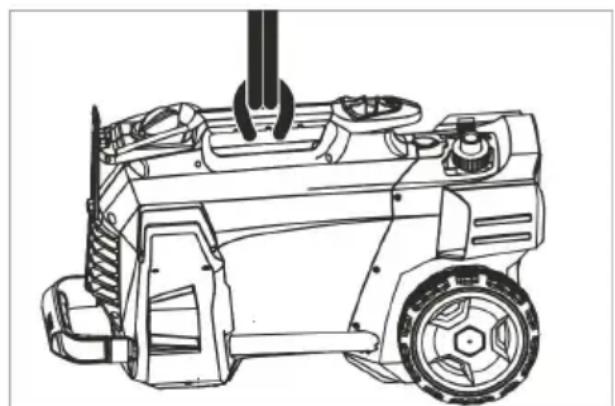

25 Transport bracket for surface cleaner

26 Unlocking device push handle

27 Push handle, bottom (slid in)

28 Push handle, top (extended)

29 Storage compartment for hoses

30 Cable clamp

31 Spray lance holder without clamping

32 Hose drum

33 Crank

Colour coding

- The operating elements for the cleaning process are yellow.

- The controls for the maintenance and service are light gray.

Safety instructions

- Before first start-up it is definitely necessary to read the operating instructions and safety indications Nr. 5.951-949.0!

- Please follow the national rules and regulations for fluid spray jets of the respective country.

- Please follow the national rules and regulations for accident prevention of the respective country. Fluid spray jets must be tested regularly and the results of these tests must be documented in writing.

- The appliance/accessories must not be modified.

Hazard levels

⚠️DANGER

Pointer to immediate danger, which leads to severe injuries or death.

⚠ WARNING

Pointer to a possibly dangerous situation, which can lead to severe injuries or death.

△CAUTION

Pointer to a possibly dangerous situation, which can lead to minor injuries.

ATTENTION

Pointer to a possibly dangerous situation, which can lead to property damage.

Symbols on the machine

High-pressure jets can be dangerous if improperly used. The

jet may not be directed at persons, animals, live electrical equipment or at the appliance itself.

According to applicable regulations, the appliance must never be used on the drinking water net without a system separator. A suitable system separator by KÄRCH alternatively a system separator acc EN 12729 type BA must be used. Water that was flowing through a separator is considered non-drink

Proper use

Use this high pressure cleaner exclusively for

• Cleaning using low pressure jet and detergent (for e.g. for cleaning machines, cars, buildings, tools),
• For cleaning using high pressure jet without detergent (for e.g. for cleaning facades, terraces, garden appliances).
  For stubborn soiling we recommend the use of a rotor nozzle (only included in the scope of delivery with model HD...Plus)

Quality requirements for water:

ATTENTION

Only clean water may be used as high pressure medium. Impurities will lead to increased wear and tear or formation of deposits in the appliance.

If recycled water is used, the following limit values must not be exceeded.

pH value 6,5...9,5
electrical conductivity * Conductivity fresh water +1200 μS/cm
settleable solids ** < 0,5 mg/l
total suspended solids *** <	50 mg/l
Hydrocarbons < 20 mg/l
Chloride < 300 mg/l
Sulphate < 240 mg/l
Calcium < 200 mg/l

Total hardness < 28 °dH	< 50 °TH< 500 ppm(mg CaCO3/l)
Iron < 0,5 mg/l
Manganese < 0,05 mg/l
Copper < 2 mg/l
Active chloride < 0,3 mg/l
free of bad odours
* Maximum total 2000 μS/cm** Test volume 1 l, settling time 30 min*** no abrasive substances

Safety Devices

Safety devices serve for the protection of the user and must not be put out of operation or bypassed with respect to their function.

Pressure switch

If the pulling lever on the trigger gun is released the pressure switch turns off the pump, the high-pressure jet is stopped. If the pulling lever is pulled the pump is turned on again.

Environmental protection

	The packaging material can be recycled. Please do not throw the packaging material into household waste; please send it for recycling.
	Old appliances contain valuable materials that can be recycled; these should be sent for recycling. Batteries, oil, and similar substances must not enter the environment. Please dispose of your old appliances using appropriate collection systems.

Electrical and electronic devices often contain components which could potentially pose a danger to human health and the environment if handled or disposed of incorrectly. However, these components are necessary for the proper operation of the device. Devices marked with this symbol must not be disposed of with regular household rubbish.

Notes about the ingredients (REACH)

You will find current information about the ingredients at:

www.kaercher.com/REACH

Before Startup

Attaching the Accessories

→ Attach the wheel caps.

Note: The EASY!Lock system joins components with a quick-fasten thread solidly and securely with just one turn.

Technical diagram showing two mechanical assembly steps with numbered annotations indicating component placement.

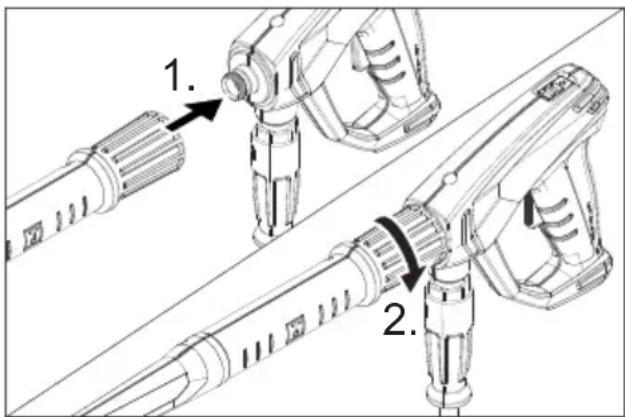

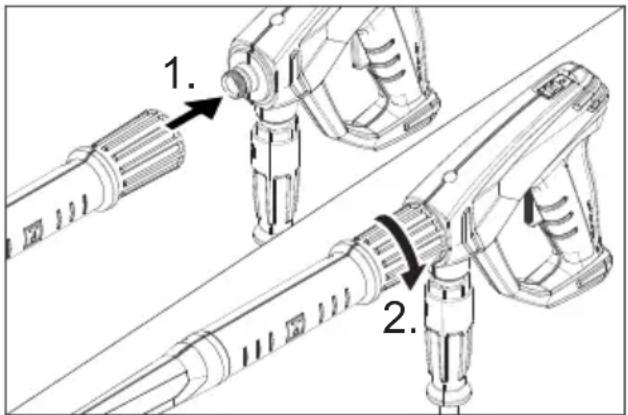

→ Mount the nozzle on the spray lance (marking on the adjustment ring at the top) and hand-tighten it (EASY!Lock).
→ Join the spray lance with the trigger gun and tighten until hand-tight (EASY!Lock).
→ Release the unlocking device of the push handle.
→ Pull the push handle out to its end position.

In devices without hose drum:

→ Join the high-pressure hose with trigger gun and high-pressure connection of the appliance and tighten until hand-tight (EASY!Lock).

In devices with hose drum:

→ Insert the crank in the hose drum shaft and lock it in.
→ Before rolling up, stretch out the high pressure hose.
→ Wind the high pressure hose in uniform layers on the hose drum by rotating the crank. Select the rotation direction in such a way that the high pressure hose does not get bent.
→ Join the high pressure hose with trigger gun and tighten until hand-tight (EASY!Lock).

Start up

⚠ WARNING

Risk of injury! Appliance, accessories, supply lines and connections must be in fault-free condition. If they are not in a perfect state then the appliance must not be used.

Electrical connection

△DANGER

Danger of injury by electric shock.

• It is imperative to connect the appliance to the electric mains by means of a plug. It is forbidden to permanently connect the appliance to the power supply. The plug serves for the disconnection from the mains.
• The plug and coupling of the extension cable used must be watertight.
• Use the extension cord that has an adequate cross-section (see "Technical Data") and unwind it fully from the cable drum.

For connection values, see type plate/technical data.

→ Unwind the mains cable and place it on the floor.
→ Insert the mains plug into a socket.

Water connection

Connection to the water supply

⚠ WARNING

Observe regulations of water supplier.

According to applicable regulations, the appliance must never be used on the drinking water net without a system separator. A suitable system separator by KÄRCHER or alternatively a system separator according to EN 12729 type BA must be used.

Water that was flowing through a system separator is considered non-drinkable.

△CAUTION

Always connect the system separator to the water supply, never directly to the appliance!

For connection values refer to technical specifications

→ Connect the supply hose (min. length 7.5 m, minimum diameter 1/2") to the water connection point of the machine and at the water supply point (for e.g. a tap).

Note:

The supply hose is not included.

→ Open the water supply.

Drawing in water from open reservoirs

→ Screw the suction hose with filter (order no. 4.440-238.0) to the water connection.
→ Appliance ventilation: Unscrew the nozzle from the spray lance. Switch on the appliance and let it run until the water exiting is bubble-free. Let the appliance run for 10 seconds – then switch off the appliance switch. Repeat the procedure several times.
→ Switch off the appliance and fit the nozzle again.

Operation

⚠️DANGER

Risk of explosion!

Do not spray flammable liquids.

If the appliance is used in hazardous areas (e.g. filling stations) the corresponding safety regulations must be observed.

Risk of injury! Hold the hand spray gun and the spray pipe firmly with both hands.

Risk of injury! The trigger and safety lever may not be locked during the operation.

Risk of injury! Contact Customer Service if the safety lever is damaged.

Risk of injury from high-pressure water jet. Slide the safety catch on the trigger gun forward before performing any work with the appliance.

△CAUTION

Clean engines only at places with corresponding oil separators (environmental safety).

Opening/closing the trigger gun

→ To open the trigger gun: Actuate the safety lever and trigger.
→ To close the hand spray gun: Release the safety lever and trigger.

High pressure operation

The appliance can be operated in a vertical or horizontal position.

Note:

The appliance is equipped with a pressure switch. The motor starts up only when the trigger gun is open.

→ Device with hose drum: Roll off the high pressure hose totally from the hose drum.
→ Set the appliance switch to "I".
→ Release the trigger gun. To do so, push the safety catch towards the back.
→ Open the hand spray gun.

Select spray type

→ Close the hand spray gun.
→ Turn the casing of the nozzle till the desired symbol matches the marking.

	High pressure circular spray (0°) for specially stubborn dirt
	Flat low pressure spray (CHEM) for operating using detergents or cleaning at low pressure.
	High pressure flat spray (25°) for large dirt areas

Operation with detergent

⚠ WARNING

Unsuitable detergents can cause damage to the appliance and to the object to be cleaned. Use only those detergents that have been approved by Kärcher. Observe the dosage and other instructions provided with these detergents. For considerate treatment of the environment use detergent economically.

Follow the safety instructions for using detergents.

Kärcher detergents ensure smooth functioning. Please consult us or ask for our catalogue or our detergent information sheets.

→ Take out detergent suck hose.
→ Adjust the suction volume of the detergent solution at the detergent filter.

→ Suspend end of suction hose in a container filled with detergent.
→ Set nozzle to "CHEM".

Recommended cleaning method

→ Spray the detergent sparingly on the dry surface and allow it to react, but not to dry.
→ Spray off loosened dirt with the high-pressure ray.
→ Set the suction flow on the detergent filter to the maximum quantity after operation.
→ Start the appliance and rinse for one minute.

Interrupting operation

→ Close the hand spray gun. The appliance switches off.
→ Secure the trigger gun. To do so, push the safety catch towards the front.

Note:

When switching off the appliance, the water pressure is reduced by approx. 70%. This reduces the actuating force of the hand spray gun and the service life of the appliance is increased.

After the interruption:

→ Release the trigger gun. To do so, push the safety catch towards the back.
→ Open the hand spray gun. The appliance will switch on again.

Turn off the appliance

→ Shut off water supply.
→ Open the hand spray gun.
→ Switch on the pump with the power switch and allow to run for about 5-10 seconds.
→ Close the hand spray gun. → Set the appliance switch to "0/OFF".
→ Pull main plug out of socket with dry hands only.

→ Remove water connection.
→ Activate hand spray gun until device is pressure less.
→ Secure the trigger gun. To do so, push the safety catch towards the front.

Storing the Appliance

→ Place the spray lance with the trigger gun into the quiver for the spray lance and snap it into place in the spray lance holder.

→ Wind the connection cable around the cable holder.

→ Coil up the high pressure hose, hang it over the hose rack and secure it by means of the rubber band. or Coil up the high-pressure hose on the hose drum. Fold down the handle of the crank.

→ Fasten the plug with the mounted clip.
→ Press the unlocking device of the push handle and slide the push handle in.

Frost protection

ATTENTION

Frost will destroy the not completely water drained device.

Store the appliance in a frost free area.

If you cannot store it in a frost-free place:

→ Drain water.
→ Pump in conventional frost protection agents through the appliance.

Note:

Use normal glycol-based anti-freezing agents for automobiles.

Observe handling instructions of the anti-freeze agent manufacturer.

→ Operate device for max. 1 minute until the pump and conduits are empty.

Transport

△CAUTION

Risk of personal injury or damage! Mind the weight of the appliance during transport.

ATTENTION

Protect the trigger from damage during transport.

→ In order to transport the appliance over longer distances, pull it behind you holding on to the push handle.
→ In order to carry the appliance, hold on to the handles.

→ In order to climb stairs, pull the appliance up step by step. The skids protect the casing from damage.
→ When transporting in vehicles, secure the appliance according to the guidelines from slipping and tipping over.

Transport bracket for surface cleaner

→ Attach the connecting piece of the surface cleaner to the bolt at the high-pressure cleaner.
→ Screw on the union nut by approx. 1 rotation.

Transport by crane

Line drawing of a mechanical device with no visible text or symbols

→ Attach the lifting device to the carrying handle of the appliance.

Safety information about cranes

⚠️DANGER

Risk of injury due to machine dropping.

• Adhere to the local accident prevention guidelines and safety notes.
  – Check the carrying handle for damage prior to every transportation by crane.
• Check the lifting unit for damage prior to each transport by crane.
• Only lift the appliance using the carrying handle.
• Do not use stop chains.
• Protect the lifting device from inadvertent load release.
• Remove spray lance with trigger gun, nozzles, surface cleaner and other loose objects prior to transportation by crane.
• Do not transport any articles on the appliance during the lifting process.

– The appliance must only be transported by properly trained crane personnel.
- Do stand below the load.
- Ensure that no persons are present in the immediate vicinity of the crane.
- Do not leave the appliance on the crane unattended.

Storage

△CAUTION

Risk of personal injury or damage! Consider the weight of the appliance when storing it.

This appliance must only be stored in interior rooms.

Care and maintenance

⚠️DANGER

Risk of injury by inadvertent startup of appliance and electrical shock.

Prior to all work on the appliance, switch off the appliance and pull the power plug.

Safety inspection/ maintenance contract

You can sign with your dealer a contract for regular safety inspection or even sign a maintenance contract. Please take advice on this matter.

Before each use

→ Check connection cable for damages (risk of electrical shock); get the damaged connection cable replaced immediately by an authorised customer service person/ electrician.
→ Check the high pressure hose for damages (risk of bursting).

Please arrange for the immediate exchange of a damaged high-pressure hose.

→ Check appliance (pump) for leaks. 3 drops per minute are permitted and can come out from the lower side of the appliance. Call Customer Service if there is heavy leakage.

Weekly

→ Clean the sieve in the water connection.
→ Clean filter at the detergent suck hose.

Every 500 operating hours, at least annually

→ Have the maintenance of the device performed by the customer service.

Clean the sieve in the water connection

→ Unscrew the covering nut.
→ Pull out the hose nipple with the sieve.
→ Clean the sieve from the outside and rinse it.

Note:

Align the hexagon of the hose nipple in the appliance for connection.

→ Insert the hose nipple with the sieve and tighten the union nut.

Troubleshooting

⚠️DANGER

Risk of injury by inadvertent startup of appliance and electrical shock.

– Prior to all work on the appliance, switch off the appliance and pull the power plug.
- Get the electrical components checked and repaired only by authorised customer service persons.
- Contact an authorised customer service person in case of problems not mentioned in this chapter or if you are in doubt or when you have been explicitly asked to do so.

Appliance is not running

→ Check connection cable for damages.
→ Check the supply voltage.
→ If the appliance is overheated: Set the appliance switch to "0". Allow machine to cool down at least for 15 minutes. Set the appliance switch to "1".
→ Call Customer Service in case of electrical defects.

Pressure does not build up in the appliance

→ Set nozzle to "High pressure".
→ Deaerate the appliance (see "Start-up")
→ Clean the sieve in the water connection.
→ Check water supply level (refer to technical data).
→ Clean the nozzle.
→ Replace the nozzle.
→ Contact Customer Service if needed.

Pump leaky

3 drops of water per minute are permitted and can leak from the bottom of the appliance.

→ With stronger leak, have device checked by customer service.

Pump is vibrating

→ Check suction pipes for water and detergent and ensure that they are leak-proof.
→ Set the suction flow on the detergent filter to the minimum quantity.
→ Deaerate the appliance (see "Start-up")
→ Contact Customer Service if needed.

Detergent is not getting sucked in

→ Set nozzle to "CHEM".
→ Increase the suction flow at the detergent filter.
→ Check/ clean detergent suction hose with filter.
→ Contact Customer Service if needed.

Accessories and Spare Parts

Only use original accessories and spare parts, they ensure the safe and trouble-free operation of the device.

For information about accessories and spare parts, please visit www.kaercher.com.

Warranty

The warranty terms published by the relevant sales company are applicable in each country. We will repair potential failures of your appliance within the warranty period free of charge, provided that such failure is caused by faulty material or defects in manufacturing. In the event of a warranty claim please contact your dealer or the nearest authorized Customer Service centre. Please submit the proof of purchase.

EU Declaration of Conformity

We hereby declare that the machine described below complies with the relevant basic safety and health requirements of the EU Directives, both in its basic design and construction as well as in the version put into circulation by us. This declaration shall cease to be valid if the machine is modified without our prior approval.

Product: High pressure cleaner

Type: 1.520-xxx

Relevant EU Directives

2006/42/EC (+2009/127/EC)

2014/30/EU

2000/14/EC

Applied harmonized standards

EN 60335-1

EN 60335-2-79

EN 55014-1: 2006+A1: 2009+A2: 2011

EN 55014-2: 1997+A1: 2001+A2: 2008

EN 62233: 2008

EN 61000-3-2: 2006+A1: 2009+A2: 2009

EN 61000-3-3: 2008

Applied conformity evaluation method

2000/14/EC: Appendix V

Sound power level dB(A)

The undersigned act on behalf and under the power of attorney of the company management.

CEO

S. Reiser
Head of Approbation

Authorised Documentation Representative S. Reiser

71364 Winnenden (Germany)

Phone: [phone]

Fax: [phone]

Winnenden, 2016/03/01

Technical specifications

Type HD 5/12 C HD 5/12 C HD 5/12 C
		HD 5/12 CX	HD 5/12 CX	HD 5/12 CX
		EU GB	CH
Main Supply
Voltage V 230 230...240 230
Current type Hz 1~50
Connected load kW 2,5 2,5 2,2
Protection (slow, char. C) A 16 13 10
Type of protection --	IPX5
Extension cord 30 m	mm2	2,5
Water connection
Max. feed temperature	°C	60
Min. feed volume	l/min	12
Suck height from open container (20 °C)	m	0,5
Max. feed pressure	MPa	1
Performance data
Operating pressure of water (using standard nozzle)	MPa	12 12	11,5
Size of standard nozzle	-- 035	035	038
Max. operating over-pressure	MPa	17,5	17,5	17,1
Water flow rate	l/min	8,3
Detergent suck in	l/h	0...25
Max. recoil force of trigger gun	N	21,3
Values determined as per EN 60335-2-79
Hand-arm vibration value	m/s2	3,6
Uncertainty K	m/s2	0,9
Sound pressure level LpA (CX)	dB(A)	72 (75)
Uncertainty KpA	dB(A)	3
Sound pressure level LWA + Uncertainty KWACX)	dB(A)	88 (92)
Dimensions and weights
Length	mm 380
Width (CX)	mm	360 (370)
Height	mm 930
Typical operating weight (CX)	kg	23,7 (26)

Type HD 5/12 C HD 5/12 C HD 5/12 C HD		HD 5/13 C
		HD 5/12 CX	HD 5/13 CX
		AU KAP	SA EU
Main Supply
Voltage V 240 220 230
Current type Hz 1~50 1~60 1~50
Connected load kW 2,2	2,4		2,6
Protection (slow, char. C)	A	10	15	13	16
Type of protection	--	IPX5
Extension cord 30 m	mm2	2,5
Water connection
Max. feed temperature	°C	60
Min. feed volume	l/min	12
Suck height from open container (20 °C)	m	0,5
Max. feed pressure	MPa	1
Performance data
Operating pressure of water (using standard nozzle)	MPa	11,5	12		13
Size of standard nozzle	-- 038	036 034
Max. operating over-pressure	MPa	17,1	18		17,5
Water flow rate	l/min	8,3
Detergent suck in	l/h	0...25
Max. recoil force of trigger gun	N	21,3			22,2
Values determined as per EN 60335-2-79
Hand-arm vibration value	m/s2	3,6	4,2		3,6
Uncertainty K	m/s2	0,9
Sound pressure level LpA (CX)	dB(A)	72 (75)	74		72 (75)
Uncertainty KpA	dB(A)	3
Sound pressure level LWA + Uncertainty KWA (CX)	dB(A)	88 (92)	90		88 (92)
Dimensions and weights
Length	mm	380
Width (CX) mm 360 (370)
Height	mm	930
Typical operating weight (CX)	kg	23,7 (26)	25,2		23,7 (26)
Type HD 5/15 C HD 5/17 C HD 5/17 C		HD 6/13 C
		HD 5/15 CX	HD 5/17 CX	HD 5/17 CX	HD 6/13 CX
		EU EU	KAP EU
Main Supply
Voltage V 230 220 230
Current type Hz 1~50 1~60 1~	50
Connected load kW 2,8 3,0 3,0	2,9
Protection (slow, char. C) A 16	15	16
Type of protection	--	IPX5
Extension cord 30 m	mm^2	2,5
Water connection
Max. feed temperature °C		60
Min. feed volume	l/min	12			13
Suck height from open container (20 °C)	m	0,5
Max. feed pressure	MPa	1
Performance data
Working pressure of water using standard nozzle (CX)	MPa	15 (15)	17 (17)	16,5 (16,5)	13 (13)
Size of standard nozzle	--	032	027	030	038
Max. operating over-pressure MPa		20			19
Water flow rate	l/min	8,3 8,1 8,0 9,8
Detergent suck in	l/h	0...25
Max. recoil force of trigger gun	N	23,8	25,4		26,6
Values determined as per EN 60335-2-79
Hand-arm vibration value	m/s^2	2,4			4,1
Uncertainty K	m/s^2	0,7			0,9
Sound pressure level L_pA (CX)	dB(A)	72 (74)	72 (75)	75	72 (75)
Uncertainty K_pA	dB(A)	3
Sound pressure level L_WA + Uncertainty K_WA (CX)	dB(A)	88 (90)	88 (92)	91 (91)	88 (92)
Dimensions and weights
Length	mm	380
Width (CX)	mm	360 (370)
Height	mm	930
Typical operating weight (CX)	kg	25,2 (27,5)
Type HD 6/13 C HD 6/13 C HD 6/13 C		HD 6/13 C
			HD 6/13 CX
		AR GB	KAP SA
Main Supply
Voltage V 220 230...240 220
Current type Hz 1~50 1~60
Connected load kW 2,9 2,9	2,8
Protection (slow, char. C)	A	16	13	15	13
Type of protection	--	IPX5
Extension cord 30 m	mm2	2,5
Water connection
Max. feed temperature	°C	60
Min. feed volume l/min 13
Suck height from open container (20 °C)	m	0,5
Max. feed pressure	MPa	1
Performance data
Operating pressure of water (using standard nozzle)	MPa 1	12,5
Size of standard nozzle	--	038		042 043
Max. operating over-pressure	MPa	19		18
Water flow rate	l/min	9,8		10,0
Detergent suck in	l/h	0...25
Max. recoil force of trigger gun	N	26,6
Values determined as per EN 60335-2-79
Hand-arm vibration value
Hand-arm vibration value	m/s2	4,1		3,7
Uncertainty K	m/s2	0,9
Sound pressure level LpA (CX)	dB(A)	72 (75)		73
Uncertainty KpA	dB(A)	3
Sound pressure level LWA + Uncertainty KWA (CX)	dB(A)	88 (92)		89
Dimensions and weights
Length	mm	380
Width (CX)	mm	360 (370)
Height	mm	930
Typical operating weight (CX)	kg	25,2 (27,5)		25,2

www.kaercher.com/REACH

Technical diagram showing two mechanical assembly steps with numbered components and directional arrows indicating motion or assembly.

Line drawing of a mechanical device with wheels and a chimney (no text or symbols)

2006/42/CE (+2009/127/CE)

2014/30/UE

2000/14/CE

S. Reiser
Head of Approbation

Responsable de la documentation:

S. Reiser

71364 Winnenden (Germany)

Winnenden, 2016/03/01

www.kaercher.com/REACH

Line drawing of a mechanical device with wheels and a chimney (no text or symbols)

2006/42/CE (+2009/127/CE)

2014/30/UE

2000/14/CE

S. Reiser
Head of Approbation

71364 Winnenden (Germany)

Tel.: [phone]

Fax: [phone]

Winnenden, 2016/03/01

Dati tecnici

www.kaercher.com/REACH

Technical diagram showing two mechanical assembly steps with numbered components and directional arrows indicating motion or assembly.

Line drawing of a mechanical vehicle with no visible text or symbols

S. Reiser
Head of Approbation

71364 Winnenden (Germany)

Tel.: [phone]

Fax: [phone]

Winnenden, 2016/03/01

Technische gegevens

www.kaercher.com/REACH

Technical diagram showing two mechanical assembly steps with numbered annotations indicating component placement.

Line drawing of a mechanical device with no visible text or symbols

2006/42/CE (+2009/127/CE)

2014/30/UE

2000/14/CE

71364 Winnenden (Germany)

Tele.: [phone]

Fax: [phone]

Winnenden, 2016/03/01

Datos técnicos

22 Patim/Patim vertical

www.kaercher.com/REACH

Technical diagram showing two mechanical assembly steps with numbered annotations indicating component placement.

Line drawing of a tractor with visible wheel, blade, and bucket (no text or symbols)

2006/42/CE (+2009/127/CE)

2014/30/UE

2000/14/CE

71364 Winnenden (Germany)

Tel.: [phone]

Fax: [phone]

Winnenden, 2016/03/01

Dados técnicos

www.kaercher.com/REACH

Inden ibrugtagning

Technical diagram showing two mechanical assembly steps with numbered annotations indicating component placement.

Line drawing of a tractor with visible wheel, wheels, and control panel (no text or symbols)

2006/42/EF (+2009/127/EF)

2014/30/EU

2000/14/EF

S. Reiser
Head of Approbation

71364 Winnenden (Germany)

Tlf.: [phone]

Fax: [phone]

Winnenden, 2016/03/01

Tekniske data

25 Transportholder for flaterengjører

www.kaercher.com/REACH

Før den tas i bruk

Montere tilbehør

→ Fest hjulkappene.

Technical diagram showing two mechanical assembly steps with numbered annotations indicating component placement.

Transportholder for flaterengjører

Line drawing of a tractor with visible wheel, dashboard, and front-mounted sensors (no text or symbols)

2006/42/EF (+2009/127/EF)

2014/30/EU

2000/14/EF

2000/14/EF: Vedlegg V

Lydeffektnivå dB(A)

71364 Winnenden (Germany)

Tlf: [phone]

Winnenden, 2016/03/01

Tekniske data

www.kaercher.com/REACH

Före ibruktagande

Montera tillbehör

→ Montera navkapslar.

Line drawing of a tractor with visible frame, wheels, and mechanical components (no text or symbols)

S. Reiser
Head of Approbation

71364 Winnenden (Germany)

Tel.: [phone]

Fax: [phone]

Winnenden, 2016/03/01

Tekniska data

www.kaercher.com/REACH

Ennen käyttöönottoa

Varusteiden asennus

Technical diagram showing two mechanical assembly steps with numbered annotations indicating component placement.

Line drawing of a mechanical device with no visible text or symbols

S. Reiser
Head of Approbation

71364 Winnenden (Germany)

Puh.: [phone]

Winnenden, 2016/03/01

Tekniset tiedot

www.kaercher.com/REACH

Technical diagram showing two mechanical assembly steps with numbered annotations indicating component identification.

Line drawing of a mechanical device with wheels and a chimney (no text or symbols)

S. Reiser
Head of Approbation

71364 Winnenden (Germany)

Tηλ.: [phone]

Φαξ: [phone]

Winnenden, 2016/03/01

www.kaercher.com/REACH

Technical diagram showing two mechanical assembly steps with numbered annotations indicating component placement.

Line drawing of a mechanical device with no visible text or symbols

71364 Winnenden (Germany)

Tel.: [phone]

Winnenden, 2016/03/01

Teknik Bilgiler

www.kaercher.com/REACH

Technical diagram showing two mechanical assembly steps with numbered annotations indicating component identification.

Line drawing of a tractor with visible wheel, roof, and exhaust pipe (no text or symbols)

71364 Winnenden (Germany)

Тел.: [phone]

Факс: [phone]

Winnenden, 2016/03/01

Технические данные

www.kaercher.com/REACH

Üzembevétel előtt

Line drawing of a mechanical device with no visible text or symbols

S. Reiser
Head of Approbation

71364 Winnenden (Germany)

Tel.: [phone]

Fax: [phone]

Winnenden, 2016/03/01

Műszaki adatok

www.kaercher.com/REACH

Technical diagram showing two mechanical assembly steps with numbered annotations indicating component placement.

Line drawing of a tractor with visible wheel, dashboard, and front-mounted sensors (no text or symbols)

2006/42/ES (+2009/127/ES)

2014/30/EU

2000/14/ES

H. Jenner CEO iv. Reiser S. Reiser Head of Approbation

71364 Winnenden (Germany)

Tel.: [phone]

Fax: [phone]

Winnenden, 2016/03/01

Technické údaje

www.kaercher.com/REACH

Pred zagonom

Montaža pribora

→ Pritrdite pokrove koles.

Napotek: Sistem EASY!Lock s hitrim navojem omogoča spajanje komponent s samo enim obratom.

Technical diagram showing two mechanical assembly steps with labeled components and directional arrows

Line drawing of a tractor with visible wheel, dashboard, and front-mounted sensors (no text or symbols)

2006/42/ES (+2009/127/ES)

2014/30/EU

2000/14/ES

S. Reiser
Head of Approbation

71364 Winnenden (Germany)

Tel.: [phone]

Winnenden, 2016/03/01

Tehnični podatki

www.kaercher.com/REACH

Technical diagram showing two mechanical assembly steps with numbered annotations indicating component identification.

Line drawing of a tractor with visible wheel, blade, and bucket (no text or symbols)

2006/42/WE (+2009/127/WE)

2014/30/UE

2000/14/WE

S. Reiser
Head of Approbation

71364 Winnenden (Germany)

tel.: [phone]

faks: [phone]

Winnenden, 2016/03/01

Dane techniczne

www.kaercher.com/REACH

Technical diagram showing two mechanical assembly steps with numbered annotations indicating component placement.

Line drawing of a mechanical device with no visible text or symbols

Directive UE respectate:

2006/42/CE (+2009/127/CE)

2014/30/UE

2000/14/CE

Norme armonizate utilize:

EN 60335-1

EN 60335-2-79

EN 55014-1: 2006+A1: 2009+A2: 2011

EN 55014-2: 1997+A1: 2001+A2: 2008

EN 62233: 2008

EN 61000-3-2: 2006+A1: 2009+A2: 2009

EN 61000-3-3: 2008

71364 Winnenden (Germany)

Tel.: [phone]

Fax: [phone]

Winnenden, 2016/03/01

Date tehnice

www.kaercher.com/REACH

Line drawing of a mechanical device with gears and a tractor (no text or symbols)

2006/42/ES (+2009/127/ES)

2014/30/EÚ

2000/14/ES

Uplatňované harmonizované normy:

EN 60335-1

EN 60335-2-79

EN 55014-1: 2006+A1: 2009+A2: 2011

EN 55014-2: 1997+A1: 2001+A2: 2008

EN 62233: 2008

EN 61000-3-2: 2006+A1: 2009+A2: 2009

EN 61000-3-3: 2008

S. Reiser
Head of Approbation

71364 Winnenden (Germany)

Tel: [phone]

Fax: [phone]

Winnenden, 2016/03/01

Technické údaje

www.kaercher.com/REACH

Prije prve uporabe

Montaža pribora

→ Pričvrstite naplatke kotača.

Technical diagram showing two mechanical assembly steps with numbered annotations indicating component placement.

→ Montirajte mlaznicu na cijev za prskanje (oznaka na prstenu mora biti gore) i zategnite je rukom (EASY!Lock).
→ Spojite cijev za prskanje s ručnom prskalicom i ručno ih pritegnite (EASY!Lock).
→ Otpustite bravicu potisne ručice.
→ Izvucite potisnu ručicu u krajnji položaj.

Line drawing of a tractor with visible wheel, wheels, and mechanical components (no text or symbols)

→ Mehanizam za podizanje pričvrstite na rukohvat uređaja.

Sigurnosni napuci vezani za transport kranom

⚠ OPASNOST

2006/42/EZ (+2009/127/EZ)

2014/30/EU

2000/14/EZ

S. Reiser
Head of Approbation

71364 Winnenden (Germany)

Tel.: [phone]

Winnenden, 2016/03/01

Tehnički podaci

Tip HD 5/12 C HD 5/12 C HD 5/12 C
		HD 5/12 CX	HD 5/12 CX	HD 5/12 CX
		EU GB	CH
Priključak na električnu mrežu
Napon V 230 230...240 230
Vrsta struje Hz 1~ 50
Priključna snaga kW 2,5 2,5 2,2
Osigurač (inertni, karakt. C) A 16 13 10
Zaštita -- IPX5
Produžni kabel 30 m	mm2	2,5
Priključak za vodu
Dovodna temperatura (maks.)	°C	60
Dovodni protok (min.)	l/min	12
Visina usisavanja iz otvorenih posuda (20°C)	m	0,5
Dovodni tlak (maks.)	MPa	1
Podaci o snazi
Radni tlak vod (sa standardnom mlaznicom)	MPa	12	12	11,5
Veličina mlaznice za standardnu mlaznicu	--	035	035	038
Maks. radni pretlak	MPa	17,5	17,5	17,1
Protok vode	l/min	8,3
Usisavanje sredstva za pranje	l/h	0...25
Povratna udarna sila ručne prskalice (maks.)	N	21,3
Utvrdene vrijednosti prema EN 60335-2-79
Vrijednost vibracije na ruci	m/s2	3,6
Nepouzdanost K	m/s2	0,9
Razina zvučnog tlaka LpA (CX)	dB(A)	72 (75)
Nepouzdanost KpA	dB(A)	3
Razina zvučne snage LWA + nepouzdanost KWA (CX)	dB(A)	88 (92)
Dimenzije i težine
Duljina	mm 380
Širina (CX)	mm	360 (370)
Visina	mm 930
Tipična radna težina (CX)	kg	23,7 (26)

Tip HD 5/12 C HD 5/12 C HD 5/12 C HD		5/13 C
		HD 5/12 CX	HD 5/13 CX
		AU KAP	SA EU
Priključak na električnu mrežu
Napon V 240 220 230
Vrsta struje Hz 1~50 1~60 1~50
Priključna snaga kW 2,2	2,4		2,6
Osigurač (inertni, karakt. C)	A	10	15	13	16
Zaštita	--	IPX5
Produžni kabel 30 m	mm2	2,5
Priključak za vodu
Dovodna temperatura (maks.)	°C	60
Dovodni protok (min.)	l/min	12
Visina usisavanja iz otvorenih po-suda (20°C)	m	0,5
Dovodni tlak (maks.)	MPa	1
Podaci o snazi
Radni tlak vod (sa standardnom mlaznicom)	MPa	11,5	12		13
Veličina mlaznice za standardnu mlaznicu	-- 038	036 034
Maks. radni pretlak	MPa	17,1	18		17,5
Protok vode	l/min	8,3
Usisavanje sredstva za pranje	l/h	0...25
Povratna udarna sila ručne prskalice (maks.)	N	21,3			22,2
Utvrdene vrijednosti prema EN 60335-2-79
Vrijednost vibracije na ruci m/s	2	3,6	4,2		3,6
Nepouzdanost K	m/s2	0,9
Razina zvučnog tlaka LpA (CX)	dB(A)	72 (75)	74		72 (75)
Nepouzdanost KpA	dB(A)	3
Razina zvučne snage LWA + nepouzdanost KWA (CX)	dB(A)	88 (92)	90		88 (92)
Dimenzije i težine
Duljina	mm	380
Širina (CX) mm	360	(370)
Visina	mm	930
Tipična radna težina (CX)	kg	23,7 (26)	25,2		23,7 (26)
Tip HD 5/15 C HD 5/17 C HD 5/17 C		HD 6/13 C
		HD 5/15 CX	HD 5/17 CX	HD 5/17 CX	HD 6/13 CX
		EU EU	KAP EU
Priključak na električnu mrežu
Napon V 230 220 230
Vrsta struje Hz 1~50 1~60 1~50
Priključna snaga kW 2,8 3,0 3,0	2,9
Osigurač (inertni, karakt. C) A 1	6 15	16
Zaštita	--	IPX5
Produžni kabel 30 m	mm2	2,5
Priključak za vodu
Dovodna temperatura (maks.)	°C	60
Dovodni protok (min.)	l/min	12			13
Visina usisavanja iz otvorenih posuda (20°C)	m	0,5
Dovodni tlak (maks.)	MPa	1
Podaci o snazi
Radni tlak vode, sa standardnom mlaznicom (CX)	MPa	15 (15)	17 (17)	16,5 (16,5)	13 (13)
Veličina mlaznice za standardnu mlaznicu	--	032 027	030	038
Maks. radni pretlak	MPa	20			19
Protok vode	l/min	8,3 8,1	8,0 9,8
Usisavanje sredstva za pranje	l/h	0...25
Povratna udarna sila ručne prskalice (maks.)	N	23,8	25,4		26,6
Utvrdene vrijednosti prema EN 60335-2-79
Vrijednost vibracije na ruci	m/s2	2,4			4,1
Nepouzdanost K	m/s2	0,7			0,9
Razina zvučnog tlaka LpA (CX)	dB(A)	72 (74)	72 (75)	75	72 (75)
Nepouzdanost KpA	dB(A)	3
Razina zvučne snage LWA + ne-pouzdanost KWA (CX)	dB(A)	88 (90)	88 (92)	91 (91)	88 (92)
Dimenzije i težine
Duljina	mm	380
Širina (CX)	mm	360 (370)
Visina	mm	930
Tipična radna težina (CX)	kg	25,2 (27,5)

Tip HD 6/13 C HD 6/13 C HD 6/13 C HD 6/13 C
			HD 6/13 CX
		AR GB	KAP SA
Priključak na električnu mrežu
Napon V 220 230...240 220
Vrsta struje Hz 1~50 1~60
Priključna snaga kW 2,9 2,9	2,8
Osigurač (inertni, karakt. C)	A	16	13	15
Zaštita	--	IPX5
Produžni kabel 30 m	mm2	2,5
Priključak za vodu
Dovodna temperatura (maks.)	°C	60
Dovodni protok (min.)	l/min	13
Visina usisavanja iz otvorenih posuda (20°C)	m	0,5
Dovodni tlak (maks.)	MPa	1
Podaci o snazi
Radni tlak vod (sa standardnom mlaznicom)	MPa 1	12,5
Veličina mlaznice za standardnu mlaznicu	--	038	042 043
Maks. radni pretlak	MPa	19	18
Protok vode	l/min	9,8	10,0
Usisavanje sredstva za pranje	l/h 0...25
Povratna udarna sila ručne prskalice (maks.)	N	26,6
Utvrdene vrijednosti prema EN 60335-2-79
Vrijednost vibracije na ruci
Vrijednost vibracije na ruci	m/s2	4,1	3,7
Nepouzdanost K	m/s2	0,9
Razina zvučnog tlaka LpA (CX)	dB(A)	72 (75)	73
Nepouzdanost KpA	dB(A)	3
Razina zvučne snage LWA + ne-pouzdanost KWA (CX)	dB(A)	88 (92)	89
Dimenzije i težine
Duljina	mm	380
Širina (CX)	mm	360 (370)
Visina	mm	930
Tipična radna težina (CX)	kg	25,2 (27,5)	25,2

Pre prve upotrebe Vašeg uređaja pročitajte ove originalno

www.kaercher.com/REACH

Pre upotrebe

Montaža pribora

Technical diagram showing two mechanical assembly steps with numbered annotations indicating component placement.

→ Montirati mlaznicu na cev za prskanje (oznaka na prstenu gore) i pritegnuti rukom (EASY!Lock).
→ Povezati cev za prskanje sa ručnom prskalicom i pritegnuti rukom (EASY!Lock).
→ Otpustite bravicu potisne ručke.
→ Izvucite potisnu ručku u krajnji položaj.

Kod uređaja bez doboša za namotavanje creva:

Line drawing of a mechanical device with no visible text or symbols

→ Pričvrstite mehanizam za podizanje na ručku za nošenje uređaja.

Sigurnosne napomene vezane za prevoz pomoću krana

⚠ OPASNOST

2006/42/EZ (+2009/127/EZ)

2014/30/EU

2000/14/EZ

Primenjene uskladene norme:

EN 60335-1

EN 60335-2-79

EN 55014-1: 2006+A1: 2009+A2: 2011

EN 55014-2: 1997+A1: 2001+A2: 2008

EN 62233: 2008

EN 61000-3-2: 2006+A1: 2009+A2: 2009

EN 61000-3-3: 2008

S. Reiser
Head of Approbation

71364 Winnenden (Germany)

Tel.: [phone]

Winnenden, 2016/03/01

Tehnički podaci

Tip HD 5/12 C HD 5/12 C HD 5/12 C
		HD 5/12 CX	HD 5/12 CX	HD 5/12 CX
		EU GB	CH
Priključak na električnu mrežu
Napon V 230 230...240 230
Vrsta struje Hz 1~ 50
Priključna snaga kW 2,5 2,5 2,2
Osigurač (inertni, karakt. C) A 16 13 10
Stepen zaštite -- IPX5
Produžni kabl 30 m	mm2	2,5
Priključak za vodu
Dovodna temperatura (maks.)	°C	60
Dovodni protok (min.)	l/min	12
Visina usisavanja iz otvorenih posuda (20°C)	m	0,5
Dovodni pritisak (maks.)	MPa	1
Podaci o snazi
Radni pritisak vode (sa standardnom mlaznicom)	MPa	12 12	11,5
Veličina mlaznice kod standardne mlaznice	--	035	035	038
Maks. radni nadpritisak	MPa	17,5	17,5	17,1
Protok vode	l/min	8,3
Usisavanje deterdženta	l/h	0...25
Povratna udarna sila ručne prskalice (maks.)	N	21,3
Izračunate vrednosti prema EN 60335-2-79
Vrednost vibracije na ruci	m/s2	3,6
Nepouzdanost K	m/s2	0,9
Nivo zvučnog pritiska LpA (CX)	dB(A)	72 (75)
Nepouzdanost KpA	dB(A)	3
Nivo zvučne snage LWA + nepouzdanost KWA (CX)	dB(A)	88 (92)
Dimenzije i težine
Dužina	mm 380
Širina (CX)	mm	360 (370)
Visina	mm 930
Tipična radna težina (CX)	kg	23,7 (26)

Tip HD 5/12 C HD 5/12 C HD 5/12 C HD		5/13 C
		HD 5/12 CX	HD 5/13 CX
		AU KAP	SA EU
Priključak na električnu mrežu
Napon V 240 220 230
Vrsta struje Hz 1~50 1~60 1~50
Priključna snaga kW 2,2	2,4		2,6
Osigurač (inertni, karakt. C)	A	10	15	13	16
Stepen zaštite	--	IPX5
Produžni kabl 30 m	mm2	2,5
Priključak za vodu
Dovodna temperatura (maks.)	°C	60
Dovodni protok (min.)	l/min	12
Visina usisavanja iz otvorenih posuda (20°C)	m	0,5
Dovodni pritisak (maks.)	MPa	1
Podaci o snazi
Radni pritisak vode (sa standardnom mlaznicom)	MPa	11,5	12		13
Veličina mlaznice kod standardne mlaznice	-- 038	036 034
Maks. radni nadpritisak	MPa	17,1	18		17,5
Protok vode	l/min	8,3
Usisavanje deterdženta	l/h	0...25
Povratna udarna sila ručne prskalice (maks.)	N	21,3			22,2
Izračunate vrednosti prema EN 60335-2-79
Vrednost vibracije na ruci	m/s2	3,6	4,2		3,6
Nepouzdanost K	m/s2	0,9
Nivo zvučnog pritiska LpA (CX)	dB(A)	72 (75)	74		72 (75)
Nepouzdanost KpA	dB(A)	3
Nivo zvučne snage LWA+ nepouzdanost KWA(CX)	dB(A)	88 (92)	90		88 (92)
Dimenzije i težine
Dužina	mm	380
Širina (CX) mm	360	(370)
Visina	mm	930
Tipična radna težina (CX)	kg	23,7 (26)	25,2		23,7 (26)
Tip HD 5/15 C HD 5/17 C HD 5/17 C		HD 6/13 C
		HD 5/15 CX	HD 5/17 CX	HD 5/17 CX	HD 6/13 CX
		EU EU	KAP EU
Priključak na električnu mrežu
Napon V 230 220 230
Vrsta struje Hz 1~50 1~60 1~50
Priključna snaga kW 2,8 3,0 3,0	2,9
Osigurač (inertni, karakt. C) A 1	6 15	16
Stepen zaštite	--	IPX5
Produžni kabl 30 m	mm2	2,5
Priključak za vodu
Dovodna temperatura (maks.)	°C	60
Dovodni protok (min.)	l/min	12			13
Visina usisavanja iz otvorenih posuda (20°C)	m	0,5
Dovodni pritisak (maks.) MPa		1
Podaci o snazi
Radni pritisak vode sa standardnom mlaznicom (CX)	MPa	15 (15)	17 (17)	16,5 (16,5)	13 (13)
Veličina mlaznice kod standardne mlaznice	--	032 027	030	038
Maks. radni nadpritisak	MPa	20			19
Protok vode	l/min	8,3 8,1	8,0 9,8
Usisavanje deterdženta l/h		0...25
Povratna udarna sila ručne prskalice (maks.)	N	23,8	25,4		26,6
Izračunate vrednosti prema EN 60335-2-79
Vrednost vibracije na ruci	m/s2	2,4			4,1
Nepouzdanost K	m/s2	0,7			0,9
Nivo zvučnog pritiska LpA (CX)	dB(A)	72 (74)	72 (75)	75	72 (75)
Nepouzdanost KpA	dB(A)	3
Nivo zvučne snage LWA+ nepouzdanost KWA(CX)	dB(A)	88 (90)	88 (92)	91 (91)	88 (92)
Dimenzije i težine
Dužina	mm	380
Širina (CX)	mm	360 (370)
Visina	mm	930
Tipična radna težina (CX)	kg	25,2 (27,5)
Tip HD 6/13 C HD 6/13 C HD 6/13 C HD 6/13 C
			HD 6/13 CX
		AR GB	KAP SA
Priključak na električnu mrežu
Napon V 220 230...240 220
Vrsta struje Hz 1~50 1~60
Priključna snaga kW 2,9 2,9	2,8
Osigurač (inertni, karakt. C)	A	16	13	15	13
Stepen zaštite	--	IPX5
Produžni kabl 30 m	mm2	2,5
Priključak za vodu
Dovodna temperatura (maks.)	°C	60
Dovodni protok (min.)	l/min	13
Visina usisavanja iz otvorenih posuda (20°C)	m	0,5
Dovodni pritisak (maks.)	MPa	1
Podaci o snazi
Radni pritisak vode (sa standardnom mlaznicom)	MPa 1	12,5
Veličina mlaznice kod standardne mlaznice	--	038		042 043
Maks. radni nadpritisak	MPa	19		18
Protok vode	l/min	9,8		10,0
Usisavanje deterdženta	l/h	0...25
Povratna udarna sila ručne prskalice (maks.)	N	26,6
Izračunate vrednosti prema EN 60335-2-79
Vrednost vibracije na ruci
Vrednost vibracije na ruci	m/s2	4,1		3,7
Nepouzdanost K	m/s2	0,9
Nivo zvučnog pritiska LpA (CX)	dB(A)	72 (75)		73
Nepouzdanost KpA	dB(A)	3
Nivo zvučne snage LWA+ nepouzdanost KWA(CX)	dB(A)	88 (92)		89
Dimenzije i težine
Dužina	mm	380
Širina (CX)	mm	360 (370)
Visina	mm	930
Tipična radna težina (CX)	kg	25,2 (27,5)		25,2

www.kaercher.com/REACH

Technical diagram showing two mechanical assembly steps with numbered annotations indicating component placement.

Line drawing of a mechanical device with no visible text or symbols

S. Reiser
Head of Approbation

71364 Winnenden (Germany)

Тел.: [phone]

Факс: [phone]

Winnenden, 2016/03/01

Технически данни

www.kaercher.com/REACH

Line drawing of a tractor with visible wheel, dashboard, and front-mounted sensors (no text or symbols)

Toode: Körgsurvepesur

Tüüp: 1.520-xxx

71364 Winnenden (Germany)

Tel: [phone]

Winnenden, 2016/03/01

Tehnilised andmed

www.kaercher.com/REACH

Technical diagram showing two mechanical assembly steps with numbered annotations indicating component placement.

Line drawing of a mechanical device with no visible text or symbols

71364 Winnenden (Germany)

Tālr.: [phone]

Fakss: [phone]

Winnenden, 2016/03/01

Tehniskie dati

www.kaercher.com/REACH

Prieš pradedant naudoti

Technical diagram showing two mechanical assembly steps with numbered annotations indicating component placement.

Line drawing of a mechanical device with no visible text or symbols

S. Reiser
Head of Approbation

71364 Winnenden (Germany)

Tel.: [phone]

Faksas: [phone]

Winnenden, 2016/03/01

Techniniai duomenys

www.kaercher.com/REACH

Technical diagram showing two mechanical assembly steps with numbered annotations indicating component identification.

Line drawing of a tractor with visible frame, wheels, and exhaust pipe (no text or symbols)

S. Reiser
Head of Approbation

71364 Winnenden (Germany)

Тел.: [phone]

Факс: [phone]

Winnenden, 2016/03/01

www.kaercher.com/REACH

设备运作前

附件安装

→ 固定轮踏盖。

Technical diagram showing two mechanical assembly steps with numbered annotations indicating component identification.

Line drawing of a mechanical device with no visible text or symbols

→ 将起重装置固定在设备的手提柄上。

起吊安全提示

危险

由于设备掉下而存在受伤危险。

S. Reiser
Head of Approbation

文件汇编负责人：

S. Reiser

71364 Winnenden (Germany)

电话：[phone]

传真：[phone]

Winnenden, 2016/03/01

产品规格 / 参数

Icon showing a gear and wrench inside a square frame (no text or symbols)

http://www.kaercher.com/dealersearch

QR code image with a central logo, likely linking to a digital resource or website.
