USER MANUAL CJ100DZ3XL MAKITA

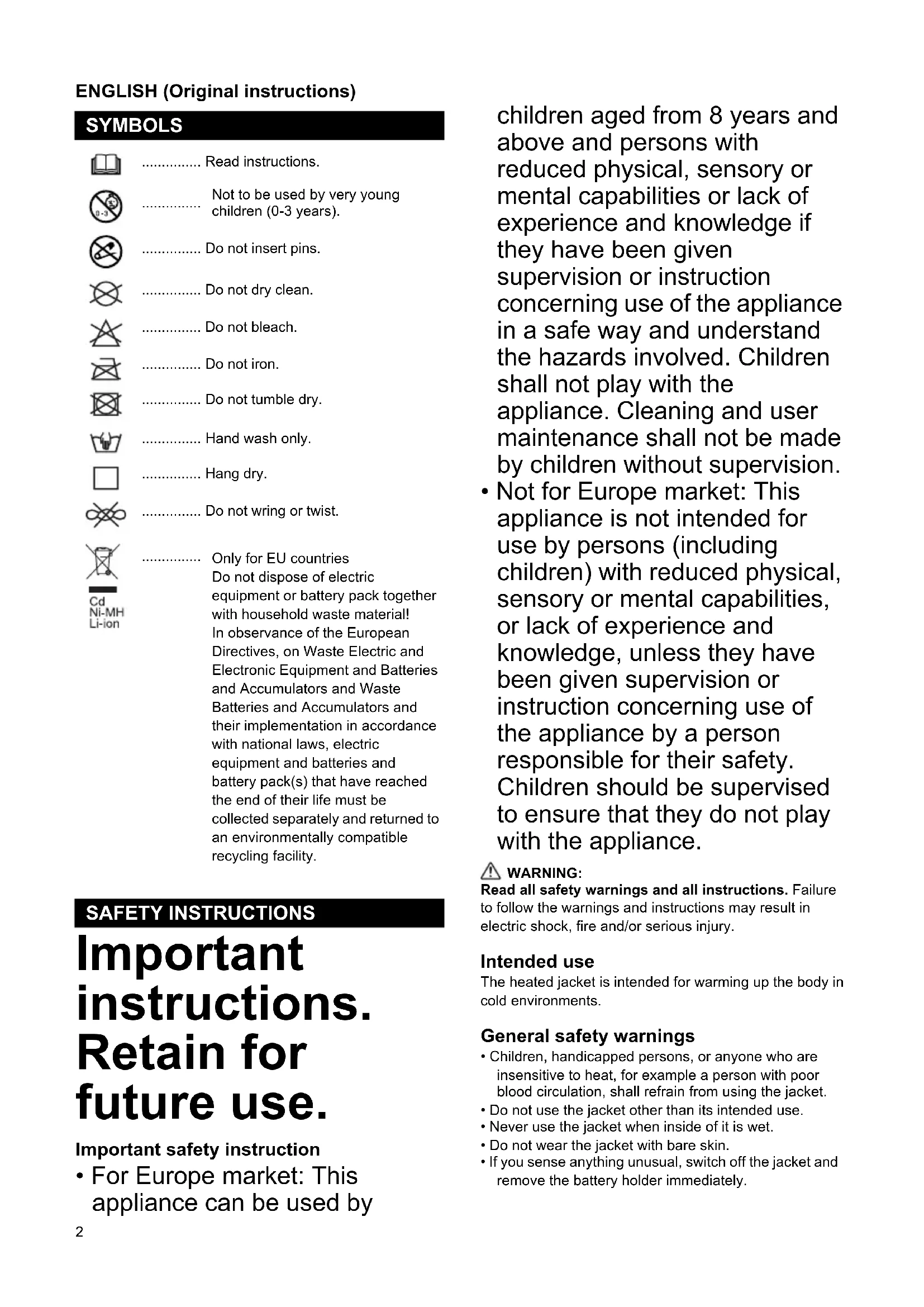

• For Europe market: This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

• Not for Europe market: This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.

Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Intended use The heated jacket is intended for warming up the body in cold environments. General safety warnings

• Children, handicapped persons, or anyone who are insensitive to heat, for example a person with poor blood circulation, shall refrain from using the jacket.

• Do not use the jacket other than its intended use.

• Never use the jacket when inside of it is wet.

• Do not wear the jacket with bare skin.

• If you sense anything unusual, switch off the jacket and remove the battery holder immediately. SYMBOLS ............... Read instructions.

Not to be used by very young children (0-3 years). ............... Do not insert pins. ............... Do not dry clean. ............... Do not bleach. ............... Do not iron. ............... Do not tumble dry. ............... Hand wash only. ............... Hang dry. ............... Do not wring or twist.

Only for EU countries Do not dispose of electric equipment or battery pack together with household waste material! In observance of the European Directives, on Waste Electric and Electronic Equipment and Batteries and Accumulators and Waste Batteries and Accumulators and their implementation in accordance with national laws, electric equipment and batteries and battery pack(s) that have reached the end of their life must be collected separately and returned to an environmentally compatible recycling facility. SAFETY INSTRUCTIONS3

• Do not let the power cable be pinched. Damaged cable may cause electric shock.

• If any abnormality is found, contact your local service center for repair.

• Do not use pins or like. The electric wiring inside may be damaged.

• Keep maintenance labels and nameplate. If they become unreadable or missing, contact your local service center for repair.

• Choose appropriate temperature settings in accordance with the usage environment for continuous use.

• The battery cartridge, battery and connectors must not be allowed to get wet during washing and drying.

• The appliance is not to be used by young children unless the controls have been pre-set by a parent or guardian, or unless the child has been adequately instructed on how to operate the controls safely.

WARNING: In order to avoid the possibility of heatstroke,

disconnect the clothing when moving to an environment having significantly higher temperature. PAY ATTENTION: Check carefully on the marking in the internal part of the cloth. Do not insert pins on the cloth from external or internal parts. Washing

• Detach the battery holder and remove the battery cartridge before washing.

• Do not dry clean nor bleach on the jacket. Do not use dry cleaning solvent. Solvents may damage the insulation of the jacket.

• Hand wash, and hang dry. Do not squeeze the jacket. Do not use machine washer or dryer (even those machines include hand wash mode). The electric wiring may be damaged and cause electric shock. Work area safety

• Keep work area clean and well lit. Cluttered or dark areas increase accident risk. Electrical safety

• Do not expose the jacket to rain or wet conditions. Water entering the jacket may increase the risk of electric shock.

• Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the jacket. Keep cord away from heat, oil, sharp edges.

• Do not connect power source to USB port. Otherwise there is risk of fire. The USB port is only intended for charging lower voltage device. Always place the cover onto the USB port when not charging the lower voltage device.

• Do not insert a nail, wire, etc. into USB power supply port. Otherwise a circuit short may cause smoke and fire. Personal safety

• Stay alert, watch what you are doing and use common sense when using the jacket. Do not use the jacket while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while using the jacket may result in serious personal injury. Jacket use and care

• Do not use the jacket if the switch does not turn it on and off. Any jacket that cannot be controlled with the switch is dangerous and must be repaired.

• Maintain the jacket. Check for breakage of parts and any other condition that may affect the jacket’s operation. If damaged, have the jacket repaired before use.

• Use the jacket in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the jacket for operations different from those intended could result in a hazardous situation.

• If the fuse link has ruptured, return the jacket to our authorized service center for repairing.

• When not in use, store as follows: - Allow it to cool down before folding. - Do not crease the appliance by placing items on top of it.

• Examine the appliance frequently for signs of wear or damage. If there are such signs or if the appliance has been misused, return it to the supplier to any further use.

• This appliance is not intended for medical use in hospitals. Important safety instructions for battery cartridge

• Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack.

• Use the jacket only with specifically designated battery packs. Use of any other battery packs may create a risk of injury and fire.

• Before using battery cartridge, read all instructions and cautionary markings on (1) battery charger, (2) battery, and (3) product using battery.

• Do not disassemble battery cartridge.

• If operating time has become excessively shorter, stop operating immediately. It may result in a risk of overheating, possible burns and even an explosion.

• Under abusive conditions, liquid may be ejected from the battery; avoid contact. If electrolyte gets into your eyes, rinse them out with clear water and seek medical attention right away. It may result in loss of your eyesight.

• Do not short the battery cartridge:

1. Do not touch the terminals with any conductive

2. Avoid storing battery cartridge in a container with

other metal objects such as nails, coins, etc.

3. Do not expose battery cartridge to water or rain.

A battery short can cause a large current flow, overheating, possible burns and even a breakdown.

• Do not store the jacket, battery holder and battery cartridge in locations where the temperature may reach or exceed 50°C (122°F).

• Do not incinerate the battery cartridge even if it is severely damaged or is completely worn out. The battery cartridge can explode in a fire.

• Be careful not to drop or strike battery.

• Do not use a damaged battery.4

• Follow your local regulations relating to disposal of battery. Tips for maintaining maximum battery life

• Never recharge a fully charged battery cartridge. Overcharging shortens the battery service life.

• Charge the battery cartridge with room temperature at 10°C - 40°C (50°F - 104°F).

• Let a hot battery cartridge cool down before charging it.

• Charge the battery cartridge once in every six months if you do not use it for a long period of time.

• For an optimum life-time, the battery cartridge have to be fully charged, after use.

SAVE THESE INSTRUCTIONS.5

• Due to our continuing program of research and development, the specifications herein are subject to change without notice.

• Specifications and battery cartridge may differ from country to country.

• Weight, with battery cartridge, according to EPTA-Procedure 01/2003

• Operating time may differ depending on battery type and usage condition. Switch action To turn on the jacket, push and hold the power button (about 1.5 seconds). To turn off, push and hold the power button again. Temperature adjustment There are three temperature settings (high, medium, low). Three LED lights means that the temperature is set to “high”, two LED lights “medium”, and one LED light “low”. When you switch on the jacket, the temperature is set to “high”. Each press of the power button cycles through the jacket’s temperature setting. CAUTION:

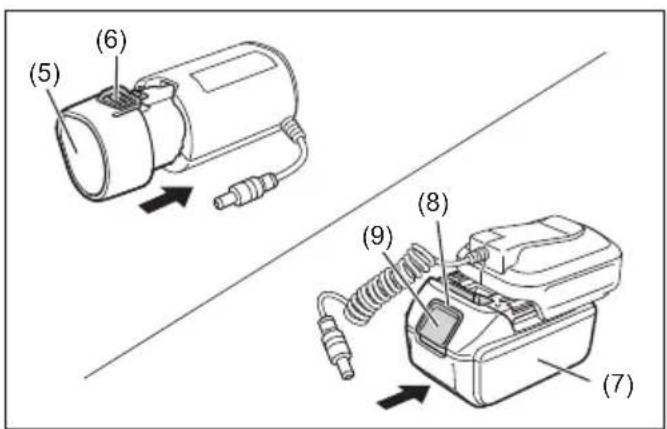

• Hold the battery holder and the battery cartridge firmly when installing or removing battery cartridge. Failure to hold the battery holder and the battery cartridge firmly may cause them to slip off your hands and result in damage to the battery holder and battery cartridge and a personal injury. Installing or removing battery cartridge to the battery holder (Fig. 2) for CJ100D, CJ101D To install the battery cartridge (5), hold it so that the battery cartridge front shape fits to that of the battery holder opening and slip it into place. Insert it all the way until it locks in place with a little click. Always insert the battery cartridge all the way until it locks in place. If not, it may accidentally fall out of the battery holder, causing injury to you or someone around you. Do not install the battery cartridge forcibly. If the cartridge does not slide in easily, it is not being inserted correctly. To remove the battery cartridge, withdraw it from the battery holder while pressing the buttons (6) on both sides of the cartridge. for DCJ200, DCJ201 To install the battery cartridge (7), align the tongue on the battery cartridge with the groove in the battery holder and slip it into place. Insert it all the way until it locks in place with a little click. If you can see the red indicator (8) on the upper side of the button, it is not locked completely. Always install the battery cartridge fully until the red indicator cannot be seen. If not, it may accidentally fall out of the battery holder, causing injury to you or someone around you. DESIGNATION OF PARTS (Fig. 1)

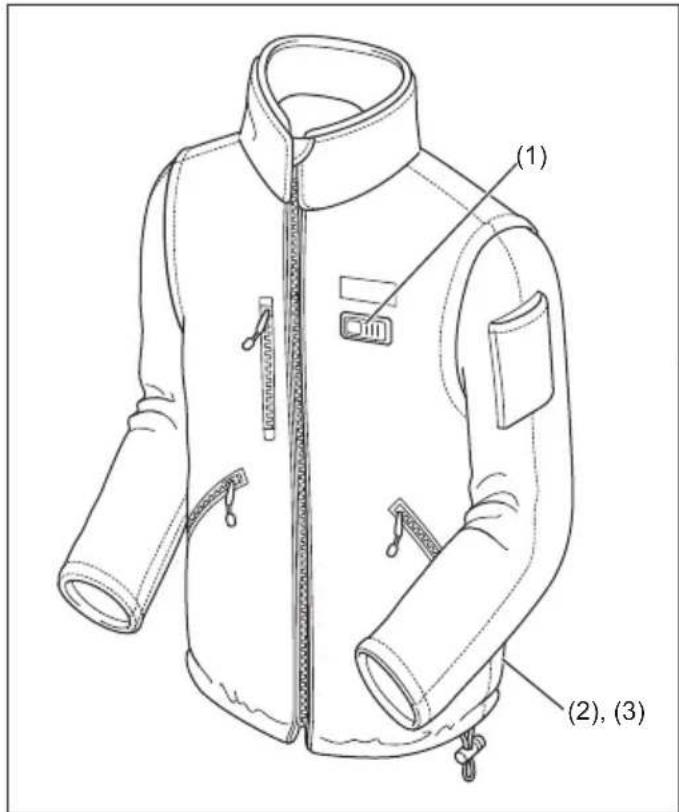

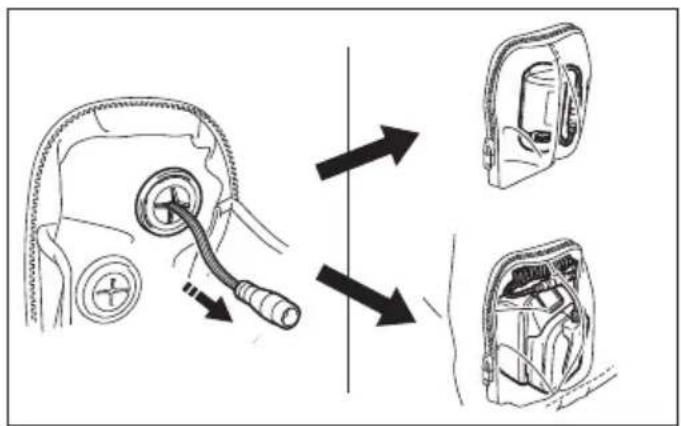

2. Battery holder pocket (Backside)

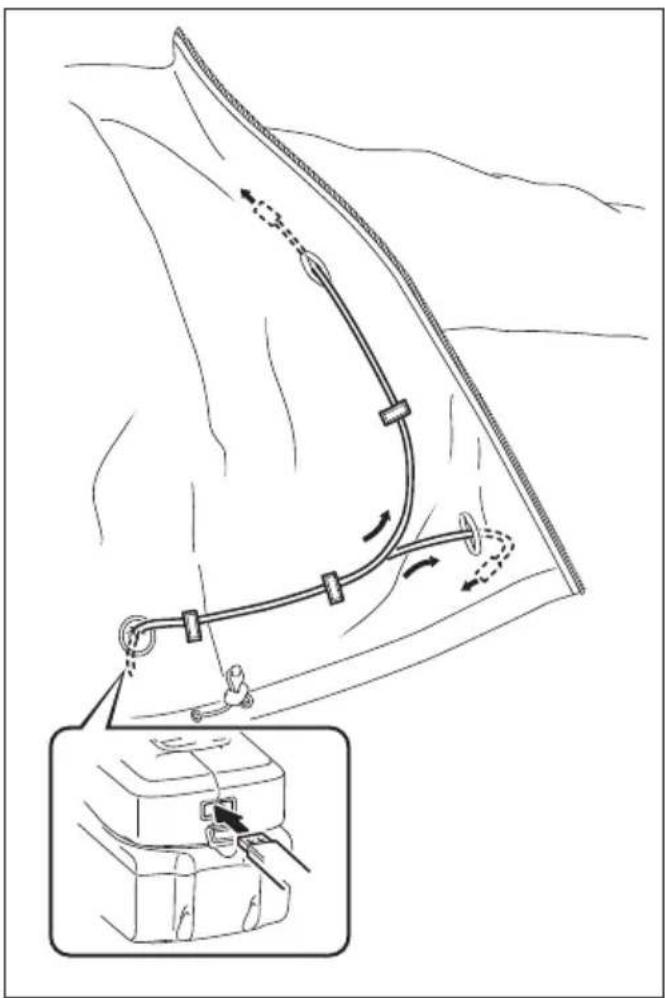

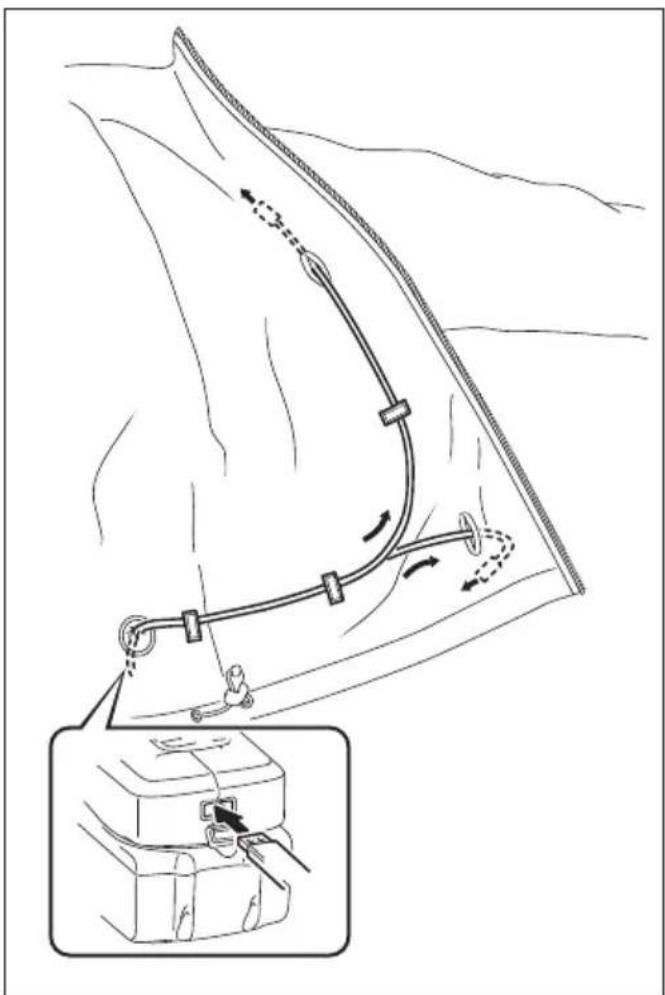

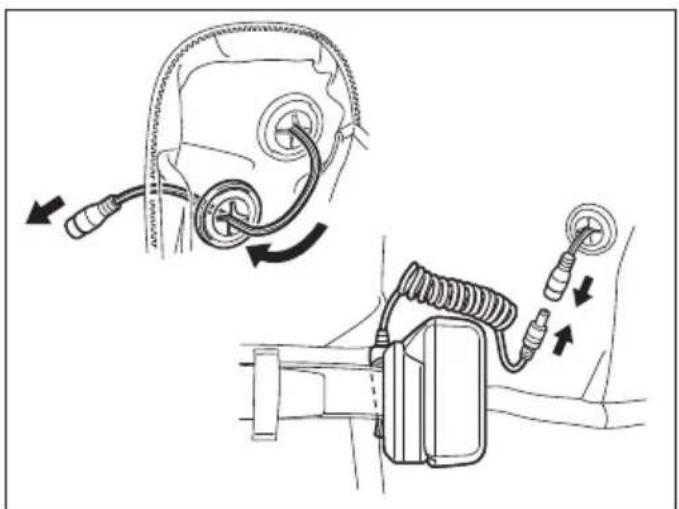

3. Power cable (Inside the battery

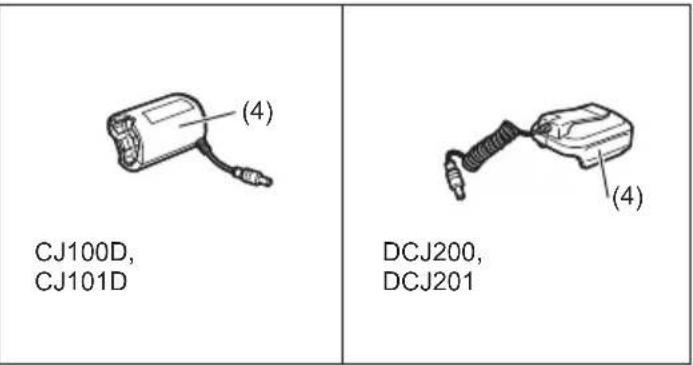

SPECIFICATIONS Model CJ100D, CJ101D DCJ200, DCJ201 Temperature adjustment steps 3 Material Polyester (94%), spandex (6%) USB power supply port – DC 5V, 2.1A Net weight of battery holder and battery (kg) With battery BL1013 With battery BL1430 With battery BL1830

Operating time (h) With battery BL1013 With battery BL1430 With battery BL1830 Low APPROX. 4.5 APPROX. 12.0 APPROX. 17.0 Medium APPROX. 2.5 APPROX. 6.5 APPROX. 9.5 High APPROX. 1.5 APPROX. 3.5 APPROX. 5.0 Rated voltage (V) 10.8 14.4 18 Battey cartridge BL1013 BL1415, BL1415N, BL1430, BL1440 BL1815, BL1815N, BL1820, BL1830, BL1840, BL1850 Size S M L Net weight (without battery holder and battery) 1.0 kg 1.0 kg 1.1 kg Size X 2XL 3XL Net weight (without battery holder and battery) 1.2 kg 1.2 kg 1.3 kg FUNCTIONAL DESCRIPTION ASSEMBLY7 Do not install the battery cartridge forcibly. If the cartridge does not slide in easily, it is not being inserted correctly. To remove the battery cartridge, slide it from the battery holder while sliding the button (9) on the front of the cartridge. Attaching the battery holder to the heated jacket for CJ100D, CJ101D (Fig. 3) Connect the battery holder and the power cable of the jacket. Place the battery holder in the battery holder pocket. for DCJ200, DCJ201 (Fig. 3, 4) You can either place the battery holder in the battery holder pocket or hang on the belt. In case placing it in the pocket, connect the battery holder and the power cable of the jacket and place it in the battery holder pocket. In case hanging it on the belt, firstly pass the jacket’s plug through the hole inside the battery holder pocket, and connect the battery holder and the power cable of the jacket. And then hang the battery holder on your belt. Connecting USB device (For DCJ200, DCJ201 only) (Fig. 5) CAUTION:

• Connect only devices which are compatible with DC5V, 2.1A power source to the USB power supply port. Otherwise it may cause malfunction to the battery holder. The battery holder (with the battery) can work as an external power supply for USB device. Connect the USB cable (not included) with the power supply port of the battery holder. And then connect the other end of the cable with the device. The USB cable can be placed inside the jacket for convenience by using the hole of the pocket and cable holder. NOTE:

• Before connecting USB device to the charger, always backup your data of USB device. Otherwise your data may lose by any possibility.

• The charger may not supply power to some USB devices. CAUTION: Always be sure that the jacket is switched off and the battery cartridge is removed before attempting to perform inspection or maintenance. If jacket does not switch on or any fault is found with a fully charged battery cartridge, clean the terminals of the battery holder and the battery cartridge. If jacket still does not work properly, stop using the jacket and contact our authorized service center. CAUTION: These accessories or attachments are recommended for use with your Makita tool specified in this manual. The use of any other accessories or attachments might present a risk of injury to persons. Only use accessory or attachment for its stated purpose. If you need any assistance for more details regarding these accessories, ask your local Makita Service Center.

• Makita genuine battery and charger NOTE: Some items in the list may be included in the package as standard accessories. They may differ from country to country. MAINTENANCE OPTIONAL ACCESSORIES8 FRANÇAIS (Instructions d’origine) Instructions importantes. À conserver en vue d’une utilisation ultérieure. Instruction de sécurité importante
