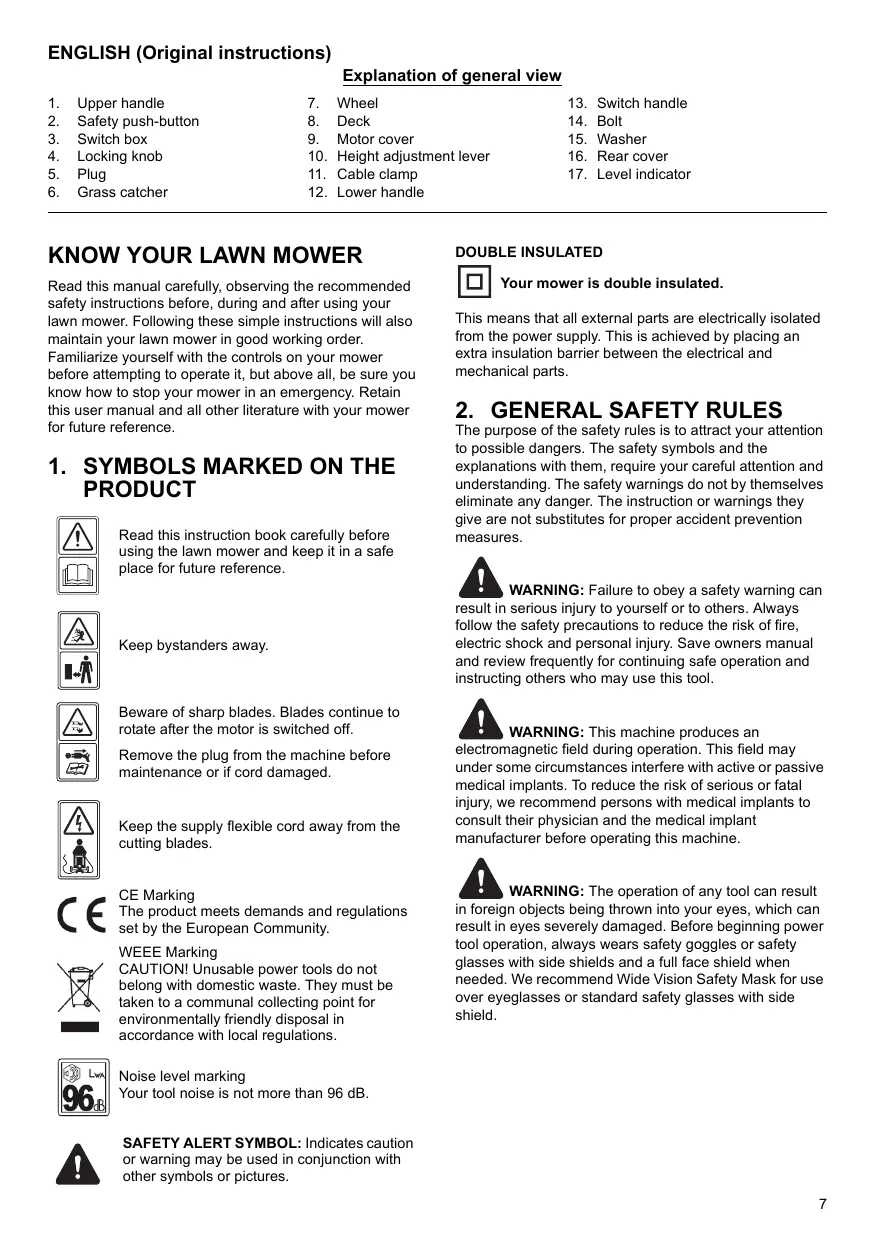

ENGLISH (Original instructions)

Explanation of general view 1. 2. 3. 4. 5. 6.

Safety push-button Switch box Locking knob Plug Grass catcher

Deck Motor cover Height adjustment lever Cable clamp Lower handle

KNOW YOUR LAWN MOWER Read this manual carefully, observing the recommended safety instructions before, during and after using your lawn mower. Following these simple instructions will also maintain your lawn mower in good working order.

Familiarize yourself with the controls on your mower before attempting to operate it, but above all, be sure you know how to stop your mower in an emergency. Retain this user manual and all other literature with your mower for future reference.

1. SYMBOLS MARKED ON THE PRODUCT Read this instruction book carefully before using the lawn mower and keep it in a safe place for future reference.

Keep bystanders away.

Beware of sharp blades. Blades continue to rotate after the motor is switched off.

Remove the plug from the machine before maintenance or if cord damaged.

Keep the supply flexible cord away from the cutting blades.

CE Marking The product meets demands and regulations set by the European Community. WEEE Marking CAUTION! Unusable power tools do not belong with domestic waste. They must be taken to a communal collecting point for environmentally friendly disposal in accordance with local regulations.

Bolt Washer Rear cover Level indicator

DOUBLE INSULATED Your mower is double insulated.

This means that all external parts are electrically isolated from the power supply. This is achieved by placing an extra insulation barrier between the electrical and mechanical parts.

The purpose of the safety rules is to attract your attention to possible dangers. The safety symbols and the explanations with them, require your careful attention and understanding. The safety warnings do not by themselves eliminate any danger. The instruction or warnings they give are not substitutes for proper accident prevention measures.

WARNING: Failure to obey a safety warning can result in serious injury to yourself or to others. Always follow the safety precautions to reduce the risk of fire, electric shock and personal injury. Save owners manual and review frequently for continuing safe operation and instructing others who may use this tool.

WARNING: This machine produces an electromagnetic field during operation. This field may under some circumstances interfere with active or passive medical implants. To reduce the risk of serious or fatal injury, we recommend persons with medical implants to consult their physician and the medical implant manufacturer before operating this machine.

WARNING: The operation of any tool can result in foreign objects being thrown into your eyes, which can result in eyes severely damaged. Before beginning power tool operation, always wears safety goggles or safety glasses with side shields and a full face shield when needed. We recommend Wide Vision Safety Mask for use over eyeglasses or standard safety glasses with side shield.

Your tool noise is not more than 96 dB. SAFETY ALERT SYMBOL: Indicates caution or warning may be used in conjunction with other symbols or pictures. 7

IMPORTANT READ CAREFULLY BEFORE USE.

KEEP FOR FUTURE REFERENCE. 1. Read the instructions carefully. Be familiar with the controls and the proper use of the equipment. 2. Never allow children or people unfamiliar with these instructions to use the lawn mower. Local regulations can restrict the age of the operator. 3. Never mow while people, especially children, or pets are nearby. 4. Keep in mind that the operator or user is responsible for accidents or hazards occurring to other people or their property. 5. While mowing, always wear substantial footwear and long trousers. Do not operate the equipment when barefoot or wearing open sandals; Avoid wearing clothing that is loose fitting or that has hanging cords or ties. 6. Thoroughly inspect the area where the equipment is to be used and remove all objects which can be thrown by the machine. 7. Before using, always visually inspect to see that the blades, blade bolts and cutter assembly are not worn or damaged. Replace worn or damaged blades and bolts in sets to preserve balance. Replace damaged or unreadable labels. 8. Before use check the supply and extension cord for signs of damage or worn. If the cord becomes damaged during use, disconnect the cord from the supply immediately. DO NOT TOUCH THE CORD BEFORE DISCONNECTING THE SUPPLY. Do not use the appliance if the cord is damaged or worn. 9. Mow only in daylight or in good artificial light. 10. Avoid operating the equipment in wet grass, where feasible. 11. Always be sure of your footing on slopes. 12. Walk, never run. 13. For wheeled rotary machines; mow across the face of slopes, never up and down. 14. Exercise extreme caution when changing direction on slopes. 15. Do not mow excessively steep slopes. 16. Use extreme caution when reversing or pulling the lawn mower towards you. 17. Stop the blades if the lawn mower has to be tilted for transportation when crossing surfaces other than grass, and when transporting the lawn mower to and from the area to be mowed. 18. Never operate the lawn mower with defective guards, or without safety devices, for example deflectors and/ or grass catchers, in place. 19. Start or switch on the motor carefully according to instructions and with feet well away from the blades. 20. Do not tilt the lawn mower when starting switching on the motor, except if the lawn mower has to be tilted for starting. In this case, do not tile it more than absolutely necessary and lift only the part which is away from the operator. 21. Do not start the motor when standing in front of the discharge chute. 8

22. Do not put hands or feet near or under rotating parts.

Keep clear of the discharge opening at all times. 23. Never pick up or carry a lawn mower while the motor is running. 24. Stop the motor and disconnect the plug. Make sure that all moving parts have come to a complete stop. - whenever you leave the machine: - before clearing blockages or unclogging chute; - before checking, cleaning or working on the lawn mower; - after striking a foreign object. Inspect the lawn mower for damage and make repairs before restarting and operating the lawn mower. If lawn mower starts to vibrate abnormally (check immediately): - inspect for damage; - replace or repair any damage parts; - check for and tighten any loose parts. 25. Stop the mower: - whenever you leave the lawn mower. 26. Keep all nuts, bolts and screws tight to be sure the equipment is in safe working condition. 27. Check the grass catcher frequently for wear or deterioration. 28. Replace worn or damaged parts for safety. 29. Do not use the lawn mower if the cords are damaged or worn. 30. Do not connect a damaged cord to the supply or touch a damaged cord before it is disconnected from the supply. A damaged cord can lead to contact with live parts. 31. Do not touch the blade before the machine is disconnected form the supply and the blade have come to a complete stop. 32. To keep extension cords away from the blade. The blade can cause damage to the cords and lead to contact with live parts. 33. To disconnect the supply (i.e. pulling the plug from the socket): - whenever leaving the machine unattended; - before clearing a blockage; - before checking, cleaning or working on the machine; - after striking a foreign object; - whenever the machine starts vibrating abnormally. 34. Children are not allowed to use the machine. 35. This appliance is not intended for use by persons with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. 36. If the external flexible cable or cord is damaged, it shall be exclusively replaced by the manufacturer or his service agent or a similar qualified person in order to avoid a hazard (not light than H05VV-F 2 x 1.0 mm2). 37. Instructions for the safe operation of the appliance, including a recommendation that the appliance should be supplied via a Residual Current Device (RCD) with a tripping current of not more than 30 mA.

38. Be careful during adjustment of the machine to prevent entrapment of the fingers between moving blades and fixed parts of the machine.

39. Always allow the machine to cool before storing. 40. When servicing the blades be aware that, even though the power source is switched off, the blades can still be moved. 41. Replace worn or damaged parts for safety; Use only genuine replacement parts and accessories. 42. Be careful during adjustment of the appliance to prevent entrapment of the fingers between moving blades and fixed parts of appliance. 43. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

Grass catcher capacity

Degree of protection against IP24 liquid

25-75 mm, 6 adjustment

Sound pressure level at the operator’s position

Measured sound power level

Guaranteed sound power level 96 dB(A)

5-1 ASSEMBLE THE FOLDING HANDLE A) Fix the lower handlebars into the unit body with locking knobs. (Fig. 2A/Fig. 2B/Fig. 2C) B) Connect the upper handle and the lower handle with bolts, washers and locking knobs. (Fig. 2D/Fig. 2E/ Fig. 2F) C) Attach the cable clamp to the position shown and then attach the cable. (Fig. 2G/Fig. 2H)

5-2 ASSEMBLE THE GRASS CATCHER

1. To fit: Raise the rear cover and hitch the grass catcher on rear of mower. (Fig. 3A/Fig. 3B/Fig. 3C) 2. To remove: Grasp and lift the rear cover, remove grass catcher.

There is a level indicator on the top of the grass catcher that shows whether the catcher is empty or full:

- If the catcher is full, the indicator collapses; once this happens, stop moving immediately and empty the catcher, make sure it is clean and ensure its meshwork is ventilated. (Fig. 3D) - The level indicator inflates if the catcher is not full during the moving. (Fig. 3E)

If the position of indicator opening is very dirty, the indicator will not inflate-in this case, clean the position of indicator opening immediately.

Apply outward pressure to disengage lever from rack.

Move lever forward or back to adjust height. The height (the blade to the ground) can be adjusted from 25 mm (position 1) to 75 mm (position 6), 6 height positions. All wheels will be in the same height of cut. (Fig. 4A/Fig. 4B)

WARNING: Make this adjustment only when the blade is stopped.

WARNING: Disconnect the electric cord from the power supply.

7. SAFETY PRECAUTIONS

a) Always operate with the deflector or grass catcher in the correct position. b) Always stop the motor before removing the grass catcher or adjusting the height of cutting position.

1. Before mowing, remove all foreign objects from the lawn which may be thrown by the machine. While mowing, stay alert for any foreign objects which may have been missed. (Fig. 5A) 2. Never lift the rear of the mower while starting the motor or during normal operation. (Fig. 5B) 3. Never place your hands or feet underneath the underpan or into the rear discharge chute while the motor is running. (Fig. 5C)

8-1 STARTING Before connecting up the lawn mower to the electric power supply, make sure that the mains supply voltage is 230-240 V~ 50 Hz. Before start the lawn mower, fix the extension cord with the machine as the Fig. 6A shown. Start the motor as follows. (Fig. 6B) a) Press the safety push-button (1). b) And meanwhile, pull the switch handle (2), and keep it in grasp. If you release the switch handle, the motor will stop.

CAUTION: The blade starts turning as soon as the motor is started.

WARNING: For service, replace the blade with: DOLMAR 7290731 ONLY.

WARNING: Cutting elements continue to rotate after the motor is switched off.

WARNING: Disconnect the electric cord from the power supply.

8-2 FOR THE BEST RESULTS WHEN MOWING Clear lawn of debris. Be sure that the lawn is clear of stones, sticks, wire or other foreign objects which could be accidentally thrown out by the mower in any direction and cause serious personal injury to the operator and others as well as damage to property and surrounding objects.

Do not cut wet grass. For effective mowing do not cut wet grass because it tends to stick to the underside of the deck preventing proper mowing of the grass clippings. Cut no more than 1/3 the length of the grass. The recommended cut for mowing is 1/3 the length of the grass. Ground speed will need to be adjusted so the clippings can be dispersed evenly into the lawn. For especially heavy cutting in thick grass it may be necessary to use one of the slowest speeds in order to get a clean well mowed cut. When mowing long grass you may have to cut the lawn in two passes, lowering the blade another 1/3 of the length for the second cut and perhaps cutting in a different pattern than was used the first time. Overlapping the cut a little on each pass will also help to clean up any stray clippings left on the lawn. The mower should always be operated at full throttle to get the best cut and allow it to do the most effective job of mowing. Clean underside of deck. Be certain to clean the underside of the cutting deck after each use to avoid a build-up of grass, which would prevent proper mulching. Mowing leaves. The mowing of leaves can also be beneficial to your lawn. When mowing leaves make sure they are dry and are not laying too thick on the lawn. Do not wait for all the leaves to be off the trees before you mow.

WARNING: If you strike a foreign object, stop the motor. Pull out the mains plug, thoroughly inspect the mower for any damage and repair the damage before restarting and operating the mower. Extensive vibration of the mower during operation is an indication of damage.

The unit should be promptly inspected and repaired.

The blade is made of pressed steel. It will be necessary to reshape it frequently (with a grind wheel).

Ensure that it is always balanced (an unbalanced blade will cause dangerous vibrations). To check for balance, insert a round rod through the central hole and support the blade horizontally. A balance blade will remain horizontal. If the blade is not balanced the heavy end will rotate downwards. Reshape the heavy end until the blade is currently balanced. To remove the blade (1), unscrew the blade screw (2) and replace any parts, which are damaged. When reassembling, make sure that the cutting edges face in the direction of the motor rotation. The blade screw (2) must be tightened to torque 20 N.m. 10

WARNING: Protect hands by using heavy gloves or a rag to grasp the cutting blades when replace the blade.

You should only use extension cords for outdoor use,

PVC ordinary duty with a cross sectional area not less than 1.0 mm2 (not lighter than H05VV-F 2 x 1.0 mm2). Before using, check the supply and extension cords for signs of damaged during use, disconnect the cord for signs of damage or aging. If the cord becomes damaged during use, disconnect the cord from the supply immediately. DO NOT TOUCH THE CORD BEFORE DISCONNECTING THE SUPPLY. Do not use the appliance if the cord is damaged or worn. Keep extension cord away from cutting elements.

WARNING: Always ensure that the ventilation openings are kept clear of debris.

11. MAINTENANCE AND CARE WARNING: Before performing any maintenance or cleaning work, Always pull out the mains plug!

Do not spray the unit with water. Ingress of water may destroy the switch-plug combination unit and the electric motor. Clean the unit with a cloth, hand brush, etc. Expert inspection is required, do not make any adjustment by yourself, must contact Dolmar authorized service centre: a) If the lawn mower strikes an object. b) If the motor stops suddenly. c) If the blade is bent (do not align!) d) If the motor shaft is bent (do not align!) e) If a short-circuit occurs when the cable is connected. f) If the gears are damaged. g) If the V-belt is defective. h) Use only manufacturer’s recommended replacement parts and accessories.

12. TROUBLESHOOTING Fault

Motor does not Check mains connection cable. run

Start on short grass or on an area which has already been mown. Clean discharge channel/housing - the mowing blade must rotate freely. Correct the cutting height. Check motor carbon brush, if discover finished, please replace HT118. Motor power drops

Correct the cutting height.

Clean discharge channel/housing. Have mowing blade resharpened/ replaced  authorized service centre.

Grass catcher is not filled

Correct the cutting height.

Allow the lawn to dry. Have mowing blade resharpened/ replaced  authorized service centre. Clean the grille on the grass catcher. Clean the discharge channel/housing.

Wheel drive does not function

Adjust the flexible cable.

Check the V-belt/gears  authorized service centre. Check the drive wheels for damage.

Conforms to the following European Directives:

2004/108/EC, 2006/42/EC, 2000/14/EC & 2005/88/EC, 2006/95/EC And are manufactured in accordance with following standards or standardized documents EN 60335-1, EN 60335-2-77, EN 62233, EN 55014-1, EN 55014-2, EN 61000-3-2, EN 61000-3-3 The technical documentation is on file at: Dolmar GmbH, Jenfelder Straße 38, Abteilung FZ, D-22045 Hamburg The conformity assessment procedure required by Directive 2000/14/EC was in Accordance with Annex VI. Notified Body: TÜV SÜD Industrie Service GmbH Westendstraße 199, 80686 München, Germany Identification Number: 0036 Model: EM-380 Measured Sound Power level: 93.4 dB(A) Guaranteed Sound Power level: 96 dB(A) 13. 12. 2013

Managing Director WARNING: Before performing any maintenance or cleaning work, always pull out the mains plug and wait until the cutter has come to a standstill.

CAUTION: Faults which can not be rectified with the aid of this table may be rectified by Dolmar authorized service center only.

13. ENVIRONMENTALLY FRIENDLY DISPOSAL According to EU directive on electric and electronic equipment and its implementation into national law, all electric tools must be separately collected and environmentally friendly recycled. Alternative disposal: If the owner of the power tool does not return the tool to the manufacturer, he is responsible for proper disposal at a designated collection point that prepares the device for recycling according to national recycling laws and regulations.

This does not include accessories and tools without electric or electronic components.

14. EC DECLARATION OF CONFORMITY

(For European countries only) The undersigned, Rainer Bergfeld, as authorized by Dolmar GmbH, declares that the DOLMAR machine(s): Designation of Machine: Electric Lawn Mower Model No. /Type: EM-380 Specifications: See “4. Technical Data” are of series production and 11
