WARNING!
Denotes impending danger. Non-observance of this warning may result in death or extremely severe injuries.
CAUTION!
Denotes a possibly dangerous situation. Non-observance of this warning may result in slight injury or damage to property.
NOTE
Denotes application tips and important information.
Symbols on the machine
VVolts
Read the instructions
Keep bystanders away
Wear eye protection.
Wear ear protection
Disposal information for the old machine (see page 16)!
For your safety
WARNING!
Before using the machine, please read the follow:
– these operating instructions,
- the "General safety instructions" on the handling of machines in the enclosed booklet (leaflet-no.: 315.915),
– the currently valid site rules and the regulations for the prevention of accidents. This machine is state of the art and has been constructed in accordance with the acknowledged safety regulations.
Nevertheless, when in use, the machine may be a danger to life and limb of the user or a third party, or the machine or other property may be damaged.
The cordless lawn blower may be used only –asintended,
– in perfect working order.
Faults which impair safety must be repaired immediately.
Intended use
The cordless lawn blower is intended
– for commercial use in industry and trade,
– for clearing hard surfaces such as driveways and walkways.
– for keeping decks and driveways free from leaves and pine needles.
Safety instructions for lawn blower
WARNING!
Read all safety warnings, instructions, illustrations and specifications provided with this machine. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference.
Safe operating practices for hand-held mains-operated electrical garden vacuums, and garden blower/vacuums with or without shredding means and garden blowers
Training
a) Read the instructions carefully. Be familiar with the controls and the correct use of the machine.
b) Never allow children or people unfamiliar with these instructions to use the machine. Local regulations can restrict the age of the operator.
c) Keep in mind, that the operator or user is responsible for accidents or hazards occurring to other people or their property.
Preparation
a) Obtain ear protection and safety glasses. Wear them at all times while operating the machine.
b) While operating the machine always wear substantial footwear and long
trousers. Do not operate the machine when barefoot or wearing open sandals. Avoid wearing clothing that is loose fitting or that has hanging cords or ties.
c) Do not wear loose clothing or jewellery that can be drawn into the air inlet. Keep long hair away from the air inlets.
d) Operate the machine in a recommended position and only on a firm, level surface.
e) Do not operate the machine on a paved or gravel surface where ejected material could cause injury.
f) Before using, always visually inspect to see, that the shredding means, shredding means bolts and other fasteners are secure, the housing is undamaged and that guards and screens are in place. Replace worn or damaged components in sets to preserve balance. Replace damaged or unreadable labels.
g) Never operate the machine while people, especially children, or pets are nearby.
Operation
a) Before starting the machine, make certain that the feeding chamber is empty.
b) Keep your face and body away from the feed intake opening.
c) Do not allow hands or any other part of the body or clothing inside the feeding chamber, discharge chute, or near any moving part.
d) Keep proper balance and footing at all times. Do not overreach. Never stand at a higher level than the base of the machine when feeding material into it.
e) Always stand clear of the discharge zone when operating this machine.
f) When feeding material into the machine be extremely careful that pieces of metal, rocks, bottles, cans or other foreign objects are not included.
g) If the cutting mechanism strikes any foreign objects or if the machine should start making any unusual noise or vibration, immediately shut off the power source and allow the machine to stop. Disconnect the machine from the supply and take the following steps before restarting and operating the machine:
i) inspect for damage;
ii) replace or repair any damaged parts;
iii) check for and tighten any loose parts.
h) Do not allow processed material to build up in the discharge zone; this may prevent proper discharge and can result in kickback of material through the intake opening.
i) If the machine becomes clogged, shut-off the power source and disconnect the machine from supply before cleaning debris.
j) Never operate the machine with defective guards or shields, or without safety devices, for example debris collector in place.
Maintenance and storage
a) When the machine is stopped for servicing, inspection, or storage, or to change an accessory, shut off the machine and make sure that all moving parts are come to a complete stop. Allow the machine to cool before making any inspections, adjustments, etc. Maintain the machine with care and keep it clean.
b) Store the machine in a dry place out of the reach of children.
c) Always allow the machine to cool before storing.
d) When servicing the shredding means be aware that, even though the machine is switched off due to the interlock feature of the guard, the shredding means can still be moved.
e) Replace worn or damaged parts for safety. Use only genuine replacement parts and accessorises.
f) Never attempt to override the interlocked feature of the guard.
Additional safety instructions for units with bagging attachments
Switch-off the machine before attaching or removing the bag.
■ Do not use the machine in bad weather conditions, especially when there is a risk of lightning. This decreases the risk of being struck by lightning.
■ Wear eye protection and ear protection. Adequate protective equipment will reduce the risk of personal injury.
■ While operating the machine, always wear non-slip and protective footwear. Do not operate the machine when barefoot or wearing open sandals. This reduces the risk of injury to the feet.
- Do not wear loose fitting clothing or articles such as scarves, strings, chains, ties, etc., that could get drawn into the air inlets. Tie back or cover long hair to make sure it does not get drawn into the air inlets. If any of these items are drawn into the air inlets, it can increase the risk of personal injury.
- Keep bystanders away while operating the machine. Thrown debris can increase the risk of personal injury.
■ Never point the blower nozzle in the direction of people or pets or in the direction of windows. Use extra caution when blowing debris near solid objects, such as trees, automobiles and walls that can cause debris to ricochet. Thrown objects can damage property and increase the risk of personal injury.
■ Do not use the machine to blow anything that is burning or smoking, such as cigarettes, matches or hot ashes. These ignition sources may increase the risk of fire.
■ Do not touch the fan while still in motion. Turn off the machine and wait until the fan stops before removing any part that may give access to the fan. This reduces the risk of injury from moving parts.
■ When clearing jammed material or servicing the machine, make sure the power switch is off. Unexpected starting of the machine while clearing jammed material or servicing may result in serious personal injury.
Noise and vibration
The noise and vibration values have been determined in accordance with EN50636-2-100.
The A evaluated noise level of the machine is typically:
- Sound pressure level L_pA : 80.2 dB(A);
- Sound power level L_WA : 100 dB(A);
- Uncertainty: K = 2.36 dB.
Total vibration value:
- Emission value a_h : <2.5 m/s ^2 - Uncertainty: K = 1.5 m/s
WARNING
The indicated measurements refer to new machines. Daily use causes the noise and vibration values to change.
NOTE
The declared vibration total value(s) and the declared noise emission level given in this information sheet has been measured in accordance with a measurement method standardized in EN 60335-1 and may be used to compare one machine with another.
It may be used for a preliminary assessment of exposure. The specified vibration emission level represents the main applications of the machine.
However, if the machine is used for different applications, with different cutting accessories or poorly maintained, the vibration emission level may differ.
This may significantly increase the exposure level over the total working period.
To make an accurate estimation of the vibration exposure level, it is also necessary to take into account the times when the tool is switched off or running but not actually in use.
This may significantly decrease the exposure level over the total working period.
Identify additional safety measures to protect the operator from the effects of vibration such as: maintain the machine and the cutting accessories, keep the hands warm, organization of work patterns.
WARNING!
The vibration and noise emissions during actual use of the machine can differ from the declared value in which the machine is used;
In order to protect the operator, user should wear gloves and ear protectors in the actual conditions of use.
CAUTION!
Wear ear defenders at a sound pressure above 85 dB(A).
Technical data
| Tool GBL 790 18-EC | |||
| Type Lawn Blower | |||
| Rated voltage Vdc 18 | |||
| Air volume m | ^3/h | 790 | |
| Air speed km/h 151 | |||
| Weight according to“EPTA Procedure 01/2003” (without battery) | kg 1.8 | ||
| Battery 18V | AP 18.0/2.5AP 18.0/5.0AP 18.0/8.0 | ||
| Weight of battery kg | AP 18.0/2.5AP 18.0/5.0AP 18.0/8.0 | 0.40.71.1 | |
| Working temperature | -10~40°C | ||
| Storage temperature | < 50°C | ||
| Charging temperature | 4-40°C | ||
| Charger | CA 10.8/18.0,CA 18.0-LD | ||
Overview (see figure A)
The numbering of the product features refers to the illustration of the machine on the graphics page.
- Blower tube
- Turbo switch
- Variable-speed trigger switch
- Hook hole
- Release button
- Handle
Operating instructions
WARNING!
Remove the battery before carrying out any work on the machine.
Before switching on the machine
Unpack the cordless lawn blower and check that here are no missing or damaged parts.
NOTE
The batteries are not fully charged on delivery. Prior to initial operation, charge the batteries fully. Refer to the charger operating manual.

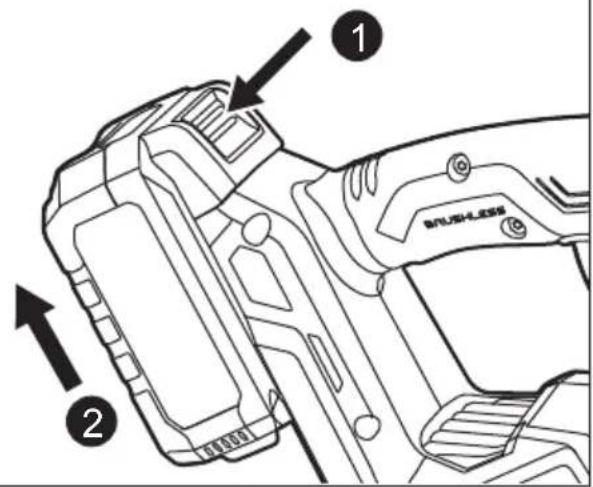

Inserting/replacing the battery
■ Press the charged battery into the machine until it clicks into place (see figure B).
■ To remove, press the release button (1.) and pull out the battery(2.) (see figure C).
CAUTION!
When the device is not in use, protect the battery contacts. Loose metal parts may short circuit the contacts; explosion and fire hazard!

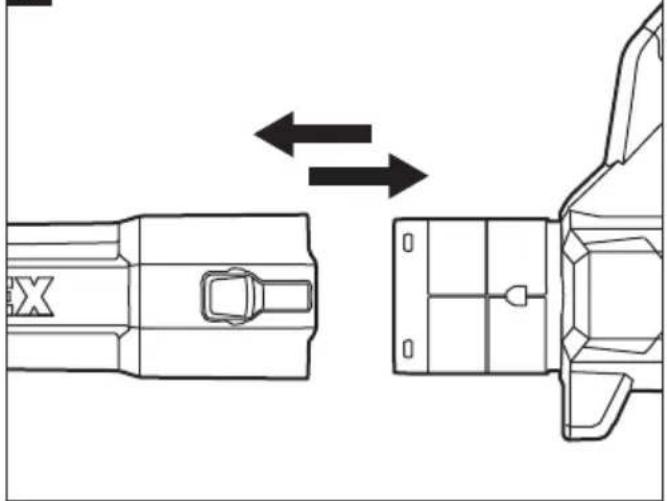

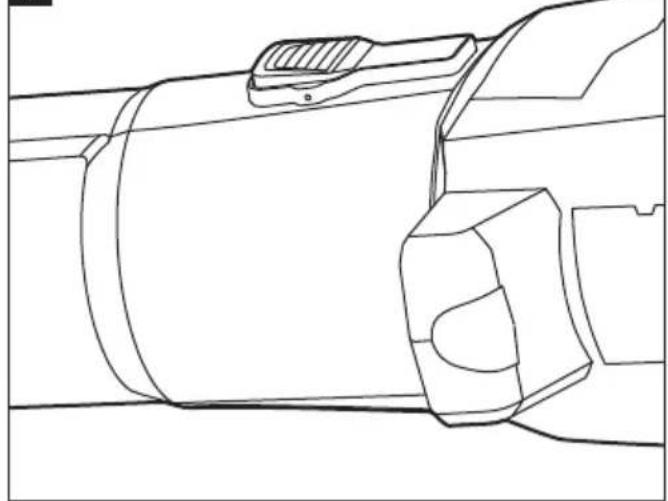

Installing and removing the blower tube (see figure D)
WARNING!
The tube requires assembly before using.
WARNING!
To prevent accidental starting that could cause serious personal injury, always remove the battery pack from the machine when assembling parts.
■ To install the blower tube, align the release button (5) with the protrusion on the blower housing.
■ Push the blower tube (1) onto the blower housing until a click is heard to signal that the protrusion locked into place.
■ To remove the blower tube, press the release button (5) and pull off the blower tube (1) straight from the blower.
Hook hole(see figure E)
The blower is equipped with a hook hole (4). The blower can be hung on a hook with the hole.

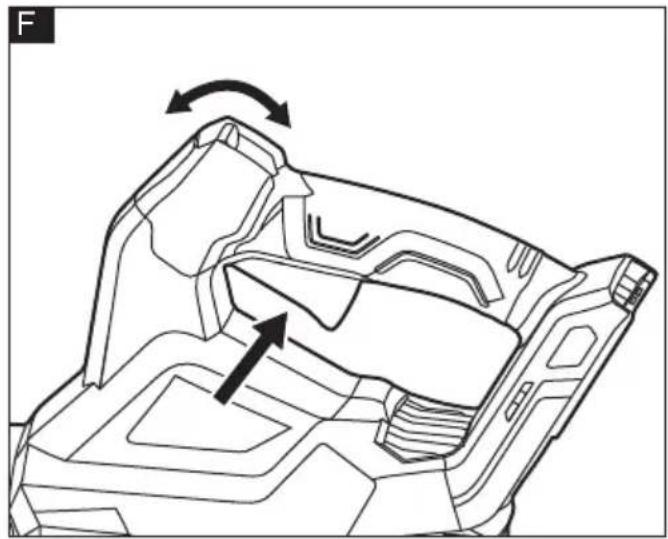

Starting and stopping the blower(see figure F)
The variable-speed trigger switch (3) can turn the blower ON/OFF and deliver variable speed. The blower is also equipped with a turbo switch (2) to turn the blower ON/OFF and lock the blower at a speed.
To turn the blower on
■ Install the battery and depress the variable-speed trigger switch (3).
■ The variable-speed trigger switch (3)
delivers higher speed with increased trigger pressure and lower speed with decreased trigger pressure.
■ To lock the blower on a chosen speed, move the turbo switch (2) toward the back of the tool. The blower can be locked on any of three speed settings.
■ The turbo switch can also be pulled back to start the blower without first depressing the variable-speed trigger switch. The blower runs at progressively higher speeds as the turbo switch is moved further back.
To turn the blower off
■ If the turbo switch is not engaged, release the variable-speed trigger switch to turn the blower off.
■ If the turbo switch is engaged, move the turbo switch to original position to turn the blower off.
Operating the blower
WARNING!
Always wear eye protection with side shields, along with hearing protection. Failure to do so could result in objects being thrown into your eyes and other possible serious injuries.
WARNING!
Do not use any attachments or accessories not recommended by the manufacturer of this product. The use of attachments or accessories that are not recommended in this manual can result in serious personal injury.
Before each use, inspect the entire product for damaged, missing, or loose parts, such as screws, nuts, bolts, caps, etc. Tighten securely all fasteners and caps and do not operate this product until all missing or damaged parts are replaced.
■ To keep from scattering debris, blow around the outer edges of a debris pile. Never blow directly into the center of a pile.
■ To reduce sound levels, limit the number of pieces of equipment used at any one time.
■ Use rakes and brooms to loosen debris before blowing. In dusty conditions, slightly dampen surfaces if water is available.
■ Watch out for children, pets, open windows, or freshly washed cars, and blow debris safely away.
■ After using blowers or other equipment, clean up! Dispose of debris properly.
Maintenance and care
WARNING!
Remove the battery before carrying out any work on the machine.
Cleaning
■ Clean the machine and grille in front of the vent slots regularly. Frequency of cleaning is dependent on the material and duration of use.
■ Regularly blow out the housing interior and motor with dry compressed air.
Spare parts and accessories
For other accessories, see the manufacturer's catalogues.
Exploded drawings and spare-part lists can be found on our homepage:
www.flex-tools.com
The instruction can also be available on www.flex-tools.com.
Disposal information
WARNING!
Render redundant machines unusable:
- battery operated machine by removing the battery.
EU countries only Do not throw electric machines into the household waste!
In accordance with the European Directive 2012/19/EU on Waste Electrical and Electronic Equipment and transposition into national law used electric machines must be collected separately and recycled in an environmentally friendly manner.
Raw material recovery instead of waste disposal.
Device, accessories and packaging should be recycled in an environmentally friendly manner. Plastic parts are identified for recycling according to material type.
WARNING!
Do not throw batteries into the household waste, fire or water. Do not open used batteries.
EU countries only:
In accordance with Directive 2006/66/EC defective or used batteries must be recycled.
NOTE
Please ask your dealer about disposal options!
CE-Declaration of conformity
We declare on our sole responsibility that the product described in "Technical specifications" conforms to the following standards or normative documents: EN 60335-1 in accordance with the regulations of the directives 2014/30/EU, 2014/35/EC, 2011/65/EU, 2006/42/EC. Responsible for technical documents: FLEX-Elektrowerkzeuge GmbH, R & D Bahnhofstrasse 15, D-71711 Steinheim/Murr
