Product type	Cordless rotary hammer
Brand	Flex
Model	CHE 18.0-EC
Nominal voltage	18 V
Battery type	Li-ion 18 V (capacity 2.5 Ah or 5.0 Ah)
No-load speed	0 – 1400 rpm
No-load impact rate	0 – 4500 bpm
Max. impact energy (EPTA 05/2009)	1.7 J
Tool holder	SDS-plus
Max. drilling diameter – Concrete	18 mm
Max. drilling diameter – Wood	20 mm
Max. drilling diameter – Metal	13 mm
Weight (without battery)	2.0 kg (according to EPTA 01/2003)
Battery weight 2.5 Ah	0.42 kg
Battery weight 5.0 Ah	0.72 kg
Sound pressure level	91 dB(A)
Sound power level	102 dB(A)
Vibration (hammer drilling mode)	12.6 m/s² (K = 1.5 m/s²)
Vibration (chiseling mode)	12.0 m/s² (K = 1.5 m/s²)
Working modes	Drilling, hammer drilling, chiseling, chisel position adjustment
Additional functions	LED lighting, variable speed, reversible rotation, depth stop, adjustable auxiliary handle
Maintenance	Clean ventilation slots regularly with compressed air; replace dust cap if damaged
Repairability	Repairs by authorized service center; spare parts at www.flex-tools.com
Safety	Insulated handle, auxiliary handle mandatory, dust protection, rotation stop in center position
Compliance	CE, directives 2014/30/EU, 2006/42/EC, 2011/65/EU

Frequently Asked Questions - CHE 18.0-EC Flex

How to change the battery?

To remove the battery, press the release buttons on both sides and pull the battery backwards. To insert, slide it into the compartment until it clicks.Make sure the battery is locked before using the tool.

How to adjust the drilling depth?

Use the depth stop on the auxiliary handle. Press the clamping lever, insert the stop, adjust to the desired depth, then release the lever. Always push the SDS-plus tool to the rear stop for precise adjustment.

What type of drill bits to use?

Use SDS-plus shank drill bits for hard materials like concrete. For wood or metal, mount a three-jaw chuck with the original Flex adapter. Do not use hammer mode with a three-jaw chuck.

How to change the direction of rotation?

The tool must be at a standstill. Slide the rotation direction selector to the desired position: left for counterclockwise (screwing out), right for clockwise (drilling/screwing), or center for lock (tool change).

How to use hammer drilling mode?

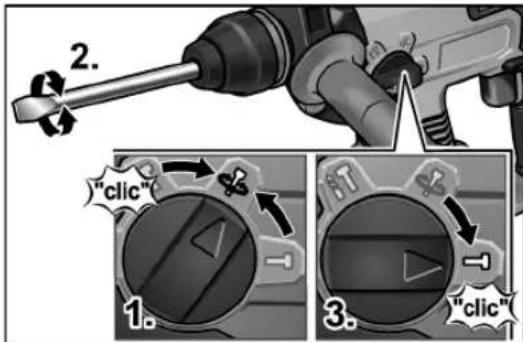

Turn the working mode selector to the hammer drilling symbol (a hammer). Wait for an audible click. Always use the auxiliary handle and wear ear protection.

How to clean the drill?

Remove the battery. Clean the ventilation slots and housing with dry compressed air or a cloth. Do not use water. Check the dust cap and replace it if damaged.

What to do if the drill does not start?

Check that the battery is charged and properly inserted. Make sure the rotation direction selector is not in the center (lock) position. If the problem persists, contact an authorized Flex service center.

How to mount a three-jaw chuck?

Screw the three-jaw chuck onto the original Flex adapter. Insert the adapter into the SDS-plus holder and turn until it locks. Do not use hammer mode with this setup.

Which accessories are recommended?

Use original Flex accessories: AP 18.0 batteries, suitable chargers, SDS-plus drill bits, chisels, three-jaw chuck with adapter. Consult the Flex catalog for more options.

How to recycle the used battery?

Do not dispose of the battery with household waste. In accordance with directive 2006/66/EC, return it to a collection point or to your specialized dealer for environmentally friendly recycling.

USER MANUAL CHE 18.0-EC Flex

Illustration of a handheld drill bit with adjustable grip and base (no text or symbols)

de Originalbetriebsanleitung 3
en Original operating instructions 12
fr Notice d'instructions d'origine 21
it Istruzioni per l'uso originali 31
es Instrucciones de funcionamiento originales ..... 41
pt Instruções de serviço originais 51
nl Originele gebruiksaanwijzing 61
da Originale driftsvejledning 71
no Originale driftsanvisningen 80
sv Originalbruksanvisning 89
fi Alkuperäinen käyttöohjekirja 98
el Auθεντικές οδηγίες χειρισμού 107
pl Instrukcja oryginalna 117
hu Eredeti üzemeltetési útmutató 127
cs Originální návod k obsluze 137
sk Originálny návod na obsluhu 146
et Originaalkasutusjuhend 155
It Originali naudojimo instrukcija 164
Iv Lietošanas pamācības oriģināls 173
ru Оригинальная инструкция по эксплуатации .....182

CHE 18.0-EC

de

Inhalt

Vertical sequence of black circular icons showing human, safety, helmet, and gear symbols (no text or labels)

Vor Inbetriebnahme

VORSICHT!

Illustration showing a tube being inserted into a wire with a cap, and a pencil tip being inserted (no text or symbols)

Mechanical assembly diagram showing two symmetrical components with directional arrows and circular symbols (no text or labels)

Close-up of a mechanical device with directional arrows and control buttons (no readable text or symbols)

Hand using a handheld power tool to adjust or install a device (no text or symbols visible)

Manager Research & Development (R & D)

Klaus Peter Weinper Head of Quality Department (QD)

Symbols used in this manual ..... 12

Technical data 12

Overview 13

Important safety information ..... 14

Noise and vibration 15

Instructions for use 16

Maintenance and care 20

Disposal information 20

C ∈ conformity 20

Exemption from liability 20

Symbols used in this manual

WARNING!

Denotes impending danger. Non-observance of this warning may result in death or extremely severe injuries.

CAUTION!

Denotes a potentially dangerous situation. Non-observance of this warning may result in injury or damage to property.

NOTE!

Denotes application tips and important information.

Symbols on the power tool

Before switching on the power tool, read the operating manual!

Wear protective goggles!

Wear ear defenders!

Use lightweight breathing protection!

Disposal information for the old machine (see page 20)!

Technical data

Rechargeable hammer drill	CHE 18.0-EC
Nominal voltage V 18
Battery AP 18.0 (2.5 Ah)	AP 18.0 (5.0 Ah)
No-load speed rpm 0–14	00
No-load impact rate bpm	0–4500
Max. single impact energy (according to “EPTA procedure 05/2009”)	J	1.7
Lubrication Grease
Tool holder SDS-plus
Max. drill diameter – concrete – wood – metal	mm mm mm	18 20 13
Weight according to “EPTA Procedure 01/2003” (without battery)	kg	2.0
Weight of battery 2.5 Ah 5.0 Ah	kg kg	0.42 0.72

CHE 18.0-EC

en

Overview

1 Dust cap
2 Locking sleeve
3 Depth stop
4 Rotary knob for operating mode
5 Trigger switch

For switching on and off and for accelerating up to maximum speed/impact rate.

6 Direction preselector switch

7 Handle

8 Auxiliary handle
9 Slot for battery
10 LED lighting

For illuminating the working area.

11 Rating plate *
12 Li-ion battery (2.5 Ah or 5.0 Ah)
13 State of charge indicator
14 Release button for battery

* (not visible)

en

CHE 18.0-EC

Important safety information

WARNING!

Read all safety instructions and general instructions. Failure to comply with the safety instructions and general instructions may result in electric shock, fire and/or serious injuries. Keep all safety instructions and general instructions in a safe place for future reference.

Before using the power tool, please read the following and act accordingly:

– these operating instructions,
- the "General safety instructions" on the handling of power tools in the enclosed booklet (leaflet no.: 315.915),
– the currently valid site rules and the regulations for the prevention of accidents.

This power tool is state of the art and has been constructed in accordance with the acknowledged safety regulations.

Nevertheless, when in use, the power tool may be a danger to life and limb of the user or a third party, or the power tool or other property may be damaged. The power tool may be operated only if it is

• for its intended use,
• in perfect working order.

Faults which compromise safety must be repaired immediately.

Intended use

The rechargeable hammer drill CHE 18.0-EC is designed

– for commercial use in industry and trade,
– for hammer drilling in masonry and concrete for wall plug and anchor attachments and through-holes,
– for light trimming work to remove plaster and tiles,
- to be used with suitable tools recommended by the manufacturer for this power tool.

Safety instructions for hammers

■ Wear ear defenders. The effect of noise may result in loss of hearing.
■ Use auxiliary handles supplied with the power tool. The loss of control may result in injuries.
- Hold the power tool by the insulated gripping surfaces when performing an operation where the cutting accessory may contact hidden wiring or its own cord. Cutting accessory contacting a "live" wire may make exposed metal parts of the power tool "live" and shock the operator.
■ Do not open the battery. Short-circuiting hazard!
■ Protect the battery against heat, including prolonged sunshine, fire, water and moisture. Explosion hazard!
A damaged or incorrectly used battery may result in the emission of fumes. Ensure a supply of fresh air and consult a doctor in the event of any physical complications. The fumes may irritate the respiratory tracts.

Additional safety instructions

■ Use suitable detectors to detect concealed power supply cables or consult your local supply company. Contact with electric cables may result in a fire and/or electric shock. A damaged gas pipe may cause an explosion. Cutting into a water pipe will cause damage to property or may cause an electric shock.

■ When working, hold the power tool firmly with both hands and ensure that you have a secure footing. The power tool is controlled more securely if held with both hands.

■ Secure the workpiece. A workpiece is held more securely in a clamping device than by hand.

■ Only use tools with SDS-plus tool holder. Pull on the tool to check that it is locked properly.

■ Have a damaged dust cap replaced immediately. The dust cap prevents the ingress of dust into the tool holder.

CHE 18.0-EC

en

■ Dust released from materials, such as lead paints, some types of wood, minerals and metal, may be hazardous to the operator or people in the vicinity. Inhaling or touching such dust may result in respiratory diseases and/or allergic reactions.

• Ensure the workplace is well ventilated.
• If possible, use external dust extraction.
• It is recommended to wear a respirator mask belonging to filter class P2.

■ Do not work on materials which release hazardous substances (e.g. asbestos).
■ Use only original batteries with the voltage indicated on the type plate of your power tool. The use of other batteries, e.g. imitations, reconditioned batteries or other makes, increases the risk of injury and damage to property by exploding batteries.
■ Recharge batteries only with chargers recommended by the manufacturer. A charger that is suitable for one type of battery may create a fire hazard when used with another battery.
■ The battery may be damaged by pointed objects such as e.g. nails or screwdrivers or by external application of force. This may give rise to an internal short circuit, causing the battery to burn, smoke, explode or overheat.
■ Before carrying out any work on the power tool, move the direction preselector switch to the middle position.
■ Operate the direction preselector switch or torque setting turning dial only when the tool is stopped.
■ Identify the power tool with stickers only. Do not drill any holes into the housing.

Noise and vibration

The noise and vibration values have been determined in accordance with EN 60745.

The A-weighted noise level of the power tool is typically:

• Sound pressure level: 91 dB(A);
• Sound power level: 102 dB(A);
• Uncertainty K: 3 dB.
  Total vibration value:

• when hammer drilling:

• Emission value a_h : 16 m/s
  – Uncertainty K: 1.5 m/s ^2

- when chiselling:

– Emission value a_h : 10 m/s 2
– Uncertainty K: 1.5 m/s ^2

ATTENTION!

The indicated measurements refer to new power tools. Daily use causes the noise and vibration values to change.

i NOTE!

The vibration emission level given in this information sheet has been measured in accordance with a standardised test given in EN 60745 and may be used to compare one tool with another. It may be used for a preliminary assessment of exposure. The declared vibration emission level represents the main applications of the tool. However if the tool is used for different applications, with different accessories or poorly maintained, the vibration emission may differ. This may significantly increase the exposure level over the total working period. To make an accurate estimation of the vibration exposure level, it is also necessary to take into account the times when the tool is switched off or running but not actually in use. This may significantly decrease the exposure level over the total working period. Identify additional safety measures to protect the operator from the effects of vibration such as: maintain the tool and the accessories, keep the hands warm, organisation of work patterns.

CAUTION!

Wear ear defenders at a sound pressure above 85 dB(A).

en

CHE 18.0-EC

Instructions for use

Before switching on the power tool

Unpack the power tool and accessories and check that no parts are missing or damaged.

NOTE

The batteries are not fully charged on delivery. Prior to initial operation, charge the batteries fully. Refer to the charger operating manual.

Inserting/replacing the battery

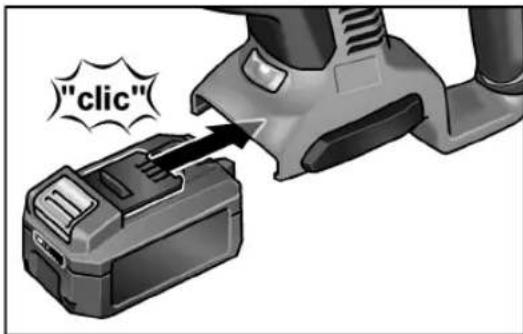

■ Press the charged battery into the power tool until it clicks into place.

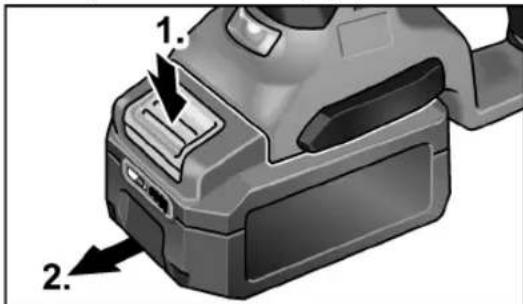

■ To remove, press the release button (1.) and pull out the battery (2.).

CAUTION!

When the device is not in use, protect the battery contacts. Loose metal parts may short-circuit the contacts; explosion and fire hazard!

Battery state of charge

■ Press the button to check the state of charge at the state of charge indicator LEDs.

If one of the LEDs flashes, the battery must be recharged. If none of the LEDs light up after the button is pressed, the battery is faulty and must be replaced.

The indicator goes out after 5 seconds.

NOTE

Follow the instructions for charging the battery set out in the charger operating manual.

Adjusting the auxiliary handle

WARNING!

Remove the battery before carrying out any work on the power tool.

CAUTION!

Use the power tool with the attached auxiliary handle only.

The auxiliary handle can be swivelled into any position to ensure safe and fatigue-free working.

NOTE!

With the depth stop attached, the pivot range of the auxiliary handle is restricted.

■ Release the clamping by turning the auxiliary handle counterclockwise (1.).

CHE 18.0-EC

en

■ Swivel the auxiliary handle into the desired position (2.).
■ Secure the adjustment by turning the auxiliary handle clockwise.

Attaching the depth stop

WARNING!

Remove the battery before carrying out any work on the power tool.
■ Press and hold clamping lever on auxiliary handle in upper area (1.).

■ Push in the depth stop (2.).
■ Set depth stop to the required drilling depth.
■ Release clamping lever.

NOTE!

Push tool with SDS-plus shank in the SDS-plus tool holder as far as the back position. The movement of the tool could otherwise result in an incorrect drilling depth setting.

Inserting tools with SDS-plus shank

WARNING!

Remove the battery before carrying out any work on the power tool.

CAUTION!

Used cutting accessories may become hot. Wear protective gloves!

NOTE!

Tools used must have an SDS-plus shank. If tools do not have an SDS-plus shank (e.g. wood drill bit), a three-jaw chuck must be used (see "Fitting the three-jaw chuck").

■ Check the dust cap.
– Clean the cap if dirty.
- Have a defective dust cap replaced.
■ Clean tools and lightly grease the shank.

Illustration of a tool applying paint to a screwdriver, showing a drop and a tube (no text or symbols)

■ Insert the cutting accessory (1.) and turn (2.) until it locks.

■ Check lock by pulling on the cutting accessory.

en

CHE 18.0-EC

Removing the accessories

WARNING!

Remove the battery before carrying out any work on the power tool.

CAUTION!

Used cutting accessories may become hot. Wear protective gloves!

■ Pull the locking sleeve backwards (1.).
■ Remove the cutting accessory (2.).

Fitting the three-jaw chuck

NOTE!

To fit a three-jaw chuck you will need the original adapter from the FLEX accessories range.
■ Screw the three-jaw chuck onto the adapter (1.).

■ Insert the adapter (2.) and turn (3.) until it locks.
■ Check the lock by pulling on the three-jaw chuck.

CAUTION!

With the three-jaw chuck fitted, never use chiselling mode ⚠ or hammer drill mode ⚡! The tool and three-jaw chuck could become damaged.

Direction preselection

CAUTION!

Change the direction of rotation only when the power tool is stopped.

Mechanical component diagram showing symmetrical parts with arrows indicating motion or force direction (no text or symbols)

■ Move the direction preselector switch to the required position:

• Left: counterclockwise (remove screws, release screws)
• Right: clockwise (drill, insert screws, tighten down screws)
• Middle: switch-on interlock (tool change, when working on the power tool)

Setting the operating mode

CAUTION!

Do not change the operating mode until the power tool has come to a stop.

■ Setting rotary knob to the required operating mode:

Drilling

Hammer drilling

Setting the chisel position (see below)

Chiselling

CHE 18.0-EC

en

NOTE!

• The rotary knob must audibly click into place in all positions.
• Do not switch on the power tool in the position (setting the chisel position).

Setting the chisel position

The chisel can be turned to a position which is ideal for the work to be performed.

■ Move the operating mode rotary knob to the symbol (1.).
■ Turn the chisel until it is at the required angle (2.).

■ Move the operating mode rotary knob to the symbol (3.). Make sure it audibly clicks into place.

Switching on the power tool

Close-up of a mechanical device with directional arrows and control buttons (no readable text or symbols)

■ Press and hold down the trigger switch. The power tool trigger switch enables the speed or impact rate to be increased slowly to the maximum value.

The LED illuminates the working area when the power tool is switched on.

To switch off the machine:

■ Release the trigger switch.

Operating instructions

Drilling/hammer drilling

1. Move the operating mode rotary knob to the (drilling) or (hammer drilling) symbol. Make sure it audibly clicks into place.
2. Insert the drill bit.
3. Swivel the auxiliary handle into the required position.
4. Insert the battery.
5. Grip the power tool with both hands and assume the working position.

Hand using a power drill to adjust or install a mechanical component (no text or symbols visible)

1. Position the drill bit and switch on the power tool.
2. Gently press the power tool forwards.
3. After drilling, switch off the power tool.

Chiselling

1. Insert the chisel.
2. Move the operating mode rotary knob to the symbol.
3. Turn the chisel into the required position.
4. Move the operating mode rotary knob to the symbol. Make sure it audibly clicks into place.
5. Swivel the auxiliary handle into the required position.
6. Insert the battery.
7. Grip the power tool with both hands and assume the working position.
8. Switch on the power tool.
9. When chiselling, gently press the power tool forwards to prevent it from jumping.
10. After working, switch off the power tool.

Other information

• The use of "sharp" cutting accessories increases performance and the service life of the power tool.
• After work, clean the power tool and store in the carrying case in a dry location.

en

CHE 18.0-EC

Maintenance and care

WARNING!

Remove the battery before carrying out any work on the power tool.

Cleaning

Regularly clean the power tool and ventilation slots. Frequency of cleaning is dependent on the material and duration of use. Regularly blow out the housing interior and motor with dry compressed air.

Repairs

Repairs may be carried out by an authorised customer service centre only.

Spare parts and accessories

Other accessories, in particular cutting accessories, can be found in the manufacturer's catalogues.

Exploded drawings and spare-part lists can be found on our homepage:

www.flex-tools.com

Disposal information

WARNING!

Render disused power tools unusable by removing the power cord.

EU countries only.

Do not dispose of electric power tools in the household waste!

In accordance with the European Directive 2012/19/EC on Waste Electrical and Electronic Equipment and its incorporation into national law, used power tools must be collected separately and recycled in an environmentally friendly manner.

Raw material recovery instead of waste disposal.

Device, accessories and packaging should be recycled in an environmentally friendly manner. Plastic parts are identified for recycling according to material type.

WARNING!

Do not throw batteries into the household waste, fire or water. Do not open used batteries.

EU countries only:

In accordance with Directive 2006/66/EC defective or used batteries must be recycled.

NOTE!

Please ask your dealer about disposal options.

CE conformity

We declare on our sole responsibility that the product described in "Technical specifications" conforms to the following standards or normative documents:

EN 60745 according to the provisions of Directives 2004/108/EC (up to 19.04.2016), 2014/30/EU (from 20.04.2016), 2006/42/EC, 2011/65/EC.

Responsible for technical documents:

Exemption from liability

The manufacturer and his representative are not liable for any damage and lost profits due to interruption in business caused by the product or by an unusable product.

The manufacturer and his representative are not liable for any damage which was caused by improper use of the power tool or by use of the power tool with products from other manufacturers.

Table des matières

PRUDENCE!

Illustration of a toothbrush applying a toothpaste with a cap, showing a downward arrow (no text or symbols)

Mechanical assembly diagram showing two symmetrical components with directional arrows and circular symbols (no text or labels)

Close-up of a mechanical device with directional arrows and control buttons (no readable text or symbols)

Illustration of hands using a handheld power tool to adjust or install a cylindrical device (no text or symbols visible)

PRUDENZA!

Illustration of a toothbrush applying a toothpaste with a cap, showing a downward arrow (no text or symbols)

Mechanical assembly diagram showing two symmetrical components with curved arrows indicating motion or force directions (no text or symbols)

Close-up of a mechanical device with a directional arrow and circular icon (no readable text or symbols)

Illustration of hands using a handheld power tool to adjust or install a device (no text or symbols visible)

PRECAUCIÓN

Illustration of a toothbrush applying a toothpaste to a tube, with a downward arrow indicating the process (no text or symbols present)

Mechanical assembly diagram showing two symmetrical components with curved arrows indicating motion or force directions (no text or symbols)

Close-up of a mechanical device with directional arrows and control buttons (no readable text or symbols)

Illustration of hands using a handheld power tool to adjust or install a device (no text or symbols visible)

Manager Research & Development (R & D)

Klaus Peter Weinper

Head of Quality Department (QD)

30.09.2015

ATENÇÃO!

Illustration of a tooth being inserted into a tube with a cap, showing a downward arrow (no text or symbols)

Desmontar as ferramentas

AVISO!

Mechanical assembly diagram showing two symmetrical components with directional arrows and circular symbols (no text or labels)

Close-up of a mechanical device with directional arrows and a circular icon (no readable text or symbols)

Illustration of hands using a handheld power tool to adjust or install a device (no text or symbols visible)

2004/108/CE (até 19/04/2016),

2014/30/UE (a partir de 20/04/2016), 2006/42/CE, 2011/65/CE.

VOORZICHTIG!

Illustration of a toothbrush applying a toothpaste to a tube, with a downward arrow indicating the process (no text or symbols present)

Mechanical assembly diagram showing two symmetrical components with curved arrows indicating motion or force directions (no text or symbols)

Close-up of a mechanical device with directional arrows and a circular icon (no readable text or symbols)

Illustration of hands using a handheld power tool to adjust or install a cylindrical device (no text or symbols visible)

Manager Research & Development (R & D)

Klaus Peter Weinper Head of Quality Department (QD)

30-09-2015

• Indstil dybdestoppet i ønsket boredybde.
  ■ Slip klemarmen.

BEMAERK!

Illustration showing a tool applying a toothed pencil to a tube, with a downward arrow indicating the process (no text or symbols present)

Mechanical assembly diagram showing two symmetrical components with internal features and directional arrows (no text or labels)

Close-up of a mechanical device with directional arrows and control buttons (no readable text or symbols)

Person using a handheld power tool to adjust or install a device (no visible text or symbols)

- under hammerboring:

- Emisjonsverdi a_h : 16 m/s

- Usikkerhet K: 1,5 m/s ^2

- under meisling:

- Emisjonsverdi a_h : 10 m/s

- Usikkerhet K: 1,5 m/s

OBS!

FORSIKTIG!

■ Dybdeanslaget innstilles på den ønskede boredybden.
■ Slipp klemmen.

i HENVISNING!

Illustration showing a tool applying paint to a cable, with a pencil and inkwell being removed (no text or symbols)

Mechanical component diagram showing symmetrical parts with arrows indicating movement or force (no text or symbols)

Dreieknappen for arbeidsmodus settes på symbolet (3.). Hør at den går i lås!

Close-up of a mechanical device with directional arrows and control buttons (no readable text or symbols)

Hand using a drill bit to adjust a mechanical component (no text or symbols visible)

Klaus Peter Weinper Head of Quality Department (QD)

30.09.2015

VAR FÖRSIKTIG!

Illustration of a toothbrush applying a toothpaste to a cap, with a downward arrow indicating the process (no text or symbols present)

Mechanical assembly diagram showing two symmetrical components with internal features and directional arrows (no text or labels)

Close-up of a mechanical device with a circular icon and directional arrow, no visible text or symbols

Illustration of hands using a handheld power tool to adjust or install a device (no text or symbols visible)

Klaus Peter Weinper Head of Quality Department (QD)

30.09.2015

Illustration of a tool applying paint to a cylindrical tube, with a black arrow indicating the process (no text or symbols present)

Mechanical assembly diagram showing two symmetrical components with directional arrows and circular symbols (no text or labels)

Close-up of a mechanical device with directional arrows and control buttons (no readable text or symbols)

Hand using a handheld power tool to adjust or install a component (no text or symbols visible)

ΠΡΟΣΟΧΗ!

Illustration of a toothbrush applying a toothpaste with a cap, showing a downward arrow (no text or symbols)

Mechanical assembly diagram showing two symmetrical components with directional arrows and circular symbols (no text or labels)

Close-up of a mechanical component with directional arrows and a circular icon (no readable text or symbols)

Close-up of hands using a handheld power tool to adjust or install a cylindrical component (no text or symbols visible)

Klaus Peter Weinper Head of Quality Department (QD)

Illustration of a tool applying a toothpaste to a screwdriver, showing the tip and cap (no text or symbols)

Diagram of a robotic hand holding a tool, showing mechanical components and directional arrows (no text or labels)

Close-up of a mechanical device with a circular icon and directional arrow (no readable text or symbols)

Manager Research & Development (R & D)

Klaus Peter Weinper

Head of Quality Department (QD)

30.09.2015

VIGYÁZAT!

Illustration of a tool applying a toothpaste to a screwdriver, showing the tip and tip of the tube (no text or symbols present)

Two identical robotic arms with curved arrows indicating motion or force application, no text or symbols present.

Close-up of a mechanical device with directional arrows and control buttons (no readable text or symbols)

Illustration of hands using a power tool to adjust or install a device (no text or symbols visible)

Manager Research & Development (R & D)

Klaus Peter Weinper

Head of Quality Department (QD)

1. 1. 30.

Illustration of a tool applying a toothed pencil to a tube, with a downward arrow indicating the process (no text or symbols present)

Mechanical assembly diagram showing two symmetrical components with directional arrows and circular symbols (no text or labels)

Close-up of a mechanical device with directional arrows and control buttons (no readable text or symbols)

Illustration of hands using a handheld power tool to adjust or install a component (no text or symbols visible)

Klaus Peter Weinper Head of Quality Department (QD)

30.09.2015

POZOR!

■ Vsuňte híbkový doraz (2.).
■ Nastavte híbkový doraz na potrebnú híbku vrtania.
■ Uvoľnite upínaciu páku.

i UPOZORNENIE!

Illustration showing a tool applying paint to a plug with a cap, and a pencil tip being inserted (no text or symbols)

Diagram of a robotic hand holding a tool, showing mechanical components and directional arrows (no text or labels)

Close-up of a camera's front panel showing adjustment knobs and a directional arrow (no text or symbols)

Hand using a power drill to adjust or install a component (no text or symbols visible)

Manager Research & Development (R & D)

Klaus Peter Weinper Head of Quality Department (QD)

ETTEVAATUST!

Illustration of a tool applying a toothed pencil to a tube, with a downward arrow indicating the process (no text or symbols present)

Mechanical assembly diagram showing two symmetrical components with directional arrows and circular symbols (no text or labels)

Close-up of a mechanical device with control buttons and a directional arrow (no readable text or symbols)

Illustration of hands using a power tool to adjust or install a component (no text or symbols visible)

Manager Research & Development (R & D)

Klaus Peter Weinper

Head of Quality

Department (QD)

30.09.2015

ATSARGIA!!

Illustration of a tool applying a toothpaste to a screwdriver, showing the tip and cap (no text or symbols)

Mechanical assembly diagram showing two symmetrical components with directional arrows and circular symbols (no text or labels)

Close-up of a mechanical device with directional arrows and control buttons (no readable text or symbols)

Hand using a handheld power drill on a mechanical device (no text or symbols visible)

Illustration showing a tool applying a toothed pencil to a tube, with a downward arrow indicating the process (no text or symbols present)

Mechanical assembly diagram showing two symmetrical components with directional arrows and circular symbols (no text or labels)

Close-up of a mechanical device with directional arrows and control buttons (no readable text or symbols)

Illustration of hands using a handheld power tool to adjust or install a component (no text or symbols visible)

Klaus Peter Weinper Head of Quality Department (QD)

30.09.2015

ВНИМАНИЕ!

Illustration showing a tool applying paint to a toothbrush, with a pencil and eraser nearby (no text or symbols)

Mechanical assembly diagram showing two symmetrical components with directional arrows and circular symbols (no text or labels)

Close-up of a mechanical device with directional arrows and control buttons (no readable text or symbols)

Hand using a handheld power tool to adjust or install a device (no text or symbols visible)

Manager Research & Development (R & D)

30.09.2015
