USER MANUAL HS730 SCHEPPACH

Rocking log sawTranslation of original instruction manual

Explanation of the symbols on the product Symbols are used in this manual to draw your attention to potential hazards. The safety symbols and the accompa- nying explanations must be fully understood. The warnings themselves will not rectify a hazard and cannot replace proper accident prevention measures. Observe all safety instructions before use! Read and understand all text in the operating instructions before start up. Wear protective gloves! Wear hearing protection! Wear eye protection! Wear non-slip footwear! The unit may only be operated by one person. Attention! Do not use the unit in wet conditions. Attention! Do not reach into the area of the saw blade! Danger of injury! Before machine repairs, cleaning and maintenance, unplug the mains plug! Keep children out of the working area! High voltage, danger of death! Do not throw old equipment away with household waste.www.scheppach.com

Removing or modifying protective or safety equipment is prohibited! The product complies with the applicable European directives. The product complies with the applicable Serbian directives.www.scheppach.com

We accept no liability for accidents or damage that occur due to a failure to observe this manual and the safety instructions.

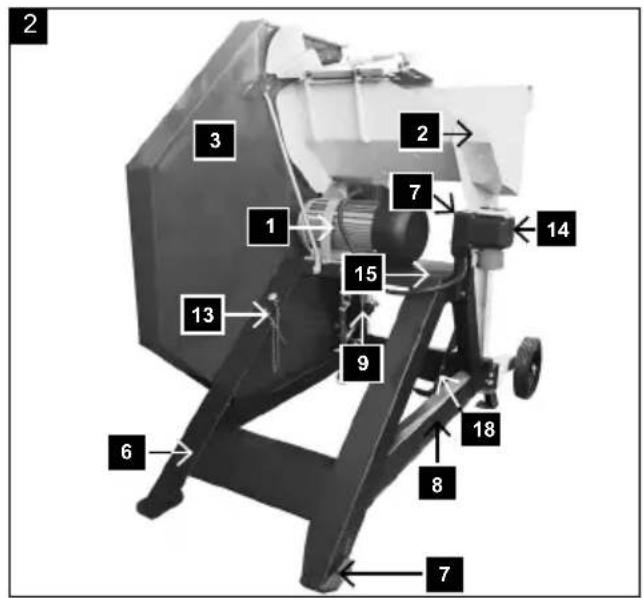

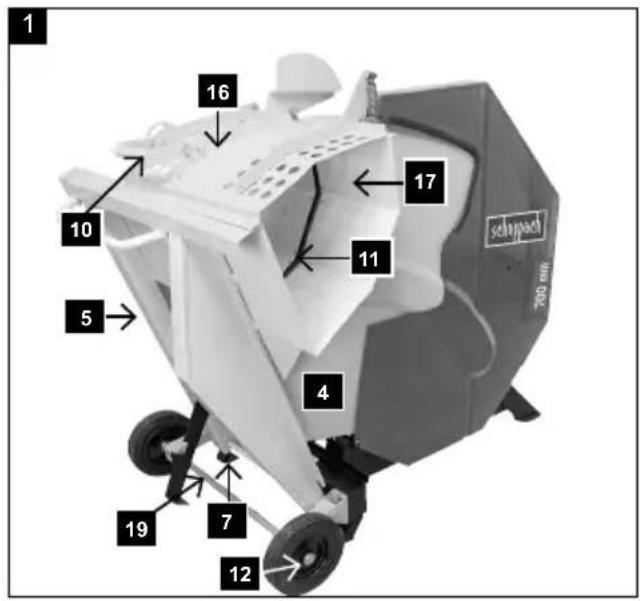

3. Saw blade cover, outer

4. Saw blade cover, inner

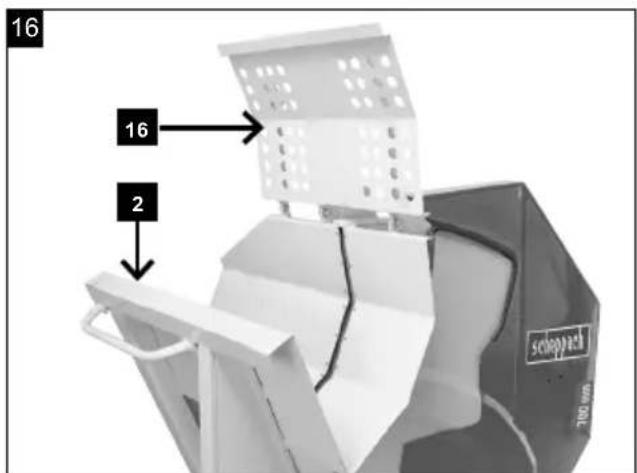

16. Protective cover

3. Scope of delivery

• Enclosed accessories bag

The product may only be used in the intended manner. Any use beyond this is improper. The user/operator, not the manufacturer, is responsible for damages or inju- ries of any type resulting from this. An element of the intended use is also the observance of the safety instructions, as well as the assembly in- structions and operating information in the operating manual. Persons who operate and maintain the product must be familiar with the manual and must be informed about potential dangers. The liability of the manufacturer and resulting damages are excluded in the event of modications of the product. The product may only be operated with original parts and original accessories from the manufacturer.

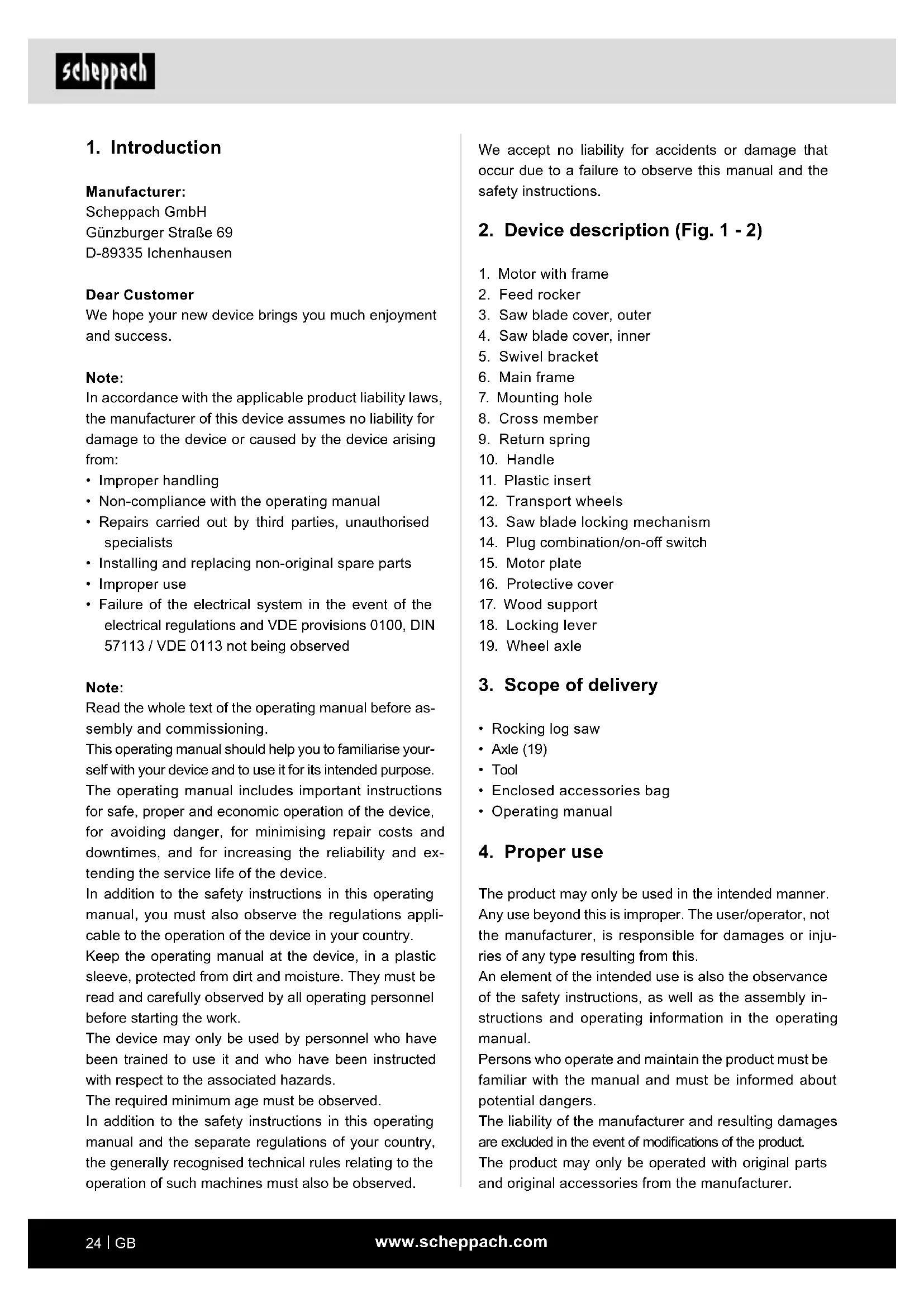

Manufacturer: Scheppach GmbH Günzburger Straße 69 D-89335 Ichenhausen Dear Customer We hope your new device brings you much enjoyment and success. Note: In accordance with the applicable product liability laws, the manufacturer of this device assumes no liability for damage to the device or caused by the device arising from:

• Non-compliance with the operating manual

• Repairs carried out by third parties, unauthorised specialists

• Installing and replacing non-original spare parts

• Failure of the electrical system in the event of the electrical regulations and VDE provisions 0100, DIN 57113 / VDE 0113 not being observed Note: Read the whole text of the operating manual before as- sembly and commissioning. This operating manual should help you to familiarise your- self with your device and to use it for its intended purpose. The operating manual includes important instructions for safe, proper and economic operation of the device, for avoiding danger, for minimising repair costs and downtimes, and for increasing the reliability and ex- tending the service life of the device. In addition to the safety instructions in this operating manual, you must also observe the regulations appli- cable to the operation of the device in your country. Keep the operating manual at the device, in a plastic sleeve, protected from dirt and moisture. They must be read and carefully observed by all operating personnel before starting the work. The device may only be used by personnel who have been trained to use it and who have been instructed with respect to the associated hazards. The required minimum age must be observed. In addition to the safety instructions in this operating manual and the separate regulations of your country, the generally recognised technical rules relating to the operation of such machines must also be observed.www.scheppach.com

m CAUTION Signal word to indicate a potentially hazardous situation which, if not avoided, could result in minor or moderate injury. ATTENTION Signal word to indicate a potentially hazardous situation which, if not avoided, could result in product or property damage. Please note that our equipment was not designed with the intention of use for commercial or industrial purposes. We assume no guarantee if the device is used in commercial or industrial applications, or for equivalent work. Residual risks The machine has been built according to the state- of-the-art and the recognised technical safety re- quirements. However, individual residual risks can arise during operation.

• Danger of injury for ngers and hands due to the rotat- ing saw blade with improper guiding of the workpiece.

• Injuries due to the workpiece being ejected at high speed due to improper holding or guiding.

• Risk to health due to noise. The permissible noise level is exceeded during operations. It is essential that personal protective equipment, such as hearing protection, is worn.

• Injuries due to defective saw blade. Check the integ- rity of the saw blade regularly and before each use.

• Hazard due to electrical power, with the use of im- proper electrical connection cables.

• When using special accessories, the operating in- structions enclosed with the special accessories must be observed and read carefully.

• Furthermore, despite all precautions having been met, some non-obvious residual risks may still remain.

• Residual risks can be minimised if the “Safety in- structions” and the “Proper use” are observed along with the whole of the operating instructions.

• Avoid accidental starting of the product: the oper- ating button may not be pressed when inserting the plug in a socket. Use the tool attachment that is recommended in this operating manual. This is how to ensure that your product provides optimum performance. The safety, operating and maintenance specications of the manufacturer, as well as the dimensions speci- ed in the technical data, must be observed. The machine complies with the applicable EC machin- ery directive.

• The rocking log saw is designed as a one-man operating station and is only to be used outdoors.

• The rocking log saw is a transportable circular saw. It can only be used for cross-cutting rewood with feed rocker in accordance with the technical data.

• The saw is designed exclusively for cross-cutting rewood.

• Regardless of the wood diameter, only one work- piece may be placed on the swivel frame.

• Observe all safety and danger notices on the machine and keep them complete and in legible condition.

• The working area and surroundings of the machine must be kept free of disruptive foreign bodies in order to prevent accidents.

• Basically, the timbers to be cut must be free of for- eign bodies such as nails and screws.

• Only use the machine when in a technically faultless condition, appropriately and in compliance with the operating instructions and with full knowledge of safety and hazards. In particular, rectify malfunc- tions that could impair safety immediately (or com- mission rectication works accordingly).

• The applicable accident prevention regulations and the other generally accepted safety rules must be complied with. The manufacturer is not liable for damage caused by improper use or incorrect operation. Explanation of the signal words in the operating manual m DANGER Signal word to indicate an imminently hazardous situation which, if not avoided, will result in death or serious injury. m WARNING Signal word to indicate a potentially hazardous situation which, if not avoided, could result in death or serious injury.www.scheppach.com

• Never use any faulty or damaged connection cables.

• Do not use the cable to pull the plug out of the outlet. Protect the cable from heat, oil and sharp edges.

• Do not expose the saw to rain and do not use the machine in a damp or wet environment.

• Ensure good lighting.

• Do not use in the vicinity of combustible uids or gases.

• Wear suitable work clothing! Loose clothing or jew- ellery can be caught by the rotating saw blade.

• When working outdoors, anti-slip footwear is rec- ommended.

• Tie long hair back in a hair net.

• Avoid abnormal posture.

• The operating personnel must be at least 16 years of age.

• Keep children away from the device when connected to the mains.

• Keep the workplace free of wood debris and parts lying around.

• Disorder in the work area can lead to accidents.

• Do not allow other persons, especially children, to touch the tool or the mains cable. Keep such per- sons away from the workplace.

• Personnel working on the machine must not be distracted.

• Observe the direction of rotation of the engine and saw blade. Only use saw blades whose maximum permissible speed is not less than the maximum spindle speed of the circular saw and the material to be cut.

• Under no circumstances should the saw blades be braked by pushing against the side after switching o󰀨 the drive.

• Only install saw blades that are well sharpened, free of cracks and not deformed.

• Do not use circular saw blades made of high-speed steel (HSS steel).

• Only use saw blades recommended by the manufac- turer that comply with EN 847-1 and have a warning notice stating that when changing the saw blade, ensure that the cutting width is not less than the thickness of the saw blade.

• Faulty saw blades must be replaced immediately.

• Do not use saw blades that do not correspond to the characteristics specied in these usage instructions.

• Safety equipment on the machine must not be dis- assembled or made unusable.

• Replace the worn table insert.

• Working position always to the side of the saw blade.

• Keep your hands away from the working area when the product is in operation. Attention: Danger of accidents! The wood must al- ways rest on both sides of the saw blade in the prism of the swivel frame. (see arrow in Fig. 15a)

5. General safety instructions

m Warning! When power tools are used, basic safety precautions must be followed to eliminate the risks of re, electric shock and injury to persons.

• Observe all of these notes before and while working with the saw.

• Store these safety instructions safely.

• Protect yourself from electric shock!

• Avoid physical contact with earthed parts.

• Unused devices should be stored in a dry, locked place and out of reach of children.

• Keep tools sharp and clean in order to be able to work better and more safely.

• Check the cable of the tool regularly and have it replaced by a recognised specialist when damaged.

• Check extension cables regularly and replace them when damaged.

• Only use extension cables that have been approved and appropriately labelled for use outdoors.

• Pay attention to what you are doing. Remain sen- sible when working. Do not use the tool when you are fatigued.

• Do not use any tools on which the switch cannot be switched on and o󰀨.

• Warning! The use of other insertion tools and other accessories can entail a danger of injury.

• Pull out the mains plug for any adjustment or repair tasks.

• Pass the safety instructions on to all persons who work on the machine.

• Caution! There is a danger of injury to hands and ngers from the rotating saw blade.

• The machine is equipped with a safety switch against reactivation if the voltage drops.

• Before commissioning, check that the voltage on the device type plate corresponds to the mains voltage.

• If an extension cable is required, make sure that its cross-section is su󰀩cient for the current consump- tion of the saw. Minimum cross-section 1.5 mm², from 20 m cable length 2.5 mm².

• Only use cable reels in the unrolled state.

• Have damaged switches replaced by a customer service workshop.

• This tool conforms to the applicable safety regulations. Repairs may only be performed by an electrician using original spare parts. Otherwise, accidents can occur.

• If necessary, wear suitable personal protective equipment. This could include: – Hearing protection to avoid the risk of becoming hearing impaired; – Respiratory protection to avoid the risk of inhaling harmful dust.

• Wear gloves when handling saw blades and rough materials. Saw blades must be carried in a container whenever practical.

• The operator must be informed about the conditions that a󰀨ect the noise levels (e.g. saw blades designed to reduce noise, care of saw blade and machine).

• Faults in the machine, including the guards and the saw blade, must be reported to the person responsi- ble for safety as soon as they are discovered.

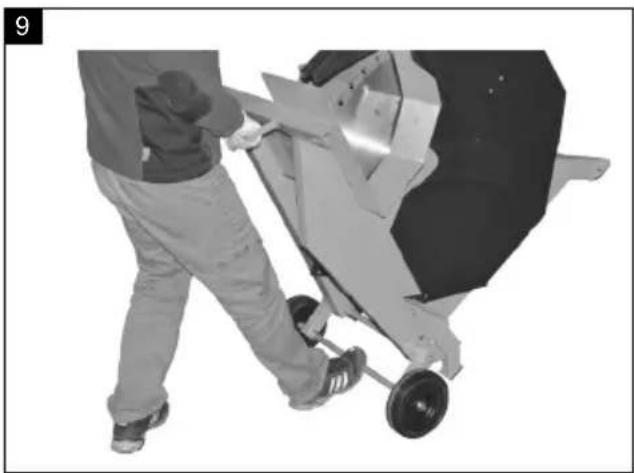

• When transporting the machine, use only the trans- port devices and never use the guards for handling and transport.

• All operators must be adequately trained in the use, setting and operation of the machine.

• Do not saw any material to be cut that contain for- eign bodies such as wires, cables or cords.

• Only use sharp saw blades.

• The machine must be on a horizontal, level oor during operation and the oor around the machine must be level, well maintained and free of waste such as chips and cut-o󰀨 workpieces.

• Adequate general lighting or local lighting must be available.

• Arrange the workpiece stack to be processed and the nished workpieces close to the normal work- place of the operator.

• Familiarise yourself with the safe procedures for cleaning, maintenance and regular removal of chips and dust to prevent the risk of re.

• Follow the manufacturer's instructions for use, ad- justment and repair of saw blades.

• Observe the maximum speed specied on the saw blades.

• Ensure that the anges used are suitable for the in- tended application as specied by the manufacturer.

• Ensure that the protective devices and other safety equipment required for operation of the machine are in place, in good working order and properly maintained.

• Dust exposure is inuenced by the type of material being sawn.

• Do not load the machine so much that it comes to a standstill.

• Make sure that cut-o󰀨 pieces of wood are not caught by the sprocket of the saw blade and ung away.

• Never remove loose fragments, chips or jammed wood pieces from the running saw blade unless a push stick is used.

• To rectify faults or remove jammed pieces of wood, switch the machine o󰀨. - Pull out the mains plug -

• Renew the table insert if the sawing gap has become worn. - Pull out the mains plug -

• Only carry out modications, adjustments, meas- urements and cleaning work when the engine is switched o󰀨. - Pull out the mains plug -

• Before switching on, make sure that keys and ad- justing tools are removed.

• Switch o󰀨 the engine and pull out the mains plug when leaving the work station.

• All protective and safety equipment must be reas- sembled immediately after repair or when mainte- nance is completed.

• The safety, operating and maintenance information of the manufacturer, as well as the dimensions specied in the technical data, must be observed.

• The applicable accident prevention regulations and the other generally accepted safety rules must be observed.

• Observe the instructions of the employers' liability insurance association (VBG 7j).

• The circular saw must be connected to a 400 V socket with a 16 A slow-blow fuse.

• Do not use low-output machines for heavy work.

• Do not use the cable for purposes for which it is not intended!

• Make sure that you have secure footing and always maintain your balance.

• Check the power tool for potential damage!

• Protective devices or other parts with minor dam- age must be carefully inspected to ensure that they function correctly and as intended prior to continued use of the tool.

• Check whether the moving parts function faultlessly and do not jam or whether parts are damaged. All parts must be correctly mounted and all conditions must be fullled to ensure fault-free operation of the tool.

• Damaged protective devices and parts must be repaired properly or replaced by a recognised spe- cialist workshop unless otherwise specied in the usage instructions.www.scheppach.com

The permissible work values can also vary from coun- try to country. However, this information should enable the operator to better evaluate the hazards and risks. Noise and vibration m Warning: Noise can have serious e󰀨ects on your health. If the machine noise exceeds 85 dB, please wear suitable hearing protection. Information about noise level measured in accord- ance with EN ISO 3744:2010 Noise data Sound power level L

Sound pressure level L

• Open the packaging and carefully remove the de- vice.

• Remove the packaging material, as well as the packaging and transport safety devices (if present).

• Check whether the scope of delivery is complete.

• Check the device and accessory parts for trans- port damage.

• If possible, keep the packaging until the expiry of the warranty period. Familiarise yourself with the product by means of the operating manual before using for the rst time.

• With accessories as well as wearing parts and re- placement parts use only original parts. Spare parts can be obtained from your specialist dealer.

• When ordering please provide our article number as well as type and year of manufacture for the product. We have marked points in the operating manual that impact your safety with this symbol: m ATTENTION The device and the packaging are not children's toys! Do not let children play with plastic bags, lms or small parts! There is a danger of choking or su󰀨ocating! Warning! This power tool generates an electromagnet- ic eld during operation. This eld can impair active or passive medical implants under certain circumstances. In order to prevent the risk of serious or deadly injuries, we recommend that persons with medical implants consult with their physician and the manufacturer of the medical implant prior to operating the power tool.

Dimensions L x W x H 1260 x 700 x 1220 mm ø saw blade HW 700/30/4.2/ Z42 Weight 89 kg Min./max. wood ø approx. 3/24 cm Wood length min./max. 25/100 cm Engine 400 V 3~ / 50 Hz Power S1 4000 W Rated input P1 / Operating mode 4500 W / S6* 20% Rated input P1 / Operating mode 4200 W / S6* 40% Rated idle speed 1400 rpm Retainer 16 A slow Protection category IP54 Protection class 1 Subject to technical changes! *Operating mode S6: Uninterrupted periodic operation with intermittent load. The mode comprises of a start-up period, a time with constant load and an idle time. The operating time is 10 mins, the relative duty cycle is 20% or 40% of the operating time. Noise data Measurement conditions The stipulated values are emission values and so do not necessarily represent safe working values. Al- though there is a correlation between emission levels and exposure levels, it is not possible to reliably deter- mine whether additional precautionary measures will be required or not based on this. Factors that could in- uence the exposure level present at any given time in the work area include the duration of exposure, the na- ture of the working area, other noise sources etc. e.g. the number of machines and neighbouring processes.www.scheppach.com

• Make sure that the machine is stable on solid ground. Note! For your safety in the workplace, fasten the saw to the oor with screws or bolts to prevent it tipping or sliding.

10. Operating / working notes

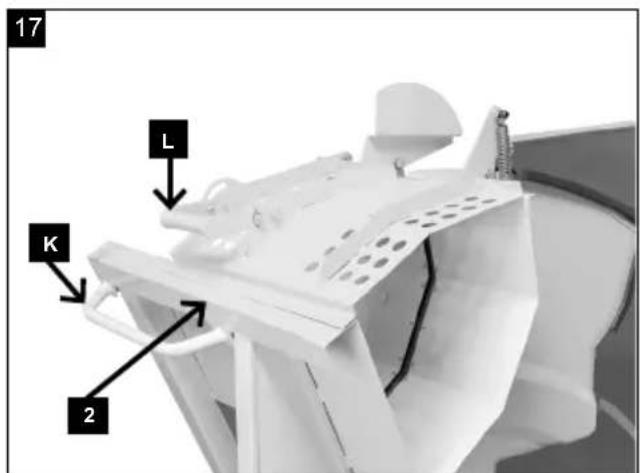

m ATTENTION! Always make sure the device is fully assembled before commissioning! ON/OFF switch (14) (Fig. 2) The machine is equipped with a safety switch that prevents automatic reactivation after a power failure. Switching on Press the green I button Switching o󰀨 Press the red O button m Attention! The motor hums during and shortly after the braking period. The switch must not be operated during this phase. The motor may only be switched on again once the humming noise has stopped. Direction of rotation of the saw blade (Fig. 10) Ensure that the direction of rotation of the saw blade corresponds to the direction of rotation specied on the protective cover. For three-phase motors, you can change the direc- tion of rotation by inserting a screwdriver into the slot provided in the plug collar and turning it slightly to the left or right. Handling the protection cage (Fig. 16, 17) - Open the protective cover (16). - Insert the material to be cut. - Close the protective cover (16). - Swivel the feed rocker (2) with the handles (K) and (L) towards the saw blade and saw through the ma- terial to be cut. - Swing back the feed rocker (2) and open the pro- tective cover. - Add more material to be cut and close the protective cover again.

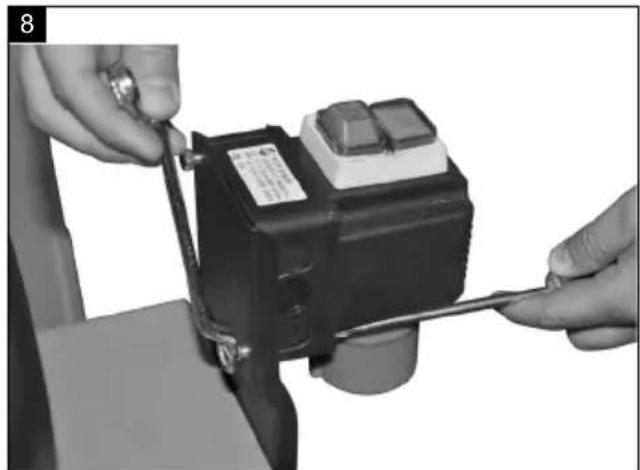

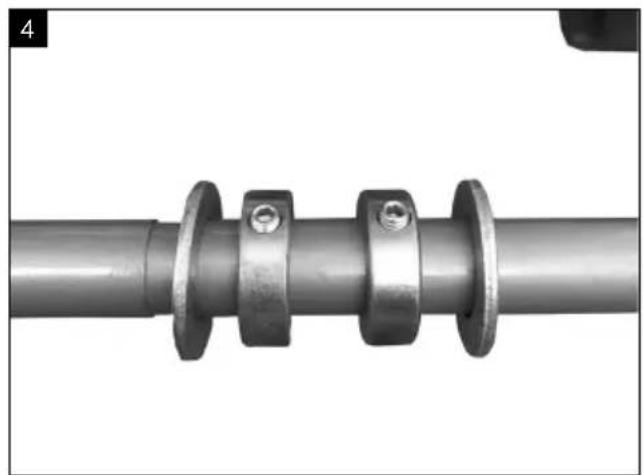

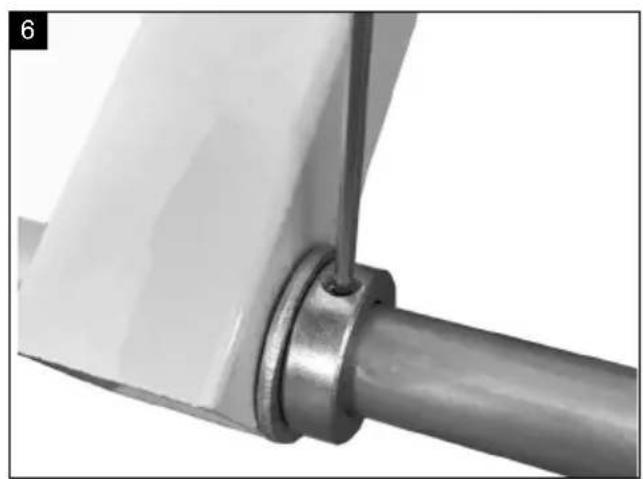

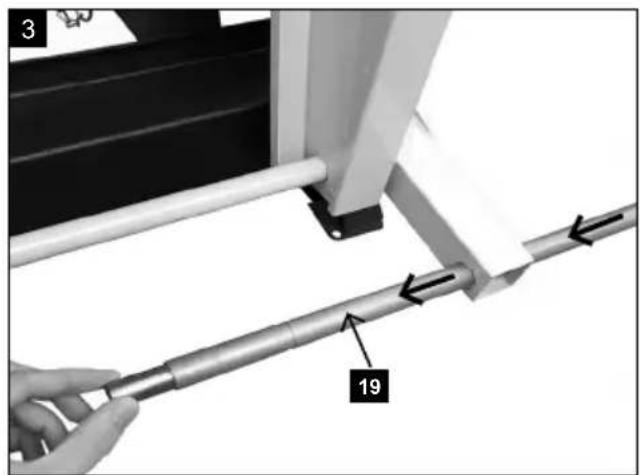

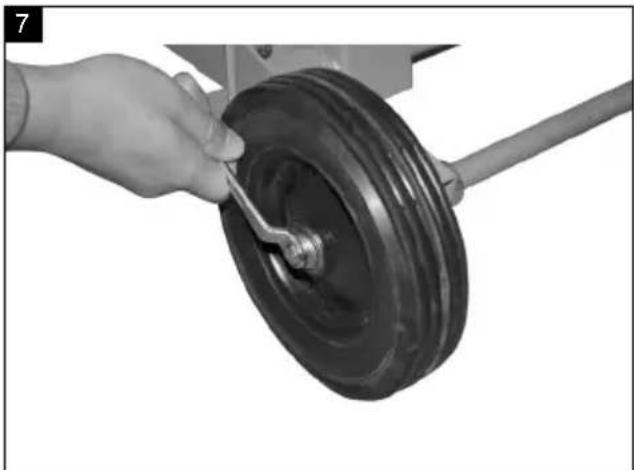

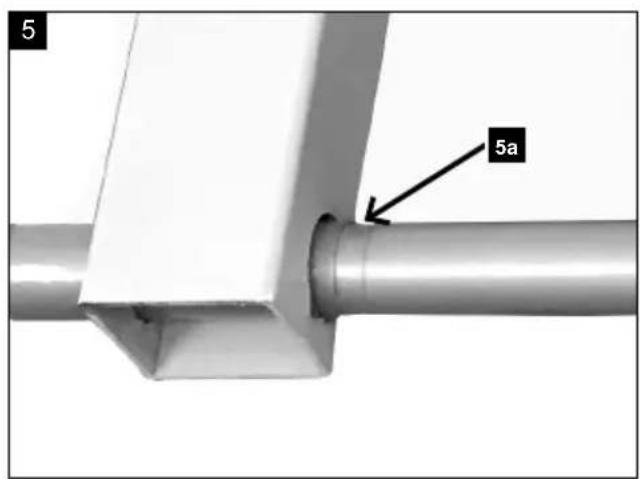

Your machine is not completely assembled for pack- aging reasons. Fitting the axis (Fig. 3 - 6) Insert the wheel axis (19) through the hole in the wheel axis suspension, as shown in Fig. 3. This is located on the underside of the swivel. Now draw the washers and bushes supplied onto the wheel axis in accord- ance with the sequence shown in Fig. 4. Now slide the wheel axis through the hole of the other suspension (Fig. 5). When doing so, ensure that the grooves (5a) lie on the inside. Now slide the bush with the washer su󰀩ciently to the side that the bush is over the groove. Tighten the threaded pins fully as shown in Fig. 6. Attention, the bushes each have two threaded pins respectively. Fitting the wheels (Fig. 7) Place the two wheels onto the axis that has already been tted. Secure each wheel with a washer 8.4 and an M8x20 screw. Fitting the switch unit (Fig. 8) Screw the switch unit to the switch base.

Observe the safety instructions before the com- missioning.

• All safety devices and aids must be installed.

• Check the swivel frame insert for wear and replace if necessary.

• Check the swivel frame; it must return to the starting position by itself.

• Check that the saw blade is properly seated and that the running direction is correct.

• Only carry out modications, setting, measuring and cleaning work when the engine is switched o󰀨. Pull out the mains plug and wait for the rotating tool to stop.

• The saw is designed exclusively for cross-cutting rewood.

• Regardless of the wood diameter, only one piece may be placed on the swivel frame.

• Attention! Do not saw bundles of wood or several pieces at the same time.

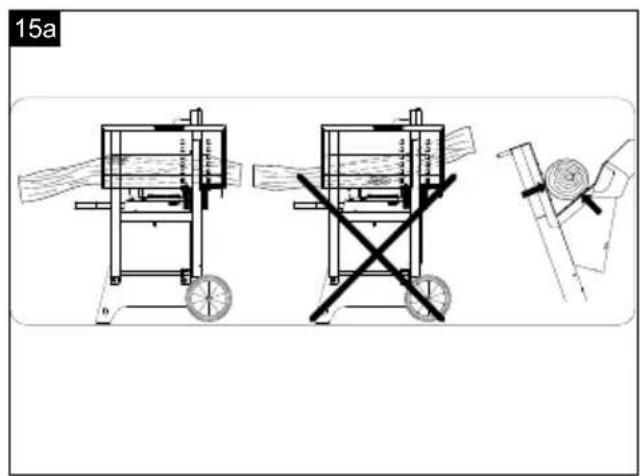

• Place curved pieces of wood in the swivel frame so that the outwardly curved side faces the saw blade.www.scheppach.com

S6 = Continuous operation with intermittent load 20% = based on 10 min. 2 min. load; 8 min. idle op- eration 40% = based on 10 min. 4 min. load; 6 min. idle op- eration Damaged electrical connection cables The insulation on electrical connection cables is often damaged. Causes are:

• Pressure points, where connection cables are passed through windows or doors.

• Kinks where the connection cable has been improp- erly xed or routed.

• Places where the connection cables have been cut due to being driven over.

• Insulation damage due to being ripped out of the wall outlet.

• Cracks due to the insulation ageing. Such damaged electrical connection cables must not be used and are life-threatening due to insulation damage. Check the electrical connection cables for damage reg- ularly. Ensure that the connection cables are discon- nected from electrical power when checking for damage. Electrical connection cables must comply with the ap- plicable VDE and DIN provisions. Only use connection cables with the marking "H 07 RN". The printing of the type designations on the cable is mandatory. Extension cable and mains protection

• Extension cables up to 25 m long must have a cross section of 1.5 mm², and over 25 m long must have a cross section of 2.5 mm².

• The mains power connection is protected with a 16A slow-blow fuse. Connections and repairs Connections and repair work on the electrical equip- ment may only be carried out by electricians. Please provide the following information in the event of any enquiries.

• Type of current for the motor

• Machine data - type plate Saws 1 Switch on the machine. 2 Wait until the saw blade has reached full speed. 3 Place the wood in the feed rocker. 4 Grasp the handles of the feed rocker with both hands and guide it evenly towards the saw blade to release the saw blade. 5 Only apply enough pressure on the feed rocker when sawing so that the speed of the saw blade does not drop. 6 Remove the sawn wood from the feed rocker af- ter it has returned to its original position and the saw blade is covered. Now place the next piece of wood on. Attention! Do not leave the machine unattended during opera- tion. Switch the machine o󰀨 and remove the mains plug when stopping work. Motor braking device The brake brakes the drive motor of the sawing shaft within 10 seconds. If the braking process takes longer than 10 seconds, the machine must no longer be operated because the brake is defective. It is essential to disconnect the ma- chine from the power supply. Only a qualied electri- cian may be assigned with troubleshooting.

11. Electrical connection

The electrical motor installed is connected and ready for operation. The connection complies with the appli- cable VDE and DIN provisions. The customer's mains connection as well as the ex- tension cable used must also comply with these reg- ulations. Three-phase motor 400 V 3~/ 50 Hz Mains voltage 400 V 3~/50 Hz Mains power connection and extension leads must be 5-core = 3 P + N + SL. - (3/N/PE). Use a portable safety switch (PRCD) if the residual current protective circuit (RCD) in the mains power supply is not provided with a rated residual current of no more than 0.03 A. Operating mode / duty cycle The electric motor is designed for operating mode S6- 20% & S6-40%.www.scheppach.com

Attention: According to the German Product Liability Act, no liability is accepted for damage caused by im- proper repairs or by not using original spare parts. Such work should be performed by a customer service centre or an authorised specialist. The same applies to accessory parts. Service information With this product, it is necessary to note that the follow- ing parts are subject to natural or usage-related wear, or that the following parts are required as consuma- bles. Wearing parts*: Saw blade, swivel frame insert

• may not be included in the scope of delivery! Spare parts and accessories can be obtained from our Service Centre. To do this, scan the QR code on the front page. Saw blade replacement (Fig. 11-15) m Pull out the mains plug before changing the saw blade. m Danger of cutting! The saw blade is heavy and can be slippery. Wear gloves when changing the saw blade.

• Do not use saw blades made of HSS steel.

• Do not use cracked saw blades or blades that have changed shape.

• Only use good, sharp saw blades.

m Danger of burns! The saw blade is still hot shortly after sawing.

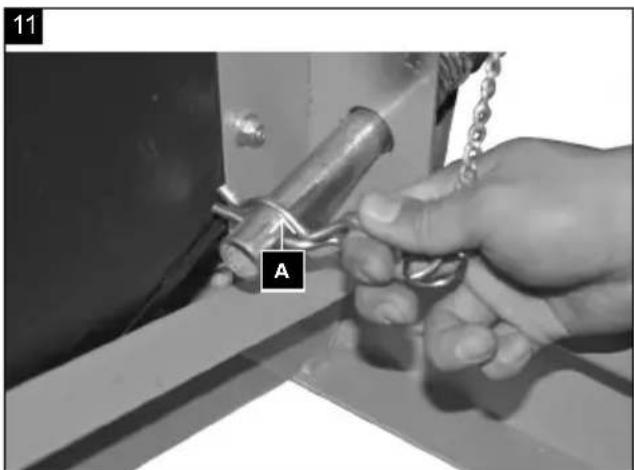

1. Hold the swivel frame rmly and pull out the spring

3. Slowly lower the swivel frame towards the ground.

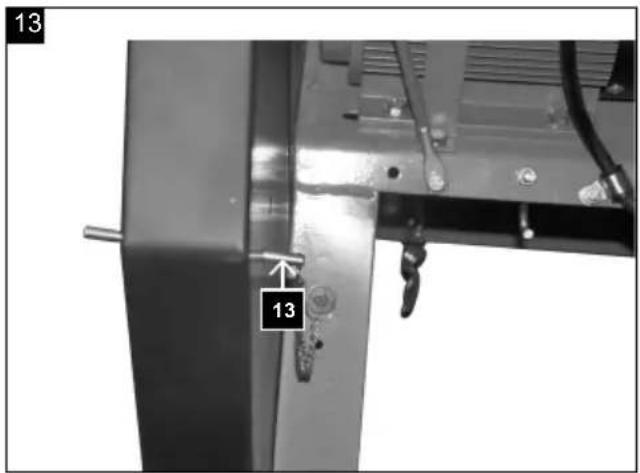

4. Secure the saw blade against twisting with the

retaining pin (Figs. 13, 14).

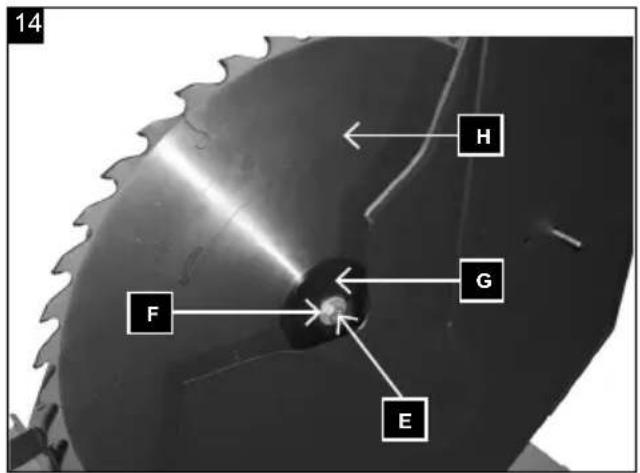

5. Loosen the screw (Fig. 14, E).

6. Remove the washer (Fig. 14, F), the front saw blade

ange (Fig. 14, G) and the saw blade (Fig. 14, H).

7. Clean the saw blade ange.

When returning the motor always send in the complete drive unit with switches. Follow the safety instructions!

m Warning: Switch o󰀨 the machine and disconnect the plug before performing maintenance and adjust- ment work. Keep the instructions with the machine. Keep the machine clean. Wear safety goggles when cleaning. Cleaning: Caution: Do not clean the plastic parts of the table with aggressive cleaning agents. A mild rinsing liquid on a damp cloth is recommended. No water must come into contact with the machine.

• Keep protective devices, air vents and the motor housing as free of dust and dirt as possible. Rub the product clean with a clean cloth or blow it o󰀨 with compressed air at low pressure.

• We recommend that you clean the product directly after every use.

• Clean the product at regular intervals using a damp cloth and a little soft soap. Do not use any cleaning products or solvents; they could attack the plastic parts of the product. Make sure that no water can penetrate the interior of the product. Water penetra- tion increases the risk of an electric shock. Maintenance:

• Check the saw blade at regular intervals. Use only saw blades that are well sharpened, free of cracks and not deformed. Only use tools that comply with the European standard DIN EN 847-1.

• Replace worn swivel frame inserts immediately.

• Check all safety devices after all maintenance or cleaning work.

• Check that no tools or miscellaneous parts are on or in the machine before putting it back into operation.

• Remove any sawdust accumulations that may arise at the discharge. After repairs or maintenance, make sure that all safe- ty-related parts are installed and are in perfect con- dition. All parts which may cause injury must be kept where they are inaccessible to children or others.www.scheppach.com

15. Disposal and recycling

Notes for packaging The packaging materials are recy- clable. Please dispose of packag- ing in an environmentally friendly manner. Notes on the electrical and electronic equipment act (ElektroG) Waste electrical and electronic equipment does not belong in household waste, but must be collected and disposed of sepa- rately!

• Used batteries or rechargeable batteries that are not installed permanently in the old device must be removed non-destructively before disposal! Their disposal is regulated by the battery act.

• Owners or users of electrical and electronic devices are legally obliged to return them after use.

• The end user is responsible for deleting their per- sonal data from the old device being disposed of!

• The symbol of the crossed-out dustbin means that waste electrical and electronic equipment must not be disposed of with household waste.

• Waste electrical and electronic equipment can be handed in free of charge at the following places: - Public disposal or collection points (e.g. municipal works yards). - Points of sale of electrical devices (stationary and online), provided that dealers are obliged to take them back or o󰀨er to do so voluntarily. - Up to three waste electrical devices per type of device, with an edge length of no more than 25 centimetres, can be returned free of charge to the manufacturer without prior purchase of a new device from the manufacturer or taken to another authorised collection point in your vicinity. - Further supplementary take-back conditions of the manufacturers and distributors can be ob- tained from the respective customer service.

• If the manufacturer delivers a new electrical device to a private household, the manufacturer can ar- range for the free collection of the old electrical de- vice upon request from the end user. Please contact the manufacturer’s customer service for this.

8. Insert a new or sharpened saw blade.

Ensure that the saw blade is running in the cor- rect direction: the arrow on the protective cover and the arrow on the saw blade must point in the same direction!

9. Reattach the front saw blade ange and washer.

10. Secure the saw blade with the screw.

11. Push the two washers onto the mounting bolt (Fig.

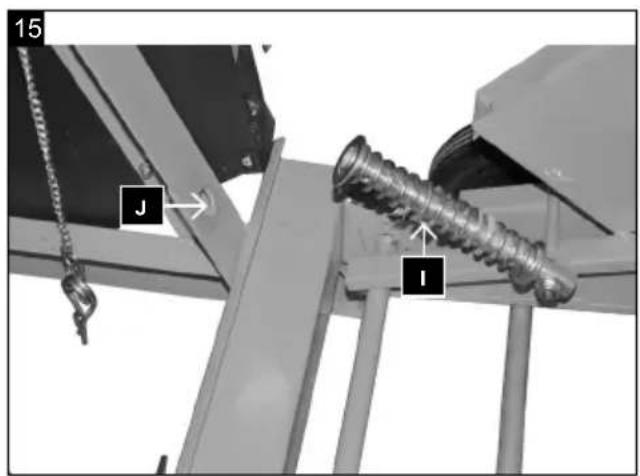

12. Lift the swivel frame and insert the mounting bolt

into the hole (Fig. 15, J).

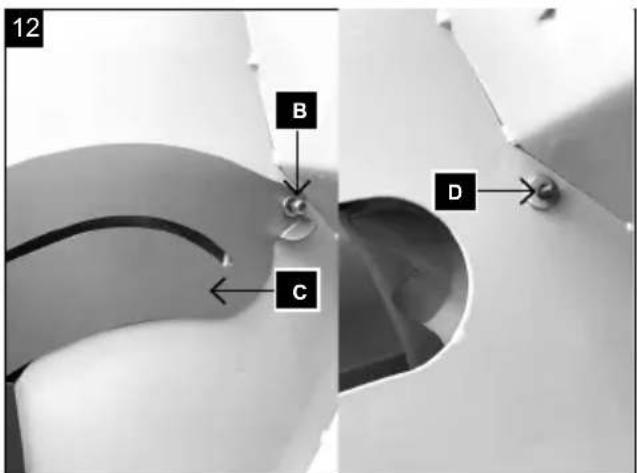

13. Guide the swivel frame guide (Fig. 12 C) back onto

the grub screw (Fig. 12 D) and secure it with the hexagon nut (Fig. 12 B).

14. Insert the spring cotter pin (Fig. 11, A) through the

mounting bolt (Fig. 15, I).

15. Remove the retaining pin (Fig. 13, 14).

Changing the plastic insert Replace worn or damaged plastic inserts (Fig. 1, 11) immediately.

1. Loosen the screws on the plastic insert and re-

2. Insert a new plastic insert and screw it tight.

Transport (Fig. 9) Move the swivel frame to the transport position and secure it with the locking lever (18) Fig. 2. To move the saw easily, tilt it onto its wheels. To do this, put your foot on the wheel axle and pull the ma- chine towards you by the handle. Attention! The saw may only be used when all four feet are rmly on the ground.

Store the device and its accessories in a dark, dry and frost-free place that is inaccessible to children. The optimum storage temperature is between 5 and 30 ˚C. Keep the power tool in its original packaging. Cover the product to protect it from dust or moisture. Store the operating manual with the product.www.scheppach.com

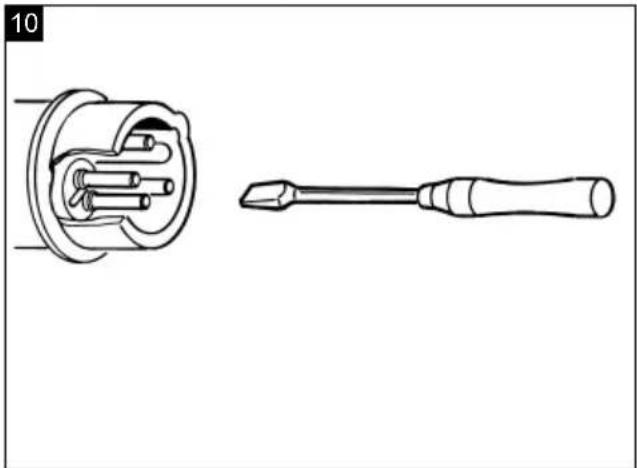

The following table shows fault symptoms and describes remedial measures in the event of your product failing to work properly. If you cannot localise and rectify the problem with this, please contact your service workshop. Please note: Always disconnect the machine from the power supply before performing maintenance or repair work. Fault Possible cause Remedy Saw blade is loose after the motor is switched o󰀨 Fixing nut not tight enough Tighten xing nut; right-hand thread Engine does not start Mains fuse blown Extension lead defective Engine or switch faulty Check mains fuse Replace the extension lead Have this checked by an electrician Incorrect motor rotation direction Phases reversed Reversing phases (see Fig. 10) Motor not supplying power, fuse tripping Cross section of the extension cable insu󰀩cient Overload due to blunt saw blade see Electrical connection Replacing the saw blade Burnt areas on the cutting surface Blunt saw blade Incorrect saw blade Sharpen, replace saw blade Replace saw blade

• These statements only apply to devices installed and sold in the countries of the European Union and which are subject to the European Directive 2012/19/EU. In countries outside the European Un- ion, di󰀨erent regulations may apply to the disposal of waste electrical and electronic equipment.www.scheppach.com

EU Declaration of Conformity Translation of the original Declaration of Conformity We declare under our sole responsibility that the product described here com- plies with the applicable directives and standards. The object of the declaration described here fulls the regulations of the direc- tive 2011/65/EU of the European Parliament and Council from 8th June 2011, on the restriction of the use of certain hazardous substances in electrical and electronic equipment. * Technical documentation available at: ** Item number*** Item designation: Rocking log saw HS730 Brand****

17. Declaration of conformity
