Product type	Mechanical wheel distance meter
Brand	Laserliner
Model	RollPilot S12
Accuracy	± 0.1%
Range	0 – 9,999.9 m
Measuring wheel radius	159 mm
Measuring wheel circumference	1000 mm
Functions	Length measurement, addition and subtraction of lengths
Units	meters
Working conditions	-20°C to 80°C, max. relative humidity 80% rH
Storage conditions	-30°C to 80°C, max. relative humidity 80% rH
Dimensions (L x H x D)	318 x 1000 x 140 mm
Weight	1800 g (without accessories)
Power supply	Manual (without battery)
Moving needle	Indicates start and end positions
Mechanical counter	Resettable via button (7) or lever (8)
Handle	Non-slip
Stand	Retractable
Maintenance	Clean with a slightly damp cloth; avoid cleaning products, abrasives or solvents. Store dry and clean.
Safety	Use only as intended; keep out of reach of children; do not modify; avoid mechanical loads, extreme temperatures, moisture, vibrations.
Calibration	Recommended once a year
EU conformity	Complies with EU standards; disposal via WEEE

Frequently Asked Questions - RollPilot S12 Laserliner

How to measure a distance between two walls?

Place the back of the wheel against the first wall, roll the device in a straight line to the second wall, then read the displayed distance. Add the wheel diameter (318 mm) to get the actual distance between the walls.

How to reset the counter to zero?

Use the button 7 or the lever 8 located on the mechanical counter to reset the value to zero before each new measurement.

How to measure from a wall to a specific point?

Place the back of the wheel against the wall, roll to the marked point, then read the distance. Add the wheel radius (159 mm) to get the exact distance.

How to measure from one point to another?

Place the moving needle (9) on the first point, roll in a straight line to the second point, and read the displayed distance directly.

What is the wheel diameter?

The radius of the wheel is 159 mm, so the diameter is 318 mm. The circumference is 1000 mm.

How to maintain the distance meter?

Clean all components with a slightly damp cloth. Do not use cleaning products, abrasives or solvents. Store the device in a dry and clean place.

What is the accuracy of the device?

The accuracy is ± 0.1%, which corresponds to an error of 1 mm per meter measured.

How to store the device for transport?

Fold the stand (5) and fold the device into transport position. Use the provided carrying case to transport it easily.

What to do if the measurement seems inaccurate?

Check that the wheel is not obstructed and that the ground is clean. If the error persists, perform an annual calibration. Ensure the device has not undergone shocks or excessive moisture.

Is the device waterproof?

No, the device is not waterproof. Avoid any exposure to moisture and sand. If it comes into contact with water, dry it immediately.

USER MANUAL RollPilot S12 Laserliner

White and black bicycle with a black handle and metallic frame, mounted on a stand (no visible text or symbols)

0 m ..... 9.999,9 m

Laserliner

!

Close-up of a bicycle wheel with visible spokes and a labeled component (no text or symbols beyond the number 9)

8 Messwert löschen

Close-up of a LaserTimer device with a black tip and control panel (no visible text or symbols)

Close-up of a black and white handheld device with a black handle and a vertical arrow pointing to it (no visible text or symbols)

Mechanical device with directional arrow indicating motion or force (no text or symbols)

Close-up of a hand holding a small object, with arrows indicating direction (no text or symbols)

Illustration of a bicycle with wheels and a handle, no visible text or symbols

Mechanical device with a multi-wheel and stand, no visible text or symbols

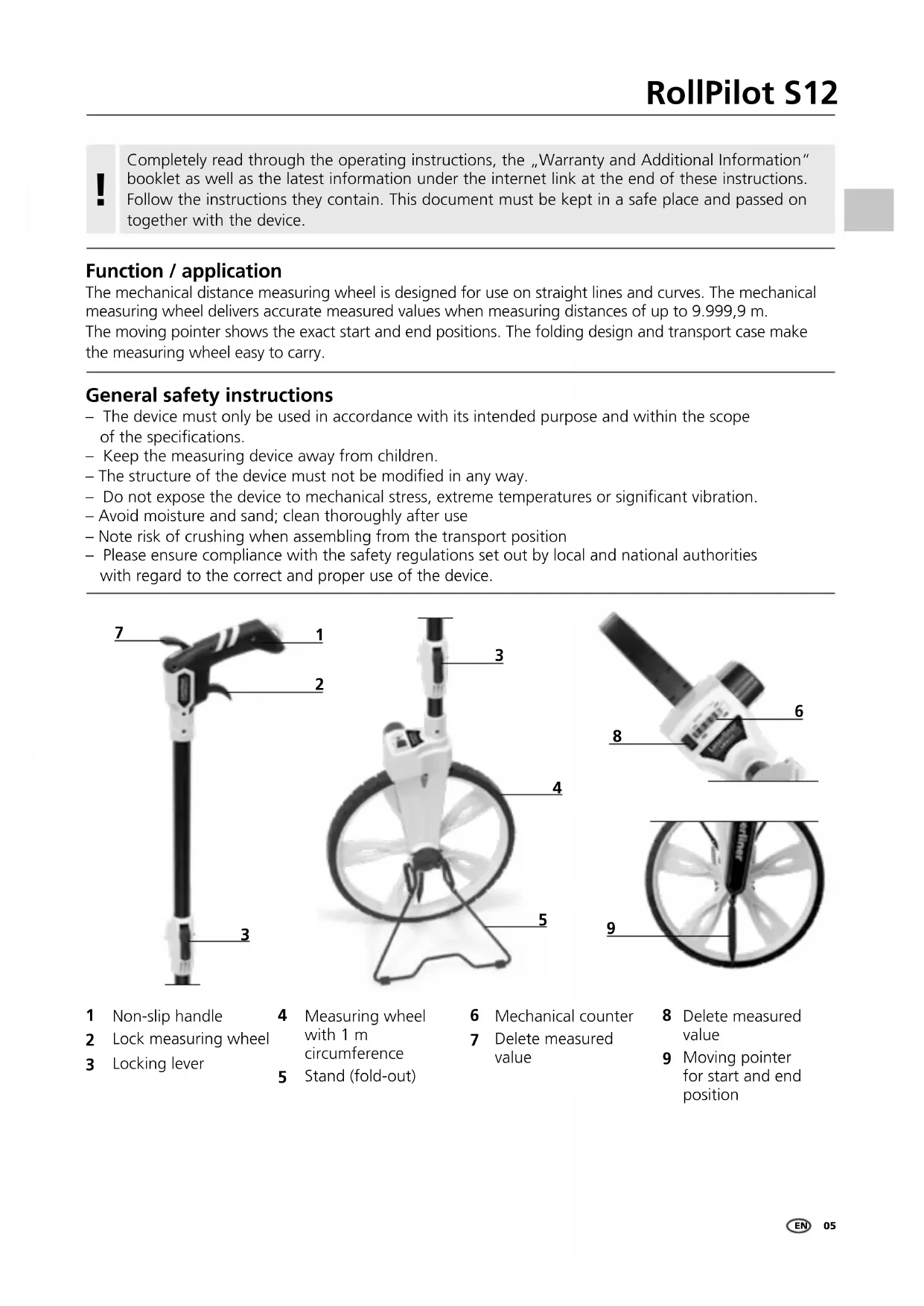

Completely read through the operating instructions, the „Warranty and Additional Information" booklet as well as the latest information under the internet link at the end of these instructions. Follow the instructions they contain. This document must be kept in a safe place and passed on together with the device.

Function / application

The mechanical distance measuring wheel is designed for use on straight lines and curves. The mechanical measuring wheel delivers accurate measured values when measuring distances of up to 9.999,9 m.

The moving pointer shows the exact start and end positions. The folding design and transport case make the measuring wheel easy to carry.

General safety instructions

• The device must only be used in accordance with its intended purpose and within the scope of the specifications.
• Keep the measuring device away from children.
• The structure of the device must not be modified in any way.
• Do not expose the device to mechanical stress, extreme temperatures or significant vibration.
• Avoid moisture and sand; clean thoroughly after use
  – Note risk of crushing when assembling from the transport position
• Please ensure compliance with the safety regulations set out by local and national authorities with regard to the correct and proper use of the device.

7 1 2 3

3 4 5

6 8

Close-up of a bicycle wheel rim with visible spokes and a labeled measurement '9' (no text or symbols on the wheel itself)

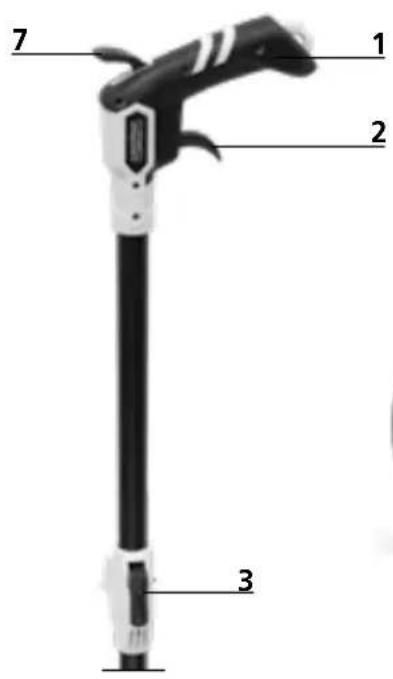

1 Non-slip handle
2 Lock measuring wheel
3 Locking lever

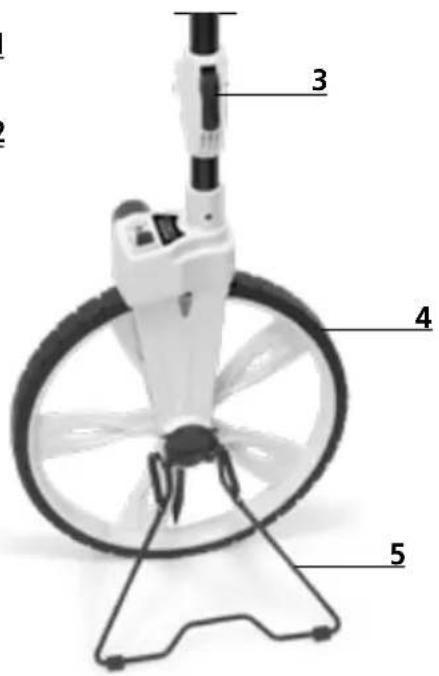

4 Measuring wheel with 1 m circumference
5 Stand (fold-out)

6 Mechanical counter
7 Delete measured value

8 Delete measured value
9 Moving pointer for start and end position

Laserliner

1 Delete measured value

The mechanical counter is set to zero by pressing button 7 or lever 8.

Close-up of a LaserTimer device with a black tab and control panel (no visible text or symbols)

Close-up of a black and white handheld device with a downward arrow indicator (no text or symbols visible)

Mechanical device with arrow indicating downward motion, no visible text or symbols

2 Fold for carrying

Close-up of hands holding a small object, labeled with arrows 1 and 2 indicating motion or movement (no text or symbols on the object itself)

Illustration of a bicycle with wheels and a handle, no text or symbols present

Mechanical bicycle with mounted sensor and wheel (no visible text or symbols)

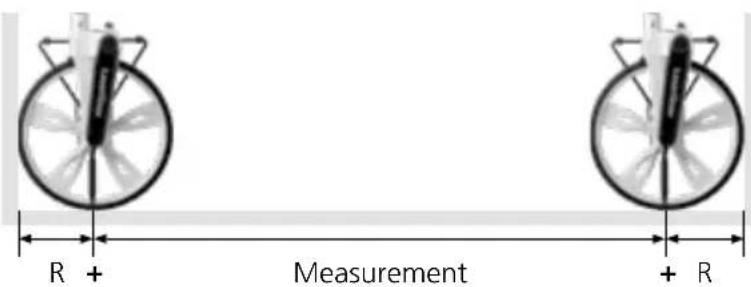

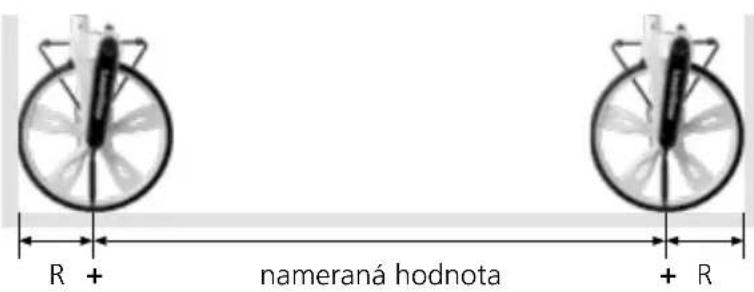

4 To measure from wall to wall

1. Position the device with the rear of the measuring wheel against the wall.
2. Move the measuring wheel straight to the other wall.
3. Read off the measured value and add the diameter of the wheel.

R + Measurement + R

To achieve accurate measurement results, the guide bar must be held at the same angle during the entire measurement. A vertical position is recommended.

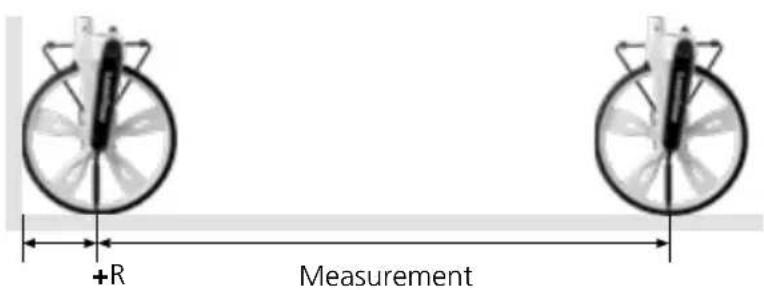

5 To measure from wall to spot

1. Position the device with the rear of the measuring wheel against the wall.
2. Move the measuring wheel straight to the marked spot.
3. Read off the measured value and add the radius of the wheel.

+R Measurement

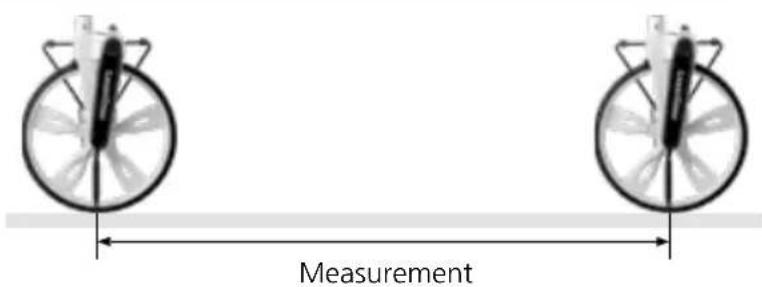

6 To measure from spot to spot

1. Position the pointer (9) on the first marked spot.
2. Move the measuring wheel straight to the other marked spot.
3. Read off measured value.

Measurement

Information on maintenance and care

Clean all components with a damp cloth and do not use cleaning agents, scouring agents and solvents. Store the device in a clean and dry place.

Calibration

The meter needs to be calibrated and tested on a regular basis to ensure it produces accurate measurement results. We recommend carrying out calibration once a year.

Technical data Subject to technical alterations. 20W03

Precision ± 0.1%
Measurement range 0 – 9,999.9 m
Measuring wheel radius 159 mm
Measuring wheel circumference 1000 mm
Functions Length measurement, Addition and subtraction of lengths
Units m
Operating conditions -20°C ... 80°C, max. humidity. 80% rH, no condensation, max. working altitude 4000 m above sea level
Storage conditions	-30°C ... 80°C, max. humidity 80% rH
Dimensions (W x H x D) 318 x 1000 x 140 mm
Weight 1800 g (without accessories)

EU directives and disposal

This device complies with all necessary standards for the free movement of goods within the EU.

This product is an electric device and must be collected separately for disposal according to the European Directive on waste electrical and electronic equipment.

Further safety and supplementary notices at:

http://laserliner.com/info?an=AET
