Product type	Laser distance meter with green laser technology
Brand	Laserliner
Model	LaserRangeMaster Gi7 Pro
Dimensions (L x H x D)	50 x 122 x 27 mm
Weight (batteries included)	140 g
Power supply	2 LR6 (AA) 1.5 V batteries
Laser class	2, < 1 mW, 515 nm (green laser)
Measurement accuracy (typical)	± 2 mm (up to 10 m)
Indoor measurement range	0.05 m – 70 m
Angle measurement range	± 90°, resolution 0.1°, accuracy 0.1°
Main functions	Distance, area, volume, continuous measurement, angle functions 1+2+3, digital bubble, tilt sensor calibration, addition/subtraction, 50-location memory
Connectivity	Digital Connection (IEEE 802.15.4, Bluetooth LE ≥4.x), max. range 10 m
Display	LCD screen with symbols
Automatic shutdown	Laser after 30 s, device after 3 min
Operating conditions	-10 °C to 40 °C, RH 20–85 % non-condensing
Storage conditions	-20 °C to 70 °C, max. RH 80 %
Cleaning	With a soft, slightly damp cloth; avoid aggressive products
Maintenance	Calibrate annually; remove batteries during prolonged storage
Safety	Class 2 laser: do not look into beam, do not point at eyes
Warranty	According to manufacturer's conditions

Frequently Asked Questions - LaserRangeMaster Gi7 Pro Laserliner

How to turn the device on and off?

Press the ON/measure button to turn on the device. To turn off, press and hold the Delete/OFF button until it shuts down.

How to change the unit of measurement?

In measurement mode, press the Measurement plane/unit button to switch between m, inch, and ft.

How to measure a distance?

Turn on the device, point the laser at the target, and press DIST (ON/measure button). The distance is displayed on the screen.

How to use the continuous measurement function?

Select the Continuous measurement min./max. mode with the function button. Measurement starts automatically. Press DIST to stop. The screen displays the max., min., and current values.

How to measure an area or volume?

For an area: select Area mode, measure the length then the width. For a volume: select Volume, measure length, width, and height. The results are displayed automatically.

How to use angle functions 1, 2, or 3?

Select the desired angle function (1, 2, or 3) with the function button. Follow the on-screen instructions: measure the required distances. Results are calculated via the 360° tilt sensor.

How to calibrate the tilt sensor?

In the menu, select Tilt sensor calibration. Follow the on-screen instructions, usually by placing the device on a flat surface and pressing a button.

How to transfer data via Digital Connection?

Activate Digital Connection in the menu. On your mobile, download the compatible app, enable Bluetooth, and connect to the device. Measurements can be transferred.

What to do in case of an error displayed (Er... codes)?

Consult the manual: Er101 = low battery, Er108 = Pythagorean measurement error, Er118 = calibration error, Er155 = weak signal, Er181 = transfer error, Er194 = value out of range. Follow the recommended actions.

How to clean and maintain the device?

Clean with a soft, slightly damp cloth. Do not use solvents or abrasive products. Remove batteries if the device is not used for a long time. Annual calibration is recommended.

USER MANUAL LaserRangeMaster Gi7 Pro Laserliner

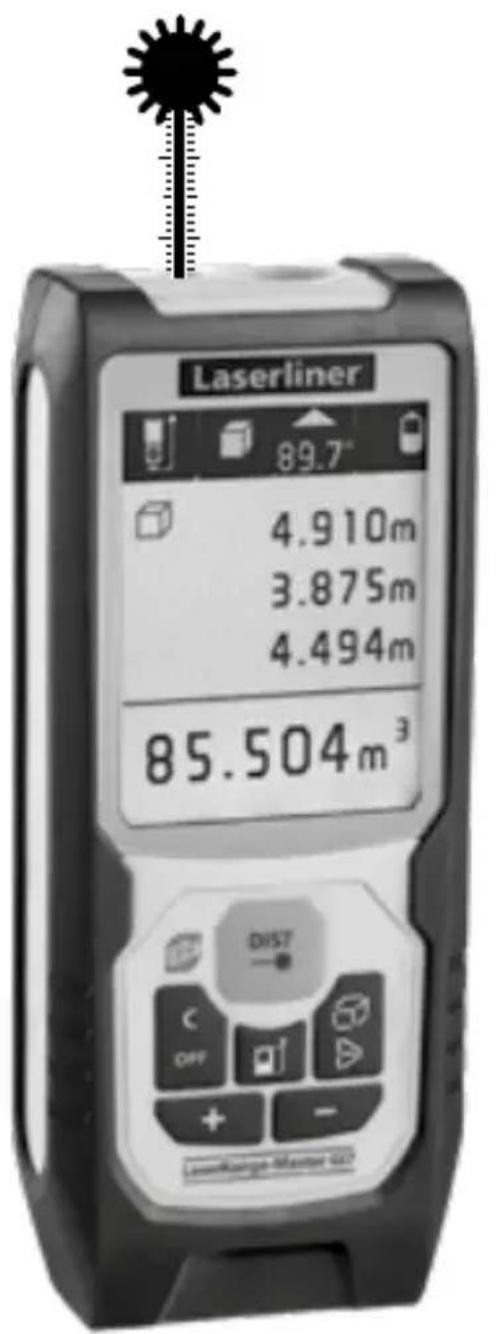

LaserRange-Master Gi7 Pro

Laserliner 89.7° 4.910m 3.875m 4.494m 85.504m³ DIST OFF + - LaserKonzern-Massner 627

Laser
515 nm

DIGITAL
CONNECTION

COLOUR DISPLAY

360° ANGLE FUNCTION

Laserliner

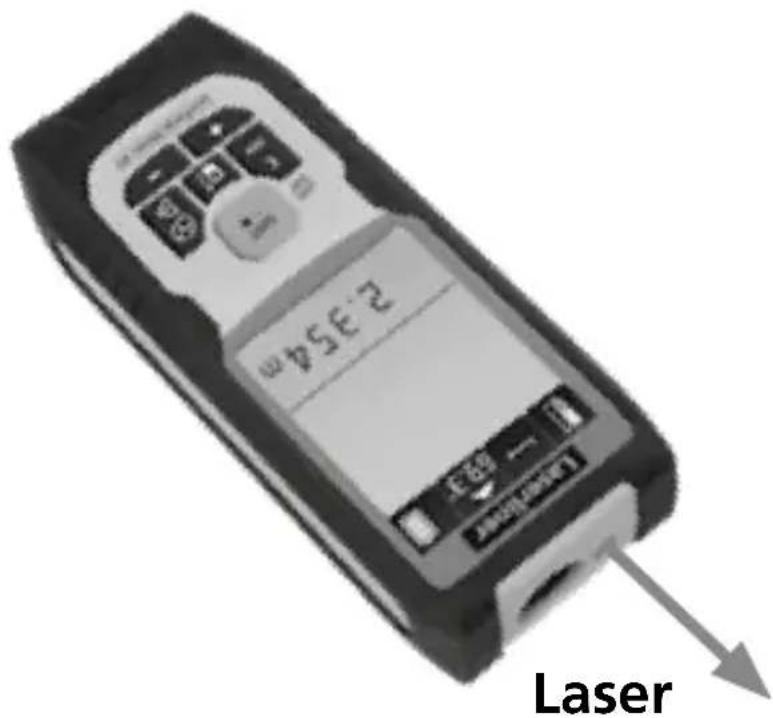

2.354mm Laser

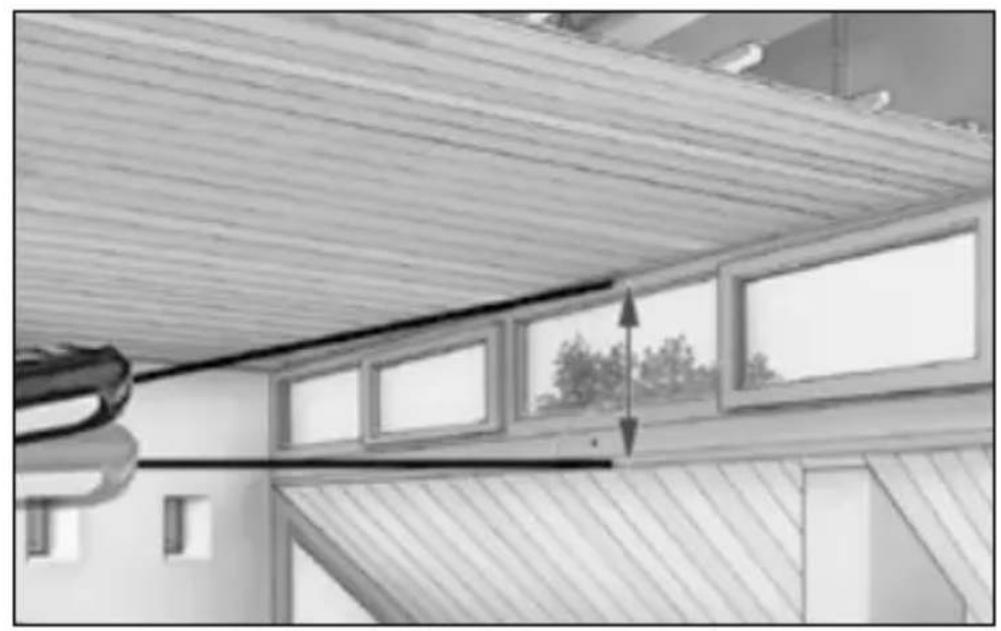

Exterior view of a modern building with wooden ceiling and window grilles, showing structural details (no signage or text)

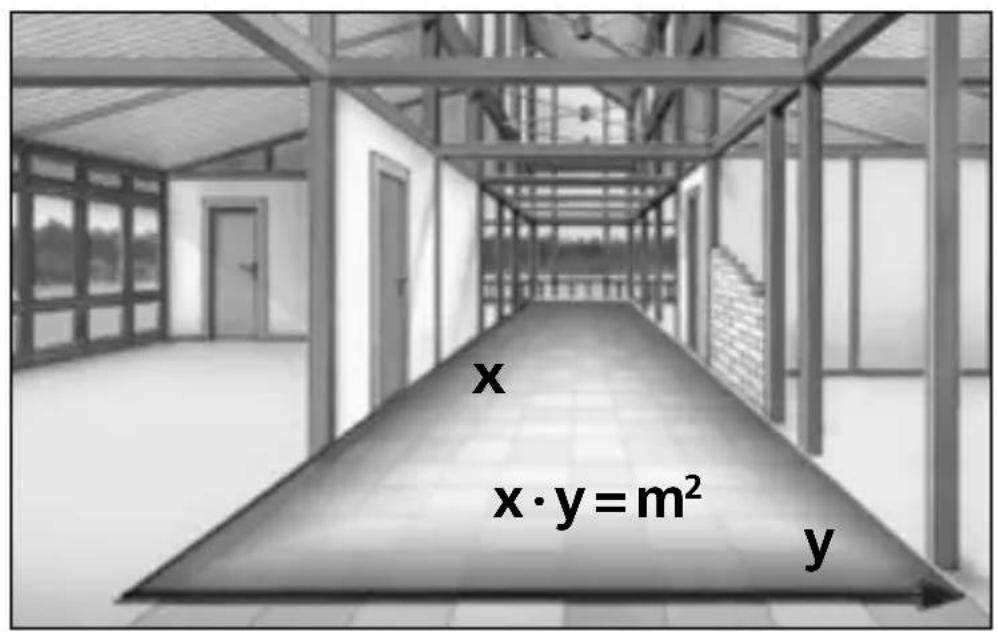

x x·y=m² y

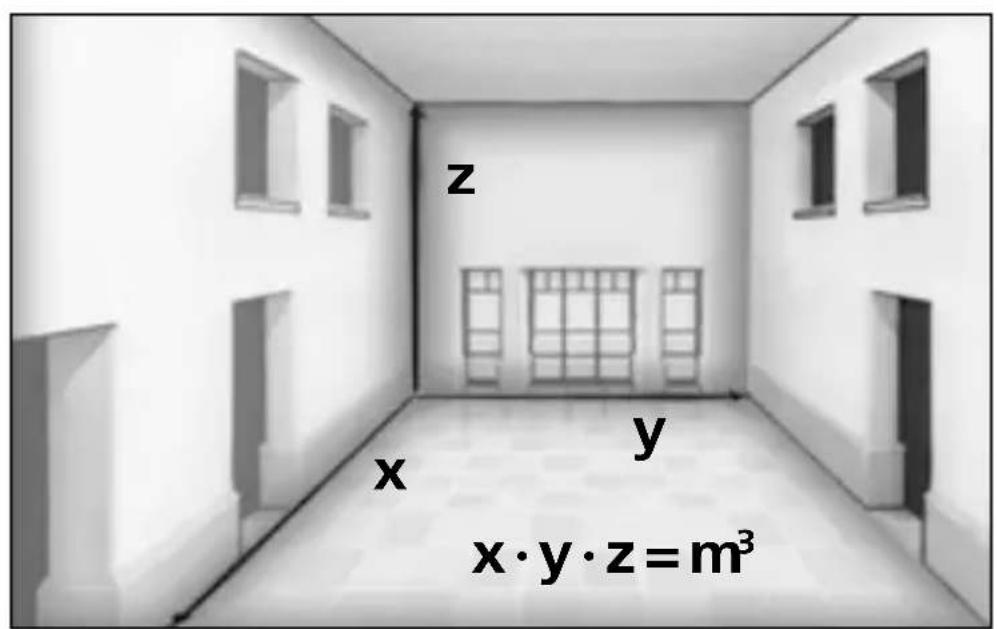

z x y x·y·z=m³

Laserliner

!

Warning sign with triangular triangle and central sunburst symbol

LaserRange-Master Gi7 Pro

Sicherheitshinweise

Interior view of a device showing internal components with battery and indicator lights (no readable text or symbols)

Laserliner

a b c d e 0.000m max 0.000m min + 0.000m 0.000m³ f g h i j k

l m n o p q r s t

u v

1. 2. 3. 4. 5. 6. LaserRange-Master G7

DISPLAY:

LaserRange-Master Gi7 Pro

LaserRange-Master Gi7 Pro

Volumenmessung:

Download on the App Store

GETIT ON Google Play

LaserRange-Master Gi7 Pro

Completely read through the operating instructions, the „Warranty and Additional Information“ booklet as well as the latest information under the internet link at the end of these instructions. Follow the instructions they contain. This document must be kept in a safe place and if the laser device is passed on, this document must be passed on with it.

Function / Application

Laser distance meter – with green DLD laser technology

- Functions: distances, area, volume, continuous measurement, angle function 1 + 2 + 3 , digital bubble level and tilt sensor calibration, addition / subtraction of lengths, areas, volumes

- 360° inclination sensor for determining the horizontal and vertical distance

– Digital Connection interface to transfer the measured data

General safety instructions

- The device must only be used in accordance with its intended purpose and within the scope of the specifications.

- Keep the measuring device away from children.

Keep out of reach of children.

- Modifications or changes to the device are not permitted, this will otherwise invalidate the approval and safety specifications.

- Do not expose the device to mechanical stress, extreme temperatures, moisture or significant vibration.

- The device must no longer be used if one or more of its functions fail, the battery charge is weak, or the housing has been damaged.

- When using the device outdoors, make sure that the weather conditions are appropriate and/or that suitable protection measures are taken.

- Please ensure compliance with the safety regulations set out by local and national authorities with regard to the correct and proper use of the device.

Safety instructions

Using class 2 lasers

Warning symbol with a sunburst pattern inside a triangle (no text or numbers)

Laser radiation!

Do not stare into the beam!

Class 2 laser · < 1 mW · 515 nm

EN 60825-1:2014/A11:2021/

EN 50689:2021

- Attention: Do not look into the direct or reflected beam.

- Do not point the laser beam towards persons.

- If a person's eyes are exposed to class 2 laser radiation, they should shut their eyes and immediately move away from the beam.

- Tampering with (making changes to) the laser device is not permitted.

- Under no circumstances should optical instruments (magnifying glass, microscope, binoculars)

Laserliner

Safety instructions

Dealing with electromagnetic radiation

• The measuring device complies with electromagnetic compatibility regulations and limit values in accordance with EMC-Directive 2014/30/EU.
• Local operating restrictions – for example, in hospitals, aircraft, petrol stations or in the vicinity of people with pacemakers – may apply. Electronic devices can potentially cause hazards or interference or be subject to hazards or interference.
• The measuring accuracy may be affected when working close to high voltages or high electromagnetic alternating fields.

Safety instructions

Dealing with RF radiation

• The measuring device is equipped with a wireless interface.
• The measuring device complies with electromagnetic compatibility and wireless radiation regulations and limits in accordance with the RED 2014/53/EU.
• Umarex GmbH & Co. KG hereby declares that the LaserRange-Master Gi7 Pro radio equipment complies with the essential requirements and other provisions of the European Radio Equipment Directive 2014/53/EU (RED). The EU Declaration of Conformity can be found in its entirety at the following address: http://laserliner.com/info?an=AHE

Green laser technology

Approx. 6 times brighter than a typical red laser with 630 - 660 nm

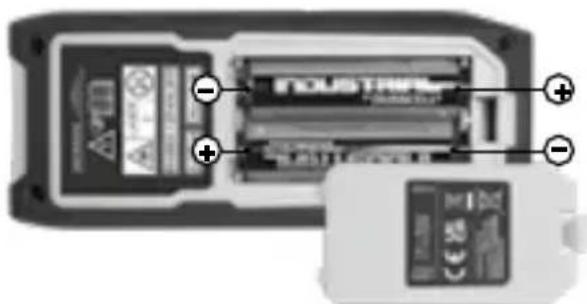

Inserting and removing the batteries

Open the battery compartment on the rear of the housing and insert 2 x typ AA. Correct polarity must be observed. Replace the battery compartment cover. The device can now be switched on. The device must be switched off before removing the batteries.

Close-up of a battery pack with internal components and a separate card-like device (no visible text or symbols)

LaserRange-Master Gi7 Pro

a b c d e f g h 0.000m 0.000m i min + 0.000m j 0.000m³ k

l m n o p q r s t u v

1. 2. 3. 4. 5. 6. LaserRange-Master G7

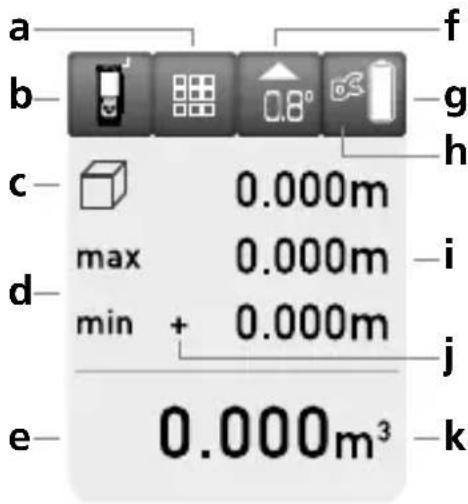

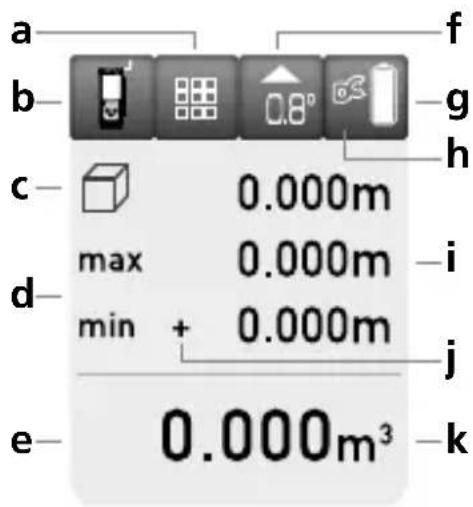

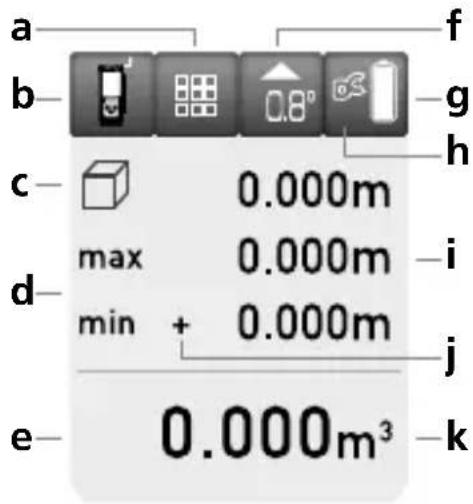

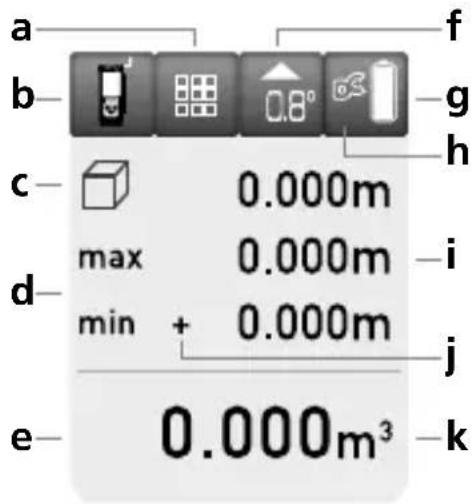

DISPLAY:

a Function display
b Measurement point (reference) rear / front
c Display min./max. continuous measurement / area / volume / angle function 1 + 2 + 3
d Min/max continuous measurement
e Measurement values / measurement results / malfunction / service required

f Slope angle device

g Battery symbol

h Digital Connection activated

i Intermediate values / min/max values

j Addition / subtraction of lengths, areas, volumes

k Unit m / inch / ft

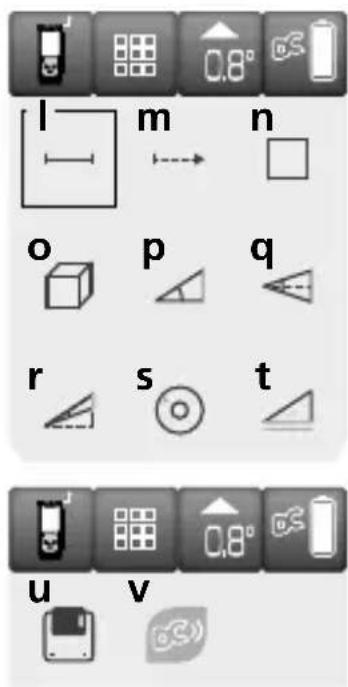

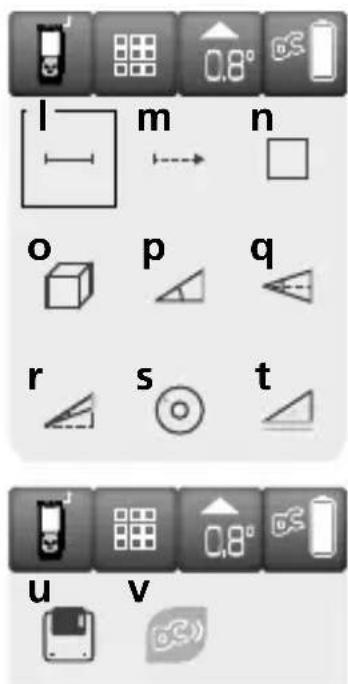

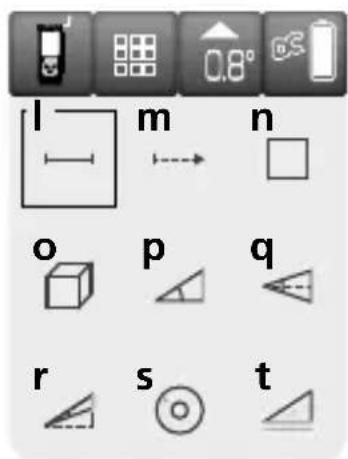

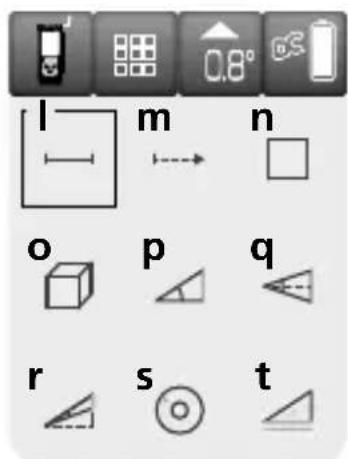

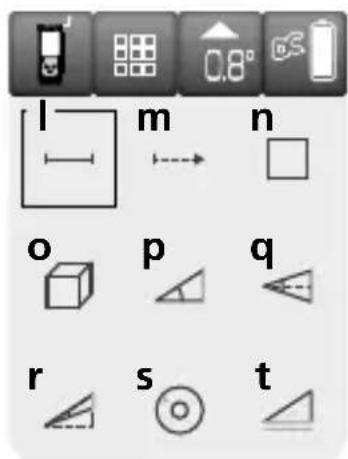

I Length measurement

m Min/max continuous measurement

n Area measurement

o Volume measurement

p Angle function 1

q Angle function 2

r Angle function 3

s Digital bubble level

t Tilt sensor calibration

u Memory

v Digital Connection

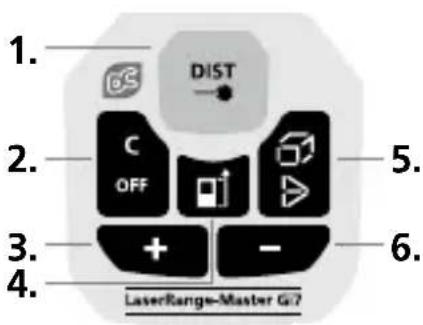

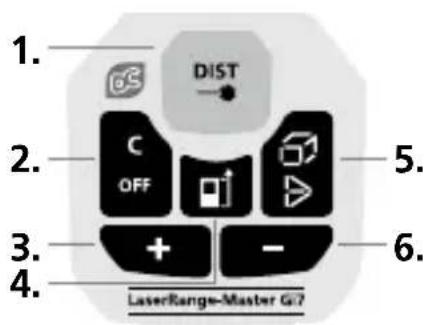

KEYPAD:

1. ON / measure
2. Delete last measurement values / OFF
3. Addition of lengths, areas, volumes / view saved measurements
4. Measurement point (reference) rear / front; unit m / inch / ft
5. Length / min/max continuous measurement / area / volume / angle function 1 + 2 + 3 / digital bubble level / tilt sensor calibration / memory / Digital Connection
6. Subtraction of lengths, areas, volumes / view saved measurements

Laserliner

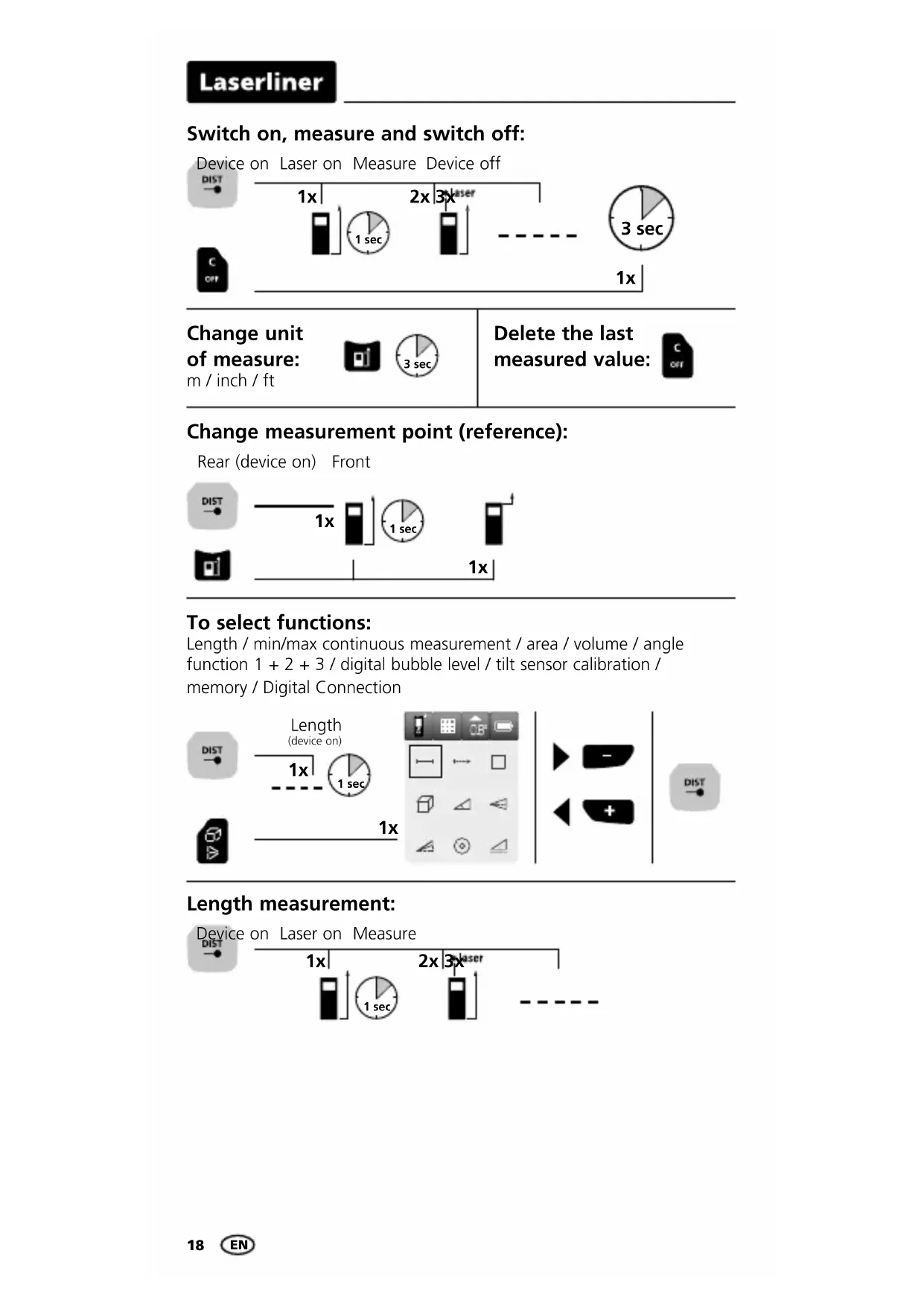

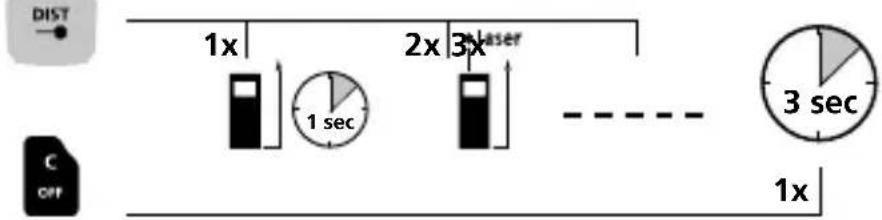

Switch on, measure and switch off:

Device on Laser on Measure Device off

DIST 1x 2x 3x laser 1 sec 3 sec 1x C OFF

Change unit of measure:

m / inch / ft

Delete the last measured value:

Change measurement point (reference):

Rear (device on) Front

DIST 1x 1 sec 1x

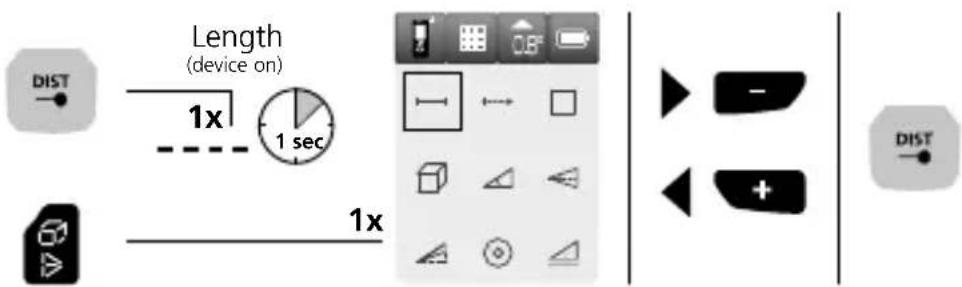

To select functions:

Length / min/max continuous measurement / area / volume / angle function 1 + 2 + 3 / digital bubble level / tilt sensor calibration / memory / Digital Connection

Length (device on) 1x 1 sec 1x DIST DIST

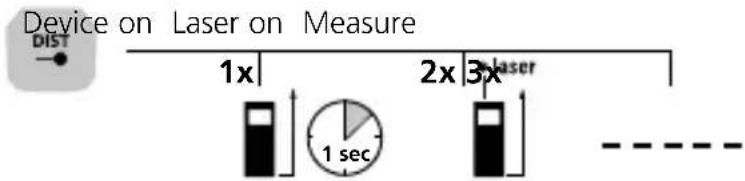

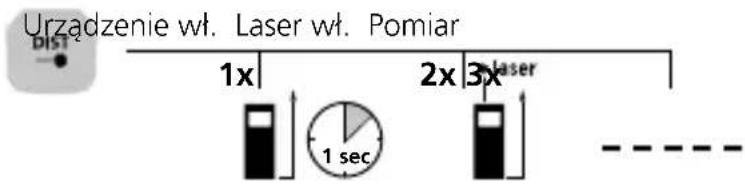

Length measurement:

Device on Laser on Measure 1x 2x 3x laser 1 sec -- -- --

LaserRange-Master Gi7 Pro

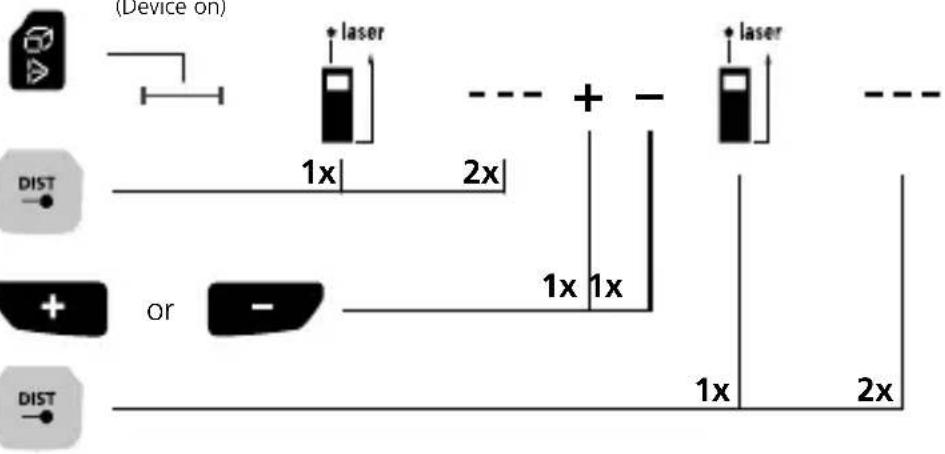

Addition and subtraction of lengths:

Length Laser on +/- Laser on Result

(Device on)

(Device on) + laser - - - + - + laser 1x 2x 1x 1x or - 1x 2x DIST DIST

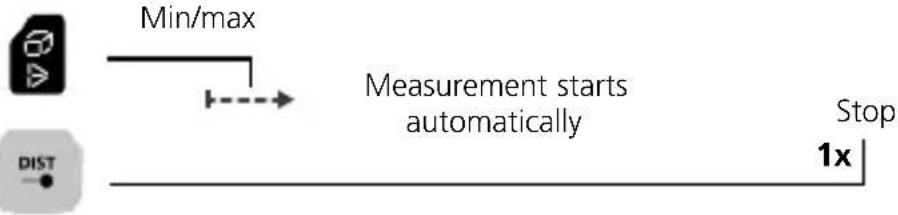

Min/max continuous measurement:

The LC display shows the max value, the min value and the current value.

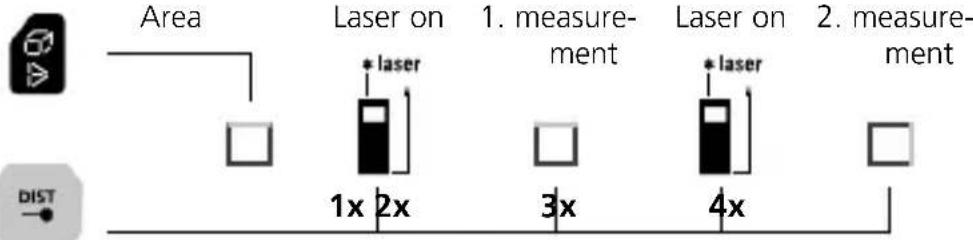

Area measurement:

Area Laser on * laser 1. measurement Laser on * laser 2. measurement 1x 2x 3x 4x DIST

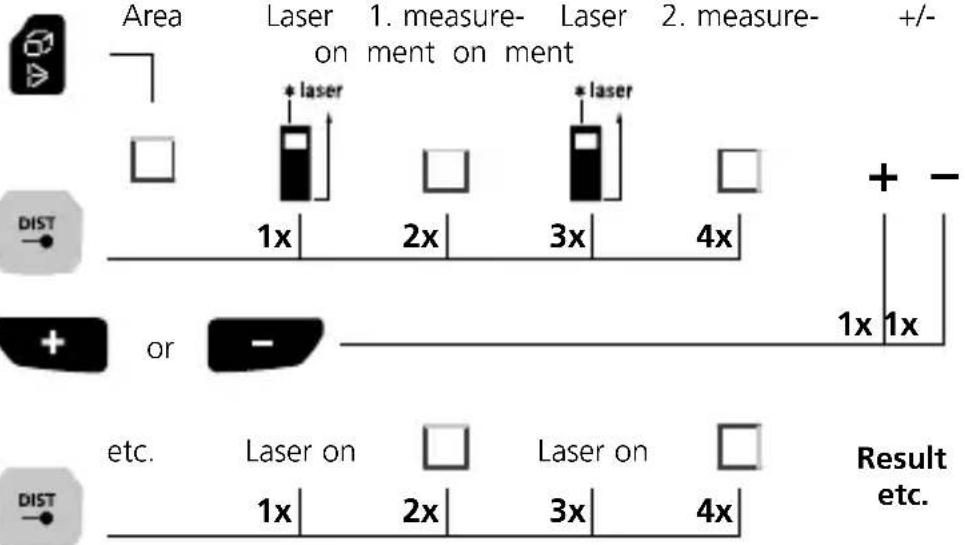

Area calculation:

Area Laser 1. measure- on ment on ment Laser 2. measure- +/- * laser * laser DIST 1x 2x 3x 4x + - or - 1x 1x etc. Laser on □ Laser on □ Result 1x 2x 3x 4x DIST

Laserliner

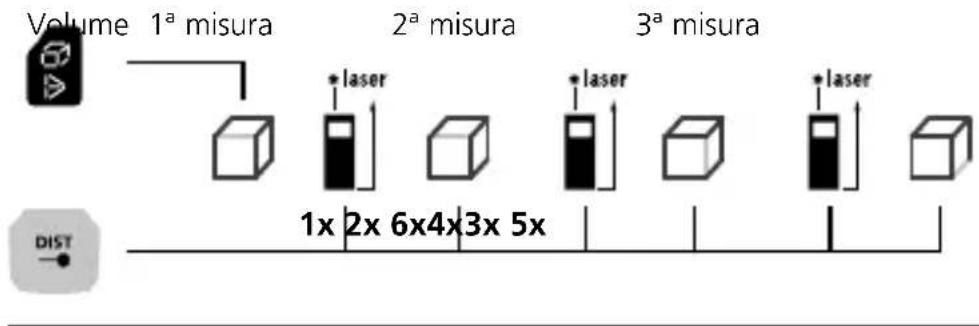

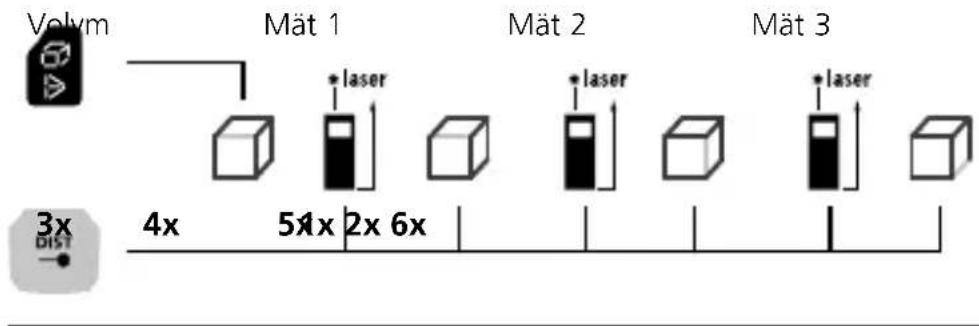

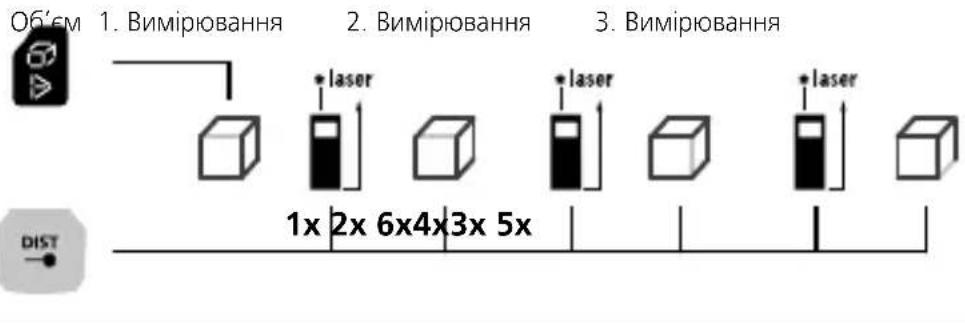

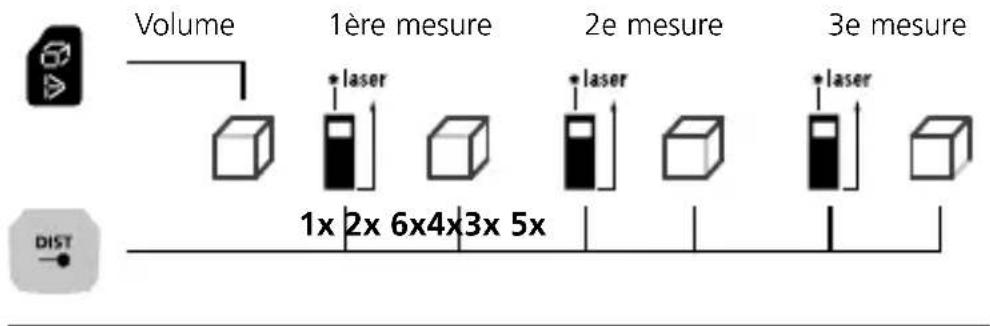

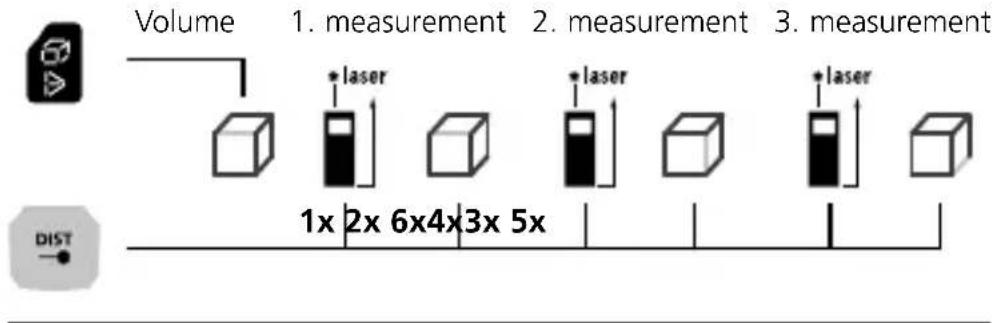

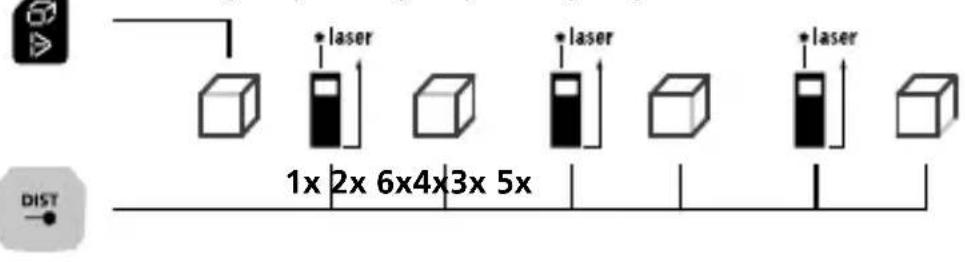

Volume measurement:

Volume 1. measurement 2. measurement 3. measurement * laser * laser * laser 1x 2x 6x4x 3x 5x DIST

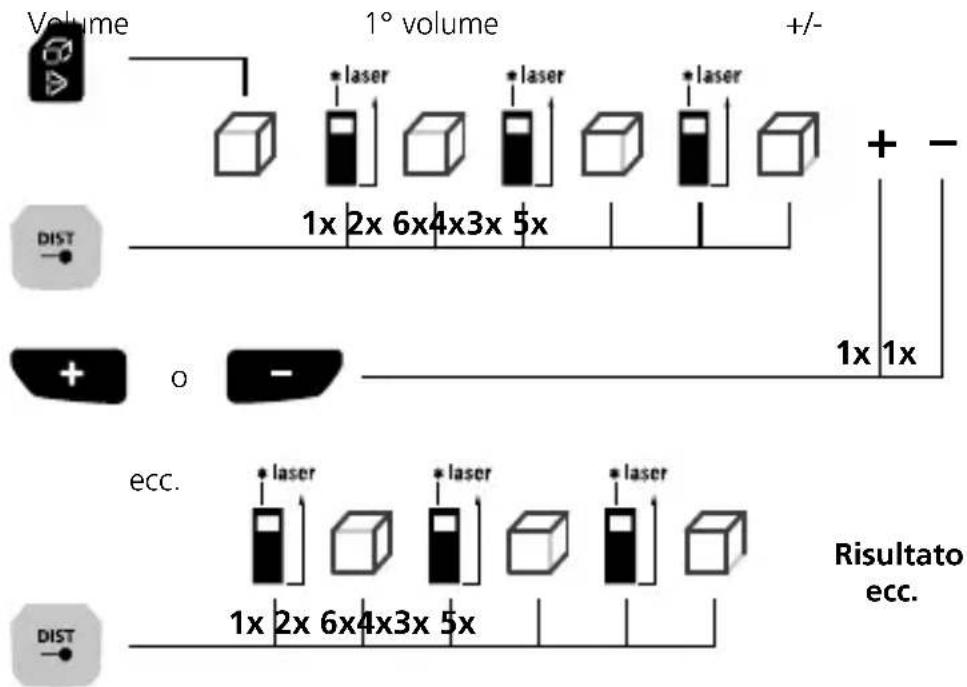

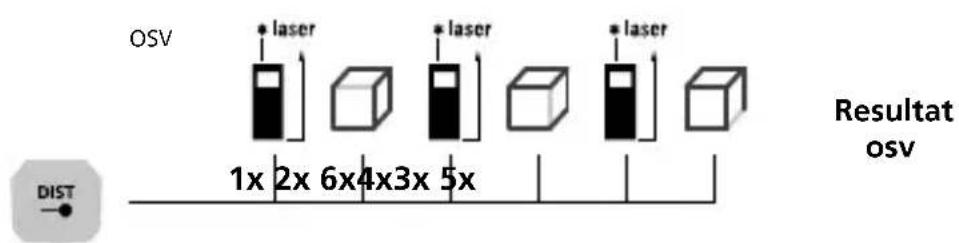

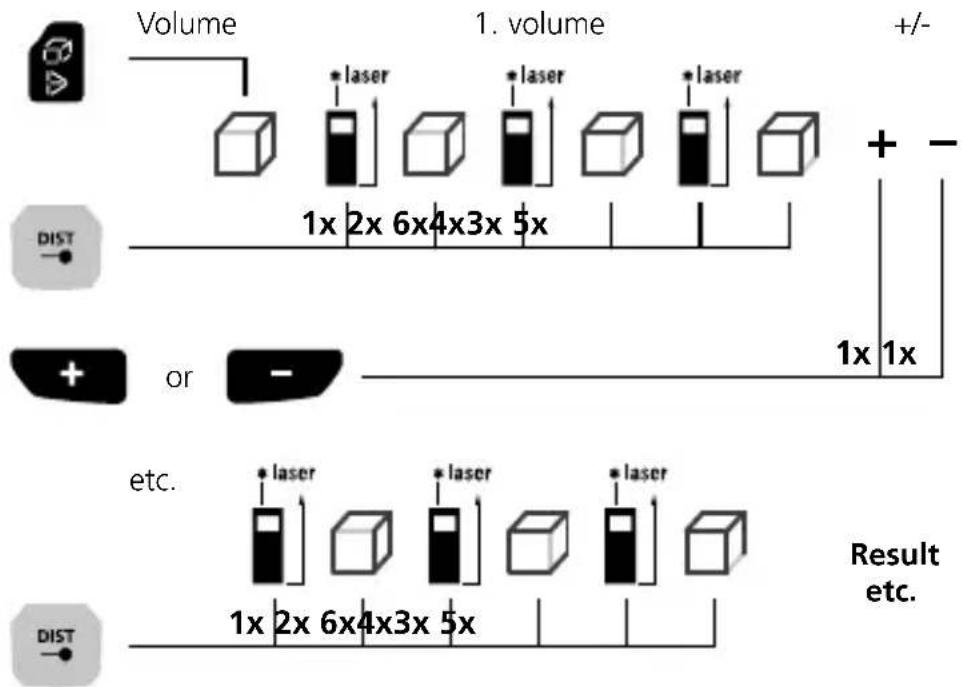

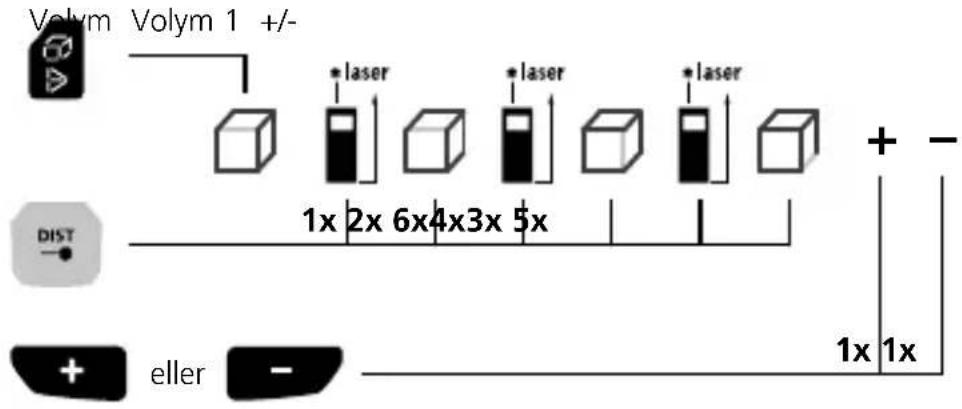

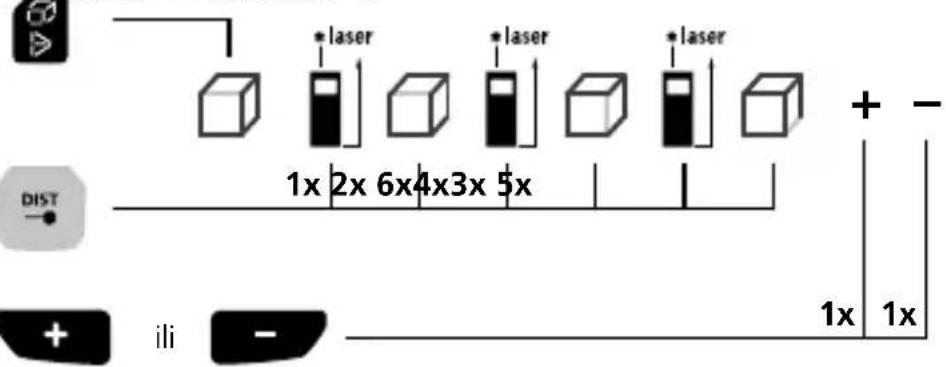

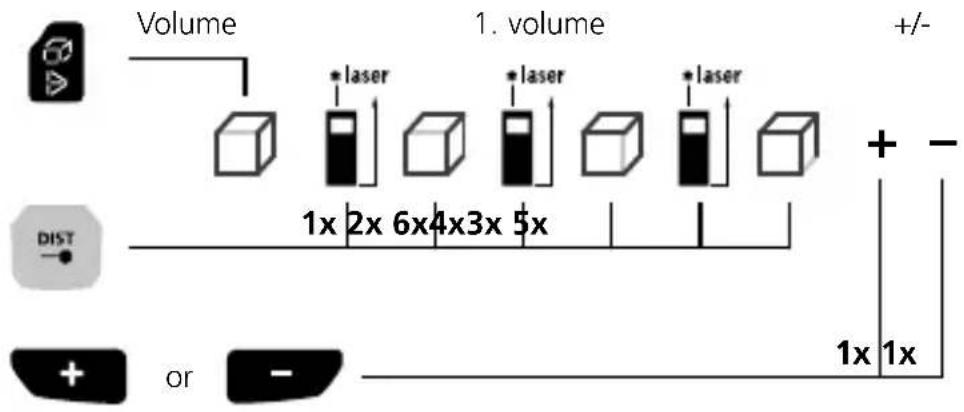

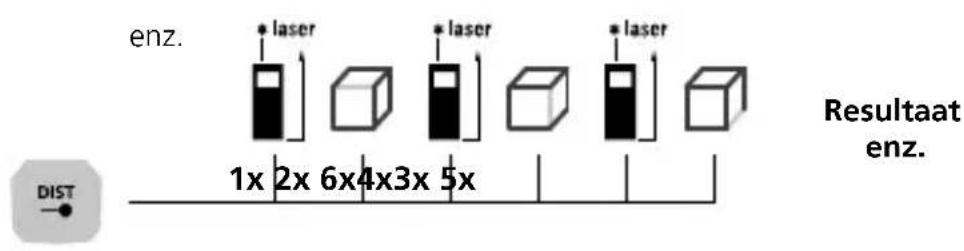

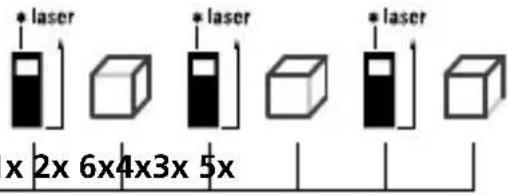

Volume calculation:

Volume 1. volume +/-/ 1x 2x 6x4x3x 5x + - /- DIST or 1x 1x etc. * laser * laser * laser 1x 2x 6x4x3x 5x Result etc. DIST

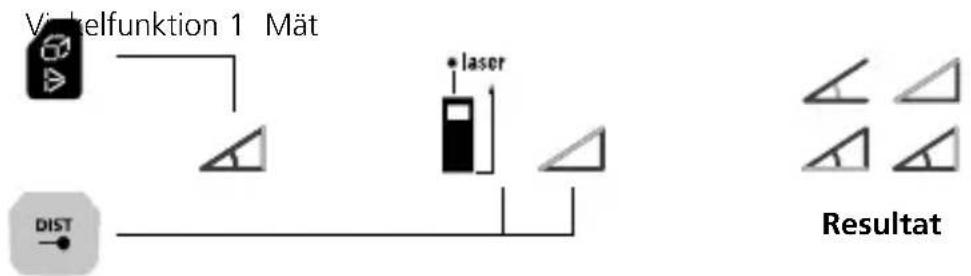

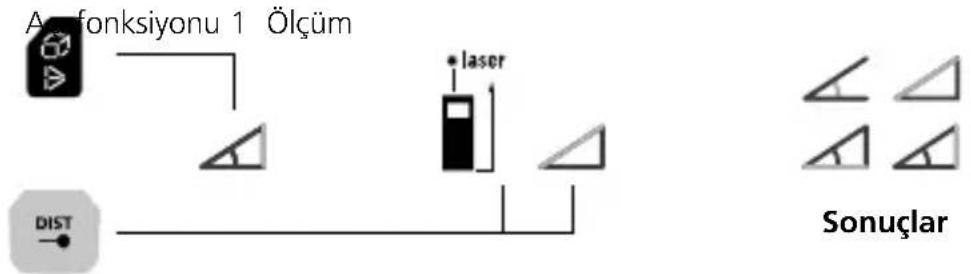

Angle function 1:

The measurement results are determined automatically by the 360° inclination sensor.

The back of the device can be used as a reference surface for measuring angles.

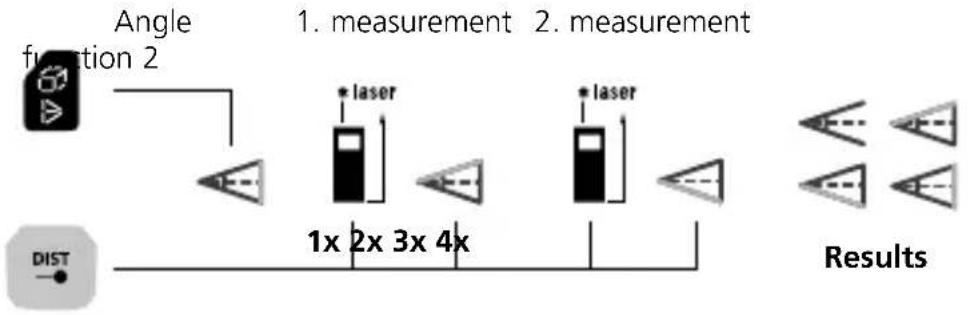

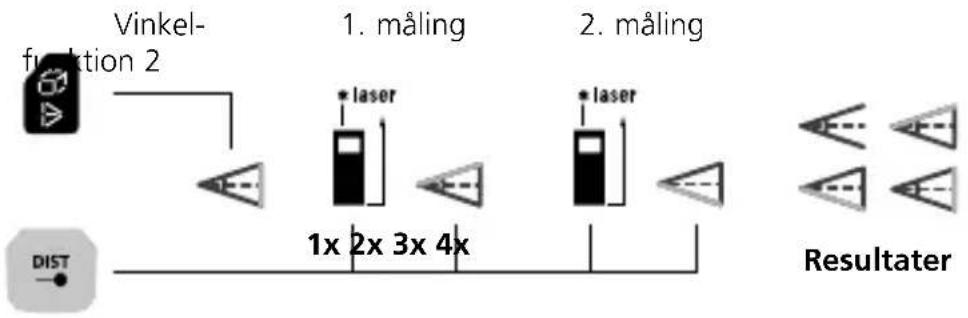

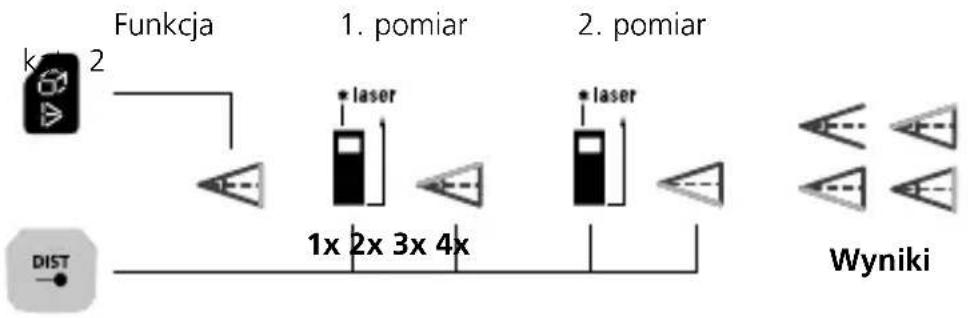

Angle function 2:
        G["Result 1: Laser"]
        H["Result 2: Laser"]
    end

The measurement results are determined automatically by the 360° inclination sensor.

The back of the device can be used as a reference surface for measuring angles.

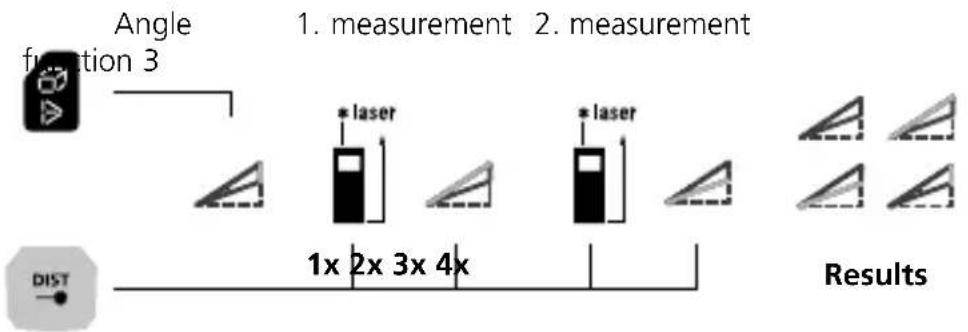

Angle function 3:

The measurement results are determined automatically by the 360° inclination sensor.

The back of the device can be used as a reference surface for measuring angles.

Digital bubble level:

The digital bubble level is used to horizontally align the measuring device.

Tilt sensor calibration:

To calibrate the tilt sensor follow the instructions on the display.

Memory function:

The device has 50 storage locations.

User interface icons including folder, printer, and navigation buttons with numeric labels

Laserliner

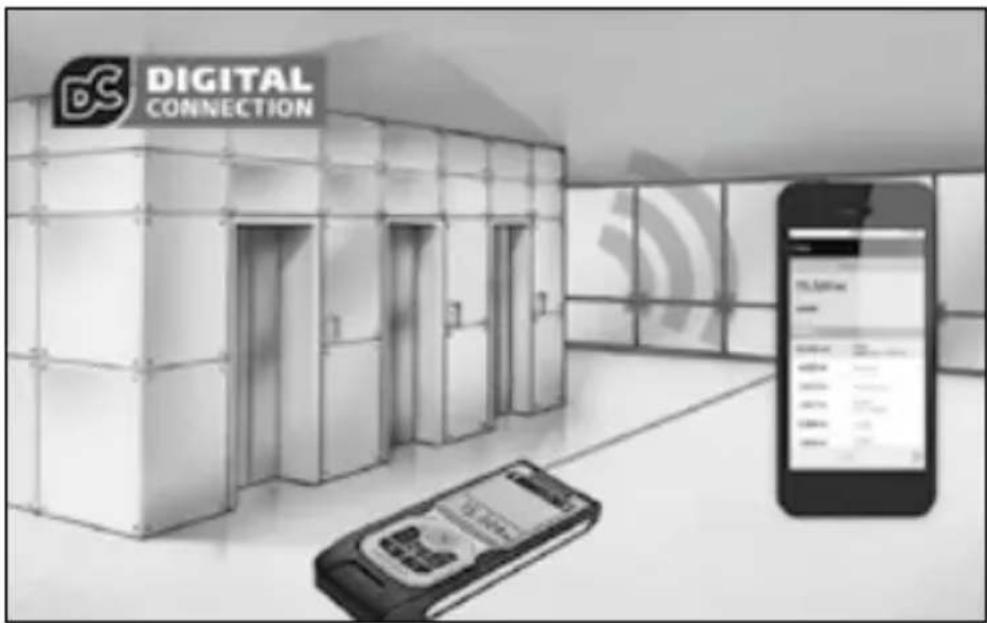

Data transfer

This device has digital connectivity which allows wireless data transfer to mobile devices such as smart phones or tablets with a wireless interface.

The system prerequisites for a digital connection are specified at https://packd.li/ble/v2

This device can generate a wireless connection to devices which are compatible with the wireless standard IEEE 802.15.4. The wireless standard IEEE 802.15.4 is a transfer protocol for Wireless Personal Area Networks (WPAN).

The range is set to a maximum distance of 10 m from the terminal device and greatly depends on the ambient conditions such as the thickness and composition of walls, sources of interference as well as the transmit / receive properties of the terminal device.

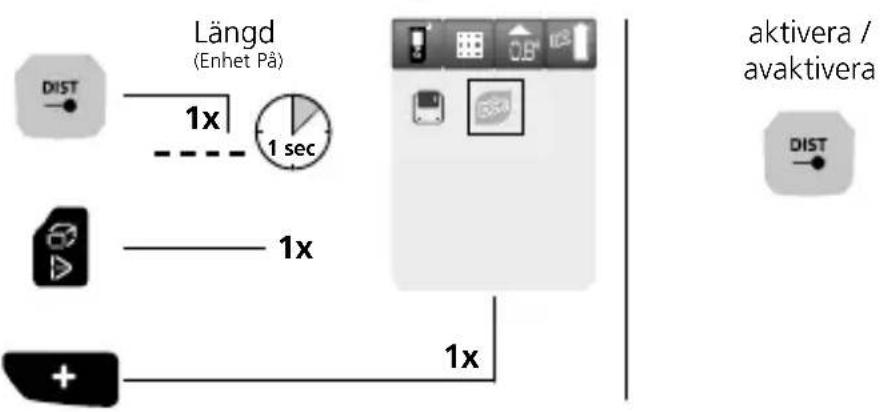

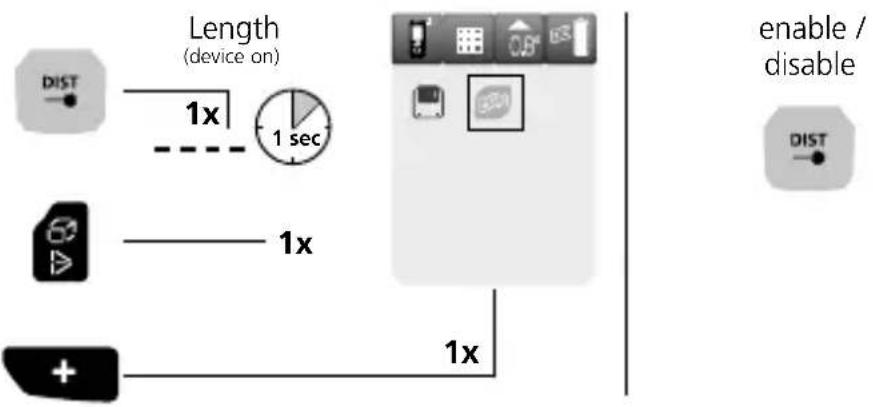

Enable / disable Digital Connection:

Length (device on) 1x 1 sec enable / disable DIST 1x 1x +

When enabled the Digital Connection symbol appears on the display (h). When the function is active, a mobile device can connect by means of an app to the measuring device.

Application (app)

An app is required to use the Digital Connection. You can download the app from the corresponding stores for the specific type of terminal device:

Download on the App Store

GETIT ON Google Play

Make sure that the wireless interface of the mobile device is activated.

After starting the app and activating the Digital Connection, a connection can be set up between a mobile device and the measuring device. If the app detects several active measuring devices, select the matching device.

This measuring device can be connected automatically the next time it is switched on.

Important notices

• The laser points to the location that will be measured. No objects may get into the laser's line of measurement.
• The device compensates the measurement for different room temperatures. Therefore allow the device a brief adaptation period when changing locations with large temperature differences.
• The device is only conditionally useable in outdoor areas and cannot be used in strong sunlight.
• The measurement results of outdoor measurements may be influenced or falsified by rain, fog and snow.
• In unfavourable conditions, e.g. with poorly reflecting surfaces, the maximum deviation may be greater than 3 mm.
• Carpeting, upholstery or curtains will not reflect the laser optimally. Measure to flat surfaces.
• Measurements made through glass (window panes) can falsify measurement results.
• An energy-saving function switches the device off automatically.
• Clean with a soft cloth. Water may not be allowed to penetrate the housing.

Error codes:

Er101: Replace the battery
Er108: Pythagorean measurement error
Er118: Tilt sensor calibration error
Er155: Received signal too weak or outside the measuring range
Er181: Data transfer error
Er194: Value outside display range

Information on maintenance and care

Clean all components with a damp cloth and do not use cleaning agents, scouring agents and solvents. Remove the battery(ies) before storing for longer periods. Store the device in a clean and dry place.

Calibration

The measuring device should be calibrated and tested on a regular basis to ensure it is accurate and working properly. We recommend the measuring device is calibrated every year. If necessary, contact your distributor or the UMAREX-LASERLINER service department.

Laserliner

Technical Data (Subject to technical changes without notice. 24W43)

Distance measurement
Precision (typical)* ± 2 mm
Measurement range (inside)**	0.05 m - 70 m
Angle measurement
Measuring range ± 90°
Resolution 0.1°
Precision 0.1°
Laser class 2 < 1 mW
Laser wavelength 515 nm
Operating conditions	-10°C ... 40°C, max. humidity20 ... 85% rH, no condensation,max. working altitude 2000 mabove sea level
Storage conditions	-20°C ... 70°C,max. humidity 80% rH
Radiomoduleoperating data	IEEE 802.15.4. LE ≥ 4.x (DigitalConnection) interface; Frequencyband: ISM band 2400–2483.5 MHz,40 channels; Transmit power: max.10 mW; Bandwidth: 2 MHz; Bit rate:1 Mbit/s; Modulation: GFSK / FHSS
Automatic switch-off 30 sec laser / 3 min device
Power supply 2 x 1.5V LR6 (AA)
Dimensions (W x H x D) 50 x 122 x 27 mm
Weight 140 g (incl. batteries)

* measuring distance up to 10 m with strongly reflective target surface and at room temperature. The measurement deviation may increase by ± 0.2 mm/m for greater distances and under unfavourable measuring conditions such as strong sunlight or weakly reflective target surfaces.
** at max. 5000 lux

EU and UK directives and disposal

This device complies with all necessary standards for the free movement of goods within the EU and the UK.

This product, including accessories and packaging, is an electrical appliance that must be recycled in an environmentally appropriate manner in accordance with European and UK directives on waste electrical and electronic equipment, batteries and packaging, in order to recover valuable raw materials. Electrical devices, batteries and packaging do not belong in household waste. Users are obliged by law to surrender used batteries or battery packs to a public collection point, to sales outlets, or to technical customer services, free of charge. Remove the battery from the device without damaging it using standard commercial tools: arrange separate collection before returning the device for disposal. Please do not hesitate to contact the UMAREX-LASERLINER service department if you have any queries regarding removing the battery. Look for information on local disposal facilities and note the relevant disposal and safety information at the collection points.

Further safety and supplementary notices at: http://laserliner.com/info?an=AHE

Laserliner

!

Warning symbol with a triangular triangle containing a central starburst pattern (no text or numbers)

Close-up of a device showing internal components with battery and indicator lights (no readable text or symbols)

Laserliner

a b c d e 0.000m max 0.000m min + 0.000m 0.000m³ f g h i j k

l m n o p q r s t

u v

1. 2. 3. 4. 5. 6. LaserRange-Master G7

DISPLAY:

v Digital Connection

TOETSENBORD:

LaserRange-Master Gi7 Pro

LaserRange-Master Gi7 Pro

Volumemeting:

Volume 1e meting 2e meting 3e meting 1x 2x 6x4x3x 5x DIST

Volumeberekening:

Volume 1. volume +/-/ 1x 2x 6x4x3x 5x + - DIST or 1x 1x

enz. * laser * laser * laser 1x 2x 6x4x3x 5x Resultaat enz. DIST

Hoekfunctie 1:

LaserRange-Master Gi7 Pro

Gegevensoverdracht

Download on the App Store

GETIT ON Google Play

LaserRange-Master Gi7 Pro

Technische gegevens

Warning symbol with a triangular triangle and central sunburst (no text or numbers)

Laserstråling! Se ikke ind i strålen! Laser klasse 2 · < 1 mW · 515 nm EN 60825-1:2014/A11:2021 / EN 50689:2021

Interior view of a battery pack with internal components and a close-up of the battery (no visible text or symbols)

LaserRange-Master Gi7 Pro

a b c d e f g h 0.000m 0.000m i min + 0.000m j 0.000m³ k

l m n o p q r s t u v

1. 2. 3. 4. 5. 6. LaserRange-Master G7

DISPLAY:

1x 2x 3x 3 sec 1x 1 sec 3 sec C OFF

Skift af måleenhed:

m / inch / ft

LaserRange-Master Gi7 Pro

Vinkelfunktion 2:
        B
        C
        D
        E
    end
    subgraph '1. måling'
        F
        G["laser"]
    end
    subgraph '2. måling'
        H["laser"]
    end

Screenshot of a software toolbar showing file, folder, and navigation icons with status indicators

Laserliner

Dataoverførsel

https://packd.li/ble/v2

Apparatet kan etablere en radioforbindelse med apparater, der er kompatible med IEEE-standarden 802.15.4. IEEE-standarden 802.15.4 er en overførselsprotokol for Wireless Personal Area Networks (WPAN).

Download on the App Store

GETT ON Google Play

Warning sign with black triangular triangle and central sunburst symbol

Rayonnement laser!

LaserRange-Master Gi7 Pro

Interior view of a battery pack with internal components and external casing (no visible text or symbols)

Laserliner

a b c d e 0.000m max 0.000m min + 0.000m 0.000m³ f g h i j k

l m n o p q r s t

u v

1. 2. 3. 4. 5. 6. LaserRange-Master G7

AFFICHAGE :

LaserRange-Master Gi7 Pro

DIST 1x 2x 3x laser 1 sec 3 sec 1x C OFF

1x 2x 3x laser 1 sec

Laserliner

LaserRange-Master Gi7 Pro

Mesure du volume :

Volume 1ère mesure 2e mesure 3e mesure 1x 2x 6x4x3x 5x * laser * laser * laser DIST

Download on the App Store

GETIT ON Google Play

LaserRange-Master Gi7 Pro

Données techniques

Warning sign with triangular triangle and central sunburst symbol

Rayo láser!

Diagram of an electronic device showing internal components with labels and polarity indicators

LaserRange-Master Gi7 Pro

a b c d e f g h 0.000m 0.000m i min + 0.000m j 0.000m³ k

l m n o p q r s t u v

1. 2. 3. 4. 5. 6. LaserRange-Master G7

INDICADOR:

Download on the App Store

GETIT ON Google Play

Warning sign with triangular triangle and central sunburst symbol

LaserRange-Master Gi7 Pro

Internal view of a device showing internal components and battery pack (no readable text or symbols)

Laserliner

a b c d e 0.000m max 0.000m min + 0.000m 0.000m³ f g h i j k

l m n o p q r s t

u v

1. 2. 3. 4. 5. 6. LaserRange-Master G7

DISPLAY:

v Digital Connection

TASTIERA:

LaserRange-Master Gi7 Pro

Strumento on Laser on Misura Strumento off 1x 2x 3x laser 1 sec 3 sec 1x

Lunghezza (strumento on) 1x 1 sec 1x Luncher-Master oil DIST DIST DIST DIST

Area Laser on 1a misura Laser on 2a misura 1x 2x 4x3x DIST

Area Laser on 1a misura Laser on 2a misura +/- * laser * laser 1x 2x 4x3x + - DIST o - 1x 1x ecc. Laser on Laser on Risultato ecc. 1x 2x 4x3x

LaserRange-Master Gi7 Pro

Misura del volume:

Volume 1a misura 2a misura 3a misura 1x 2x 6x4x3x 5x * laser * laser * laser DIST

Calcolo del volume:

Volume 1° volume +/- * laser * laser * laser 1x 2x 6x4x3x 5x + - DIST 1x 1x o - ecc. * laser * laser * laser 1x 2x 6x4x3x 5x Risultato ecc. DIST

Funzione angoli 1:

https://packd.li/ble/v2

Download on the App Store

GETITON Google Play

LaserRange-Master Gi7 Pro

Warning sign with sunburst symbol inside triangle, commonly used in safety or hazard prevention context

Interior view of a device showing internal components with no visible text or symbols

LaserRange-Master Gi7 Pro

a b c d e f g h 0.000m 0.000m i min + 0.000m j 0.000m³ k

l m n o p q r s t

u v

1. 2. 3. 4. 5. 6. LaserRange-Master G7

WYŚWIETLACZ:

Długosity (Urzadzenie wt.) 1x 1 sec 1x user experience of DIST DIST

Pomiar długości:

Urzadzenie wt. Laser wt. Pomiar 1x 2x 3x laser 1 sec - - - - - -

LaserRange-Master Gi7 Pro

Funkcja kąta 2:

Download on the App Store

GETIT ON Google Play

Warning sign with sunburst symbol inside triangle, commonly used in safety or hazard prevention context

LaserRange-Master Gi7 Pro

Turvallisuusohjeet

Internal view of a memory card showing internal components and external casing (no readable text or symbols)

Laserliner

a b c d e 0.000m max 0.000m min + 0.000m 0.000m³ f g h i j k

l m n o p q r s t

u v

1. 2. 3. 4. 5. 6. LaserRange-Master G7

NÄYTTÖ:

LaserRange-Master Gi7 Pro

LaserRange-Master Gi7 Pro

Download on the App Store

GETITON Google Play

LaserRange-Master Gi7 Pro

Warning sign with black triangular triangle and central sunburst symbol

Colocar e retirar as pilhas

Diagram of a device showing internal components with labels and polarity indicators

LaserRange-Master Gi7 Pro

a b c d e f g h 0.000m 0.000m i min + 0.000m j 0.000m³ k

l m n o p q r s t u v

1. 2. 3. 4. 5. 6. LaserRange-Master G7

VISOR:

v Digital Connection

TECLADO:

Download on the App Store

GETIT ON Google Play

Warning sign with black triangular triangle and central sunburst symbol

LaserRange-Master Gi7 Pro

Diagram of a device rear panel showing internal components with labels and polarity indicators

Laserliner

a b c d e 0.000m max 0.000m min + 0.000m 0.000m³ f g h i j k

l m n o p q r s t

u v

1. 2. 3. 4. 5. 6. LaserRange-Master G7

DISPLAY:

LaserRange-Master Gi7 Pro

DIST 1x 2x 3x laser 1 sec 3 sec 1x C OFF

LaserRange-Master Gi7 Pro

Volymmätning:

Volvm Mät 1 * laser Mät 2 * laser Mät 3 4x 5x 2x 6x 3x Dist

Volym kalkylering:

Volym Volym 1 +/- * laser * laser * laser + - 1x 2x 6x 4x 3x 5x DIST eller 1x 1x

OSV * laser * laser * laser 1x 2x 6x4x3x 5x Resultat osv DIST

Vinkelfunktion 1:

https://packd.li/ble/v2

Aktivera / avaktivera Digital Connection:

Längd (Enhet På) 1x 1 sec 1x 1x aktivera / avaktivera DIST DIST

Download on the App Store

GETIT ON Google Play

LaserRange-Master Gi7 Pro

Warning symbol with a triangular triangle and central starburst (no text or numbers)

Laserstråling!

Interior view of a device showing internal components with no visible text or symbols

LaserRange-Master Gi7 Pro

a b c max min + 0.000m 0.000m 0.8° 0.000m 0.000m³ f g h i j k e

l m n o p q r s t u v

1. 2. 3. 4. 5. 6. LaserRange-Master G7

DISPLAY:

LaserRange-Master Gi7 Pro

https://packd.li/ble/v2

Instrumentet kan koble opp en radioforbindelse med enheter som er kompatible med radiostandard IEEE 802.15.4. Radiostandard IEEE 802.15.4 er en overføringsprotokoll for Wireless Personal Area Networks (WPAN).

Download on the App Store

GETIT ON Google Play

Warning symbol with a triangular triangle and central sunburst pattern (no text)

Interior view of a device showing internal components with battery and card labels (no readable text or symbols)

Laserliner

a b c d e 0.000m max 0.000m min + 0.000m 0.000m³ f g h i j k

l m n o p q r s t

u v

1. 2. 3. 4. 5. 6. LaserRange-Master G7

EKRAN:

LaserRange-Master Gi7 Pro

LaserRange-Master Gi7 Pro

Hacim ölçümü:

Hacim 1. +/- * laser * laser * laser 1x 2x 6x4x3x 5x + - DISTR 1x 1x + veya - vs. * laser * laser * laser 1x 2x 6x4x3x 5x Sonuç vs. DIST

Açı fonksiyonu 1:

LaserRange-Master Gi7 Pro

Veri aktarımı

https://packd.li/ble/v2

Download on the App Store

GETIT ON Google Play

LaserRange-Master Gi7 Pro

Warning symbol with a triangular triangle containing a central starburst (no text or numbers)

Interior view of a device showing internal components and a close-up of a card slot (no visible text or symbols)

LaserRange-Master Gi7 Pro

a b c d e 0.000m max 0.000m min + 0.000m 0.000m³ f g h i j k

l m n o p q r s t

u v

1. 2. 3. 4. 5. 6. LaserRange-Master G7

ДИСПЛЕЙ:

DIST 1x 2x Laser 1 sec

LaserRange-Master Gi7 Pro

Download on the App Store

GET IT ON Google Play

Warning symbol with a triangular triangle and central sunburst pattern (no text)

Diagram of a device showing internal components with labels and polarity indicators, including 'ROUSTRIK' and 'M1.02'.

Laserliner

a b c d e 0.000m max 0.000m min + 0.000m 0.000m³ f g h i j k

l m n o p q r s t

u v

1. 2. 3. 4. 5. 6. LaserRange-Master G7

ДИСПЛЕЙ:

LaserRange-Master Gi7 Pro

DIST 1x 2x 3x laser 1 sec

Laserliner

LaserRange-Master Gi7 Pro

Вимір об'єму:

LaserRange-Master Gi7 Pro

Передача даних

Download on the App Store

GETITON Google Play

LaserRange-Master Gi7 Pro

Warning symbol with a sunburst inside a triangle (no text or numbers)

Interior view of a memory card showing internal components and external casing (no readable text or symbols)

LaserRange-Master Gi7 Pro

a b c d e f g h 0.000m 0.000m i min + 0.000m j 0.000m³ k

l m n o p q r s t

u v

1. 2. 3. 4. 5. 6. LaserRange-Master G7

DISPLEJ:

v Digital Connection

KLÁVESNICE:

1x 2x 3x laser 1 sec

LaserRange-Master Gi7 Pro

LaserRange-Master Gi7 Pro

https://packd.li/ble/v2

Download on the App Store

GETIT ON Google Play

Warning sign with sunburst symbol inside triangle, commonly used for safety or hazard warning

Laserkiirgus! Mitte vaadata laserikiirt! Laseriklass 2 · < 1 mW · 515 nm EN 60825-1:2014/A11:2021 / EN 50689:2021

LaserRange-Master Gi7 Pro

Ohutusjuhised

Interior view of a device showing internal components with battery and card (no readable text or symbols)

Laserliner

a b c d e 0.000m max 0.000m min + 0.000m 0.000m³ f g h i j k

l m n o p q r s t

u v

1. 2. 3. 4. 5. 6. LaserRange-Master G7

EKRAAN:

LaserRange-Master Gi7 Pro

LaserRange-Master Gi7 Pro

Ruumala möötmine:

LaserRange-Master Gi7 Pro

Andmeülekanne

https://packd.li/ble/v2

Download on the App Store

GETIT ON Google Play

LaserRange-Master Gi7 Pro

Tehnilised andmed

Warning symbol with a sunburst pattern inside a triangle (no text or numbers)

Raze laser!

FOUSTRIPL MIDP3

LaserRange-Master Gi7 Pro

a b c d e 0.000m max 0.000m min + 0.000m 0.000m³ f g h i j k

l m n o p q r s t u v

1. 2. 3. 4. 5. 6. LaserRange-Master G7

DISPLAY:

DIST 1x 2x 3x laser 1 sec 3 sec 1x C off

https://packd.li/ble/v2

Download on the App Store

GETT ON Google Play

Warning symbol with a sunburst pattern inside a triangle (no text or numbers)

LaserRange-Master Gi7 Pro

Interior view of a battery pack with internal components and external casing (no visible text or symbols)

Laserliner

a b c d e 0.000m max 0.000m min + 0.000m 0.000m³ f g h i j k

l m n o p q r s t

u v

1. 2. 3. 4. 5. 6. LaserRange-Master G7

ДИСПЛЕЙ:

LaserRange-Master Gi7 Pro

LaserRange-Master Gi7 Pro

Измерване на обем:

Обем 1. Измерване 2. Измерване 3. Измерване * laser * laser * laser 132x 6x4x 5x DIST

User interface icons including folder, printer, and navigation buttons with numeric labels 01...50

LaserRange-Master Gi7 Pro

Пренос на данни

Download on the App Store

GET IT ON Google Play

LaserRange-Master Gi7 Pro

Технически характеристики

Warning symbol with a sunburst pattern inside a triangle (no text or numbers)

Internal view of a device showing internal components and a battery pack (no visible text or symbols)

LaserRange-Master Gi7 Pro

a b c d e f g h 0.000m 0.000m i min + 0.000m j 0.000m³ k

l m n o p q r s t

u v

1. 2. 3. 4. 5. 6. LaserRange-Master G7

OOONH:

LaserRange-Master Gi7 Pro

LaserRange-Master Gi7 Pro

Download on the App Store

GETIT ON Google Play

Warning symbol with a triangle and radiating lines, no text or numbers present

Lasersko zračenje! Ne gledati u lasersku zraku! Laser klase 2 · < 1 mW · 515 nm EN 60825-1:2014/A11:2021 / EN 50689:2021

LaserRange-Master Gi7 Pro

Sigurnosne upute

Suočavanje s elektromagnetnim zračenjem

• Mjerni uređaj ispunjava propise o elektromagnetnoj kompatibilnosti i ograničenja sukladno EMC direktivi 2014/30/EU što je obuhvaćeno Direktivom za radijsku opremu 2014/53/EU.
• Mogu se primijeniti lokalna ograničenja pri radu – npr. u bolnicama, zrakoplovima, benzinskim crpkama ili u blizini ljudi s elektrostimulatorom srca. Elektronički uređaji mogu potencijalno uzrokovati opasnost ili smetnje ili biti izloženi opasnostima ili smetnjama.
• Rad u blizini visokog napona ili jakih elektromagnetnih izmjeničnih polja može negativno utjecati na točnost mjerenja.

Sigurnosne upute

Interior view of a device showing internal components with no visible text or symbols

Laserliner

a b c d e 0.000m max 0.000m min + 0.000m 0.000m³ f g h i j k

l m n o p q r s t u v

DISPLAY:

LaserRange-Master Gi7 Pro

LaserRange-Master Gi7 Pro

Mjerenje volumena:

Volumena 1. Mjerenje 2. Mjerenje 3. Mjerenje

laser 1x 2x 6x4x3x 5x laser laser DIST

Volumen Kalkulation:

Volumena 1. Volumena +/-

1x 2x 6x4x3x 5x + - DIST 1x 1x + -

itd.

* laser * laser * laser x 2x 6x4x3x 5x

Rezultat itd.

LaserRange-Master Gi7 Pro

Prijenos podataka

https://packd.li/ble/v2

Uređaj može uspostaviti radijsku vezu s uređajima kompatibilnima s tehničkim standardom IEEE 802.15.4. Tehnički standard IEEE 802.15.4 je protokol za prijenos za bežične osobne područne mreže (Wireless Personal Area Networks – WPAN).

Download on the App Store

GETIT ON Google Play

Uvjerite se da je radio sučelje mobilnog terminala aktivirano.

Laserliner

Nakon pokretanja aplikacije i aktiviranja digitalne veze može se uspostaviti veza između mobilnog terminala i brojila. Ako aplikacija identificira više od jednog aktivnog brojila, odaberite odgovarajuće brojilo.

LaserRange-Master Gi7 Pro

Tehnički podaci (Podložno tehničkim promjenama. 24W43
Mjerenje udaljenosti
Preciznost (tipično) * ± 2 mm
(Unutarnji) raspon Mjerenja** 0,05 m - 70 m
Mjerenje kutova
Raspona mjerenja ± 90°
Razlučivost 0,1°
Točnost 0,1°
Razred laserja 2 < 1 mW
Valna duljina lasera 515 nm
Radni uvjeti	-10°C ... 40°C, maks. vlaga 20 ...85% bez kondenzacije, maksimalna nadmorska visina pri radu 2000 m
Uvjeti skladištenja	-20°C ... 70°C,maks. vlaga 80% rH
Radio modul radnih podataka	IEEE 802.15.4. LE ≥ 4.x (Digital Connection) liides; Sagedusriba: ISM-riba 2400–2483,5 MHz,40 kanalit; Saatmisvoimsus: max.10 mW; Ribalaius: 2 MHz; Bitikiirus:1 Mbit/s; Modulatsioon: GFSK / FHSS
Automatsko isključivanje 30 s laser / 3 min. Uređaj
Električno napajanje 2 x 1,5V LR6 (AA)
Dimenzije (Š x V x D) 50 x 122 x 27 mm
Masa 140 g	(uključujući baterije)

* do udaljenosti mjerenja od 10 m na dobro reflektirajućoj ciljnoj površini i sobnoj temperaturi. Na većim udaljenostima i nepovoljnim mjernim uvjetima, kao npr jako sunčano zračenja ili slabo reflektirajuće ciljne površine, odstupanje mjerenja može se povećati za ± 0,2 mm / m.
** kod maks. 5000 luksa

Laserliner

Odredbe Europske unije i Ujedinjenog Kraljevstva i zbrinjavanje

Uređaj ispunjava sve potrebne norme za slobodan promet roba unutar Europske unije i u Ujedinjenom Kraljevstvu.

Ovaj proizvod, zajedno s priborom i ambalažom, predstavlja električni uređaj koji je prema europskim direktivama i direktivama Ujedinjenog Kraljevstva o otpadnoj električnoj i elektroničkoj opremi, akumulatorima i ambalaži potrebno predati na ekološki prihvatljivo recikliranje kako bi s e ponovno doble vrijedne sirovine. Električni uređaji, baterije i ambalaža ne spadaju u kućni otpad. Potrošači su zakonski obvezni predati potrošene baterije i punjive baterije na javnim prikupljalištima, prodajnim mjestima ili kod tehničke službe za kupce; to mogu učiniti besplatno. Prije nego što se uređaj preda na zbrinjavanje, iz uređaja je pomoću uobičajenog alata potrebno izvaditi bateriju bez uništavanja i predati je na zasebno prikupljalište. Molimo Vas da se u slučaju pitanja u vezi vađenja baterija obratite Servisnom odjelu tvrtke UMAREX-LASERLINER. Molimo Vas da se u svojoj općini raspitate o odgovarajućim ustanovama za zbrinjavanje i da obratite pozornost na odgovarajuće upute u vezi zbrinjavanja i sigurnosti na prikupljalištima.

LaserRange-Master Gi7 Pro

DIGITAL CONNECTION

Manuale

PAP 22

CARTA

RACCOLTA CARTA
