RollPilot Mini - Rangefinder Laserliner - Free user manual and instructions

Product Type	Mechanical wheel distance meter
Brand	Laserliner
Model	RollPilot Mini
Dimensions (extended)	124 x 1100 x 159 mm
Dimensions (folded)	124 x 550 x 159 mm
Weight	550 g
Power supply	Mechanical (no batteries)
Measuring range	0 to 9,999.9 m
Accuracy	± 0.1%
Wheel circumference	500 mm
Wheel diameter	159 mm
Wheel radius	79.5 mm
Functions	Wall-to-wall, wall-to-point, point-to-point measurement
Zero reset	By pressing the dedicated button
Non-slip handle	Yes
Telescopic handle	Yes, two adjustment levels
Mechanical counter	Yes, with digital display
Movable needle	Yes, for position marking
Foldable kickstand	Yes
Materials	Plastic, metal
Compliance	CE
Recycling	Device recyclable, do not dispose of with household waste
Cleaning	With a soft, dry cloth
Repairability	Contact customer service

Frequently Asked Questions - RollPilot Mini Laserliner

How to measure a wall-to-wall distance with the RollPilot Mini?

Place the back of the wheel against the first wall. Roll the wheel to the second wall while keeping the handle at a constant angle. Read the displayed distance and add the wheel diameter (159 mm) to get the actual distance.

How to reset the counter to zero?

Press the reset button (mark 5) located on the side of the counter. The mechanical counter resets to zero instantly.

What is the accuracy of the device?

The accuracy is ± 0.1%, ensuring reliable measurements for distances up to 9,999.9 m.

How to extend the telescopic handle?

Gently pull the two sections of the handle. It has two levels of continuous adjustment to fit your height. Close it after use.

How to measure from one point to another?

Place the movable needle (mark 7) on the first point. Roll the wheel in a straight line to the second point. Read the distance directly on the counter.

Does the device require batteries?

No, the RollPilot Mini is fully mechanical and operates without batteries. It uses a measuring wheel and a mechanical counter.

How to maintain the distance meter?

Clean the wheel and counter with a soft, dry cloth after each use. Avoid water and abrasive products. Store it in a dry place.

What is the maximum measuring range?

The maximum range is 9,999.9 meters, nearly 10 km, allowing measurement of very long distances.

How to measure from a wall to a specific point?

Place the back of the wheel against the wall. Roll the wheel in a straight line to the marked point. Add the wheel radius (79.5 mm) to the read value to get the exact distance.

What to do if measurements seem inaccurate?

Make sure the wheel rolls without slipping and the handle remains at a constant angle during measurement. Check that the counter is properly reset to zero before starting. If the problem persists, contact customer service.

USER MANUAL RollPilot Mini Laserliner

Modern metal walkie with black handle and circular base, no visible text or symbols

0 m ..... 9.999,9 m

!

Diagram of a mechanical component with labeled part '7' (no readable text or symbols)

Close-up of a car wheel with a mounted sensor or steering wheel and a black plastic ring, no visible text or symbols.

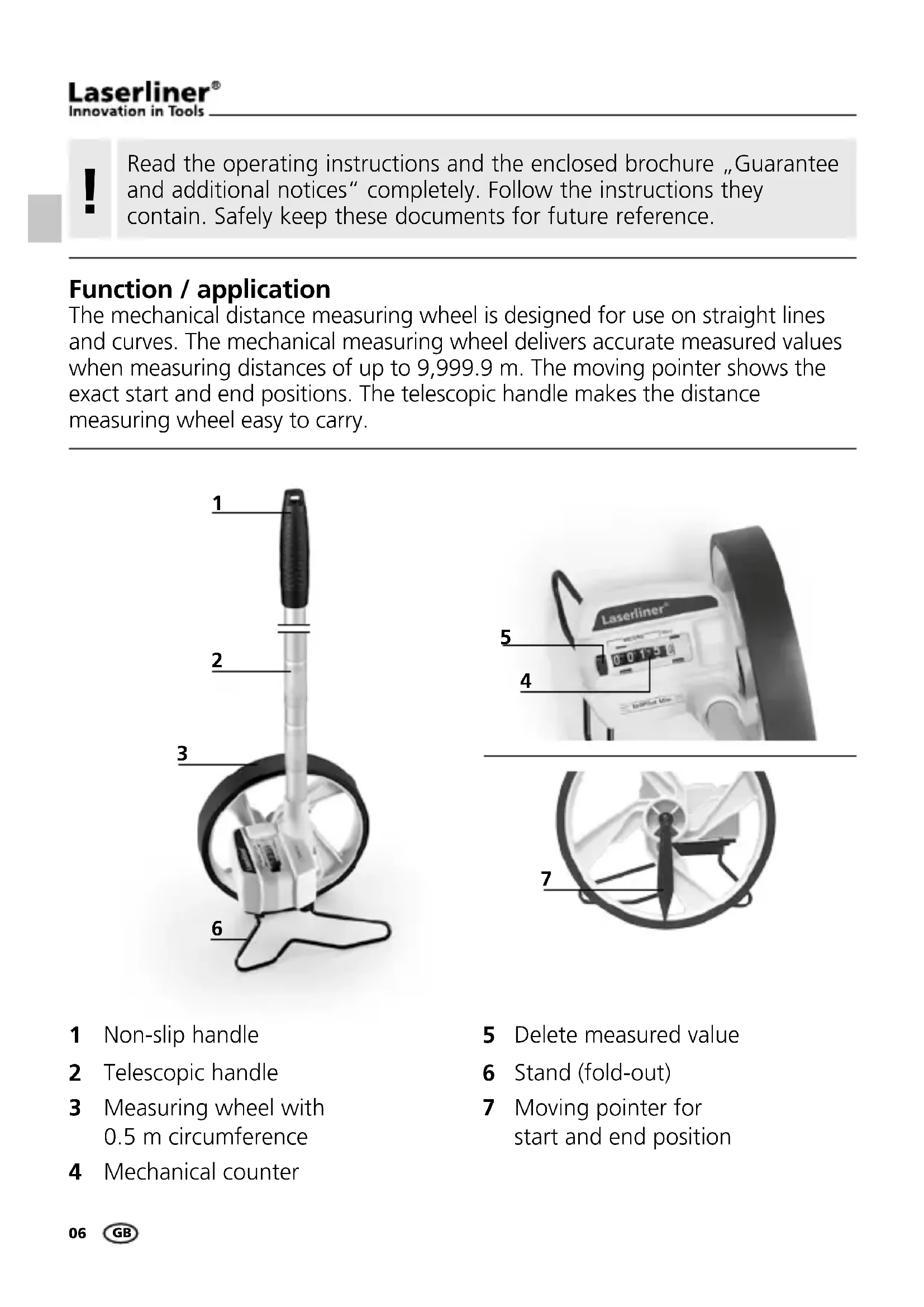

Read the operating instructions and the enclosed brochure „Guarantee and additional notices“ completely. Follow the instructions they contain. Safely keep these documents for future reference.

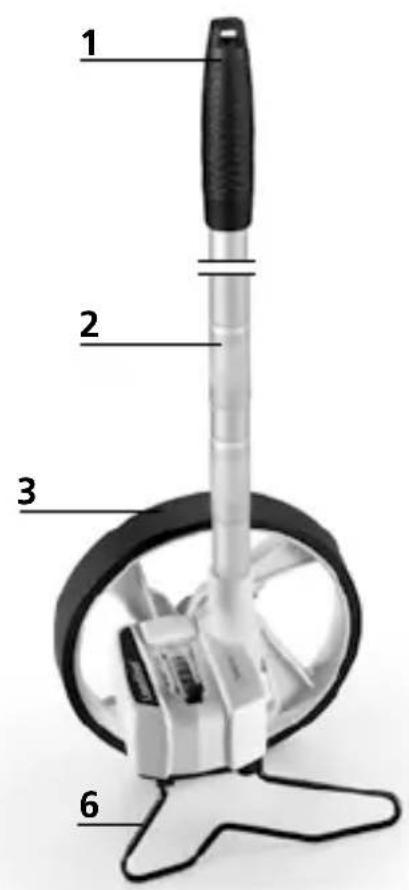

Function / application

The mechanical distance measuring wheel is designed for use on straight lines and curves. The mechanical measuring wheel delivers accurate measured values when measuring distances of up to 9,999.9 m. The moving pointer shows the exact start and end positions. The telescopic handle makes the distance measuring wheel easy to carry.

1 2 3 6

Laserliner® 5 0 0 1 5 4 laserliner mini 7

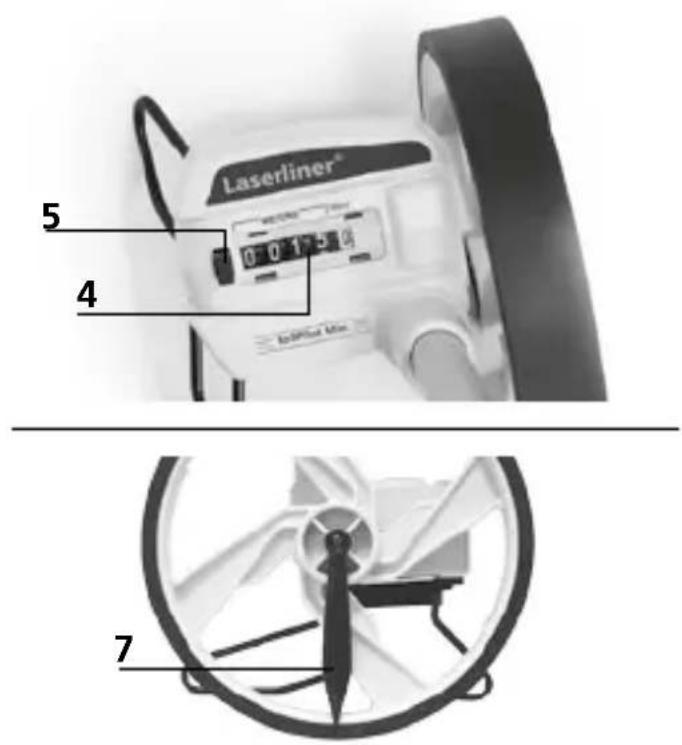

1 Non-slip handle
2 Telescopic handle
3 Measuring wheel with 0.5 m circumference
4 Mechanical counter

5 Delete measured value
6 Stand (fold-out)
7 Moving pointer for start and end position

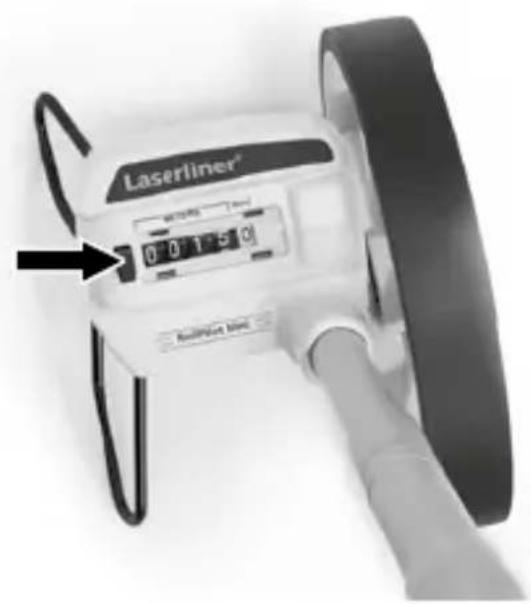

1 Delete measured value

The mechanical counter is set to zero by pressing button 5.

Laserliner® 0 0 1 5 0 Rusipint mini

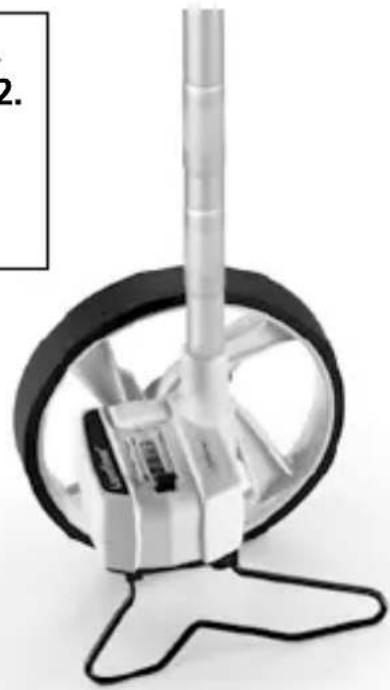

2 Pull out telescopic handle

The height of the telescopic handle can be adjusted at two points.

1. 2.

Close-up of a metallic steering wheel with a vertical pole and mounting base (no visible text or symbols)

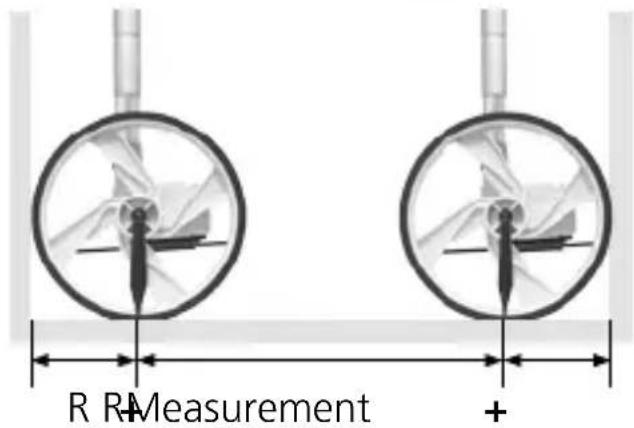

B To measure from wall to wall

1. Position the device with the rear of the measuring wheel against the wall.
2. Move the measuring wheel straight to the other wall.
3. Read off the measured value and add the diameter of the wheel.

R RMeasurement + +

!

To achieve accurate measurement results, the guide bar must be held at the same angle during the entire measurement. A vertical position is recommended.

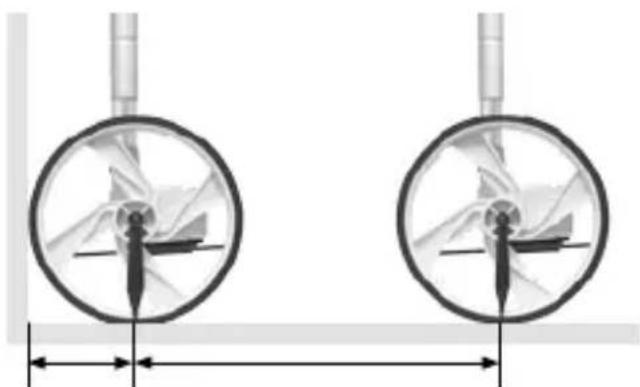

4 To measure from wall to spot

1. Position the device with the rear of the measuring wheel against the wall.
2. Move the measuring wheel straight to the marked spot.
3. Read off the measured value and add the radius of the wheel.

Diagram of two circular mechanical components with internal blades and shafts, shown side by side without any text or symbols.

R Measurement

5 To measure from spot to spot

1. Position the pointer (7) on the first marked spot.
2. Move the measuring wheel straight to the other marked spot.
3. Read off measured value.

Diagram of two circular mechanical components with internal blades and shafts, shown side by side without any text or symbols.

Measurement

Technical data Subject to technical alterations. 09.2014

Accuracy ± 0.1%
Range 0 – 9,999.9 m
Circumference of measuring wheel 500 mm
Measuring wheel diameter 159 mm
Measuring wheel radius 79.5 mm
Dimensions (W x H x D)	124 x 1100 x 159 mm (extended) / 124 x 550 x 159 mm
Weight 550 g

EU directives and disposal

This device complies with all necessary standards for the free movement of goods within the EU.

This device can be recycled and contains reusable materials.

Therefore, appropriately dispose of the device at the end of its useful life – do not dispose of in regular household waste.

Conforming to applicable regulations, have the device disposed of by a municipal or approved waste disposal company.

If in doubt, enquire with your municipal administration about correct and environmentally acceptable disposal facilities.

Further safety and supplementary notices at: www.laserliner.com/info

CE

!
