Product type	Electronic wheel measuring device
Brand	Laserliner
Model	RollPilot 012
Accuracy	± 10 cm / 100 m
Measuring range	0 to 9,999.99 m
Wheel circumference	1 m
Memory	5 entries (M1 to M5)
Power supply	1 9V battery (type 6F22)
Operating temperature	0°C to 40°C
Storage temperature	-20°C to 70°C
Dimensions (unfolded)	318 x 1000 x 140 mm
Dimensions (folded)	318 x 540 x 210 mm
Weight (with batteries)	2.1 kg
Hold function	Yes (holds measured value)
Screen backlight	Yes, automatic shut-off after 15 seconds
Measurement units	m / cm / ft / inches
Display	LCD screen
Non-slip handle	Yes
Retractable stand	Yes
Stop lever	Yes
Foldable for transport	Yes
Maintenance	Clean with a soft, dry cloth. Do not use solvents.
Safety	Do not use on unsuitable surfaces. Avoid impacts.
Spare parts and repairability	Contact after-sales service. Repairs by qualified personnel only.

Frequently Asked Questions - RollPilot 012 Laserliner

How to install the battery?

Open the battery compartment (6) and insert a 9V battery respecting the indicated polarity. Close the compartment.

How to change the measurement unit?

Press the M/Ft key (or cm/in) to switch between m, cm, ft and inches. The current measured value is cleared when changing.

How to use the Hold function?

Activate the Hold function by pressing the ESC/Hold key. The Hold symbol appears on the screen and the measured value flashes. To deactivate, press the key again.

How to memorize a measured value?

In measurement mode, press Memory/Enter to enter the memory menu. Use the arrow keys to select a memory location M1 to M5, then press Memory/Enter again to save.

How to clear a measured value?

In measurement mode, press the /Reset key for 2 seconds to clear the displayed value.

What is the weight of the device?

The weight with batteries is approximately 2.1 kg.

What is the accuracy of the measuring device?

The accuracy is ± 10 cm per 100 m measured.

How to fold the device for transport?

The device is foldable. Fold the handle and wheel to obtain a compact size of 318 x 540 x 210 mm. The provided carrying case facilitates transport.

What to do if the screen shows low battery?

Replace the 9V battery (type 6F22) with a new one. The low battery symbol (I) lights up on the screen.

How to clean the device?

Use a soft, dry cloth to clean the device. Do not use solvents or abrasive products. Avoid moisture.

USER MANUAL RollPilot 012 Laserliner

Exterior view of a modern leurow meter with black handle and silver body (no text or symbols visible)

←0 m ..... 9.999,99 m →

!

Close-up of a white industrial robotic device with a circular button and mounting base (no visible text or symbols)

Close-up of a white industrial battery labeled 'DURKCELL PROICELL' with no visible text or symbols on its body.

1 2 3 4 5 6 7 8

Close-up of a bicycle wheel with a visible 'Laserliner' component and number 9 label (no text or symbols on the diagram itself)

k j i h 8888 88 l m M1 M2 M3 M4 M5 g a ← / Reset M / Ft e b Memory Enter ESC / Hold On / Off d c

Three-panel image showing a car body with a lever, a bicycle, and a bag labeled 'Laserliner' (no text or symbols on the objects themselves)

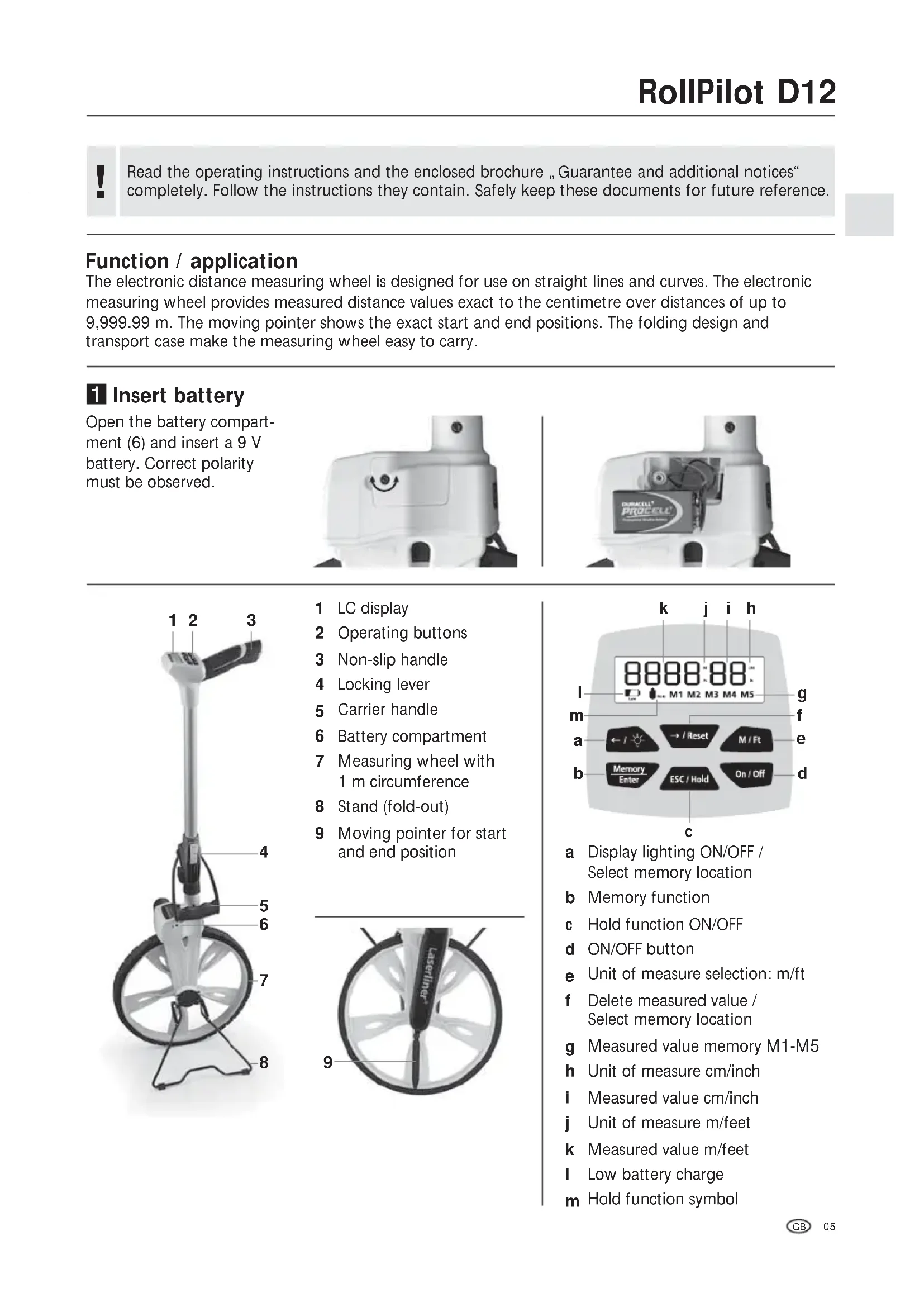

Read the operating instructions and the enclosed brochure „ Guarantee and additional notices“ completely. Follow the instructions they contain. Safely keep these documents for future reference.

Function / application

The electronic distance measuring wheel is designed for use on straight lines and curves. The electronic measuring wheel provides measured distance values exact to the centimetre over distances of up to 9,999.99 m. The moving pointer shows the exact start and end positions. The folding design and transport case make the measuring wheel easy to carry.

1 Insert battery

Open the battery compartment (6) and insert a 9 V battery. Correct polarity must be observed.

Close-up of a white industrial device with a button and scroll (no visible text or symbols)

Close-up of a white industrial machine with a DURKCELL brand label (no readable text beyond branding)

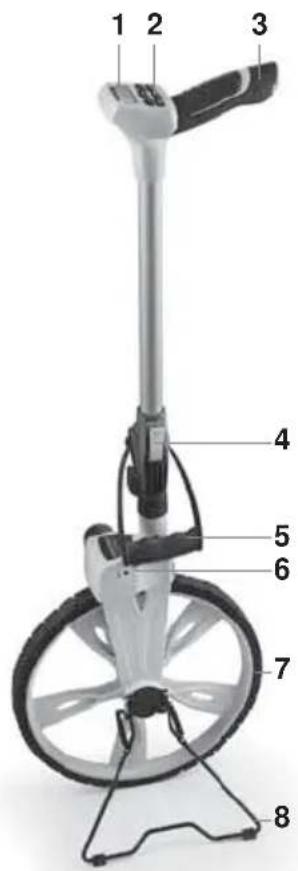

1 2 3 4 5 6 7 8

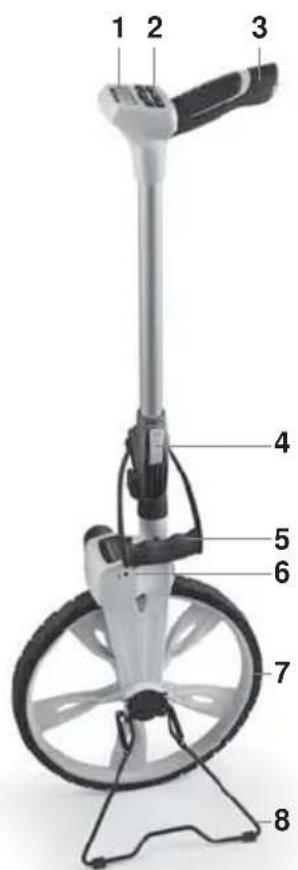

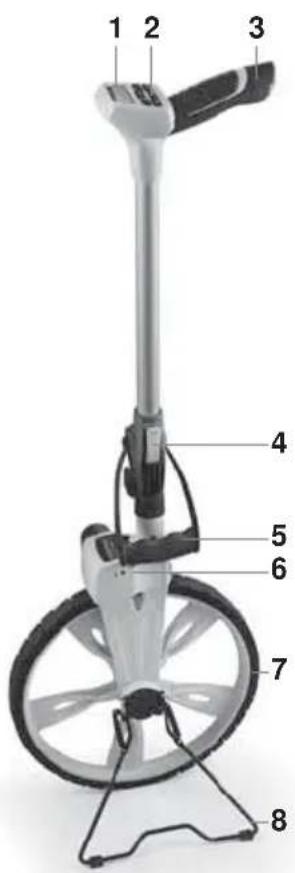

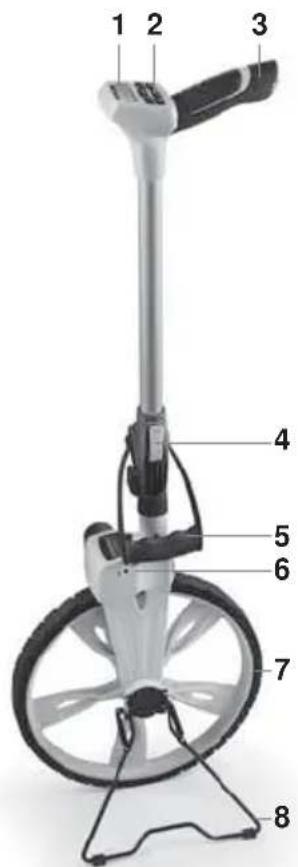

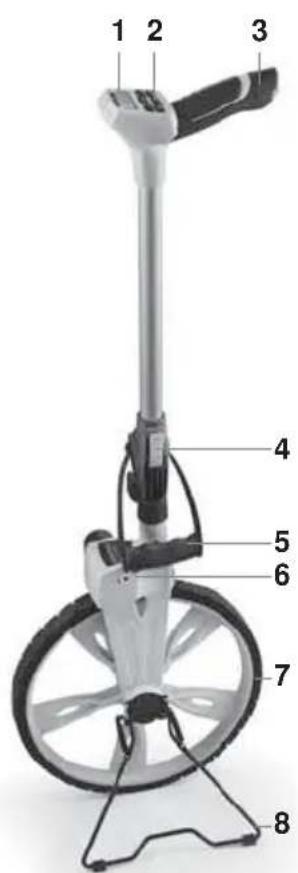

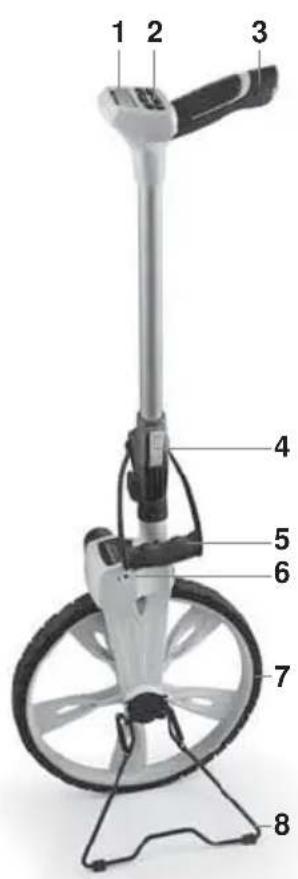

1 LC display
2 Operating buttons
3 Non-slip handle
4 Locking lever
5 Carrier handle
6 Battery compartment
7 Measuring wheel with 1 m circumference
8 Stand (fold-out)
9 Moving pointer for start and end position

Close-up of a bicycle wheel with a labeled component (no text or symbols on the diagram itself)

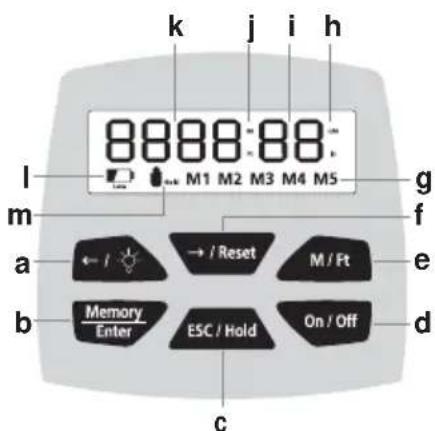

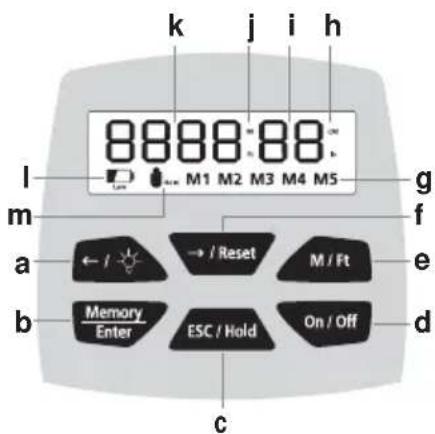

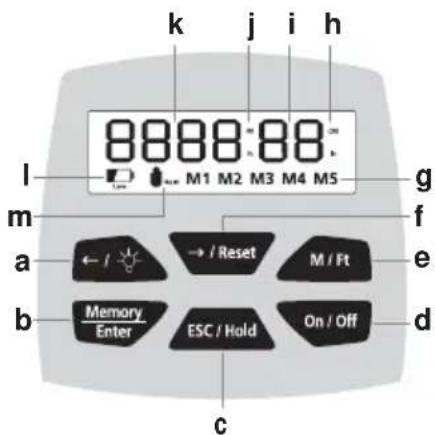

k j i h 8888 88 l m M1 M2 M3 M4 M5 g a ← / Reset M / Ft e b Memory Enter ESC / Hold On / Off d c

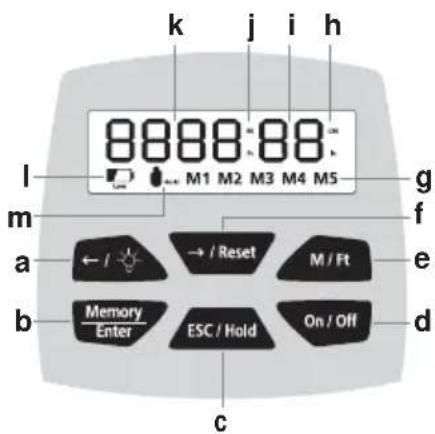

a Display lighting ON/OFF / Select memory location
b Memory function
c Hold function ON/OFF
d ON/OFF button
e Unit of measure selection: m/ft
f Delete measured value / Select memory location
g Measured value memory M1-M5
h Unit of measure cm/inch
i Measured value cm/inch
j Unit of measure m/feet
k Measured value m/feet
I Low battery charge
m Hold function symbol

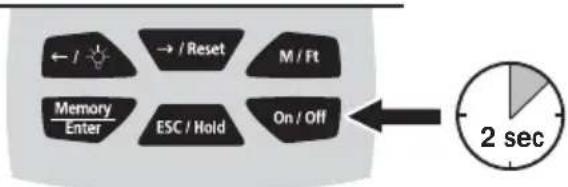

2 ON/OFF Hold function

The Hold function is active when the Hold symbol appears on the display and the measured value fl ashes. The current measured value is held.

8888:88 M1 M2 M3 M4 M5

The Hold function must be deactivated in order to start the measurement.

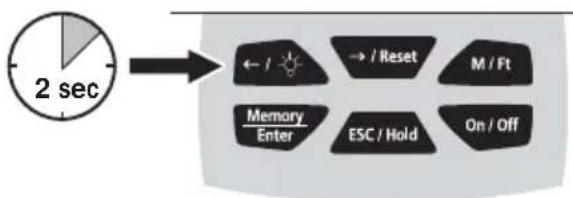

4 Display lighting

If visibility is poor, switch on the display lighting. In order to preserve the batteries, the lighting switches off automatically after 15 seconds. Simply press the button again to switch the lighting back on.

5 Select unit of measure

m (cm) / ft (in) The current measured value is deleted

888888 M M1 M2 M3 M4 M5

6 Delete measured value

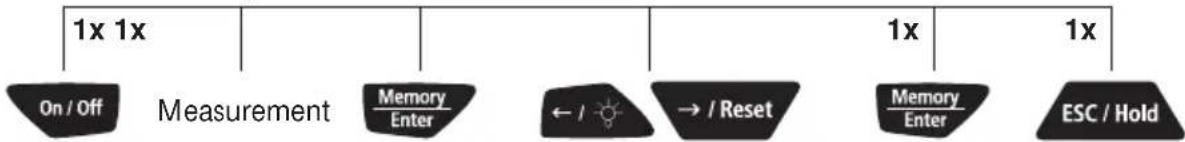

7 Save measured value

The device has an internal measured value memory for storing 5 entries. The selected memory location is indicated by M1...M5 fl ashing.

88888 M1 M2 M3 M4 M5

Device ON Select memory location Save Exit menu

Previously saved measured values are overwritten.

The value M1 is always shown when the memory function is activated. The current measured value appears again as soon as it has been saved to the required location (M1 - M5).

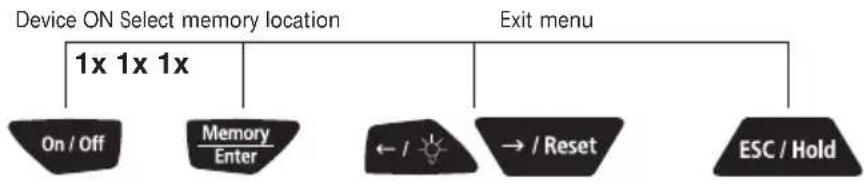

8 Show measured values


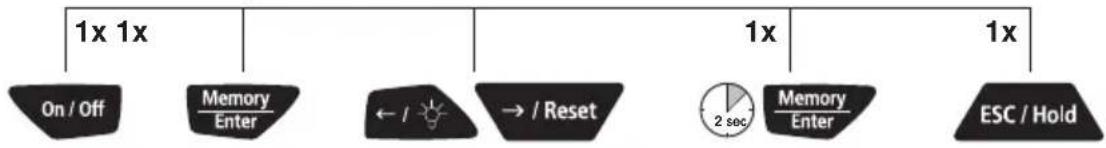

9 Clear measured value memory

Device ON Select memory location Clear Exit menu


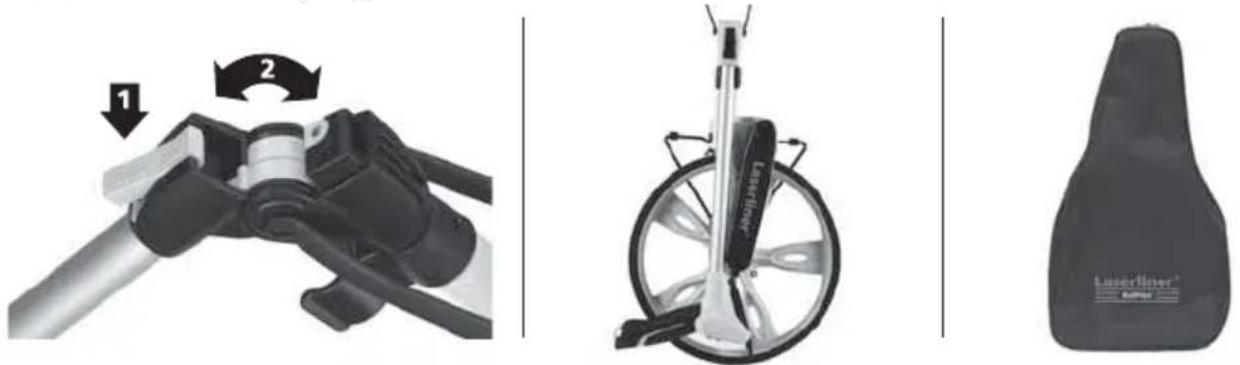

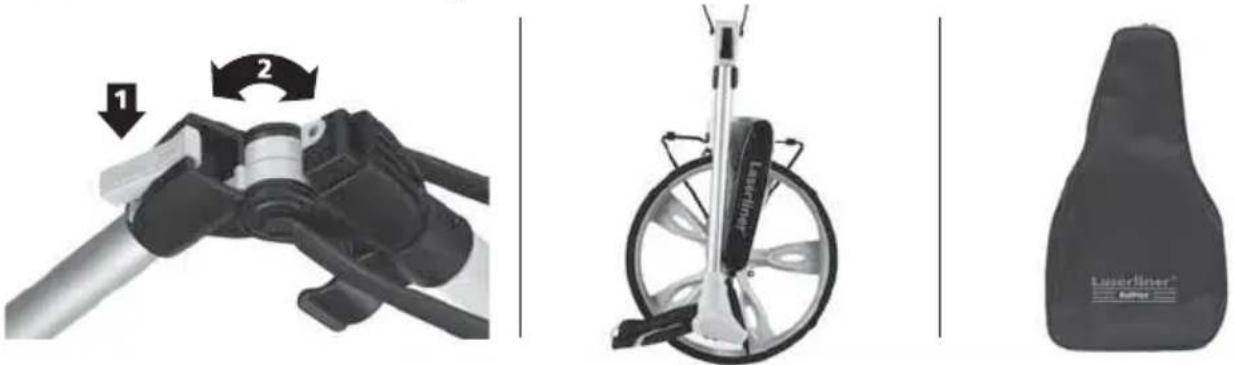

10 Fold for carrying

Three black-and-white product images: a hand holding a scooter, a bicycle with wheels, and a bag labeled 'LaserFilter' (no visible text or symbols on the objects themselves)

Technical data Subject to technical alterations.

Accuracy ± 10 cm / 100 m
Range 0 – 9,999.99 m
Circumference of measuring wheel 1 m
Measured value memory 5 entries M1 ... M5
Power supply 1 x 6F22 / 9V
Operating temperature 0...40 °C
Storage temperature -20 °C...70 °C
Dimensions (W x H x D) 318 x 1000 x 140 mm / 318 x 540 x 210 mm (folded)
Weight (including batteries) 2,1 kg

EU directives and disposal

This device complies with all necessary standards for the free movement of goods within the EU.

This product is an electric device and must be collected separately for disposal according to the European Directive on waste electrical and electronic equipment.

Further safety and supplementary notices at: www.laserliner.com/info
