HBS400 - Saw SCHEPPACH - Free user manual and instructions

Product Type	Band Saw
Brand	Scheppach
Model	HBS400
Category	Saw
Power (S1)	750 W
Voltage / Frequency	220-240 V~, 50 Hz

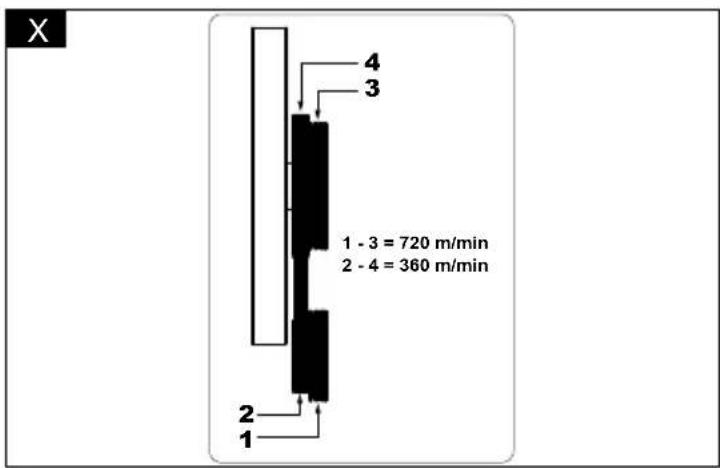

Cutting Speed (2 levels)	360 m/min (level 1), 720 m/min (level 2)
Blade Length	2240 mm
Blade Width	6-15 mm
Max Cutting Height	170 mm
Throat (cutting width)	305 mm
Table Dimensions	500 x 400 mm
Table Tilt	0° to 45°
Net Weight	59 kg
Sound Pressure Level LpA	77.4 dB (uncertainty 3 dB)
Sound Power Level LWA	90.4 dB (uncertainty 3 dB)
Main Functions	Rip cuts, cross cuts, miter cuts, freehand cuts; parallel and cross guide; tilting table
Safety	Blade guard, anti-restart safety switch, protective covers, emergency stop
Maintenance and Cleaning	Damp cleaning without solvents, monthly oiling of rotating parts, replacement of wear parts
Spare Parts and Repairability	Wear parts: carbon brushes, saw blades, table inserts, V-belts. Repair by authorized specialist.

Frequently Asked Questions - HBS400 SCHEPPACH

How to change the saw blade?

Unplug the power cord. Open the blade guards at the top and bottom. Release the blade using the tensioning screw (11). Remove the old blade, place the new one. Adjust the lateral centering with the handle (w), then tension with the tensioning screw. Close the guards.

How to adjust the saw blade tension?

The tension is adjusted with the tensioning screw (11). Turn it to tension the blade. The tension depends on the width: wide blades require more tension. Excessive tension leads to premature breakage. After use, always release the blade tension.

How to change the cutting speed?

Unplug the power cord. Open the lower protective cover. Release the belt using the tensioning screw (12). Place the belt on the desired position (S1 for 360 m/min, S2 for 720 m/min). Retension the belt and close the cover.

What to do if the motor does not start?

Check that the housing cover is properly closed (limit switch). Check the fuses. If the problem persists, have the motor, cable, or connector checked by a specialist. Never repair the motor yourself.

How to clean the band saw?

Unplug the machine. Use a damp cloth with a little black soap. Do not use solvents or corrosive products. Ensure that water does not penetrate inside. Clean the protective devices and ventilation openings regularly.

What protective equipment to wear?

Always wear safety goggles, hearing protection and, if dust is present, a respirator mask. Tie up long hair and wear close-fitting clothing. Use gloves when handling the blade.

How to use the parallel guide?

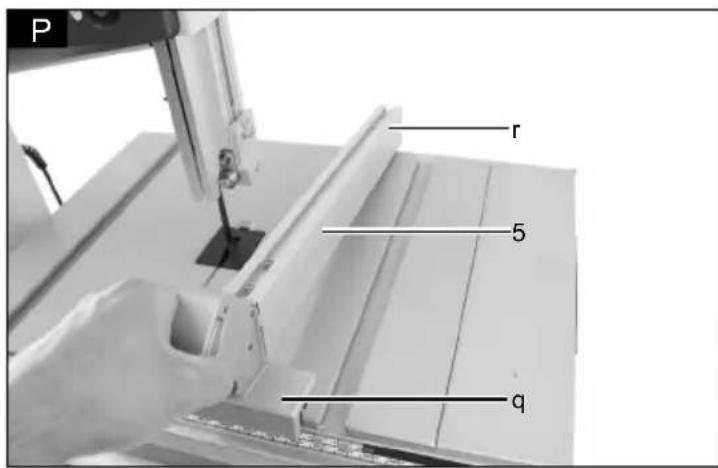

Mount the parallel guide (5) on the guide rail. Set the desired cutting width using the scale (u) and lock the clamping lever (q). For rip cuts, place the workpiece against the guide and push with a steady feed.

How to transport the band saw?

Use the wheels mounted on the frame. Stand on the wheel side, tilt the machine by pulling it towards you. Hold it by the frame. Be careful of the high center of gravity. Never use the protective devices for lifting.

What materials can be cut?

The saw is designed for cutting wood and wood-like materials (in the longitudinal and transverse direction). Round materials require a holding device. Do not use for cutting firewood or metals.

Where to find spare parts?

Wear parts (carbon brushes, blades, table inserts, belts) are available from the Scheppach after-sales service. Scan the QR Code on the homepage or contact the service center. Use only genuine parts.

USER MANUAL HBS400 SCHEPPACH

Industrial machine with wheels and a control panel, no visible text or symbols

Made in P.R.C.

HBS400

DE	BandsägeOriginalbetriebsanleitung	8
GB	Band sawTranslation of original instruction manual	24
FR	Scie à rubanTraduction des instructions d'origine	37
IT	Sega a nastroLa traduzione dal manuale di istruzioni originale	51
NL	LintzaagVertaling van de originele gebruikshandleiding	65
ES	Sierra de cintaTraducción del manual de instrucciones original	79
PT	Serra de fitaTradução do manual de operação original	94
CZ	Pásová pilaPřeklad originálního návodu k obsluze	108
SK	Pásová pílaPreklad originálneho návodu na obsluhu	121
HU	SzalagfúrészEredeti használati utasítás fordítása	134
PL	Pilarka taśmowaTłumaczenie oryginalnej instrukcji obsługi	148
HR	Tračna pilaPrijevod originalnog priručnika za uporabu	163
SI	Tračna žagaPrevod originalnih navodil za uporabo	176

EE	lintsaagOriginaalkältusjuhendi tõlge	189
LT	Juostinis pjūklasOriginalios naudojimo instrukcijos vertimas	202
LV	LentzāgisOriginālās lietošanas instrukcijas tulkojums	215
SE	BandsågÖversättning av original-bruksanvisning	228
FI	VannesahaKäännös alkuperäisestä käyttöohjeesta	241
DK	BåndsavOversættelse fra den oprindellige betjeningsvejledning	254
NO	BåndsagOversettelse av den originale brukerveiledningen	267
BG	БанцигПревод на оригиналното ръководство за експлоатация	280
GR	КорðελοπρίovoМетáфраση του πρωτοτύπου των οδηγιών χρήσης	295
RO	Ferăstrău-panglicăTraducere din manualul de exploatare original	311
RS	Tračna testeraPrevod originalnog uputstva za upotrebu	325
TR	Bantli testereOrijinal kullanım talimatı çevírisi	339

A

B

C

Technical line drawing of a mechanical frame assembly with wheels and guide rails (no text or symbols)

Close-up of a mechanical component with a threaded screw and labeled point 'i' (no text or symbols beyond label)

Close-up of a mechanical device with a protractor and labeled component 'k' (no readable text or symbols beyond basic markings)

Technical line drawing of a mechanical assembly with mounting brackets and a spring-loaded component (no text or symbols)

Mechanical device with labeled component '6' and dashed arrow indicating direction (no readable text or symbols beyond label)

Close-up of a hand operating a mechanical device with a ruler and scale indicator (no readable text or symbols)

Industrial machine with a vertical arm and control panel, no visible text or symbols

Close-up of a hand holding a screwdriver against a striped metal panel (no text or symbols visible)

Person operating a machine tool on a wooden plank, no visible text or symbols

Close-up of an electric motor with a labeled shaft (12) and mounting bracket (no text or symbols beyond label)

AB

AD

Person operating a machine tool on a wooden plank, no visible text or symbols

Person operating a machine tool with a tool, no visible text or symbols

Person using a mechanical clamp on a wooden frame, no visible text or symbols

Person operating a mechanical assembly with wooden components (no visible text or symbols)

Günzburger Straße 69

D-89335 Ichenhausen

Verehrter Kunde,

• 1 Gabelschlüssel SW 10/13

Homepage: https://www.scheppach.com/de/service

Explanation of the symbols on the product

Symbols are used in this manual to draw your attention to potential hazards. The safety symbols and the accompanying explanations must be fully understood. The warnings themselves will not rectify a hazard and cannot replace proper accident prevention measures.

	Warning! Disregard results in a risk of death or injury, or damage to the tool!
	Before commissioning, read and observe the operating manual and safety instructions!
	Wear safety goggles!
	Wear hearing protection!
	If dust builds up, wear respiratory protection!
	Attention! Danger of injury! Do not reach into saw blade while it is running!
	Wear protective gloves.
	Attention! Before assembly, cleaning, modification, servicing, storage and transport, the device must be switched off and disconnected from the power supply.
	Saw band direction
	The product complies with the applicable European directives.
	The product complies with the applicable Serbian directives.

Table of contents: Page:

1. Introduction....26
2. Product description (Fig. A - AC) 26
3. Scope of delivery 26
4. Proper use 26
5. General safety instructions.... 27
6. Residual risks 29
7. Technical data....29
8. Assembly and operation....30
9. Transport....32
10. Working instructions 33
11. Cleaning and maintenance.... 34
12. Storage 34
13. Electrical connection 34
14. Disposal and recycling.... 35
15. Troubleshooting 36
16. Declaration of conformity 356

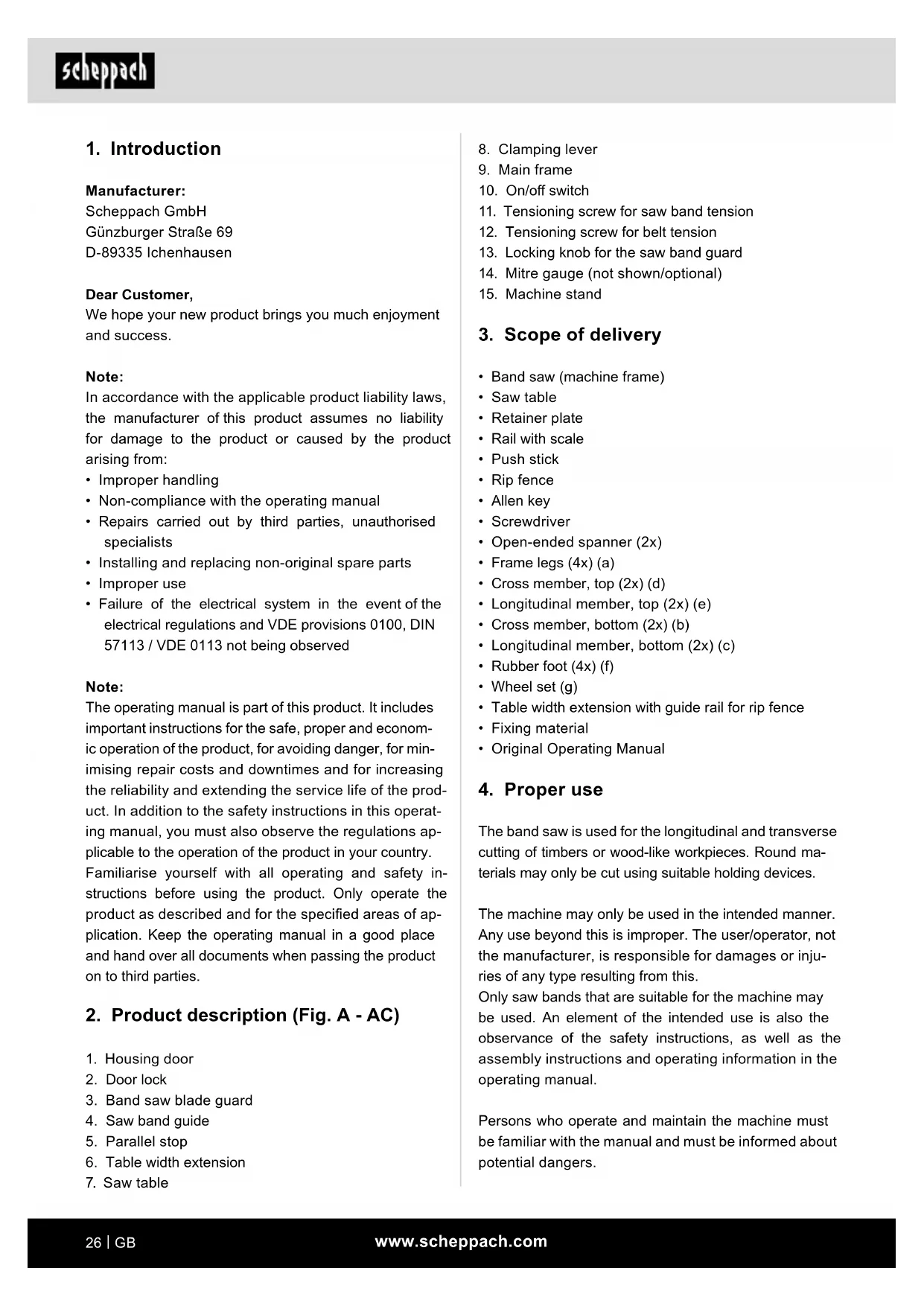

1. Introduction

Manufacturer:

Scheppach GmbH

Günzburger Straße 69

D-89335 Ichenhausen

Dear Customer,

We hope your new product brings you much enjoyment and success.

Note:

In accordance with the applicable product liability laws, the manufacturer of this product assumes no liability for damage to the product or caused by the product arising from:

• Improper handling
  • Non-compliance with the operating manual
  • Repairs carried out by third parties, unauthorised specialists
  • Installing and replacing non-original spare parts
• Improper use
• Failure of the electrical system in the event of the electrical regulations and VDE provisions 0100, DIN 57113 / VDE 0113 not being observed

Note:

The operating manual is part of this product. It includes important instructions for the safe, proper and economic operation of the product, for avoiding danger, for minimising repair costs and downtimes and for increasing the reliability and extending the service life of the product. In addition to the safety instructions in this operating manual, you must also observe the regulations applicable to the operation of the product in your country.

Familiarise yourself with all operating and safety instructions before using the product. Only operate the product as described and for the specified areas of application. Keep the operating manual in a good place and hand over all documents when passing the product on to third parties.

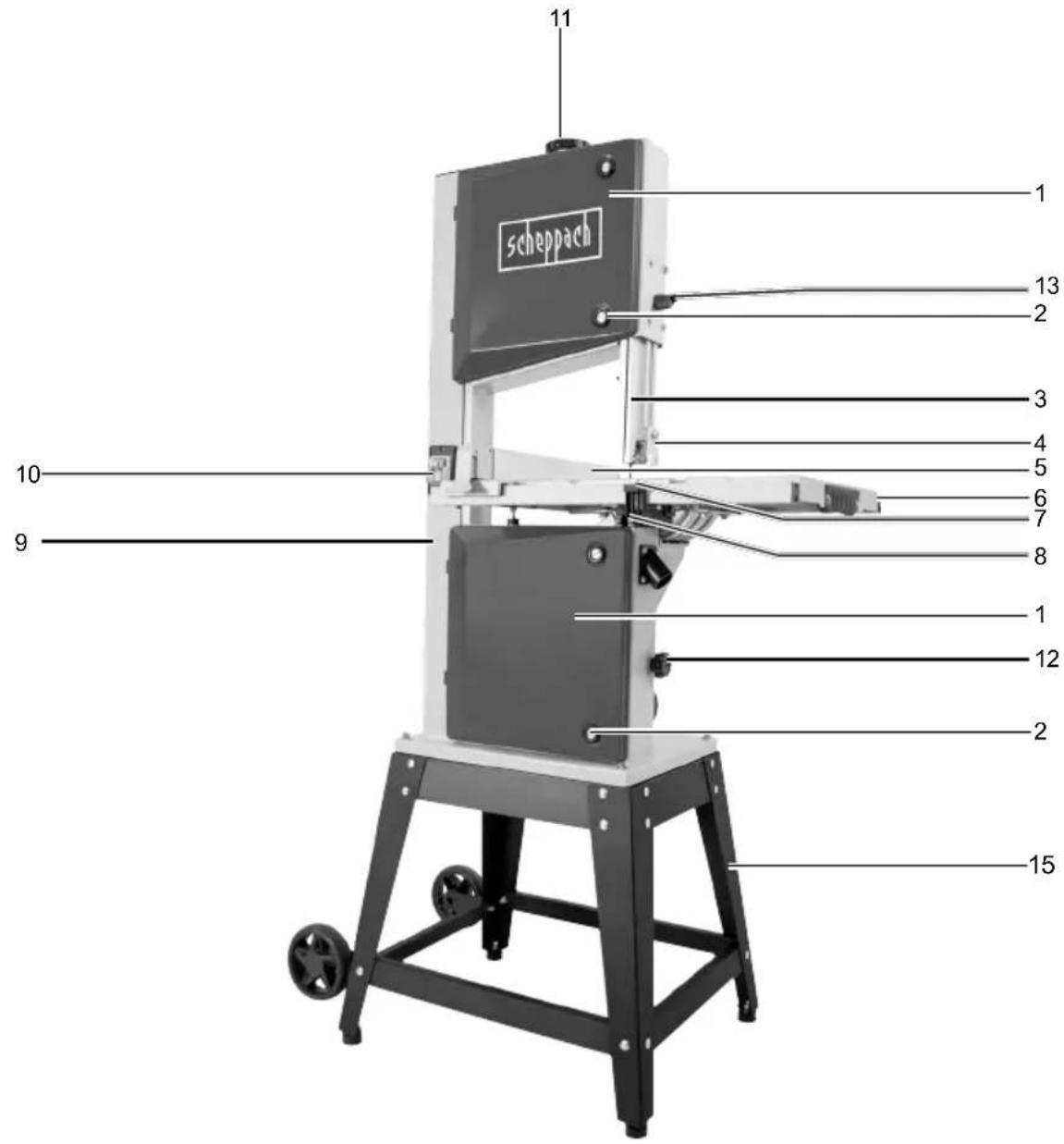

2. Product description (Fig. A - AC)

1. Housing door
2. Door lock
3. Band saw blade guard
4. Saw band guide
5. Parallel stop

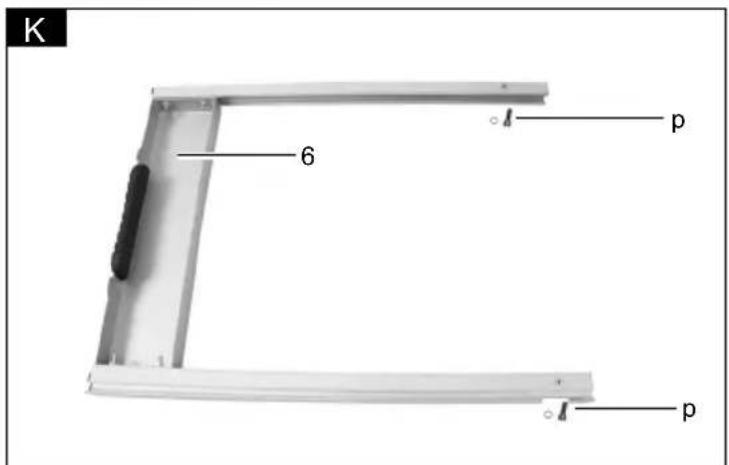

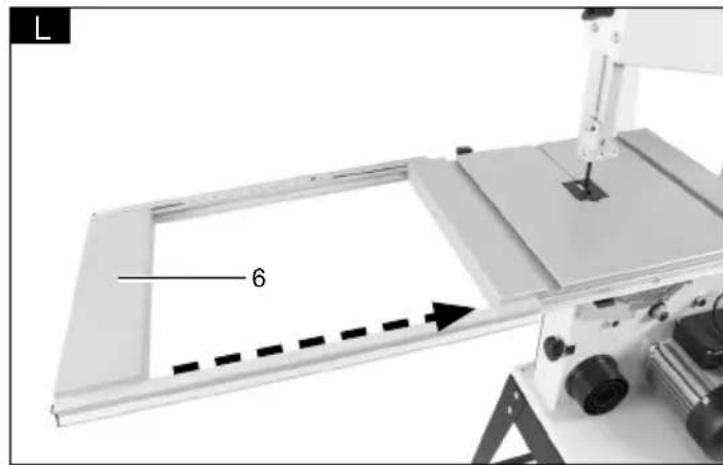

6. Table width extension

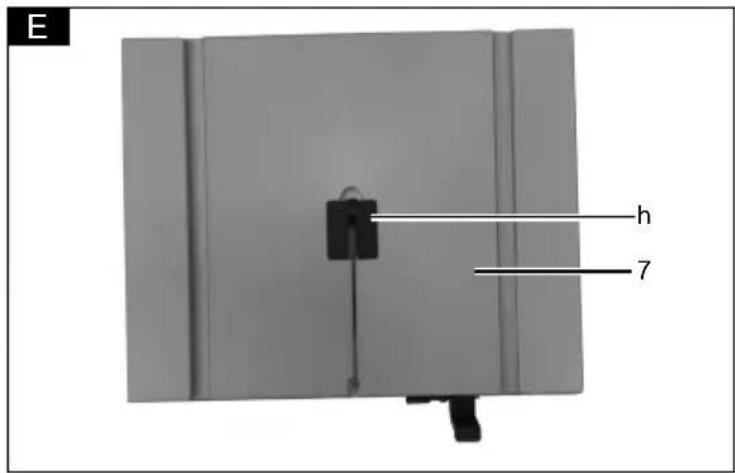

7. Saw table

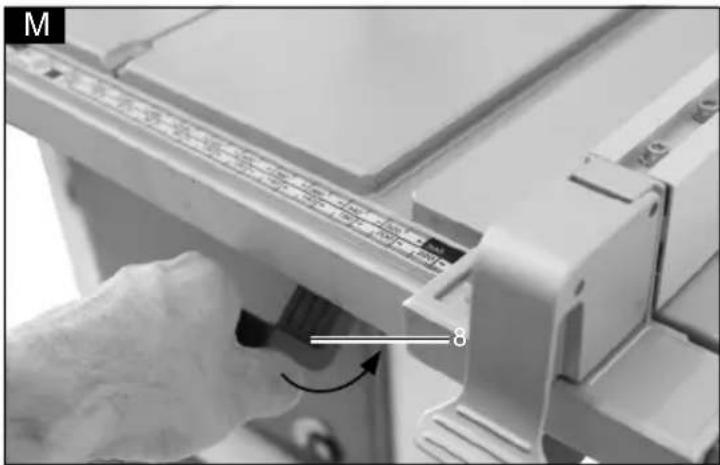

8. Clamping lever

9. Main frame
10. On/off switch
11. Tensioning screw for saw band tension

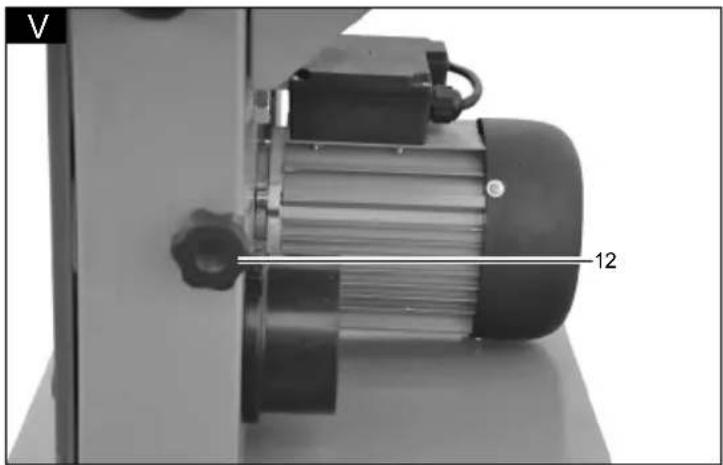

12. Tensioning screw for belt tension

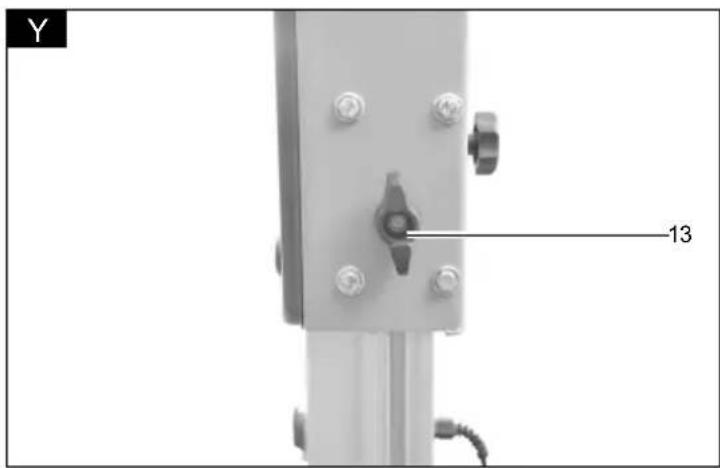

13. Locking knob for the saw band guard

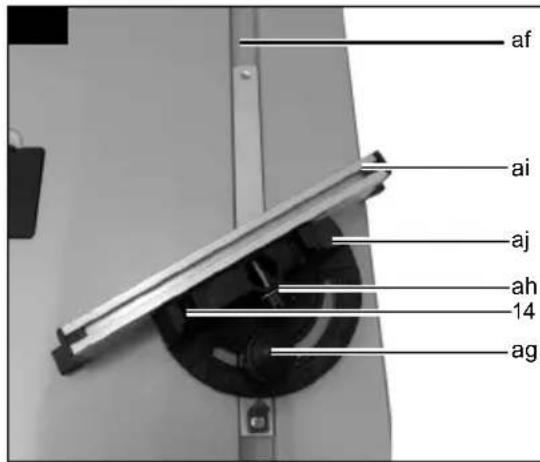

14. Mitre gauge (not shown/optional)
15. Machine stand

3. Scope of delivery

• Band saw (machine frame)
- Saw table
- Retainer plate

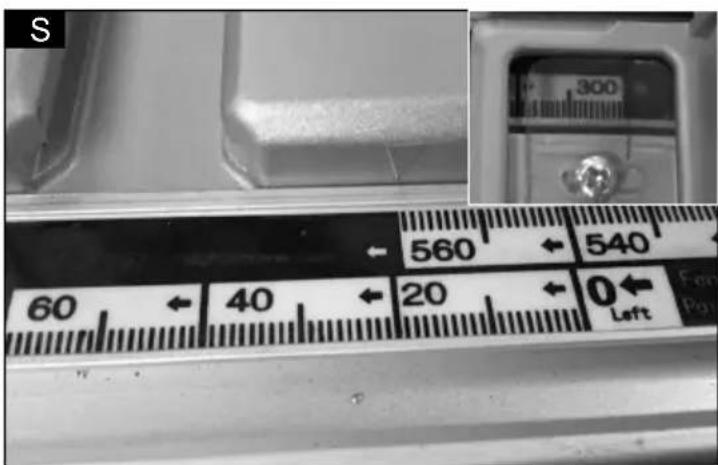

- Rail with scale
- Push stick
- Rip fence
- Allen key
- Screwdriver
- Open-ended spanner (2x)

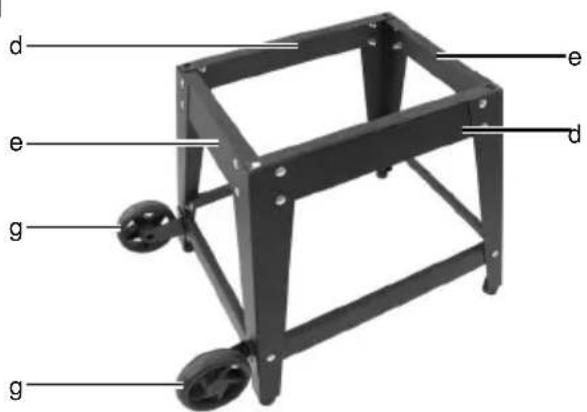

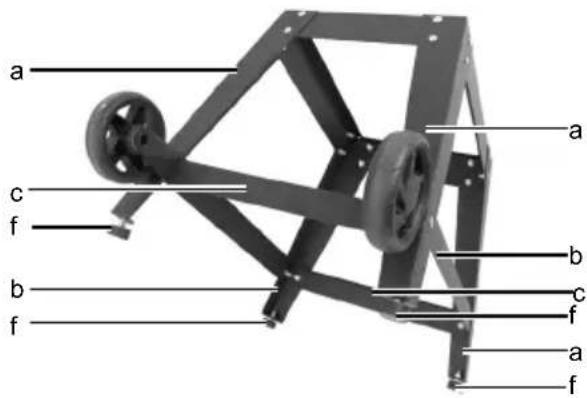

- Frame legs (4x) (a)
• Cross member, top (2x) (d)
- Longitudinal member, top (2x) (e)
• Cross member, bottom (2x) (b)
- Longitudinal member, bottom (2x) (c)
- Rubber foot (4x) (f)

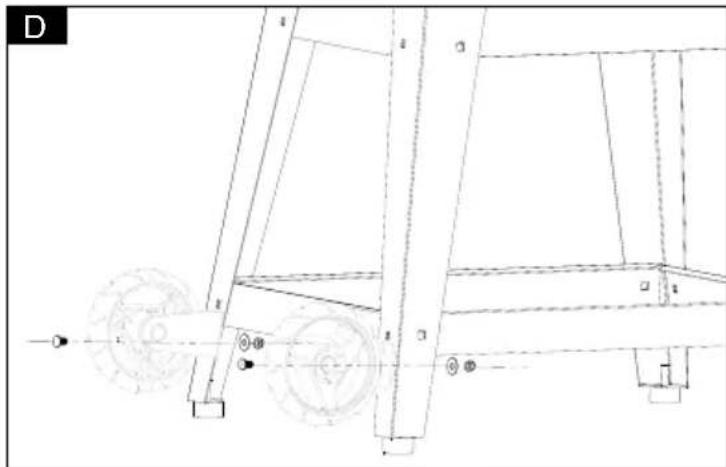

- Wheel set (g)
- Table width extension with guide rail for rip fence
- Fixing material
• Original Operating Manual

4. Proper use

The band saw is used for the longitudinal and transverse cutting of timbers or wood-like workpieces. Round materials may only be cut using suitable holding devices.

The machine may only be used in the intended manner. Any use beyond this is improper. The user/operator, not the manufacturer, is responsible for damages or injuries of any type resulting from this.

Only saw bands that are suitable for the machine may be used. An element of the intended use is also the observance of the safety instructions, as well as the assembly instructions and operating information in the operating manual.

Persons who operate and maintain the machine must be familiar with the manual and must be informed about potential dangers.

The liability of the manufacturer and resulting damages are excluded in the event of modifications of the machine. Despite use as intended, specific risk factors cannot be entirely eliminated. Due to the design and layout of the machine, the following risks remain:

• Hearing damage when the necessary hearing protection is not used.
- Harmful emissions of wood dusts during use in enclosed areas.
- Risk of accident due to contact with the hands in the uncovered cutting area of the tool.
- Danger of injury during a tool change (cutting hazard).
- Danger due to the ejection of workpieces or parts of the workpiece.
- Crushing of fingers.
• Danger due to kick-back.
- Tilting of the workpiece due to insufficient workpiece support surface.
- Touching the cutting tool.
• Ejection of branches and workpiece parts.

Please note that our equipment was not designed with the intention of use for commercial or industrial purposes. We assume no guarantee if the device is used in commercial or industrial applications, or for equivalent work.

5. General safety instructions

General safety information for power tools

⚠ WARNING: Read all safety warnings, instructions, illustrations and specifications provided with this power tool.

Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury.

Save all warnings and instructions for future reference.

The term "power tool" in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

1. Work area safety

a) Keep your work area clean and well-lit. Cluttered or dark areas invite accidents.

b) Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.

c) Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control of the power tool.

2. Electrical safety

a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.

b) Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.

c) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.

d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.

e) When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.

f) If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.

3. Personal safety

a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.

b) Wear personal protective equipment and always safety goggles. Protective equipment such as a dust mask, non-skid safety shoes, safety helmet or hearing protection used for appropriate conditions will reduce personal injuries.

c) Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or rechargeable battery, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.

d) Remove any adjusting tools or spanners/keys before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.
e) Avoid abnormal postures. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.
f) Wear suitable clothing. Do not wear loose clothing or jewellery. Keep your hair and clothing away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust extraction can reduce dust-related hazards.
h) Do not let familiarity gained from frequent use of tools allow you to become complacent and ignore tool safety principles. A careless action can cause severe injury within a fraction of a second.

1. Power tool use and care

a) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.
b) Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.
c) Disconnect the plug from the power source and/or remove the battery pack, if detachable, from the power tool before making any adjustments, changing accessories, or storing power tools. Such precautionary measures reduce the risk of starting the power tool accidentally.
d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.
e) Maintain power tools and attachments. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.
f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.

g) Use the power tool, tool attachments and tool bits etc. in accordance with these instructions. Take into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.
h) Keep handles and grasping surfaces dry, clean and free from oil and grease. Slippery handles and grasping surfaces do not allow for safe handling and control of the tool in unexpected situations.

1. Service

a) Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.

⚠ WARNING! This power tool generates an electromagnetic field during operation. This field can impair active or passive medical implants under certain circumstances. In order to prevent the risk of serious or deadly injuries, we recommend that persons with medical implants consult with their physician and the manufacturer of the medical implant prior to operating the power tool.

Additional safety instructions

• Wear protective gloves for all maintenance work on the saw band!
• When cutting round timber, use a device to prevent the workpiece turning.
• When cutting boards on edge, use a device to prevent the workpiece kicking back.
• To comply with the dust emission values for wood-working and for safe operation, a dust extraction system with an air speed of at least 20 m/s should be connected.
  • Pass the safety instructions on to all persons who work on the machine.
• Never use the saw to cut firewood.
• The machine is equipped with a safety switch against reactivation if the voltage drops.
• Before commissioning, check that the voltage on the device type plate corresponds to the mains voltage.
• Only use cable reels in the unrolled state.
• Personnel working on the machine must not be distracted.

• Observe the direction of rotation of the motor and saw band.

• Safety equipment on the machine must not be disassembled or made unusable.

• Do not cut workpieces that are too small in order to keep them secure in your hands.
• Never remove loose splinters, chips or jammed wood pieces from the running saw band.
• The applicable accident prevention regulations and the other generally accepted safety rules must be observed.
• Observe the instructions of the employers' liability insurance association (VBG 7).
• Attention! Secure long workpieces against tipping at the end of the cutting process. (e.g. roller stand, etc.).
• The saw band guard (3) must be in the lowest position close to the table during transport of the device.
• Protective covers must not be used for transport or improper operation of the machine.
• Deformed or damaged saw bands may not be used.
• Replace the worn table insert.
• Never operate the machine when the door protecting the saw band or the guard is open.
• Make sure that the choice of saw band and speed is suitable for the material to be cut.
• Do not start cleaning the saw band until it has come to a complete stop.
• Use a push stick when making straight cuts in small workpieces against the parallel stop.
• Wear gloves when handling the saw band and rough materials!
• During transport, the saw band guard should be in the lowest position and close to the table.
• For mitre cuts with an inclined table, the parallel stop should be placed on the lower part of the table.
• Never use guards for lifting or transport.
• Be sure to use and properly adjust the saw band guards.
• Keep your hands at a safe distance from the band saw blade. Use a push stick for narrow cuts.
• Set the adjustable guards such that they are as close as possible to the workpiece.
• Store the push stick on the holder provided for it on the machine so that you can reach it from your normal working position and always have it to hand.
• In the normal working position, the operator is in front of the machine.
• Do not use any coolants. Using water or other coolants may result in an electric shock.
• Do not operate the power tool with the access cover to the band saw blade open. Contact with moving parts can cause bodily injury.

6. Residual risks

The power tool is state-of-the-art and has been built according to the recognised technical safety regulations. However, individual residual risks can arise during operation.

• Danger of injury for fingers and hands due to the running band saw blade with improper guiding of the workpiece. Injuries due to the workpiece being ejected at high speed due to improper holding or guiding, such as working without the stop.
• Risk to health from wood dust or wood chippings. It is essential that personal protective equipment, such as eye protection, is worn. Use a chip extraction system!
• Injuries due to defective saw band. Check the integrity of the saw band regularly.
• Danger of injury for fingers and hands when changing the saw band. Wear suitable work gloves.
• Danger of injury when the machine is switched on from the running saw band.
• Hazard due to electrical power, with the use of improper electrical connection cables.
• Danger to health from running saw band due to long hair and loose clothing. Wear personal protective equipment such as a hair net and close-fitting work clothing.
  • Furthermore, despite all precautions having been met, some non-obvious residual risks may still remain.
• Residual risks can be minimised if the "General safety instructions" and the "Proper use" are observed along with the whole of the operating instructions.

7. Technical data

AC motor	220 - 240 V ~,50 Hz
Power S1* 750W
Idle speed 1400 rpm
Saw band length 2240 millimeters
Saw band width 6-15 mm
Saw band speed I 360 m/min
Saw band speed II 720 m/min
Cut height 0 - 170 mm
Swing	305 millimeters
Table size	500 x 400 mm
Table inclinable 0° to 45°
Max. workpiece size	600 x 600 x 170 mm

Weight 59 kg

Subject to technical changes!

*Operating mode S1 (continuous operation)

The workpiece must have a minimum height of 3 mm and a minimum width of 10 mm.

The noise and vibration levels have been determined in accordance with EN 62841.

Sound pressure level L_pA	77.4 dB
Uncertainty K_pA	3 dB
Sound power level L_WA	90.4 dB
Uncertainty K_WA	3 dB

Wear hearing protection.

Exposure to noise can cause hearing loss. Total vibration emission values (vector sum of three directions) determined per EN 62841.

The declared noise emission value has been measured in accordance with a standard test method and may be used for comparison one tool with another.

The declared noise emission value may also be used in a preliminary assessment of exposure.

WARNING

The noise emission values can vary from the specified values during the actual use of the power tool, depending on the type and the manner in which the electric tool is used, and in particular the type of workpiece being processed.

It is necessary to determine the safety measures for the protection of the operator based on an assessment of the vibration load during the actual conditions of use (In doing so, all parts of the operating cycle must be taken into account such as times in which the electric tool is switched off or times in which it is switched on, but is not running under a load).

8. Assembly and operation

Attention!

Always make sure the product is fully assembled before commissioning!

• Open the packaging and carefully remove the device.
• Remove the packaging material, as well as the packaging and transport safety devices (if present).
• Check whether the scope of delivery is complete.
• Check the device and accessory parts for transport damage.
• If possible, keep the packaging until the expiry of the warranty period.

ATTENTION!

The device and the packaging are not children's toys! Do not let children play with plastic bags, films or small parts! There is a danger of choking or suffocating!

The machine must be securely installed, i.e. bolted down on a workbench or fixed machine stand. There are fixing holes in the machine base for this purpose.

• The saw table must be mounted correctly.
• Prior to commissioning, all covers and safety devices must be mounted correctly.
  • The saw band must be able to run freely.
• In case of previously machined wood, be aware of any foreign bodies, such as nails or screws, etc.
• Before pressing the on/off switch, make sure that the saw band is correctly fitted, and that moving parts run smoothly.
• Before connecting the machine, make certain that the data on the type plate matches with the mains power data.

Assembly tool

• 1 Open-ended spanner, size 10/13

8.1 Assembling the machine stand (Fig. B + C + D)

Assembly parts:

• 4 frame legs (a)
  • Bottom frame struts: 2 x long (b) + 2 x short (c)
• Top frame struts: 2 x long (d) + 2 x short (e)
  • 4 rubber feet (f), 4 washers M8, 4 nuts M8

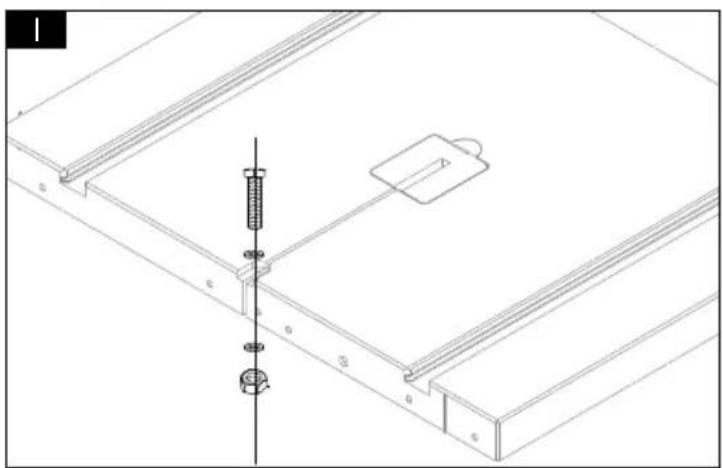

• Fastening parts (24 carriage bolts M8x16, 4 hexagon bolts M8x45, 32 washers M8, 28 nuts M8, 4 securing rings M8)
• 2 wheels with wheel mounting (g) (2 carriage bolts M8x20, 2 washers 8, 2 stop nuts M8).
• During assembly, tighten all screws lightly by hand.
• Screw 4 rubber feet onto the frame legs.

- Fit one frame strut each at the bottom (b + c) to the frame legs (a) using 2 carriage bolts M8x16, 2 washers and 2 nuts.

• Now fit the top frame struts (d + e) to the frame legs (a) using 4 carriage bolts M8x16, 4 washers and 4 nuts on each strut, as shown in Fig. C.
• Fit the two wheels with wheel mounting (g) using 2 carriage bolts M8x20, 2 washers 8, 2 stop nuts M8 (Fig. C + D).
• Place a box behind the machine and then carefully tilt it backwards until the machine rests against the housing.
• Insert the pre-assembled frame (Fig. C) under the base plate of the band saw and screw on hand tight with 4 hexagon bolts M8x45, 8 washers and 4 securing rings, and 4 nuts.
• Place the machine with the machine stand on a level surface and tighten all screws firmly.

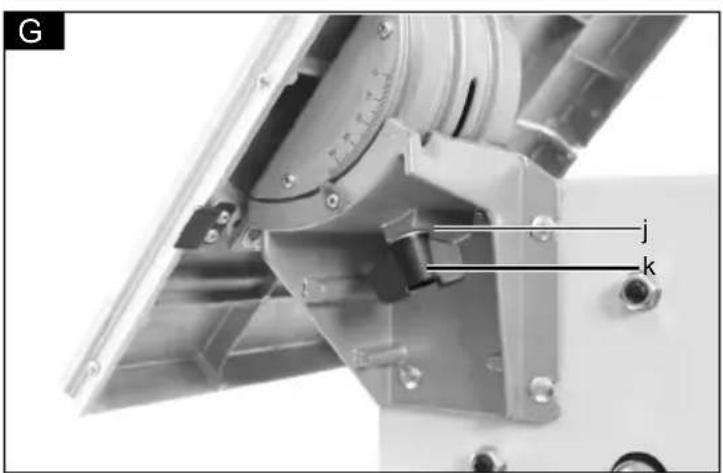

8.2 Fitting the tabletop, (Fig. E - J)

• Lay the table inlay (h) in the recess in the saw table intended for this (7) (Fig. E). (To replace, disassemble the saw table in reverse order.)
• Guide the band saw blade through the slot on the saw table. Place the work table on the table suspension so that the fixing screw (i) can be inserted through the bracket (j) (Fig. F + G).

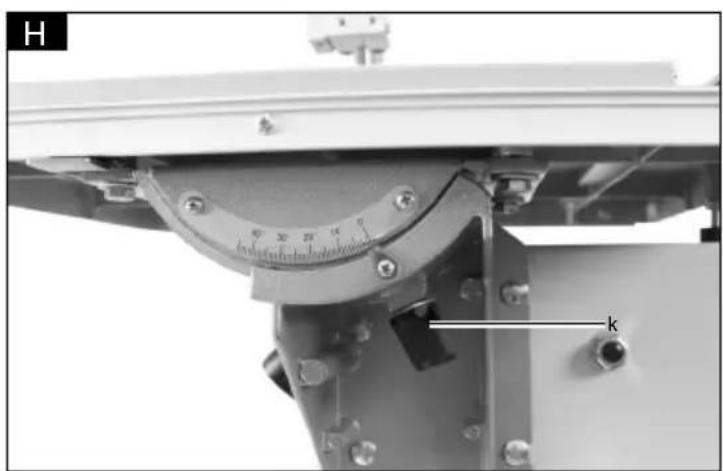

• Screw the working table on with the wing nut (k) (Fig. E + H).
• Check that the saw band runs freely and does not touch the table.

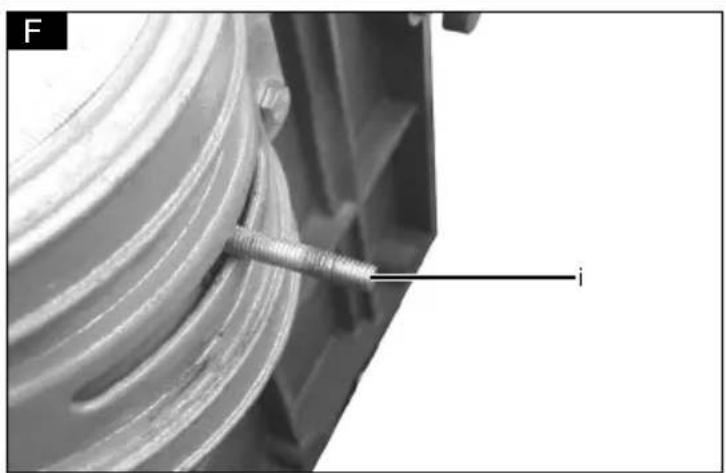

• Fit the screw M6x40 with two washers and the bolt to the table. (Fig. I)
• Use the adjusting screw (I) to adjust the table at right angles to the saw band.
• Use a stop bracket -
• Lock the adjusting screw (l) and tighten the wing nut (k).

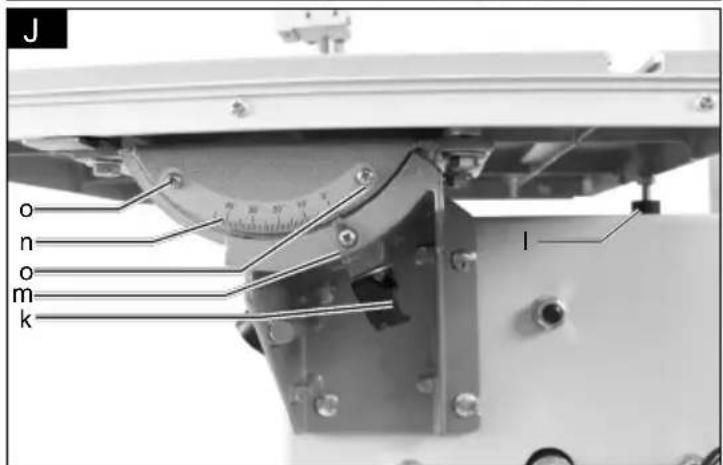

• Set the scale pointer (m) to 0.
• Adjusting the angle scale (n): By separately loosening the screws (o) and sliding the angle scale (n) until the scale pointer (m) points to 0. Tighten the screws again.

8.3 Fitting the table width extension

(Fig. K + L + M + N + O)

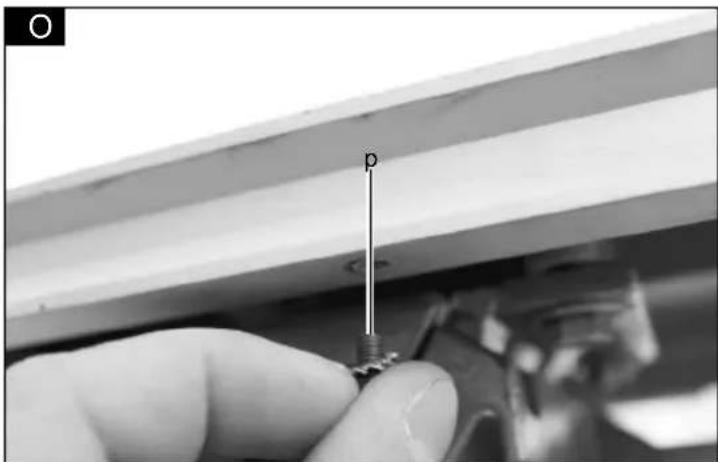

Remove the two screws and washers (p) from the table width extension (6). (Fig. K)

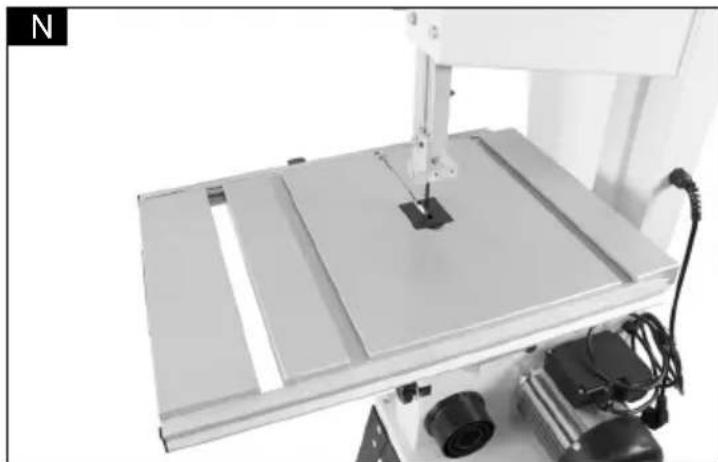

Slide the table width extension (6) onto the table mounted on the machine. Ensure that the tightening lever (8) is open (Fig. L + M).

Push the table width extension fully onto the table (Fig. N) in order to fix the two bolts (p) on both sides. (Fig. O) Be sure to fit the bolts (p) on both sides. The two screws are used to limit the extension of the table width extension.

8.4 Fitting the parallel stop (Fig. P)

• Fit the parallel stop (5) by positioning it at the back and fixing the clamping lever (q) in place downwards.
• When dismantling, pull the clamping lever (q) upwards and remove the parallel stop (5).
• The clamping force of the parallel stop can be adjusted at the rear knurled nut (r).

8.5 Setting the cutting width (Fig. P + Q)

• The parallel stop (5) must be used when cutting sections of wood lengthways.
• Place the parallel stop (5) on the guide rail (v) to the left or right of the saw blade.

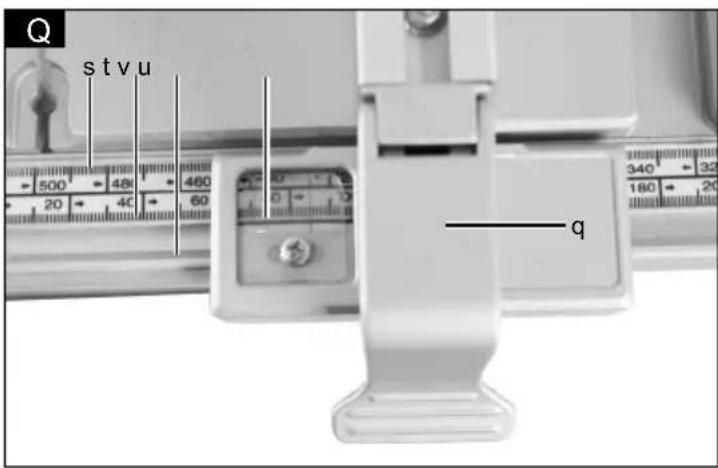

• 2 scales (s/t) are printed on the guide rail for the parallel stop (5), which show the distance between the stop rail and saw blade.
• Adjust the parallel stop (5) to the required dimension in the window (u) and use the clamping lever (q) to fix in place for the parallel stop (Fig. P)

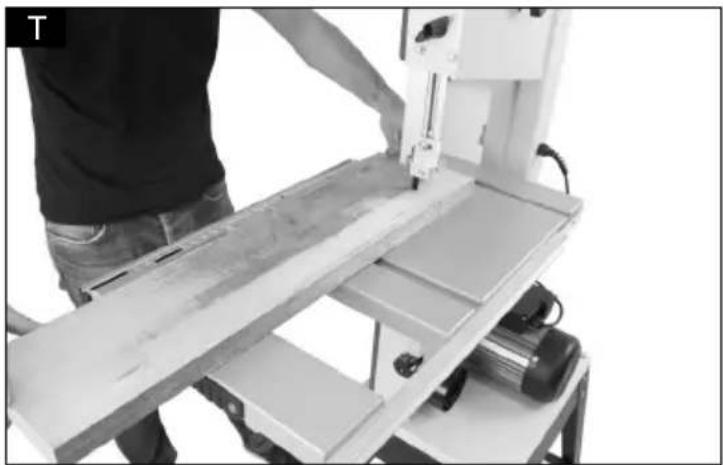

8.6 Using the table width extension (Fig. R - T)

• Always use the table width extension (6) with particularly wide workpieces.

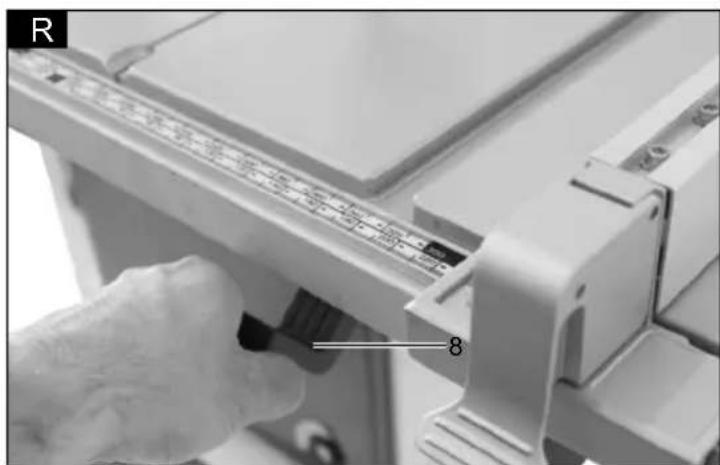

- Loosen the clamping lever (8) and pull the table width extension out far enough so that the workpiece to be sawn can lie on it without tipping. (Fig. T)

8.7 Changing the saw band (Fig. U + V)

Attention: Pull out the mains plug!

• Remove the parallel stop and the table width extension in reverse order (Fig. K-P).
• Open the saw band guard, top and bottom.

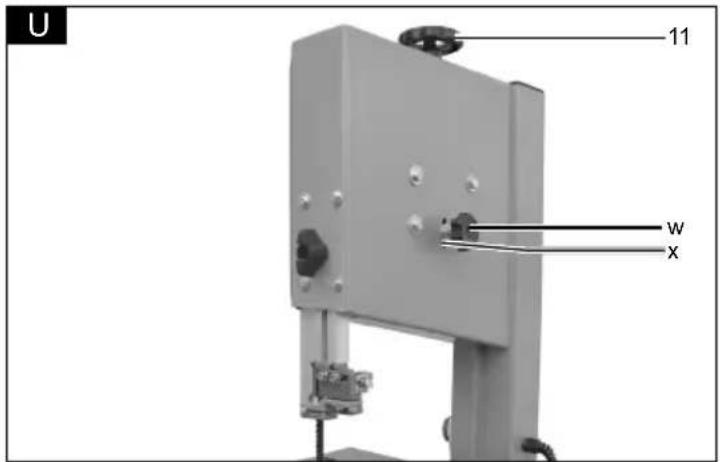

• Relieve the saw band tension with the clamping screw (11) (Fig. U), remove the band.
• Insert a new saw band.

Side correction (Fig. U)

• The saw band should run centrally on both band wheels.
• Turn the upper band wheel by hand in the cutting direction and use the handle (w) to make the lateral correction.

Attention! The saw band should run over the centre of the band wheel after multiple turns. Visual inspection!

• Turn the band wheel by hand in the cutting direction and at the same time set the final tension with the tensioning screw (11). The tension depends on the saw band width. Wide saw bands must be tensioned more than narrow ones.
  • After setting, tighten the counternut (x). Close the protective cover.

• Attention! Excessively high tension leads to premature breakage!

• Fit the table width extension in reverse order. (Fig. K - O)
• On completion of work, always relieve tension on the saw blade! To do this, loosen the tensioning screw (11).

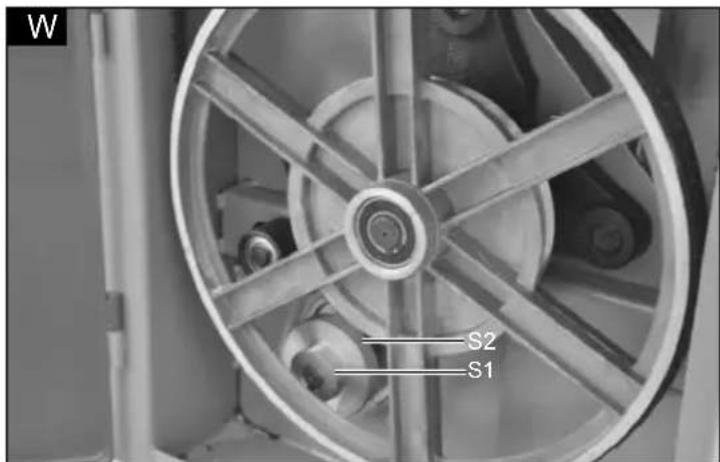

8.8 Speed setting (Fig. V + W + X)

Pull out the mains plug!

• Open the lower protective cover.
• Release the tension on the belt with the tensioning screw (12).
• Move the belt to the desired position (S1 or S2).
• Tension the belt again with the tensioning screw (12).
• Close the lower protective cover.

Speed range:

• Speed stage 1 360 m/min.
- For processing hardwood, materials similar to hardwood and for fine cuts.
• Speed stage 2 720 m/min.
- For processing softwoods and for less fine cuts.

8.9 Saw band guide (Fig. Y)

By loosening the locking knob (13), the saw band guide can be adjusted.

The upper saw band guide can be set from 0 - 175 mm workpiece height.

The smallest possible distance to the workpiece ensures optimal belt guidance and safe working!

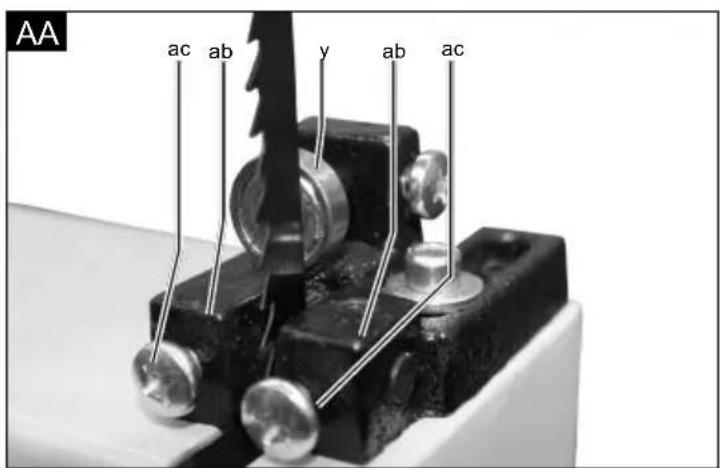

Counterpressure bearings (Fig. Z + AA)

The counterpressure bearings (y) absorb the feeding pressure of the workpiece. Adjust the top and bottom counter pressure bearing so that it lightly touches the back of the saw band. Tighten the screws (aa). The distance should be at least 0.5 mm.

Top guide rollers. (Fig. Z)

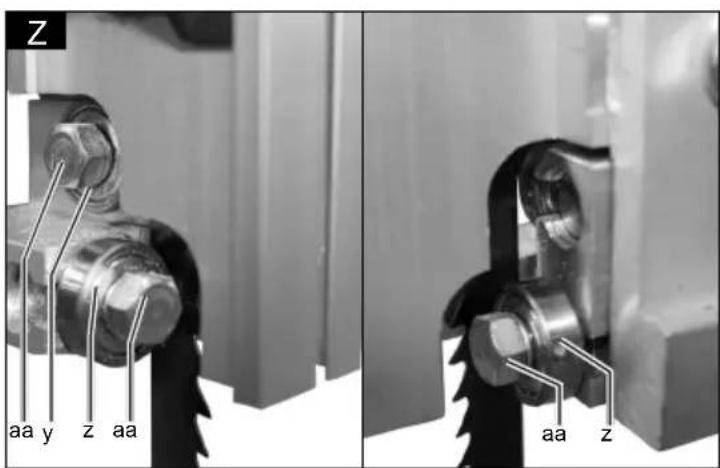

Adjust the top guide rollers (z) to the respective saw band width. The front edges of the guide rollers must not extend further than the tooth base of the saw band. If the guide rollers lightly touch the saw band, tighten the screws (aa).

Bottom guide fingers (Fig. AA)

Adjust the bottom guide fingers (ab) to the respective saw band width. The front edges of the guide fingers may only reach up to the tooth base of the saw band. If the guide fingers lightly touch the saw band, tighten the adjusting screws (ac).

The saw band must not jam!

Storage of the push stick (Fig. AB)

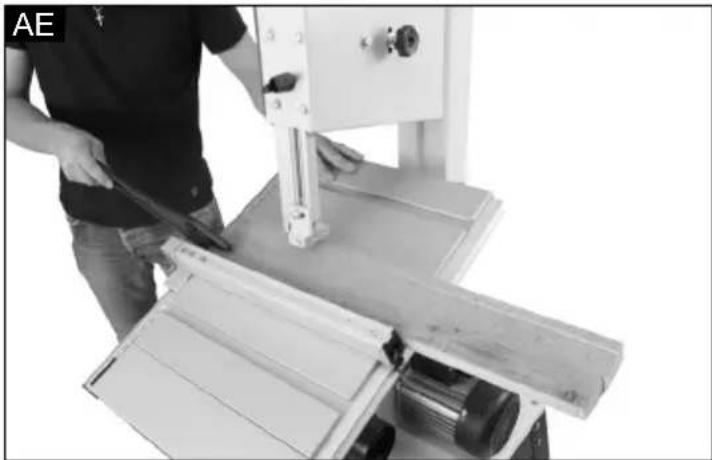

In order to have the push stick (ae) to hand at all times, hang it on the device (ad) intended for this, at the top left side of your band saw.

8.10 Mitre gauge (14) (optional) (Fig. AC)

• Slide lateral stop (aj) into a groove (af) in the saw bench.
• Loosen the grip screw (ag).
• Turn the lateral stop (aj) until the desired angular dimension has been set. The arrow on the lateral stop indicates the set angle.
• Retighten the grip screw (ag).
• The stop rail (ai) can be slid against the lateral stop (aj). To do so, loosen the knurled screw (ah) and slide the stop rail (ai) into the desired position. Tighten the knurled screws (ah) again.
• Attention! Do not slide the stop rail (ai) too far in the direction of the saw blade.

8.11 Switching on/off (Fig. A)

• It is possible to switch the saw on by pressing the green "I" button (10). Before starting sawing, wait until the saw blade has reached its maximum speed.
• In order to switch the saw off again, it is necessary to press the red "0" button (10).

Attention!

All protective devices and covers must be installed before any work is carried out on the machine. The top and bottom band wheel is clad by a firmly attached protection and a moveable housing cover. The machine is switched off when the housing cover is opened. It can only be switched on with the cover closed.

9. Transport

Caution: Pay attention to the weight of the machine when lifting it and call upon the help of another person!

Use the transport equipment. Stand on the side of the wheels. Pull the upper part of the machine towards you so that the machine stands on the two wheels and can be moved. Hold the machine by its frame (9).

Attention! Note the high centre of gravity of the machine.

Attention! Never use separating safety guards to lift or transport the unit.

10. Working instructions

The following recommendations are examples for safe use of the band saws.

The following safe working methods are considered to contribute to safety but may not be appropriate, fully or extensively applicable for every use. They cannot cover all possible hazardous conditions and must be interpreted carefully.

• When working in enclosed spaces, connect the machines to a chip extraction system.
• If the machine is not in operation, e.g. work is complete, slacken the saw band. Attach a corresponding note to the machine for the next user about the tensioning of the saw band.
• Store unused saw bands together and safely in a dry place. Check for faults (teeth, cracks) before use. Do not use defective saw bands!

- Wear suitable gloves when handling saw bands.

- Before starting work, all guards and safety devices on the machine must be securely fitted.

- Never clean the band saw blade or the band saw blade guide with a hand-held brush or scraper if the band saw blade is running. Resinous band saw blades jeopardise work safety and must be cleaned regularly.

- Wear safety goggles and hearing protection when working for your personal protection. Wear a hair net with long hair. Roll loose sleeves up above the elbows.

• Always position the band saw blade guide as close as possible to the workpiece when working.

• Make sure that the lighting conditions in the working and surrounding area of the machine are sufficient.

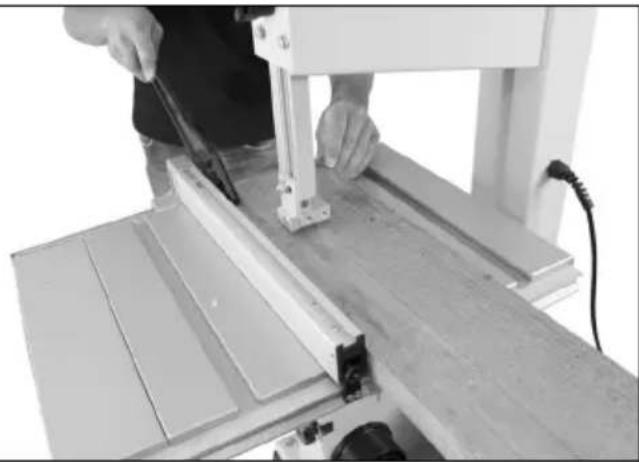

• Always use the rip fences for straight cuts in order to prevent the workpiece from tilting or slipping.

- Use the push stick for processing narrow workpieces with manual advance.

- For angled cuts, bring the saw table into the appropriate position and guide the workpiece along the longitudinal stop.

- In order to cut dovetail tenons and teeth or wedges, swivel the saw table into the plus and minus position. Ensure that the workpiece is guided safely.

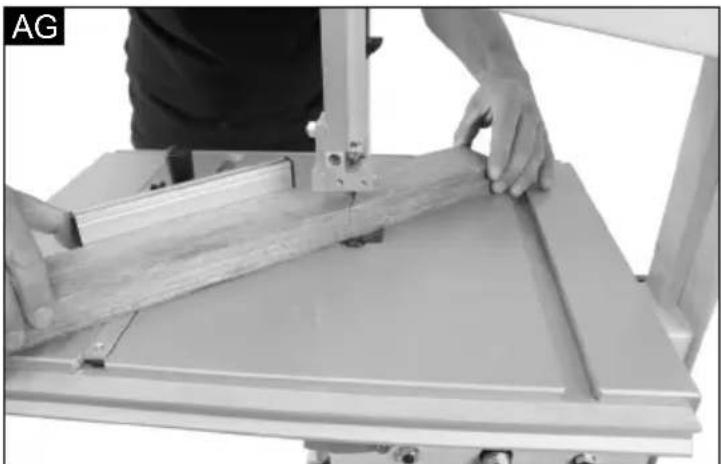

- On curved and irregular cuts, advance the workpiece using both hands, keeping your fingers closed. Keep your hands on a safe area of the workpiece.

- For repeated cutting of curve, irregular cuts, use an auxiliary template.

- Secure the workpiece against turning when cutting round pieces of wood.

- For safe work when transverse cutting, use the special mitre gauge accessory.

10.1 Performing longitudinal cuts (Fig. AD)

Here, a workpiece is cut in its longitudinal direction.

• Set the parallel stop (5) on the right or left side of the saw band according to the desired width.
• Lower the saw band guide (4) onto the workpiece. (see 8.9)
• Switch on the saw.
• Press one edge of the workpiece against the parallel stop (5) with the right hand, whilst the flat side lies on the saw table (7).
• Slide the workpiece at an even feed rate along the parallel stop (5) into the saw band.
• Important: Long workpieces must be secured against tilting at the end of the cutting process (e.g. with roller stand, etc.).
• Attention! When processing narrower workpieces it is essential to use a push rod.
• The push stick (ae) must always be stored within reach, on the hook (ad) provided for this purpose on the side of the saw. (Fig. AB)

10.2 Performing angled cuts (Fig. J + Fig. AE)

• In order to execute angled cuts parallel to the saw band, it is possible to tilt the saw table (7) forwards from 0^ - 45^ .
• Loosen the locking handle (k).
• Tilt saw table (7) forwards, until the desired angle is set on the degree scale (e).
• Tighten the locking handle (k) again.
• Attention: With a tilted saw table (7), the parallel stop (5) must be positioned on the downward facing side to the right of the saw band in the working direction (if the workpiece width allows this), in order to secure the workpiece against slipping.
  • Perform the cut as described under 10.1.

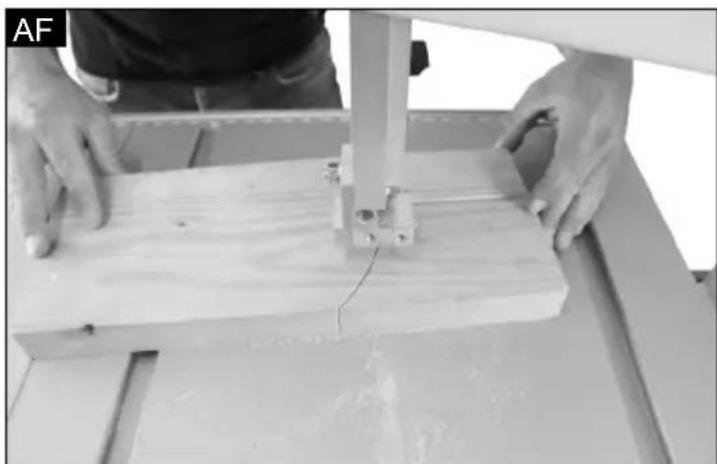

10.3 Freehand cuts (Fig. AF)

One of the most important features of a band saw is the ease with which it can cut curves and radii.

• Lower the saw band guide (4) onto the workpiece. (see 8.9)
• Switch on the saw.
• Press the workpiece firmly onto the saw table (7) and slowly slide into the saw band.

• During freehand cutting you should always work with a low advancing speed, so that the saw band can follow the desired line.

• In many cases it is helpful to roughly saw curves and corners approximately 6 mm from the line.

• If it is necessary to saw curves that are too tight for the saw band used, auxiliary cuts must be sawn up to the front face of the curve, so that these fall off as wood waste when the final radius is sawn.

10.4 Executing cuts with the mitre gauge (Fig. AG + Fig. AC) (optional)

• Set mitre gauge (14) to the desired angle (see 8.10).
  • Perform the cut as described under 10.1.

11. Cleaning and maintenance

⚠ Warning! Pull out the mains plug before carrying out any setting, servicing or repair work!

General maintenance tasks

Wipe swarf and dust off the machine from time to time with a cloth. Oil the rotating parts once monthly to extend the life of the tool. Do not oil the motor.

Do not use corrosive agents for cleaning the plastic.

Cleaning

Keep protective devices, air vents and the engine housing as free of dust and dirt as possible. Rub the device clean with a clean cloth or blow it off with compressed air at low pressure.

We recommend that you clean the device directly after every use.

Clean the device at regular intervals using a damp cloth and a little soft soap. Do not use any cleaning products or solvents; they could attack the plastic parts of the device. Make sure that no water can penetrate the device interior. Water penetrating an electric device increases the risk of an electric shock.

Maintenance

The device has no further internal parts that require maintenance.

Service information

With this product, it is necessary to note that the following parts are subject to natural or usage-related wear, or that the following parts are required as consumables.

Wearing parts*: Carbon brushes, saw blade, table in-lays; V-belt

* may not be included in the scope of delivery!

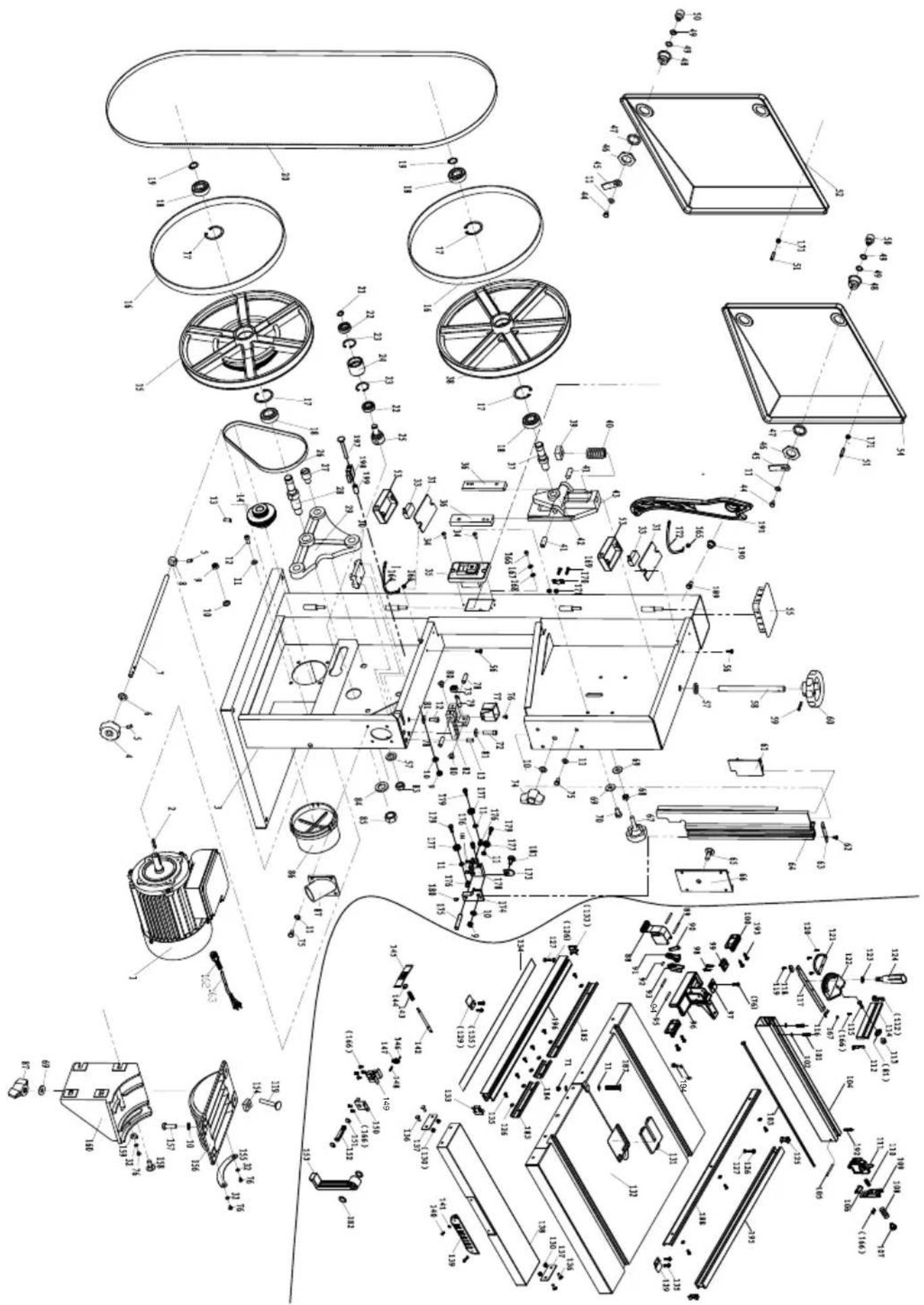

Spare parts and accessories can be obtained from our Service Centre. To do this, scan the QR code on the front page.

12. Storage

Store the device and its accessories in a dark, dry and frost-free place that is inaccessible to children.

The optimum storage temperature is between 5 and 30°C.

Store the power tool in its original packaging.

Cover the power tool to protect it from dust or moisture.

Store the operating manual with the power tool.

13. Electrical connection

The electrical motor installed is connected and ready for operation. The connection complies with the applicable VDE and DIN provisions. The customer's mains connection as well as the extension cable used must also comply with these regulations.

Important information

In the event of overloading, the motor will switch itself off. After a cool-down period (time varies) the motor can be switched back on again.

Damaged electrical connection cable

The insulation on electrical connection cables is often damaged.

This may have the following causes:

• Pressure points, where connection cables are passed through windows or doors.
• Kinks where the connection cable has been improperly fastened or routed.
• Places where the connection cables have been cut due to being driven over.
  • Insulation damage due to being ripped out of the wall outlet.
  • Cracks due to the insulation ageing.

Such damaged electrical connection cables must not be used and are life-threatening due to the insulation damage.

Check the electrical connection cables for damage regularly. Ensure that the connection cables are disconnected from electrical power when checking for damage.

Electrical connection cables must comply with the applicable VDE and DIN provisions. Only use connection cables with the designation H05VV-F.

The printing of the type designation on the connection cable is mandatory.

AC motor

• The mains voltage must be 220-240 V\~.
• Extension cables up to 25 m long must have a cross-section of 1.5 mm ^2 .

Connections and repair work on the electrical equipment may only be carried out by electricians.

Please provide the following information in the event of any enquiries:

• Type of current for the motor
• Machine data - type plate
- Motor data - type plate

Connection type Y

If it is necessary to replace the mains connection cable, this must be done by the manufacturer or their representative to avoid safety hazards.

14. Disposal and recycling

Notes for packaging

The packaging materials are recyclable. Please dispose of packaging in an environmentally friendly manner.

Notes on the electrical and electronic equipment act (ElektroG)

Waste electrical and electronic equipment does not belong in household waste, but must be collected and disposed of separately!

• Used batteries or rechargeable batteries that are not installed permanently in the old device must be removed non-destructively before disposal! Their disposal is regulated by the battery act.
• Owners or users of electrical and electronic devices are legally obliged to return them after use.
• The end user is responsible for deleting their personal data from the old device being disposed of!
• The symbol of the crossed-out dustbin means that waste electrical and electronic equipment must not be disposed of with household waste.
• Waste electrical and electronic equipment can be handed in free of charge at the following places: - Public disposal or collection points (e.g. municipal works yards).

- Points of sale of electrical appliances (stationary and online), provided that dealers are obliged to take them back or offer to do so voluntarily.

- Up to three waste electrical devices per type of device, with an edge length of no more than 25 centimetres, can be returned free of charge to the manufacturer without prior purchase of a new device from the manufacturer or taken to another authorised collection point in your vicinity.

- Further supplementary take-back conditions of the manufacturers and distributors can be obtained from the respective customer service.

- If the manufacturer delivers a new electrical device to a private household, the manufacturer can arrange for the free collection of the old electrical device upon request from the end user. Please contact the manufacturer's customer service for this.

- These statements only apply to devices installed and sold in the countries of the European Union and which are subject to the European Directive 2012/19/EU. In countries outside the European Union, different regulations may apply to the disposal of waste electrical and electronic equipment.

15. Troubleshooting

Fault Possible cause Remedy
Motor does not work	Motor, cable or plug defective, fuses burnt	Arrange for inspection of the machine by a specialist. Never repair the motor yourself. Danger! Check fuses and replace as necessary
	Open housing cover (limit switch)	Close housing cover precisely
The engine runs slowly and does not reach the operating speed	Voltage too low, coils damaged, capacitor burnt	Contact the utility provider to check the voltage. Arrange for inspection of the motor by a specialist. Arrange for replacement of the capacitor by a specialist
Motor makes excessive noise	Coils damaged, motor defective Arrange for inspection of the motor by a specialist
The motor does not reach its full power	Circuits in the network are overloaded (lamps, other motors, etc.)	Do not use any other equipment or engines on the same circuit
Motor overheats easily	Overloading of the motor, insufficient cooling of the motor	Avoid overloading the motor while cutting, remove dust from the motor in order to ensure optimal cooling of the motor
Saw cut is rough or wavy	Saw blade dull, tooth shape not appropriate for the material thickness	Resharpen saw blade and/or use suitable saw blade
Workpiece pulls away and/or splinters	Excessive cutting pressure and/ or saw blade not suitable for use	Insert suitable saw blade
Saw band drifting	Guide incorrectly adjusted	Adjust the saw band guide according to the operating manual
	Incorrect saw band Select saw band according to the operating manual
Burn marks on the wood when working	Saw band blunt Replace saw band
	Incorrect saw band Select saw band according to the operating manual
Saw band jams when working	Saw band blunt Replace saw band
	Saw band resinous Clean saw band
	Guide incorrectly adjusted	Adjust the saw band guide according to the operating manual

Günzburger Straße 69

D-89335 Ichenhausen

Cher client,

Günzburger Straße 69

D-89335 Ichenhausen, Germania

Egregio cliente,

Günzburger Straße 69

D-89335 Ichenhausen

Geachte klant,

$$ (a f b. K + L + M + N + O) $$

Günzburger Straße 69

(figs. K + L + M + N + O)

Günzburger Straße 69

Günzburger Straße 69

D-89335 Ichenhausen

Vážený zákazníku,

Günzburger Straße 69

D-89335 Ichenhausen

Vážený zákazník,

Günzburger Straße 69

D-89335 Ichenhausen

Kedves Ügyfelünk!

Günzburger Straße 69

D-89335 Ichenhausen

Szanowny Kliencie,

Günzburger Straße 69

D-89335 Ichenhausen

Poštovani kupci,

želimo vam mnogo zadovoljstva i uspjeha pri radu s novim proizvodom.

Napomena:

Prema važećem njemačkom Zakonu o odgovornosti za proizvode, proizvođač ovog proizvoda ne odgovara za štete koje nastanu na ovom proizvodu ili koje ovaj proizvod uzrokuje u slučaju:

• neispravnog rukovanja
• nepridržavanja priručnika za uporabu
• popravaka koje obave drugi, neovlašteni stručnjaci
  • montaže i zamjene neoriginalnih rezervnih dijelova
• nenamjenske uporabe
• kvarova električnog sustava zbog nepoštivanja električnih propisa i VDE propisa 0100, DIN 57113 / VDE 0113

Günzburger Straße 69

D-89335 Ichenhausen

Spoštovani kupec,

želimo vam veliko veselja in uspeha pri delu z vašim novim izdelkom.

Napotek:

Proizvajalec tega izdelka skladno z veljavnim zakonom o odgovornosti za izdelke ne jamči za poškodbe na tem izdelku ali poškodbe s tem izdelkom, do katerih pride pri:

Günzburger Straße 69

D-89335 Ichenhausen

Austatud klient!

Günzburger Straße 69

D-89335 Ichenhausen

Gerbiamas kliente,

Günzburger Straße 69

Günzburger Straße 69

D-89335 Ichenhausen

Bästa kund!

Günzburger Straße 69

D-89335 Ichenhausen

Arvoisa asiakas,

Günzburger Straße 69

D-89335 Ichenhausen, Tyskland

Kære kunde,

Günzburger Straße 69

D-89335 Ichenhausen

Kjære kunde,

Günzburger Straße 69

D-89335 Ichenhausen, Германия

Уважаеми клиенти,

Günzburger Straße 69

D-89335 Ichenhausen

Αξιότιμε πελάτη,

Günzburger Straße 69

D-89335 Ichenhausen

Stimate client,

Günzburger Straße 69

D-89335 Ichenhausen

Poštovani kupče,

Günzburger Straße 69

D-89335 Ichenhausen

İthalatçı:

8.11 Açma, kapatma (Res. A)

EU Declaration of Conformity

2000/14/EG_2005/88/EG
	Noise: measured LWA= xx dB; guaranteed LAVA= xx dB
	Annex V
	Annex VI

	2016/1628/EU
	Emission. No:

Standard references:

EN 61029-1:2009/A11:2010; EN 61029-2-5:2011/A11:2015; EN IEC 55014-1:2021; EN IEC 55014-2:2021; EN IEC 61000-3-2:2019/A1:2021; EN 61000-3-3:2013/A2:2021

This declaration of conformity is issued under the sole responsibility of the manufacturer.

The object of the declaration described above fulfils the regulations of the directive 2011/65/EU of the European Parliament and Council from 8th June 2011, on the restriction of the use of certain hazardous substances in electrical and electronic equipment.

First CE: 2024

Subject to change without notice

Documents registrar: Dawid Hudzik

Günzburger Str. 69, D-89335 Ichenhausen

EU Declaration of Conformity

Standard references:

EN 61029-1:2009/A11:2010; EN 61029-2-5:2011/A11:2015; EN IEC 55014-1:2021; EN IEC 55014-2:2021; EN IEC 61000-3-2:2019/A1:2021; EN 61000-3-3:2013/A2:2021

This declaration of conformity is issued under the sole responsibility of the manufacturer.

The object of the declaration described above fulfils the regulations of the directive 2011/65/EU of the European Parliament and Council from 8th June 2011, on the restriction of the use of certain hazardous substances in electrical and electronic equipment.

Subject to change without notice

Documents registrar: Dawid Hudzik

Günzburger Str. 69, D-89335 Ichenhausen

EU Declaration of Conformity

Standard references:

EN 61029-1:2009/A11:2010; EN 61029-2-5:2011/A11:2015; EN IEC 55014-1:2021; EN IEC 55014-2:2021;

EN IEC 61000-3-2:2019/A1:2021; EN 61000-3-3:2013/A2:2021

This declaration of conformity is issued under the sole responsibility of the manufacturer.

The object of the declaration described above fulfils the regulations of the directive 2011/65/EU of the European Parliament and Council from 8th June 2011, on the restriction of the use of certain hazardous substances in electrical and electronic equipment.

Subject to change without notice

Documents registrar: Dawid Hudzik

Günzburger Str. 69, D-89335 Ichenhausen

EU Declaration of Conformity

AB uygunluk beyanı

CE

Scheppach GmbH, Günzburger Str. 69, D-89335 Ichenhausen

DE	erklärt folgende Konformität gemäß EU-Richtlinien und Normen für den Artikel	RO	declară următoarea conformitate corespunzător directivelor și normelor UE pentru articolul
GB	hereby declares the following conformity under the EU Directive and standards for the following article	GR	δηλώνει την ακόλουθη συμμόρφωση σύμφωνα με την Οδηγία ΕΕ και τα πρότυπα για το προϊόν
BG	декларира съответното съответствие съгласно Дирек-тива на ЕС и норми за артикул	TR	Burada açıklanan ürünün geçerli yönetmeliklere ve standartlara uygun olduğunu tamamen kendi sorumluluğumuz altında beyan ediyoruz.
RS	potvrđuje sledeću usklađenost prema smernicama EZ i normama za artikal

2000/14/EG_2005/88/EG
	Noise: measured LWA = xx dB; guaranteed LWA = xx dB
	Annex V
	Annex VI

X 2006/42/EG
	Annex IV Notified Body: Notified Body No.: Certificate No.:

Standard references:

EN 61029-1:2009/A11:2010; EN 61029-2-5:2011/A11:2015; EN IEC 55014-1:2021; EN IEC 55014-2:2021; EN IEC 61000-3-2:2019/A1:2021; EN 61000-3-3:2013/A2:2021

This declaration of conformity is issued under the sole responsibility of the manufacturer.

The object of the declaration described above fulfils the regulations of the directive 2011/65/EU of the European Parliament and Council from 8th June 2011, on the restriction of the use of certain hazardous substances in electrical and electronic equipment.

Subject to change without notice

Documents registrar: Dawid Hudzik

Günzburger Str. 69, D-89335 Ichenhausen

Garantie DE

Apparent defects must be notified within 8 days from the receipt of the goods. Otherwise, the buyer loses its rights of claim due to such defects are invalidated. We guarantee for our machines in case of proper treatment for the time of the statutory warranty period from delivery in such a way that we replace any machine part free of charge which provably becomes unusable due to faulty material or defects of fabrication within such period of time. With respect to parts not manufactured by us we only warrant insofar as we are entitled to warranty claims against the upstream suppliers. The costs for the installation of the new parts shall be borne by the buyer. The cancellation of sale or the reduction of purchase price as well as any other claims for damages shall be excluded.

Garantie FR

Apparent defects must be notified within 8 days from the receipt of the goods. Otherwise, the buyer's rights of claim due to such defects are invalidated. We guarantee for our machines in case of proper treatment for the time of the statutory warranty period from delivery in such a way that we replace any machine part free of charge which provably becomes unusable due to faulty material or defects of fabrication within such period of time. With respect to parts not manufactured by us we only warrant insofar as we are entitled to warranty claims against the upstream suppliers. The costs for the installation of the new parts shall be borne by the buyer. The cancellation of sale or the reduction of purchase price as well as any other claims for damages shall be excluded.

Záruka CZ

Apparent defects must be notified within 8 days from the receipt of the goods. Otherwise, the buyer's rights of claim due to such defects are invalidated. We guarantee for our machines in case of proper treatment for the time of the statutory warranty period from delivery in such a way that we replace any machine part free of charge which provably becomes unusable due to faulty material or defects of fabrication within such period of time. With respect to parts not manufactured by us we only warrant insofar as we are entitled to warranty claims against the upstream suppliers. The costs for the installation of the new parts shall be borne by the buyer. The cancellation of sale or the reduction of purchase price as well as any other claims for damages shall be excluded.

Garantii EE

Apparent defects must be notified within 8 days from the receipt of the goods. Otherwise, the buyer's rights of claim due to such defects are invalidated. We guarantee for our machines in case of proper treatment for the time of the statutory warranty period from delivery in such a way that we replace any machine part free of charge which provably becomes unusable due to faulty material or defects of fabrication within such period of time. With respect to parts not manufactured by us we only warrant insofar as we are entitled to warranty claims against the upstream suppliers. The costs for the installation of the new parts shall be borne by the buyer. The cancellation of sale or the reduction of purchase price as well as any other claims for damages shall be excluded.

гаранция BG
