1. Einleitung

Hersteller:

Scheppach GmbH

Günzburger Straße 69

D-89335 Ichenhausen

Verehrter Kunde,

Homepage: https://www.scheppach.com/de/service

https://www.scheppach.com/de/service scheppach

Explanation of the symbols on the equipment

	Before commissioning, read and observe the operating manual and safety instructions!
	Do not climb!
	Do not exceed total height!
	Do not exceed the maximum load!

Table of contents: Page:

1. Introduction.... 12
2. Device description (fig. 1 - 2).... 12
3. Scope of delivery 12
4. Unpacking....12
5. Intended use 13
6. Safety information.... 13
7. Technical data.... 13
8. Cleaning....13
9. Maintenance 14
10. Storage 14
11. Disposal and recycling.... 14

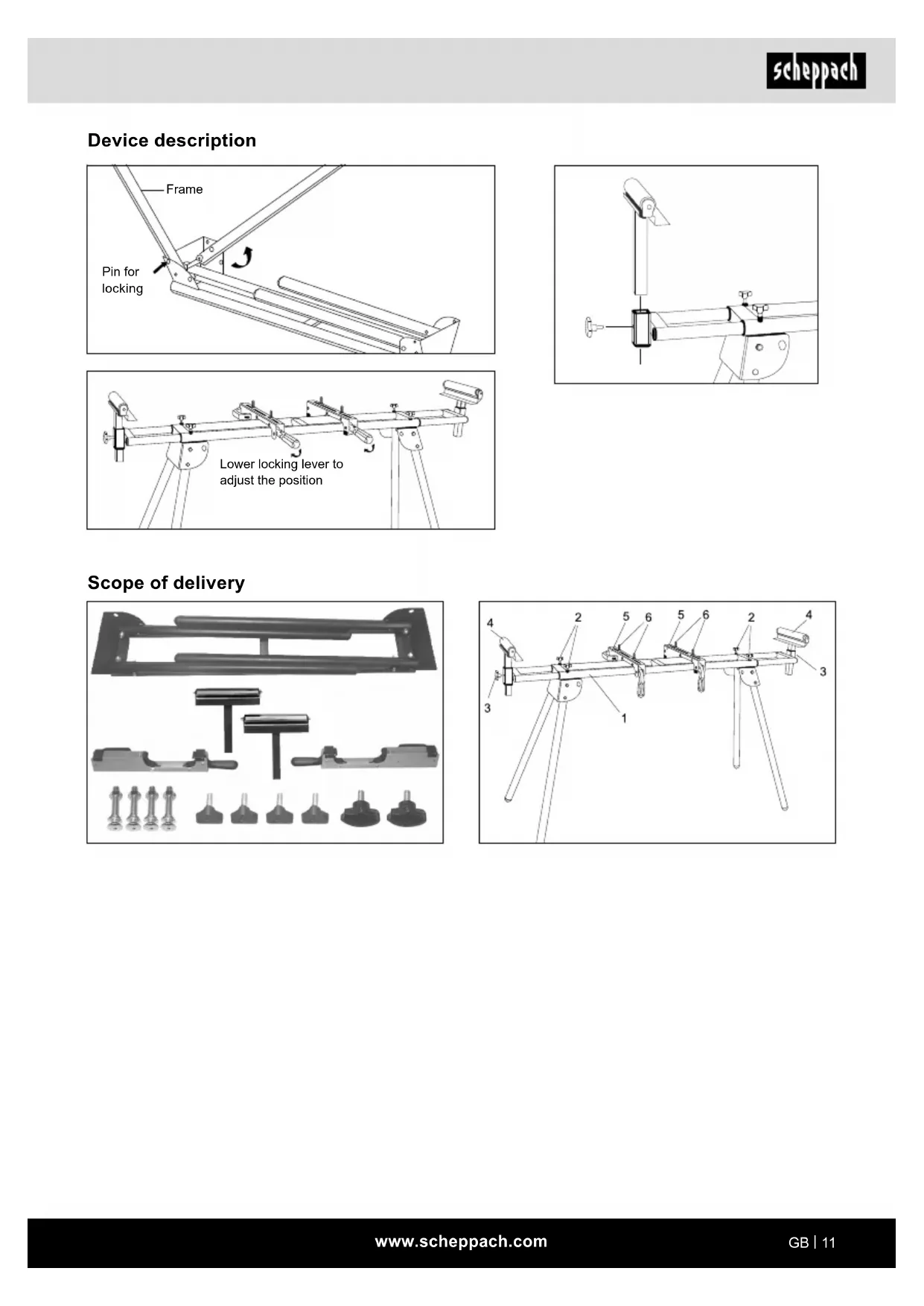

Device description

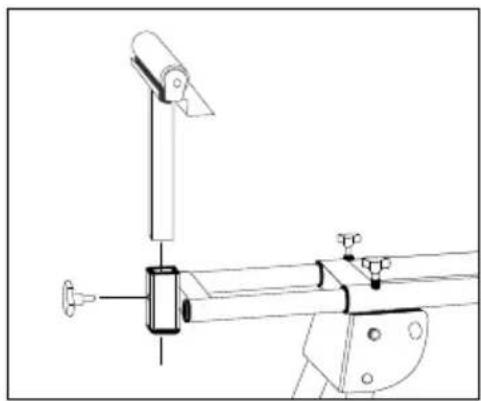

Frame Pin for locking

Technical line drawing of a mechanical assembly with no visible text or symbols

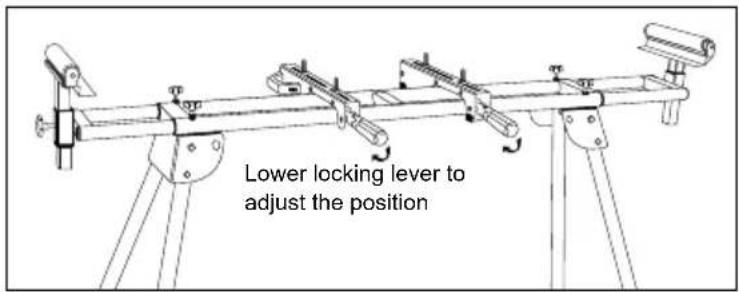

Lower locking lever to adjust the position

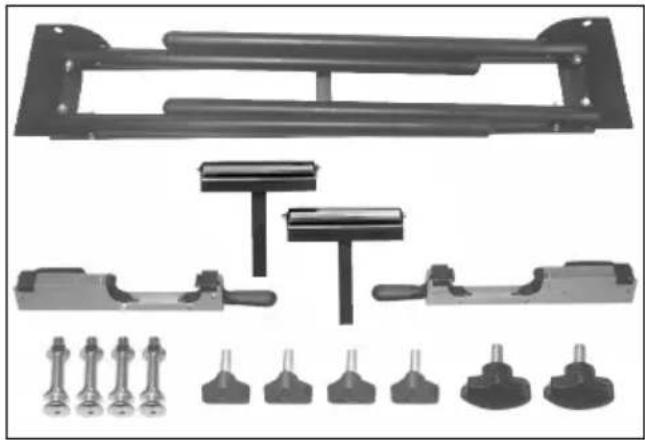

Scope of delivery

Collection of automotive bracket components and mounting hardware (no text or symbols visible)

Technical diagram of a mechanical device with numbered components for identification

1. Introduction

Manufacturer:

Scheppach GmbH

Günzburger Straße 69

D-89335 Ichenhausen

Dear Customer,

We hope your new tool brings you much enjoyment and success.

Note:

According to the applicable product liability laws, the manufacturer of the device does not assume liability for damages to the product or damages caused by the product that occurs due to:

• Improper handling,
  • Non-compliance of the operating instructions,
  • Repairs by third parties, not by authorized service technicians,
  • Installation and replacement of non-original spare parts,
  • Application other than specified,

We recommend:

Read through the complete text in the operating instructions before installing and commissioning the device.

The operating instructions are intended to help the user to become familiar with the machine and take advantage of its application possibilities in accordance with the recommendations.

The operating instructions contain important information on how to operate the machine safely, professionally and economically, how to avoid danger, costly repairs, reduce downtimes and how to increase reliability and service life of the machine.

In addition to the safety regulations in the operating instructions, you have to meet the applicable regulations that apply for the operation of the machine in your country.

Keep the operating instructions package with the machine at all times and store it in a plastic cover to protect it from dirt and moisture. Read the instruction manual each time before operating the machine and carefully follow its information.

The machine can only be operated by persons who were instructed concerning the operation of the machine and who are informed about the associated dangers. The minimum age requirement must be complied with. In addition to the safety instructions contained in this operating manual and the specific regulations of your country, the technical rules generally accepted for the operation of machines of the same type must be observed.

We accept no liability for damage or accidents which arise due to non-observance of these instructions and the safety information.

2. Device description (fig. 1 - 2)

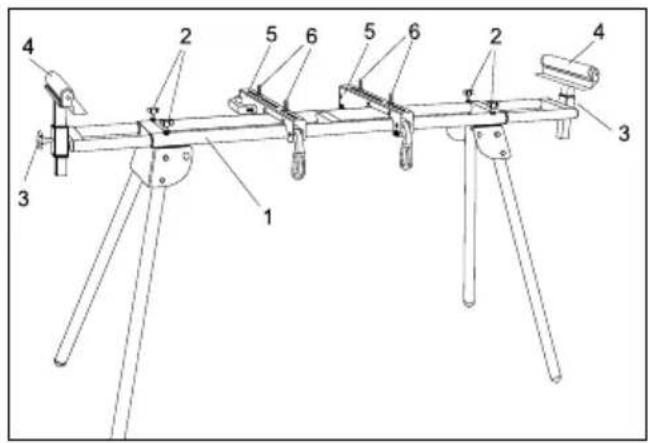

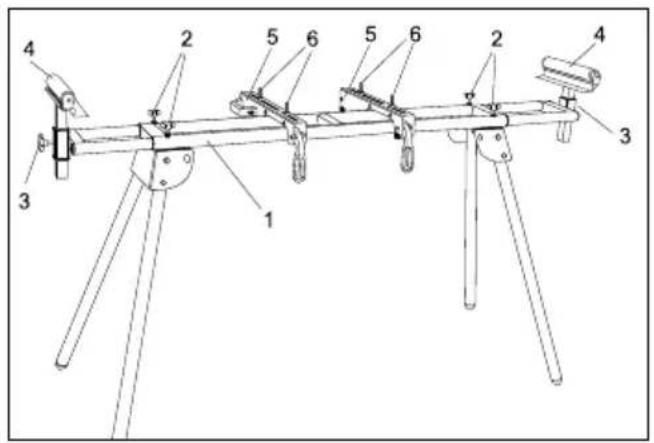

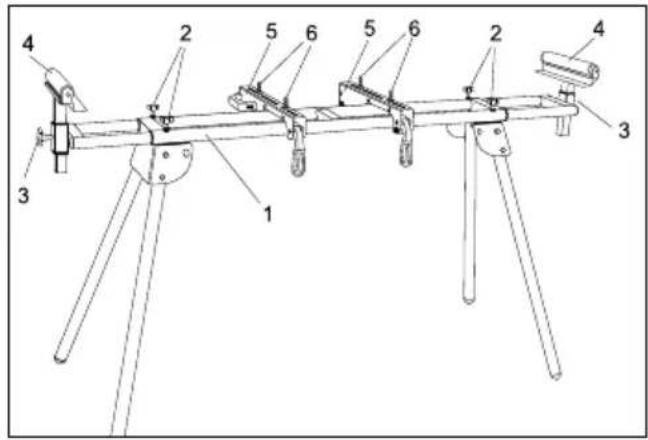

1. Machine stand
2. Wheel for longitudinal adjustment
3. Wheel for height adjustment
4. Support for workpieces
5. Saw supports
6. Bolts + nuts + washers*

3. Scope of delivery

1x Machine stand
4x Wheel for longitudinal adjustment
2x Wheel for height adjustment
2x Support for workpieces
2x Saw supports
4x Bolts + nuts + washers*
1x Operating manual

* The screws supplied to attach the machine to the universal stand are suitable for a large number of machines. However, it is possible that these are not suitable for your machine. In this case, you will have to buy the appropriate screws yourself.

4. Unpacking

• Open the packaging and remove the device carefully.
• Remove the packaging material as well as the packaging and transport bracing (if available).
• Check that the delivery is complete.
• Check the device and accessory parts for transport damage.
• If possible, store the packaging until the warranty period has expired.

ATTENTION

The device and packaging materials are not toys! Children must not be allowed to play with plastic bags, film and small parts! There is a risk of swallowing and suffocation!

5. Intended use

Always observe the proper use of your universal machine stand.

All common cross-cut saws, cross-cut mitre saws and cross-cut, sliding cross-cut mitre saw from Scheppach can be mounted on the universal tool stand. We do not accept any liability for devices from other manufacturers. Electric power tools without suitable mounting holes are not permitted to be fitted to the universal machine stand and shall not be operated in conjunction with the universal machine stand.

Electric power tools must be firmly bolted to the universal machine stand before starting them up.

The universal machine stand is also designed as a workpiece support when working with mitre saws, scroll saws, circular table saws, and other similar electric power tools.

The maximum workpiece length is 3 m.

Additional workpiece supports may have to be used (e.g. a roller trestle) in order to prevent longer workpieces tilting.

Attention: Ensure that the workpiece support is secure and not tilted!

Do not use the universal machine stand as a ladder or as scaffolding. Ensure that all handgrips, nuts and screws are tightened before use. The maximum payload is 250 kg. Ensure that the universal machine stand is on a level, firm and stable floor.

Any use beyond this is improper use. The manufacturer is not responsible for the resultant damages, the user bears this risk alone.

Please note that our equipment has not been designed for use in commercial, trade or industrial applications. Our warranty will be voided if the equipment is used in commercial, trade or industrial businesses or for equivalent purposes.

6. Safety information

• Use the universal machine stand only in conjunction with suitable electric power tools!
• Check the universal machine stand for damage each time before use. Electric power tools shall not be mounted or operated on damaged support arms / crossbars.

• Electric power tools must be bolted to the support arms / crossbars and be secured on the universal machine stand!

• Always ensure the universal machine stand is secure when setting it up.
  • Always ensure that you assume a natural and safe standing position when working.

• Do not overload the universal machine stand! Do not use the universal machine stand for purposes for which it is not intended.
• Modifications or unauthorised changes to the universal machine stand as well as the use of unapproved parts is forbidden.
• All parts of the universal machine stand, in particular the safety devices, must be correctly mounted in order to guarantee trouble-free operation.
• Keep the universal machine stand out of reach of children. Store the device in a location that is inaccessible to unauthorised persons and children.

⚠ Attention!

When using electric power tools, in conjunction with the universal machine stand, the respective machine-specific safety measures must be implemented as protection against electric shock, and the risk of injury or fire.

Read all of the instructions for the electric power tool that you intend to mount and operate before using the tool.

Safety instructions for the electric device mounted must likewise be observed.

Store these safety instructions safely.

Observe all safety instructions. If you disregard the safety instructions, you endanger yourself and others.

7. Technical data

Dimensions(L x W x H)	1160-2000 x 632 x 900-1000 mm
Load 250 kg
Weight 13.3 kg

8. Cleaning

⚠ Important!

Before any cleaning or maintenance work, the electrical tool fitted must be switched off and the mains plug pulled out! Risk of injury!

- Keep the universal machine stand as free of dust and dirt as possible. Rub the universal machine stand clean with a clean cloth or blow it off with compressed air at low pressure.

• We recommend that you clean the universal machine stand immediately after every use.
- Clean the device at regular intervals using a damp cloth and a little soft soap. Do not use any cleaning products or solvents - they could attack the plastic parts of the universal machine stand.

9. Maintenance

General maintenance measures

• We recommend that you clean the equipment immediately after you use it.
- Clean the equipment regularly with a damp cloth and some soft soap. Do not use cleaning agents or solvents; these may be aggressive to the plastic parts in the equipment. Ensure that no water can get into the interior of the equipment.

Service information

Please note that the following parts of this product are subject to normal or natural wear and that the following parts are therefore also required for use as consumables.

Wear parts*: clamping jaws

* Not necessarily included in the scope of delivery!

Spare parts and accessories can be obtained from our service centre. To do this, scan the QR code on the cover page.

10. Storage

Store the device and its accessories in a dark, dry and frost-proof place that is inaccessible to children. The optimum storage temperature is between 5 and 30°C

11. Disposal and recycling

Notes for packaging

The packaging materials are recyclable. Please dispose of packaging in an environmentally friendly manner.

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical assembly of a vehicle chassis with bracket, frame, and multiple mounting base components (no text or symbols visible)

Technical diagram of a mechanical device with numbered components for identification

1. Introduction

Fabricant:

Scheppach GmbH

Günzburger Straße 69

D-89335 Ichenhausen

Chers clients,

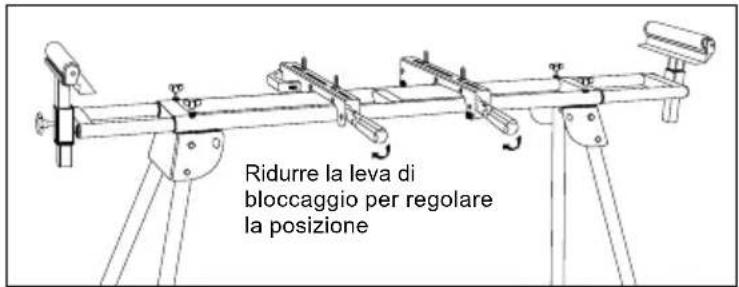

Technical line drawing of a mechanical assembly with no visible text or symbols

Collection of automotive bracket components and mounting fixtures (no text or symbols visible)

Technical diagram of a mechanical device with numbered components for identification

1. Introduzione

Fabbricante:

Scheppach GmbH

Günzburger Straße 69

D-89335 Ichenhausen

Egregio cliente,

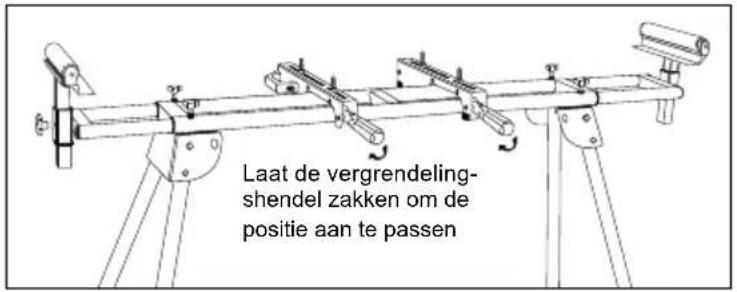

Technical line drawing of a mechanical assembly with no visible text or symbols

Collection of automotive bracket components and engine parts (no text or symbols visible)

Technical diagram of a mechanical device with numbered components for identification

1. Inleiding

Fabrikant:

Scheppach GmbH

Günzburger Straße 69

D-89335 Ichenhausen

Geachte klant,

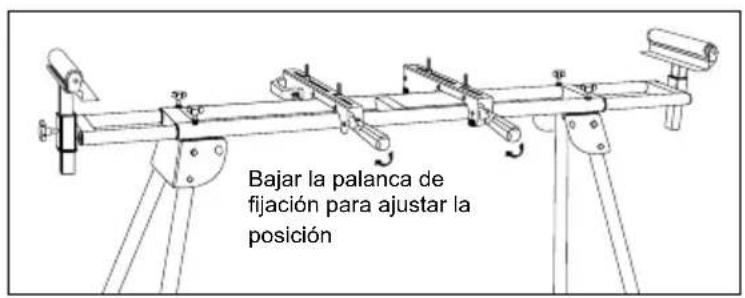

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical assembly of a vehicle chassis with bracket, frame, and various mechanical components (no visible text or labels)

Technical diagram of a mechanical device with numbered components for identification

1. Introducción

Fabricante:

Scheppach GmbH

Günzburger Straße 69

D-89335 Ichenhausen

Estimado cliente:

Technical line drawing of a mechanical assembly with no visible text or symbols

Collection of automotive bracket components and mechanical parts (no text or symbols visible)

Technical diagram of a mechanical device with numbered components for identification

1. Introdução

Fabricante:

Scheppach GmbH

Günzburger Straße 69

D-89335 Ichenhausen

Estimado cliente,

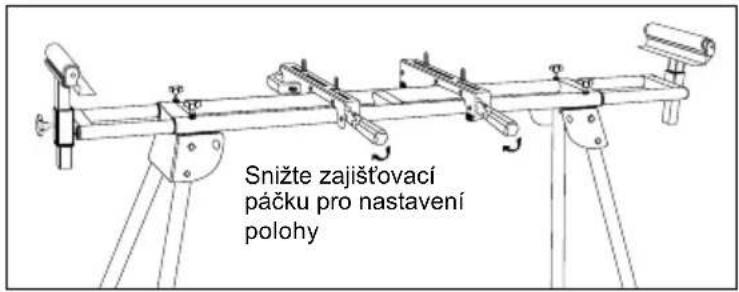

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical assembly of a vehicle chassis with bracket, frame, and various mechanical components (no visible text or labels)

Technical diagram of a mechanical device with numbered components for identification

1. Úvod

Výrobce:

Scheppach GmbH

Günzburger Straße 69

D-89335 Ichenhausen

Vážený zákazníku,

Technical line drawing of a mechanical assembly with no visible text or symbols

Dolný upevňovací páka pre nastavenie polohy páka

Rozsah dodávky

Technical assembly of a vehicle chassis with bracket, frame, and mounting base components (no text or symbols visible)

Technical diagram of a mechanical device with numbered components for identification

1. Úvod

Výrobca:

Scheppach GmbH

Günzburger Straße 69

D-89335 Ichenhausen

Vážený zákazník,

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical assembly of a mechanical frame with multiple mounting brackets and a series of small mechanical components (no text or symbols visible)

Technical diagram of a mechanical device with numbered components for identification

1. Bevezetés

Gyártó:

Scheppach GmbH

Günzburger Straße 69

D-89335 Ichenhausen

Tisztelt vásárló!

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical assembly of a vehicle chassis with bracket, frame, and multiple mounting fixtures (no text or symbols visible)

Technical diagram of a mechanical device with numbered components for identification

1. Wprowadzenie

Producent:

Scheppach GmbH

Günzburger Straße 69

D-89335 Ichenhausen

Szanowny kliencie,

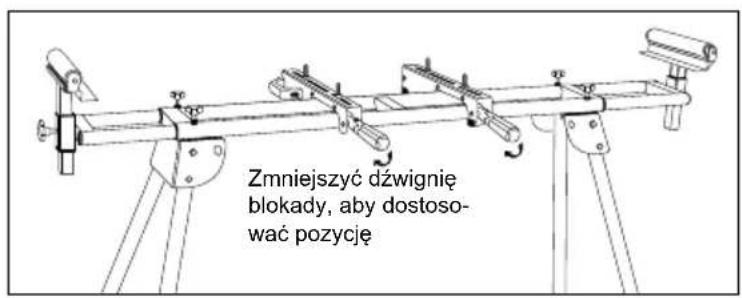

Technical line drawing of a mechanical assembly with no visible text or symbols

Collection of automotive bracket components and mechanical parts (no text or symbols visible)

Technical diagram of a mechanical device with numbered components for identification

1. Uvod

Proizvođač:

Scheppach GmbH

Günzburger Straße 69

D-89335 Ichenhausen

Poštovani kupci,

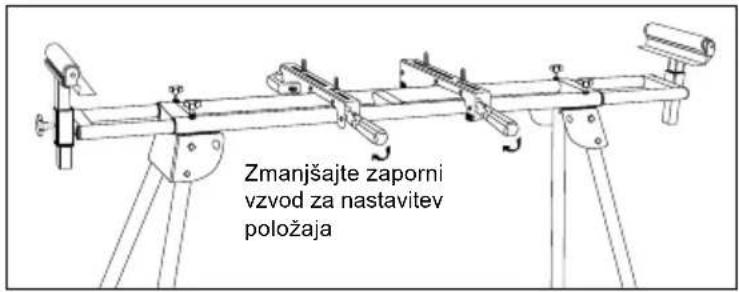

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical assembly of a vehicle chassis with bracket, mounting brackets, and various mechanical components (no visible text or labels)

Technical diagram of a mechanical device with numbered components for identification

1. Uvod

Proizvajalec:

Scheppach GmbH

Günzburger Straße 69

D-89335 Ichenhausen

Spoštovani kupec,

želimo vam veliko veselja in uspeha pri delu z vašim novim strojem.

Obvestilo:

Technical line drawing of a mechanical assembly with no visible text or symbols

Collection of automotive bracket components and mechanical parts (no text or symbols visible)

Technical diagram of a mechanical device with numbered components for identification

1. Sissejuhatus

Tootja:

Scheppach GmbH

Günzburger Straße 69

D-89335 Ichenhausen

Austatud klient!

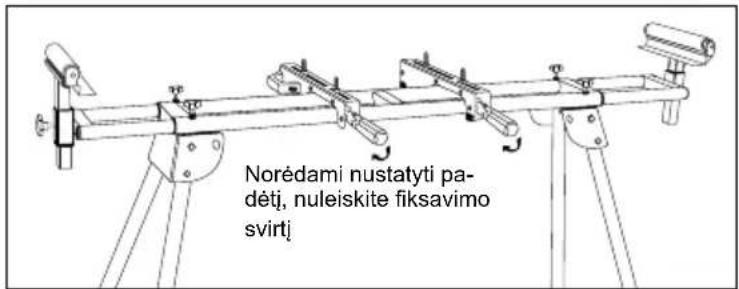

Technical line drawing of a mechanical assembly with no visible text or symbols

Collection of mechanical components including a frame, brackets, and multiple base assemblies (no text or symbols visible)

Technical diagram of a mechanical device with numbered components for identification

1. lžanga

Gamintojas:

Scheppach GmbH

Günzburger Straße 69

D-89335 Ichenhausen

Gerbiamas kliente,

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical assembly of a mechanical frame with multiple mounting brackets and a series of small mechanical components (no text or symbols visible)

Technical diagram of a mechanical device with numbered components for identification

1. Levads

Ražotājs:

Scheppach GmbH

Günzburger Straße 69

D-89335 Ichenhausen

Godātais klient!

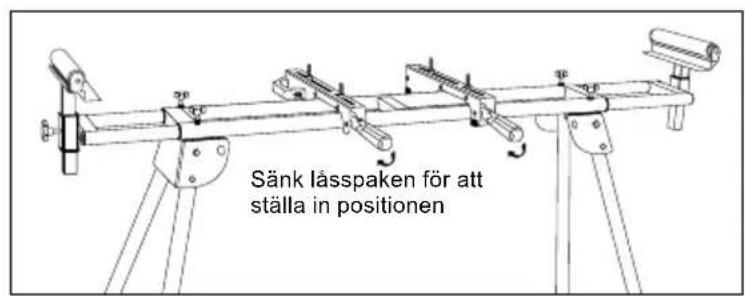

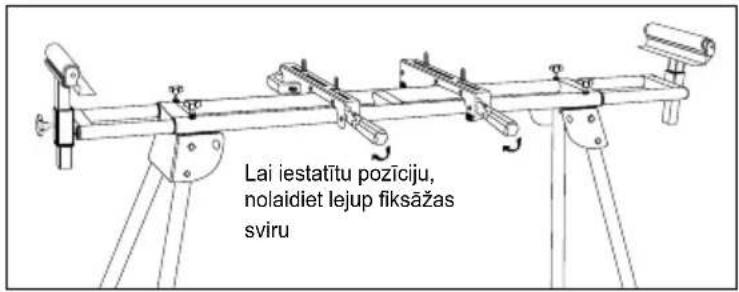

Technical line drawing of a mechanical assembly with no visible text or symbols

Collection of automotive bracket components and mechanical parts (no text or symbols visible)

Technical diagram of a mechanical device with numbered components for identification

1. Inledning

Tillverkare:

Scheppach GmbH

Günzburger Straße 69

D-89335 Ichenhausen

Bästa kund,

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical assembly of a vehicle chassis frame with various mounting brackets and mounting holes (no text or symbols visible)

Technical diagram of a mechanical device with numbered components for identification

1. Johdanto

Valmistaja:

Scheppach GmbH

Günzburger Straße 69

D-89335 Ichenhausen

Arvoisa asiakas,

Technical line drawing of a mechanical assembly with no visible text or symbols

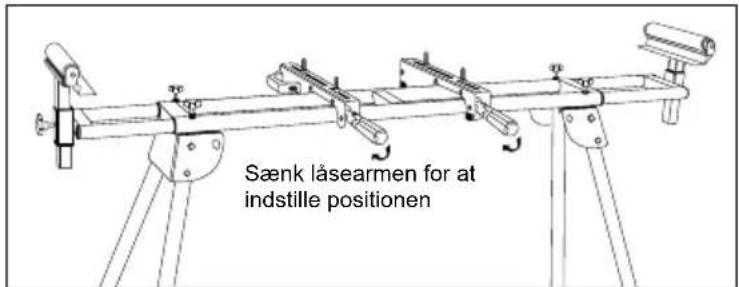

Sænk låsearmen for at indstille positionen

Leveringsomfang

Technical assembly of a vehicle chassis frame with multiple mounting brackets and support components (no text or symbols visible)

Technical diagram of a mechanical device with numbered components for identification

1. Indledning

Producent:

Scheppach GmbH

Günzburger Straße 69

D-89335 Ichenhausen

Kære kunde,

Technical line drawing of a mechanical assembly with no visible text or symbols

Collection of automotive bracket components and mounting hardware (no text or symbols visible)

Technical diagram of a mechanical device with numbered components for identification

1. Innledning

Produsent:

Scheppach GmbH

Günzburger Straße 69

D-89335 Ichenhausen

Kjære kunde,

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical assembly of a vehicle chassis frame with multiple mounting brackets and terminal blocks (no text or symbols visible)

Technical diagram of a mechanical device with numbered components for identification

1. Увод

Производител:

Scheppach GmbH

Günzburger Straße 69

D-89335 Ichenhausen, Германия

Уважаеми клиенти,

Technical line drawing of a mechanical assembly with no visible text or symbols

Collection of automotive bracket components and mechanical parts (no text or symbols visible)

Technical diagram of a mechanical device with numbered components for identification

1. Εισαγωγή

Κατασκευαστής:

Scheppach GmbH

Günzburger Straße 69

D-89335 Ichenhausen

Αξιότιμε πελάτη,

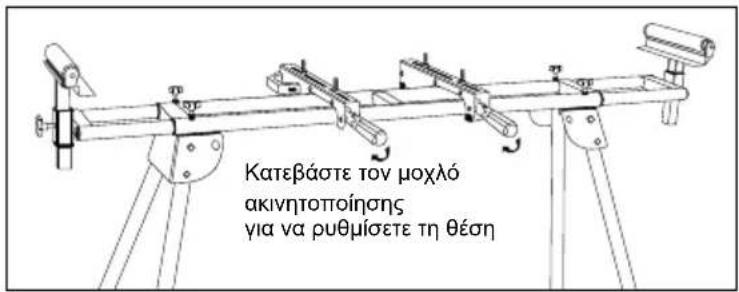

Technical line drawing of a mechanical assembly with no visible text or symbols

Collection of automotive bracket components and mounting fixtures (no text or symbols visible)

Technical diagram of a mechanical device with numbered components for identification

1. Introducere

Producător:

Scheppach GmbH

Günzburger Straße 69

D-89335 Ichenhausen

Stimate client,

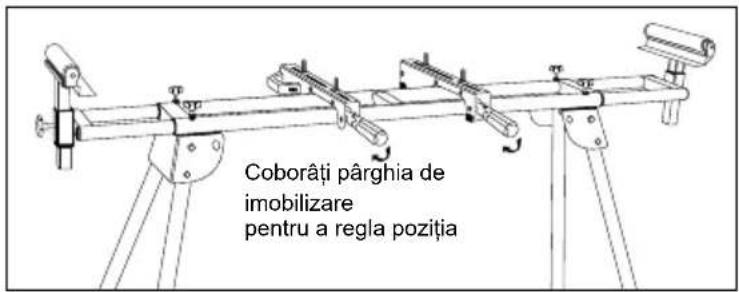

Technical line drawing of a mechanical assembly with no visible text or symbols

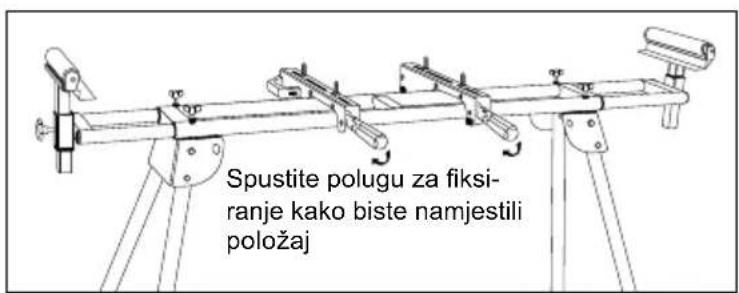

Spustite polugu za fiksiranje, da biste podesili položaj

Opseg isporuke

Collection of automotive bracket components and mounting hardware (no text or symbols visible)

Technical diagram of a mechanical device with numbered components for identification

1. Uvod

Proizvođač:

Scheppach GmbH

Günzburger Straße 69

D-89335 Ichenhausen

Poštovani kupče,

Technical line drawing of a mechanical assembly with no visible text or symbols

Collection of automotive bracket components and mounting fixtures (no text or symbols visible)

Technical diagram of a mechanical device with numbered components for identification

1. Giriş

Üretici:

Scheppach GmbH

Günzburger Straße 69

D-89335 Ichenhausen

İthalatçı:

Technical diagram of a mechanical assembly with numbered components for identification and assembly reference.

Garantie DE

Apparent defects must be notified within 8 days from the receipt of the goods. Otherwise, the buyer loses its rights of claim due to such defects are invalidated. We guarantee for our machines in case of proper treatment for the time of the statutory warranty period from delivery in such a way that we replace any machine part free of charge which provably becomes unusable due to faulty material or defects of fabrication within such period of time. With respect to parts not manufactured by us we only warrant insofar as we are entitled to warranty claims against the upstream suppliers. The costs for the installation of the new parts shall be borne by the buyer. The cancellation of sale or the reduction of purchase price as well as any other claims for damages shall be excluded.

Garantie FR

Apparent defects must be notified within 8 days from the receipt of the goods. Otherwise, the buyer's rights of claim due to such defects are invalidated. We guarantee for our machines in case of proper treatment for the time of the statutory warranty period from delivery in such a way that we replace any machine part free of charge which provably becomes unusable due to faulty material or defects of fabrication within such period of time. With respect to parts not manufactured by us we only warrant insofar as we are entitled to warranty claims against the upstream suppliers. The costs for the installation of the new parts shall be borne by the buyer. The cancellation of sale or the reduction of purchase price as well as any other claims for damages shall be excluded.

Záruka CZ

Apparent defects must be notified within 8 days from the receipt of the goods. Otherwise, the buyer is rights of claim due to such defects are invalidated. We guarantee for our machines in case of proper treatment for the time of the statutory warranty period from delivery in such a way that we replace any machine part free of charge which provably becomes unusable due to faulty material or defects of fabrication within such period of time. With respect to parts not manufactured by us we only warrant insofar as we are entitled to warranty claims against the upstream suppliers. The costs for the installation of the new parts shall be borne by the buyer. The cancellation of sale or the reduction of purchase price as well as any other claims for damages shall be excluded.

Garantii EE

Apparent defects must be notified within 8 days from the receipt of the goods. Otherwise, the buyer's rights of claim due to such defects are invalidated. We guarantee for our machines in case of proper treatment for the time of the statutory warranty period from delivery in such a way that we replace any machine part free of charge which provably becomes unusable due to faulty material or defects of fabrication within such period of time. With respect to parts not manufactured by us we only warrant insofar as we are entitled to warranty claims against the upstream suppliers. The costs for the installation of the new parts shall be borne by the buyer. The cancellation of sale or the reduction of purchase price as well as any other claims for damages shall be excluded.

гаранция BG
