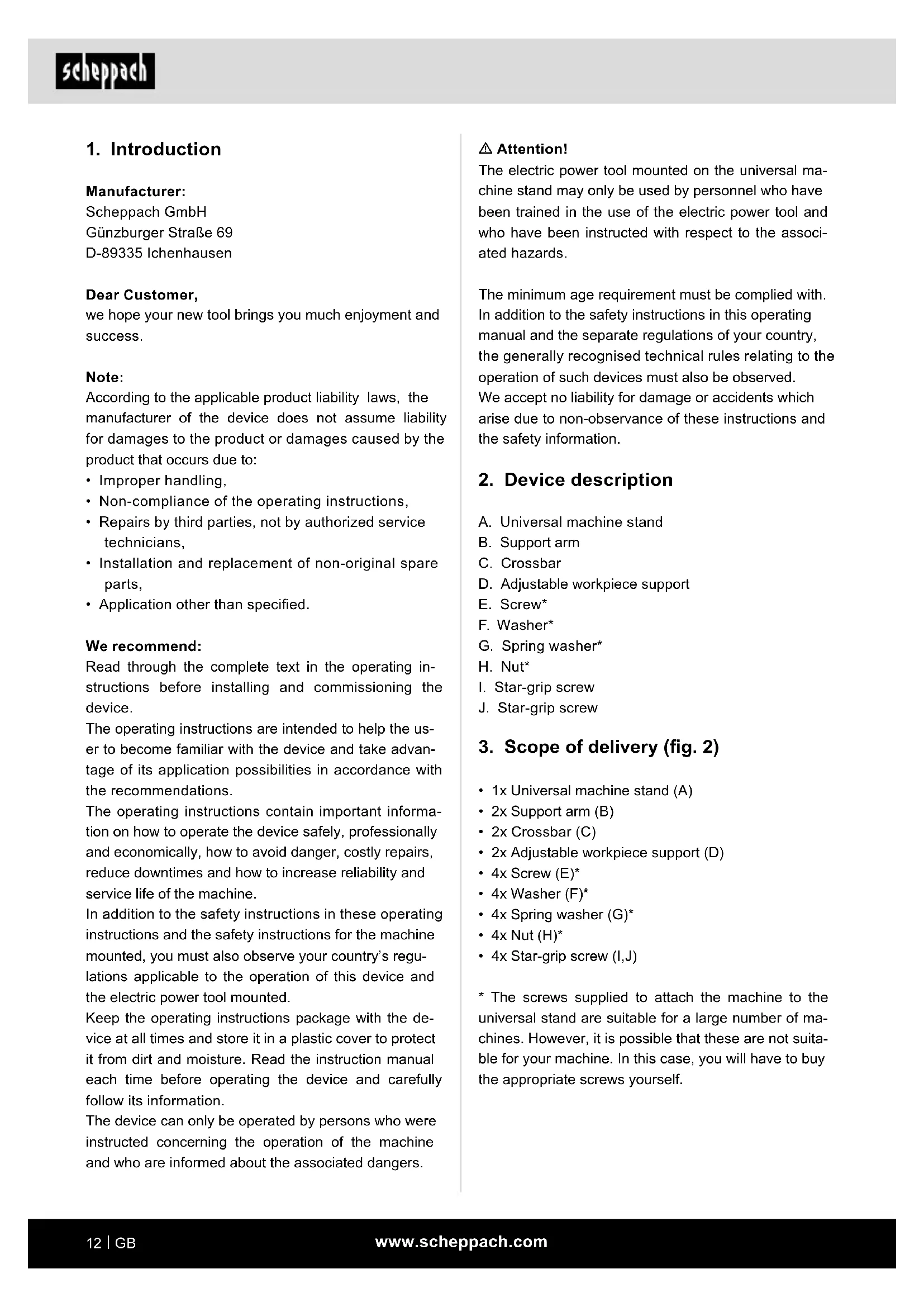

1. Introduction

Manufacturer:

Scheppach GmbH

Günzburger Straße 69

D-89335 Ichenhausen

Dear Customer,

we hope your new tool brings you much enjoyment and success.

Note:

According to the applicable product liability laws, the manufacturer of the device does not assume liability for damages to the product or damages caused by the product that occurs due to:

• Improper handling,
• Non-compliance of the operating instructions,
• Repairs by third parties, not by authorized service technicians,
• Installation and replacement of non-original spare parts,
• Application other than specified.

We recommend:

Read through the complete text in the operating instructions before installing and commissioning the device.

The operating instructions are intended to help the user to become familiar with the device and take advantage of its application possibilities in accordance with the recommendations.

The operating instructions contain important information on how to operate the device safely, professionally and economically, how to avoid danger, costly repairs, reduce downtimes and how to increase reliability and service life of the machine.

In addition to the safety instructions in these operating instructions and the safety instructions for the machine mounted, you must also observe your country's regulations applicable to the operation of this device and the electric power tool mounted.

Keep the operating instructions package with the device at all times and store it in a plastic cover to protect it from dirt and moisture. Read the instruction manual each time before operating the device and carefully follow its information.

The device can only be operated by persons who were instructed concerning the operation of the machine and who are informed about the associated dangers.

Attention!

The electric power tool mounted on the universal machine stand may only be used by personnel who have been trained in the use of the electric power tool and who have been instructed with respect to the associated hazards.

The minimum age requirement must be complied with. In addition to the safety instructions in this operating manual and the separate regulations of your country, the generally recognised technical rules relating to the operation of such devices must also be observed.

We accept no liability for damage or accidents which arise due to non-observation of these instructions and the safety information.

2. Device description

A. Universal machine stand
B. Support arm
C.Crossbar
D. Adjustable workpiece support
E. Screw
F. Washer
G. Spring washer
H. Nut
I. Star-grip screw
J. Star-grip screw

3. Scope of delivery (fig. 2)

• 1x Universal machine stand (A)
• 2x Support arm (B)
• 2x Crossbar (C)
• 2x Adjustable workpiece support (D)
• 4x Screw (E)*
• 4x Washer (F)*
• 4x Spring washer (G)*

• 4x Nut (H)*
  4x Star-grip screw (I,J)

• The screws supplied to attach the machine to the universal stand are suitable for a large number of machines. However, it is possible that these are not suitable for your machine. In this case, you will have to buy the appropriate screws yourself.

• Open the packaging and remove the device carefully.

• Remove the packaging material as well as the packaging and transport bracing (if available).
• Check that the delivery is complete.
• Check the device and accessory parts for transport damage.
• If possible, store the packaging until the warranty period has expired.

ATTENTION!

The device and packaging materials are not toys! Children must not be allowed to play with plastic bags, film and small parts! There is a risk of swallowing and suffocation!

4. Intended use

Always observe the proper use of your universal machine stand.

All common cross-cut saws, cross-cut litre saws and cross-cut, sliding cross-cut litre saw from Scheppach can be mounted on the universal tool stand. We do not accept any liability for devices from other manufacturers.

Electric power tools without suitable mounting holes are not permitted to be fitted to the universal machine stand and shall not be operated in conjunction with the universal machine stand.

Electric power tools must be firmly bolted to the universal machine stand before starting them up.

The universal machine stand is also designed as a workpiece support when working with metre saws, scroll saws, circular table saws, and other similar electric power tools.

The maximum workpiece length is 3m

Additional workpiece supports may have to be used (e.g. a roller trestle) in order to prevent longer workpieces tilting.

Attention: Ensure that the workpiece support is secure and not tilted!

Do not use the universal machine stand as a ladder or as scaffolding. Ensure that all handgrips, nuts and screws are tightened before use. Electric power tools on this device shall not exceed an overall height of 152 cm. The maximum payload is 150kg . Ensure that the universal machine stand is on a level, firm and stable floor.

Any use beyond this is improper use. The manufacturer is not responsible for the resultant damages, the user bears this risk alone.

Please note that our equipment has not been designed for use in commercial, trade or industrial applications.

Our warranty will be voided if the equipment is used in commercial, trade or industrial businesses or for equivalent purposes.

5. Safety information

• Use the universal machine stand only in conjunction with suitable electric power tools!
• Check the universal machine stand for damage each time before use. Electric power tools shall not be mounted or operated on damaged support arms / crossbars.
  Electric power tools must be bolted to the support arms / crossbars and be secured on the universal machine stand!
• Always ensure the universal machine stand is secure when setting it up.
  Always ensure that you assume a natural and safe standing position when working.
• Do not overload the universal machine stand! Do not use the universal machine stand for purposes for which it is not intended.
• Modifications or unauthorised changes to the universal machine stand as well as the use of unapproved parts is forbidden.
• All parts of the universal machine stand, in particular the safety devices, must be correctly mounted in order to guarantee trouble-free operation.
• Keep the universal machine stand out of reach of children. Store the device in a location that is inaccessible to unauthorized persons and children.

Attention!

When using electric power tools, in conjunction with the universal machine stand, the respective machine-specific safety measures must be implemented as protection against electric shock, and the risk of injury or fire. Read all of the instructions for the electric power tool that you intend to mount and operate before using the tool.

Safety instructions for the electric device mounted must likewise be observed.

Store these safety instructions safely.

Observe all safety instructions. If you disregard the safety instructions, you endanger yourself and others.

6. Technical data

Dimensions	935 - 1985 x 640 x 825 - 935 mm
Table height 780 mm
Height of the side expansions 825 - 935 mm
Spacing of the supports min. / max	935 - 1985 mm
Max. permissible payload 150 kg
Weight ca. 9.8 kg

7. Before starting the equipment

Check the device for transport damage. Immediately report any damage to the transport company that delivered the device.

8. Attachment and operation

The universal machine stand is largely assembled and you need only fit the handgrips and the workpiece supports as follows:

8.1 Erecting the universal machine stand (fig. 3-4)

• Place the universal machine stand (A) on the floor or on a workbench such that the frame legs (A.1) point upwards.
• Press the spring pins (K) and fold out the frame leg.
• Once the spring pin latches into the intended position, the frame leg is locked.
• Repeat this process for the other frame legs.
• Set the universal machine stand down on its feet.

8.2 Fit support arms (fig. 5)

• Fit the support arms (B) to the frame bed (A) by pulling the locking lever (B.1) upwards to unlock it and then latching the arm into place on the frame base, firstly on the front side.
• Lower the rear side onto the bed and fasten the support arm in place on the frame bed by pressing the locking lever (B.1).

Disassembly is carried out in reverse order.

8.3 Fitting the workpiece supports (fig. 6-7)

• Insert the crossbar (C) into the receiver (L) of the frame bed and fasten in place with the star-grip screws (I).
• Insert the workpiece support (D) into the receiver (M) of the crossbar and fasten in place with the star-grip screws (J).

The width and height of the workpiece supports can be adjusted with the star-grip screws (I,J).

8.4 Fastening your tabletop machine

Different tabletop machines can be fastened to your universal machine stand by adjusting the support arms (B) to the spacing of the mounting holes on your machine.

• Place your tabletop machine (e.g. litre saw) on the support arms (B).
• Fasten the tabletop machine with 4 hexagonal screws (E), 4 washers (F), 4 spring washers (G) and 4 hexagonal nuts (H) on each of the support arms.
• Tighten the screws after assembly.
• Fasten the support arms (B) with the mounted tabletop machine on the universal machine stand, as described in point 2.

8.5 Using the workpiece stops (fig. 8)

The workpiece supports (D) have integrated workpiece stops (D.2), which can be used to saw multiple pieces of wood to the same length.

• Loosen the star-grip screw (J) on the desired side of the universal machine stand and adjust the height of the workpiece support (D) such that the support surface (D.2) is at the same height as the workpiece support of the saw.
• Loosen the star-grip screw (I) to slide the workpiece support horizontally.
• Set the desired distance between the saw blade and the stop surface (D.1).
• Lock your setting by tightening the star-grip screws (l) again.

9. Cleaning, maintenance and storage

Important!

Before any cleaning or maintenance work, the electrical tool fitted must be switched off and the mains plug pulled out! Risk of injury!

9.1 Cleaning

• Keep the universal machine stand as free of dust and dirt as possible. Rub the universal machine stand clean with a clean cloth or blow it off with compressed air at low pressure.
• We recommend that you clean the universal machine stand immediately after every use.
• Clean the device at regular intervals using a damp cloth and a little soft soap. Do not use any cleaning products or solvents - they could attack the plastic parts of the universal machine stand.

9.2 Storage

Attention!

Store the universal machine stand only in dry locations that are inaccessible for unauthorised persons.

Spare parts and accessories can be obtained from our service centre. To do this, scan the QR code on the cover page.

10. Disposal and recycling

Notes for packaging

The packaging materials are recyclable. Please dispose of packaging in an environmentally friendly manner.

11. Transport

Attention!

Do not transport whilst the electric power tool is running.

Before transporting the universal machine stand, pull out the mains plug of the electric power tool mounted on it! Risk of injury due to electric shock and unexpected start-up of the electric power tool!

Two people can lift the universal machine stand by its frame bed in order to move the universal machine stand within rooms (do not drag it along the ground).

If being transported in a vehicle, remove the electric power tool first.

Fold up the legs for transport.

Ensure that the load is well secured if transporting the universal machine stand in a motor vehicle.
