USER MANUAL DB110 HUSQVARNA

EN Operator's manual 5-14

Two-step illustration showing a person in protective gear using a long tool to clean vegetation, with no text or symbols present.

25

Technical line drawing of a mechanical component with no visible text or symbols

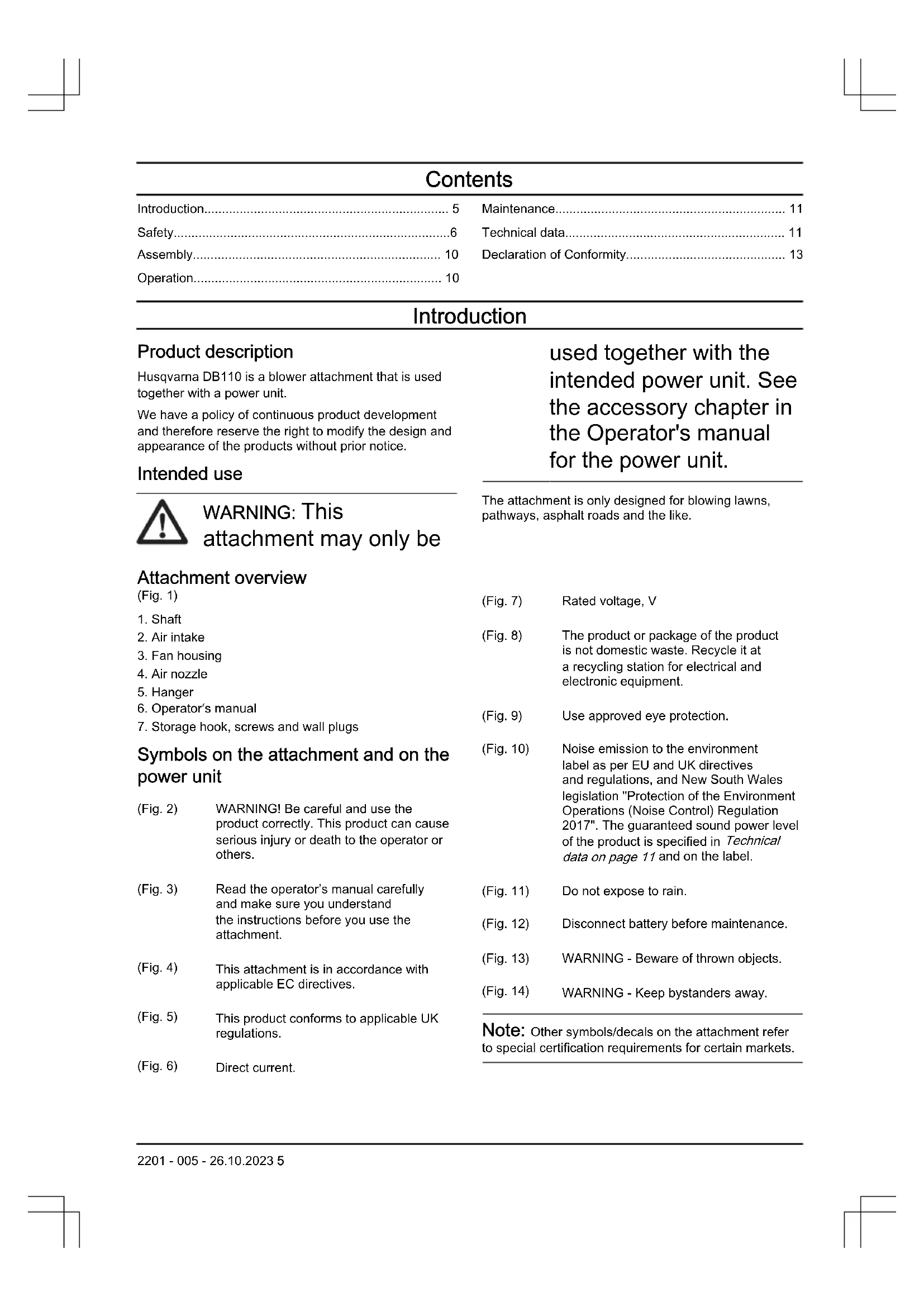

Contents

Introduction....5

Safety....6

Assembly.... 10

Operation.... 10

Maintenance.... 11

Technical data.... 11

Declaration of Conformity.... 13

Introduction

Product description

Husqvarna DB110 is a blower attachment that is used together with a power unit.

We have a policy of continuous product development and therefore reserve the right to modify the design and appearance of the products without prior notice.

Intended use

WARNING: This attachment may only be

Attachment overview

(Fig. 1)

1. Shaft
2. Air intake
3. Fan housing
4. Air nozzle
5. Hanger
6. Operator's manual
7. Storage hook, screws and wall plugs

Symbols on the attachment and on the power unit

(Fig. 2) WARNING! Be careful and use the product correctly. This product can cause serious injury or death to the operator or others.

(Fig. 3) Read the operator's manual carefully and make sure you understand the instructions before you use the attachment.

(Fig. 4) This attachment is in accordance with applicable EC directives.

(Fig. 5) This product conforms to applicable UK regulations.

(Fig. 6) Direct current.

used together with the intended power unit. See the accessory chapter in the Operator's manual for the power unit.

The attachment is only designed for blowing lawns, pathways, asphalt roads and the like.

(Fig. 7) Rated voltage, V

(Fig. 8) The product or package of the product is not domestic waste. Recycle it at a recycling station for electrical and electronic equipment.

(Fig. 9) Use approved eye protection.

(Fig. 10) Noise emission to the environment label as per EU and UK directives and regulations, and New South Wales legislation "Protection of the Environment Operations (Noise Control) Regulation 2017". The guaranteed sound power level of the product is specified in Technical data on page 11 and on the label.

(Fig. 11) Do not expose to rain.

(Fig. 12) Disconnect battery before maintenance.

(Fig. 13) WARNING - Beware of thrown objects.

(Fig. 14) WARNING - Keep bystanders away.

Note: Other symbols/decals on the attachment refer to special certification requirements for certain markets.

Safety

Safety definitions

Warnings, cautions and notes are used to point out specially important parts of the operator's manual.

WARNING: Used if there is a risk of injury or death for the operator or bystanders if the instructions in the manual are not obeyed.

CAUTION: Used if there is a risk of damage to the product and/or the attachment, other materials or the adjacent area if the instructions in the manual are not obeyed.

Note: Used to give more information that is necessary in a given situation.

General safety instructions

WARNING: Read the safety instructions that follow before you use the attachment.

• Please read the operator's manual carefully and make sure you understand the instructions before using the attachment.
• This Operator's manual should be read together with the Operator's manual for the power unit to get the complete user information.
• Under no circumstances may the design of the attachment be modified without the permission of the manufacturer. Do not use an attachment that appears to have been modified by others and always use original accessories. Non-authorized modifications and/or accessories can result in serious personal injury or the death of the operator or others.

Safety instructions for operation

WARNING: Read the warning instructions that follow before you use the product.

WARNING: This product produces an electromagnetic field

during operation. This field may under some circumstances interfere with active or passive medical implants. To reduce the risk of serious or fatal injury, we recommend persons with medical implants to consult their physician and the medical implant manufacturer before operating this product.

• Never use the product if you are tired, if you are ill, if you have consumed alcohol, or if you are taking other drugs or medication that can affect your vision, judgement or coordination.
• Never use a product that is faulty.
• All covers and guards must be fitted before starting.
• Never allow children to use the product.

• Never allow anyone else to use the product without first ensuring that they have read and understood the contents of the operator's manual.
  • Always contact local authorities and make sure you are following applicable directives.

• Keep all parts of your body away from hot surfaces.

• If you encounter a situation where you are uncertain how to proceed you should ask an expert. Contact your dealer or your service workshop. Avoid all usage which you consider to be beyond your capability.
• Hold the opening of the blower as close to the ground as possible. Utilize the entire length of the blow pipe to keep the air stream close to the ground.
• Use the machine during normal working hours to avoid unnecessary disturbance. Avoid working early in the morning or late at night.
• Be aware of your surroundings. If anyone approaches your work area, release the power trigger until the person is at a safe distance. Direct the blower away from people, animals, play areas, open windows and cars etc. The force of air can cause rocks, dirt or sticks to be thrown or to ricochet which can injure people or animals, break glass or cause other damage.
• Never put hands or other objects into blower housing to avoid serious injury from the rotating impeller.

- Keep outside surface free from oil and fuel.

- Never use for spreading chemicals, fertilizer or other substances which may contain toxic materials.

- To avoid spreading fire, do not use near leaf or brush fire, fireplaces, barbecue pits, ashtrays, etc.

- Never douse or squirt the attachment with water or any other liquid.

- Always use both hands to hold the machine. Hold the machine at the side of your body.

- The powerful streams of air can move objects at such a speed that they can bounce back and cause serious eye injuries. (Fig. 15)

- Stop the motor before assembling or dismantling accessories or other parts.

- Do not use the product in bad weather, such as dense fog, heavy rain, strong wind, intense cold, etc. Working in bad weather is tiring and can lead to dangerous conditions, e.g. slippery surfaces.

• Make sure you can move and stand safely. Check the area around you for possible obstacles (roots,

rocks, branches, ditches, etc.) in case you have to move suddenly. Take great care when working on sloping ground. (Fig. 16)

- Never put the product down with the motor running unless you have it in clear sight.

- The blower must not be used while on a ladder or scaffolding, or in high places (such as roofs). This work could result in severe injury. (Fig. 17)

- Do not use the product unless you are able to call for help in the event of an accident.

- Never place any objects in air intake opening as this could restrict proper air flow and cause damage to the unit.

- Make sure that the product do not hit any fence, tree or other hard material. This could cause damage to the machine and lead to severe injury.

- Listen out for warning signals or shouts when you are wearing hearing protection. Always remove your hearing protection as soon as the motor stops.

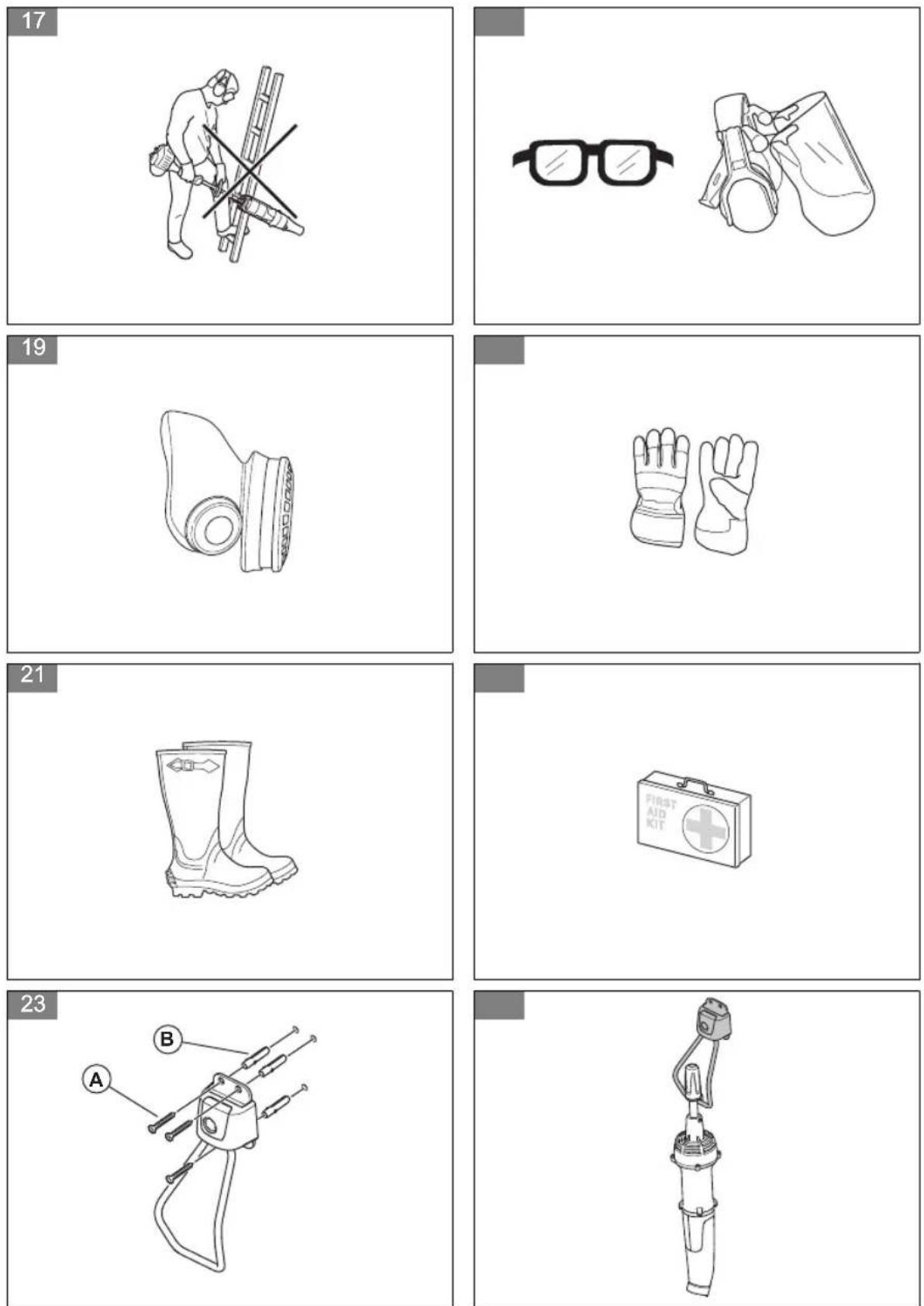

Personal protective equipment

WARNING: Read the warning instructions that follow before you use the product.

• Always use approved personal protective equipment when you use the product. Personal protective equipment cannot fully prevent injury but it decreases the degree of injury if an accident does occur. Let your dealer help you select the right equipment.
• Use approved hearing protection that provides adequate noise reduction. Long-term exposure to noise can result in permanent hearing impairment.
• Use approved eye protection. If you use a visor, you must also use approved protective goggles. Approved protective goggles must comply with the ANSI Z87.1 standard in the USAs or EN 166 in EU countries.

(Fig. 18)

- Use breathing protection when there is a risk of dust.

(Fig. 19)

• Use gloves when necessary, for example when you attach, examine or clean the equipment.

(Fig. 20)

- Use sturdy non-slip boots or shoes.

(Fig. 21)

• Use clothing made of a strong fabric. Always use heavy, long pants and long sleeves. Do not use loose clothing that can catch on twigs and branches. Do not wear jewelry, short pants, sandals or go with bare feet. Put your hair up safely above shoulder level.
• Keep first aid equipment close at hand.

(Fig. 22)

Safety instructions for maintenance

WARNING: Read the warning instructions that follow before you operate the product.

Do an inspection of the product before operation. Refer to Maintenance on page 11.

Do only the maintenance and servicing given in this operator's

manual. Speak to your servicing dealer for all other repairs, maintenance and servicing.

Before you operate the product, make sure that there is no blockage to the air intake.

To prevent that the product falls and is damaged, do assembly and installation near the ground.

Assembly

Introduction

WARNING: Read and understand the safety chapter before you assemble the product.

To install the storage hook on the wall

• Install the storage hook indoors.
- Keep the storage hook out of sunlight and in ambient temperature of -10^ to 70^ .
• Install the storage hook on a drywall, wood or concrete wall.

CAUTION: Make sure that the wall can hold loads of minimum 30 kg.

• Install the storage hook on the wall with the 3 screws (A). Use wall plugs (B) if it is necessary. (Fig. 23)

CAUTION: Make sure that the screws are applicable for your wall type.

- Speak to your Husqvarna service agent for information about available storage accessories for your product.

To hang the pole blower on the storage hook

- Hang the pole blower attachment on the storage hook as shown in the illustration. (Fig. 24)

Operation

To use the attachment

Note: Think about persons near your work area and do not operate the product at bad times, for example late in the evening or early in the morning. To decrease the noise levels, limit the number of equipment units that operate at the same time. Obey the instructions to keep the noise levels to persons near your work area to a minimum.

• Use a rake or a brush to loosen the waste on the ground.
• When you clean corners, start in the corner and move out. This prevents that unwanted material is collected and blown into your face.

• To keep operation time at a minimum, spray water on areas with dust.

• To decrease water consumption, use the blower as an alternative to water hoses to clean in and around the lawn and garden.

• Be careful when you do work near plants. The force of the air can cause damage to weaker plants.
• Think about the wind direction. Operate with the wind to make your work easier.
• To use the blower to move large piles adds to operation time and causes more noise.
• Keep a good balance and a firm foothold.
• Keep a clearance between the tube and ground to prevent that the product hits the ground during operation.
• Clean up after operation. Make sure that you have not blown waste into another garden. Discard unwanted material in applicable waste receptacles.

Maintenance

Introduction

Below you will find some general maintenance instructions. If you need further information please contact your service workshop.

To do daily maintenance on the attachment

WARNING: Always stop the motor and remove the battery before you clean or do maintenance on the attachment.

WARNING: Keep all parts of your body away from hot surfaces.

1. Clean the external surface of the blower.
2. Make sure that the housing have no cracks.
3. Make sure that the product operates correctly.
4. Make sure that all nuts and screws are tight.
5. Use a moist cloth with a mild detergent to clean the labels.

To do a check of the air intake

1. Stop the product.

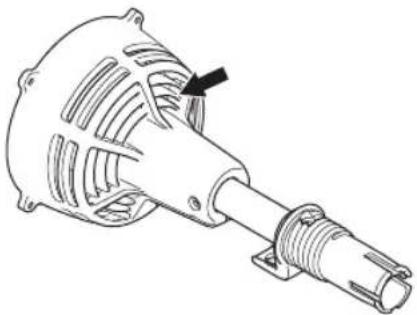

2. Make sure that the air intake is not blocked on all sides, including the bottom, for example by leaves or waste. Remove blockage if it is necessary. (Fig. 25)

CAUTION: A clogged air intake decreases the blowing capacity of the product and increases the temperature of the motor, which can cause damage to the motor.

Technical data

Technical data

110iLD or 110iL + Blower attachment DB110
Weight
Weight without battery, kg 2.62
Noise emissions1
Sound power level, measured dB (A) 90
Sound power level, guaranteed LWA dB (A) 92
Sound levels2
Equivalent sound pressure level at the operator's ear, measured according to EN 50636-2-100 and ISO 26868, dB (A)	82
Vibration levels3

^1 Noise emissions in the environment measured as sound power ( L_WA ) in conformity with EC directive 2000/14/EC. Reported sound power level for the machine has been measured with the original cutting attachment that gives the highest level. The difference between guaranteed and measured sound power is that the guaranteed sound power also includes dispersion in the measurement result and the variations between different machines of the same model according to Directive 2000/14/EC.

^2 Reported data for sound pressure level for the machine has a typical statistical dispersion (standard deviation) of 3 dB (A).

^3 Reported data for vibration level has a typical statistical dispersion (standard deviation) of 1.5 m/s^2 .

110iLD or 110iL + Blower attachment DB110
Vibration levels at front/rear handle, measured according to EN 50636-2-100, m/s ^2	0.702/0.627

Declaration of Conformity

EU Declaration of Conformity

We, Husqvarna AB, SE-561 82 Huskvarna, Sweden, tel:

[phone], declare on our sole responsibility that the product:

Description Battery-operated blower
Brand Husqvarna
Type / Model DB110 attachment with power unit 110iLD or 110iL
Identification Serial numbers dating from 2023 and onwards

complies fully with the following EU directives and regulations:

Regulation Description
2006/42/EC "relating to machinery"
2014/30/EU "relating to electromagnetic compatibility"
2011/65/EU	“on the restriction of the use of certain hazardous substances in electrical and electronic equipment”
2000/14/EC "relating to the noise emissions in the environment"

and that the following standards and/or technical

specifications are applied: EN 60335-1:2012/A15:2021,

EN 50636-2-100:2014, EN IEC 63000:2018, EN IEC

55014-1:2021, EN IEC 55014-2:2021

In accordance with directive 2000/14/EC, Annex V, refer

to Technical data on page 11 for the declared sound values.

Huskvarna, 2023-08-15

$$ \Delta \cdot 2 m $$

Claes Losdal, R&D Manager, Husqvarna AB

Responsible for technical documentation

CE

UK Declaration of conformity

We, Husqvarna AB, SE-561 82 Huskvarna, Sweden, tel: [phone], declare on our sole responsibility that the product:

Description Battery-operated blower
Brand Husqvarna
Type / Model DB110 attachment with power unit 110iLD or 110iL
Identification Serial numbers dating from 2023 and onwards

complies fully with the following UK directives and regulations:

Description

The Supply of Machinery (Safety) Regulations 2008

Electromagnetic Compatibility Regulations 2016

The Noise Emission in the Environment by Equipment for use Outdoors Regulations 2001

The Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic Equipment Regulations 2012

and that the following standards and/or technical specifications are applied: EN 60335-1:2012/A15:2021, EN 50636-2-100:2014, EN IEC 63000:2018, EN IEC 55014-1:2021, EN IEC 55014-2:2021.

In accordance with directive 2001/1701, schedule 8, refer to Technical data on page 11 for the declared sound values.

Huskvarna, 2023-08-15

$$ \Delta \cdot \mathrm {d u} $$

Claes Losdal, R&D Manager, Husqvarna AB Responsible for technical documentation

UK Importer: Husqvarna UK Ltd Preston Road, Co. Durham DL5 6UP

Съдържание

Въведение.... 15

Безопасност....16

Монтаж....21

Операция.... 22

Поддръжка....22

A15:2021, EN 50636-2-100:2014, EN IEC 63000:2018, EN IEC 55014-1:2021, EN IEC 55014-2:2021.

EN 50636-2-100:2014, EN IEC 63000:2018, EN IEC

55014-1:2021, EN IEC 55014-2:2021.

(Joon. 6) Alalisvool.

(Joon. 7) Nimipinge, V

Claes Losdal, responsible R&D, Husqvarna AB

Responsable de la documentation technique

Sadržaj

Uvod....99

Sigurnost....100

50636-2-100:2014, EN IEC 63000:2018, EN IEC

55014-1:2021, EN IEC 55014-2:2021.

U skladu s direktivom 2000/14/EC, dodatkom V,

pogledajte Tehnički podaci na stranici 106 za navedene vrijednosti zvuka.

Huskvarna, 2023-08-15

$$ \Delta \cdot 2 m $$

Claes Losdal, Menadžer odjela za istraživanje i razvoj, Husqvarna AB

IEC 63000:2018, EN IEC 55014-1:2021, EN IEC

55014-2:2021。

A15:2021, EN 50636-2-100:2014, EN IEC 63000:2018,

EN IEC 55014-1:2021, EN IEC 55014-2:2021.

50636-2-100:2014, EN IEC 63000:2018, EN IEC

55014-1:2021, EN IEC 55014-2:2021.

I samsvar med direktiv 2000/14/EF tillegg V, se

A15:2021, EN 50636-2-100:2014, EN IEC 63000:2018,

EN IEC 55014-1:2021, EN IEC 55014-2:2021.

EN 50636-2-100:2014, EN IEC 63000:2018, EN IEC

55014-1:2021, EN IEC 55014-2:2021

EN 50636-2-100:2014, EN IEC 63000:2018, EN IEC

55014-1:2021, EN IEC 55014-2:2021

U skladu s direktivom 2000/14/EC, dodatkom V, pogledajte Tehnički podaci na stranici 233 za deklarisane vrednosti zvuka.

Huskvarna, 2023-08-15

$$ \Delta \cdot 2 n u $$

Claes Losdal, menadžer sektora za istraživanje i razvoj, Husqvarna AB

EN 50636-2-100:2014, EN IEC 63000:2018, EN IEC

55014-1:2021, EN IEC 55014-2:2021.

I enlighet med direktiv 2000/14/EG, bilaga V, se

IEC 63000:2018, EN IEC 55014-1:2021, EN IEC

55014-2:2021
