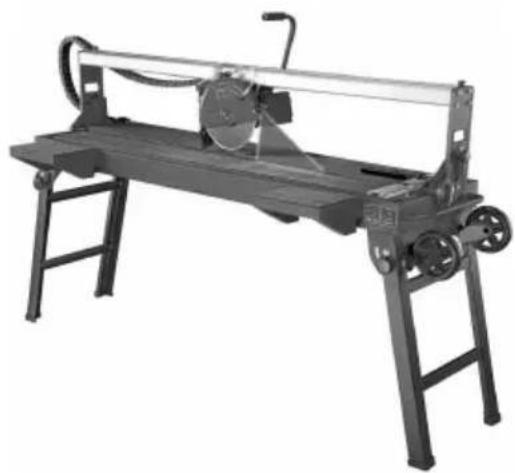

USER MANUAL FS4700 SCHEPPACH

Stone and tile cuttersTranslation of original instruction manual

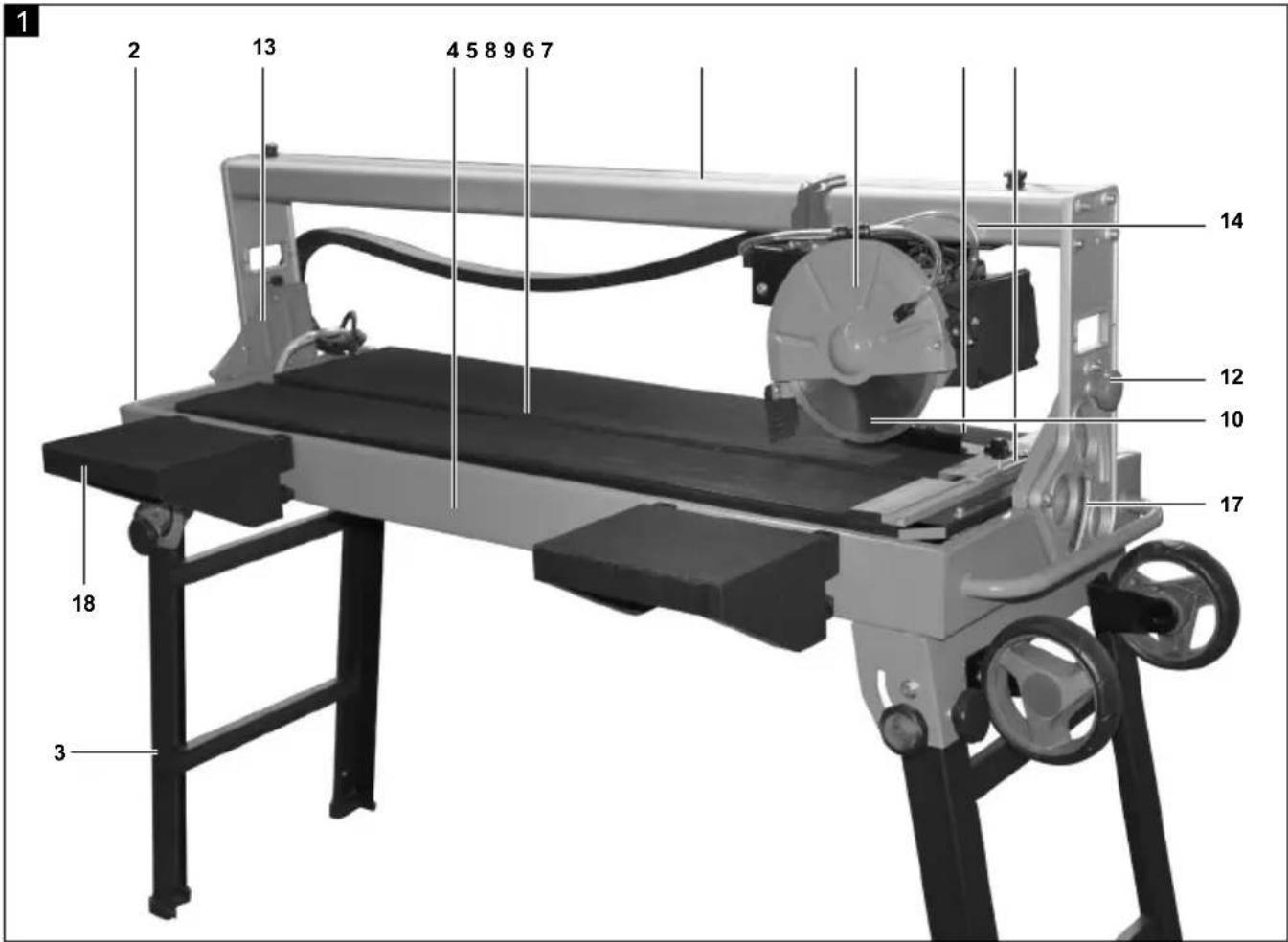

Explanation of the symbols on the device Symbols are used in this manual to draw your attention to potential hazards. The safety symbols and the accompanying explanations must be fully understood. The warnings themselves will not rectify a hazard and cannot replace proper accident prevention measures. Warning - read the instruction manual to reduce the risk of injury Wear hearing protection. Excessive noise can result in a loss of hearing. Wear a dust protection mask. When machining wood and other materials, harmful dust may be generated. Do not machine material containing asbestos! Wear eye protection. Sparks created during work or fragments, chippings and dust ejected by the device can case sight loss. Attention: Danger of cutting! Do not reach for rotating parts Attention! Laser beam! Do not look into the beam. Laser class 2. The product complies with the applicable European directives. The product complies with the applicable Serbian directives.www.scheppach.com

In addition to the safety instructions in this operating manual and the separate regulations of your country, the generally recognised technical rules relating to the operation of such machines must also be observed. We accept no liability for accidents or damage that occur due to a failure to observe this manual and the safety instructions.

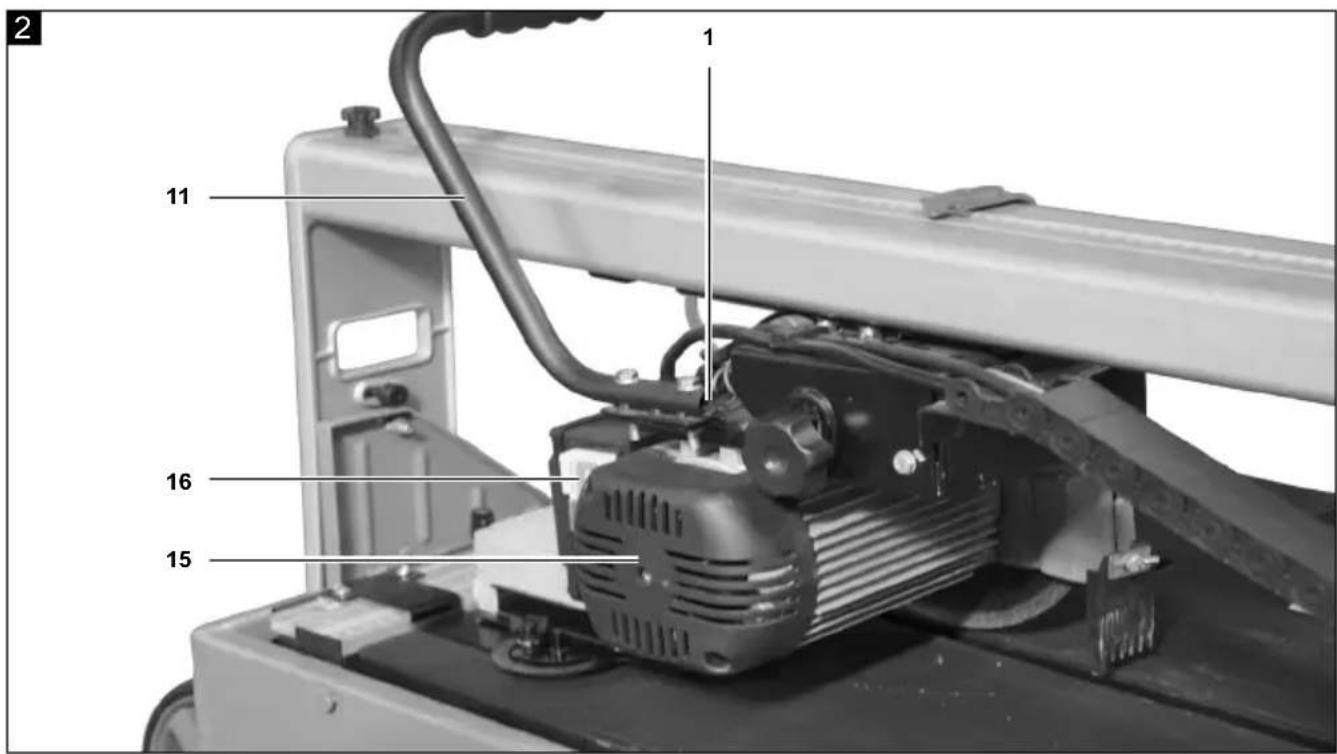

5. Workpiece support

9. Cutting wheel guard

10. Diamond cutting wheel

12. Star grip screw for angle setting

13. Cooling water pump

3. Scope of delivery

• Original operating manual

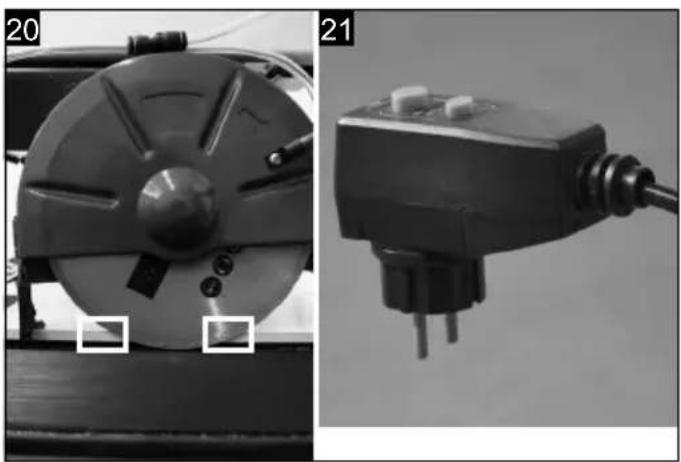

Attention! The device may only be operated with the PRCD (residual current circuit breaker) installed at the factory. The device can be used for common cutting work on small and medium-sized tiles (tiles, ceramics or simi- lar) according to the machine size. The device is especially designed for home and handi- craft use. Cutting metal and wood is not permitted.

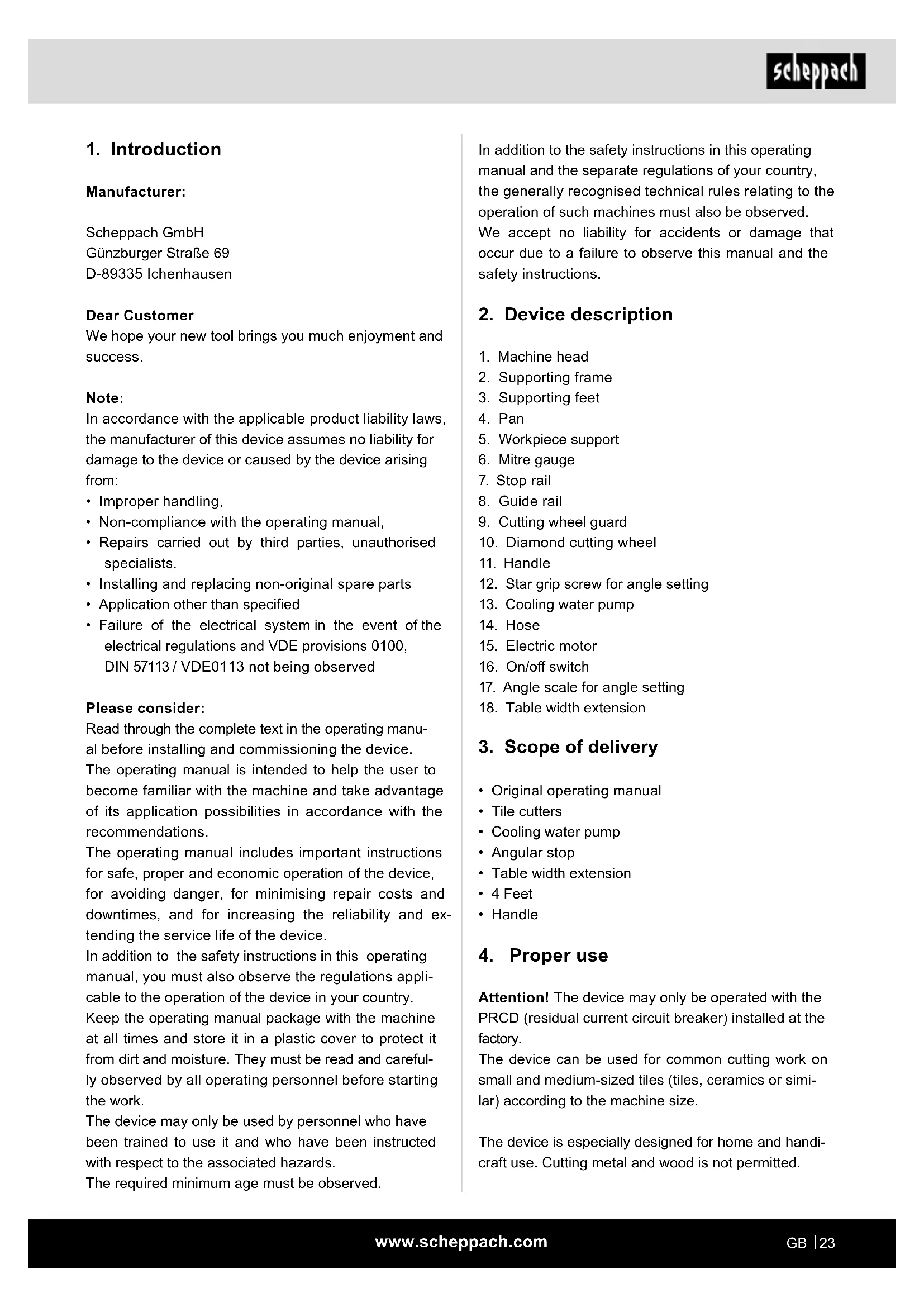

Manufacturer: Scheppach GmbH Günzburger Straße 69 D-89335 Ichenhausen Dear Customer We hope your new tool brings you much enjoyment and success. Note: In accordance with the applicable product liability laws, the manufacturer of this device assumes no liability for damage to the device or caused by the device arising from:

• Non-compliance with the operating manual,

• Repairs carried out by third parties, unauthorised specialists.

• Installing and replacing non-original spare parts

• Application other than specied

• Failure of the electrical system in the event of the electrical regulations and VDE provisions 0100, DIN 57113 / VDE0113 not being observed Please consider: Read through the complete text in the operating manu- al before installing and commissioning the device. The operating manual is intended to help the user to become familiar with the machine and take advantage of its application possibilities in accordance with the recommendations. The operating manual includes important instructions for safe, proper and economic operation of the device, for avoiding danger, for minimising repair costs and downtimes, and for increasing the reliability and ex- tending the service life of the device. In addition to the safety instructions in this operating manual, you must also observe the regulations appli- cable to the operation of the device in your country. Keep the operating manual package with the machine at all times and store it in a plastic cover to protect it from dirt and moisture. They must be read and careful- ly observed by all operating personnel before starting the work. The device may only be used by personnel who have been trained to use it and who have been instructed with respect to the associated hazards. The required minimum age must be observed.www.scheppach.com

General power tool safety warnings m WARNING! Read all safety warnings, instructions, illustrations and specications provided with this pow- er tool. Failure to follow all instructions listed below may result in electric shock, re and/or serious injury. Save all warnings and instructions for future ref- erence. The term “power tool” in the warnings refers to your mains-operated (corded) power tool or battery-operat- ed (cordless) power tool.

a) Keep your work area clean and well-lit. Clut- tered or dark areas invite accidents. b) Do not operate power tools in explosive at- mospheres, such as in the presence of am- mable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes. c) Keep children and bystanders away while op- erating a power tool. Distractions can cause you to lose control.

2. Electrical safety

a) Power tool plugs must match the outlet. Nev- er modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodied plugs and matching outlets will reduce risk of electric shock. b) Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of elec- tric shock if your body is earthed or grounded. c) Do not expose power tools to rain or wet con- ditions. Water entering a power tool will increase the risk of electric shock. d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock. e) When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock. The device may only be used in the intended manner. Any use beyond this is improper. The user/operator, not the manufacturer, is responsible for damages or inju- ries of any type resulting from this. Only cutting wheels that are suitable for the machine may be used. The use of any type of saw blades is pro- hibited. An element of the intended use is also the observance of the safety instructions, as well as the assembly in- structions and operating information in the operating manual. Persons who operate and maintain the machine must be familiar with the manual and must be informed about potential dangers. In addition, the applicable accident prevention regula- tions must be strictly observed. Other general occupational health and safety-related rules and regulations must be observed. The liability of the manufacturer and resulting damages are excluded in the event of modications of the ma- chine. Despite use as intended, specic risk factors cannot be entirely eliminated. Due to the design and layout of the machine, the following risks remain:

• Contact with the diamond cutting wheel in the un- covered area.

• Use of an incorrect cutting wheel. The cutting wheel included in the scope of delivery is exclusively per- mitted for the machining of tiles.

• Reaching into the running diamond cutting wheel.

• Ejection of a faulty diamond attachment of the cut- ting wheel

• Ejection of workpieces and workpiece parts.

• Hearing damage when the necessary hearing pro- tection is not used. The machine may only be operated with original parts and original accessories from the manufacturer. The safety, operating and maintenance specications of the manufacturer, as well as the dimensions speci- ed in the technical data, must be observed. Please observe that our equipment was not designed with the intention of use for commercial or industrial purposes. We assume no guarantee if the equipment is used in commercial or industrial applications, or for equivalent work.www.scheppach.com

b) Do not use the power tool if the switch does not turn it on and o󰀨. Any power tool that can- not be controlled with the switch is dangerous and must be repaired. c) Disconnect the plug from the power source and/or remove the battery pack, if detachable, from the power tool before making any adjust- ments, changing accessories, or storing pow- er tools. Such precautionary measures reduce the risk of starting the power tool accidentally. d) Store idle power tools out of the reach of chil- dren and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users. e) Maintain power tools and accessories. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may a󰀨ect the power tool’s operation. If dam- aged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools. f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control. g) Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations di󰀨erent from those intended could result in a hazardous situation. h) Keep handles and grasping surfaces dry, clean and free from oil and grease. Slippery handles and grasping surfaces do not allow for safe handling and control of the tool in unexpected situations.

a) Only have your electric tool repaired by qual- ied specialists and only with original spare parts. This will ensure that the safety of the power tool is maintained. Do not stare into beam Laser class 2 f) If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.

a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the inuence of drugs, alcohol or med- ication. A moment of inattention while operating power tools may result in serious personal injury. b) Wear personal protective equipment and al- ways safety goggles. Protective equipment such as a dust mask, non-skid safety shoes, hard hat or hearing protection used for appropriate conditions will reduce personal injuries. c) Prevent unintentional starting. Ensure the switch is in the o󰀨-position before connecting to power source and/or rechargeable battery, picking up or carrying the tool. Carrying power tools with your nger on the switch or energising power tools that have the switch on invites acci- dents. d) Remove any adjusting key or screwdriver be- fore turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury. e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations. f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair and clothing away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts. g) If devices are provided for the connection of dust extraction and collection facilities, en- sure these are connected and properly used. Use of dust collection can reduce dust-related hazards. h) Do not let familiarity gained from frequent use of tools allow you to become complacent and ig- nore tool safety principles. A careless action can cause severe injury within a fraction of a second.

4. Power tool use and care

a) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.www.scheppach.com

• Always lead the cable backwards away from the machine. Protect any cables from heat, oil and sharp edges.

• Unplug the mains plug during repairs and mainte- nance and when machine not in use.

• Work on electrical equipment may only be carried out by a qualied electrician. Only original parts may be used.

• Clean workstations make it easier to work.

• Pay attention to what you are doing. Remain sensi- ble when working.

• Make sure that the substructure can support the weight of the machine and is su󰀩ciently stable. It must be ensured that no vibrations can occur during work.

• To protect against corrosion, all bare parts of the machine are heavily greased at the factory. Clean the machine with a suitable environmentally friendly cleaning agent before commissioning.

• The machine must not be used to machine mate- rials that are hazardous to health or that generate dust, e.g. wood, Teon etc.

• Do not use the machine in the vicinity of combus- tible uids or gases.

• Only use the machine in suitable rooms and do not expose the machine to moisture or humidity.

• Always ensure good lighting when working.

• Do not use the mains cable to pull the connector out of the socket.

• Always use sharp and clean tools.

• In the event of dangerous situations or technical faults, switch o󰀨 the machine immediately and dis- connect the mains plug.

• In case of damage, do not continue working with the machine and disconnect the mains plug.

• Only tool attachments and accessories approved by the manufacturer may be used. The use of non-ap- proved parts poses a considerable danger of injury.

• Always keep the work area clean and orderly. Dirt and disorder in the work area can cause accidents.

• Always wear protective goggles when working with the machine. A face mask or dust mask must also be used when working with a lot of dust.

• Chuck key and other tools must be removed before switching on the machine.

• Place the machine on a level, non-slip oor. The machine must not wobble.

• Make sure that the voltage on the data plate match- es the existing voltage. Then connect the connector to the mains.

• Put on protective goggles. Protect yourself and your environment from acci- dents using suitable precautionary measures!

• Do not look directly into the laser beam with unpro- tected eyes.

• Never look into the path of the beam.

• Never point the laser beam towards reecting sur- faces and persons or animals. Even a laser beam with a low output can cause damage to the eyes.

• Caution - methods other than those specied here can result in dangerous radiation exposure.

• Never open the laser module. Unexpected exposure to the beam can occur.

• If the machine is not used for an extended period of time, the batteries should be removed.

• The laser may not be replaced with a di󰀨erent type of laser.

• Repairs of the laser may only be carried out by the laser manufacturer or an authorised representative. Additional safety instructions m ATTENTION! This power tool generates an electromagnetic eld dur- ing operation. This eld can impair active or passive medical implants under certain conditions. In order to prevent the risk of serious or deadly injuries, we recom- mend that persons with medical implants consult with their physician and the manufacturer of the medical im- plant prior to operating the machine. Attention! The FS4700 Tile Cutter may only be op- erated with the 10 mA PRCD (residual current circuit breaker) installed at the factory.

• Wearing personal protective equipment is essential for all work with the machine.

• Always wear protective goggles to avoid eye injuries.

• Be sure to wear a hair net or a suitable work cap if your hair is long enough.

• Wear tight-tting work clothing. The rotating tool could catch sleeves or the like.

• Never remove chips or dust with your bare hands.

• When the machine is switched o󰀨, it is best to re- move chips or dust with a hand brush or paintbrush.

• Check that the protective devices function correctly before starting work.

• Do not overload the machine, they work better and safer in the specied power range.

• Use the correct tool and make sure that the tools (cutting wheel) are not blunt or damaged in any way.www.scheppach.com

Use the tool that is recommended in this operating manual. This is how to ensure that your machine provides optimum performance.

• Keep your hands away from the work area, when the machine is in operation.

Weight 57 kg 51.5 kg Technical changes reserved!

• The duty cycle S2 20 min (short-time duty) states that the motor may only be continu- ously loaded with the rated power (1200 W) for the time specied on the data plate (20 min). Otherwise, it would heat up impermissibly. During the pause, the motor cools down again to its initial temperature. Noise & vibration m Warning: Noise can have serious e󰀨ects on your health. If the machine noise exceeds 85 dB, please wear suitable hearing protection. Noise data Sound power level L

• Wear hearing protection.

• Wear protective gloves.

• Do not use cracked diamond cutting wheels and re- place them.

• Attention! Cutting wheel runs on!

• Do not brake the diamond cutting wheel by applying lateral pressure.

• Attention! The diamond cutting wheel must always be cooled with water.

• Pull out the mains plug before changing the cutting wheel.

• Only use suitable diamond cutting wheels.

• Never leave the machine unattended in rooms with children.

• Disconnect the mains plug before checking the mo- tor compartment electrical system.

• Direction of rotation of the cutting wheel: Check the direction of the arrow on the cutting wheel, the di- rection of the arrow must match with the direction of rotation of the motor shaft.

• Keep you hands, ngers and arms away from the rotating cutting wheel. Always maintain su󰀩cient clearance from the diamond cutting wheel.

• Only use diamond cutting wheels recommended by the manufacturer which conform to EN 13236. The use of any type of saw blades is prohibited.

• Only use cutting wheels whose speed is at least 3000 rpm.

• The cutting of metal and wood is not permitted.

• Cooling of the cutting wheel: Make sure that the cutting wheel is cooled with water during the entire cutting process.

• Always ll the pan with water before working. Residual risks The machine has been built according to the state-of-the- art and the recognised technical safety requirements. How- ever, individual residual risks can arise during operation.

• Health hazard due to electrical power, with the use of improper electrical connection cables.

• Before performing setting or maintenance work, re- lease the start button and pull out the power plug.

• Furthermore, despite all precautions having been met, some non-obvious residual risks may still remain.

• Residual risks can be minimised if the “Safety infor- mation” and the “Proper use” together with the oper- ating manual as a whole are observed.

• Avoid accidental start-ups of the machine: The oper- ating button may not be pressed when inserting the plug in a socket.www.scheppach.com

m ATTENTION! Always make sure the product is fully assembled before commissioning! On/O󰀨 switch (Fig. 4) To switch on, press “I” on the On/O󰀨 switch (16). Before starting the cutting process, wait until the cutting wheel has reached the maximum speed and the cooling water pump (13) has delivered the water to the cutting wheel. To switch o󰀨, press the “0” on the switch (16). (Fig. 4). Attention: The cutting wheel must always be cooled with water. Attention: Cutting wheel runs on. Do not brake the cutting wheel by applying lateral pressure.

• During normal use, the motor housing may become hot.

• Do not force the machine or an accessory to do the work of a larger industrial machine. It does a better job with the performance it was designed for.

• Make all machine settings with the machine switched o󰀨.

• Never leave the machine unattended when it is run- ning.

• When shutting down, only leave the machine after it has come to a complete standstill.

• Do not use a cutting wheel that does not match the specied sizes.

• Never carry the machine by the cable.

• Replace damaged or cracked cutting wheels imme- diately. If you are not sure whether working conditions are safe or unsafe, do not work with the machine. 90° cuts (Fig. 6 - 7)

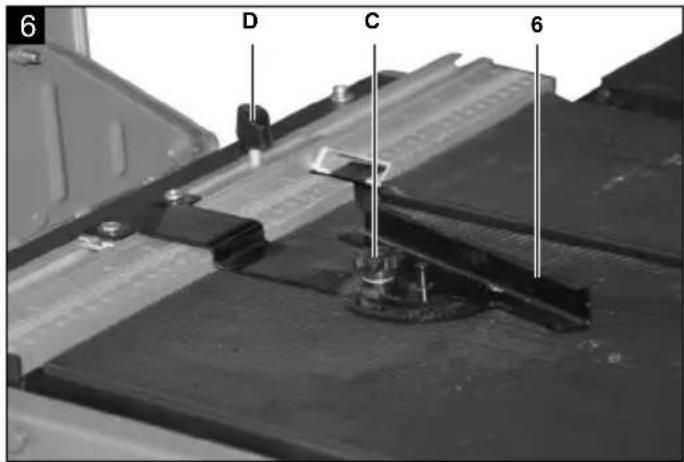

1. Loosen the star screw (C).

2. Set the transverse cutting gauge (6) to 90° and

re-tighten the star screw.

3. Tighten the wing screw (D) to x the transverse

cutting gauge (6) into position. (Fig. 6)

4. Use the handle (11) to push the machine head (1)

• Open the packaging and carefully remove the product.

• Remove the packaging material, as well as the pack- aging and transport safety devices (if present).

• Check whether the scope of delivery is complete.

• Check the product and accessory parts for transport damage. In the event of complaints the carrier must be informed immediately. Later claims will not be recognised.

• If possible, keep the packaging until the expiry of the warranty period.

• Familiarise yourself with the product by means of the operating manual before using for the rst time.

• With accessories as well as wearing parts and re- placement parts use only original parts. Replace- ment parts can be obtained from your dealer.

• When ordering please provide our article number as well as type and year of manufacture for your product. m WARNING! The device and the packaging material are not children’s toys! Do not let children play with plas- tic bags, lms or small parts! There is a danger of choking or su󰀨ocating!

8. Assembly / Before commissioning

m ATTENTION! Always make sure the device is fully assembled before commissioning! Fig. 3 - 5 Your machine is not completely assembled for pack- aging reasons.

1. Remove the machine from the packaging and

place carefully to one side on the ground.

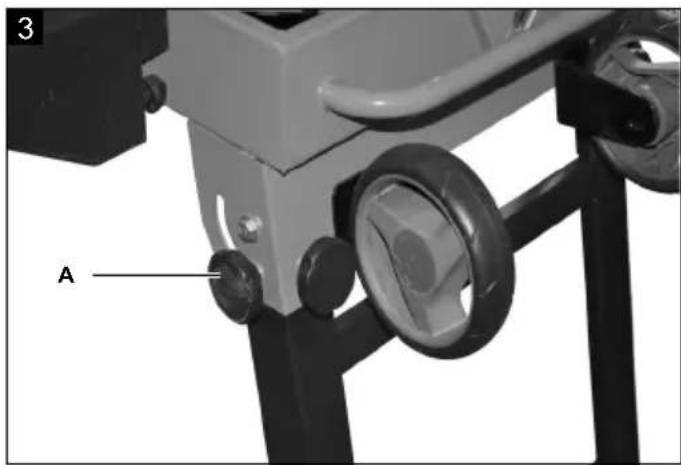

2. Unscrew the star knob screw (A) and fold the sup-

porting feet down. Re-tighten the star knob screw (Fig. 3)

3. Place the machine on the feet.

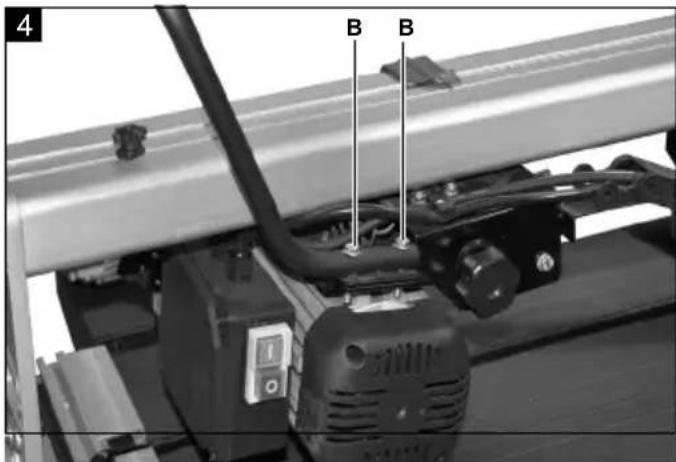

4. Install the handle onto the motor housing using 2

hexagon screws (B) (Fig. 4).

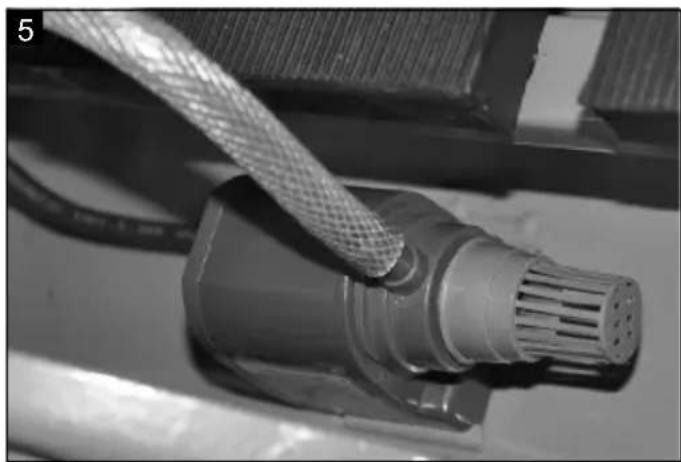

5. Secure the cooling water pump (13) into the pre-

scribed position in the pan (4)

6. Fill the pan until the water pump is completely

covered with water. Ensure that the discharge is sealed securely.www.scheppach.com

2. To do this, the diamond cutting wheel must run

along the edge of the angle or tile for its entire length. Then retighten the two hexagon socket screws (A) of the stop rail.

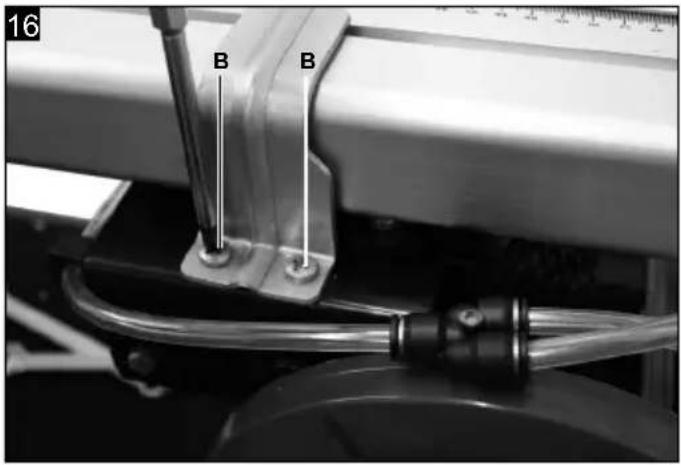

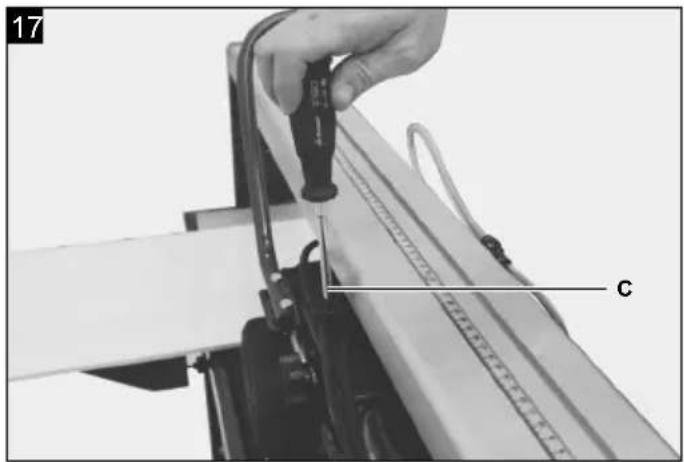

3. Disassemble the length indicator by removing both

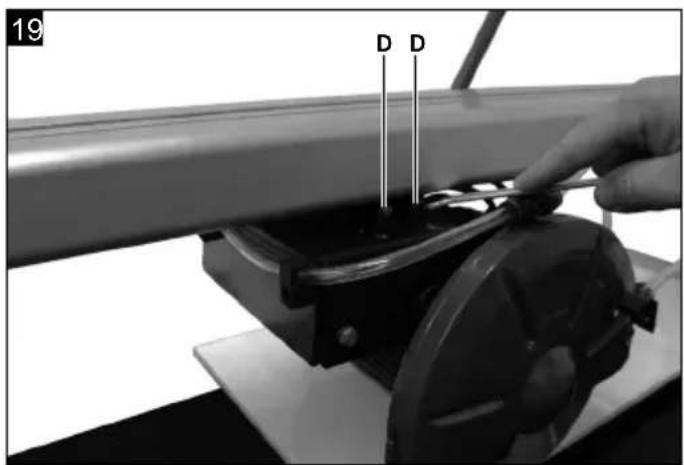

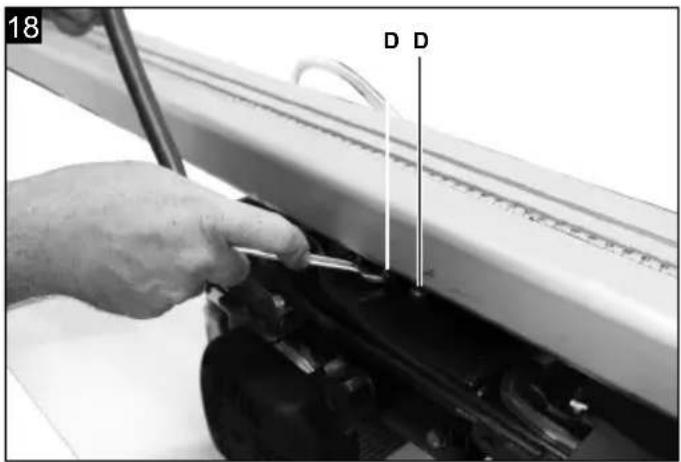

5. Slightly loosen two hexagon nuts (D) of the saw

unit on each side. (Fig. 18, 19)

6. Now the complete sawing unit with diamond cut-

ting wheel can be aligned to the stop rail using a right angle or a large tile. (Fig. 20)

7. Tighten the hexagon nuts of the saw unit again and

reassemble all machine parts. Check the parallel- ism and make a test cut. If the test cut is still not satisfactory, carry out points

10. Electrical connection

The electrical motor installed is connected and ready for operation. The connection complies with the appli- cable VDE and DIN provisions. The customer‘s mains connection as well as the ex- tension cable used must also comply with these reg- ulations. Damaged electrical connection cable The insulation on electrical connection cables is often damaged. This may have the following causes:

• Pressure points, where connection cables are passed through windows or doors.

• Kinks where the connection cable has been improp- erly fastened or routed.

• Places where the connection cables have been cut due to being driven over.

• Insulation damage due to being ripped out of the wall outlet.

• Cracks due to the insulation ageing. Such damaged electrical connection cables must not be used and are life-threatening due to the insulation damage. Check the electrical connection cables for damage regularly. Ensure that the connection cables are dis- connected from electrical power when checking for damage.

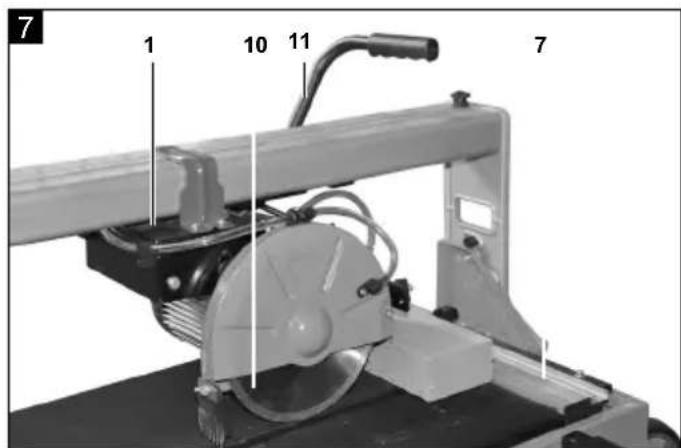

5. Place the tile on the stop rail (7) on the transverse

6. Use the handle (11) to push the machine head (1)

to the required cutting depth and x the machine head again.

7. Switch on the tile cutter. Attention: Wait until the

cooling water has reached the cutting wheel (10).

8. Use the handle (11) to pull the machine head (1)

slowly and evenly forwards through the tile.

9. Switch the cutting wheel o󰀨 again once you have

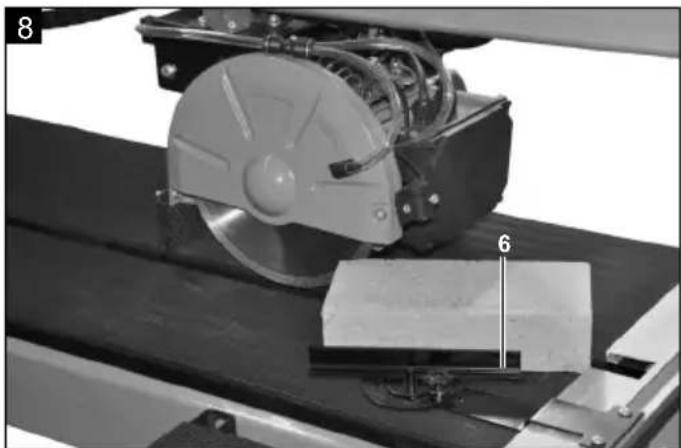

nished cutting. 45° diagonal cut (Fig. 8)

1. Set the angled stop (6) to 45°

2. Perform cutting as described above.

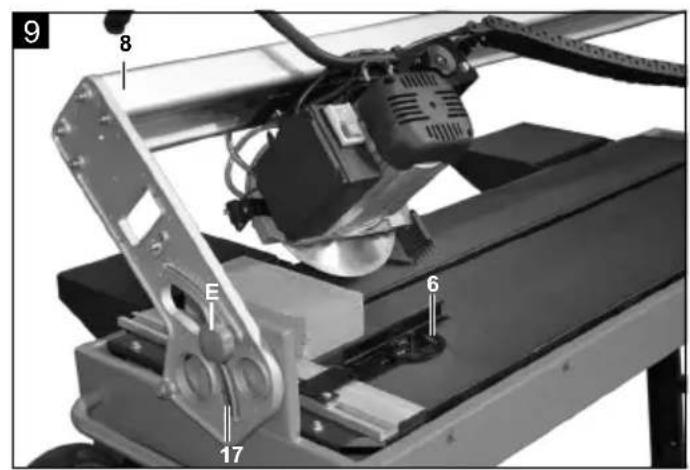

45° longitudinal cut (Fig. 9)

1. Loosen the star knob screw (E) on both sides

3. Re-tighten the star knob screw (E) on both sides.

4. Make the cut as described.

Replacing the diamond cutting wheel (Fig. 10 - 12) Attention! Pull out the mains plug

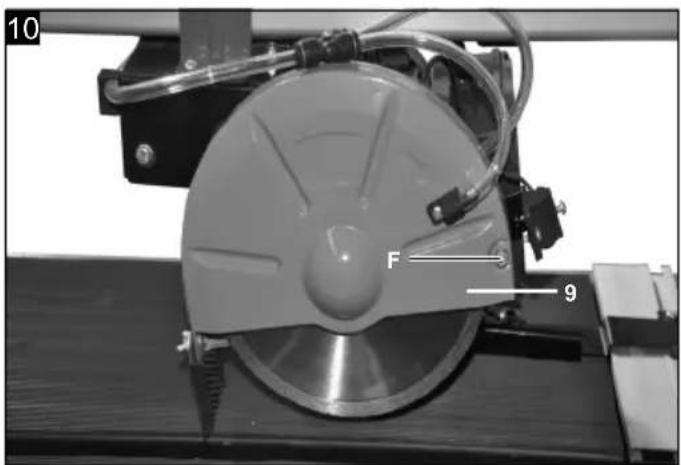

1. Unscrew the screw (F) and remove the cutting

wheel guard (9). (Fig. 10)

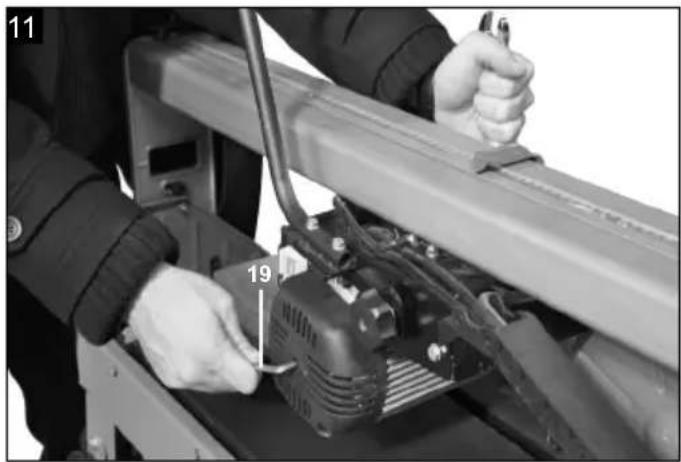

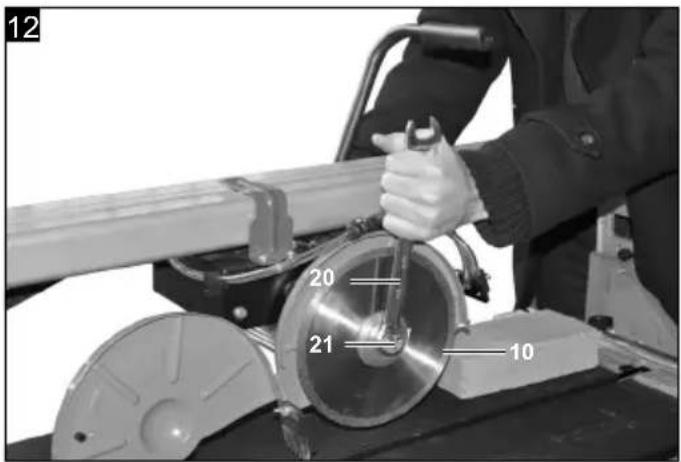

2. Attach the Allen key (19) to the motor shaft and

3. Use the spanner (20) to unscrew the ange nuts in

the direction in which the cutting wheel (10) runs. (Left-handed thread)

4. Remove the outer ange (21) and the cutting

5. Clean the holding ange carefully before installing

the new cutting wheel.

6. Insert the new cutting wheel in the reverse se-

7. Attention: Ensure that the cutting wheel runs in

the correct direction!

8. Re-install the cutting wheel guard (9).

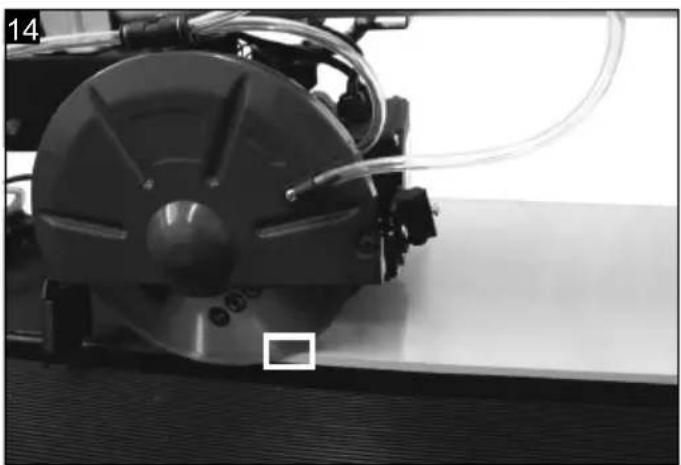

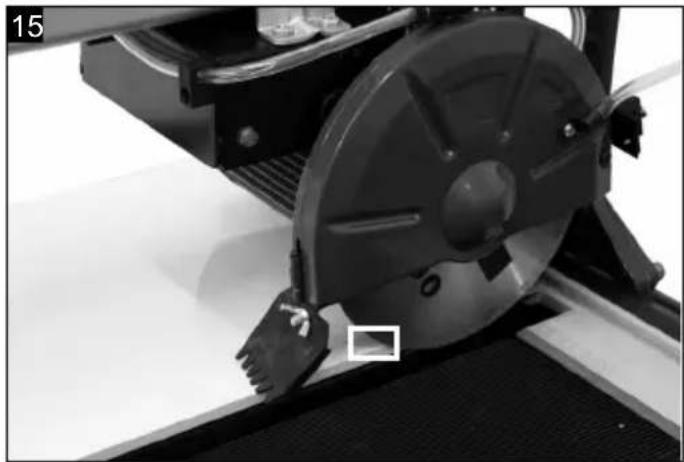

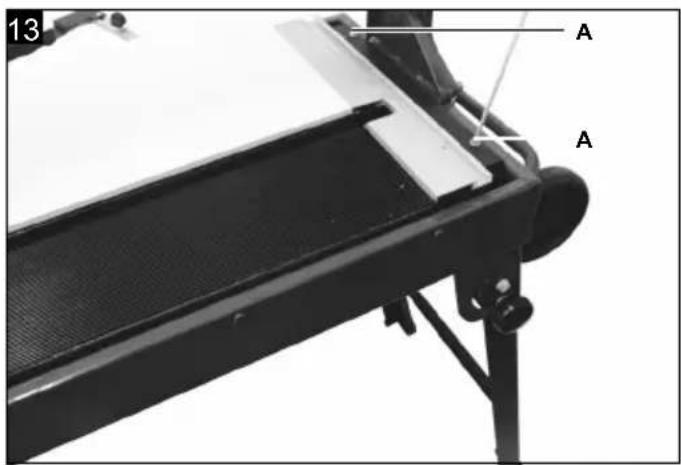

Adjusting the parallelism of the diamond cutting wheel (Fig. 13 - 15) If the cut is not straight or the tile breaks along the cut- ting line, the parallelism of the diamond cutting wheel must be adjusted.

1. At the beginning, the stop rail must be set at right

angles to the guide rail. To do this, loosen the two hexagon socket screws (A) of the stop rail and align it squarely with a large right angle or tile.www.scheppach.com

Attention! Disconnect the mains plug before carrying out any maintenance work. The device has no further internal parts that require maintenance. The ball-bearing machine head guide must be regularly cleaned of dirt. The pan (4) and cool- ing water pump (13) must also be cleaned regularly, otherwise the cooling of the diamond cutting wheel (2) is not guaranteed. Rinse the basin (4) and the water pump (13) with clean water after use. Maintenance work that is not expressly described in this operating manual must be carried out by qualied personnel, as hazardous situations may arise for which the operator is not prepared. Replacement of spare parts may only be carried out by qualied personnel. Connections and repairs Connections and repair work on the electrical equip- ment may only be carried out by electricians. Please provide the following information in the event of any enquiries:

• Type of current for the motor

• Data of machine type plate

• Data of motor type plate Important note in the case of repairs: When returning the device for repair, please ensure for safety reasons that it is free of oil and fuel when it is sent to the service centre. Service information With this product, it is necessary to note that the follow- ing parts are subject to natural or usage-related wear, or that the following parts are required as consuma- bles. Wearing parts*: Cutting wheel, carbon brush, table and cutting head guides

• may not be included in the scope of supply! Electrical connection cables must comply with the ap- plicable VDE and DIN provisions. Only use connection cables of the same designation. The printing of the type designation on the connection cable is mandatory. For single-phase AC motors, we recommend a fuse rating of C 16A or K 16A for machines with a high start- ing current (from 3000 watts)! Connection type Y If it is necessary to replace the mains connection ca- ble, this must be done by the manufacturer or their rep- resentative to avoid safety hazards.

Attention! Pull out the mains plug before carrying out any adjust- ments, maintenance or repair work!

• Keep protective devices, air vents and the motor housing as free of dust and dirt as possible.

• Rub the product clean with a clean cloth or blow it o󰀨 with compressed air at low pressure.

• We recommend that you clean the product directly after every use.

• Clean the product at regular intervals using a damp cloth and a little soft soap. Do not use any cleaning products or solvents; they could attack the plastic parts and the surface of the product.

Before transport, the coolant must be drained com- pletely. Do not use the machine’s safety devices for lifting. Fold in the feet and secure the machine head with the transport retainers.

Store the product and its accessories in a dark, dry and frost-free place that is inaccessible to children. The op- timum storage temperature lies between 5 and 30 ˚C. Store the product in its original packaging. Cover the product to protect it from dust or moisture. Store the operating manual with the power tool.www.scheppach.com

• If the manufacturer delivers a new electrical appli- ance to a private household, the manufacturer can arrange for the free collection of the old electrical appliance upon request from the end user. Please contact the manufacturer’s customer service for this.

• These statements only apply to appliances that are installed and sold in the countries of the Euro- pean Union and are subject to European Directive 2012/19/EU. Di󰀨erent provisions may apply to the disposal of electrical and electronic appliances in countries outside the European Union. Spare parts and accessories can be obtained from our service centre. To do this, scan the QR code on the cover page.

15. Disposal and recycling

Information on packaging The packaging materials are recy- clable. Please dispose of packag- ing in an environmentally friendly manner. Information on the German Electrical and Elec- tronic Equipment Act (ElectroG) Electrical and electronic appliances do not belong in household waste, but should be collected and disposed of separately.

• Used batteries or rechargeable batteries that are not installed permanently in the old appliance must be removed non-destructively before disposal. Their disposal is regulated by the battery law.

• Owners or users of electrical and electronic appli- ances are obliged by law to return them after use.

• The end user bears personal responsibility for de- leting his personal data from the old appliance to be disposed of.

• The symbol of the crossed-through rubbish bin means that electrical and electronic appliances may not be disposed of in the household rubbish.

• Electrical and electronic appliances can be handed in at the following places at no charge: - Public service disposal or collection points (e.g. municipal building yards) - Points of sale of electrical appliances (stationary and online) provided traders are obliged to take them back or o󰀨er this voluntarily. - Up to three waste electrical devices per type of device, with an edge length of no more than 25 centimetres, can be returned free of charge to the manufacturer without prior purchase of a new device from the manufacturer or taken to another authorised collection point in your vicinity. - Further supplementary take-back conditions of the manufacturers and distributors can be ob- tained from the respective customer service.www.scheppach.com

The following table shows fault symptoms and describes remedial measures in the event of your machine failing to work properly. If you cannot localise and rectify the problem with this, please contact your service workshop. Fault Possible cause Remedy Diamond cutting wheel is loose after the motor is switched o󰀨. Fixing nut not tight enough Tighten xing nut Motor does not start Mains fuse blown Check mains fuse Extension cable defective Replace extension lead Connection to the motor or switch not OK Have this checked by an electrician Motor or switch faulty Have this checked by an electrician The motor has no power Cross section of the extension cable insu󰀩cient See Electrical connection, the fuse responds Overload Check toolwww.scheppach.com

EU Declaration of Conformity Translation of the original Declaration of Conformity We declare under our sole responsibility that the product described here com- plies with the applicable directives and standards. The object of the declaration described here fulls the regulations of the direc- tive 2011/65/EU of the European Parliament and Council from 8th June 2011, on the restriction of the use of certain hazardous substances in electrical and electronic equipment. * Technical documentation available at: ** Item number*** Item designation: Stone and tile cutters FS3600 , FS4700 Brand****

17. Declaration of conformity

2004/22/EG 2006/42/EG Annex IV Noise: measured L
