Read all the safety and general instructions. Fail

ure to observe the safety and general instructions may result in electric shock,

fire and/or serious injury.

Store these instructions in a safe place.

Only use the charger if you can fully evaluate all functions and carry them out without restrictions, or if you have received corresponding instructions.

This charger is not intended for use by children or persons with physical, sensory or mental limitations or a lack of experience or knowledge. This charger can be used by children aged 8 or older and by persons who have physical, sensory or mental limitations or a lack of experience or knowledge if a person responsible for their safety supervises them or has in

structed them in the safe operation of the charger and they understand the associated dangers. Otherwise, there is a risk of operating errors and injuries.

Supervise children during use, cleaning and maintenance. This will ensure that children do not play with the charger.
Only charge Bosch Li-1on batteries with a capacity of 1.3 Ah or more (4 battery cells or more). The battery voltage must match the battery charging voltage of the charger. Do not charge any non-rechargeable batteries. Otherwise there is a risk of fire and explosion.

Do not expose the charger to rain or wet condi

tions. Water entering a power tool will increase the risk of electric shock.

• Keep the charger clean. Dirt poses a risk of electric shock.
  Always check the charger, cable and plug before use. Stop using the charger if you discover any damage. Do not open the charger yourself, and have it repaired only by a qualified specialist using only original replacement parts. Damaged chargers, cables and plugs increase the risk of electric shock.
  Do not operate the charger on an easily ignited surface (e.g. paper, textiles, etc.) or in a flammable environment. There is a risk of fire due to the charger heating up during operation.
  Do not cover the ventilation slots of the charger. Otherwise, the charger may overheat and no long function properly.
• Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack.
  In case of damage and improper use of the battery, vapours may also be emitted. Ensure the area is well-ventilated and seek medical attention should you experience any adverse effects. The vapours may irritate the respiratory system.
  Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally oc

curs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns.

Products sold in GB only:

Your product is fitted with an BS 1363/A approved electric plug with internal fuse (ASTA approved to BS 1362). If the plug is not suitable for your socket outlets, it should be cut off and an appropriate plug fitted in its place by an authorised customer service agent. The replacement plug should have the same fuse rating as the original plug. The severed plug must be disposed of to avoid a possible shock hazard and should never be inserted into a mains socket elsewhere.

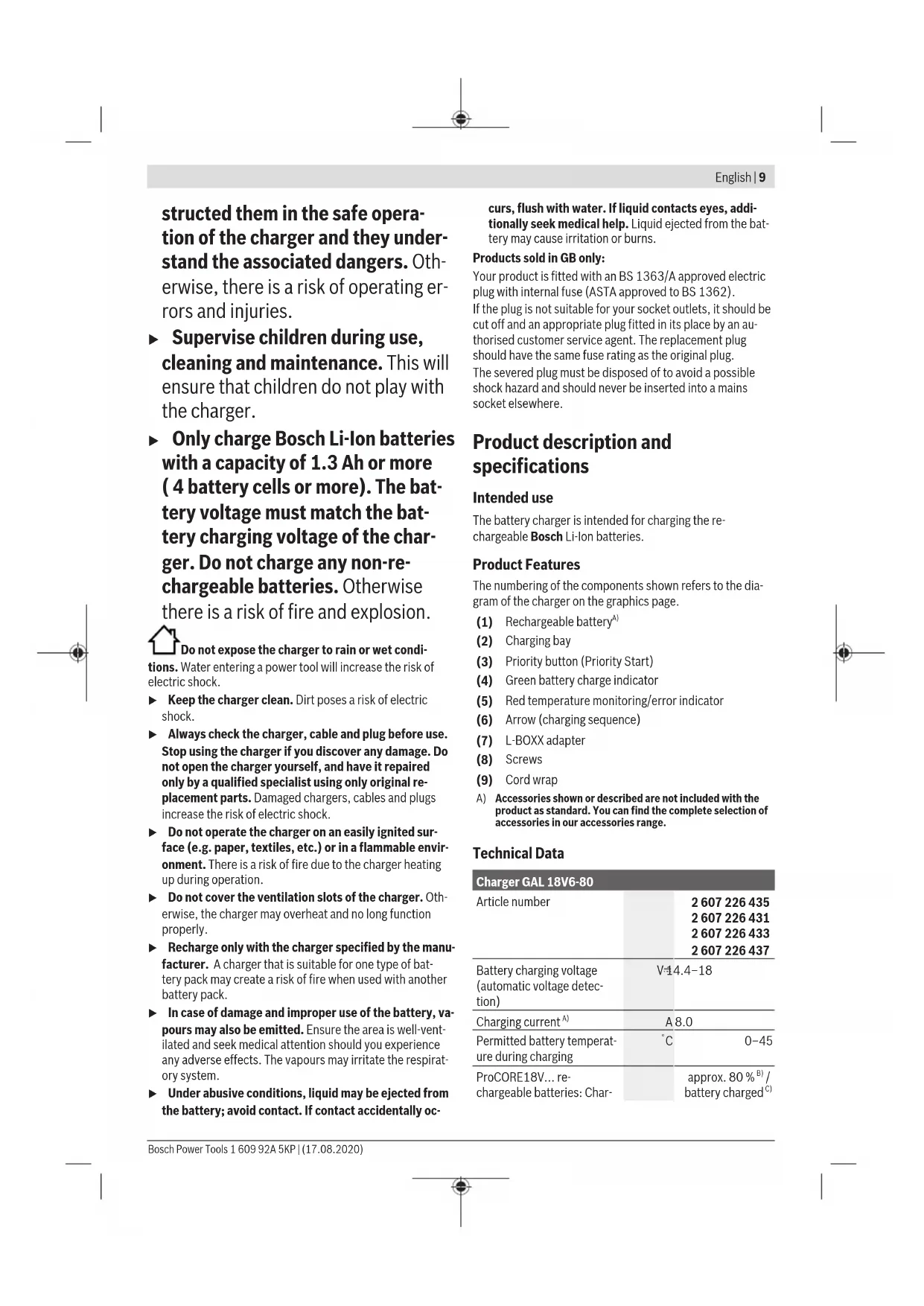

Product description and specifications

Intended use

The battery charger is intended for charging the rechargeable Bosch Li-ion batteries.

Product Features

The numbering of the components shown refers to the diagram of the charger on the graphics page.

(1) Rechargeable battery
(2) Charging bay
(3) Priority button (Priority Start)
(4) Green battery charge indicator
(5) Red temperature monitoring/ error indicator
(6) Arrow (charging sequence)
(7) L-BOXXadapter
(8) Screws
(9) Cord wrap

A) Accessories shown or described are not included with the product as standard. You can find the complete selection of accessories in our accessories range.

Technical Data

Charger GAL 18V6-80
Article number	2 607 226 435
	2 607 226 431
	2 607 226 433
	2 607 226 437
Battery charging voltage (automatic voltage detection)	V-14.4-18
Charging currentA)	A 8.0
Permitted battery temperature during charging	C 0-45
ProCORE18V... re-chargeable batteries: Char-	approx. 80%B)/battery chargedC)

10 | English

Charger GAL 18V6-80
ging time at battery capacity A)
-4.0 Ah min 32/50
-5.5 Ah min 34/47
-8.0 Ah min 42/68
-12.0 Ah min 65/96
Standard rechargeable batteries: Charging time at battery capacity A)	approx. 80% B)/battery charged C)
-4.0 Ah min 23/37
-5.0 Ah min 28/47
-6.0 Ah min 32/57
Additional charging times can be found on www.bosch-professional.com
Number of battery cells 4-15
Weight according to EPTA-Procedure 01:2014	kg 1.8
Protection class	☐/II

A)Depends on temperature and rechargeable battery type B) State of charge of the battery is approx. 80% .The battery can be removed for immediate use.

C) State of charge of the battery is 95% -100% .

Operation

Start-up

Note the mains voltage! The voltage of the power source must match the voltage specified on the rating plate of the charger. Chargers marked with 230V can also be operated with 220V .

Charging process

The batteries (1) are charged one after the other in two charging cycles.

In the first charging cycle, all inserted batteries are charged up to approx. 80% of their capacity.
In the second charging cycle, all inserted batteries are charged from approx. 80% to approx. 100% of their capacity. The second charging cycle begins when all inserted batteries have been charged to approx. 80% .

Ensure that all charging bays (2) and charging contacts are free of coarse dirt. Ensure that all rechargeable batteries are fully inserted.

The charging process begins as soon as both the mains plug and a rechargeable battery have been inserted. If the charging process is started with multiple rechargeable batteries simultaneously, they will be charged one after the other in the direction of the imprinted arrows (6) (anticlockwise). If the rechargeable battery has a state of charge of over approx. 80% it is skipped during the first charging cycle and charged in the second charging cycle (from approx. 80% to approx. 100% ). If a new rechargeable battery with a state of charge below approx. 80% is inserted during the second

charging cycle (from approx. 80% to approx. 100% ), it is charged immediately. Once this rechargeable battery has been charged to approx. 80% , the charging sequence is redefined. The next rechargeable battery that is charged in the second charging cycle (from approx. 80% to approx. 100% ) follows the sequence of arrows (6) on the charger (anticlockwise).

Thanks to the intelligent charging process, the state of charge of the battery is automatically detected and then charged up with the optimal charge current depending on battery temperature and voltage.

In this way, the battery is treated with care and remains permanently fully charged when it is stored in the battery charger.

Note: The charging process is only possible when the temperature of the battery is within the permitted charging temperature range, see section "Technical data".

Priority button (priority start) (3)

Each charging bay (2) has a priority button (3) that will immediately start the charging process in this charging bay.

• If the priority button (3) is pressed once,

the battery in this charging bay will be prioritised, meaning that it will be charged up to approx. 80% of its capacity (first charging cycle). At the beginning of this charging process, the first four LEDs of the battery charge indicator (4) will light up briefly. Once the rechargeable battery has been charged to approx. 80% , the next battery in the direction of the arrows (6) (anticlockwise) will then be charged.

If the priority button (3) is pressed twice, the rechargeable battery in this charging bay will be prioritised further, meaning that it will be charged to full capacity (i.e. approx. 100% ). At the beginning of this charging process, the five LEDs of the battery charge indicator (4) will light up briefly. Upon completion of this charging process, the other batteries will continue to be charged in sequence to approx. 80% of their capacity.

If a battery (1) has already been fully charged due to priority charging, the charging sequence will skip to the next charging bay with a battery. The charging sequence follows the direction of the imprinted arrows (6) on the charger (anticlockwise).

What the display elements mean

Green battery charge indicator (4)

When inserting the rechargeable battery (1), the corresponding battery charge indicator (4) will indicate the state of charge of the rechargeable battery.

While charging, the continuously lit LEDs indicate charged battery capacity. The successively flashing LEDs (sequence) indicate the capacity to which the battery is currently being charged.

The LED battery charge indicator applies for the rechargeable battery (1) both during and after charging.

Status LED Rechargeable
	battery capacity, approx.
The first LED is continuously lit. ≥ 20%
The first two LEDs are continuously lit.	≥ 40%
The first three LEDs are continuously lit.	≥ 60%
The first four LEDs are continuously lit.	≥ 80%

All five LEDs are continuously lit. >95%

Note: The charging process is only possible when the temperature of the battery is within the permitted charging temperature range, see section "Technical data".

When the charging bay (2) is in standby mode, the first LED of the corresponding battery charge indicator (4) is continuously lit green.

Red temperature monitoring/errror indicator (5)

Continuous light

The continuous red light indicates that the temperature of the battery is outside the permitted charging temperature range, see "Technical Data" section. The charging process be

gins as soon as the permitted temperature range has been reached.

Flashing light

The flashing red light indicates that the battery in this charging bay is faulty. If six red lights flash simultaneously, this indicates that the battery charger is faulty.

Errors - causes and corrective measures

Cause Corrective measures

Red temperature monitoring/ error indicator (5) is flashing (at the individual charging bay)

Charging not possible

The rechargeable battery is not connected (correctly)	Connect rechargeable battery to charger correctly
The battery contacts and charging contacts are dirty	Clean the battery and charging contacts; e.g. by connecting and disconnecting the rechargeable battery several times. Replace the rechargeable battery if necessary
Rechargeable battery defective	Replace the rechargeable battery

Six red temperature monitoring/ error indicators (5) are flashing simultaneously

The charger has identified an ensure that all rechargeable internal error batteries are fully inserted. Pull out the mains plug and then plug it back in again. If

Cause Corrective measures
	the error occurs again, have charger checked if necessary by an authorised after-sales service centre for Bosch power tools
Indicators do not light up
Mains plug of the battery charger is not (correctly) plugged in	Insert the mains plug (fully) into the plug socket
Plug socket, mains cable or battery charger defective	Check the mains voltage, have the battery charger checked if necessary by an authorised after-sales service centre for Bosch power tools

Practical advice

A significantly reduced operating time after charging indicates that the battery has deteriorated and must be replaced. When the charger is used continuously, or for several consecutive charge cycles without interruption, the charger may heat up. This is, however, harmless and does not indicate that the charger has a technical defect.

Installation on an L-Boxx

Pull the plug out of the socket before carrying out any work on the charger.

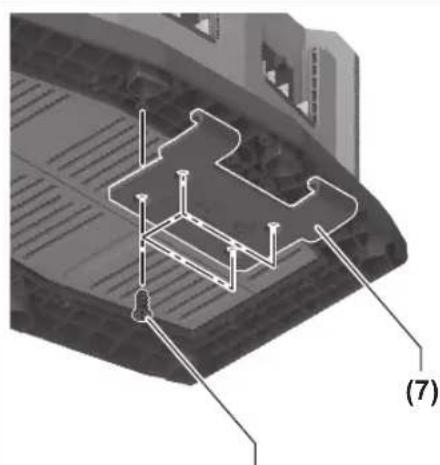

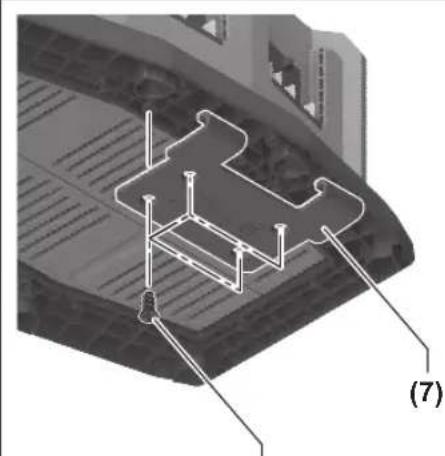

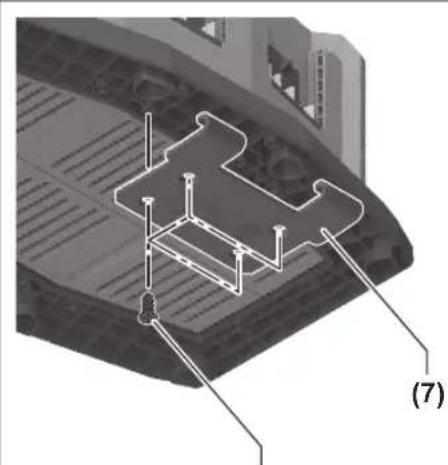

For ease of transportation, the battery charger can be fitted to an L-BOXX by means of an L-BOXX adapter (7) (one-sided). To do this, fit the accompanying L-BOXX adapter (7) with the accompanying four screws (8) to the bottom of the charger (see figure below).

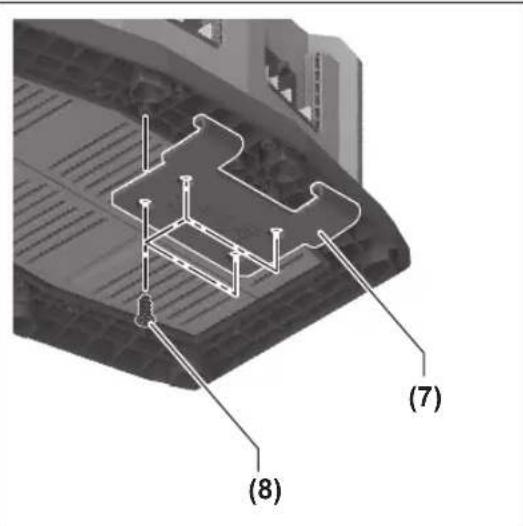

Hook the L-BOXX adapter (7) into the L-BOXX (see figure B).

Maintenance and Service

Maintenance and cleaning

In order to avoid safety hazards, if the power supply cord needs to be replaced, this must be done by Bosch or by an after-sales service centre that is authorised to repair Bosch power tools.

After-Sales Service and Application Service

Our after-sales service responds to your questions concerning maintenance and repair of your product as well as spare parts. You can find explosion drawings and information on spare parts at: www.bosch-pt.com

The Bosch product use advice team will be happy to help you with any questions about our products and their accessories.

In all correspondence and spare parts orders, please always include the 10-digit article number given on the nameplate of the product.

Great Britain

Robert Bosch Ltd. (B.S.C.)

P.O.Box 98

Broadwater Park

North Orbital Road

Denham Uxbridge

UB95HJ

At www.bosch-pt.co.uk you can order spare parts or arrange the collection of a product in need of servicing or repair.

Tel. Service: [phone]

E-Mail: [e-mail]

You can find further service addresses at:

www.bosch-pt.com/serviceaddresses

Disposal

Chargers, accessories and packaging should be recycled in an environmentally friendly manner.

Do not dispose of chargers along with household waste.

Only for EU countries:

According to the European Directive 2012/19/EU on Waste Electrical and Electronic Equipment and its implementation into national law, chargers that are no longer usable must be collected separately and disposed of in an environmentally friendly manner.
