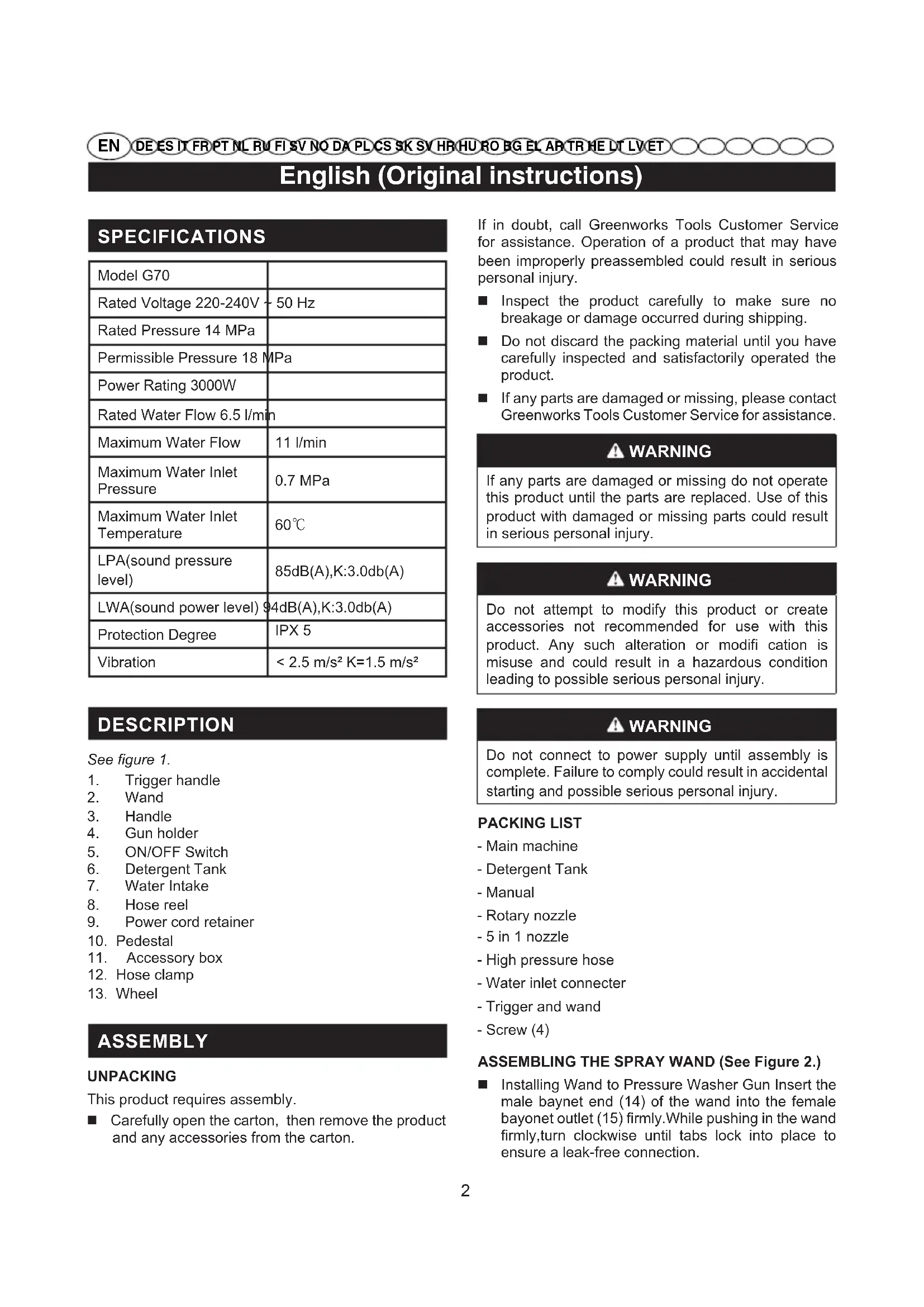

ASSEMBLY UNPACKING This product requires assembly. Carefully open the carton, then remove the product and any accessories from the carton. If in doubt, call Greenworks Tools Customer Service for assistance. Operation of a product that may have been improperly preassembled could result in serious personal injury. Inspect the product carefully to make sure no breakage or damage occurred during shipping. Do not discard the packing material until you have carefully inspected and satisfactorily operated the product. If any parts are damaged or missing, please contact Greenworks Tools Customer Service for assistance. WARNING If any parts are damaged or missing do not operate this product until the parts are replaced. Use of this product with damaged or missing parts could result in serious personal injury. WARNING Do not attempt to modify this product or create accessories not recommended for use with this product. Any such alteration or modifi cation is misuse and could result in a hazardous condition leading to possible serious personal injury. WARNING Do not connect to power supply until assembly is complete. Failure to comply could result in accidental starting and possible serious personal injury. PACKING LIST - Main machine - Detergent Tank - Manual - Rotary nozzle - 5 in 1 nozzle - High pressure hose - Water inlet connecter - Trigger and wand - Screw (4) ASSEMBLING THE SPRAY WAND (See Figure 2.) Installing Wand to Pressure Washer Gun Insert the male baynet end (14) of the wand into the female bayonet outlet (15) firmly.While pushing in the wand firmly,turn clockwise until tabs lock into place to ensure a leak-free connection.English (Original instructions)

DE ES IT FR PT NL RU FI SV NO DA PL CS SK SV HR HU RO BG EL AR TR HE LT LV ET

ASSEMBLING THE GUN HOLDER (See Figure 3.) Push the gun holder as shown until it is locked into the slots.

ASSEMBLING THE WATER INLET CONNECTOR

(See Figure 4.) Align the connector with the water intake. Rotate the connector clockwise to ensure it is tight. ASSEMBLING THE PEDESTAL (See Figure 5.) Line up the pedestal and screws with the holes. Insert the screw and turn clockwise with a screwdriver until the screw is tight. OPERATION Applications This pressure washer can be used for the purposes listed below: Removing dirt and mould from decks, cement patios, and walls. Cleaning cars, boats, motorcycles, outdoor furniture and barbeques. CONNECTING HIGH PRESSURE HOSE (See Figure 6.) Fiting Push the connector (16) of the high pressure hose into the mount (17) on the trigger handle until it engages. Removing Actuate the spring button (18) and pull the high pressure hose out of the mount.

CONNECTING THE WATER SUPPLY TO PRESSURE

WASHER (See Figure 7.) The water supply must come from a water main. NEVER use hot water or water from ponds, lakes, etc. For ease of use, a self-coiling hose (not provided) is recommended. NOTE: When using the self-coiling hose, be sure that the hose does not become crimped during use as this may cause damage to the pump. CAUTION When connecting the appliance to the water sup- ply mains (not public drinking water supply mains), please observe the local regulations of local boards or local water supplier. To ensure that there is no transfer of contaminant into the water supply, the appliance must not be con- nected directly to the public drinking water supply mains. If the appliance is connected to portable water mains, backow prevention devices should be incor- porated in or fixed to the water supply system. The installation should be accepted by local boards or water supplier and should be conducted by profes- sional technical personnel. The backow prevention devices should be appropriate to uid categories and comply with the requirement to avoid back siphon- age according to EN 60335-2-79:2009. WARNING Always switch off the mains disconnecting switch when leaving the machine unattended WARNING Inadequate extension cords can be dangerous. If an extension cord is used, it shall be suitable for outdoor use, and the connection has to be kept dry and off the ground. It is recommended that this is accom- plished by means of a cord reel which keeps the socket at least 60mm above the ground. Before connecting the garden hose to the pressure washer: Run water through the hose for 120 seconds to clean any debris from the hose. Inspect the filter in the water intake. If the filter is damaged, do not use the machine until the filter has been replaced. NOTE: There must be a minimum of 3 metres of unrestricted hose between the pressure washer intake and the garden tap. With the garden tap turned completely off, attach the end of the garden hose to the threaded tap connector. USING THE GUN (See Figure 8.) For greater control and safety, keep both hands on the gun at all times. Squeeze the trigger (19) to operate the pressureEnglish (Original instructions)

DE ES IT FR PT NL RU FI SV NO DA PL CS SK SV HR HU RO BG EL AR TR HE LT LV ET

washer. Release the trigger to stop the flow of water through the nozzle. To engage the lock-out: Press the lock-out button (20) to the ON position. To disengage the lock-out: Press the lock-out button to the OFF position. USING THE NOZZLES (See Figure 9.) CAUTION NEVER change nozzles without engaging the lock out on the gun and NEVER point the lance at your face or at others. Note: The 5 in 1 nozzle have five size spray types, in- cluding the nozzles of 15° high pressure, 25°high pres- sure, 40° high pressure, 0°straight line and fan-shaped low pressure. The rotary nozzle is to remove stubbon dirt on the hard-wearing surfaces. To connect a nozzle to the lance: Turn off the pressure washer and shut off the water supply. Pull trigger to release water pressure. Engage the lock out on the gun by pulling down on the lock out until it clicks into the slot. Press the button on the lance and insert the nozzle, aligning the pin on the nozzle with the square hole. Rotate the nozzle to adjust the spray shape.

ADDING DETERGENT TO THE PRESSURE WASH-

ER (See Figure 10-11.) Use only detergents designed for pressure washers; household detergents, acids, alkalines, bleaches, sol- vents, flammable material, or industrial grade solutions can damage the pump. Many detergents may require mixing prior to use. Prepare cleaning solution as instructed on the solution bottle. NOTE: Use a funnel, if needed, to prevent accidental spilling of the detergent outside the tank. If any detergent is spilled during the filling process, make sure the unit is cleaned and dried before proceeding. To apply soap: Pour detergent in the detergent tank. Install the soap tank to the trigger gun. Start the pressure washer and spray the detergent on a dry surface using long, even, overlapping strokes. To prevent streaking, do not allow detergent to dry on the surface.

STARTING AND STOPPING THE PRESSURE WASH-

ER (See Figure 12.) CAUTION Do not run the pump without the water supply connected and turned on. Turn the garden hose on then squeeze the high pressure trigger to relieve air pressure. Once a steady stream of water appears, release the trigger. After ensuring the switch is in the OFF position, connect the pressure washer to the power supply. Set th9e switch to the ON(I) position to start the motor. Turn the garden hose on then squeeze the high pressure trigger. MAINTENANCE WARNING When servicing, use only identical replacement parts. Use of any other parts may create a hazard or cause product damage. WARNING Before inspecting, cleaning, or servicing the ma- chine, shut off motor, wait for all moving parts to stop, and disconnect plug from power source. Failure to follow these instructions can result in serious per- sonal injury or property damage. GENERAL MAINTENANCE Avoid using solvents when cleaning plastic parts. Most plastics are susceptible to damage from various types of commercial solvents and may be damaged by their use. Use clean cloths to remove dirt, dust, oil, grease, etc. WARNING Do not at any time let brake uids, petrol, petro- leum based products, penetrating oils, etc., come in contact with plastic parts. Chemicals can damage, weaken or destroy plastic which may result in seri- ous personal injury. Only the parts shown on the parts list are intended to be repaired or replaced by the customer. All other parts should be replaced at an authorized service centre.English (Original instructions)

POWER SUPPLY CORD REPLACEMENT

If replacement of the power supply cord is necessary, this must be done by an authorized service centre in order to avoid a safety hazard. NOZZLE MAINTENANCE (See Figure 13.) Excessive pump pressure (a pulsing action felt while squeezing the trigger) may be the result of a clogged or dirty nozzle. Unplug the pressure washer. Turn off the pressure washer and shut off the water supply. Pull trigger to release water pressure. Remove the nozzle from the lance. NOTE: Never point the spray lance at your face. Using a straightened paper clip or nozzle cleaning tool, free any foreign materials clogging or restricting the nozzle. Using a garden hose, clear/flush debris out of nozzle. Reconnect the nozzle to the lance. Turn on the water supply.

STORING THE PRESSURE WASHER

Store in a dry, covered, frost-free area where the weath- er can’t damage it. Always empty water from gun, hose and pump. NOTE: The use of a pump protector is recommended to prevent cold weather damage during storage over the winter months. DISPOSAL This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling.6

UDSKIFTNING AF EL-LEDNING

All new Greenworks Tools machinery is supplied with a 2 year parts and labour warranty from original date of purchase. A 30 day warranty is available for machines used professionally as Greenworks Tools are designed primarily to be used by DIY consumers. This warranty is non-transferable. LIMITATIONS This warranty applies only to defective parts/components and does not cover repairs due to:

1. Normal wear and tear.

2. Routine tune up or adjustment.

3. Damage caused by improper handling/abuse/misuse or neglect.

4. Overheating due to lack of maintenance.

5. Damage due to ttings/fasteners becoming loose/detached through

lack of maintenance.

6. Damage caused by cleaning with water.

7. Machines serviced or repaired by non-authorised Greenworks Tools

9. Damage caused by improper use of the machine.

10. Damage caused by improper winterisation (pressure washers)

11. Items considered as consumable parts are not normally covered by

the warranty, including but not limited to:

• Blade and blade assemblies

• Chucks and tool holders

12. Certain products may contain components such as engines,

transmissions from an alternative manufacturer, these items will be subject to the appropriate manufacturer’s warranty policy except where Greenworks Tools Europe GmbH agrees to underwrite any claims outside the said manufacturer’s warranty period.

13. Second hand goods are not covered under this warranty policy

14. The tting of spares, replacements or extra components which are

(DIY)Greenworks Tools

Greenworks Tools . (DIY)

EC DECLARATION OF CONFORMITY

.Changzhou Globe Co., Ltd No. 65 Xinggang Rd., Zhonglou Zone, Changzhou, Jiangsu, China
