Product Type	LED wall light with infrared motion detector and interchangeable illuminated house number panel
Brand	STEINEL
Model	L 270 Digi SC
Dimensions (H x W x D)	235 x 366 x 65 mm
Power supply	220-240 V, 50/60 Hz
Power consumption	7.80 W
Luminous flux	637 lm
Color temperature	3000 K (warm white)
Detection angle	180°
Detector range	max. 8 m (tangential)
Adjustable time delay	5 seconds to 60 minutes
Adjustable trigger threshold	2 to 2000 lux
Protection rating	IP 44
Lifespan (L70B50 at 25°C)	> 60,000 h
Operating temperature	-10 to +40°C
Energy efficiency class	E
Special functions	Orientation light, main lighting, soft start, Bluetooth mesh networking, app control
Installation	Outdoor wall mounting, requires a professional for electrical connection
Maintenance	Dry cleaning with a soft cloth, no detergent. For the panels, glass cleaner
Safety	Disconnect power before any intervention. Do not look directly at the LED from less than 30 cm
Warranty	3 years manufacturer's warranty
Package contents	Wall light, LED panels, panel holder, screws, wall plugs, number plate, safety sheet, quick start guide

Frequently Asked Questions - L 270 Digi SC STEINEL

How to install the L 270 Digi SC wall light?

Installation must be carried out by a professional. Cut the power supply, mark the holes, drill (Ø 6 mm), insert wall plugs, fix the wall bracket, connect the mains cable (L, N, PE) according to the diagram, then screw on the LED cover. Refer to the quick start guide.

Can the lighting time delay be adjusted?

Yes, via the STEINEL Connect app, the time delay is adjustable from 5 seconds to 60 minutes. Any detected movement restarts the cycle.

How to connect the wall light to the STEINEL Connect app?

Download the app from the App Store. Enable Bluetooth on your smartphone or tablet. Open the app and follow the instructions to pair the wall light. The first connection generates network keys to secure access.

What is the range of the motion detector?

The maximum range is 8 meters for tangential movement. The detection angle is 180°. The range can be adjusted from 1 to 8 m via the app.

How to clean the wall light?

Clean only dry with a soft cloth. For the house number panels, use a glass cleaner. Never use detergents or water, risk of electric shock.

What to do if the wall light does not turn on?

Check that the mains switch is in the ON position and the fuse is intact. Check the trigger threshold setting (too high for ambient light). If the problem persists, the cable or LED may be defective; contact a professional.

Is the LED replaceable?

No, the LED is integrated and not replaceable. In the event of failure, the entire wall light must be replaced.

Can a mains switch be used with this wall light?

Yes, the wall light can be connected downstream of a mains switch, provided it remains in the ON position at all times to avoid disturbing the detector.

What is the warranty period?

The manufacturer's warranty is 3 years from the date of purchase. It covers material and manufacturing defects. Keep the proof of purchase.

How to adjust the trigger threshold (brightness)?

The trigger threshold is adjustable from 2 to 2000 lux via the STEINEL Connect app. For a test in daylight, set to daytime mode. Use the Lux Teach function to learn ambient brightness.

USER MANUAL L 270 Digi SC STEINEL

L 270 Digi SC
L 271 Digi SC
L 271 Digi C

DE

Inhalt

1. About this document 38
2. General safety precautions 38
3. System description 39
4. Electrical connection 48
5. Installation 49
6. Function 61
7. Maintenance and care 65
8. Disposal 66
9. Manufacturer's warranty 67
10. Technical specifications 69
11. Troubleshooting 70

1. About this document

• Under copyright. Reproduction either in whole or in part only with our consent.
• Subject to change in the interest of technical progress.

Hazard warning!

Warning of hazards from electricity!

Warning of hazards from water!

2. General safety precautions

Failure to observe these operating instructions presents hazards!

These instructions contain important information on the safe use of this product. Particular attention is drawn to potential hazards. Failure to observe this information may lead to death or serious injuries.

• Read instructions carefully.
• Follow safety advice.

• Keep instructions within easy reach.

• Working with electrical current may produce hazardous situations. Touching live parts can result in electrical shock, burns or death.

• Work on mains voltage must only be performed by qualified, skilled personnel.
• National wiring regulations and electrical operating conditions must be observed (e.g. DE: VDE 0100, AT: ÖVE-ÖNORM E8001-1, CH: SEV 1000).
• Only use genuine replacement parts.
• Repairs must only be carried out by companies qualified to do so.

3. System description

Proper use

L 270 Digi SC light

• LED light with infrared motion sensor and interchangeable, illuminated house number panels.
• For mounting on outdoor walls.
• Lights can be interconnected via Bluetooth Mesh standard.
• Operation via Steinel Connect app.

Proper use

L 271 Digi SC light

• LED light with infrared motion sensor.
• For mounting on outdoor walls.
• Lights can be interconnected via Bluetooth Mesh standard.
• Operation via Steinel Connect app.

Proper use -

L 271 Digi C light

• LED light.
• For mounting on outdoor walls.
• Lights can be interconnected via Bluetooth Mesh standard.
• Operation via Steinel Connect app.

Motion sensor operating principle

Operating principle refers to the sensor-switched type (SC) or to the manually operated type (C) in combination with a Bluetooth sensor product.

• The integrated infrared sensor detects the heat radiated from moving objects (e.g. people, animals). The heat detected in this way is converted electronically into a signal that switches the unit ON automatically.
• The most reliable way of detecting motion is to install the unit with the sensor aimed across the direction in which a person would walk.
• Motion detection reach is restricted when the unit is approached head on.
• Obstacles (such as trees, walls or panes of glass) may restrict or prevent the detection of movement.
• Sudden fluctuations in temperature as a result of changes in weather are not distinguished from sources of heat.

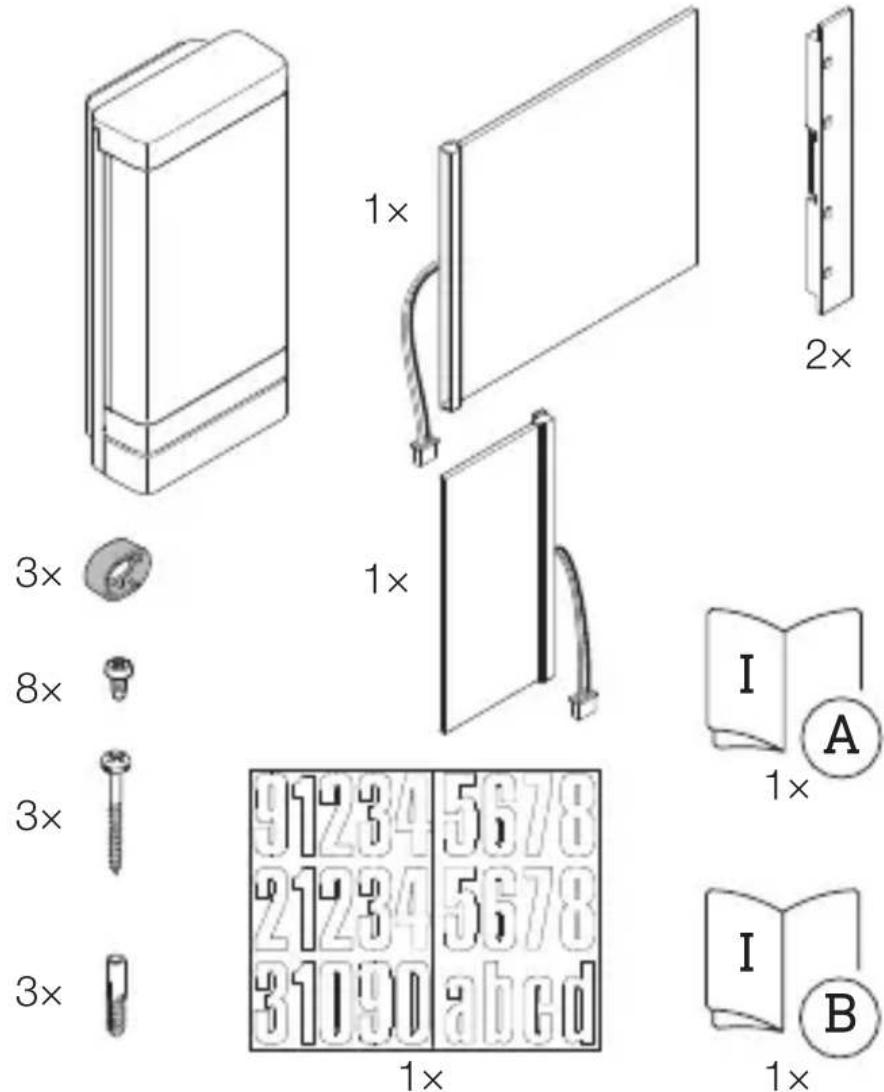

Package contents for L 270 Digi SC light

GB

3.1

• 1 LED light with infrared motion sensor
• 1 Illuminated panel, large
• 1 Illuminated panel, small
• 2 Panel holders
• 3 Spacers
• 8 Screws for mounting the panels
• 3 Screws for mounting the light
• 3 Wall plugs
• 1 Sheet of self-adhesive house numbers
• 1 Safety data sheet (A)
• 1 Quick start (B)

Package contents for L 271 Digi SC light

3.2

3 ×

3 ×

3 ×

1x

1x

• 1 LED light with infrared motion sensor
• 3 Spacers
• 3 Screws
• 3 Wall plugs
• 1 Safety data sheet (A)
• 1 Quick start (B)

Package contents for L 271 Digi C light

GB

3.3

3 ×

3 ×

3 ×

1x

1x

• 1 LED light
• 3 Spacers
• 3 Screws
• 3 Wall plugs
• 1 Safety data sheet (A)
• 1 Quick start (B)

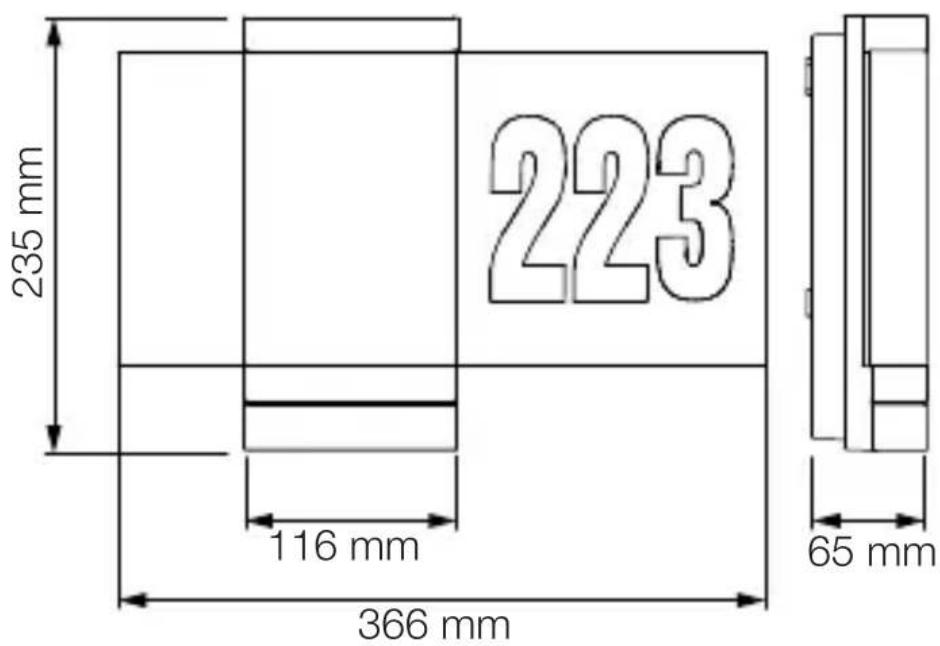

Product dimensions - L 270 Digi SC light

3.4

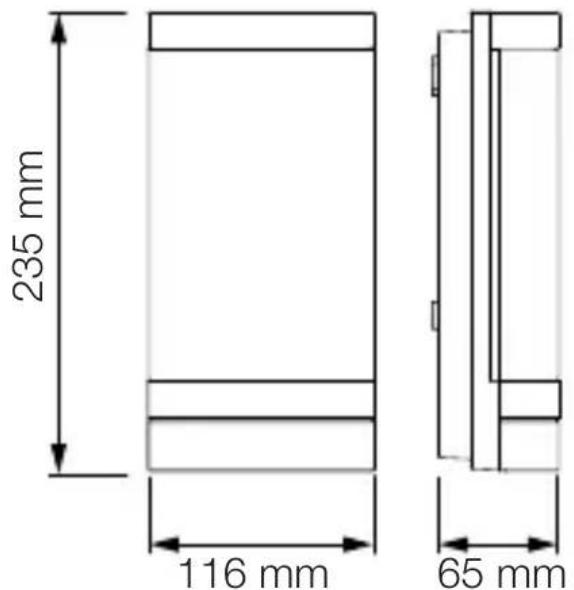

Product dimensions - L 271 Digi SC and L 271 Digi C lights
3.5

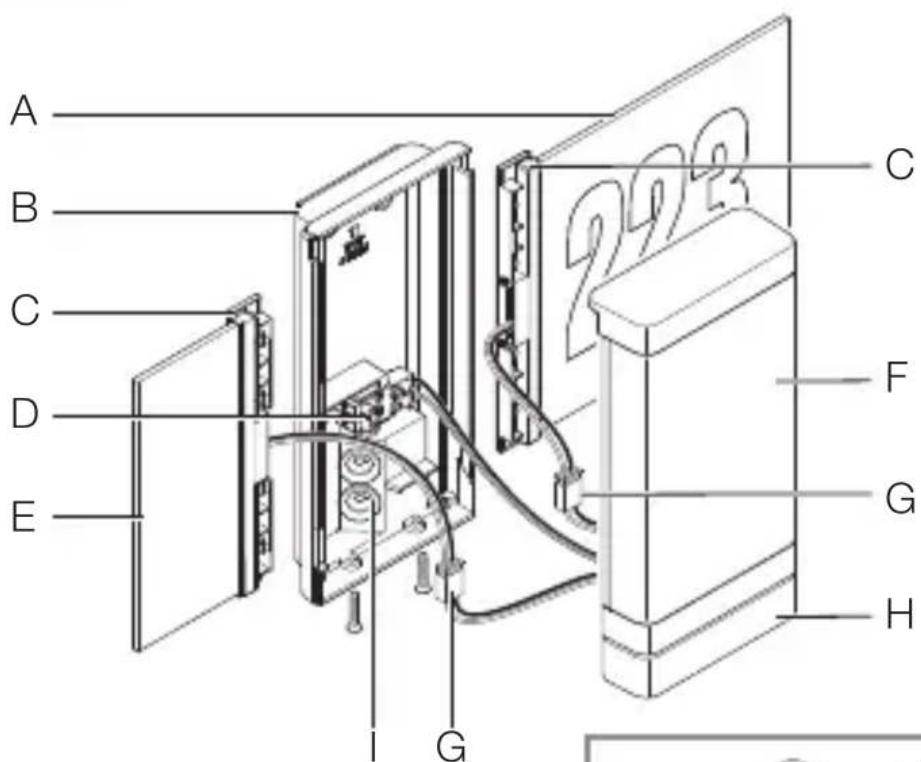

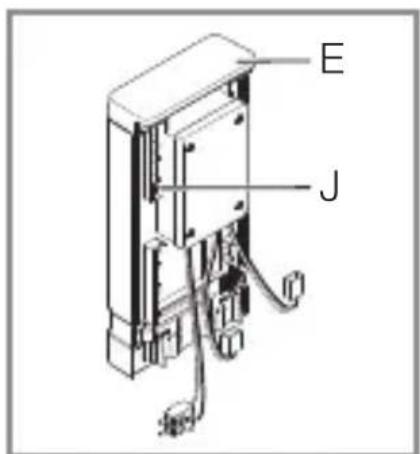

3.6

A Illuminated house-number panel
B Wall mount
C Panel holder
D Connecting terminal
E Illuminated panel
F LED cover
G Connecting plug
H Sensor unit

Sealing plug

J Base (in the LED cover)

Product components– L 271 Digi SC and L 271 Digi C lights

3.7

A Wall mount
B Connecting terminal
C LED cover
D Sealing plug
E Sensor unit (SC only)

3.8

4. Electrical connection

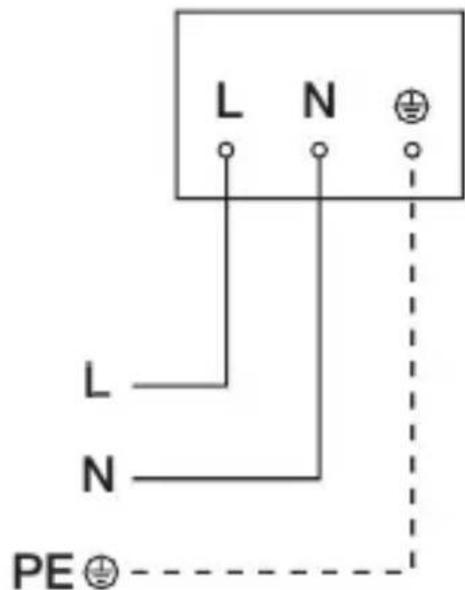

Wiring diagram - lights

4.1

The mains power supply lead is a 3-core cable:

L = Phase conductor (usually black, brown or grey)

N = Neutral conductor (usually blue)

PE = Protective-earth conductor (green / yellow)

The unit can also be connected to the power supply downstream of a mains switch if it is ensured that the mains switch is left ON all the time.

The LEDs in this unit cannot be replaced. In the event of LED failure, the entire product must be replaced.

5. Installation

Hazard from electrical power.

Touching live parts can result in electrical shock, burns or death.

• Switch OFF power and interrupt power supply.
• Using a voltage tester, check to make sure that the power supply is disconnected.
• Make sure power supply remains interrupted.

Risk of damage to property!

Mixing up connection leads may produce a short circuit.

• Identify connection leads.
• Connect the leads correctly.

Preparing for installation

• Check all components for damage. Do not use the product if it is damaged.
• Select an appropriate site to install the product.

-Take reach into consideration.
- Take reach and motion detection into consideration (SC only).
-Vibration-free.
- No obstacles in detection zone (SC only).
-Not in explosive atmospheres.
-Not on normally flammable surfaces.
-Do not look into the light source from a short distance (< 30~cm)
- Spaced at a distance of at least 50~cm from other LED lights.

Reach - L 270 Digi SC and L 271 Digi SC lights

5.1

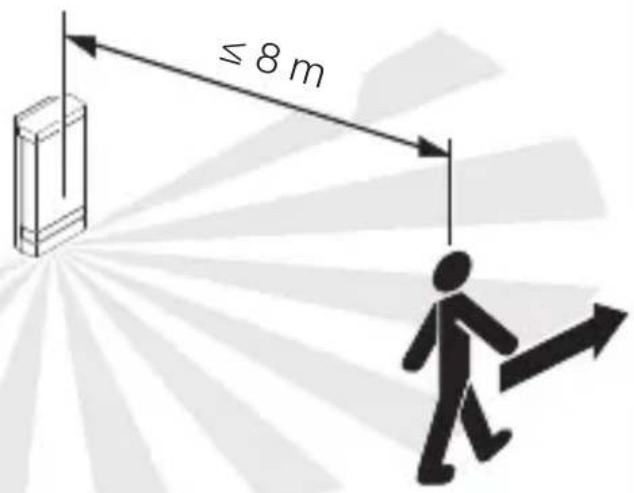

Detecting movement of persons walking past the L 270 Digi SC and L 271 Digi SC lights

GB

5.2

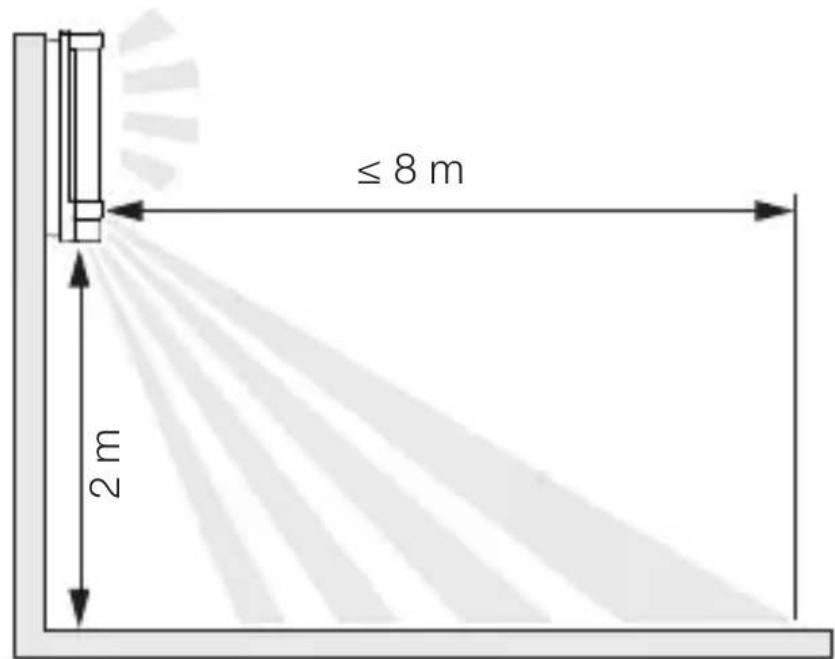

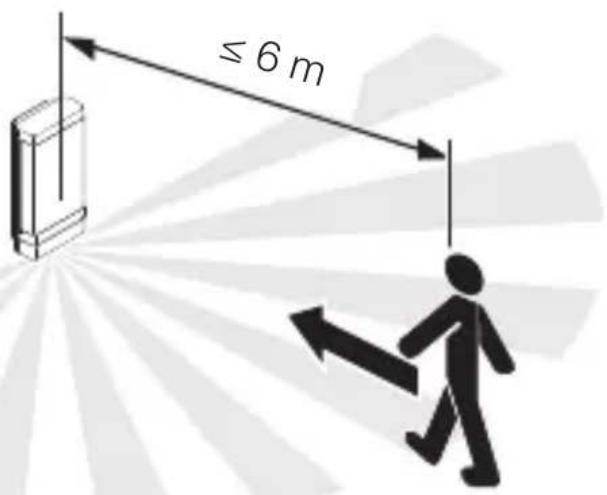

Detecting movement of persons walking towards L 270 Digi SC and L 271 Digi SC lights

5.3

Mounting procedure

5.4

• Check to make sure the power supply is switched OFF.

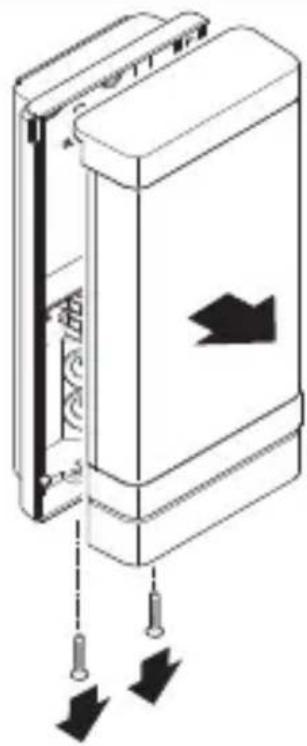

• Unscrew LED cover from wall mount.

5.5

• Disconnect connecting plug.

5.6

GB

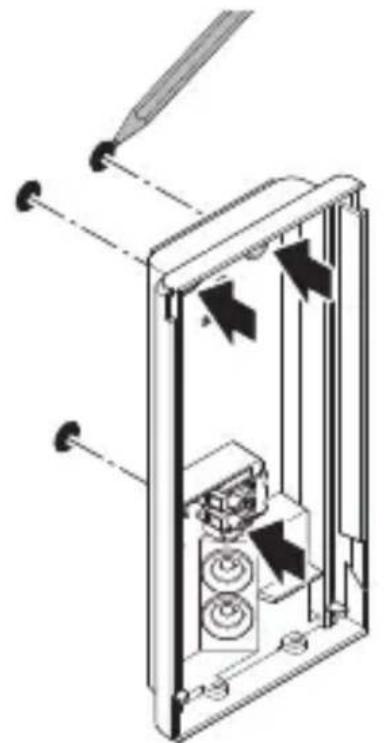

• Mark drill holes.

5.7

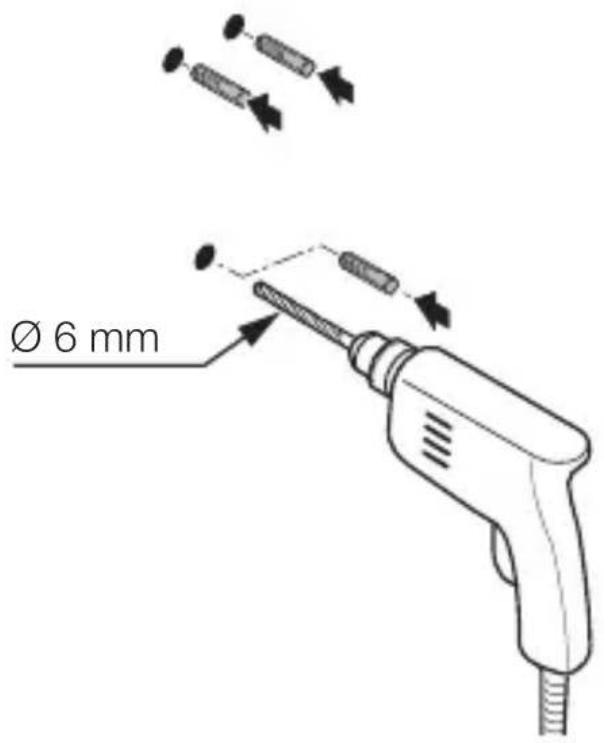

• Drill holes (Ø 6 mm) and fit wall plugs.

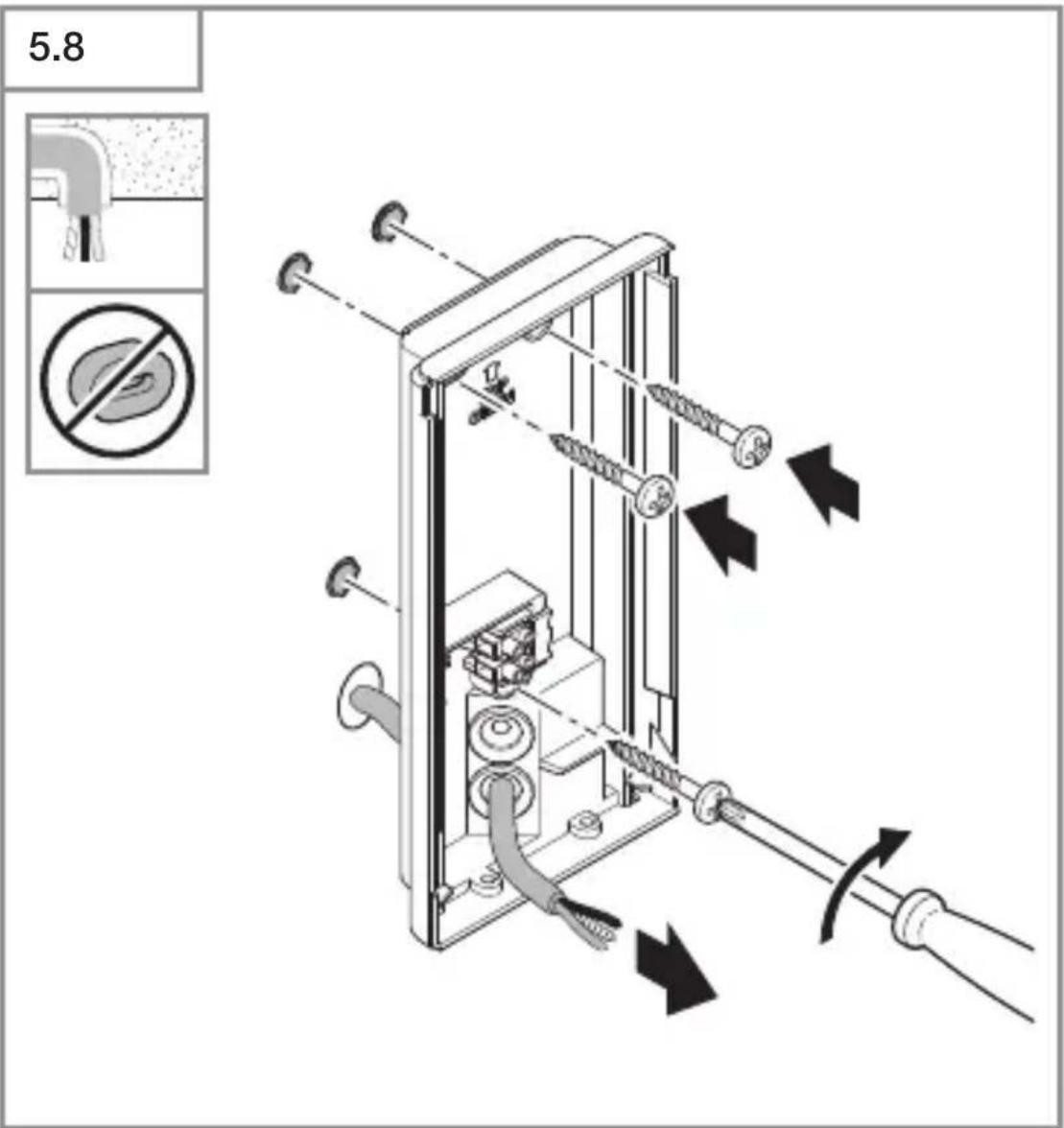

• Pierce sealing plug for power supply lead
• Firmly screw wall mount into place for concealed power supply lead without spacers.

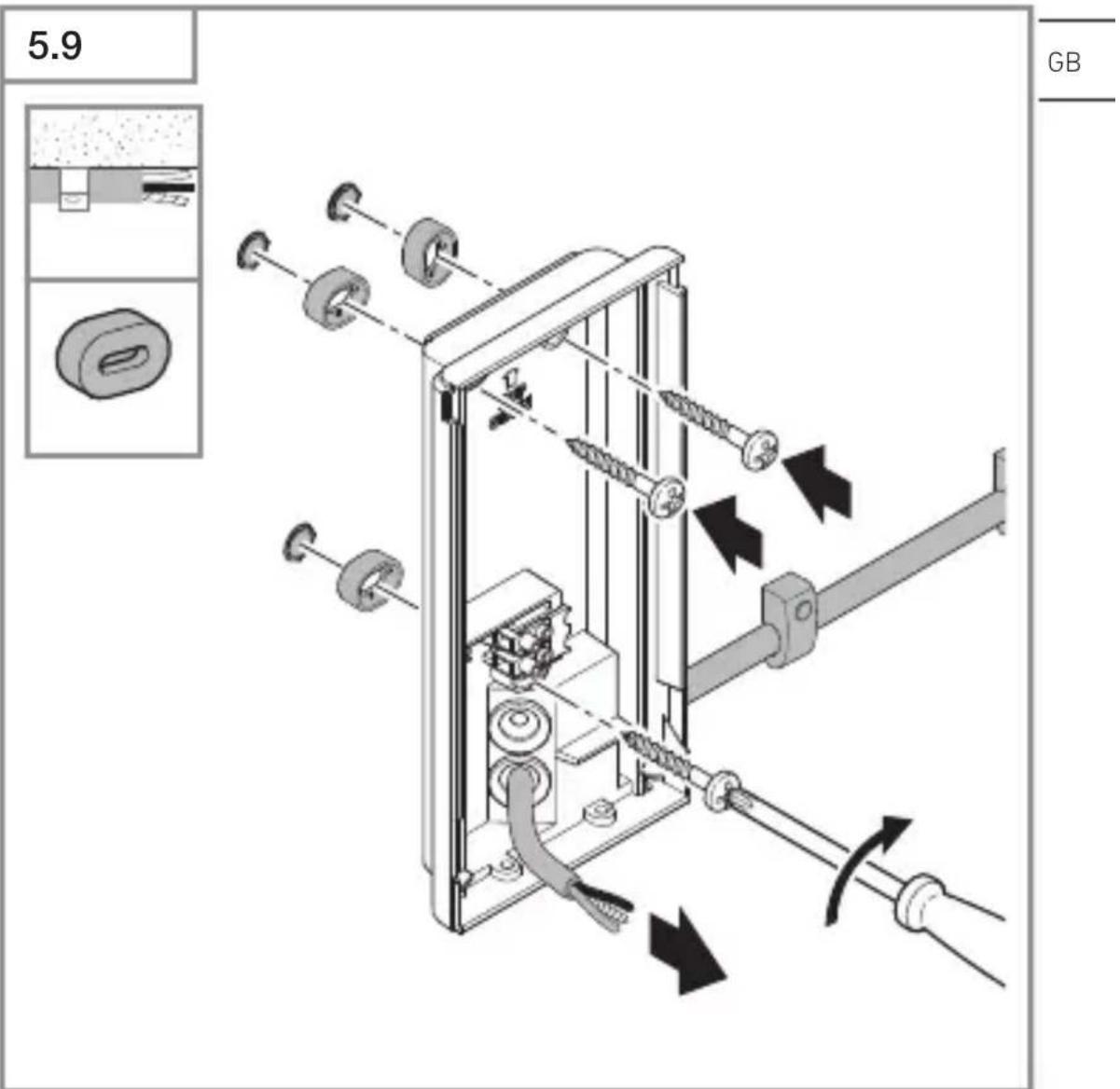

• Pierce sealing plug for power supply lead
• Use spacers to screw down wall mounts for surface-mounted wiring.

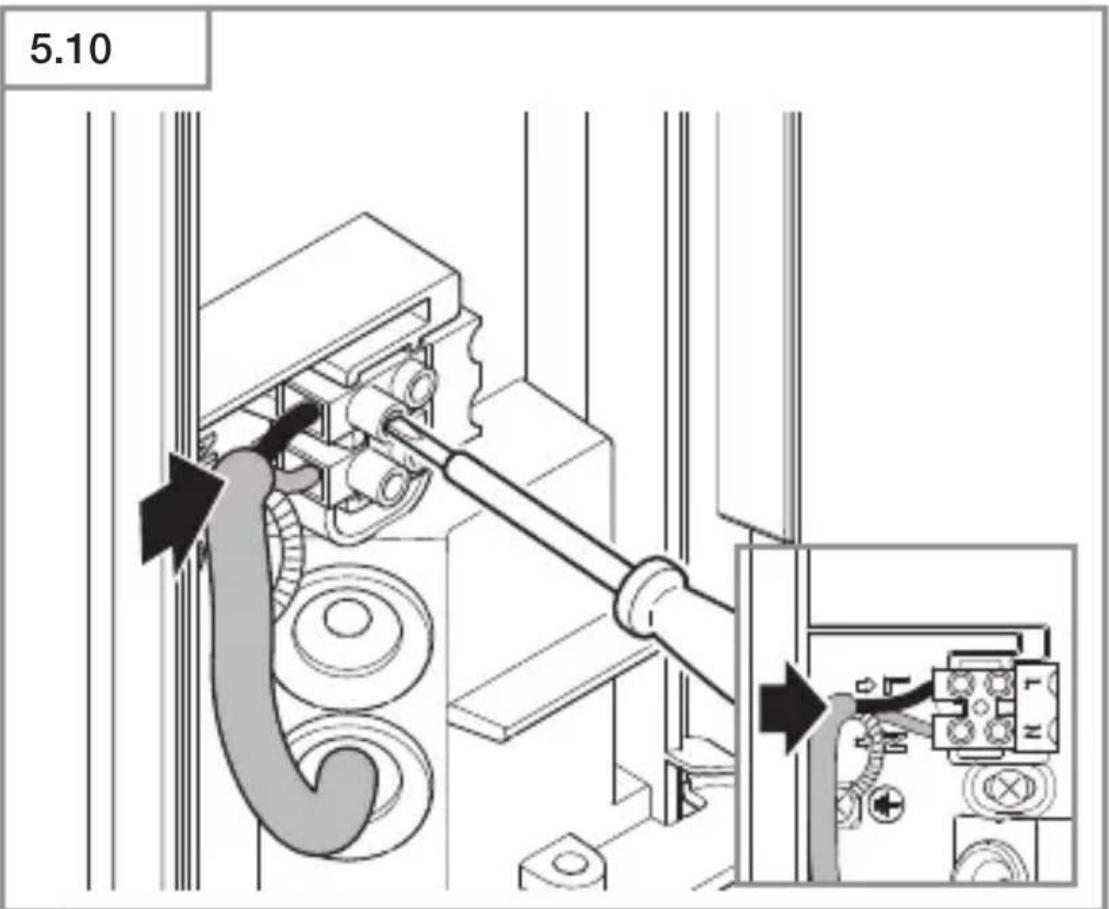

• Connect mains power supply lead as shown in the wiring diagram.

"4. Electrical connection"

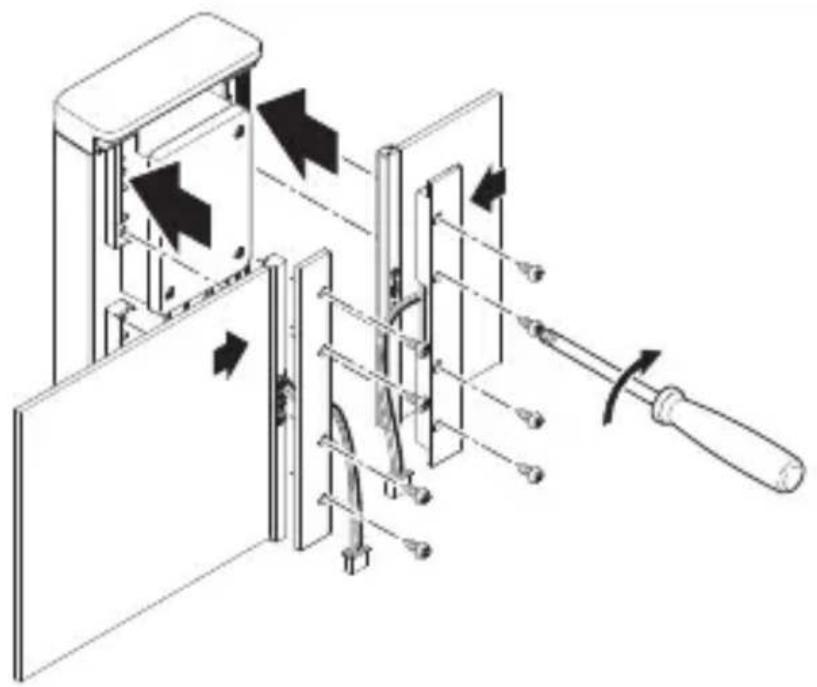

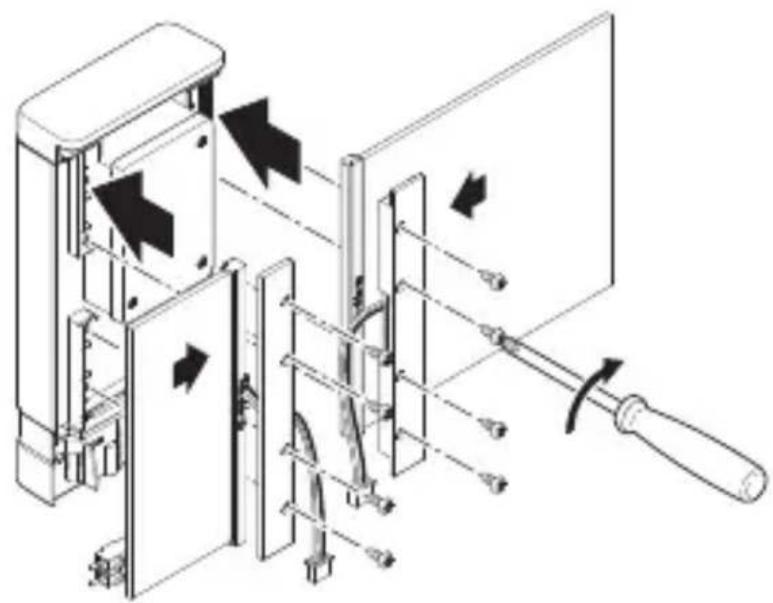

5.11

• Insert panels into the base. Screw panel holders into place.

• The large and small panel can be screw-mounted on either side.

• The panels can be interchanged.

L 270 Digi SC light

5.12

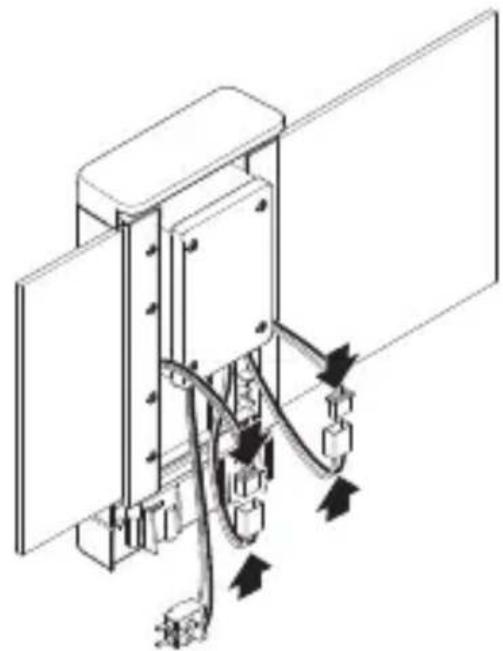

• Interconnect plugs for connecting house number panels.

5.13

GB

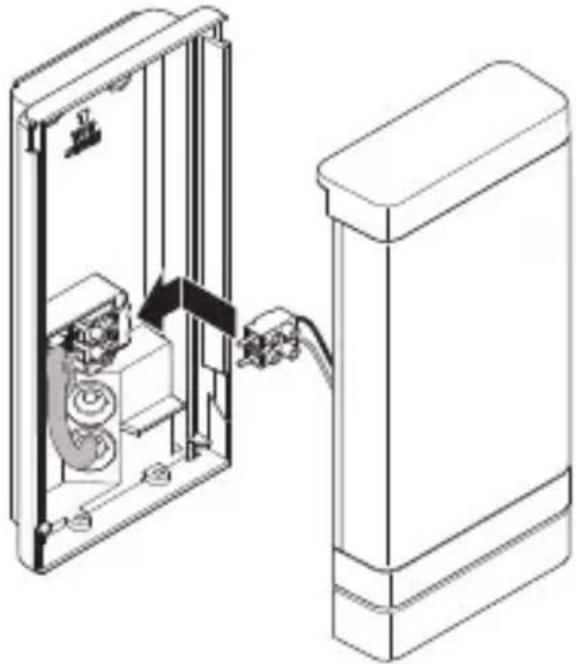

• Connect terminal.

5.14

• Screw LED cover to wall mount.

5.15

• Switch ON power supply.

L 270 Digi SC light

5.16

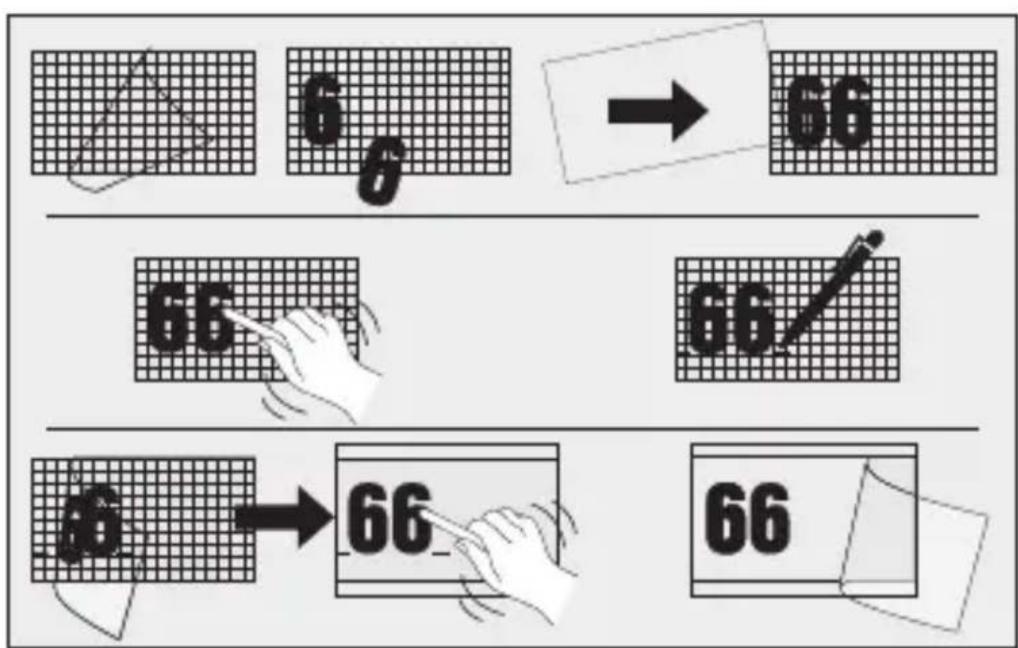

• Affix house numbers from sheet of self-adhesive house numbers.
  Make settings. "6. Function"

6. Function

L 270 Digi SC and L 271 Digi SC lights

Factory settings (state on leaving the factory)

• Reach setting = max.
• Main light time setting: 10 sec.
• Basic light time setting: 1 min.
• Twilight level: 2,000 lux
• Basic light dimming level: 50%

Factory settings

• Reach setting: 8m
• Main light stay-ON time: 3 min.
• Basic light stay-ON time: 5 min.
• Twilight level: 500 lux
• Basic light dimming level: 10%
• Effect lighting: ON

Steinel Connect app

To configure the unit via smartphone or tablet, you must download the STEINEL Connect app from your app store. You will need a Bluetooth-capable smartphone or tablet.

Android iOS

Following functions can be set via the Steinel Connect app:

• Time setting 5 s - 60 min
  Twilight setting: 2-2,000 lux
• Teaching lux
• Basic light level
• Main light level
• Soft light start function
• Teaching time of day
  -Reach adjustment
• Bluetooth interconnection

Time setting

The switch-off delay can be set to any period from approx. 5 seconds to a maximum of 60 minutes. Every movement detected re-activates the light.

The shortest time setting is recommended when adjusting the detection zone and performing the functional test.

Twilight setting

The brightness response threshold (twilight) can be infinitely varied from approx. 2 - 2,000 lux.

Daylight mode must be selected when adjusting the detection zone and performing the functional test in daylight.

Basic light level

The brightness of the basic light level setting can be varied between 10% and 100% .

Basic light can be set in relation to time or ambient light level.

The light switches to maximum output (100%) for the time selected in response to movement in the detection zone.

The light then returns to the basic light level.

Main light level

The brightness of the main light level setting can be varied between 10% and 100% .

Soft light start function:

On switching ON, light level constantly builds up to 100% (fade in).

On switching OFF, light level is constantly reduced to 0% (fade out).

Fade-in and fade-out times are selectable.

Manual override

The manual override parameters can be set via the Steinel Connect app.

In the new app, manual override can be set to any specific time of day (teaching time of day).

Bluetooth interconnection (Bluetooth Connect Mesh)

The sensor switch complies with the Bluetooth Mesh standard. It can be interconnected with all products complying with the Bluetooth Mesh standard.

The sensor switch is configured by Steinel Connect app.

Appropriate network keys are saved on the smartphone or tablet the first time a connection is made between sensor switch and Steinel Connect app. The key rules out any unauthorised access to the sensor.

The network key must be shared for access via another smartphone or tablet.

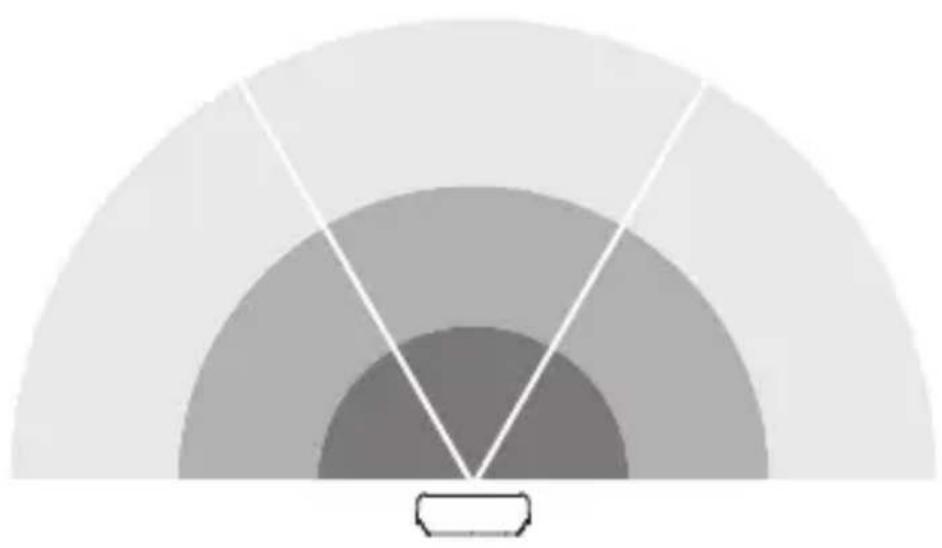

Set detection zone

6.1

The area covered by the sensor can be divided into three zones:

• Each of the three zones can be activated or deactivated separately.
• Reach can be set for each of the three zones.

Note: when setting the detection zone, it is recommended to select

• the shortest time.
  -daylightmode.

7. Maintenance and care

The tool requires no maintenance.

Hazard from electrical power.

Contact between water and live parts can result in electric shock, burns or death.

• Only clean tool in a dry state.

Risk of damage to property!

Using the wrong cleaning product can damage the light.

• Clean tool with a moist cloth without detergent.

L270 only:

• Wipe off dirt on the panels with a soft cloth and glass cleaner.

Important note: the control gear cannot be replaced.

8. Disposal

Electrical and electronic equipment, accessories and packaging must be recycled in an environmentally compatible manner.

Do not dispose of electrical and electronic equipment as domestic waste.

EU countries only:

Under the current European Directive on Waste Electrical and Electronic Equipment and its implementation in national law, electrical and electronic equipment no longer suitable for use must be collected separately and recycled in an environmentally compatible manner.

9. Manufacturer's warranty

Manufacturer's warranty of STEINEL GmbH, Dieselstrasse 80-84, DE-33442 Herzebrock-Clarholz, Germany

All STEINEL products meet the highest quality standards. For this reason, we, the manufacturer, are pleased to provide you, the consumer, with a warranty under the following terms and conditions:

The warranty covers the absence of deficiencies which are proven to be the result of a material defect or fault in manufacturing and which are reported to us immediately after detection and within the warranty period. The warranty shall apply to all STEINEL products sold and used in Germany – excluding STEINEL Professional products.

You can opt for warranty cover in the form of repair or replacement which will be provided free of charge (if applicable, in the form of a successor model of the same or higher quality) or in the form of a credit note.

The warranty period for the STEINEL product you have purchased is 3 years in each case from the date on which the product was purchased.

We shall bear the shipping costs but not the transport risks involved in return shipment.

Statutory rights accruing from defects, gratuitousness

The warranty cover described here shall be applicable in addition to the statutory rights of warranty – including special consumer protection provisions – and shall not restrict or replace them. Exercising your statutory rights in the event of defects is gratuitous.

Exemptions from the warranty

All replaceable lamps are expressly excluded from this warranty. In addition to this, the warranty shall not cover: - any wear resulting from use or any other natural wear of product parts or any deficiencies in the STEINEL product that are attributable to wear caused by use or other natural wear,

• any improper or non-intended use of the product or any failure to observe the operating instructions,
• any unauthorised additions, alterations or other modifications to the product or any deficiencies attributable to the use of accessory,
• supplementary or replacement parts which are not genuine STEINEL parts,
• any maintenance or care of products that is not carried out in accordance with the operating instructions,
• any attachment or installation that is not in accordance with STEINEL's installation instructions,
• any damage or loss occurring in transit.

Application of German law

The warranty shall be governed by German law excluding the United Nations Convention concerning the International Sale of Goods (CISG).

Making claims

If you wish to make a warranty claim, please send your product complete and carriage paid with the original receipt of purchase, which must show the date of purchase and product designation, either to your retailer or directly to us at STEINEL (UK) Ltd. – 25 Manasty Road, Axis Park, Orton Southgate, GB- Peterborough Cambs PE2 6UP United Kingdom. For this reason, we recommend that you keep your receipt of purchase in a safe place until the warranty period expires.

10. Technical specifications

• Dimensions (H × W × D): L 270 SC: 235 × 366 × 65 mm L 271 SC / L 271 C: 235 × 116 × 65 mm
• Power supply: 220 - 240 ~V, 50 / 60 ~Hz
• Power consumption (P_on) : L 270 SC: 7.80 W L 271 SC / L 271 C: 6.60 W
• Luminous flux (360^) : L 270 SC: 637 lm
  L 271 SC / L 271 C: 566 lm
• Efficiency: L 270 SC: 82 lm/W
  L 271 SC / L 271 C: 85 lm/W
• Standby, sensor (P_sb) : L 270 SC; L 271 SC: 0.50 W
• Standby, network (P_net) : 0.50 W
• Colour temperature: 3,000 K (warm white)
  -Colour rendering index: R_a = 82
• Average rated life expectancy:

L70B50 at 25^: > 60,000 hours

-Colour consistency SDCM:

starting value: 3

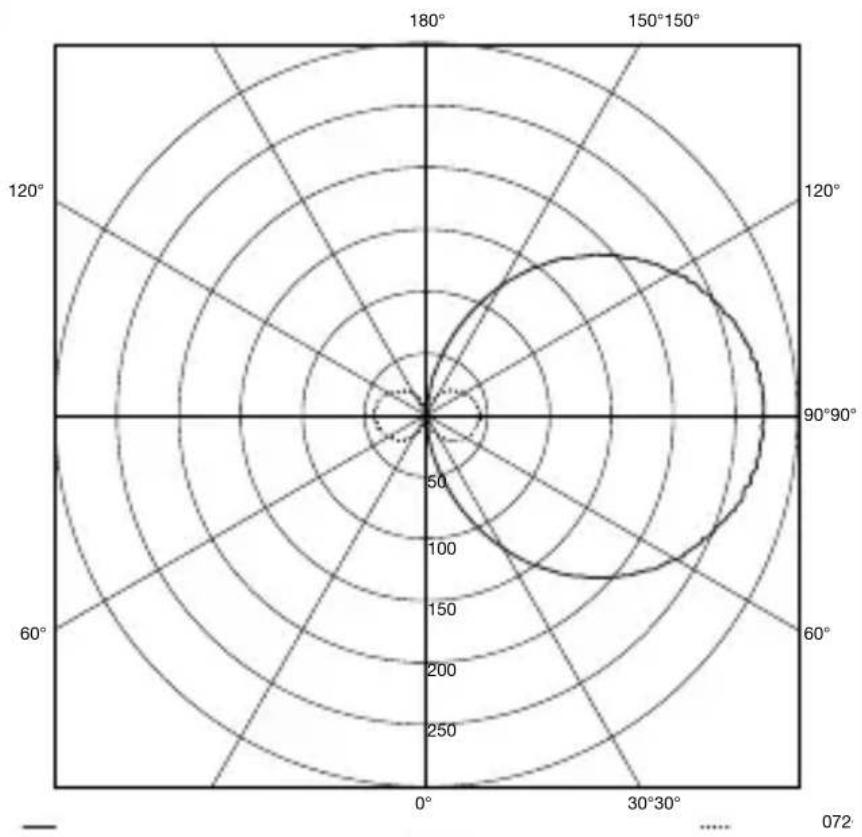

• Luminous intensity distribution:

• Basic light level:

adjustable from 10- 100 %

• Main light:

adjustable from 10- 100 %

• Detection reach*:

max. 8 m tangentially 180^

• Angle of coverage*:

5s-60min

• Time setting*:

Twilight setting*:

2- 2,000 lux

• Reach setting*:

1-8m

• IP rating:

IP44

• Protection class:

//

• Impact resistance:

IK03

• Ambient temperature:

-10 to +40°C

• Energy efficiency class: This product contains a light source from energy efficiency class "E".

• For C: only in combination with a Bluetooth sensor-switched product.

11. Troubleshooting

Unit without power.

• Fuse not switched ON or faulty.

• Switch ON fuse.

• Change faulty fuse.

• Break in wiring.

• Check wiring with voltage tester.
• Short circuit in mains power supply lead.

• Check connections.

• Any mains switch OFF

• Switch ON mains switch.

Unit does not switch ON.

• Wrong twilight setting selected.

• Reset twilight setting.

• Mains switch OFF.

• Turn on mains switch.

• Fuse not switched ON or faulty.

• Switch ON fuse.

• Change faulty fuse.

• Rapid movements being suppressed to minimise malfunctioning, or detection zone too small or incorrectly defined.

• Check and adjust detection zone.

• Light source faulty.
• The light source cannot be changed. Completely replace unit.

Unit does not switch OFF.

• Continued movement within the detection zone.

• Check detection zone.

• If necessary, limit or change detection zone.

Unit switches ON when it should not.

• Floodlight not mounted for detecting movement reliably.
• Securely mount floodlight.
• Movement occurred but not identified by the observer (movement behind wall, small object moving in immediate proximity of lamp etc.).
• Check detection zone.
  If necessary, limit or change detection zone.

FR

Sommaire

Collegamento in rete Bluetooth (Bluetooth Connect Mesh)

Los parámetros de la función de alumbrado permanenteSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEO SEOEO SEOEO SEOEO SEOEO SEOEO SEOEO SEOEO SEOEO SEOEO SEOEO SEOEO SEOEO SEOEO SEOEO SEOEO SEOEO SEOEO SEOEO SEOEO SEOEO SEOEO SEOEO SEOEO SEOEO SEOEO SEOEO SEOEO SEOEO SEOEO SEOEO SEOEO SEOEO SEOEO SEOEO SEOEO SEOEO SEOEO SEOEO SEOEO SEOEO SEOEO SEOEO SEOEO SEOEO SEOEO SEOEO SEOEO SEOEO SEOEO SEOEO SEOEQ

Enhed Eden spending.

J Carcasa (in masca LED)

"Steinel Connect App"

L = Φa3a (obukHOBeHo YepeH, KaΦyB nIi CNB)

N =Hya (O6nKHOBeHo CnH)

PE = 3a3eMaBau npoBoHnK (3eJeH / KbI)

YpeIbT CbIoo MoXe Da 6bIe eIeKtpnueckn CBbp3aH CJIeI IpeKbcBaU, aKO Ce rapaHTnpa, ye IpeKbCBAuT Ie E BKJIIOUeH NOCTOAHNO.

LED ha to3n ypei He moKe da 6bJe 3aMeHn. Ako e Heo6xOIMo, Tp6Ba da 6bJe 3aMeHn ceJIy ypei.

5. MoHTaЖ

Onachoct ot eJektpnueckn TOK!

BcraKO 3aceyeHO DnXKeHne BkIIOUyBa CBETJIiHaTa OTHOBO.

Ipn HacTroPka Ha 0xbata n 3a npOBepKa Ha yHKunTe ce npenopbYBa da 6bde n36paH na- KpaTKn IHTepBaN.

Hac troika Ha CBetnoyBCTBNTeJIHOCTTa

OcbeteHocCTTa Ha 3aJeIcTBAHe (MpaK) moKe da ce peRyJInpa 6e3cteneHNo OT OKOLO 2-2.000 lykca.

Cen3opHnT 7aJItep OTROBApHa cTaHdapTa Bluetooth Mesh. ToJ moKe Ia 6bIe CBbp3aH C BCnUkN ypei, noIbPkaun cTaHdapTa Bluetooth Mesh.

Hactpoikata Ha ceH3OpHna 7aJItep Ce n3BbPbWA ppe3 Steinel Connect App. PnI nbpBOTo cBbP3BaHe mekdy ceH3OpHna 7aJItep n Steinel Connect App B cMaprTfoHa nn Ta6Ieta Ce 3aIIncBaat CbOTBeTHnte MpeXOBn KJIIOOBe. Te3N KJIIOOBe IpeIDOTBpaTЯBaat HexKeJaH DoCTbI Do CEH3Opa.

3adoctbnpOTdpyr cmapToHnIITabJeT MpeKOBnRT KJIou Tp8Ba Da 6bnde CNOdeHeN.

Hactpoikha ha 06Xbata

6.1

O6XbT ha ceH3opa e pa3dJeHn Ha TpN 3OHn:

• Bсяка OT TrпTe 3они може дa ьдe aКТиВираHa ИлдeakTиВираHa CamOCTOrTeJHo.
• 3a BCЯKa OT TpIte 3OHN O6XBaTbT MoJKe Da Ce HaCTpoIbA OTdEJIHo.

CbeHne: Pn HacTpoiKa Ha 0xbaTa ce npenopbYBa:

-Дабъдөнзбран най-кратугий nHTepВал.
- Da ce n36epe dHeBeH peXIM.

YpeIbT He Ce n3KJIIOUvBa.

N =HyJIeBOI npoBOD (uaIe Bcero cnHnI)

PexnM NOCToHHOrO OcBeueHnA

Iapametpbipexkma nocToHHoro OCBeueHn moKHO yCTaHOBNTb NocpeDCTBOM npniloxKeHn Steinel Connect.

B HOBOM npINIOJXeHm MOKHO yCTaHOBnTb NOCTOAHHOE OCBeIeHne IpON3BOJbHO Do ONpeJeJIeHHOro BpeMeHn (obUyeHne BpeMeHn).

• HenpaBnIbHO Bbl6paHa yCTaHOBka cyMepeHoro BKJIIOUeHnI.

3aHOBO OTpereyJInpoBaTb yCTaHOBky cyMepeHOrOBKJIIOUeHnI.

• CeteboB BbIKJIOuataTeIb BblKJI.

• Hactpontb cTeBOB BblKJIIOuataTeIb.

• Преторханпелов Вкюочи илн HeicnpaBeH.

• Bключпь прedoхсангь.
  3aMeHnTb HEnCnpaBHyI npeOxpaHnteJb.

-ДлЯ MINHIMN3aци ПOMex 6bICTpbIe DBNXeHЯ nIHOpnpuyOTc IJIY yCTaHOBJIeHa CJIuXKOM MaJЯ 3OHa O6HapyKeHЯ IJIY yCTaHOBJIeHa He KOppeKTHO.

I3dJIe He BbIKIOUaETcJ.

-ПocToHHoeДВИЖЕнeВЗОнeобиApxKeHЯ.

3aФнксрOBaTb n3dJIne.

-ДВИЖЕНе 6ыло,ODнako,нabиюдать erо He paCNo3HaJI (ДВИЖЕНе 3a CTeHoi,ДВИЖЕНe He6OЛbшОTo OБъЕКТa B HENOCpeIcTBeHHoJ 6bln3OCTn K CBETnJIbHNkU n np.)

• Праверпь зону обаруженя.
• Пи Heo6xOДIMOCtI OrpaHnUHTb 3OHy OXBaTa nJI IN3MeHnTb.

STEINEL GmbH

Dieselstraße 80-84

33442 Herzebrock-Clarholz

Tel: [phone]

www.steinel.de
