USER MANUAL GLL 3 X Professional BOSCH

OBJ BUCH-1236-001.book Page 1 Thursday, May 28, 2010 1:04 PM

Black Bosch 2.0 sensor device with visible adjustment knob (no text or symbols beyond branding)

Robert Bosch GmbH

Power Tools Division

70745 Leinfelden-Echterdingen

Germany

www.bosch-pt.com

1 609 929 W91 (2010.05) T / 218 XXX

GLL 2 Professional

BOSCH

Illustration of a camera mounted on a tripod in a tiled room (no text or symbols)

3D perspective rendering of a room with walls, a camera on a tripod, and a wall-mounted device (no text or symbols)

Interior view of a modern building with vertical supports and a mounted security camera (no visible text or symbols)

F 16 2 607 990 031 BT 350 0 601 015 B00 17 2 607 002 195 18 BS 150 0 601 096 974

1 609 929 W91 | (20.5.10) Bosch Power Tools

6 | Deutsch

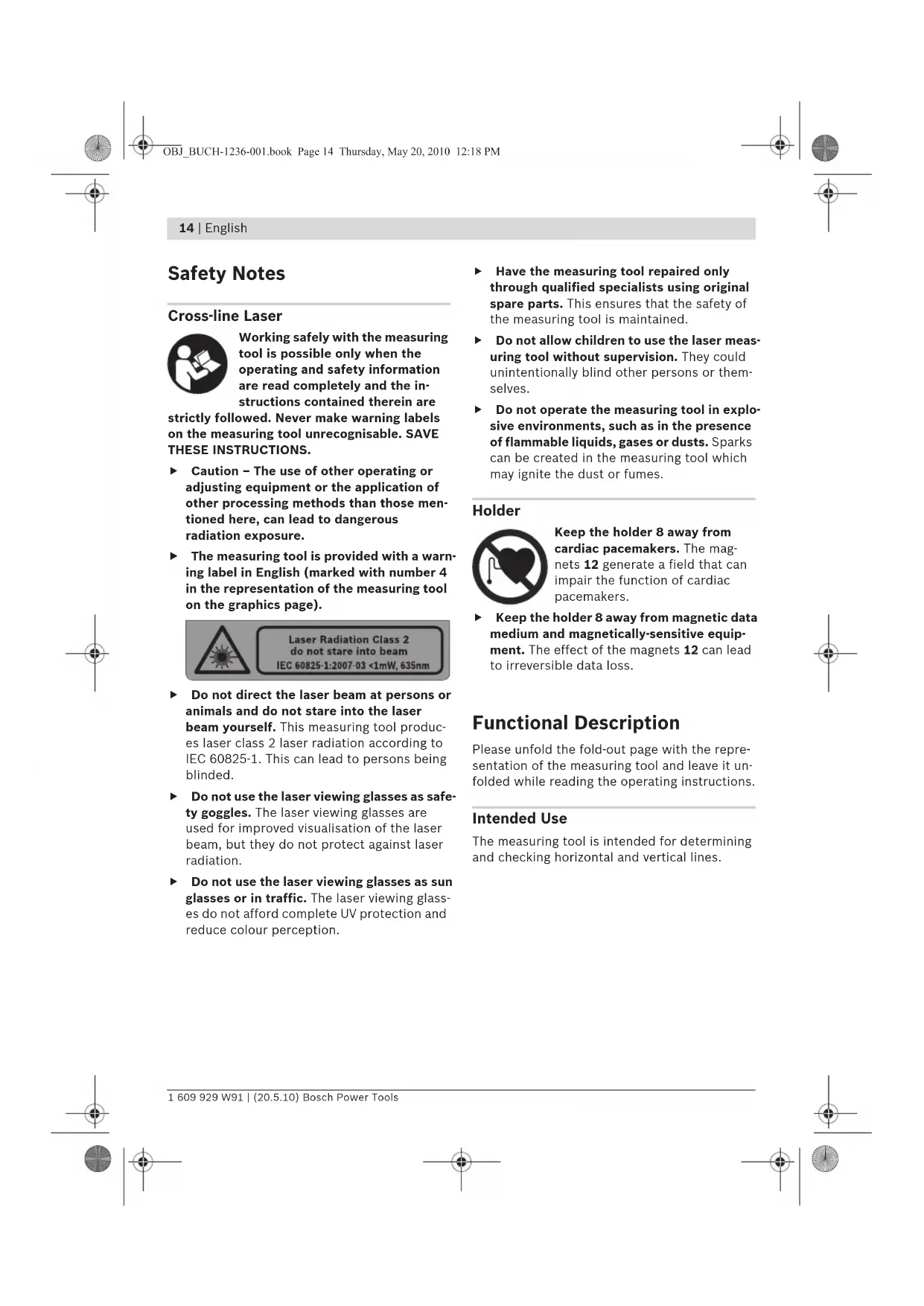

Sicherheitshinweise

Kreuzlinienlaser

A 180° X I B II

A III d I 180° B X II

A I 2.5 m 5.0 m II B

A I II III 5.0 m 2.5 m II B

III II I 2.5 m 2.5 m

III d 2 3 I II

Pure geometric crosshair symbols without any text or labels

12 | Deutsch

Arbeitshinweise

Working safely with the measuring tool is possible only when the operating and safety information are read completely and the instructions contained therein are strictly followed. Never make warning labels on the measuring tool unrecognisable. SAVE THESE INSTRUCTIONS.

▶ Caution – The use of other operating or adjusting equipment or the application of other processing methods than those mentioned here, can lead to dangerous radiation exposure.
The measuring tool is provided with a warning label in English (marked with number 4 in the representation of the measuring tool on the graphics page).

▶ Do not direct the laser beam at persons or animals and do not stare into the laser beam yourself. This measuring tool produces laser class 2 laser radiation according to IEC 60825-1. This can lead to persons being blinded.
▶ Do not use the laser viewing glasses as safety goggles. The laser viewing glasses are used for improved visualisation of the laser beam, but they do not protect against laser radiation.
▶ Do not use the laser viewing glasses as sun glasses or in traffic. The laser viewing glasses do not afford complete UV protection and reduce colour perception.

▶ Have the measuring tool repaired only through qualified specialists using original spare parts. This ensures that the safety of the measuring tool is maintained.
Do not allow children to use the laser measuring tool without supervision. They could unintentionally blind other persons or themselves.
▶ Do not operate the measuring tool in explosive environments, such as in the presence of flammable liquids, gases or dusts. Sparks can be created in the measuring tool which may ignite the dust or fumes.

Holder

Keep the holder 8 away from cardiac pacemakers. The magnets 12 generate a field that can impair the function of cardiac pacemakers.

▶ Keep the holder 8 away from magnetic data medium and magnetically-sensitive equipment. The effect of the magnets 12 can lead to irreversible data loss.

Functional Description

Please unfold the fold-out page with the representation of the measuring tool and leave it unfolded while reading the operating instructions.

Intended Use

The measuring tool is intended for determining and checking horizontal and vertical lines.

English | 15

Technical Data

Cross-line Laser GLL 2
	Professional
Article number	3 601 K63 700
Working range, min.1)	10 m
Levelling Accuracy	± 0.3 mm/m
Self-levelling range, typically	± 4°
Levelling duration, typically	<4 s
Operating temperature	-10 °C ... +50 °C
Storage temperature	-20 °C ... +70 °C
Relative air humidity, max.	90 %
Laser class	2
Laser type	635 nm, <1 mW
C_6	1
Tripod mount
- Cross-line Laser	1/4"
- Holder	1/4"; 5/8"
Batteries	3 x 1 . 5 V L R 0 6 ( A A )
Operating life time, approx.	15 h
Automatic switch-off after approx.	30 min
Weight according to EPTA-Procedure 01/2003	0.25 kg
Dimensions	80 x 42 x 96 mm
Degree of protection	IP 5X (dust protected)

1) The working range can be decreased by unfavourable environmental conditions (e.g. direct sun irradiation).
Please observe the article number on the type plate of your measuring tool. The trade names of the individual measuring tools may vary.
The measuring tool can be clearly identified with the serial number 5 on the type plate.

Product Features

The numbering of the product features shown refers to the illustration of the measuring tool on the graphic page.

1 Exit opening for laser beam
2 Tripod mount 1/4"
3 On/Off switch
4 Laser warning label
5 Serial number
6 Latch of battery lid
7 Battery lid
8 Holder

9 Locking screw for holder

10 Screw holes of holder
11 Opening for strap attachment
12 Magnets
13 1/4" tripod mount on holder
14 5/8" tripod mount on holder
15 Protective pouch
16 Laser viewing glasses*
17 Measuring plate with stand*
18 Tripod*
* The accessories illustrated or described are not included as standard delivery.

16 | English

Assembly

Inserting/Replacing the Battery

Alkali-manganese batteries are recommended for the measuring tool.

To open the battery lid 7, press the latch of the battery lid 6 in the direction of the arrow and remove the battery lid. Insert the supplied batteries. When inserting, pay attention to the correct polarity according to the representation on the inside of the battery compartment.

When the batteries become weak, the laser beams flash rapidly for about 5 s (while the measuring tool is switched on).

Always replace all batteries at the same time. Only use batteries from one brand and with the identical capacity.

Remove the batteries from the measuring tool when not using it for extended periods. When storing for extended periods, the batteries can corrode and discharge themselves.

Operation

Initial Operation

▶ Protect the measuring tool against moisture and direct sun light.
Do not subject the measuring tool to extreme temperatures or variations in temperature. As an example, do not leave it in vehicles for longer periods. In case of large variations in temperature, allow the measuring tool to adjust to the ambient temperature before putting it into operation. In case of extreme temperatures or variations in temperature, the accuracy of the measuring tool can be impaired.
- Avoid heavy impact or falling of the measuring tool. After heavy exterior impact on the measuring tool, an accuracy check should always be carried out before continuing to work (see "Levelling Accuracy").
▶ Switch the measuring tool off during transport. When switching off, the levelling unit, which can be damaged in case of intense movement, is locked.

Switching On and Off

To switch on the measuring tool, push the On/Off switch 3 to the "On" position. Immediately after switching on, the measuring tool sends two laser beams out of the exit opening 1.

▶ Do not point the laser beam at persons or animals and do not look into the laser beam yourself, not even from a large distance.

To switch off the measuring tool, slide the On/Off switch 3 to the "Off" position. When switching off, the levelling unit is locked.

▶ Do not leave the switched on measuring tool unattended and switch the measuring tool off after use. Other persons could be blinded by the laser beam.

The measuring tool switches off automatically after an operating duration of 30 minutes.

Working with Automatic Levelling

Position the measuring tool on a level and firm support, attach it to the holder 8 or to the tripod 18.

After switching on, the levelling function automatically compensates irregularities within the self-levelling range of ±4^ . The levelling is finished as soon as the laser beams do not move any more.

If the automatic levelling function is not possible, e.g. because the surface on which the measuring tool stands deviates by more than 4^ from the horizontal plane, the laser beams flash slowly. In this case, bring the measuring tool to the level position and wait for the self-levelling to take place. As soon as the measuring tool is within the self-levelling range of ±4^ , the laser lines light up continuously again.

In case of ground vibrations or position changes during operation, the measuring tool is automatically levelled in again. To avoid errors, check the position of the horizontal and vertical laser line with regard to the reference points upon relevelling.

Levelling Accuracy

Influences on Accuracy

The ambient temperature has the greatest influence. Especially temperature differences occurring from the ground upward can divert the laser beam.

As thermal fluctuation is largest close to the ground, the measuring tool, if possible, should be mounted on a commercially available tripod and placed in the centre of the working area.

Apart from exterior influences, device-specific influences (such as heavy impact or falling down) can lead to deviations. Therefore, check the accuracy of the measuring tool each time before starting your work.

First, check both the height as well as the levelling accuracy of the horizontal laser line, then the levelling accuracy of the vertical laser line.

Should the measuring tool exceed the maximum deviation during one of the tests, please have it repaired by a Bosch after-sales service.

Checking the Height Accuracy of the Horizontal Line

For this check, a free measuring distance of 5 metres on a firm surface between two walls A and B is required.

- Mount the measuring tool onto the holder or a tripod, or place it on a firm and level surface close to wall A. Switch the measuring tool on.

A B 1 5 m

- Direct the laser against the close wall A and allow the measuring tool to level in. Mark the centre of the point where the laser lines cross each other on the wall (point 1).

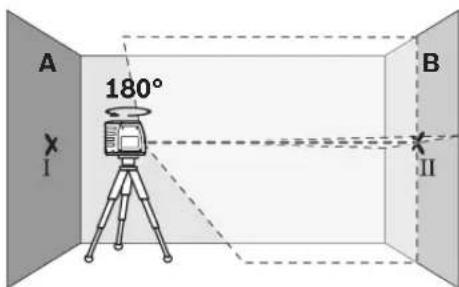

A 180° I B II

- Turn the measuring tool by 180^ , allow it to level in and mark the cross point of the laser lines on the opposite wall B (point II).

- Without turning the measuring tool, position it close to wall B. Switch the measuring tool on and allow it to level in.

A X I B II

- Align the height of the measuring tool (using a tripod or by underlaying, if required) in such a manner that the cross point of the laser lines is projected against the previously marked point II on the wall B.

18 | English

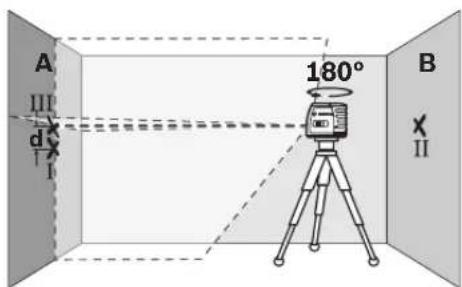

A III d I 180° B X II

• Without changing the height, turn around the measuring tool by 180^ . Direct it against the wall A in such a manner that the vertical laser line runs through the already marked point 1. Allow the measuring tool to level in and mark the cross point of the laser lines on the wall A (point III).
• The difference d of both marked points I and III on wall A indicates the actual height deviation of the measuring tool.

The maximum permitted deviation d_max is calculated as follows:

d_max = double distance of the walls x 0.3 mm/m Example: With a 5 metre distance between the walls, the maximum deviation must not exceed d_max = 2 x 5 m x 0.3 mm/m = 3 mm. Thus marks must not be more than 3 mm apart.

Checking the Levelling Accuracy of the Horizontal Line

For the check, a free surface of approx. 5 x 5 metres is required.

- Mount the measuring tool between both walls A and B onto the holder or a tripod, or place it on a firm and level surface. Allow the measuring tool to level in.

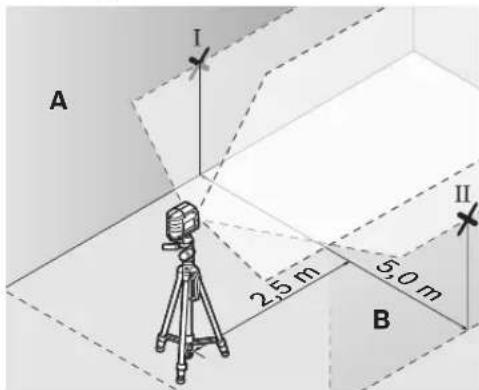

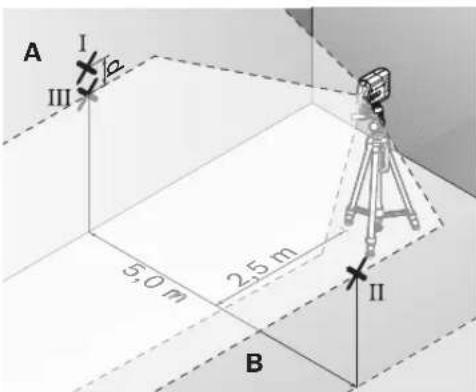

A I 2.5 m 5.0 m II B

- At a distance of 2.5 metres from the measuring tool, mark the centre of the laser line (point I on wall A and point II on wall B) on both walls.

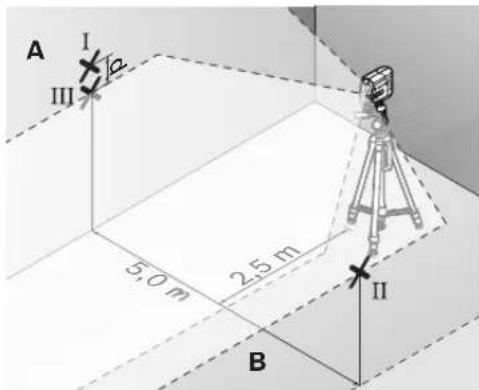

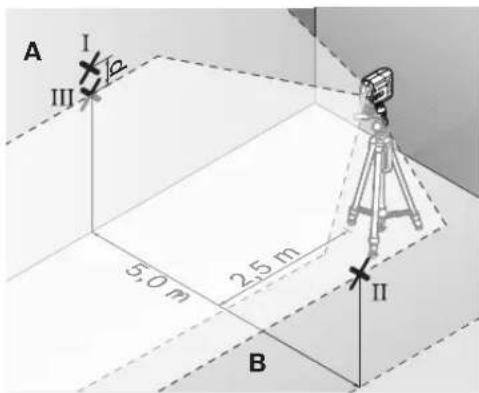

A I II III 5.0 m 2.5 m II B

• Set up the measuring tool 5 metres away turned by 180^ and allow it to level in.
• Align the height of the measuring tool (using a tripod or by underlaying, if required) in such a manner that the centre of the laser line is projected exactly against the previously marked point 11 on wall B.

h Mark the centre of the laser line as point III (vertically above or below point I) on the wall A.

- The difference d of both marked points I and III on wall A indicates the actual deviation of the measuring tool from the level plane.

The maximum permitted deviation d_max is calculated as follows:

d_max = double distance of the walls x 0.3 mm/m Example: With a 5 metre distance between the walls, the maximum deviation must not exceed d_max = 2 x 5 m x 0.3 mm/m = 3 mm. Thus, the marks must not be more than 3 mm apart.

Checking the Levelling Accuracy of the Vertical Line

For this check, a door opening is required with at least 2.5 metres of space (on a firm surface) to each side of the door.

- Position the measuring tool on a firm, level surface (not on a tripod) 2.5 m away from the door opening. Direct the laser beams at the door opening and allow the measuring tool to level in.

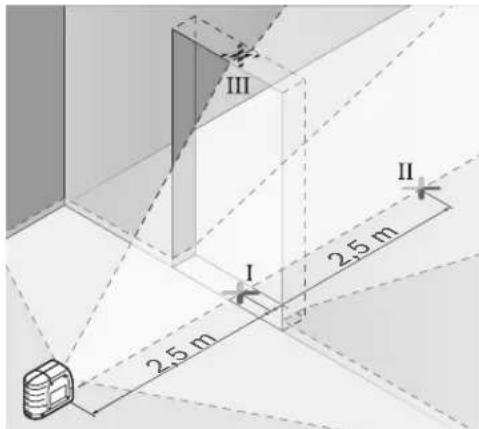

III II I 2.5 m 2.5 m

- Mark the centre of the vertical laser line at the floor of the door opening (point I), at a distance of 5 metres beyond the other side of the door opening (point II) and at the upper edge of the door opening (point III).

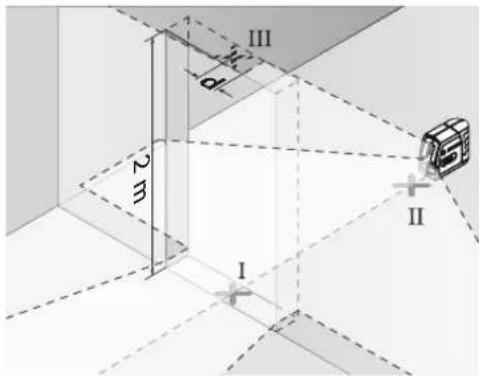

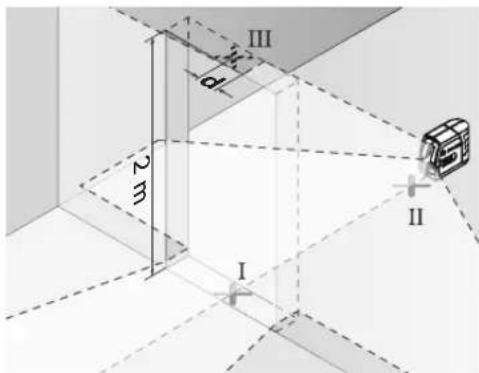

III d 2 3 I II

- Position the measuring tool on the other side of the door opening directly behind point II. Allow the measuring tool to level in and align the vertical laser line in such a manner that its centre runs exactly through points I and II.

• The difference d between point III and the centre of the laser line at the upper edge of the door opening results in the actual deviation of the measuring tool from the vertical plane.
• Measure the height of the door opening.

The maximum permitted deviation d_max is calculated as follows:

d_max = double height of the door opening x 0.3 mm/m

Example: With a door opening height of 2 metres, the maximum permitted deviation is d_max = 2 × 2 m × 0.3 mm/m = 1.2 mm . Thus, the marks must not be more than 1.2 mm apart.

Working Advice

▶ Always use the centre of the laser line for marking. The width of the laser line changes with the distance.

Attaching with the Holder

To fasten the measuring tool on the holder 8, screw the locking screw 9 of the holder into the 1/4" tripod mount 2 on the measuring tool and tighten. To rotate the measuring tool on the holder, slightly loosen the screw 9.

With the holder 8, the measuring tool can be attached as follows:

• Mount the holder 8 to the tripod 18 or a commercially available camera tripod via the 1/4" tripod mount 13. For fastening to a commercially available construction tripod, use the 5/8" tripod mount 14.
• The holder 8 can be fastened to steel parts via the magnets 12.
• The holder 8 can be fastened to drywalls or wood walls with screws. For this, insert screws with a minimum length of 50 mm into the screw holes 10 of the holder.
• The holder 8 can also be fastened to pipes or similar beams using a commercially available strap by threading it through the opening 11 for strap attachment.

Working with the Tripod (Accessory)

A tripod offers a stable, height-adjustable measuring support. Place the measuring tool via the tripod mount 2 onto the 1/4" male thread of the tripod and screw the locking screw of the tripod tight.

20 | English

Working with the Measuring Plate (Accessory) (see figures A-B)

With the measuring plate 17, it is possible to project the laser mark onto the floor or the laser height onto a wall.

With the zero field and the scale, the offset or drop to the required height can be measured and projected at another location. This eliminates the necessity of precisely adjusting the measuring tool to the height to be projected.

The measuring plate 17 has a reflective coating that enhances the visibility of the laser beam at greater distances or in intense sunlight. The brightness intensification can be seen only when viewing, parallel to the laser beam, onto the measuring plate.

Laser Viewing Glasses (Accessory)

The laser viewing glasses filter out the ambient light. This makes the red light of the laser appear brighter for the eyes.

▶ Do not use the laser viewing glasses as safety goggles. The laser viewing glasses are used for improved visualisation of the laser beam, but they do not protect against laser radiation.
Do not use the laser viewing glasses as sun glasses or in traffic. The laser viewing glasses do not afford complete UV protection and reduce colour perception.

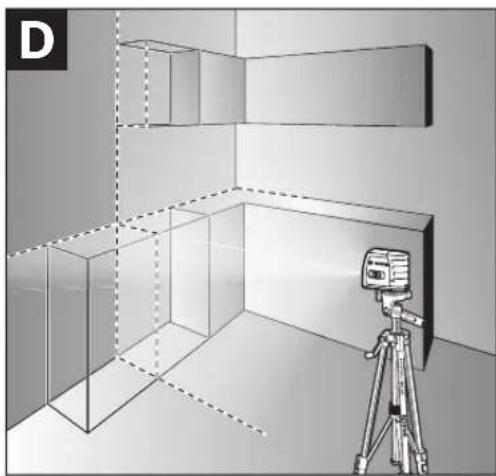

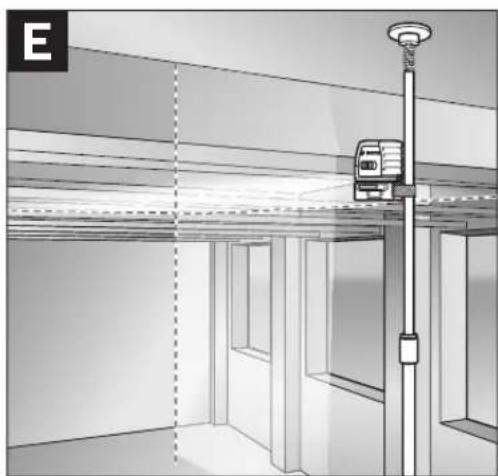

Work Examples (see figures C–E)

Applicational examples for the measuring tool can be found on the graphics pages.

Maintenance and Service

Maintenance and Cleaning

Store and transport the measuring tool only in the supplied protective pouch.

Keep the measuring tool clean at all times.

Do not immerse the measuring tool in water or other fluids.

Wipe off debris using a moist and soft cloth. Do not use any cleaning agents or solvents.

Regularly clean the surfaces at the exit opening of the laser in particular, and pay attention to any fluff of fibres.

If the measuring tool should fail despite the care taken in manufacturing and testing procedures, repair should be carried out by an authorised after-sales service centre for Bosch power tools. Do not open the measuring tool yourself.

In all correspondence and spare parts orders, please always include the 10-digit article number given on the type plate of the measuring tool.

In case of repairs, send in the measuring tool packed in its protective pouch 15.

After-sales Service and Customer Assistance

Our after-sales service responds to your questions concerning maintenance and repair of your product as well as spare parts. Exploded views and information on spare parts can also be found under:

www.bosch-pt.com

Our customer service representatives can answer your questions concerning possible applications and adjustment of products and accessories.

Great Britain

Robert Bosch Ltd. (B.S.C.)

P.O. Box 98

Broadwater Park

North Orbital Road

Denham

Uxbridge

UB 9 5HJ

Tel. Service: [phone]

Fax: [phone]

E-Mail: [e-mail]

Ireland

Origo Ltd.

Unit 23 Magna Drive

Magna Business Park

City West

Dublin 24

Tel. Service: [phone]

Fax: [phone]

Australia, New Zealand and Pacific Islands

Robert Bosch Australia Pty. Ltd.

Power Tools

Locked Bag 66

Clayton South VIC 3169

Customer Contact Center

Inside Australia:

Phone: [phone]

Fax: [phone]

Inside New Zealand:

Phone: [phone]

Fax: [phone]

Outside AU and NZ:

Phone: [phone]

www.bosch.com.au

Republic of South Africa

Customer service

Hotline: [phone]

Gauteng - BSC Service Centre

35 Roper Street, New Centre

Johannesburg

Tel.: [phone]

Fax: [phone]

E-Mail: [e-mail]

KZN - BSC Service Centre

Unit E, Almar Centre

143 Crompton Street

Pinetown

Tel.: [phone]

Fax: [phone]

E-Mail: [e-mail]

Western Cape - BSC Service Centre

Democracy Way, Prosperity Park

Milnerton

Tel.: [phone]

Fax: [phone]

E-Mail: [e-mail]

Bosch Headquarters

Midrand, Gauteng

Tel.: [phone]

Fax: [phone]

E-Mail: [e-mail]

People's Republic of China

Website: www.bosch-pt.com.cn

China Mainland

Bosch Power Tools (China) Co., Ltd.

567, Bin Kang Road

Bin Jiang District 310052

Hangzhou, P.R.China

Service Hotline: [phone]

Tel.: [phone]

Fax: [phone]

HK and Macau Special Administrative Regions

Robert Bosch Hong Kong Co. Ltd.

21st Floor, 625 King's Road

North Point, Hong Kong

Customer Service Hotline: [phone]

Fax: [phone]

E-Mail: [e-mail]

www.bosch-pt.com.cn

Indonesia

PT. Multi Tehaka

Kawasan Industri Pulogadung

Jalan Rawa Gelam III No. 2

Jakarta 13930

Indonesia

Tel.: [phone]

Fax: [phone] 23

E-Mail: [e-mail]

www.multitehaka.co.id

Philippines

Robert Bosch, Inc.

28th Floor Fort Legend Towers,

3rd Avenue corner 31st Street,

Fort Bonifacio Global City,

1634 Taguig City, Philippines

Tel.: [phone]

Fax: [phone]

[e-mail]

www.bosch-pt.com.ph

Bosch Service Center:

9725-27 Kamagong Street

San Antonio Village

Makati City, Philippines

Tel.: [phone]

Fax: [phone]

[e-mail]

22 | English

Malaysia

Robert Bosch (S.E.A.) Pte. Ltd.

No. 8A, Jalan 13/6

G.P.O. Box 10818

46200 Petaling Jaya

Selangor, Malaysia

Tel.: [phone]

Fax: [phone]

[e-mail]

Toll-Free: 1800 880 188

www.bosch-pt.com.my

Thailand

Robert Bosch Ltd.

Liberty Square Building

No. 287, 11 Floor

Silom Road, Bangrak

Bangkok 10500

Tel.: [phone] - 18 88 (10 lines)

Fax: [phone]

Robert Bosch Ltd., P. O. Box 2054

Bangkok 10501, Thailand

Bosch Service – Training Centre

2869-2869/1 Soi Ban Kluay

Rama IV Road (near old Paknam Railway)

Prakanong District

10110 Bangkok

Thailand

Tel.: [phone] - 4

Fax: [phone]

Fax: [phone]

Singapore

Robert Bosch (SEA) Pte. Ltd.

11 Bishan Street 21

Singapore 573943

Tel.: [phone]

Fax: [phone]

[e-mail]

Toll-Free: 1800 333 8333

www.bosch-pt.com.sg

Vietnam

Robert Bosch Vietnam Co. Ltd

10/F, 194 Golden Building

473 Dien Bien Phu Street

Ward 25, Binh Thanh District

84 Ho Chi Minh City

Vietnam

Tel.: [phone] ext. 413

Fax: [phone]

[e-mail]

www.bosch-pt.com

Disposal

Measuring tools, accessories and packaging should be sorted for environmental-friendly recycling.

Only for EC countries:

Do not dispose of measuring tools into household waste!

According the European Guideline 2002/96/EC for Waste Electrical and Electronic Equipment and its implementation into national

right, measuring tools that are no longer usable must be collected separately and disposed of in an environmentally correct manner.

Battery packs/batteries:

Do not dispose of battery packs/batteries into household waste, fire or water. Battery packs/batteries should, if possible, be discharged, collected, recycled or disposed of in an environmental-friendly manner.

Only for EC countries:

Defective or dead out battery packs/batteries must be recycled according the guideline 2006/66/EC.

Batteries no longer suitable for use can be directly returned at:

Great Britain

Robert Bosch Ltd. (B.S.C.)

P.O. Box 98

Broadwater Park

North Orbital Road

Denham

Uxbridge

UB 9 5HJ

Tel. Service: [phone]

Fax: [phone]

E-Mail: [e-mail]

Subject to change without notice.

Français | 23

Pure geometric crosshair symbols without any text or labels

26 | Français

A III d I 180° B X II

A I 2.5 m 5.0 m II B

A I II III 5.0 m 2.5 m II B

III II I 2.5 m 2.5 m

III d 2 3 I II

Robert Bosch (France) S.A.S.

Pure geometric diagram with crosshair and circular shapes (no text or symbols)

34 | Español

A 180° X I B II

A III d I 180° B X II

A I 2.5 m 5.0 m II B

A I II III 5.0 m 2.5 m II B

III II I 2.5 m 2.5 m

III d 2 3 I II

Pure geometric diagram with crosshair and circular shapes, no text or symbols present

38 | Español

Pure geometric crosshair symbols without any text or labels

42 | Português

A 180° X I B II

A III d I 180° B X II

A I 2.5 m 5.0 m II B

III I 2.5 m 2.5 m II

Pure geometric crosshair symbols without any text or labels

46 | Português

Pure geometric diagram with crosshair and circular shapes, no text or symbols present

50 | Italiano

A III d I 180° B X II

A I 2.5 m 5.0 m II B

A I II III 5.0 m 2.5 m II B

III II I 2.5 m 2.5 m

III d 2 3 I II

Pure geometric diagram with crosshair and circular shapes, no text or symbols present

54 | Italiano

Pure geometric crosshair symbols without any text or labels

58 | Nederlands

A 180° X I B II

A III d I 180° B X II

A I 2.5 m 5.0 m II B

A I II III 5.0 m 2.5 m II B

III II I 2.5 m 2.5 m

Pure geometric diagram with crosshair and circular shapes, no text or symbols present

62 | Nederlands

Klantenservice en advies

Pure geometric crosshair symbols without any text or labels

66 | Dansk

A III d I 180° B X II

A I 2.5 m 5.0 m II B

A I II III 5.0 m 2.5 m II B

III II I 2.5 m 2.5 m

Pure geometric diagram with crosshair and circular shapes (no text or symbols)

68 | Dansk

III d e II I

Bosch Service Center

Telegrafvej 3

2750 Ballerup

Tel. Service Center: [phone]

Fax: [phone]

E-Mail: [e-mail]

Bortskaffelse

A III d I 180° B X II

A I 2.5 m 5.0 m II B

A I II III 5.0 m 2.5 m II B

III II I 2.5 m 2.5 m

III 2.3 I II

Bosch Service Center

Telegrafvej 3

2750 Ballerup

Danmark

Tel.: [phone]

Fax: [phone]

Avfallshantering

Pure geometric crosshair symbols without any text or labels

80 | Norsk

A I 2.5 m 5.0 m II B

A I II III 5.0 m 2.5 m II B

III II I 2.5 m 2.5 m

III d 2 3 I II

A I 2.5 m 5.0 m II B

A I II III 5.0 m 2.5 m II B

III II I 2.5 m 2.5 m

III d 2 3 I II

Pure geometric diagram with crosshair and circular shapes, no text or symbols present

90 | Suomi

Pure geometric crosshair symbols without any text or labels

94 | Ελληνικά

A III d I 180° B X II

A I 2.5 m 5.0 m II B

A I II III 5.0 m 2.5 m B

III II I 2.5 m 2.5 m

Pure geometric crosshair symbols without any text or labels

98 | Ελληνικά

A I 2,5 m 5,0 m B II

A I II III 5.0 m 2.5 m II B

III II I 2.5 m 2.5 m

III d 2 3 I II

Bosch San. ve Tic. A.S.

Ahi Evran Cad. No:1 Kat:22

Polaris Plaza

80670 Maslak/Istanbul

A III d I 180° B X II

A I 2.5 m 5.0 m II B

A I II III 5.0 m 2.5 m II B

III II I 2.5 m 2.5 m

III d 2 3 I II

Robert Bosch Sp. z o.o.

A B I 5 m

A X I B II

Pure geometric diagram with crosshair and circular shapes, no text or symbols present

118 | Česky

A I 2.5 m 5.0 m B II

A I II III 5.0 m 2.5 m II B

III II I 2.5 m 2.5 m

III d 2 3 I II

Bosch Service Center PT

K Vápence 1621/16

692 01 Mikulov

Tel.: [phone]

Fax: [phone]

E-Mail: [e-mail]

www.bosch.cz

Údržba a servis

Údržba a čištění

Pure geometric diagram with crosshair and circular shapes (no text or symbols)

124 | Slovensky

Presnost' nivelácie

A I 2.5 m 5.0 m II B

- Vo vzdialenosti 2,5 m od meracieho pristroja označte na oboch stenách stredy laserovej linie (bod I na stene A a bod II na stene B).

A I II III 5.0 m 2.5 m II B

III II I 2.5 m 2.5 m

III 2.3 I II

Pure geometric diagram with crosshair and circular shapes, no text or symbols present

A B I 5 m

A 180° X I B II

A I 2.5 m 5.0 m II B

A I II III 5.0 m 2.5 m II B

III II I 2.5 m 2.5 m

III d 2 3 I II

A III d I 180° B X II

A I 2.5 m 5.0 m B II

A I II III 5.0 m 2.5 m II B

III II I 2.5 m 2.5 m

III d 2 3 I II

Pure geometric diagram with crosshair and circular shapes, no text or symbols present

148 | Українська

A 180° B X I II

A III d I 180° B X II

A I 2.5 m 5.0 m II B

A I II III 5.0 m 2.5 m II B

III II I 2.5 m 2.5 m

III d 2 3 I II

Pure geometric crosshair symbols without any text or labels

156 | Română

A I 2.5 m 5.0 m II B

A I II III 5.0 m 2.5 m II B

III II I 2.5 m 2.5 m

III 2.3 I II

A III d I 180° B X II

A I 2,5 m 5,0 m B II

A I II III 5.0 m 2.5 m II B

III II I 2.5 m 2.5 m

III II I 2 3

A I 2.5 m 5.0 m II B

- Označite na 2,5 m rastojanja od mernog alata na oba zida sredinu laserske linije (tačka I na zidu A i tačka II na zidu B).

A I II III 5.0 m 2.5 m II B

• Postavite merni alat okrenut za 180° nedostaje stepen na 5 m rastojanja i nivelišite ga.
• Postavite merni alat po visini tako (pomoću stativa ili u datom slučaju putem podmetača), da sredina laserske linije tačno pogadja prethodno označenu tačku II na zidu B.
• Označite na zidu A sredinu laserske linije kao tačku III (vertikalno preko odnosno ispod tačke I).
• Razlika d obe označene tačke I i III na zidu A daje stvarno odstupanje mernog alata od horizontale.

III II I 2.5 m 2.5 m

- Označite sredinu vertikalne laserske linije na podu otvora vrata (tačka I), 5 m rastojanja druge strane otvora vrata (tačka II), kao i na gornjoj ivici otvora vrata (tačka III).

Srpski | 173

III d e II I

– Postavite merni alat na drugoj strani otvora vrata direktno iza tačke II. Nivelišite merni alat i postavite vertikalnu lasersku liniju tako, da njena sredina prolazi tačno kroz tačke I i II.
- Razlika d izmedju tačke III i sredine laserske linije na gornjoj ivici otvora vrata daje stvarno odstupanje mernog alata od vertikale.
- Merite visinu otvora vrata.

Pure geometric diagram with crosshair and circular shapes, no text or symbols present

178 | Slovensko

Točnost niveliranja

Vplivi na točnost

A I 2.5 m 5.0 m II B

A I II III 5.0 m 2.5 m II B

- Obrnite merilno orodje za 180° in ga posta-vite 5 m stran od stene ter počakajte, da se nivelira.

III II I 2.5 m 2.5 m

III d e 2 II I

A X I B II

A I 2.5 m 5.0 m II B

A I II III 5.0 m 2.5 m II B

III II I 2.5 m 2.5 m

- Označite sredinu okomite linije lasera na dnu otvora vrata (točka I), na udaljenosti 5 m na drugoj strani otvora vrata (točka II), kao i na gornjem rubu otvora vrata (točka III).

Hrvatski | 187

III d e 2 3 I II

Pure geometric diagram with crosshair and circular shapes, no text or symbols present

188 | Hrvatski

A X I B II

A I 2.5 m 5.0 m B II

- Märkige seadmest 2,5 m kaugusel mölemale seinale laserkiire keskpunkt (punkt I seinal A ja punkt II seinal B).

A I II III 5.0 m 2.5 m II B

III II I 2.5 m 2.5 m

III d e II I

A 180° X I B II

A III d I 180° B X II

A I 2.5 m 5.0 m II B

A I II III 5.0 m 2.5 m II B

III II I 2.5 m 2.5 m

III d 2 3 I II

A I 2.5 m 5.0 m II B

A I II III 5,0 m 2.5 m II B

III II I 2.5 m 2.5 m

III 2.3 I II

A X I B II

A III d I 180° B X II

A I 2.5 m 5.0 m II B

A I II III 5.0 m 2.5 m II B

III II I 2.5 m 2.5 m

III d 2 m I II
