USER MANUAL GTL 3 Professional BOSCH

3D model of a Bosch electric shaver with mounting feet and warning label (no readable text beyond brand name)

GTL 3 Professional

Robert Bosch GmbH

Power Tools Division

70745 Leinfelden-Echterdingen

Germany

www.bosch-pt.com

on Original instructions

fr Notice originale

es Manual original

pt Manual original

F BOSCH P BOSCH BOSCH P

Bosch Power Tools 1 609 929 S09 | (15.10.08)

10 1 609 203 X74 11

12 1 609 203 X75

13 2 607 990 031

14 2 607 001 301

Sicherheitshinweise

I II III 5 m 10 m

I II III IV

I V II III IV

I II III 5 m 10 m

I II III VI V IV

Working safely with the measuring tool is possible only when the operating and safety information are read completely and the instructions contained therein are strictly followed. Never make warning labels on the measuring tool unrecognisable. SAVE THESE INSTRUCTIONS.

• Caution – The use of other operating or adjusting equipment or the application of other processing methods than those mentioned here, can lead to dangerous radiation exposure.
  The measuring tool is provided with a warning label in English (marked with number 2 in the representation of the measuring tool on the graphics page).

Laser Radiation Class 2 do not stare into beam IEC 60825-1:2007-03 <1 mW, 635 nm

Do not direct the laser beam at persons or animals and do not stare into the laser beam yourself. This measuring tool produces laser class 2 laser radiation according to IEC 60825-1. This can lead to persons being blinded.

▶ Do not use the laser viewing glasses as safety goggles. The laser viewing glasses are used for improved visualisation of the laser beam, but they do not protect against laser radiation.
▶ Do not use the laser viewing glasses as sun glasses or in traffic. The laser viewing glasses do not afford complete UV protection and reduce colour perception.
▶ Have the measuring tool repaired only through qualified specialists using original spare parts. This ensures that the safety of the measuring tool is maintained.
▶ Do not allow children to use the laser measuring tool without supervision.
They could unintentionally blind other persons or themselves.

Keep the measuring tool and the ceiling measurement plate 14 away from cardiac pacemakers. The magnets 4 on the underside of the measuring tool as well as the magnets on the ceiling measurement plate generate a field that can impair the function of cardiac pacemakers.

- Keep the measuring tool and the ceiling measurement plate 14 away from magnetic data medium and magnetically-sensitive equipment. The effect of the magnets 4 on the underside of the measuring tool and the magnets on the ceiling measurement plate can lead to irreversible data loss.

Functional Description

Please unfold the fold-out page with the representation of the measuring tool and leave it unfolded while reading the operating instructions.

Intended Use

The measuring tool is intended for determining and checking right angles as well as for aligning tiles in angles of 45^ and 90^ .

Product Features

The numbering of the product features shown refers to the illustration of the measuring tool on the graphic page.

1 Exit opening for laser beam
2 Laser warning label
3 On/Off button
4 Magnets
5 Serial number
6 Battery lid
7 Latch of battery lid
8 Battery indication
9 Laser target plate

10 Levelling plate

11 Cut-out in the levelling plate

12 Protective case

13 Laser viewing glasses*

14 Ceiling measurement plate*

*Accessories shown or described are not part of the standard delivery scope of the product. A complete overview of accessories can be found in our accessories program.

Technical Data

Tile laser GTL 3
	Professional
Article number	3 601 K15 200
Working range (with laser target plate or with ceiling plate)	20 m ^1)
Angular accuracy ± 0.2 mm/m	2)
Operating temperature - 10 °C ... +50 °C
Storage temperature	- 20 °C ... +70 °C
Relative air humidity, max.	90 %
Laser class	2
Laser type	635 nm, <1 mW
C _6	1
Batteries	4 x 1 . 5 V L R 6 ( A A )
Operating life time
- with 2 laser lines	18 h
- with 3 laser lines	12 h
Automatic switch-off after approx.	30 min
Weight according to EPTA-Procedure 01/2003	0.5 kg
Dimensions	156 x 102 x 98 mm
Degree of protection	IP 54 (dust and splash water protected)

1) The working range can be decreased by unfavourable environmental conditions (e.g. direct sun irradiation).
2) The angular accuracy between the 45^ laser line and the 90^ laser line is max. ±0.4 mm/m.
Please observe the article number on the type plate of your measuring tool. The trade names of the individual measuring tools may vary.
The measuring tool can be clearly identified with the serial number 5 on the type plate.

Assembly

Inserting/Replacing the Battery

Alkali-manganese batteries are recommended for the measuring tool.

To open the battery lid 6, press on the latch 7 and fold the battery lid up. Insert the batteries. When inserting, pay attention to the correct polarity according to the representation on the inside of the battery compartment.

When the battery indication 8 flashes, the batteries are weak. When the battery indication flashes for the first time, the measuring tool can still be operated for approx. 2 h.

When the battery indication 8 lights up constantly, measuring is no longer possible. The measuring tool automatically switches off after a short time.

Always replace all batteries at the same time. Only use batteries from one brand and with the identical capacity.

▶ Remove the batteries from the measuring tool when not using it for extended periods. When storing for extended periods, the batteries can corrode and discharge themselves.

Operation

Initial Operation

▶ Protect the measuring tool against moisture and direct sun irradiation.
▶ Do not subject the measuring tool to extreme temperatures or variations in temperature. As an example, do not

leave it in vehicles for longer periods. In case of large variations in temperature, allow the measuring tool to adjust to the ambient temperature before putting it into operation. In case of extreme temperatures or variations in temperature, the accuracy of the measuring tool can be impaired.

- Avoid heavy impacts or falling down of the measuring tool. If the measuring tool has been exposed to extreme conditions, you should always check the accuracy of the measuring tool before continuing your work (see “Angular accuracy”, page 22).

Switching On and Off

To switch on the measuring tool, press the On/Off button 3 once briefly. Immediately after the switching on, the measuring tool projects the three laser lines 0°, 45° and 90° from the exit openings 1. Furthermore, the battery indication 8 lights up for 3 s.

▶ Do not point the laser beam at persons or animals and do not look into the laser beam yourself, not even from a large distance.

When the On/Off button 3 is pressed a second time, the measuring tool switches over from 3-line operation to 2-line operation: Only the 0° and the 90° laser lines are projected.

To switch off the measuring tool, press the On/Off button 3 a third time.

Deactivating the Automatic Shut-off

The measuring tool switches off automatically after an operating duration of 30 minutes.

To deactivate the automatic switch-off, press the On/Off button 3 for 3 s when you switch on the measuring tool. When the automatic switch-off is deactivated, the laser lines flash briefly to confirm after the switching on.

▶ Do not leave the switched on measuring tool unattended and switch the measuring tool off after use. Other persons could be blinded by the laser beam.

To activate the automatic switch-off, switch the measuring tool off and switch it on again by pressing briefly the On/Off button 3. After the switching on, the laser lines do not flash.

Angular accuracy

Influences on Accuracy

The ambient temperature has the greatest influence. Especially temperature differences occurring from the ground upward can divert the laser beam.

Therefore, position the measuring tool as near as possible to the work surface and fix it with the underside as parallel as possible to the work surface.

Apart from exterior influences, device-specific influences (such as heavy impact or falling down) can lead to deviations. Therefore, check the accuracy of the measuring tool each time before starting your work.

Checking the angular accuracy

For this check, you need a free surface of approx. 10 x 5 m on a stable and even base.

Should the measuring tool exceed the maximum deviation during one of the tests, please have it repaired by a Bosch after-sales service.

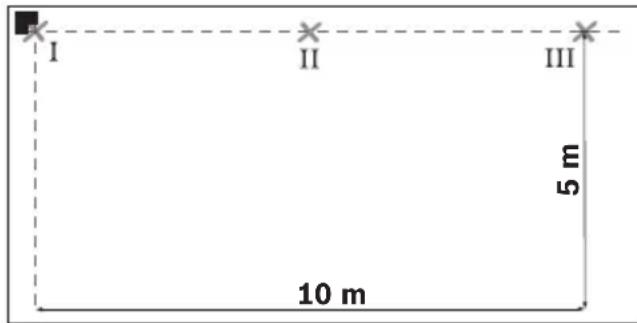

Checking the angular accuracy between the 0° and the 90° laser lines

- Position the measuring tool in one of the corners of the measuring surface. Switch on the measuring tool and align it so that the 0^ laser line runs along the long side of the measuring surface and that the 90^ laser line runs along the short side of the measuring surface.

I II III 5 m 10 m

- Mark the crossing point of the laser lines on the floor (Point I). Mark also the centre of the 0^ laser line at a distance of 5 m (Point II) and at a distance of 10 m (Point III).

I II III IV

- Position the measuring tool (without turning it) at a distance of 5 m so that the crossing point of the laser lines is on the already marked point II and that the 0° laser line runs through the point III. Mark the centre of the 90° laser line at a distance of 5 m (Point IV).

I V II III IV

• Turn the measuring tool by 90^ so that the centre of the 0^ laser line runs through the point IV.
  The crossing point of the laser lines must still be on the point II.
• Mark the centre of the 90^ laser line at a distance of 5 m as point V as near as possible next to the point 1.
• The difference d of the two points V and I is the actual deviation of the 0° laser line and the 90° laser line from the right angle.

The measuring length 2 × 5 m = 10 m has a maximum admissible deviation of: 10 m × ± 0.2 mm/m = ± 2 mm .

Therefore, the maximum difference d between the points I and V may be 2 mm or less.

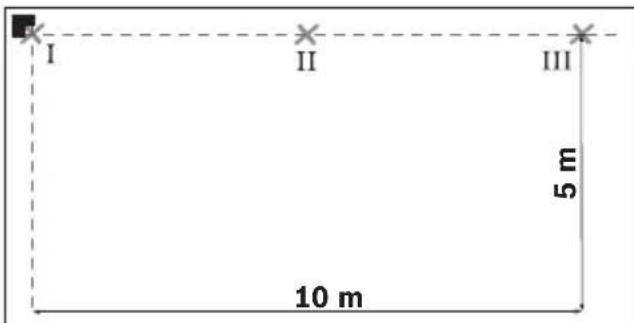

Checking the angular accuracy between the 0° and the 45° laser lines

- Position the measuring tool in one of the corners of the measuring surface. Switch on the measuring tool and align it so that the 0^ laser line runs along the long side of the measuring surface and that the 90^ laser line runs along the short side of the measuring surface.

I II III 5 m 10 m

- Mark the crossing point of the laser lines on the floor (Point I). Mark also the centre of the 0^ laser line at a distance of 5 ~m (Point II) and at a distance of 10 ~m (Point III).

I II III IV

- Position the measuring tool (without turning it) at a distance of 5 m so that the crossing point of the laser lines is on the already marked point II and that the 0° laser line runs through the point III. Mark the 45° laser line at a distance of 5 m (Point IV).

I II' III IV V

- Turn the measuring tool by 45^ so that the centre of the 0^ laser line runs through the point IV. The crossing point of the laser lines must still be on the point II. Mark the 45^ laser line at a distance of 5 m as point V.

I II III VI V IV

- Turn the measuring tool by 45^ so that the centre of the 0^ laser line runs through the point V. The crossing point of the laser lines must still be on the point II. Mark the 45^ laser line at a distance of 5 m as point VI.

I II III VII VI IV V

• Turn the measuring tool by 45^ so that the centre of the 0^ laser line runs through the point VI. The crossing point of the laser lines must still be on the point II.
• Mark the centre of the 45^ laser line at a distance of 5 m as point VII as near as possible next to the point I.
• The difference d of the two points VII and I is the actual deviation of the 0° laser line and the 45° laser line.

The measuring length 4 × 5 m = 20 m has a maximum admissible deviation of: 20 m × ± 0.4 mm/m^* = ± 8 mm .

Therefore, the maximum difference d between the points I and VII may be 8 mm or less.

* The value ±0.4 mm/m results from the angle accuracy ±0.2 mm/m plus a possible uncertainty of 0.2 mm/m while turning.

Working Advice

▶ Always position the measuring tool flat on the floor or fix it flat on the wall. In case of uneven positioning or fixing, the angle is smaller than 45^ and 90^ .
▶ Always use the centre of the laser line for marking. The width of the laser line changes with the distance.
▶ Never use the laser lines that the measuring tool standing on the floor projects on the wall for alignment. The measuring tool is not self-levelling. Therefore, the line on the wall is distorted.
The reference point for the alignment of tiles is the crossing point P of the laser lines directly in front of the measuring tool. In order to mark an angle, the measuring tool has to be turned at this crossing point, see figure F.
▶ Position the measuring tool only on a clean levelling plate 10. The measuring tool cannot stand level on an uneven, soiled levelling plate surface, which could lead to faulty measuring results.

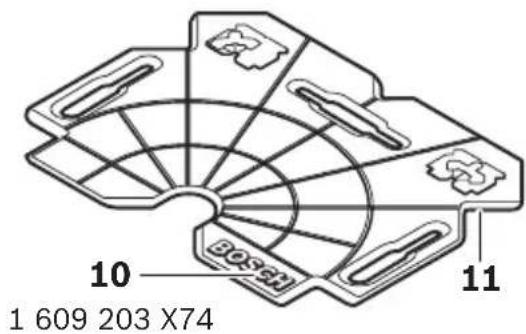

Working with the levelling plate (see figures D–E)

Using the levelling plate 10 you can position the measuring tool flat on an uneven or unstable floor.

The levelling plate 10 can also be used as a wall bracket for the measuring tool. Fix the levelling plate (securing it against slipping) on a wall or an inclined surface using e.g. standard screws. Use a level to fix the levelling plate flat on the surface.

Positioning of the measuring tool on the levelling plate: Position the measuring tool with the magnets 4 on the underside on the levelling plate 10. The line grid on the upper side of the levelling plate facilitates the precise positioning of the measuring tool. In order to mark 90° or 45° angles, position the levelling plate at a reference edge or a projection on a wall and position the measuring tool as illustrated on the upper side of the levelling plate.

Working with the laser target plate/ceiling measurement plate (see figure A)

The laser target plate 9 or the ceiling measurement plate 14 improves the visibility of the laser beam under unfavourable conditions and at longer distances.

The reflective part of the laser target plate 9 improves the visibility of the laser line. Thanks to the transparent part, the laser line is also visible from the back side of the laser target plate.

The ceiling measurement plate 14 (accessory) can also be used for marking the laser lines. Like the laser target plate, it has a reflective and a transparent part.

Laser Viewing Glasses (Accessory)

The laser viewing glasses filter out the ambient light. This makes the red light of the laser appear brighter for the eyes.

▶ Do not use the laser viewing glasses as safety goggles. The laser viewing glasses are used for improved visualisation of the laser beam, but they do not protect against laser radiation.
▶ Do not use the laser viewing glasses as sun glasses or in traffic. The laser viewing glasses do not afford complete UV protection and reduce colour perception.

Work Examples

Checking right angles (see figure A)

Position the measuring tool in one corner of the room and position it so that the 0^ laser line runs parallel to the reference line (e.g. wall). Measure the distance between the laser line and the reference line directly at the measuring tool and at the longest possible distance from the measuring tool. Align the measuring tool so that both distances are identical.

Then measure at at least two different points the distances between the 90^ laser line and the wall. If the distances to the 90^ laser line are identical, the walls are at the right angle.

Laying of square tiles (see figure B)

Position the measuring tool in one corner so that the 0^ laser line runs parallel to one wall. Lay the first square tile at the crossing point of the 0^ and the 90^ laser lines.

Laying with diagonal pattern (see figure C)

Position the measuring tool so that the 45^ laser line marks the diagonal tile joint.

Tile laying in kitchenettes (see figure D)

Firstly determine the height at which the first tile row begins. Fix the measuring tool with the levelling plate 10 vertically on the wall so that the 90^ laser line marks the lower edge of the first tile row.

Laying from edges (see figure E)

Position the measuring tool on the levelling plate 10 at the edge so that a lateral cut-out 11 of the levelling plate is directly at the edge. The 0° laser line should run parallel to one edge. The 90° laser line now marks the lower tile row.

Maintenance and Service

Maintenance and Cleaning

Store and transport the measuring tool only in the supplied protective case.

Keep the measuring tool clean at all times.

Do not immerse the measuring tool into water or other fluids.

Wipe off debris using a moist and soft cloth. Do not use any cleaning agents or solvents.

Regularly clean the surfaces at the exit opening of the laser in particular, and pay attention to any fluff of fibres.

If the measuring tool should fail despite the care taken in manufacturing and testing procedures, repair should be carried out by an authorized after-sales service centre for Bosch power tools.

In all correspondence and spare parts or- ders, please always include the 10-digit arti- cle number given on the type plate of the measuring tool.

In case of repairs, send in the measuring tool packed in its protective case 12.

After-sales Service and Customer Assistance

Our after-sales service responds to your questions concerning maintenance and repair of your product as well as spare parts. Exploded views and information on spare parts can also be found under:

www.bosch-pt.com

Our customer consultants answer your questions concerning best buy, application and adjustment of products and accessories.
